10 hours ago, Admin said:

Thanks Irg, but I published this antenna before...!!!

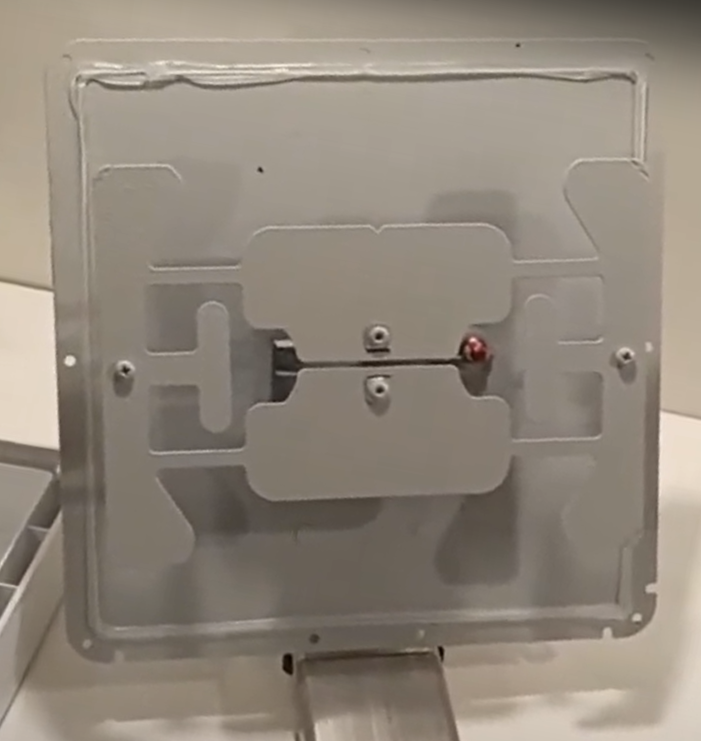

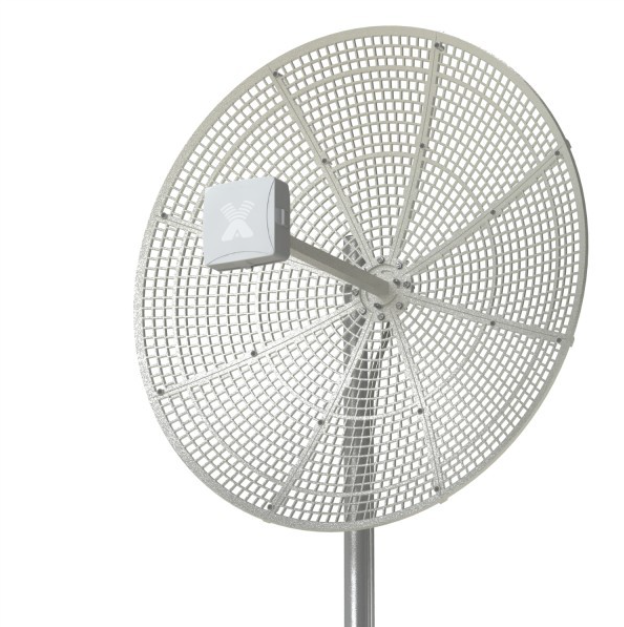

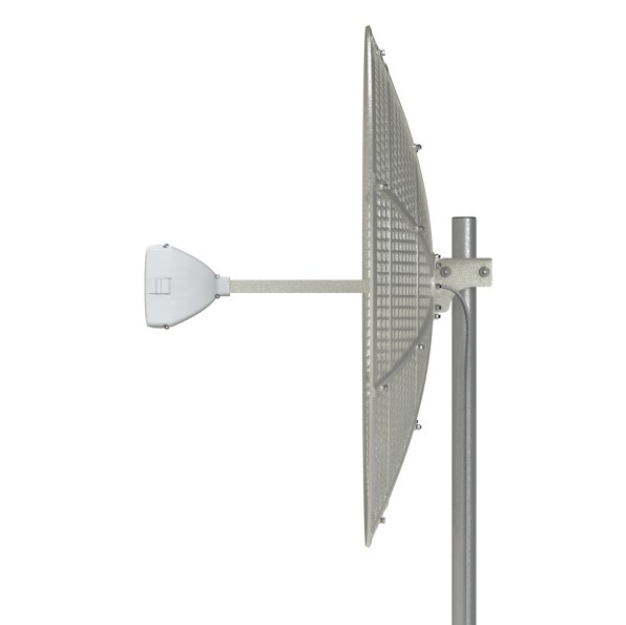

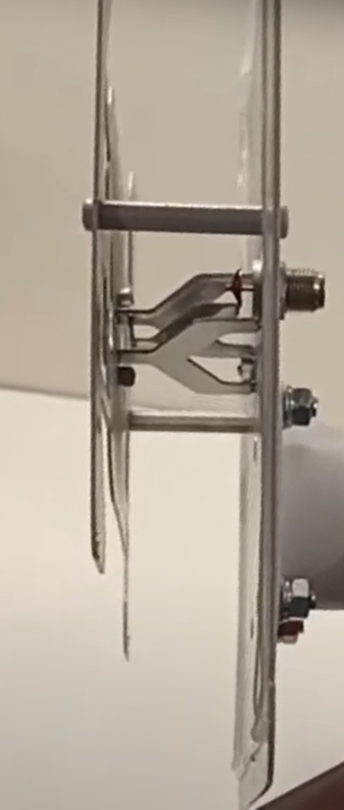

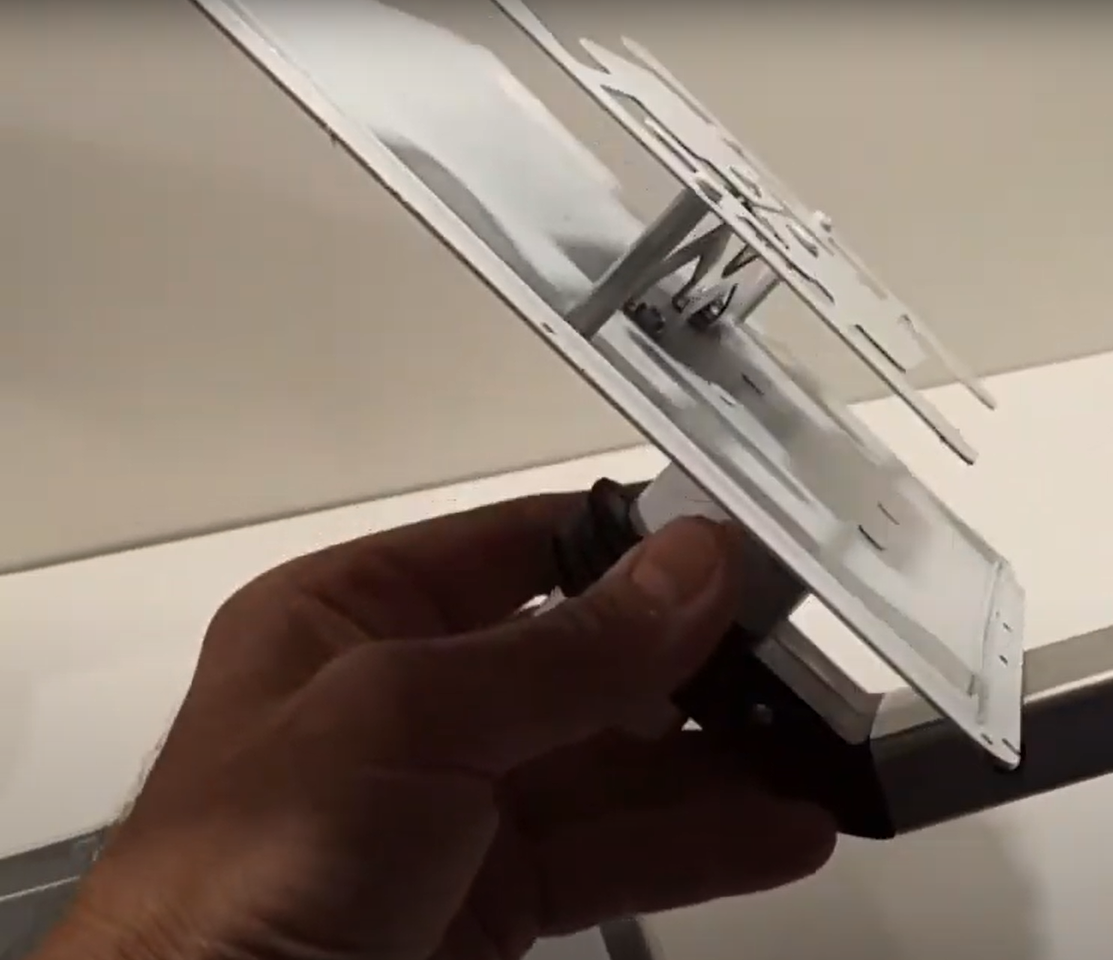

This is a feed for an offset dish.

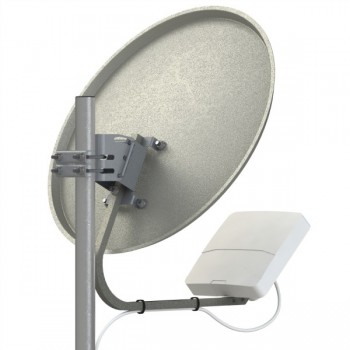

The Nitsa-2F universal antenna is designed for use with cellular phones, modems or repeaters of the GSM900/GSM1800/UMTS900/UMTS2100 standards. The antenna type is a two-resonant vibrator with jet loops above the screen. To connect the Nitsa-2F antenna, we recommend using a cable Assembly (75 Ohm)

Operating frequency range, MHz 890-960/1700-2200

Gain, dBi 9 / 9÷11

Bottom width in the H-plane, deg 70/50

Bottom width in the E-plane, deg 70/53

Input resistance, Ohms 50
SWR in the operating frequency range, no more than 1,5

Permissible power, W 20

Polarization vertical

Mechanical characteristics

Weight with mounting, g 835

Overall dimensions, m 0,2х0,2х0,045

Connector N-female
The material of the radiator galvanized steel

Protective box material ABS+polycarbonate

13 минут назад, Администратор сказал:

Irg, вы можете поместить выше изображения под спойлер ... ???

Который?

5 минут назад, Администратор сказал:

,,, YouTube ... ??

Нет. "Зенит"

На 21.08.2020 в 10:52 вечера, Администратор сказал:

Irg, откуда вы получите деталь антенны ... ???

19 часов назад, Администратор сказал:

Ирг, у вас есть размеры этой антенны ... ???

увы нет

Electrical characteristics of the Magnita-1 antenna
Operating frequency range, MHz 790-960/1700÷2700

Gain factor (excluding cable losses when placing the antenna on the roof of the car), dBi 2÷4 / 6.0÷7.0

Gain factor (excluding cable losses when placing the antenna in free space), dBi 2,0÷3.0

Bottom width in the H-plane, deg 360

Bottom width in the E-plane at the level of -3 dB 15÷45

Angle of the main maximum position of the directional diagram when placing the antenna on the roof of the car, degrees 5÷25

Input resistance, Ohms 50

SWR in the operating frequency range, no more than 1,6

Permissible power, W 10

Polarization vertical

Mechanical characteristics of the Magnita-1 antenna

Weight with cable, g 240

Overall dimensions without cable, m 0.10 x 0.10 x 0.08

Attraction force of the magnetic system (at the thickness of the metal roof of the atomobile-0.7 mm), N  50÷55

Connector SMA-male / on-demand

The material of the radiator tinned tinplate
Casing material ABS + polycarbonate

Antenna Anteks Vika-24F MIMO

General information

Panel antenna Vika-24F MIMO is intended for use in complete equipment of wireless data transmission systems standards:

4G (LTE1800, LTE2600) 3G (UMTS 2100) 2G (GSM1800) WI-FI (IEEE 802.11 b, g, n)

Electrical characteristics

Operating frequency range, MHz 1700÷2700

Gain, dBi 2 x 21÷24

Width days, hail 8÷14

The sidelobe level, dB <-18

The ratio of forward/reverse, dB>20

Input impedance, Ohm 75

The CWS in the range of 3G/4G/WIFI, not more than 1.9

Isolation between ports, dB, More than 25÷30

Power handling, watts 10

Polarization Vertical + horizontal X-pol

Mechanical antenna characteristics

Weight with mount, g

Overall dimensions, mm 800 x 800 x 540

Connectors 2 x F-female

Antenna material Galvanized steel, aluminum

The protective box material ABS+polycarbonate

Operating temperature range -40 .... +60°C

Standards support ?????GSM900(2G), GSM1800(2G), UMTS900(3G), UMTS2100(3G), LTE800(4G), LTE850(4G), LTE1800(4G), LTE2600(4G)

Type ispolnennaya parabolic

Operating frequency range 1700 — 2700 MHz

Gain 24dB

Gain range,21-24 dB

Connectors for ??????F-female

Operating temperature range -40 .... +60°C

Material galvanized sheet, steel, aluminum

Material of protective polycarbonate

Dimensions (length, width, height) 800 × 800 × 540 mm

Weight 4760 g

Equipment Antenna Vika-MIMO 24 in the exploded view, the attachment point on the mast, installation instructions, packaging (carton+polyethylene)

Manufacturer Antex

Да, из этого видео

Yes, from this video

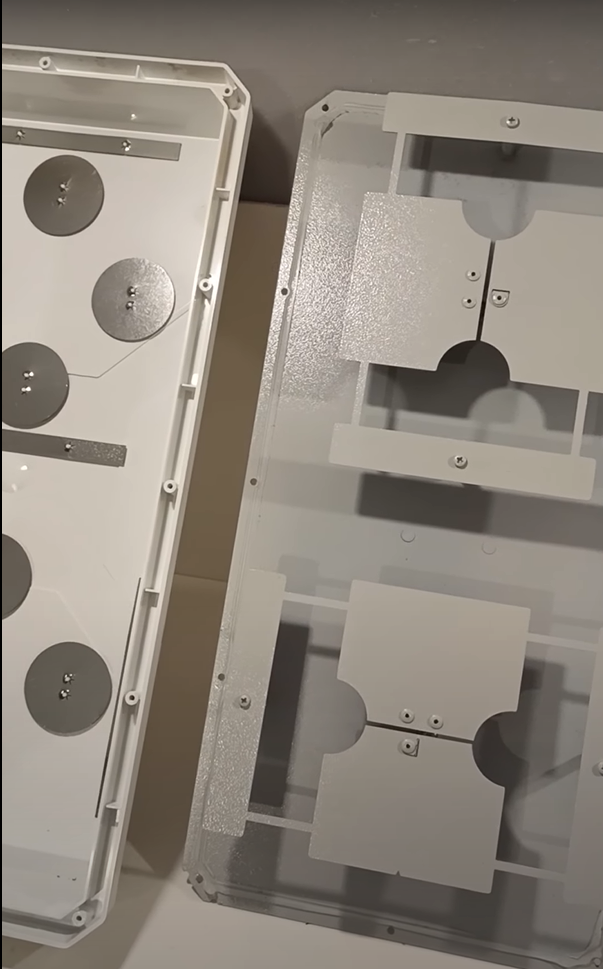

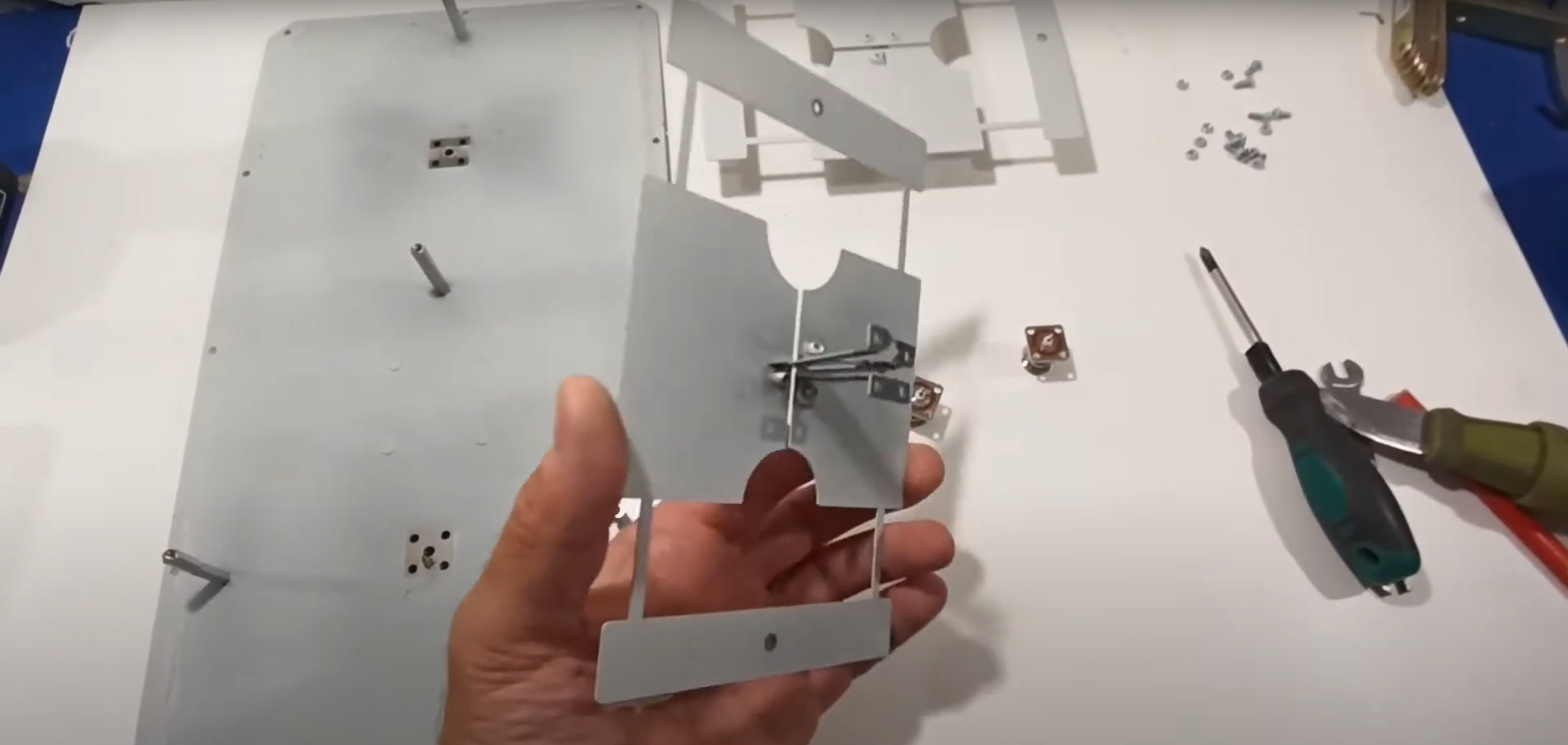

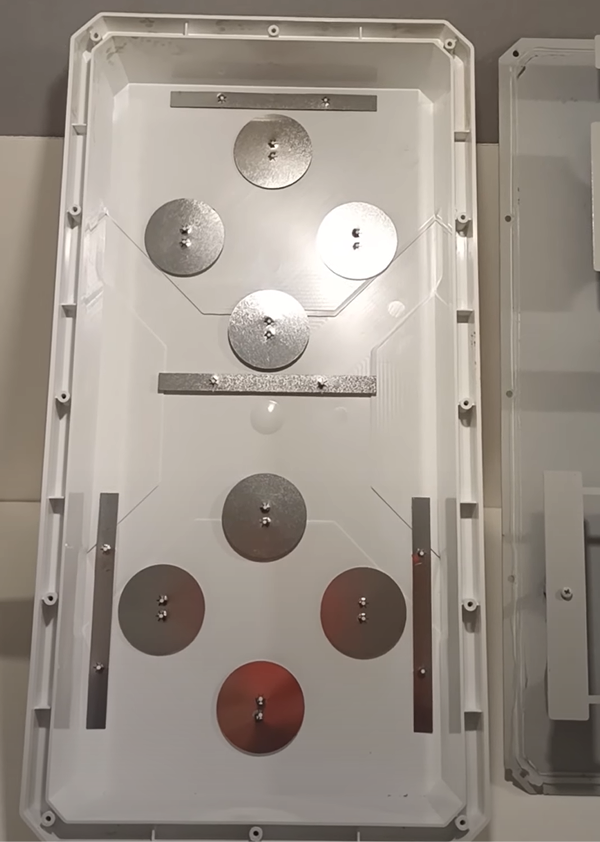

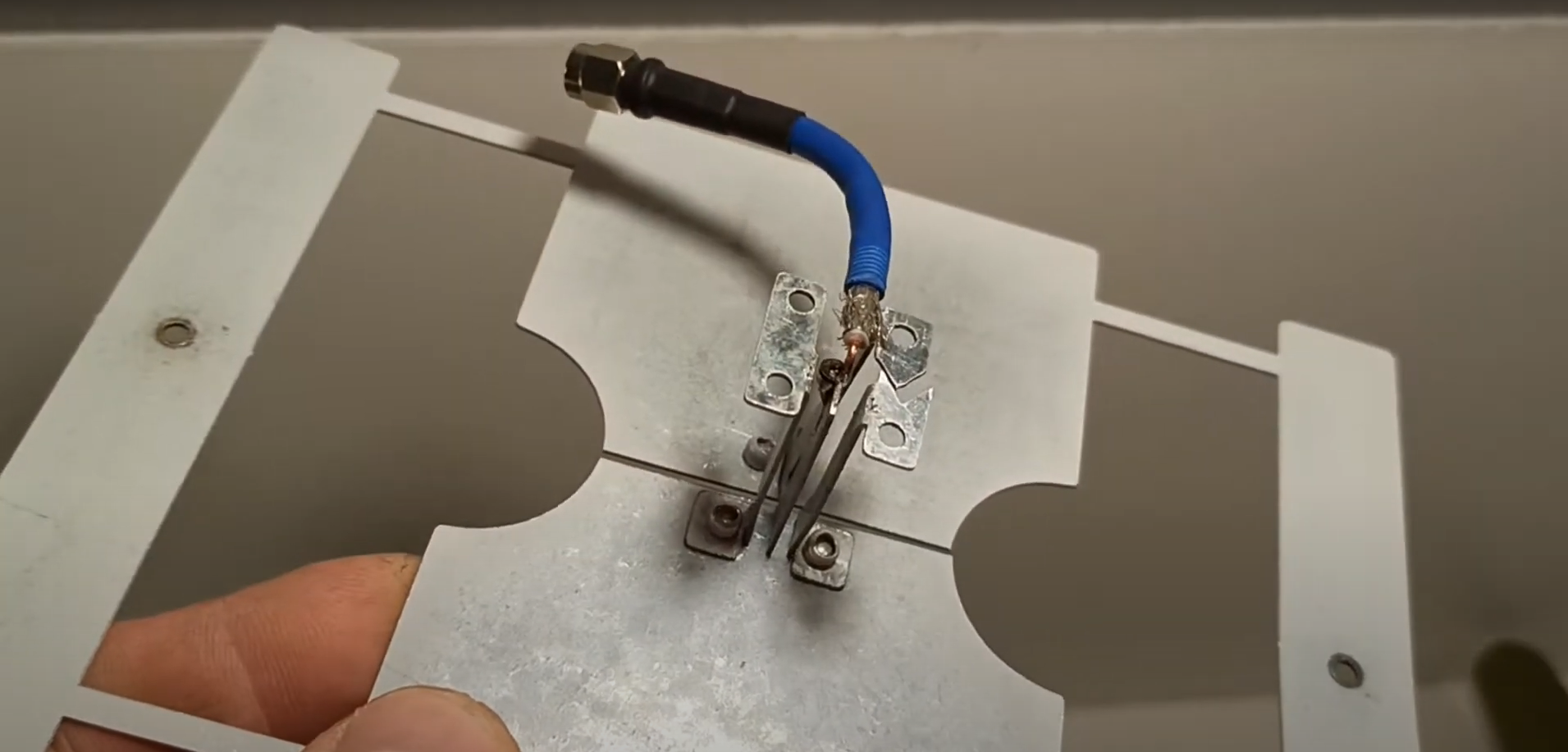

Panel antenna MONA Unibox PRO with sealed box 3G/4G USB modem is the ready solution for signal amplification LTE800/GSM900/GSM1800/UMTS900/UMTS2100/WIFI2400/LTE2600.

   Electrical characteristics

Operating frequency range, MHz790÷960/1700÷2700

Gain, dBi 8÷9/10÷15

Width of DN in the horizontal plane, deg 27÷68

Days width, in vertical plane, deg 26÷68

The ratio of forward/back, dB13÷20

The sidelobe level, dB<-13

Input impedance, Ohm50

SWR in the frequency range, not more1,8

Permissible power watts10

Polarization vertical+horizontal or X-pol

    Mechanical characteristics

Weight with mount, g 2300

Overall dimensions, m 0,3x0,3x0,165

Internal dimensions sealed box, mm not less than 210x160x65Connectors

2 x SMA-male, USB, SIM

Mthe material of the antennasteel, galvanized steel

Material of protective box ABS+polycarbonate

Working temperatures IP67

Mona_Unibox_Pro.pdf

Budget universal antenna Petra Lite Box c the dustproof and splashproof housing for 3G/4G USB modem. CRC9 connectors. F=1700-2700 MHz. GAIN=9dBi. Polarization X-pol. Standards: LTE-A, LTE1800, LTE2600, UMTS2100, WIFI.

38 minutes ago, chilanzar2 said:

on the irradiator Antex is used 6mm. I use 4.7 mm. other I have no...I buy on aliexpress

It is clear you used computer racks on which the motherboard is installed.

On 7/28/2018 at 6:12 AM, chilanzar2 said:

тольщина патчей - 0.7мм.

Но, мне не нравится этот облучатель. Я ищу 1700-2200 MIMO

Подскажите толщину стоек. Я нашлол от приборов.чтобы меньше их переделывать. Нет поблизости токаря.

Tell me the thickness of the racks. I found it from devices. To reduce them less. There is no nearby turner.

Tell me the thickness of the racks. I have these.they probably will be able to come up with some small alterations.there's no lathe in the vicinity.:-)
