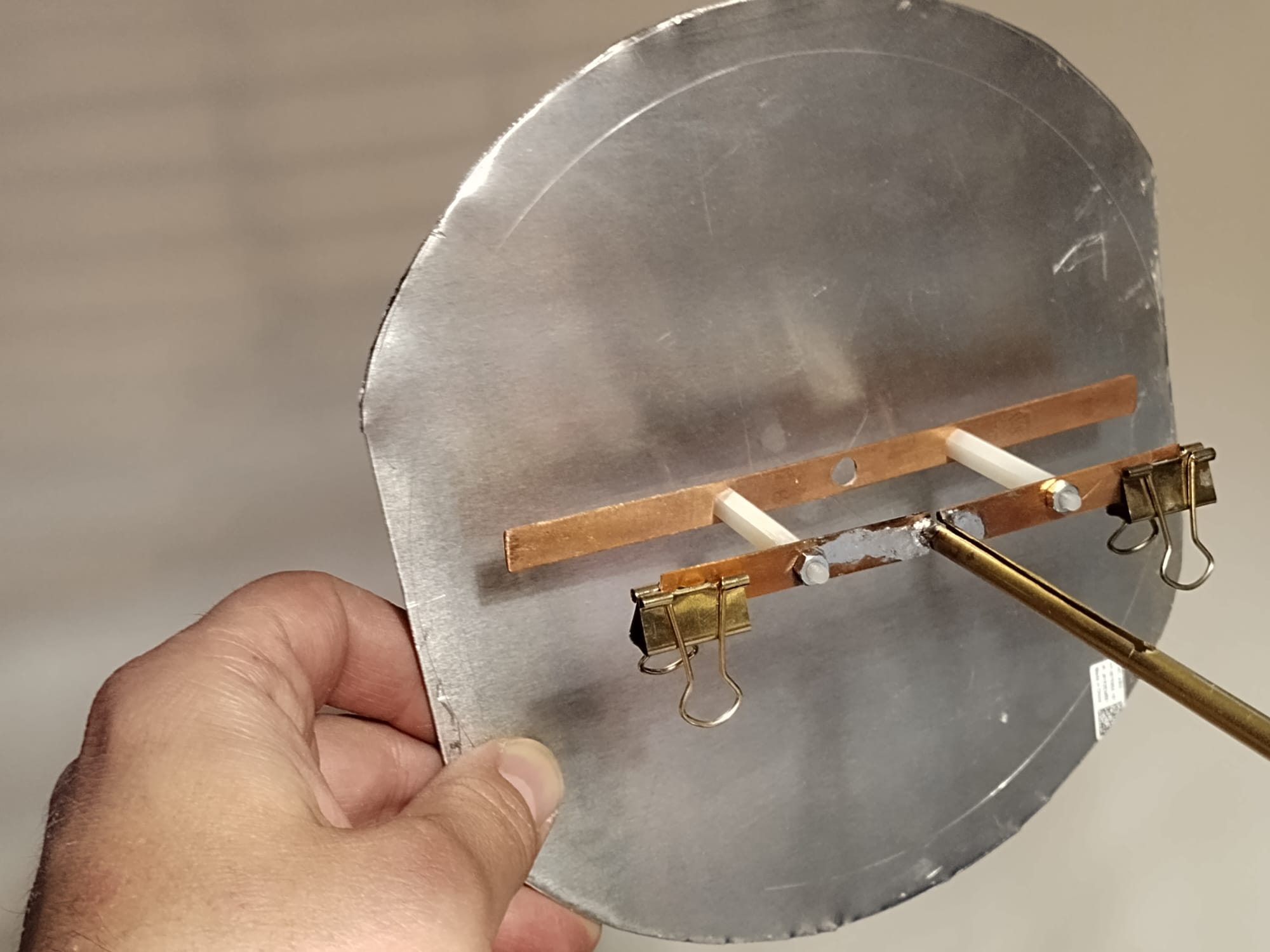

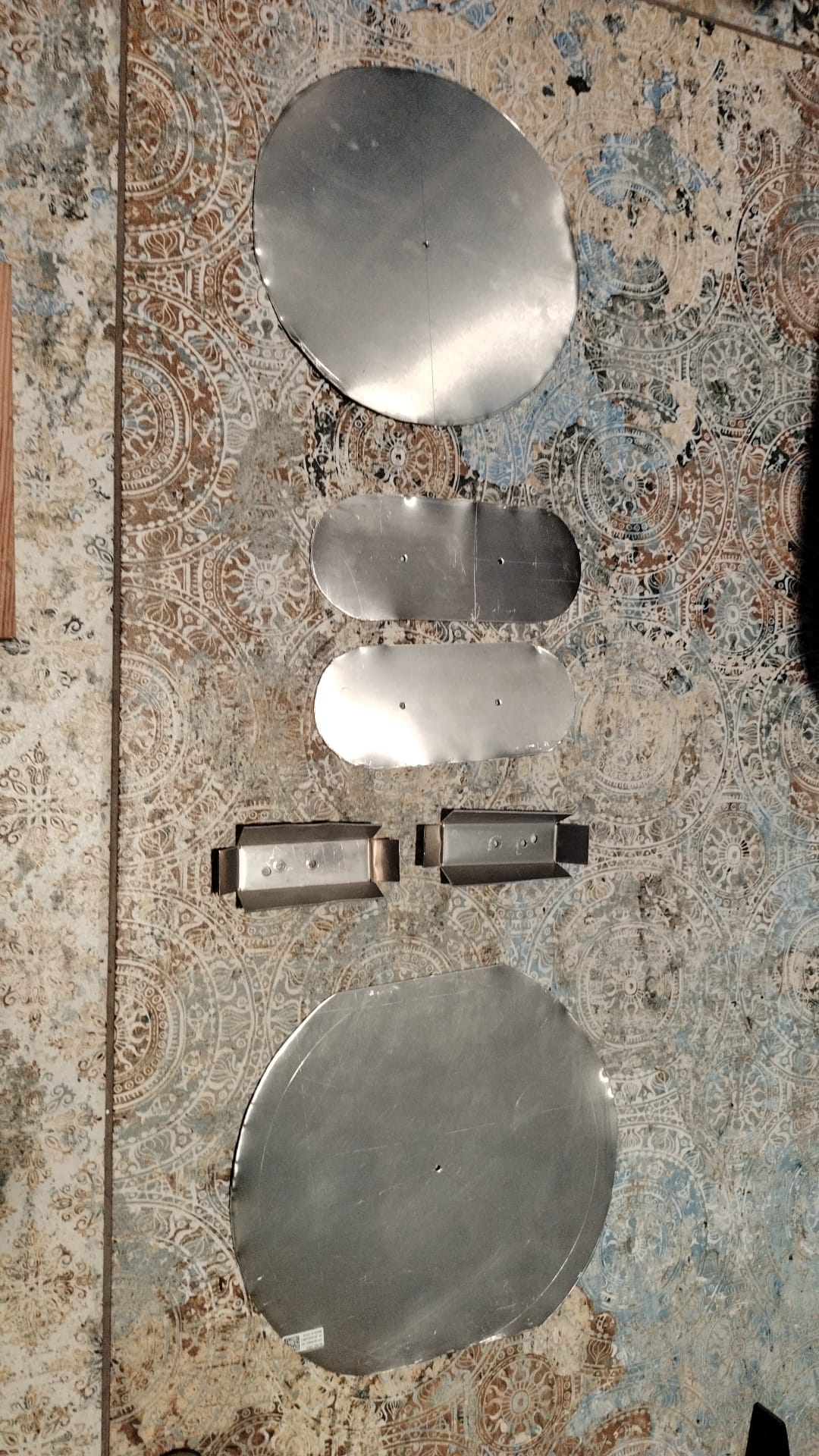

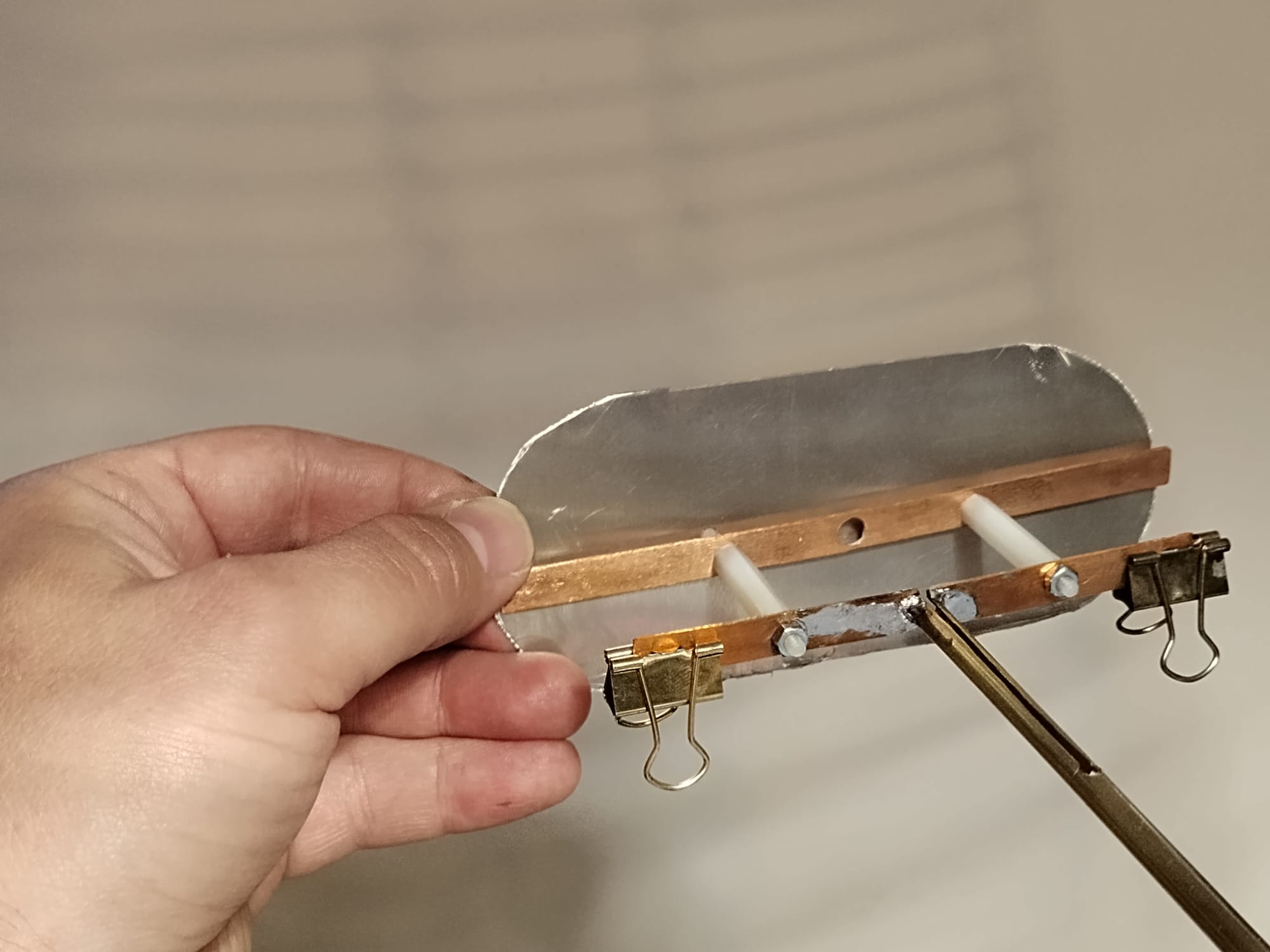

Simple Dipole Antenna

67 posts in this topic

I have two same grids, lets fin out how it will be in thi  combination (simple ilustration):

(simulation without optymalization shows inceasing gain from 17.2dBi to 19.6dBi)

double grid.jpg

1 person likes this

Share this post


Link to post
Share on other sites

,,,where did you get this from? - such a thing is not possible...???!!!

1 person likes this

Share this post


Link to post
Share on other sites
1 hour ago, Admin said:

such a thing is not possible...???!!!

That's what my fellow senior radio amateurs tell to me :)



1 person likes this

Share this post


Link to post
Share on other sites

Measured very roughly, when the dimensions of the system are accurately measured the results will be different

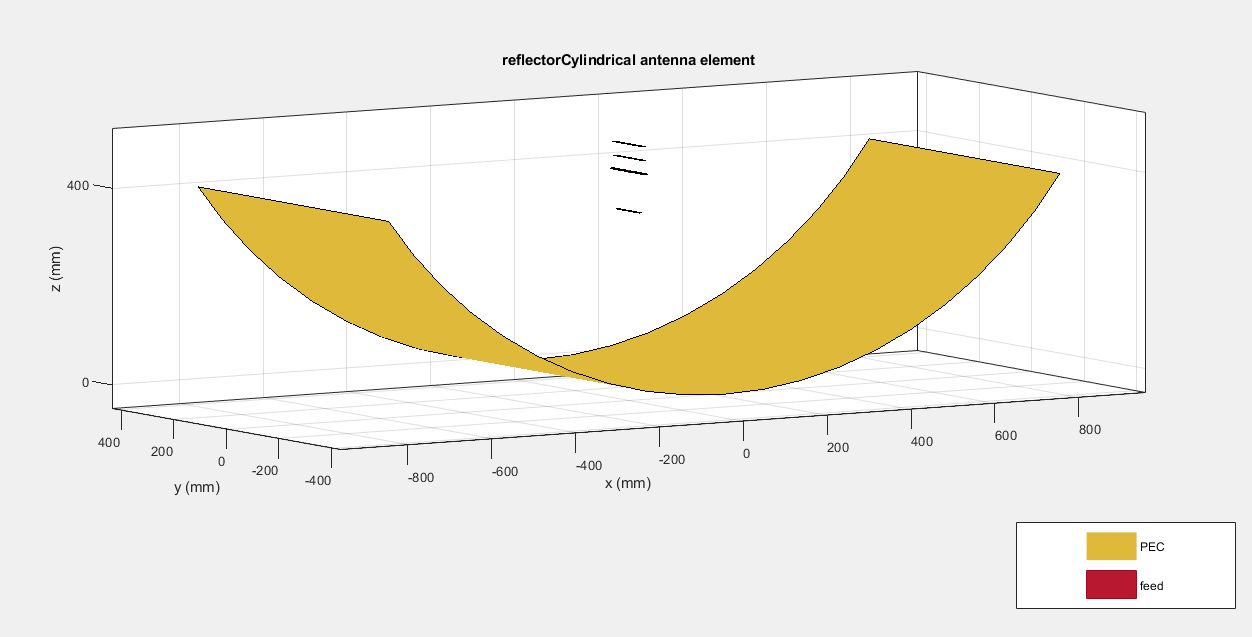

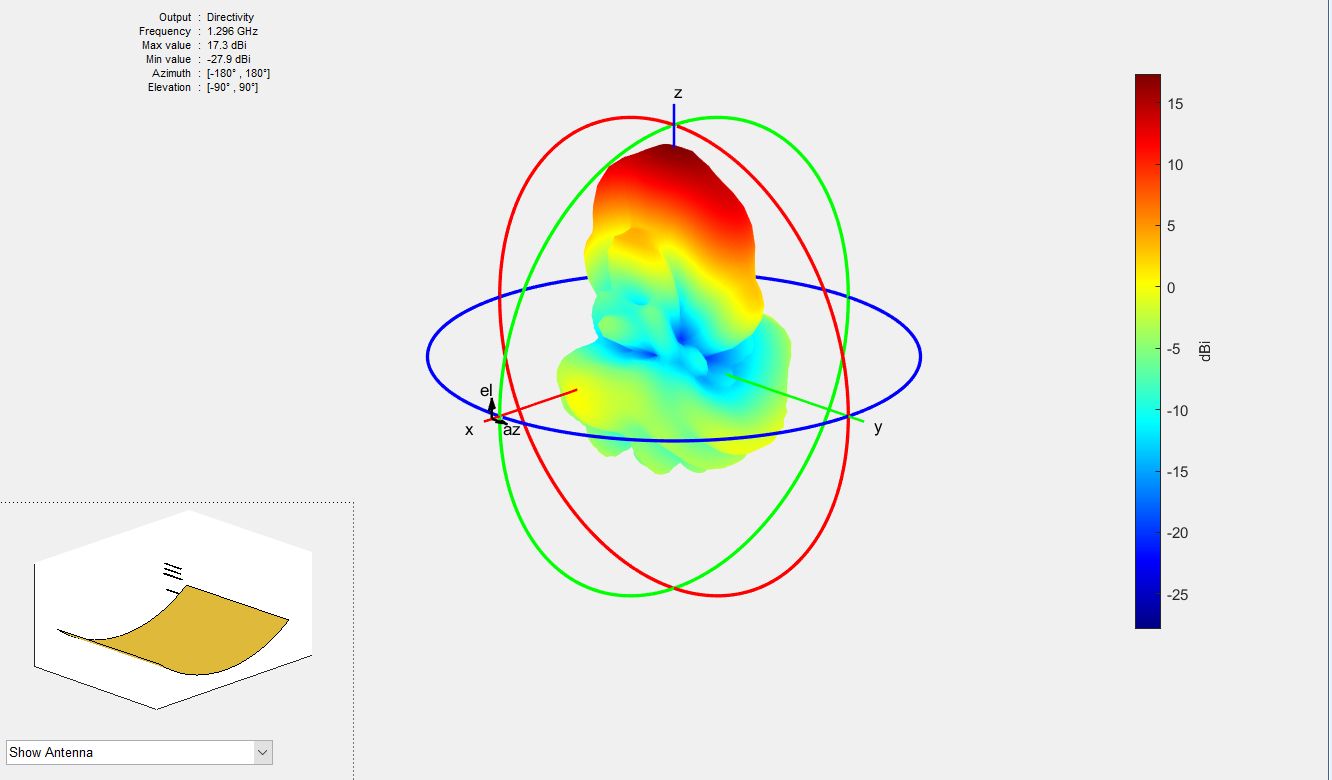

Thats the basic grid - 17.3 dBi

grid - simple.jpg



That's double grid: 19.8dBi

double grid A.jpg

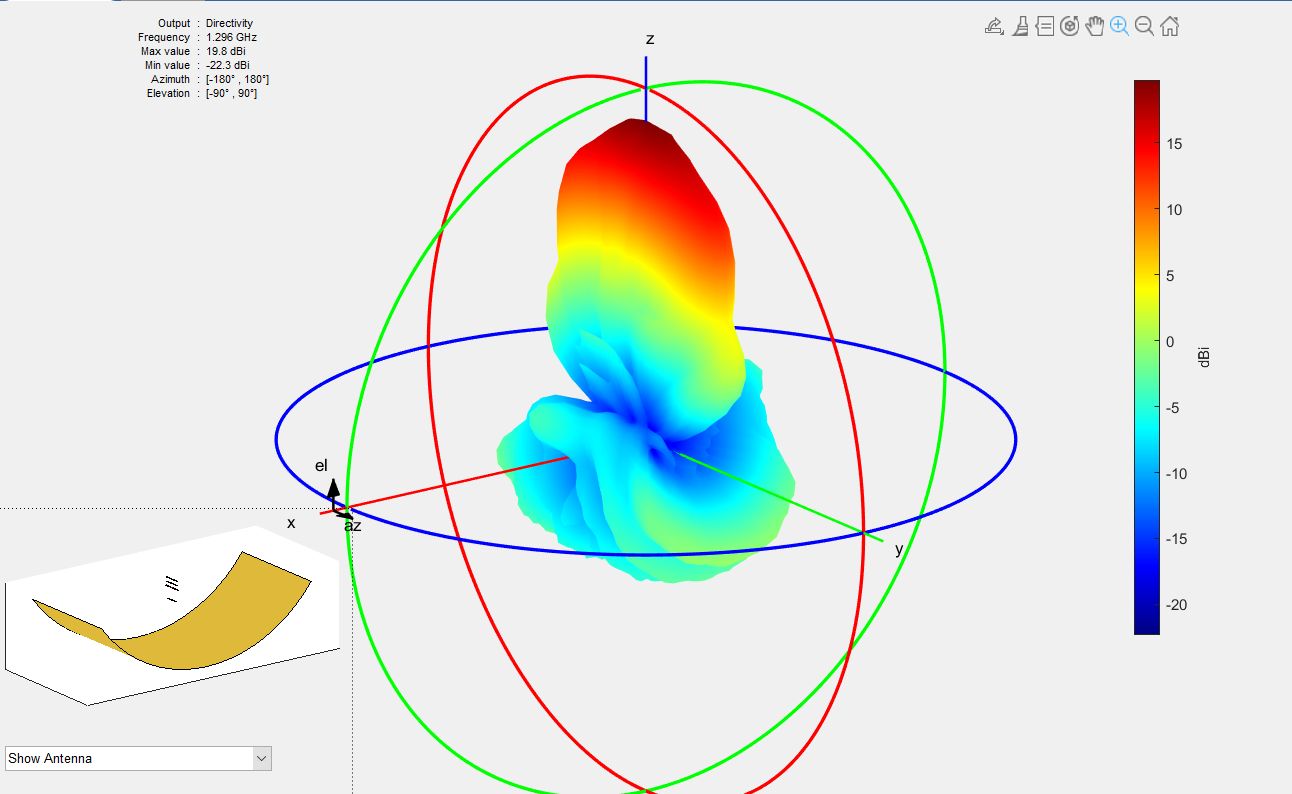

double grid A_patern.jpg



option B -  it does not work: 16.9dBi

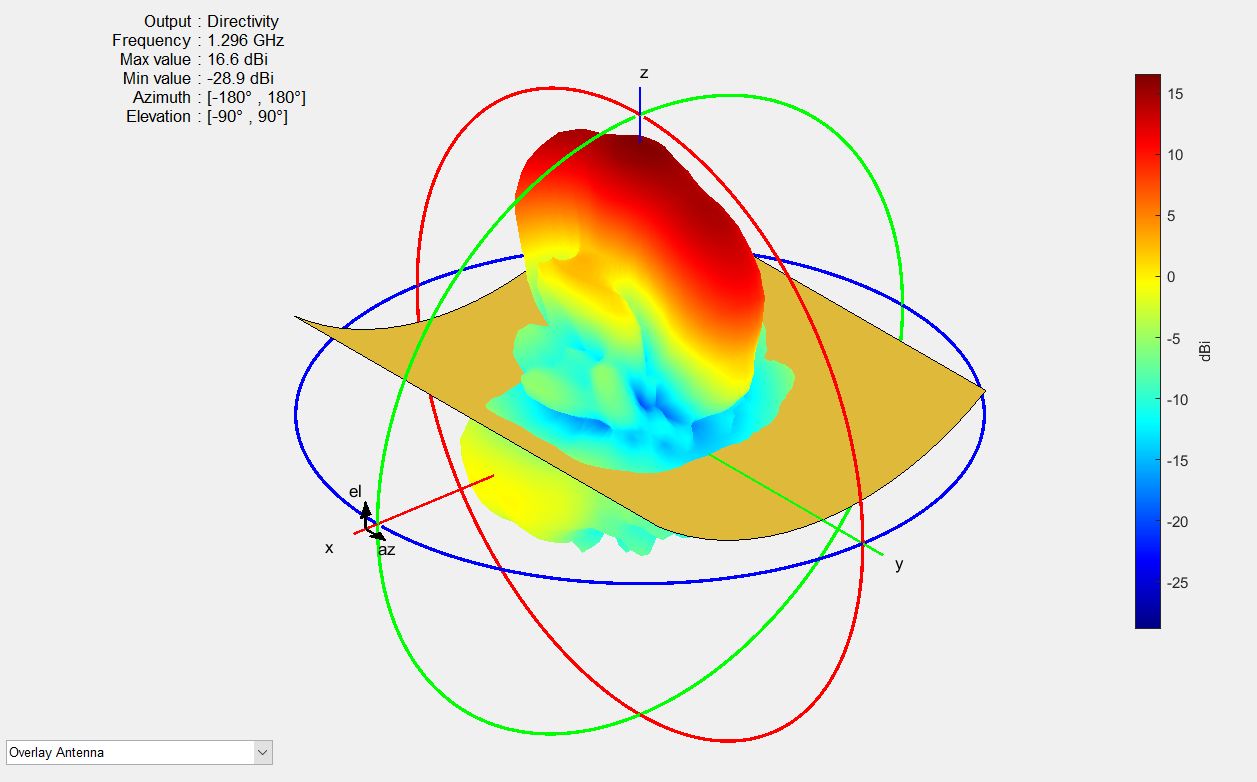

duble grid B - does not work.jpg



conclusion: doubling the reflector area gives ~~~~ 2.5dBi or more of the gain.



I will show real pictures later, will be mechanically difficult.

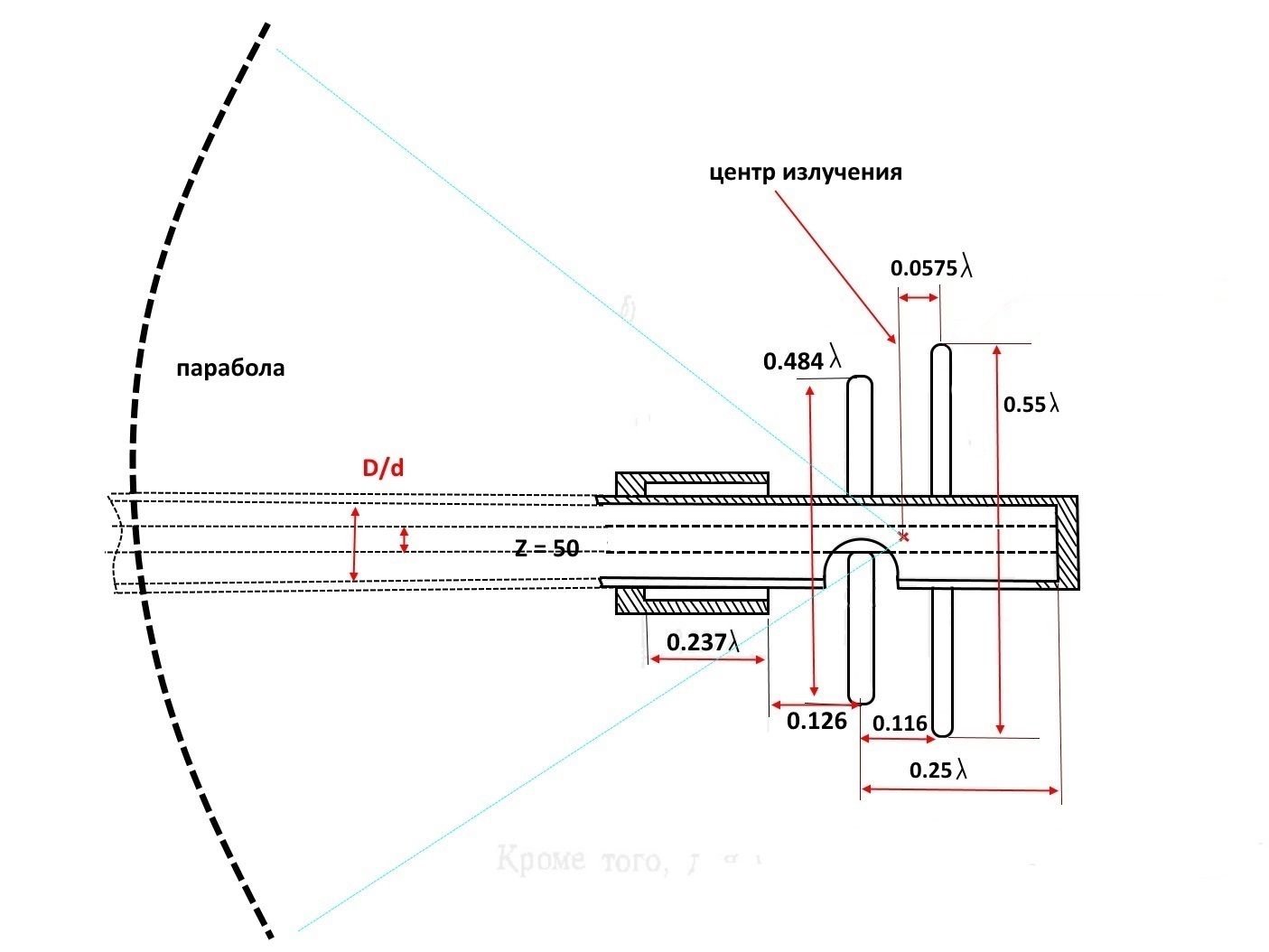

I think I can get a few dB more by improving the feed.

Edited by eco32

Share this post


Link to post
Share on other sites

,,,this is a bit stupid..!!
,,,you'd better use a parabolic offset...!!!

Share this post


Link to post
Share on other sites
9 minutes ago, Admin said:

,,,this is a bit stupid..!!


This requires an explanation as to why you think it is stupid.



11 minutes ago, Admin said:

,,,you'd better use a parabolic offset...!!!

Of course not, such a grid reflector is best for dipole feed that have parabolas smaller than 10xlambda

BTW, it is prototypingc, parabolic offset will be consider in other project. Here we consider the "siple dipole" feed and exploration, what we can do. @Admin do you agree with me?









Share this post


Link to post
Share on other sites

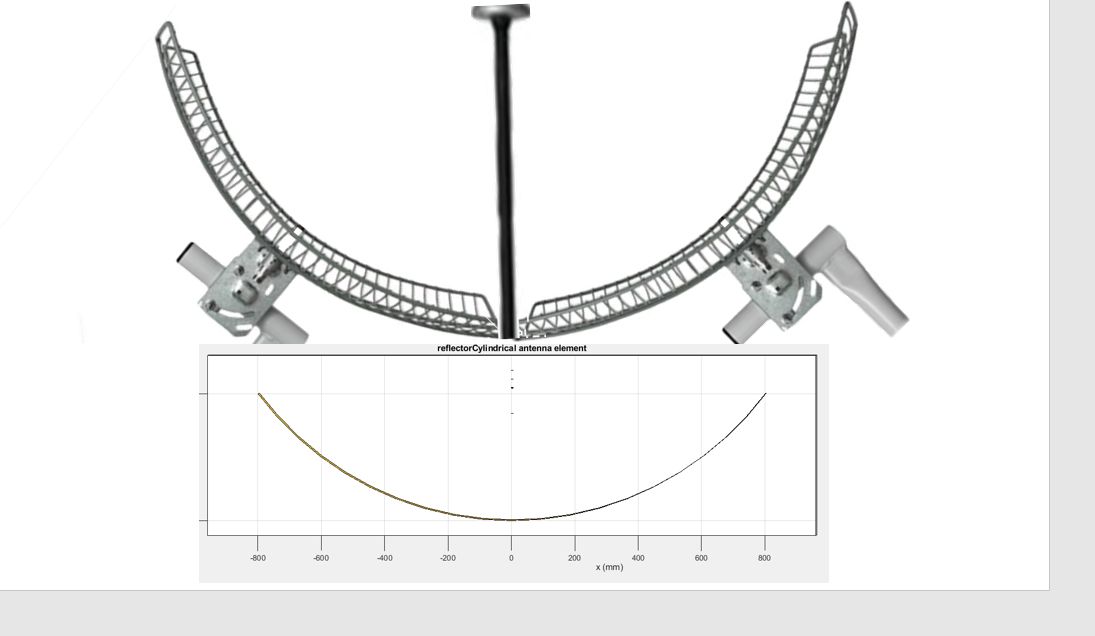

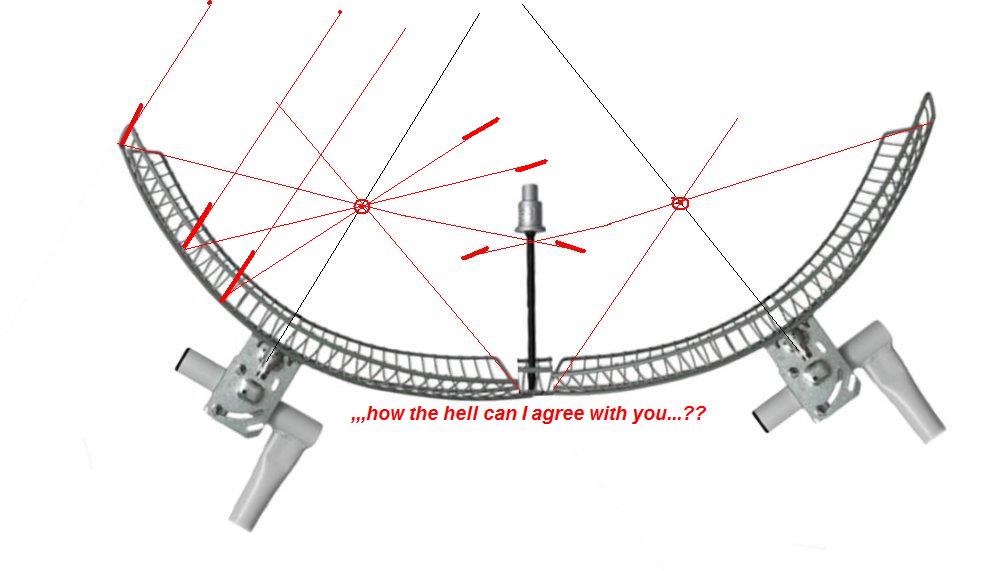

It was concept picture,  it has one focal point

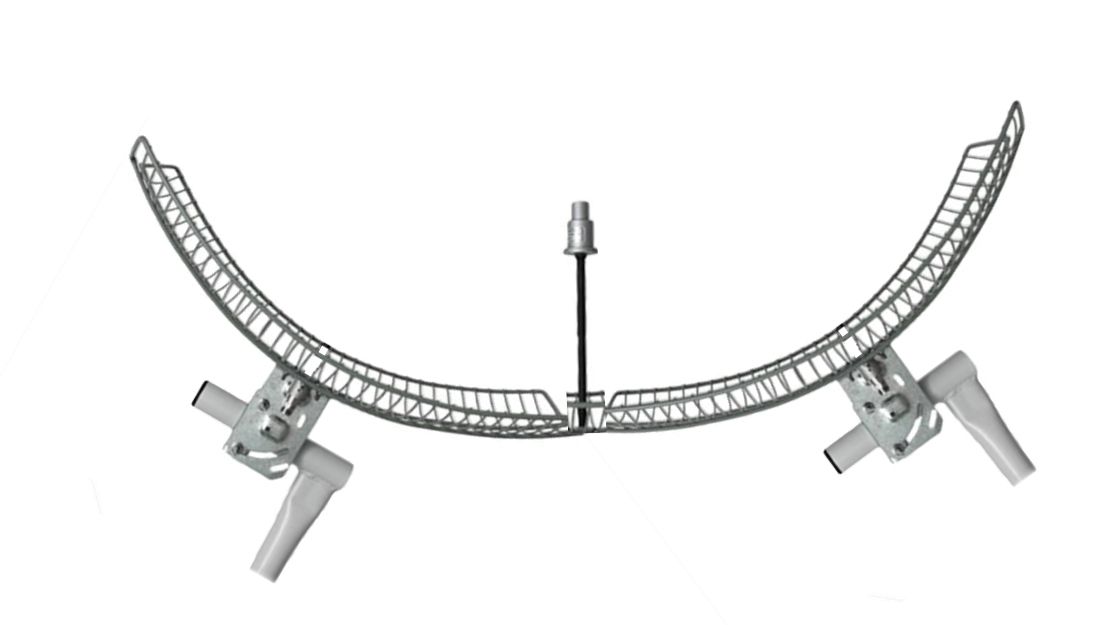

dual-grid 2.jpg

Share this post


Link to post
Share on other sites

conclusion from simulations and from experiment:

shape is ok, gemetry is wrong!

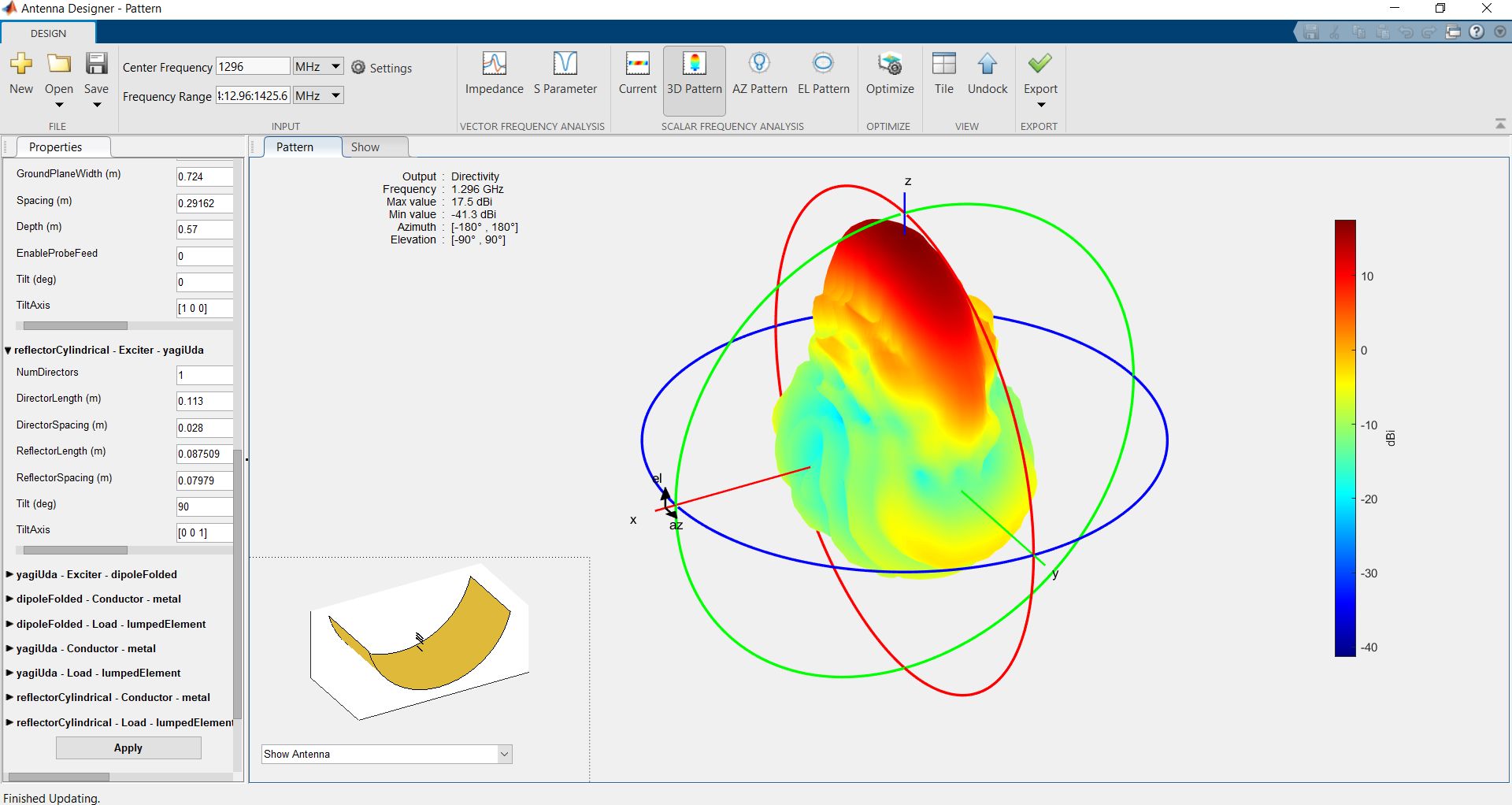

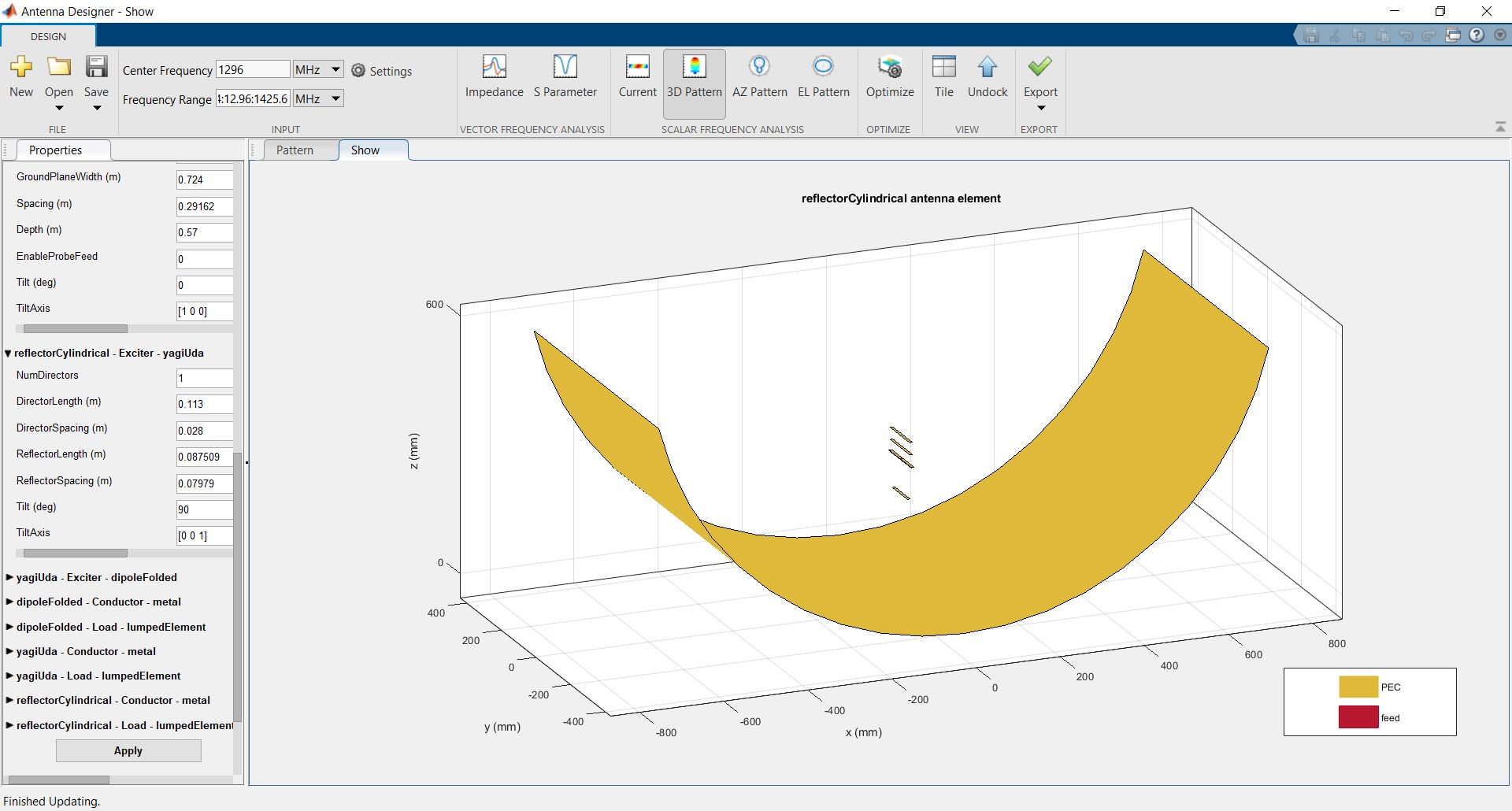

diuble grid C a.jpg

double grid C.jpg



Why?

The ratio of focal length to aperture size (ie., f/D) known as “f over D ratio” is an important parameter of parabolic reflector. Its value varies from 0.25 to 0.50.  calculator: https://satlex.de/en/fdratio-params.html?diam=90&depth=15

in my case is  f/D = 0.16 => Geometry is wrong - may it be that with other type of feed will be more profitable. Any parabolic antenna larger than 120cm is horrendously expensive, building big grid antennas is reasonable.

Example from Czech Republic: https://www.ok2kkw.com/wsjt2006/23cm2008.htm also for Earth–Moon–Earth communication (EME).

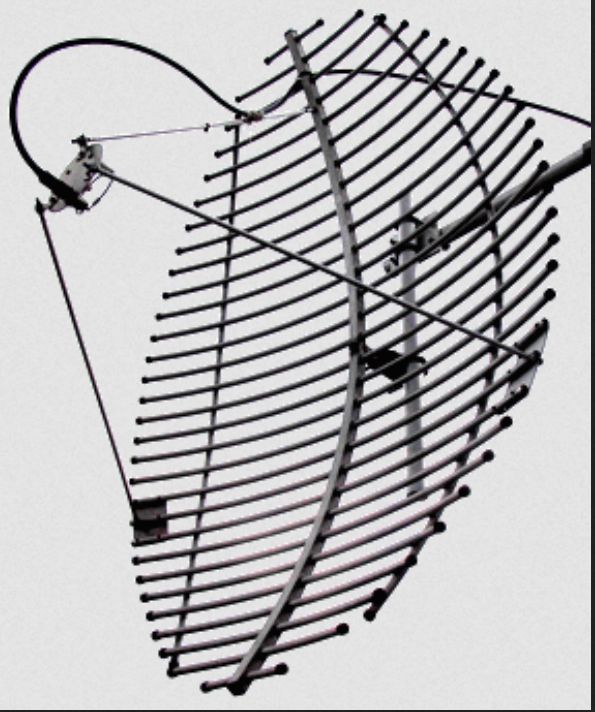

120cm grid.jpg







Grid vs double grid with siple dipole fed without small  reflector as case  above 13.5dBi VS 17dBi

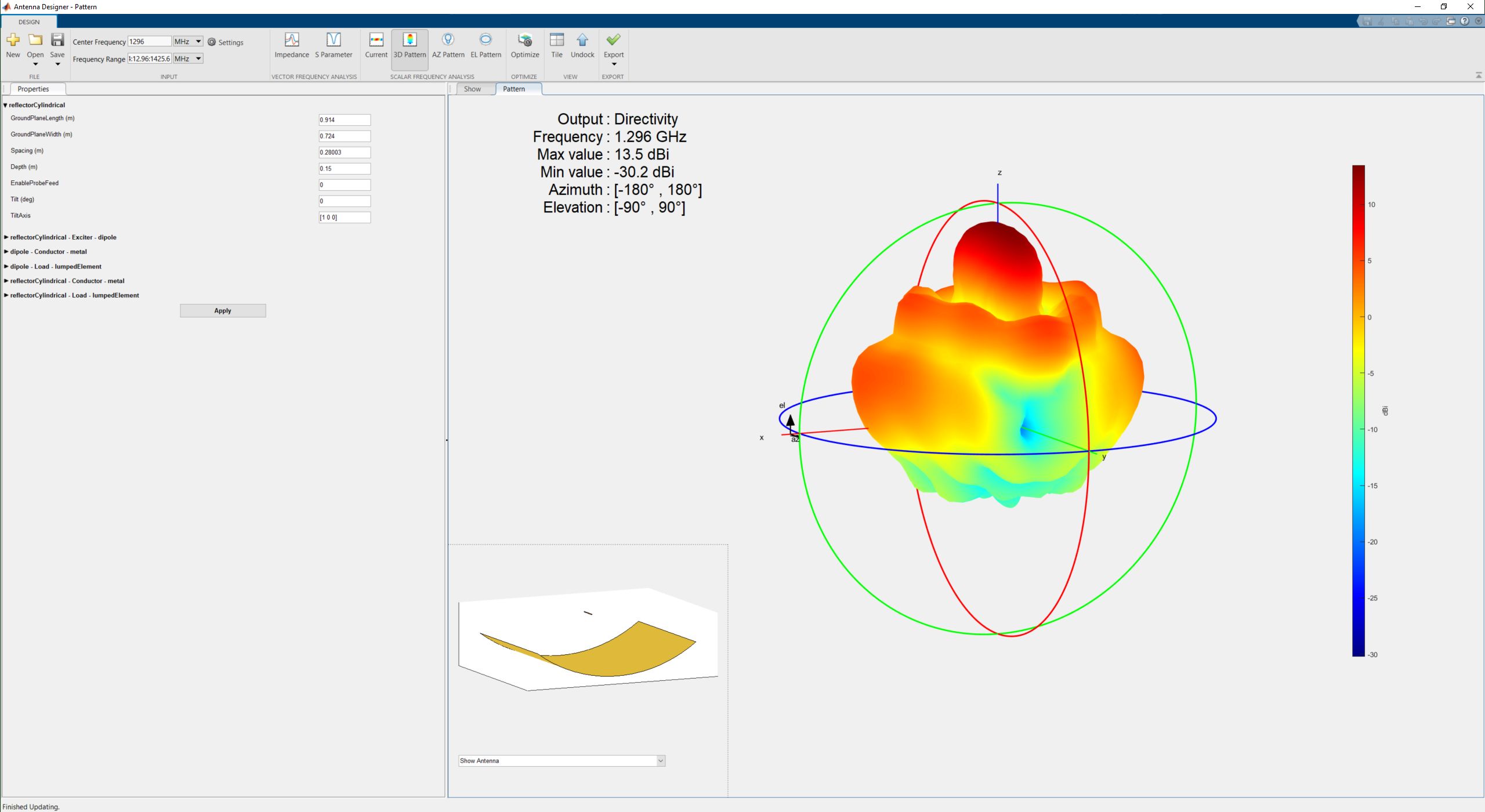

one grid with simple dipole 13.5DBi.jpg

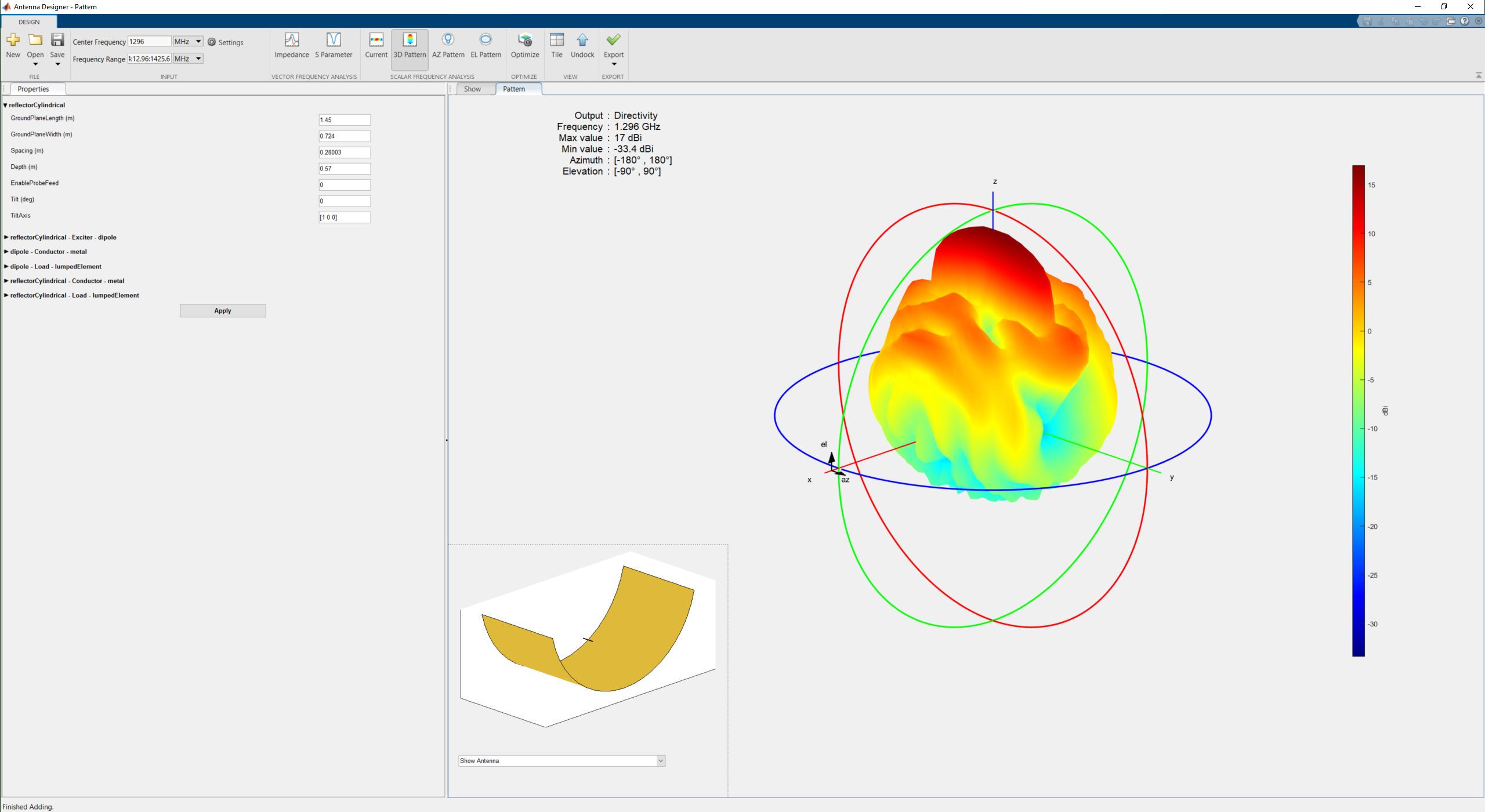

double gdid - siple dipole 17dBi.jpg





I DID IT, AND YOU DONT HAVE TO!





1 person likes this

Share this post


Link to post
Share on other sites

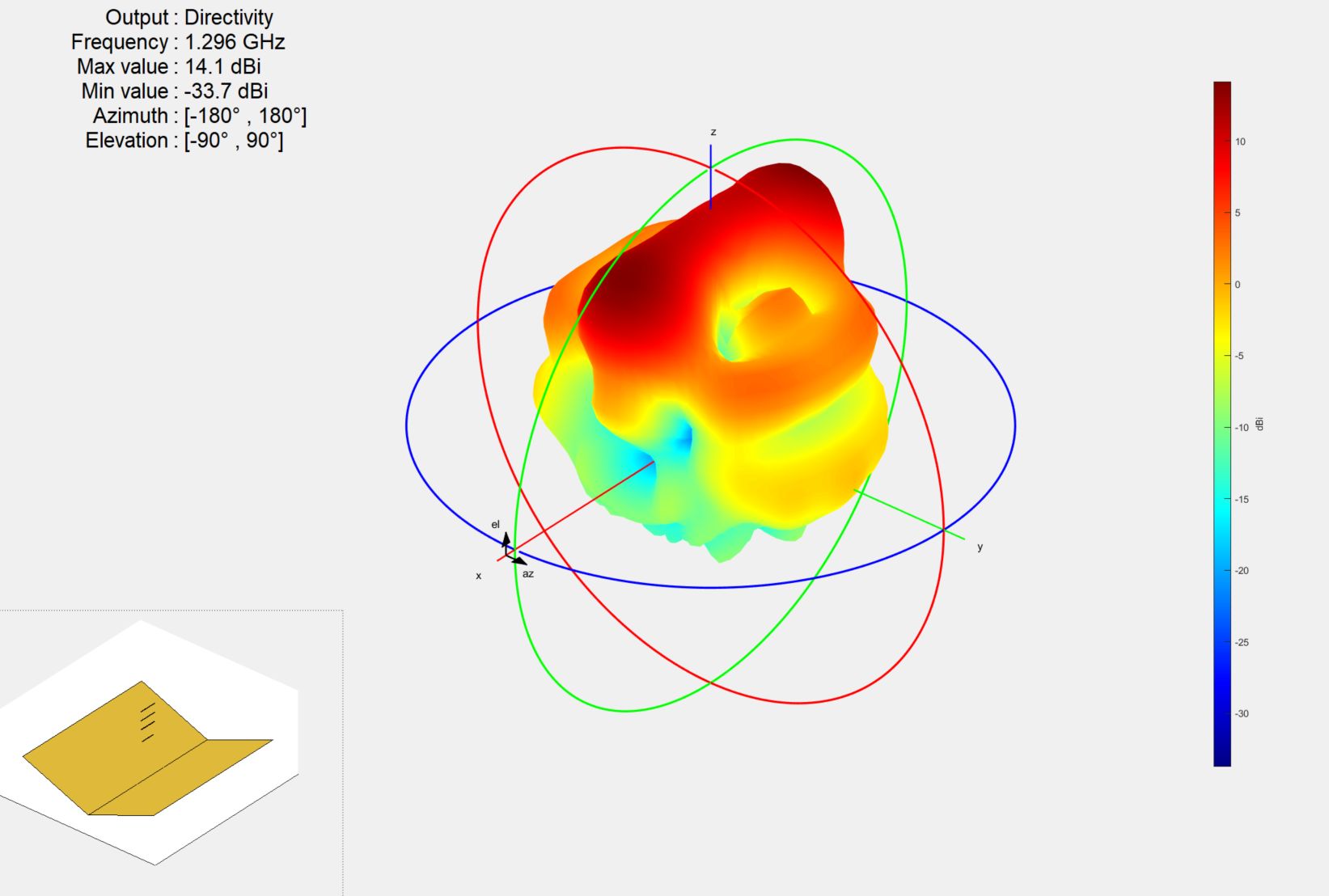

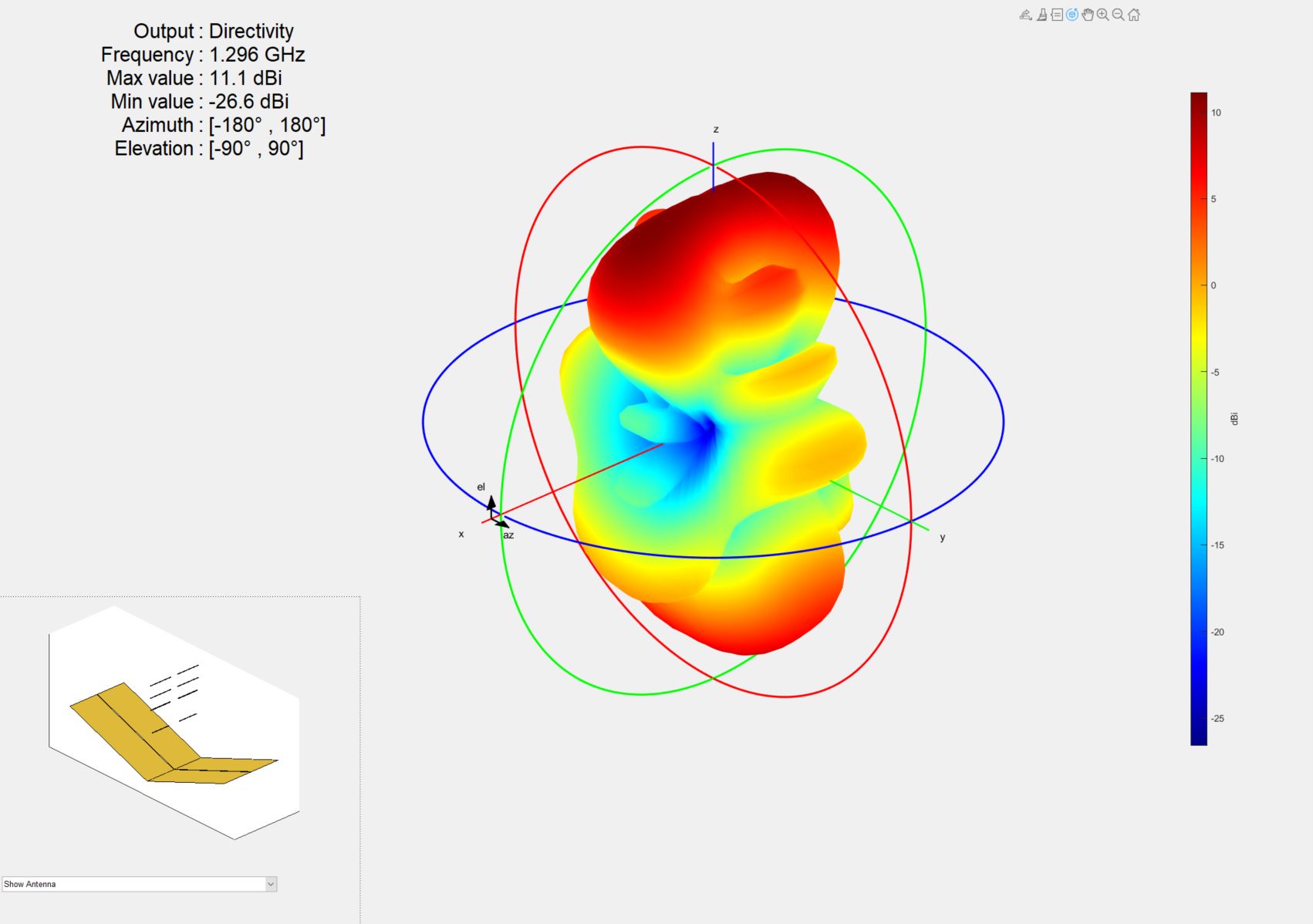

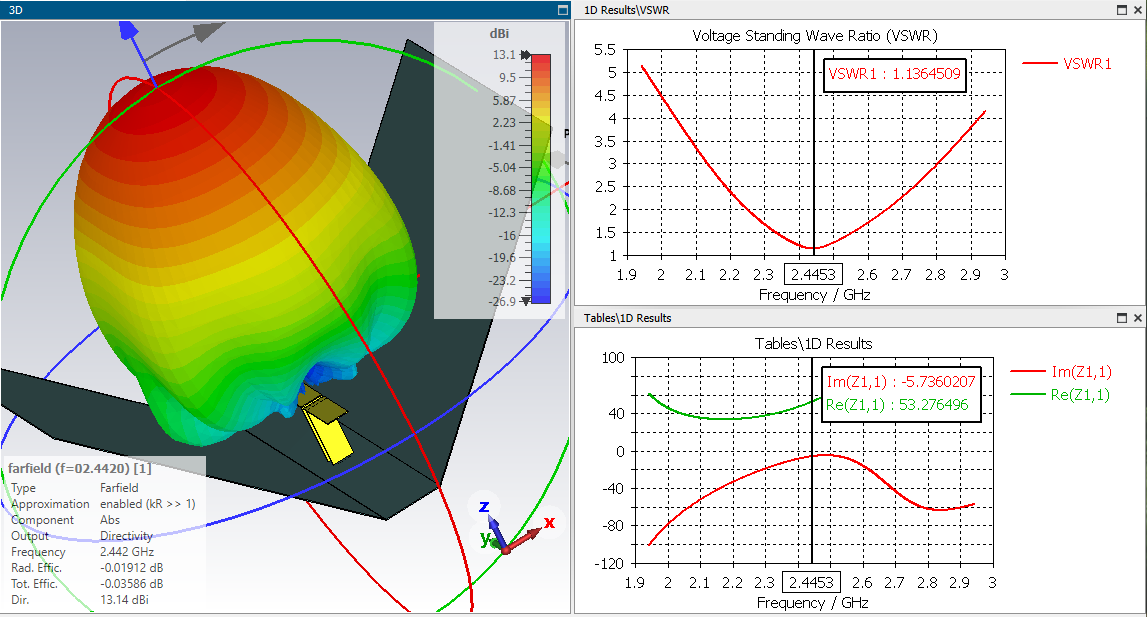

Simple design with a corner reflector. 14dB, 10dB in the main direction, with additional  work with  the elements, you can probably improve the main beam. The structure is similar to my latest grid (17dBi), but simpler. Important detail : standard model  feed was changed to revers direction of radiation - director is Reflectors and reflector is director. Useful when you don't want to build a parabola

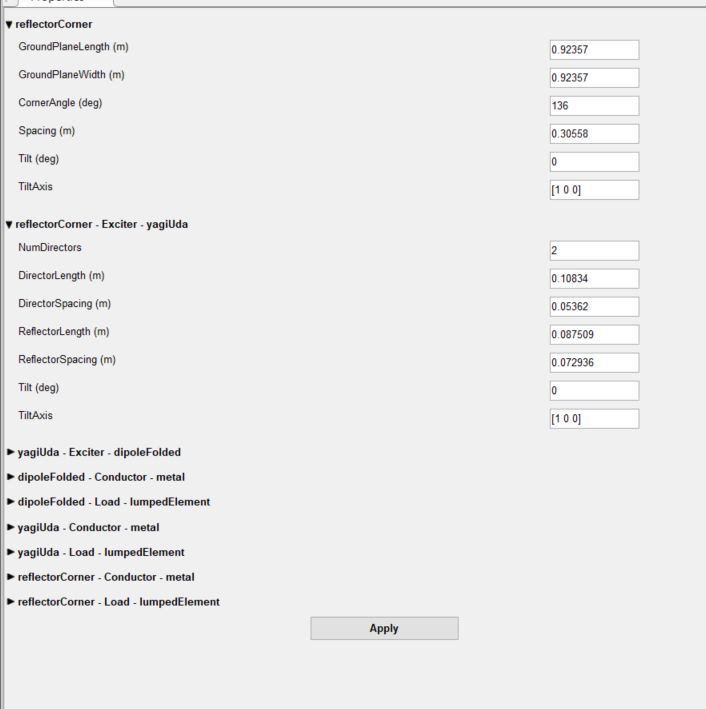

 simple dipol with corner reflector 14dBi.jpgsimple dipol with corner reflector 14dBi Diameters.jpg

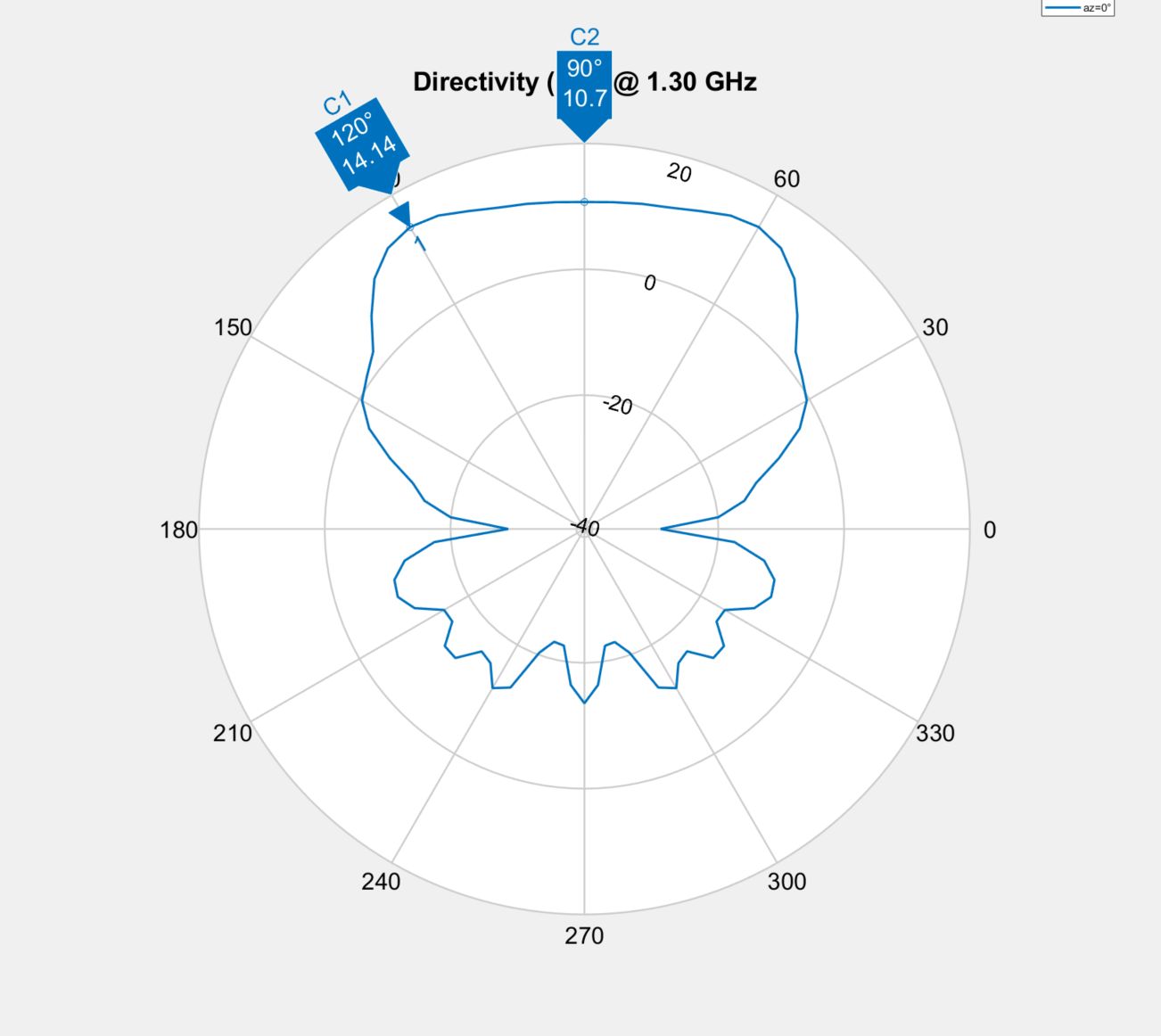

simple dipol with corner reflector 14dBi EL patern.jpg

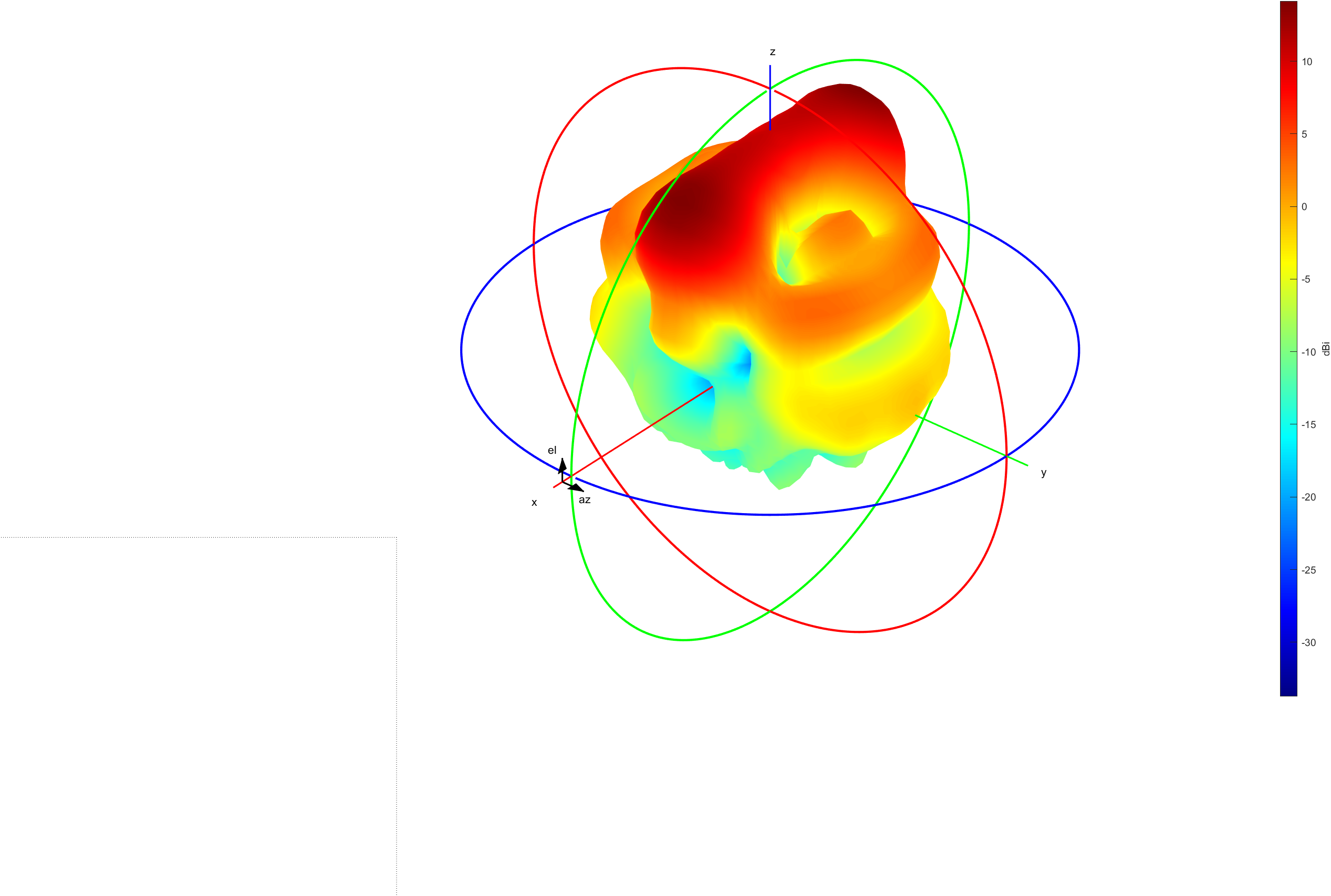

Simple dipol with corne reflector.png

Share this post


Link to post
Share on other sites

,,,eco32, what program do you use for simulation...!!!

Share this post


Link to post
Share on other sites



19 minutes ago, Admin said:

,,,eco32, what program do you use for simulation...!!!

Matlab (not yet able to use CST)

Share this post


Link to post
Share on other sites

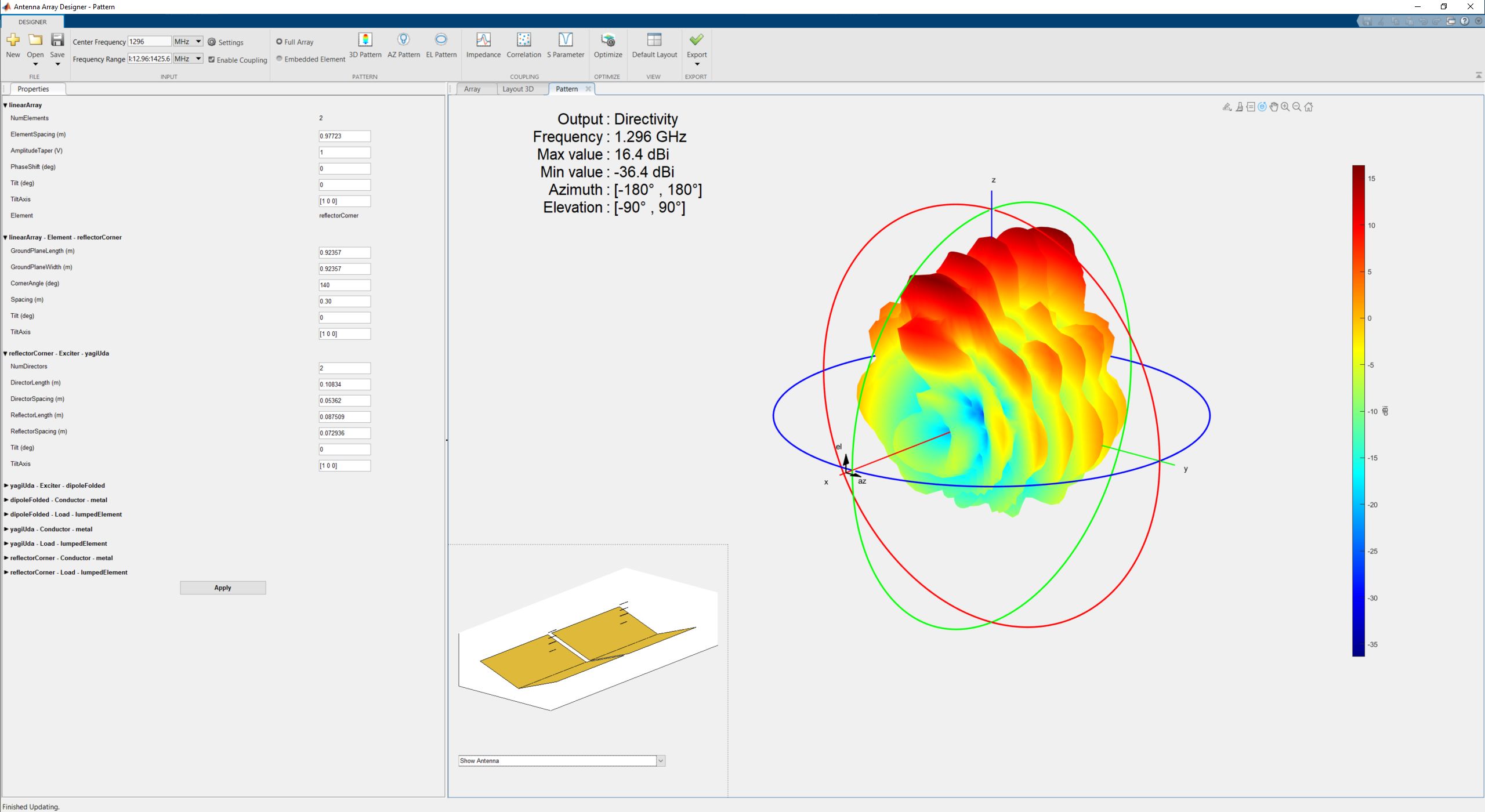

two dilpes with corner reflector: Gain increases, but at the expense of side lobes, in some applications this is unacceptable

details: Yagi feed is reversed and it has two reflectors



normal mode dual - patern.jpg

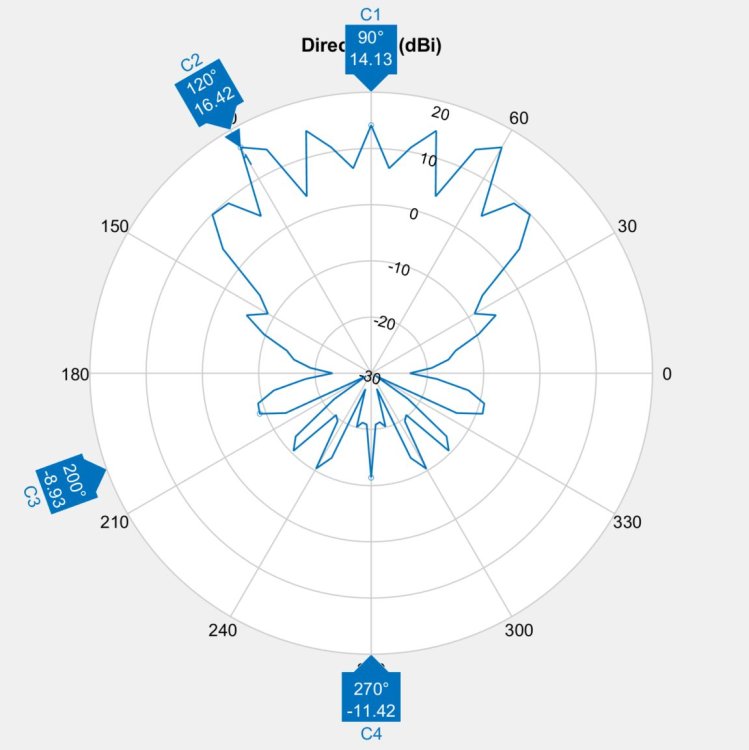

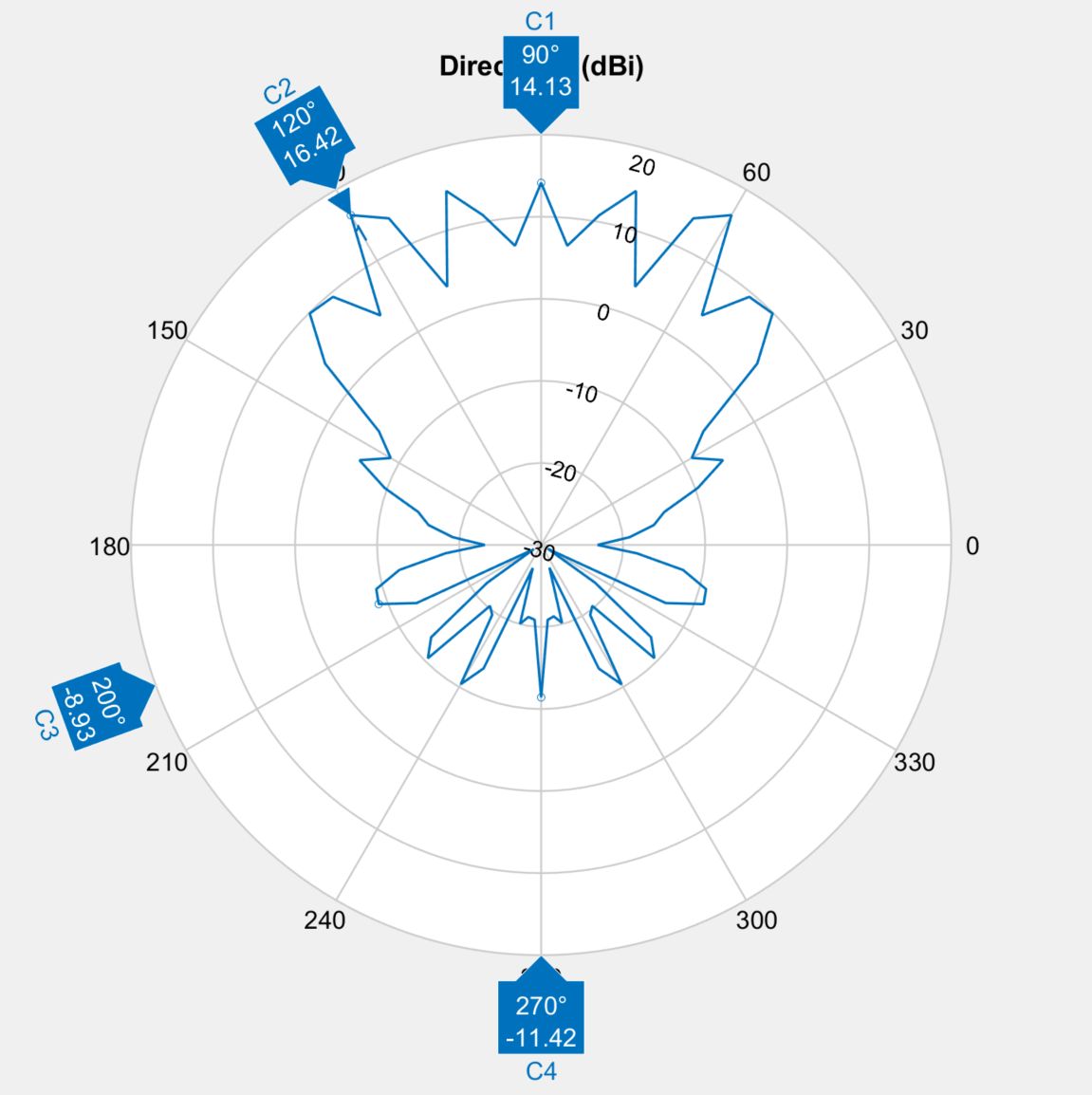

side lobes:

corner dual sidelobes.jpg

how it looks in "normal mode:, feed litle yagi was not reversed:

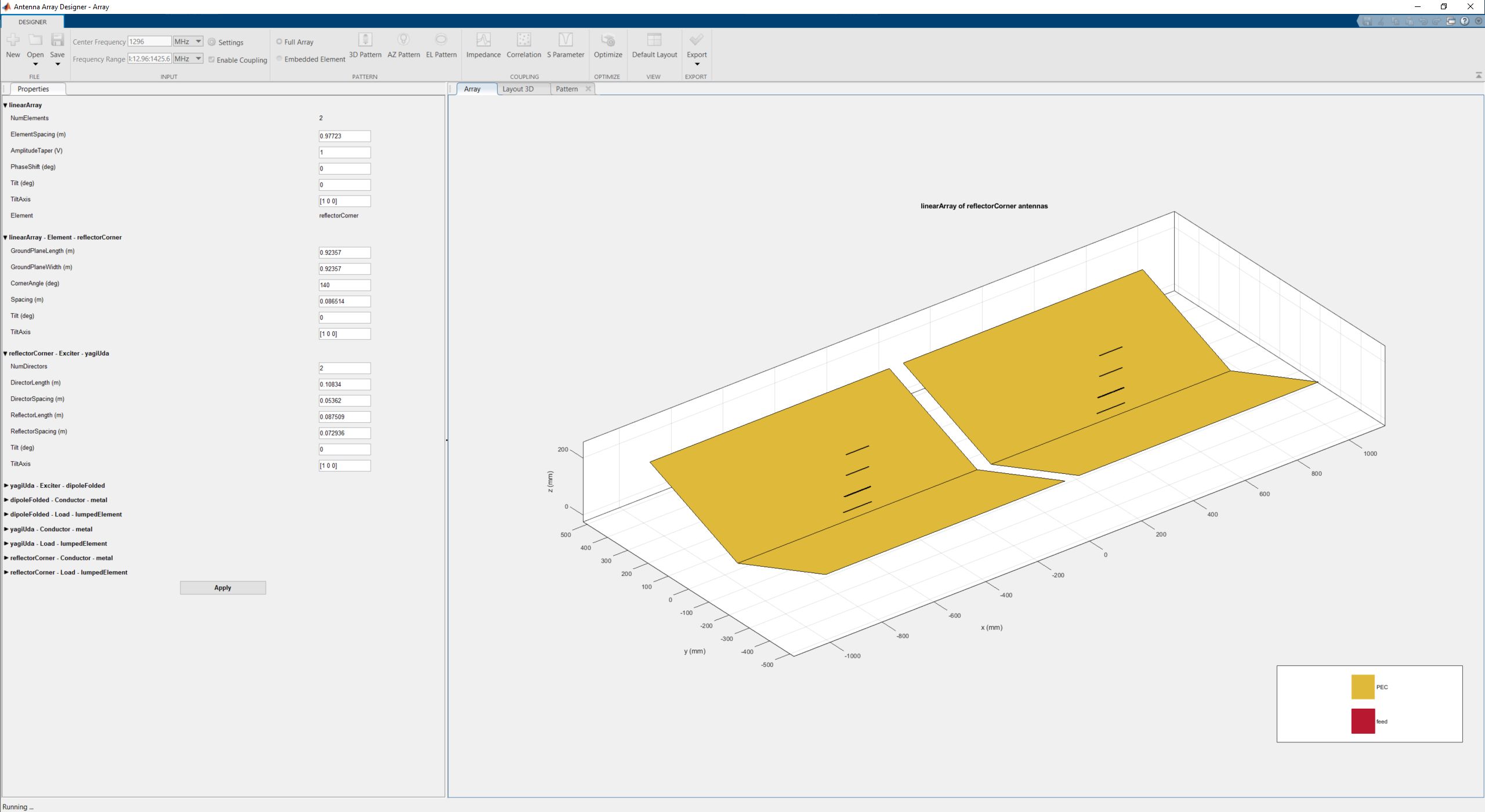

design:

normal mode_design.jpg

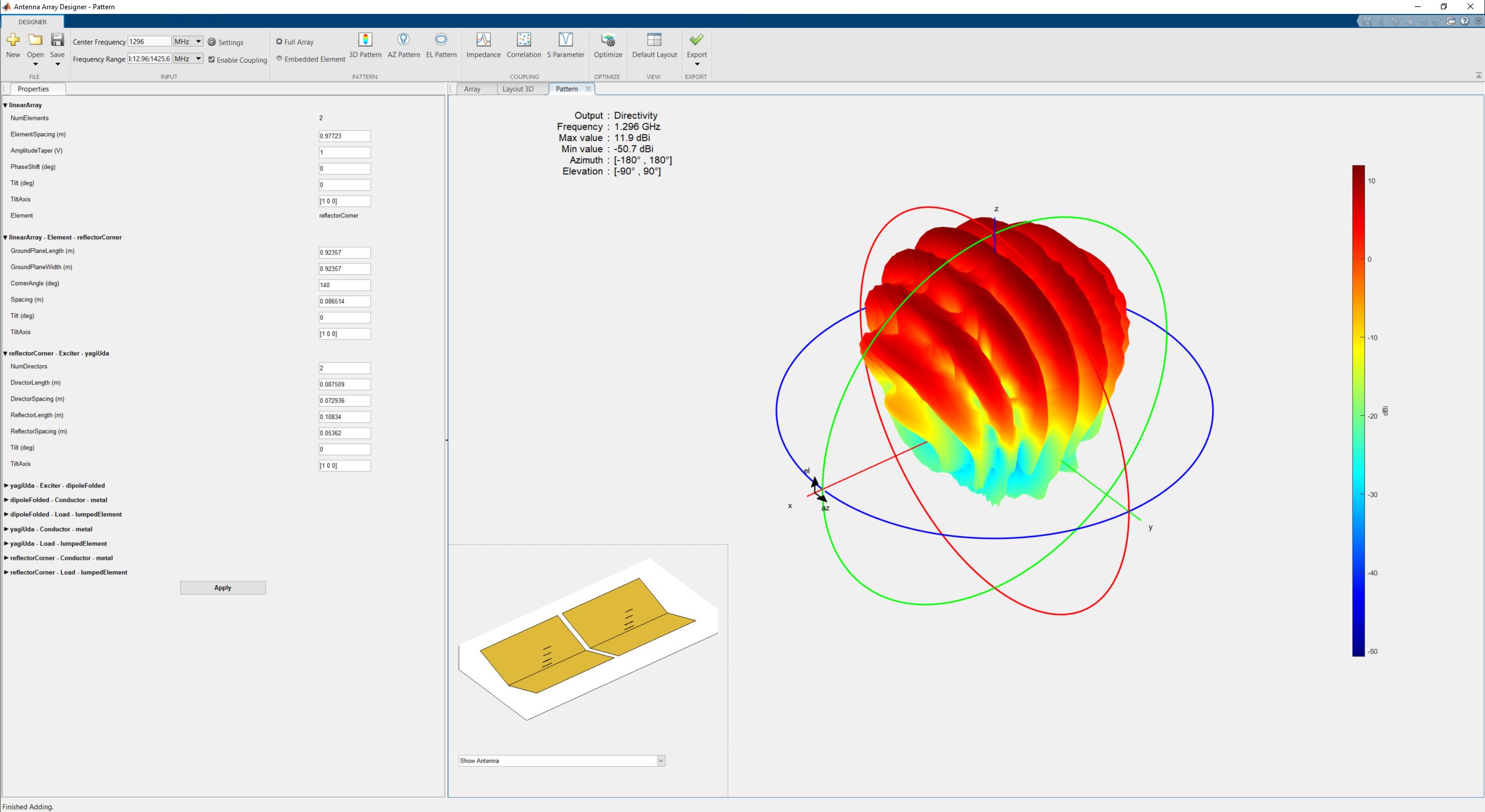

patern

normal mode.jpg



normal mode dual - patern.jpg

Edited by eco32

Share this post


Link to post
Share on other sites

,,,executes a single reflector with two antennas spaced at a distance greater than 143 mm between them...!!!

Share this post


Link to post
Share on other sites
On 15.11.2023 at 4:04 PM, Admin said:

,,,executes a single reflector with two antennas spaced at a distance greater than 143 mm between them...!!!

10dBi in main direction, same a single dipole with corner reflector


Edited by eco32

Share this post


Link to post
Share on other sites
