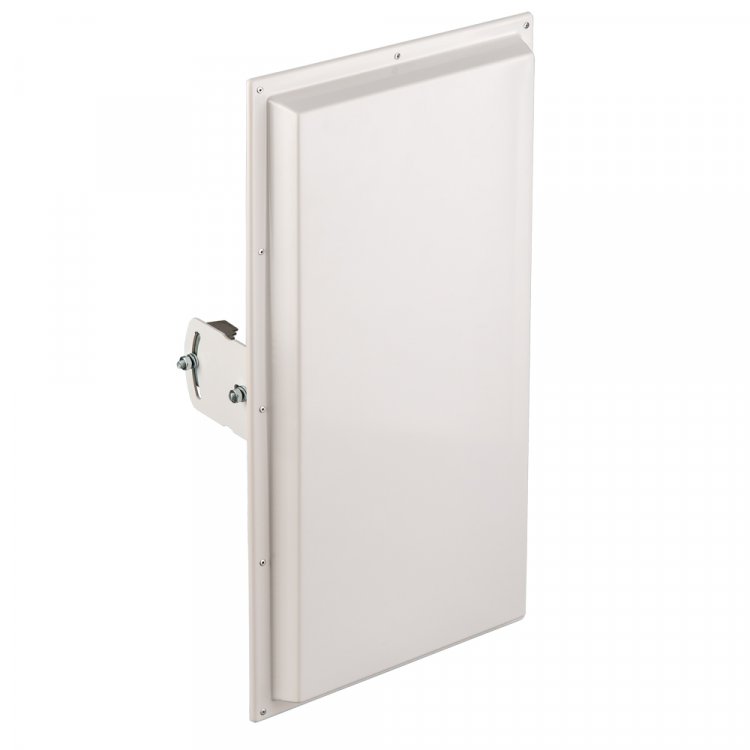

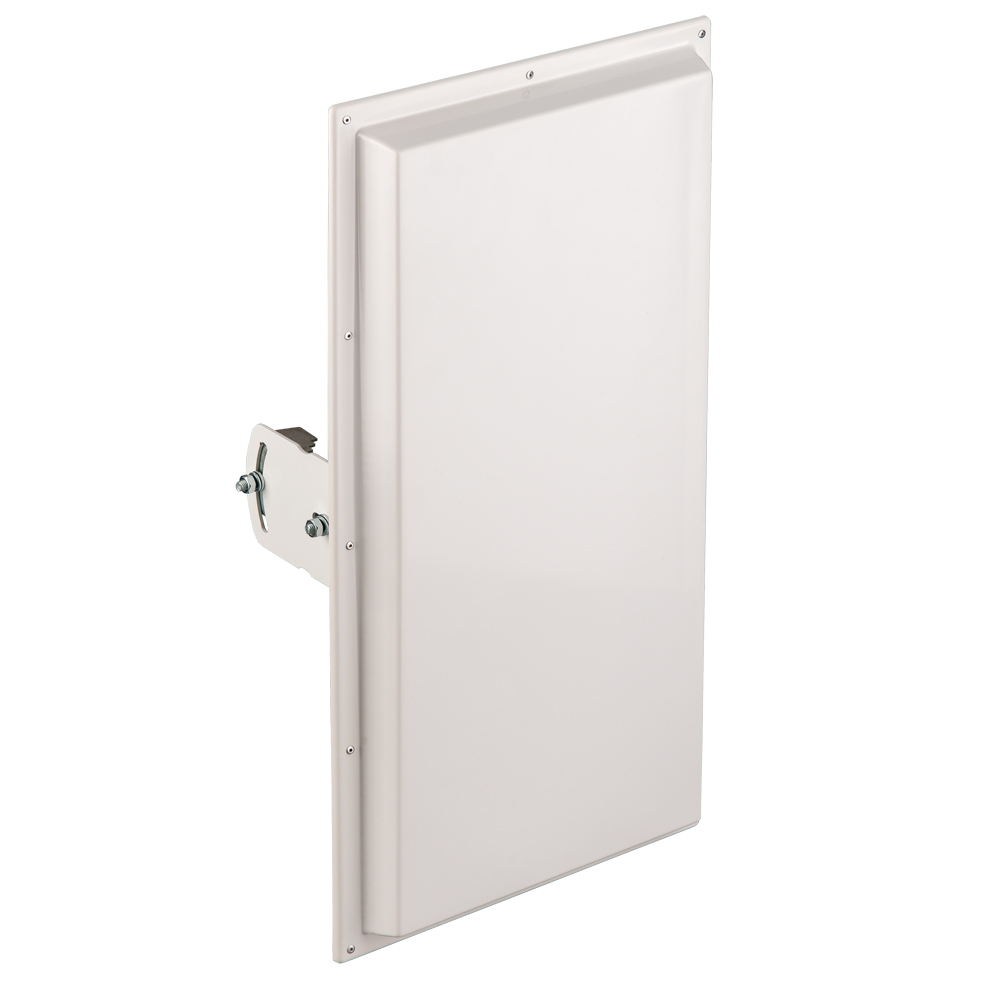

Broadband 2G/3G/4G MIMO antenna KAA18-1700/2700

Started by Admin,

Posted

Broadband MIMO antenna for 2G/3G/4G/WIFI. The amplification of 18 dB.
Supports standards LTE1800, UMTS2100, WiFi2400, LTE2600.
It is recommended to use complete with 3G/4G modems and routers.

Dimensions (length , width , height ), mm485 x 265 x 80

Antenna - features :

Operating frequency range, MHz 1700-2700

Antenna gain, dB15-18

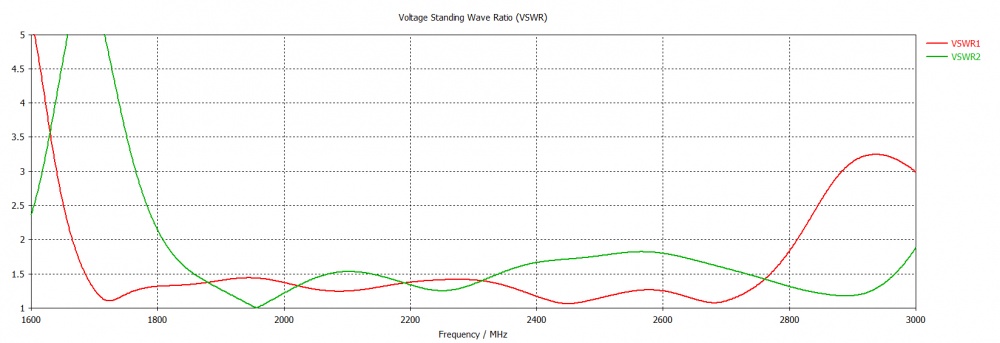

SWR in the frequency range, not more 2

Polarization Linear

Input impedance, Ohm 50

Maximum input power, watts 10

Connector F - female N - female

Permissible wind load, m/s 30

The operating temperature range, oC -40 ... +80

The maximum permissible humidity of air, %  100

Crosspolarization isolation is not less than, dB35

Connection standard 3G (UMTS2100) 4G(LTE2600), YOTA LTE 1800 GSM 1800 WiFi 2400

Multi-band
