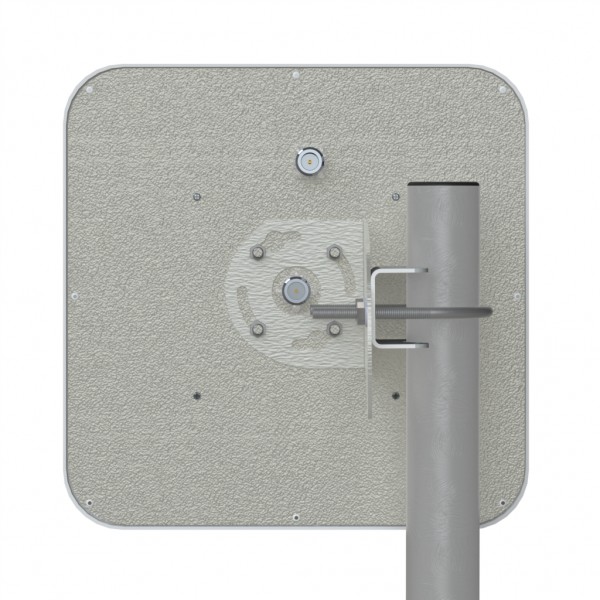

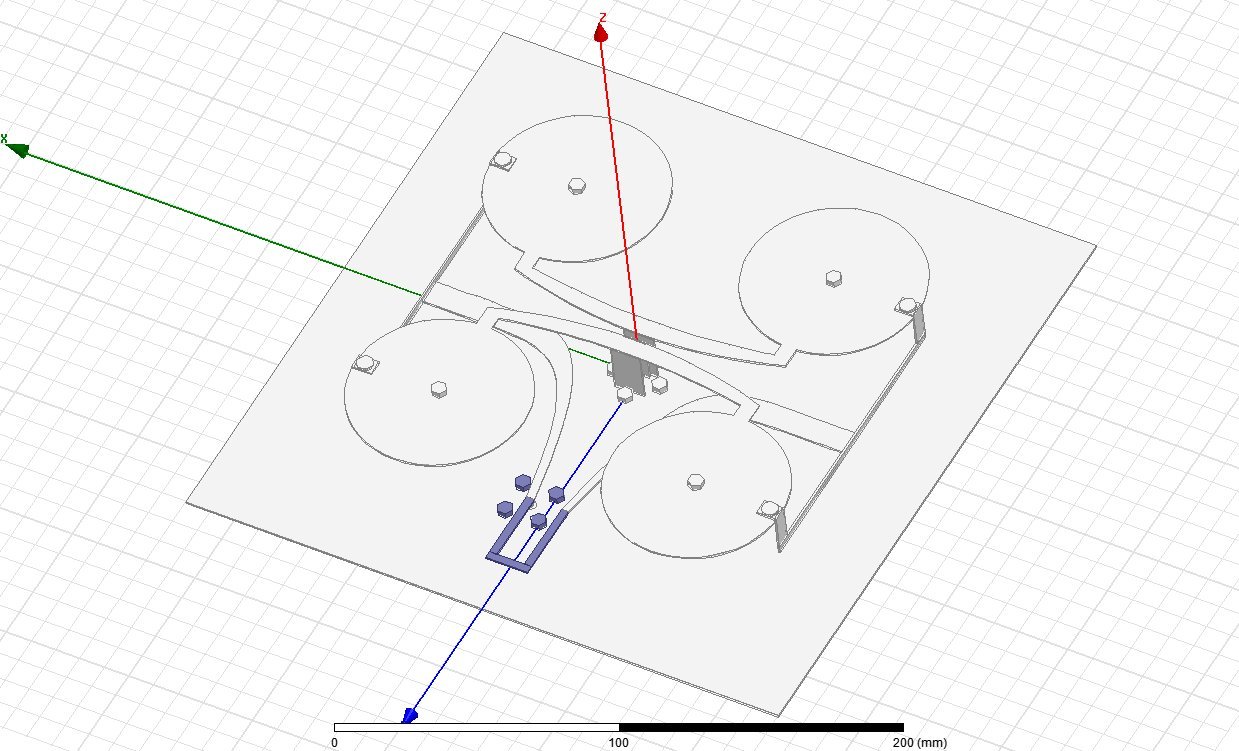

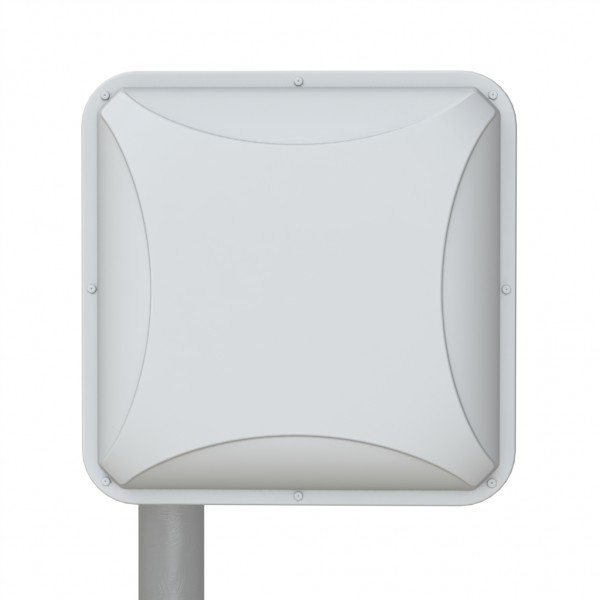

Panel antenna AX-2014P 2x2 MIMO- 2G/3G /4G

34 posts in this topic

Universal external antenna AX-2014P 2x2 MIMO is intended for use in complete equipment of wireless data transmission systems standards:

2G(EDGE, GPRS frequencies GSM1800)

3G (UMTS 2100)

4G (WIMAX, LTE1800, LTE2600)

Electrical characteristics

Operating frequency range, MHz 1700-2180

Gain, dBi 13-15

The width of the days in H-plane, degrees 30-45

Days width in E-plane, degrees 30-45

The sidelobe level, dB, not more -12

Isolation between channels, dB, not less 28

Input impedance, Ohm 50

SWR in the frequency range, not more 1,5

Permissible power watts 50

Polarization vertical+horizontal or slant +/-45 degrees


Mechanical characteristics

Weight with mount, g 1080

Overall dimensions without mounting, m 0,24х0,24х0,05

Connector- 2 x N-female

The material of the radiator -galvanized steel


Material of protective box-Polycarbonate+ABS

Operating temperature range-from -60°C to +80°C



Mechanical characteristics

Weight with mount, g 1080

Overall dimensions without mounting, m 0,24х0,24х0,05

Connector 2 x N-female

The material of the radiator galvanized steel


Material of protective box
 Polycarbonate+ABS

Operating temperature range from -60°C to +80°C

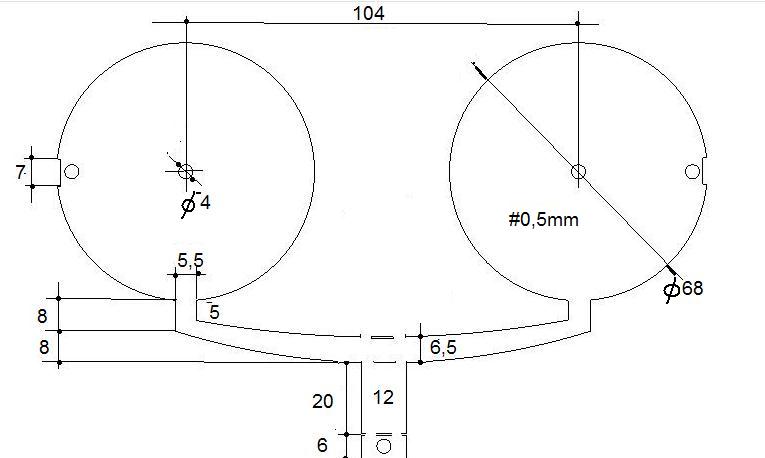

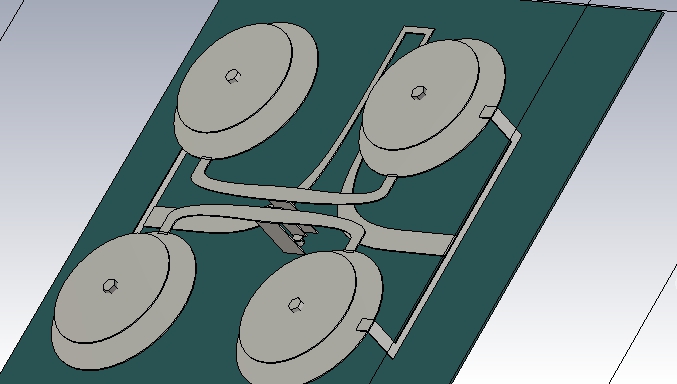

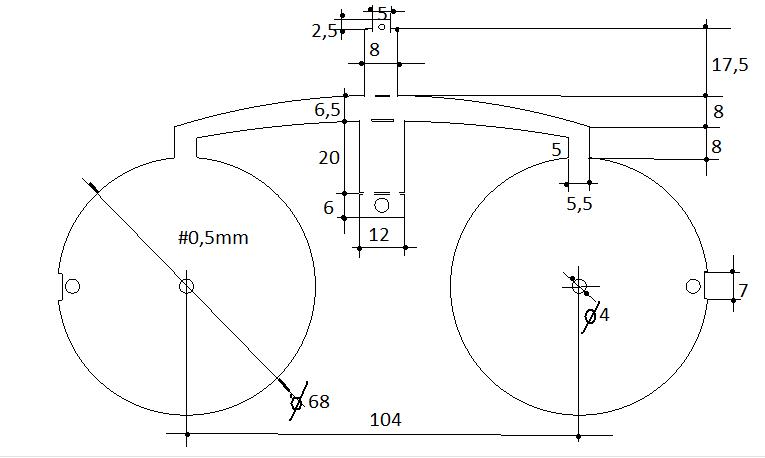

-transmission line


-piece A




-piece B


1 person likes this

Share this post


Link to post
Share on other sites

Hello dear members of this very great forum, separate huge appreciation to Admin.

I'm wondering if anyone can help where is the second part round pair of cicrles.

By all the sudden, I started thinking about it when I got the two same details in hand and wondered how was I suppose to do soldering job here.

Any help is really appreciated

Best regards, Rizo

Share this post


Link to post
Share on other sites

,,, good achievement, congratulations for AmateurRadist ...!!!


,,nothing is welded, bent at 90 degrees and then riveted with the riveter...!!!



PS

,, look once again, on my previous post...!!!

Share this post


Link to post
Share on other sites

To say the truth, I got two same parts and somehow managed to solder(weld) them together and got this. However second connection's standing wave ratio is way higher, around 4-6.


Share this post


Link to post
Share on other sites

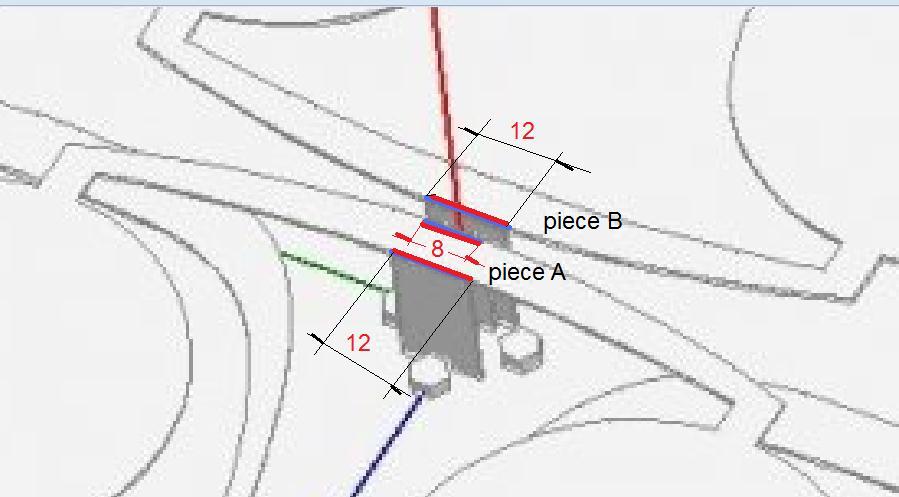

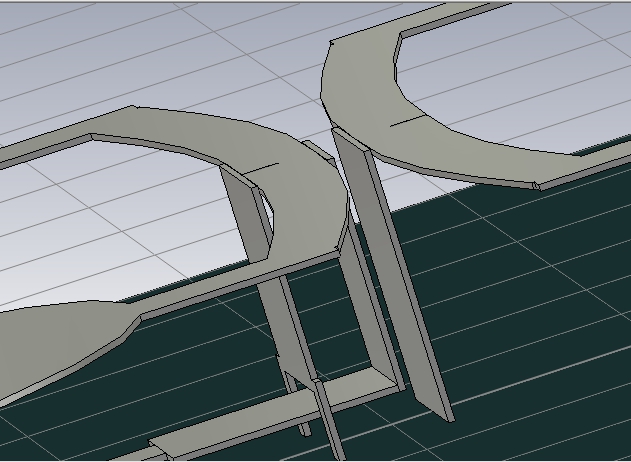

,,, this is how the central connection point should look...!!!



,,, dude, you are missing piece B...!!!





Share this post


Link to post
Share on other sites
6 hours ago, Admin said:

,,, this is how the central connection point should look...!!!



,,, dude, you are missing piece B...!!!





Is it soldered by robots? I'm having hard time soldering this. I think this may be reason for high vswr. Also the machine didn't cut edges well, but I polished them to be ideally smooth. Hope next time it will work, it's almost cost of new one :) but I believe this experience is priceless :)

Edited by AmateurRadist
1 person likes this

Share this post


Link to post
Share on other sites

There is nothing solderd, yet there is bending at 90 gr and riveter..!!!

Share this post


Link to post
Share on other sites
9 minutes ago, Admin said:

There is nothing solderd, yet there is bending at 90 gr and riveter..!!!

Sure I got this, I bended and riveted, then soldered the part with small hole to connector's pin. It's hard because there's so little space that soldering gun can't reach.

2) are there 4pieces cylinders over this? What's distance height from bottom they should be located? Will it have good gain without them also? If not what's their diameter?

Any help appreciated

Best regards, Rizo

Edited by AmateurRadist

Share this post


Link to post
Share on other sites

 diameter=54mm at 8mm height

but you don't have piece B...!!!

Share this post


Link to post
Share on other sites

I cut piece A and created piece B with welding parts :)

10 minutes ago, Admin said:

 diameter=54mm at 8mm height

but you don't have piece B...!!!

If spacers is plastic, is it okay?

Share this post


Link to post
Share on other sites

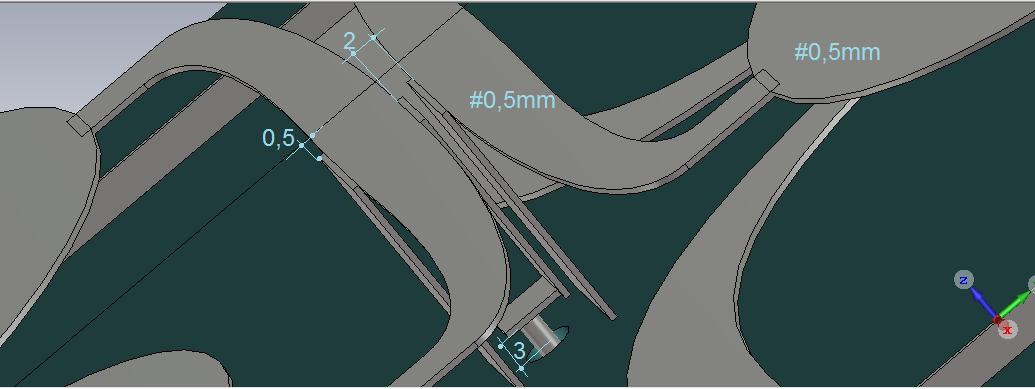

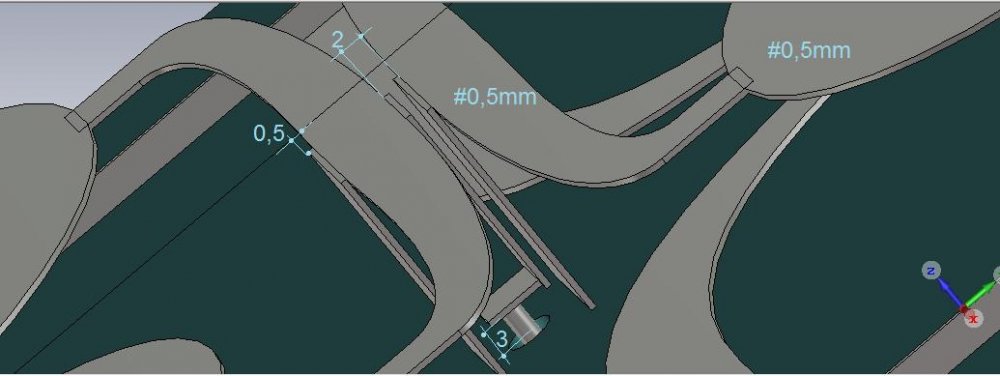

,,,, preferably 0.5mm, but 0.25 ---- 0.8(1)mm can be used

The thickness does not matter much.

2 people like this

Share this post


Link to post
Share on other sites

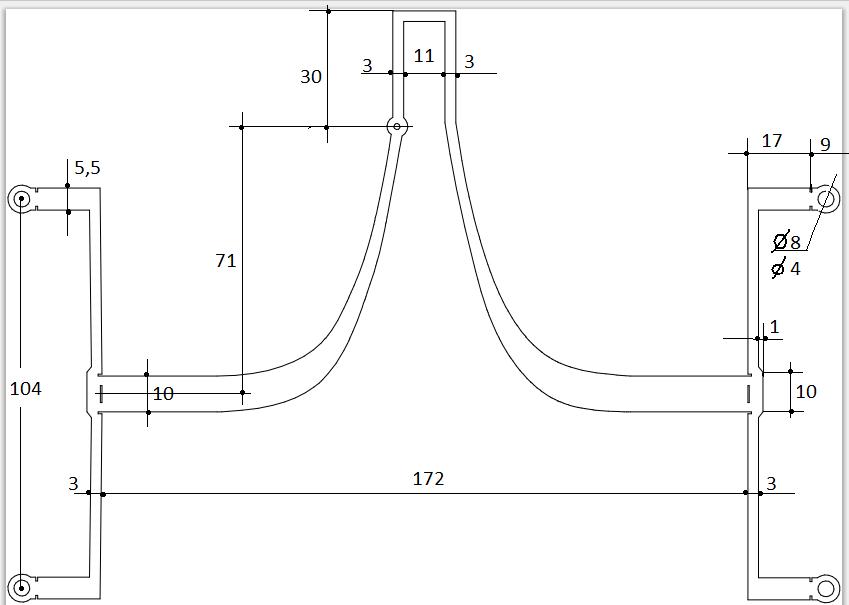

... for that...


it"s this adaptation lines...


1 person likes this

Share this post


Link to post
Share on other sites
2 hours ago, Admin said:

 diameter=54mm at 8mm height

but you don't have piece B...!!!

how these cylinders should be placed, using 8mm metal or plastic spacer. And will it work without these 4 pcs cylinders

Share this post


Link to post
Share on other sites

,,,, metalic  spacer...!!!

,,, will it work without these 4 pcs cylinders,,,, but the frequency band will narrow...!!!

Share this post


Link to post
Share on other sites
21 minutes ago, Admin said:

,,,, metalic  spacer...!!!

,,, will it work without these 4 pcs cylinders,,,, but the frequency band will narrow...!!!

for what frequency range it will be narrow.

Share this post


Link to post
Share on other sites
31 minutes ago, Admin said:

1800-2600 MHz

,,, now I work on this ..!!!


How come? It's 1700-2200mhz, without cylinders will narrow to 1700-2600mhz?

2) these cylinders are not connected to main antenna in original version, why should I connect it to main part by metal spacer?

Share this post


Link to post
Share on other sites

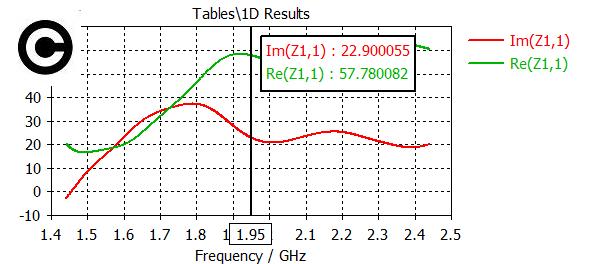

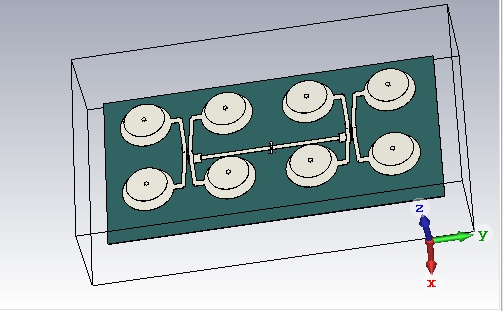

 I will try the simulation with and without the director cylinders..!!!

1 person likes this

Share this post


Link to post
Share on other sites

Greetings to radists

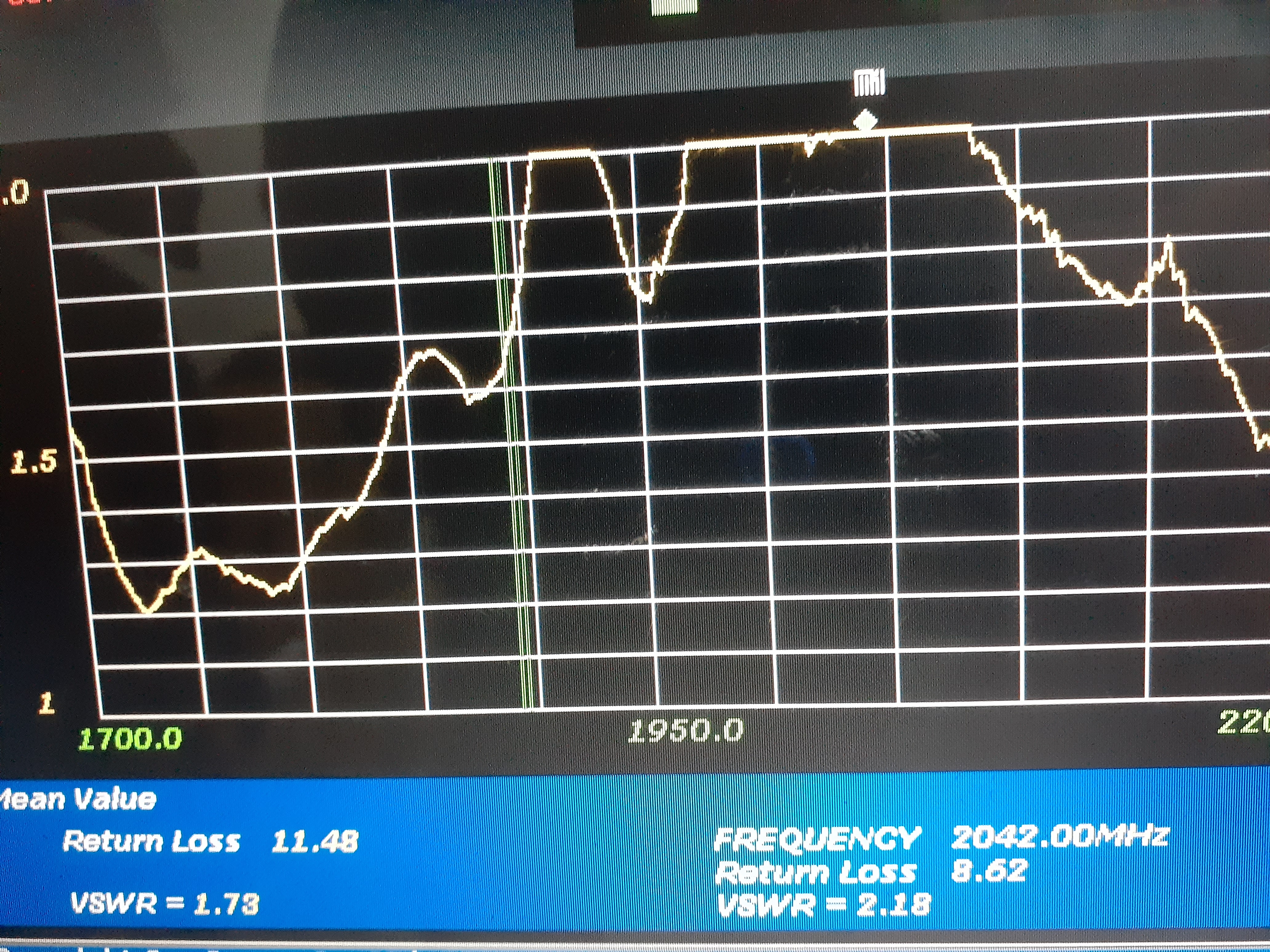

In second attempt/episode of "that looks easy, let's do it instead of buying" reality show I finally got 2.5 vswr max in main port and surprisingly amazing 1.8 vswr in second port without cylinders.

I suppose vswr in main port is high due to bad soldering, after bending it's like mission impossible to reach this pin. Before bending, soldering is easy but hard to bend.

I will try once more, are there any other things I need to consider to get lower vswr in main port i may be not keep in mind. Any suggestions are welcomed

Huge thanks to admin for his hints :)

Share this post


Link to post
Share on other sites

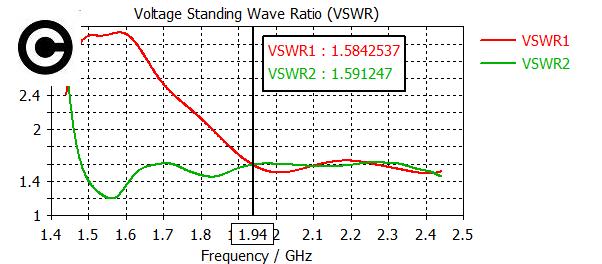

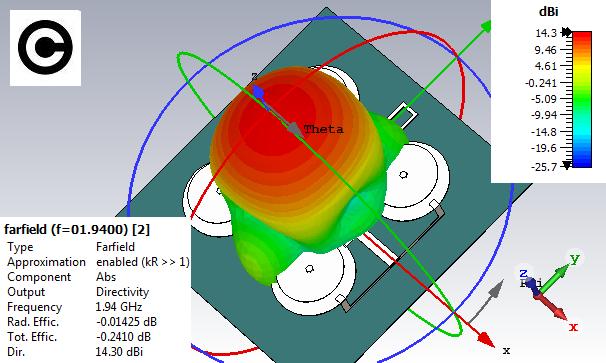

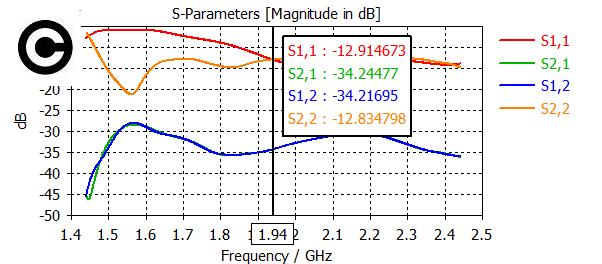

However, this antenna is a good achievement...







", with the conclusion that these dimensions must be respected...




1 person likes this

Share this post


Link to post
Share on other sites
7 hours ago, Admin said:

However, this antenna is a good achievement...

", with the conclusion that these dimensions must be respected...

But it must be adjusted at 1800 MHz, if it's possible could you present CST file.

Share this post


Link to post
Share on other sites

"For what this file, you can do simulations with CST...???

Share this post


Link to post
Share on other sites
11 hours ago, Admin said:

"For what this file, you can do simulations with CST...???

Yes, I once studied at the university on the subject of "antenna-feeder devices"
