Panel antenna AX-2014P 2x2 MIMO- 2G/3G /4G

[AmateurRadist 6]

So this is not original russian antenna? That's why we need to further simulations ?

11 hours ago, Admin said:

"For what this file, you can do simulations with CST...???



[Admin 2546]

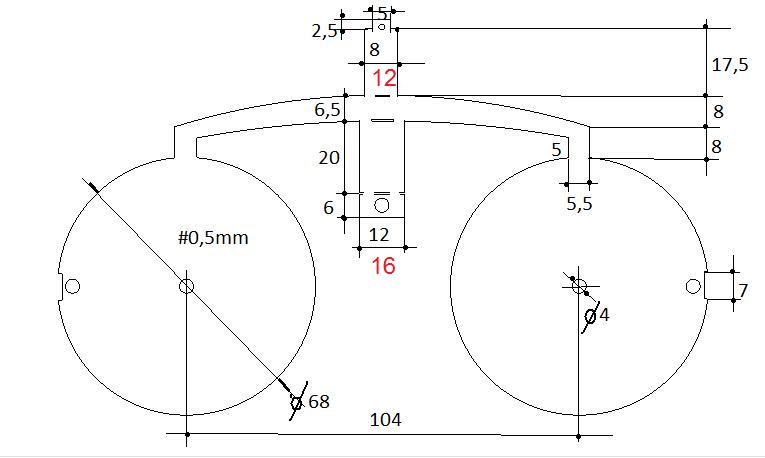

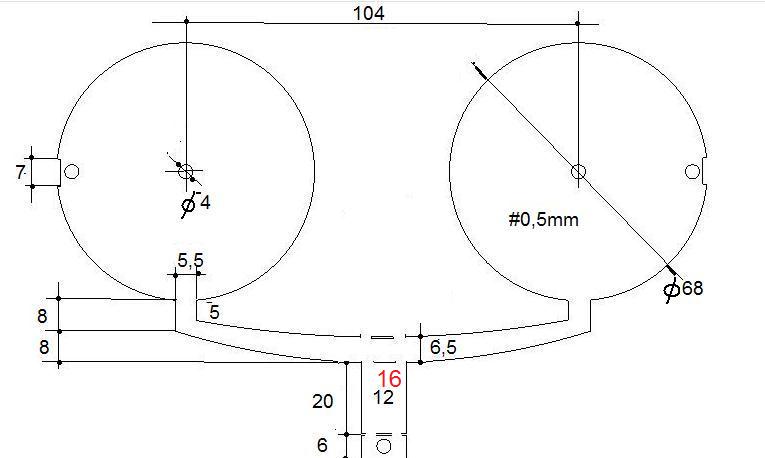

"I think these dimensions need to be changed...

[AmateurRadist 6]

Just now, Admin said:

"I think these dimensions need to be changed...



Thanks, I'll try, but I need a little time to remember. By the way, here on the forum I found material on using CST, also useful material. Could you also try to improve this antenna, anyway your experience is invaluable?!

[Admin 2546]

,,okay...!!!

[Admin 2546]

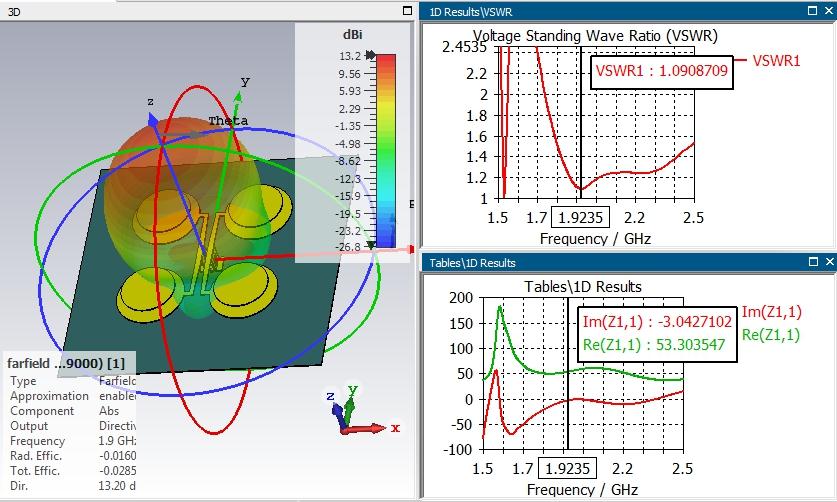

,,, and yet, this is the real picture of adaptation...!!!

[Admin 2546]

""" and anyway Petra BB it"s great,,,

[Ecdarck 2]

On 11/19/2019 at 7:45 AM, Admin said:

,,, good achievement, congratulations for AmateurRadist ...!!!

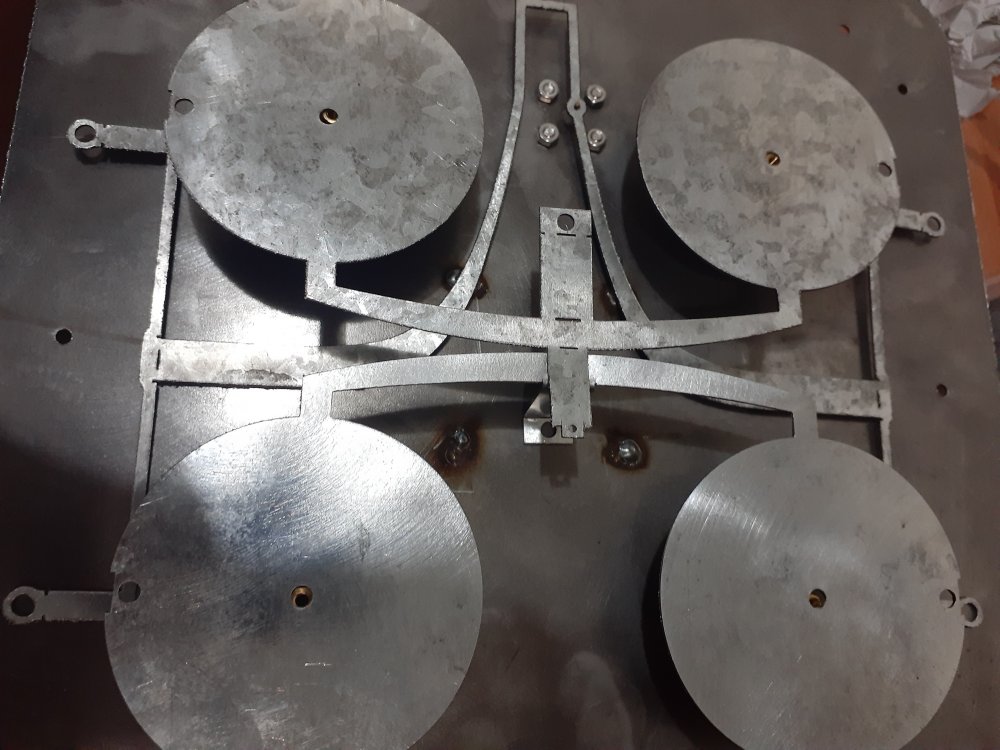

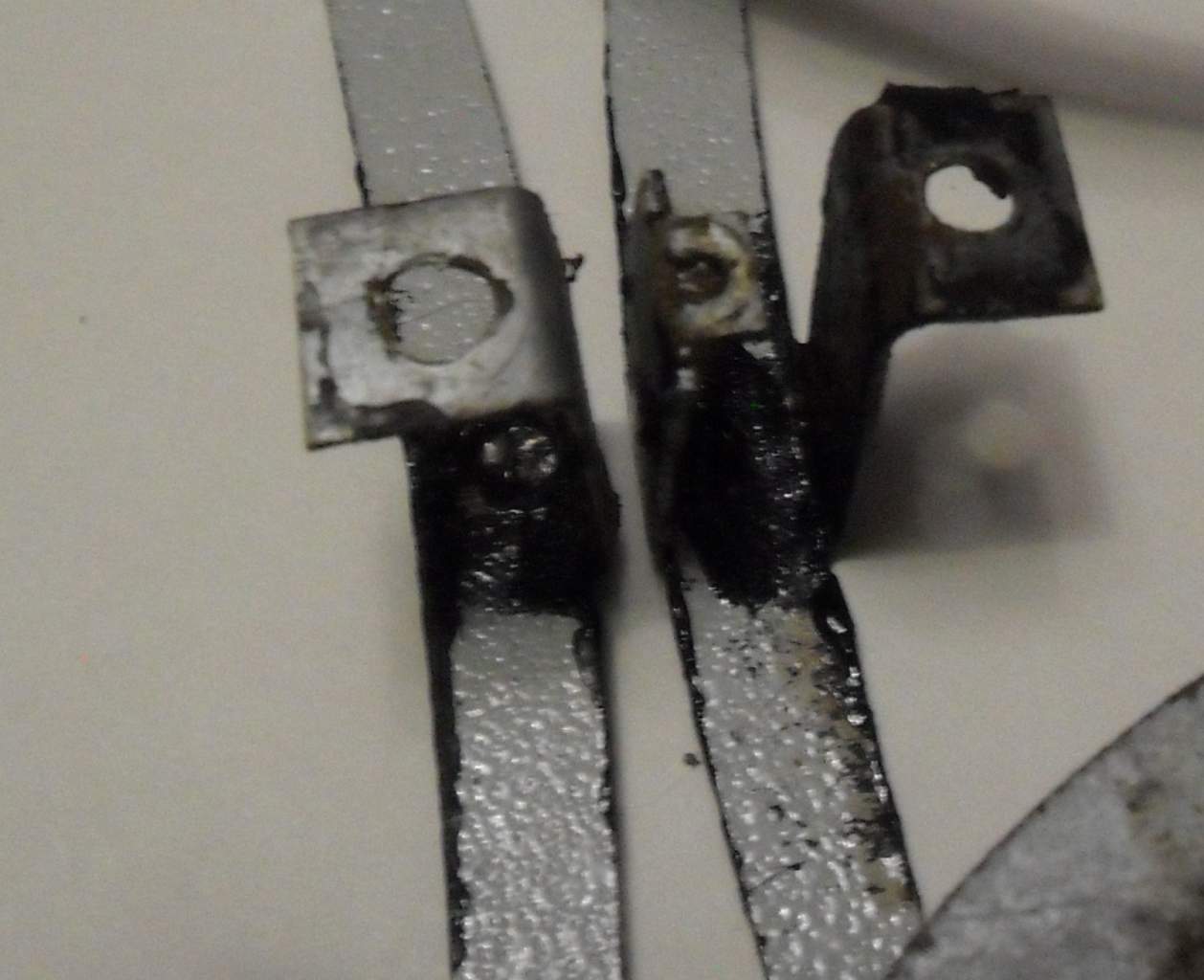

,,nothing is welded, bent at 90 degrees and then riveted with the riveter...!!!



PS

,, look once again, on my previous post...!!!

May i know what tools/equipment use to cut the work peace ... ?

[Admin 2546]

Laser Cutting Machine

[Admin 2546]

,,, more details about this antenna ....https://www.lan23.ru/forum/node/11134
