ZETA MIMO BOX

[Admin 2545]

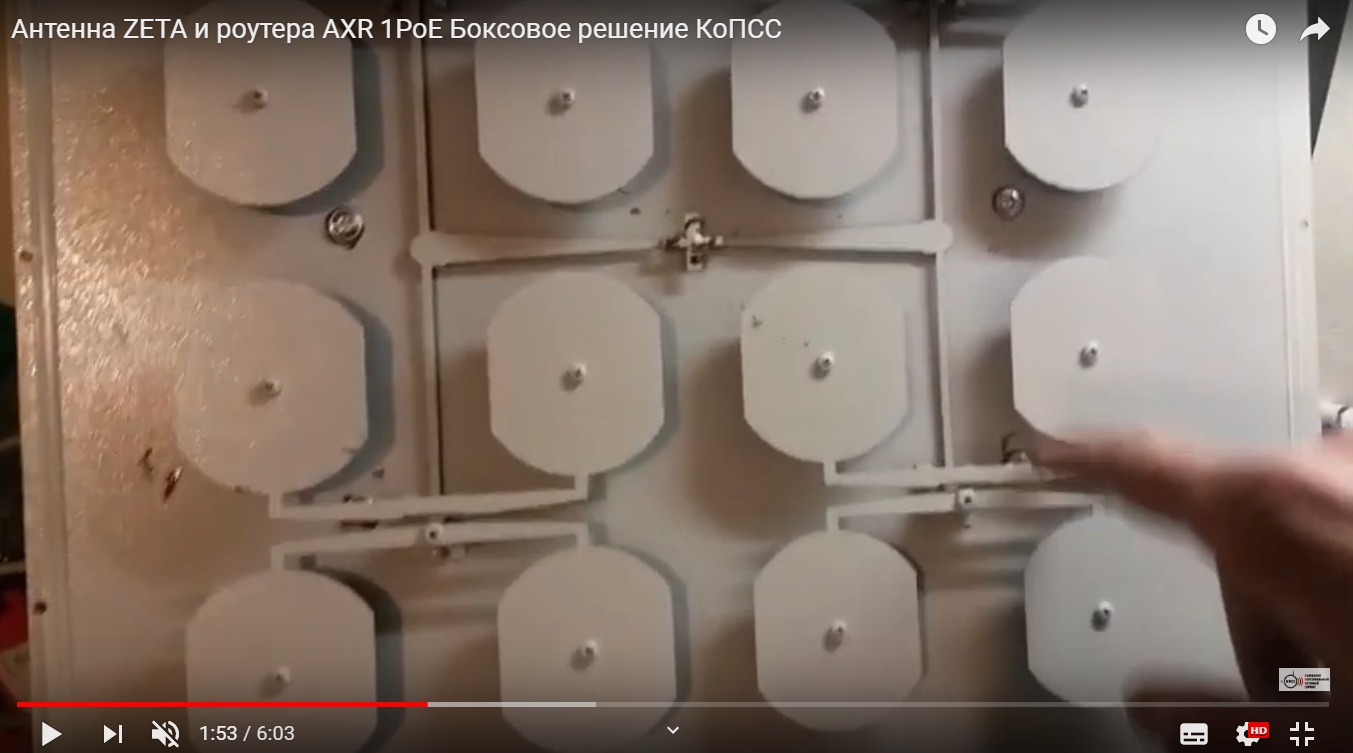

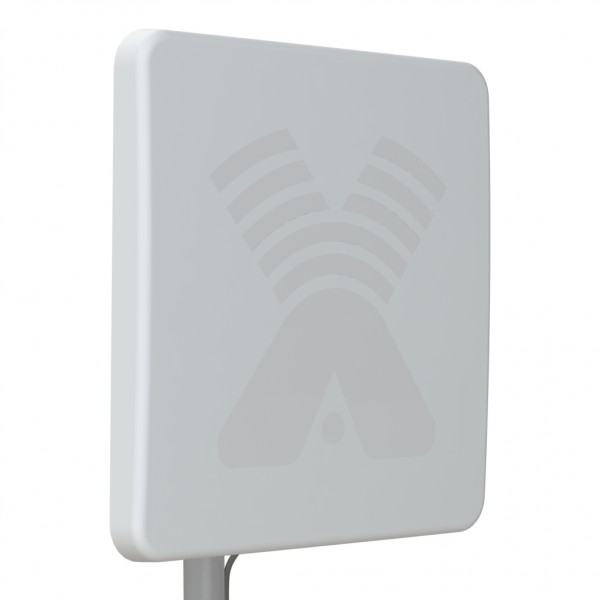

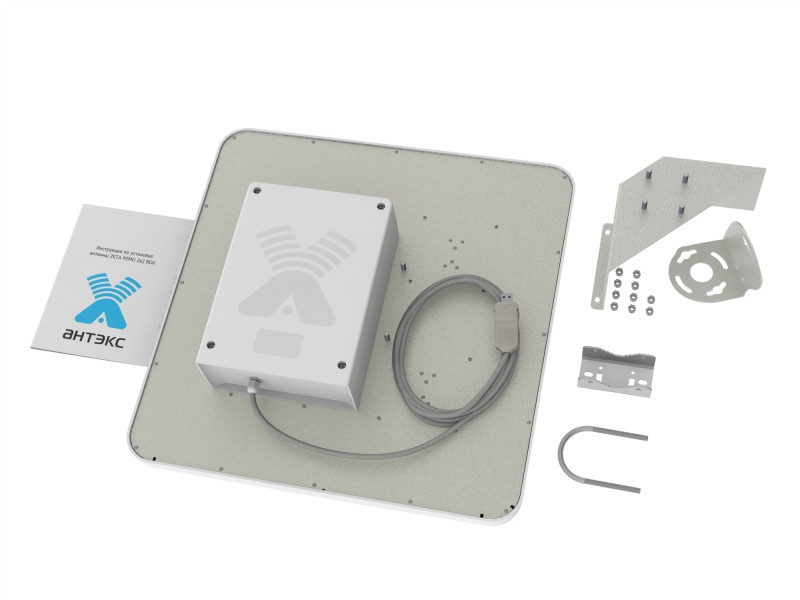

Panel antenna MIMO ZETA BOX with a sealed box for USB 3G/4G modems is a ready solution for signal amplification LTE1800, UMTS2100, LTE2600, WIFI2400, GSM1800. Antenna type - common-mode grating of broadband vibrators. Recommended for use at the boundaries of the service areas, in low and unstable level of 4G/3G signal. Thanks to the use of a USB extension cable of cable of type FTP CAT5 is made possible to eliminate signal loss plot of antenna-modem.

Electrical characteristics

Operating frequency range, MHz 1700÷2700

The gain in the GSM1800 band, dBi 2 x 17.5÷18

The gain in the 3G range (1.9 to 2.2 GHz), dBi 2 x 18÷19

The gain in range of WIFI (2.4 GHz), dBi 2 x 19.5

The gain in the range of 4G (LTE), dBi 2 x 19,5÷20,0

The width of the days in H-plane, degrees-15÷26

Days width in E-plane, degrees-15÷26

The sidelobe level is not more;-12dB

The ratio of forward/backward, no less 20dB

Input impedance, Ohm 50

The CWS in the operating range, no more 1.5

Permissible power watts 10

Polarization - vertical/horizontal



Mechanical characteristics

Weight with mount, g 4480

Mount -mast with a diameter of 20÷52mm

Overall dimensions without mounting, m-0,45х0,45х0,06

Allowable wind speed, m/sec 20

Connector 2 x SMA-male

Material of protective box Polycarbonate+ABS

Antenna material and fastening galvanized steel

Protective coating -powder polymeric paint
