Super duper LTE antenna

[Admin 2545]

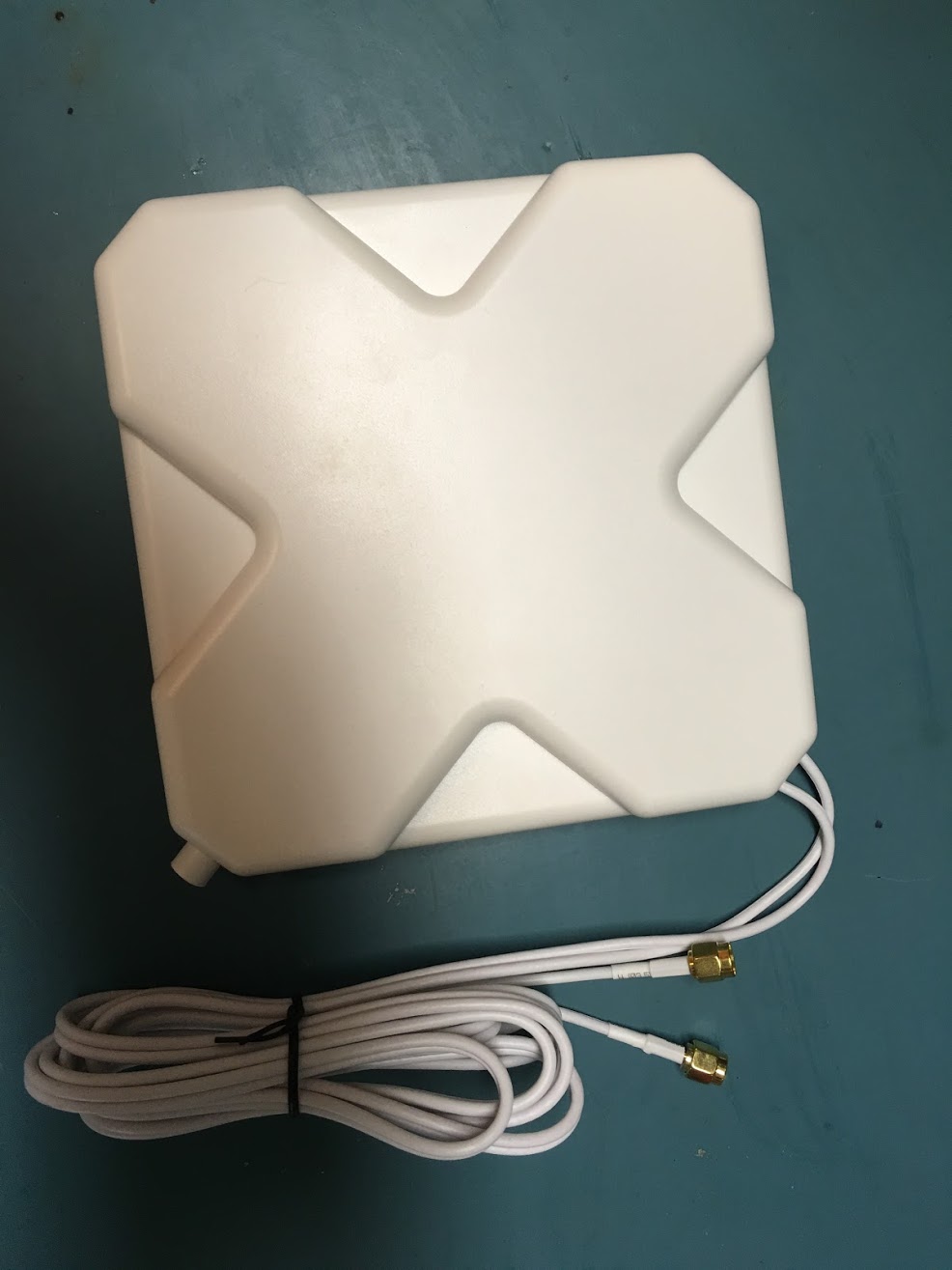

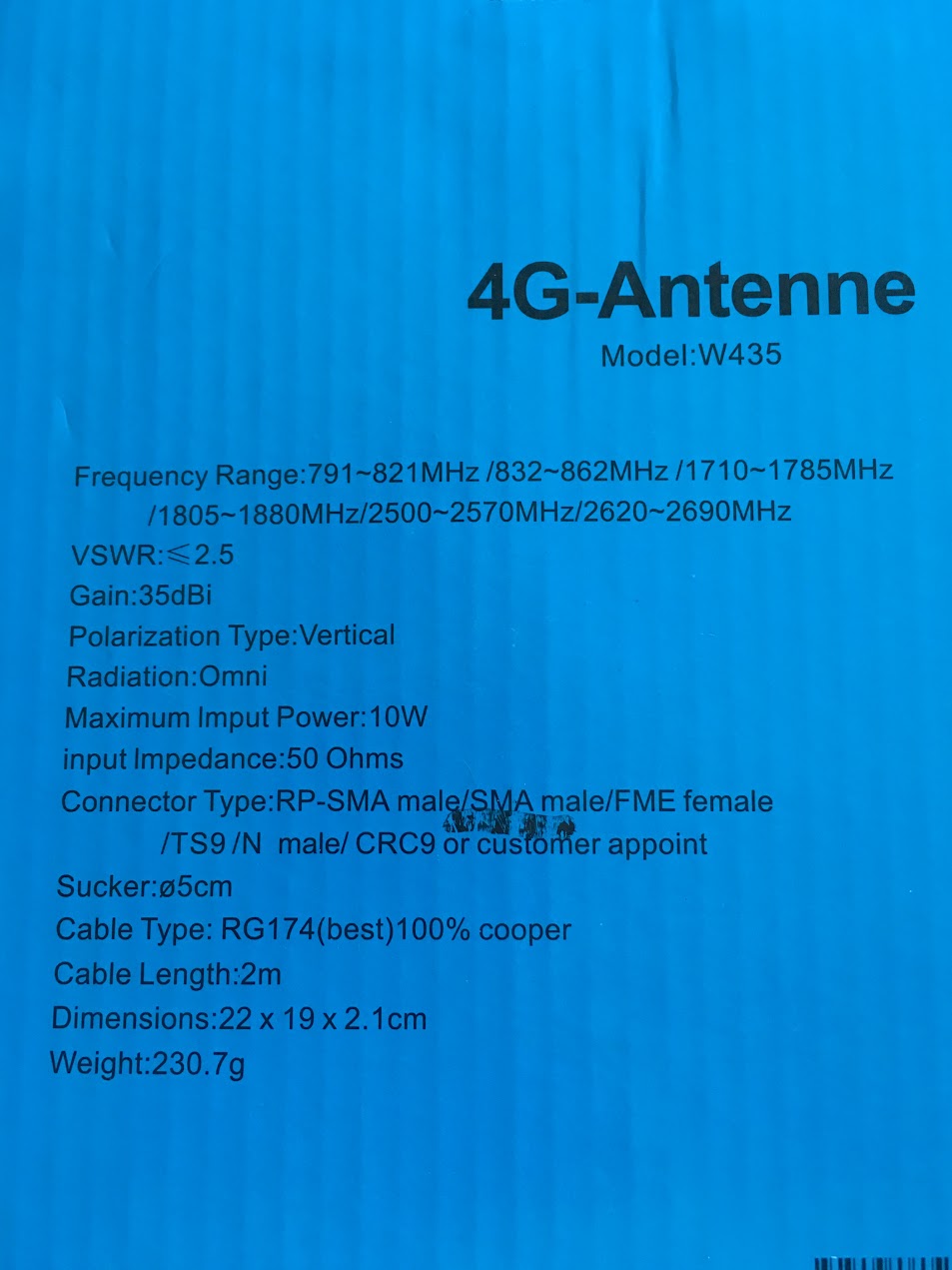

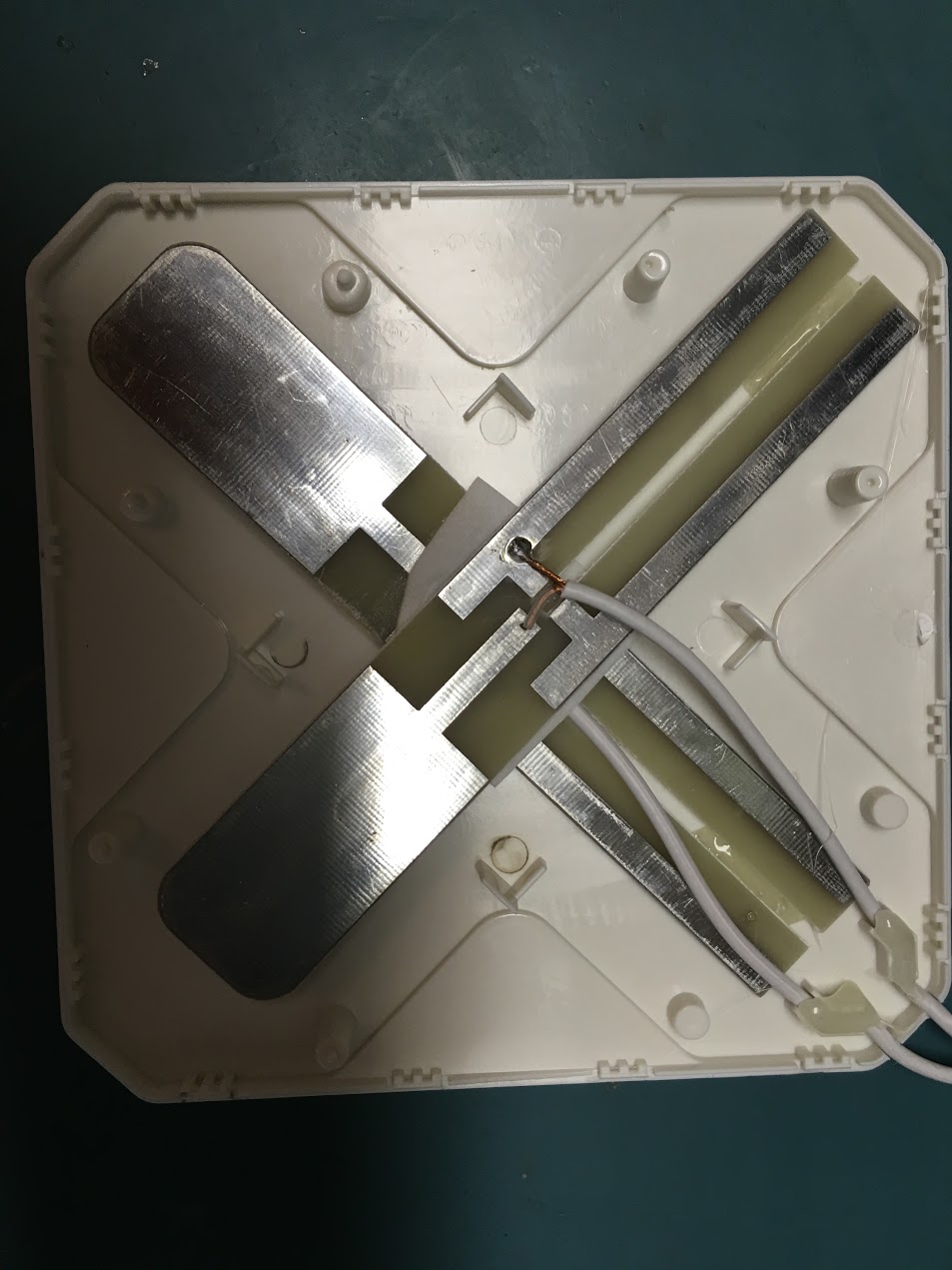

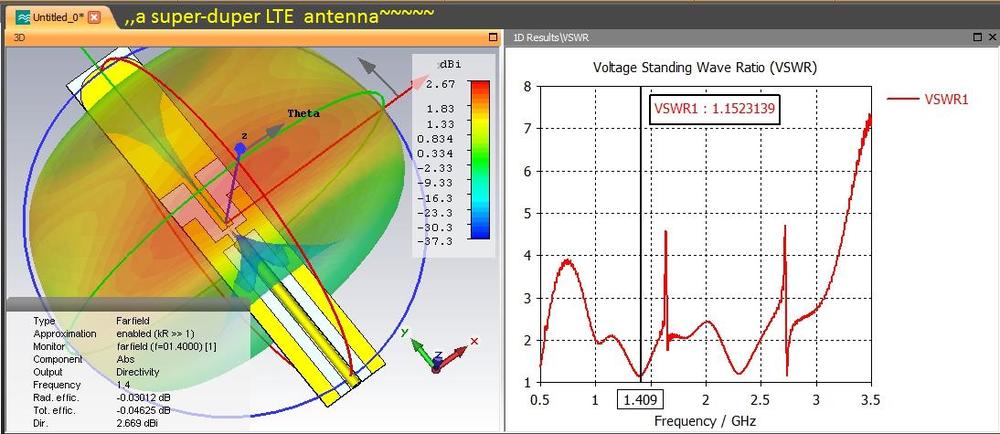

Take a look. I would like to do some measurement in future but I am not sure if I want to waste my time on this, with amazing 35dB gain . Hmmm….



[Andrew77 6]

MMMM

35 dBi gain  maybe with an amplifier

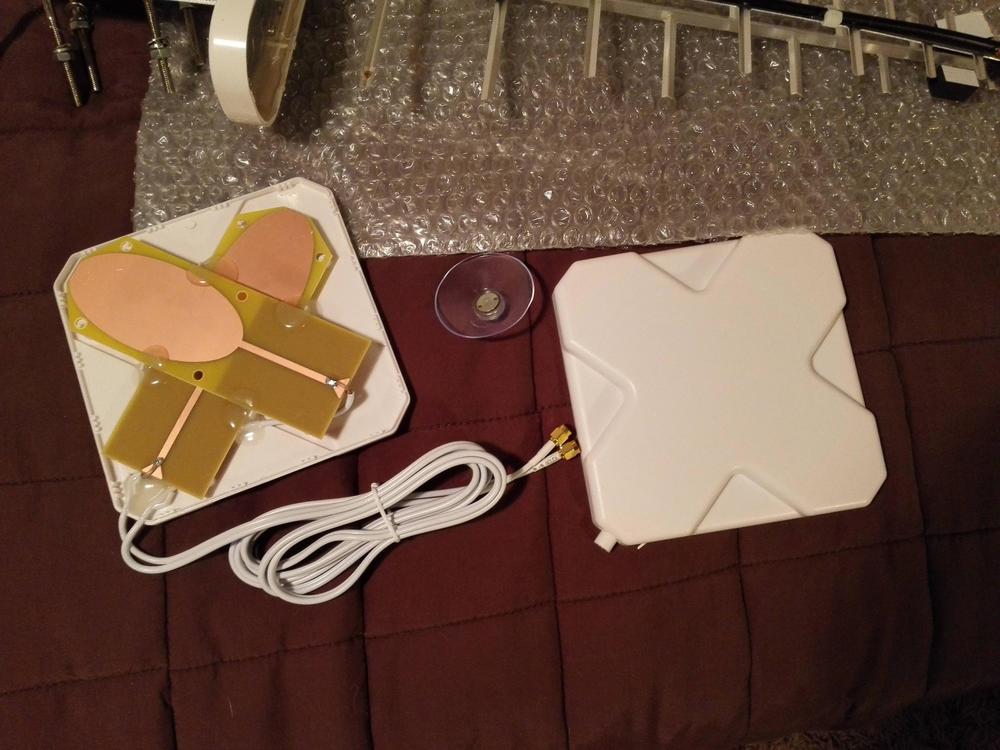

Looks like a wideband monopole

[Admin 2545]

,,, no, I think it looks like Chinese hoax ... !!!

Anyway,,, I think there not exceeds that...



[Admin 2545]

[chilanzar2 85]



I saw this "antenna". I think she's rubbish. It's not worth a penny. I often buy on Ali, but, this antenna is not worth it.

[chilanzar2 85]



I saw this "antenna". I think she's rubbish. It's not worth a penny. I often buy on Ali, but, this antenna is not worth it.

[chilanzar2 85]

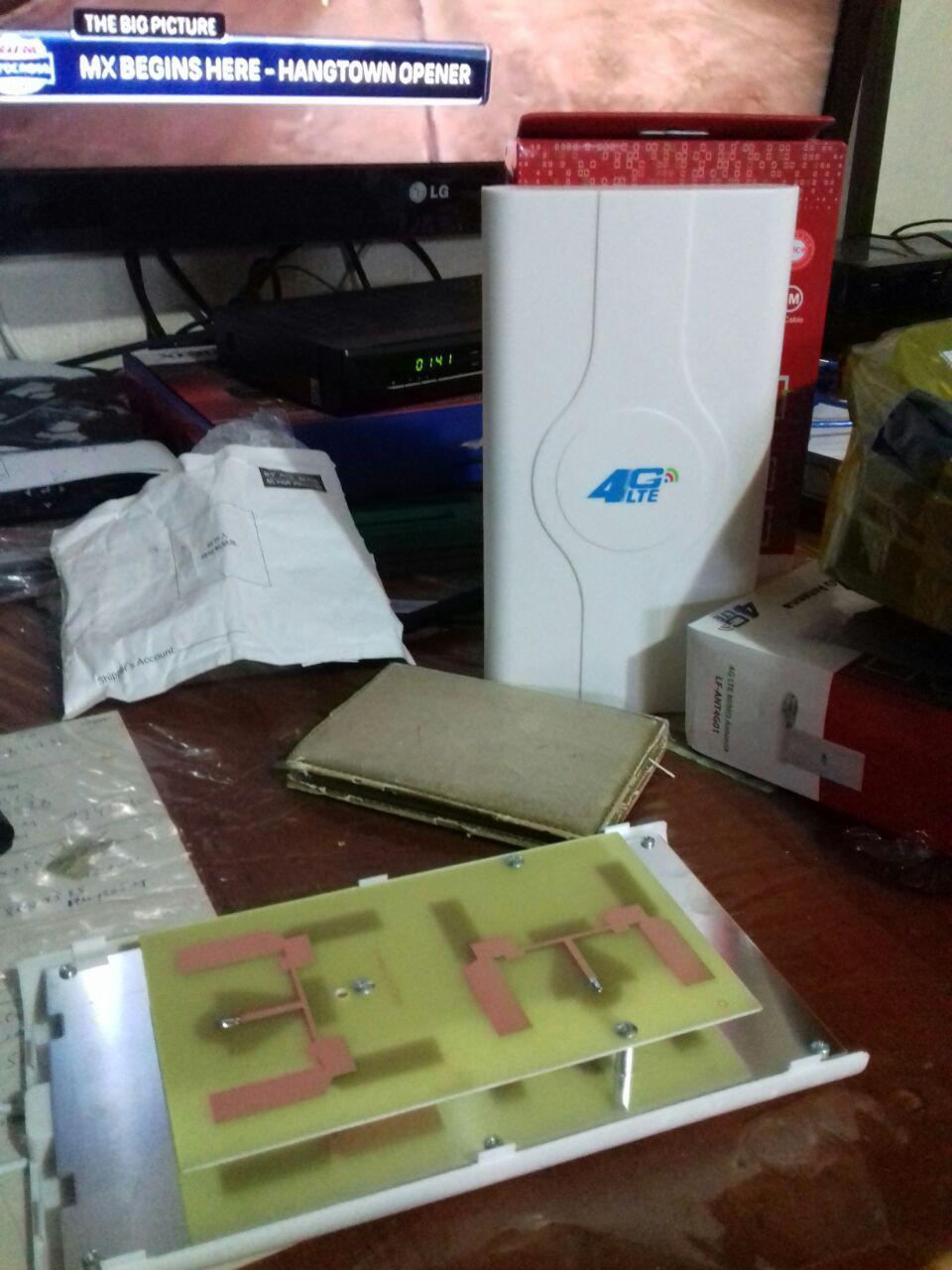

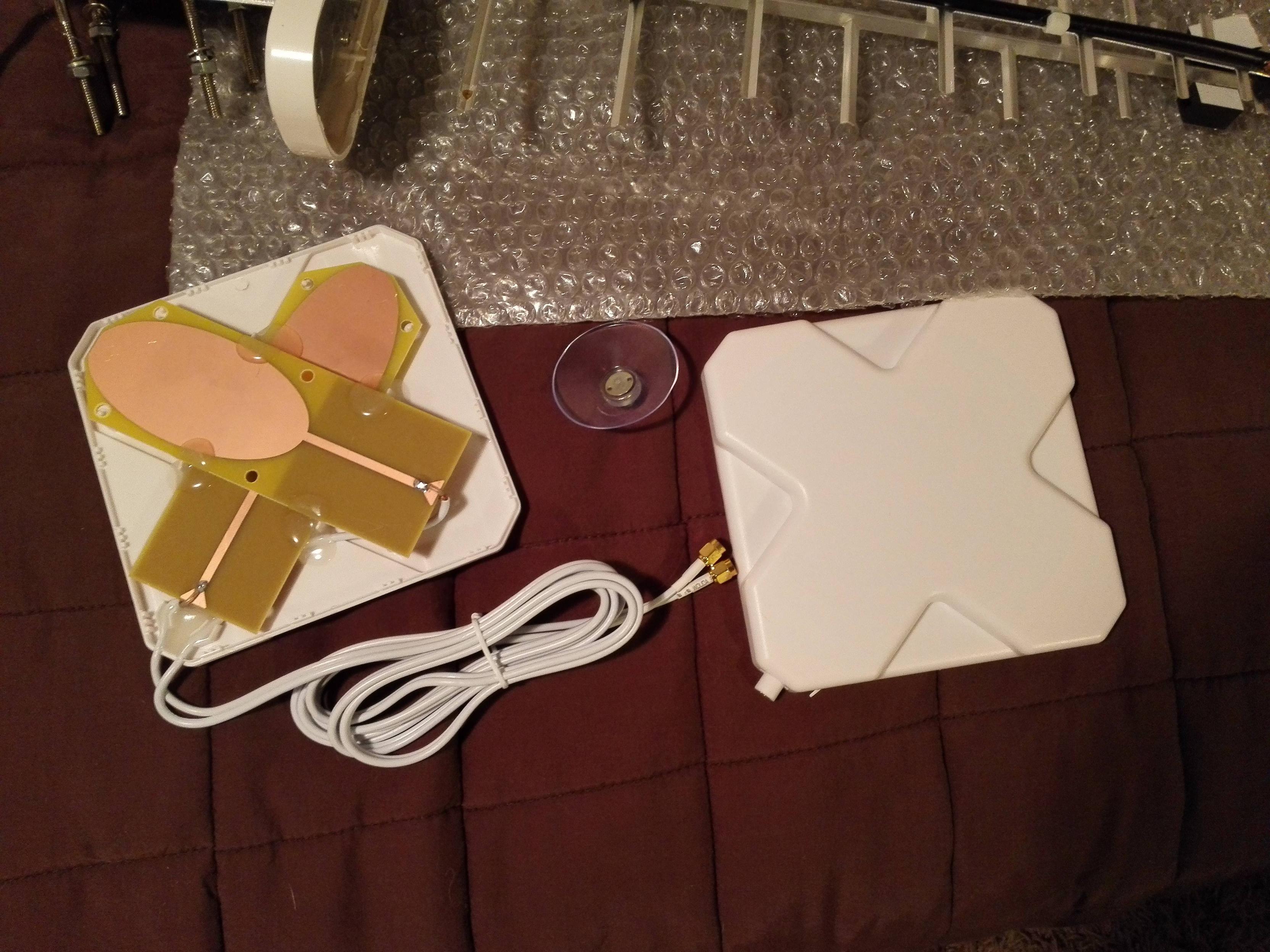

More MIMO. The mailman just brought it. I will test

[Admin 2545]

This is a good antenna, you can attach and sizes..!!??

[chilanzar2 85]

Of course, I will. Right now we test with our other cable and connectors. As he leaves, I'll take off the sizes

[chilanzar2 85]



Antenna checked for VSWR. Only on the frequency-1800 vswr is less than 1.3. On the remaining space figures - vswr3,4,5,6,7,8. Do not want to remove the dimensions of this antenna

[chilanzar2 85]

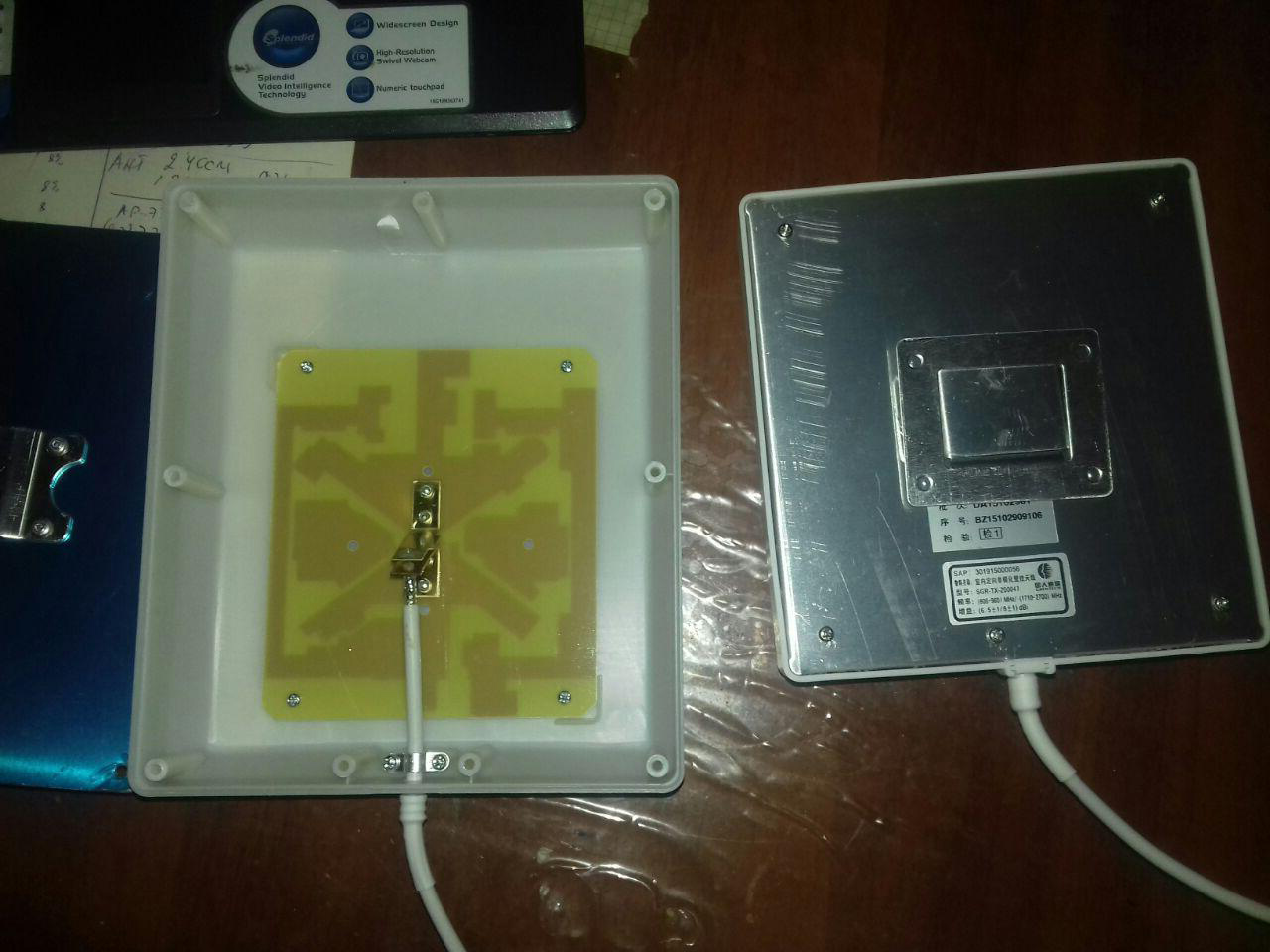

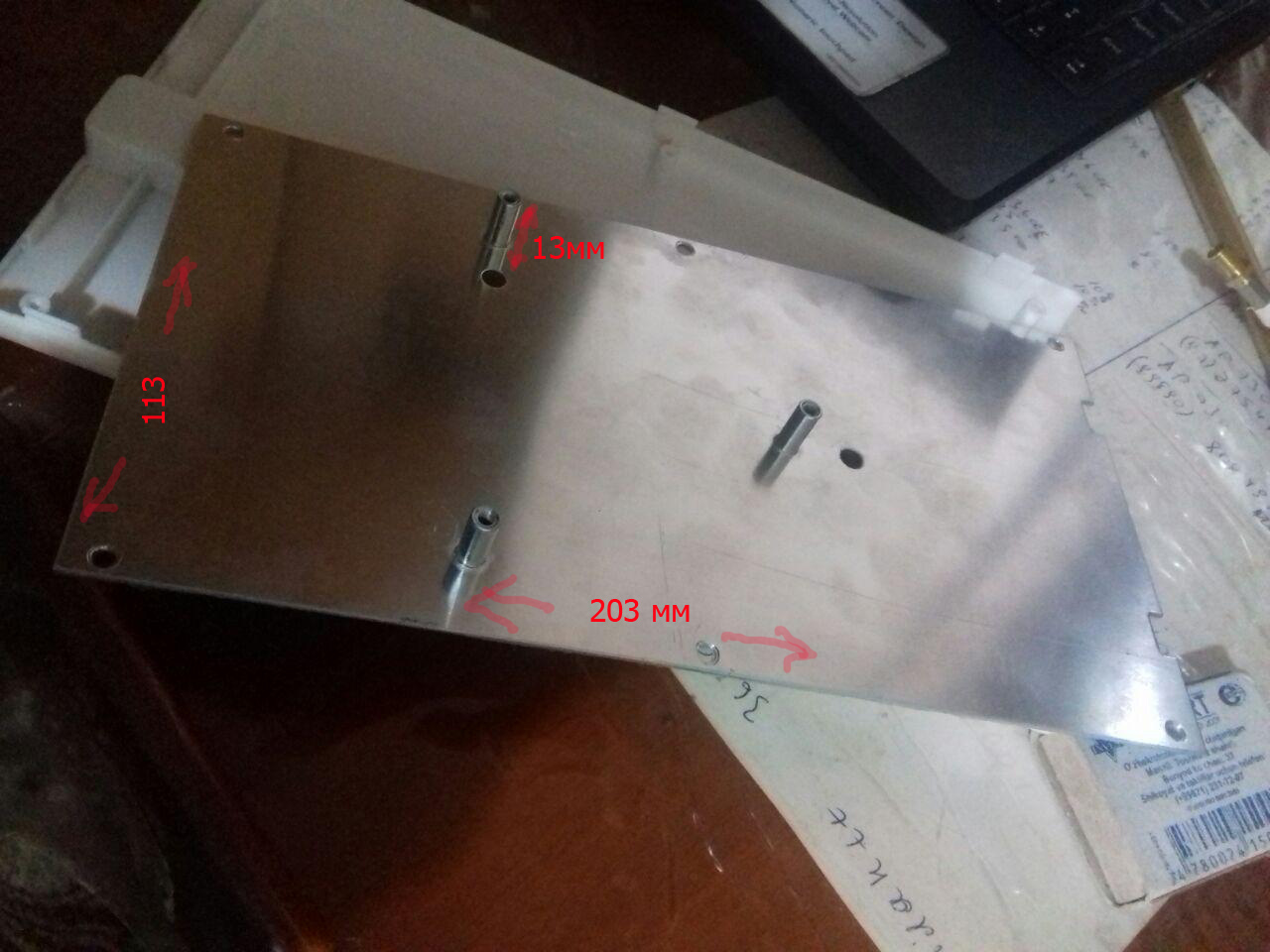

Another antenna,  no MIMO

Edited April 15, 2017 by chilanzar2

[Admin 2545]

,,, yes, I know this...!!!

I would like  dimensions of the other antenna, with dipole..!!!

[chilanzar2 85]

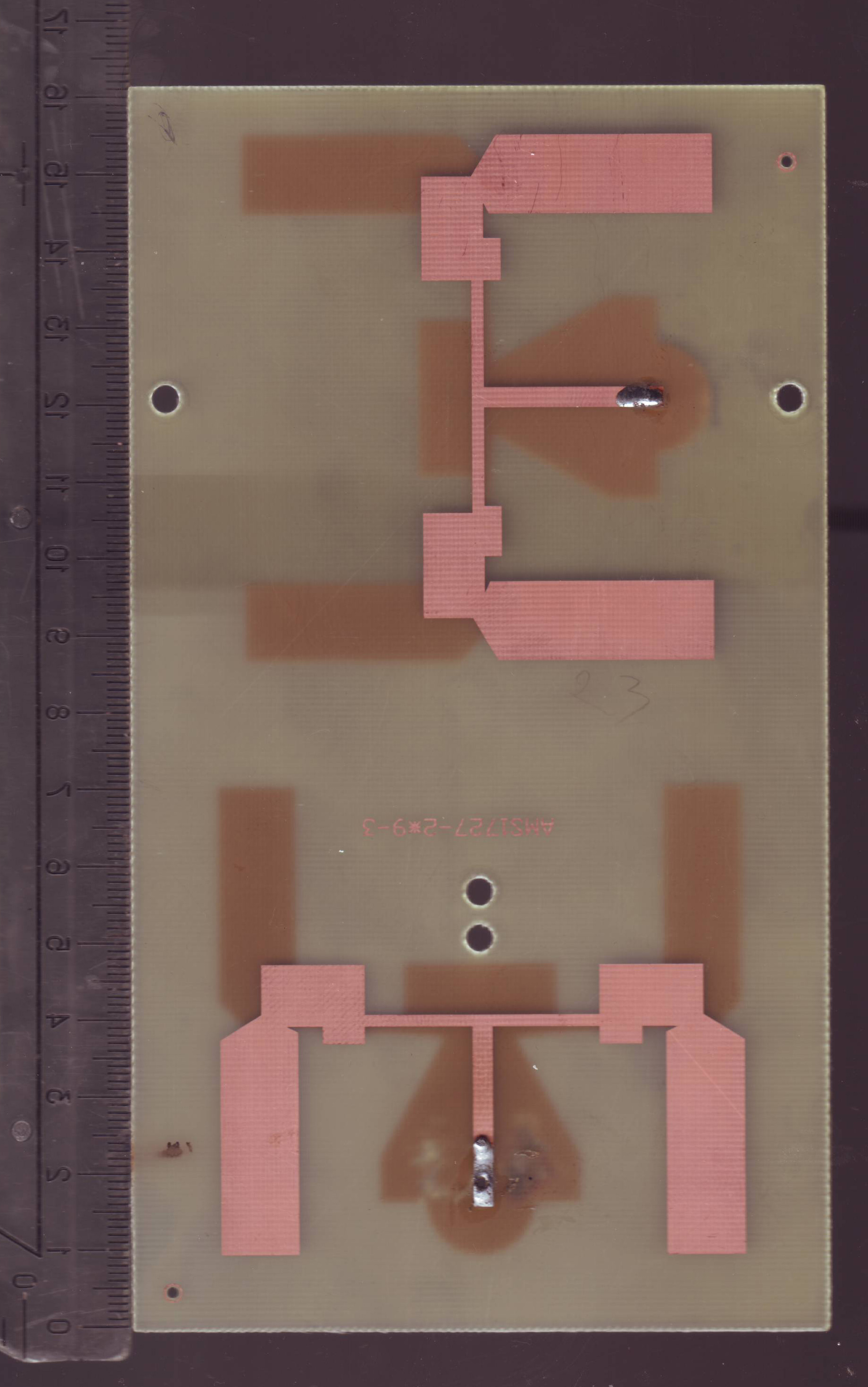

I do not know how to compass. I think if I scan, and give a live picture, it will be fine. Excuse me. I'm still learning

[chilanzar2 85]

[chilanzar2 85]

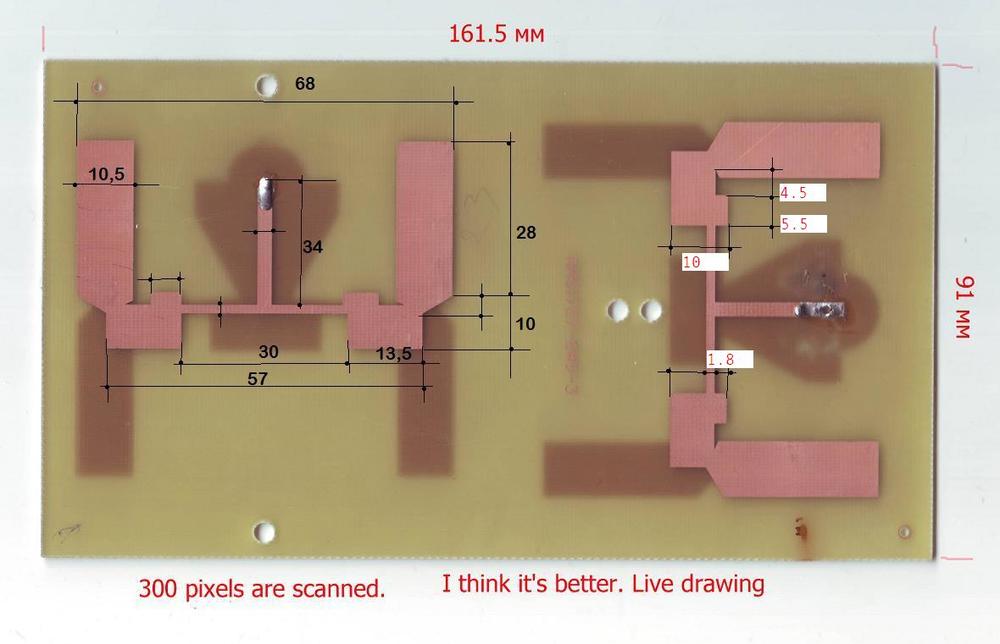

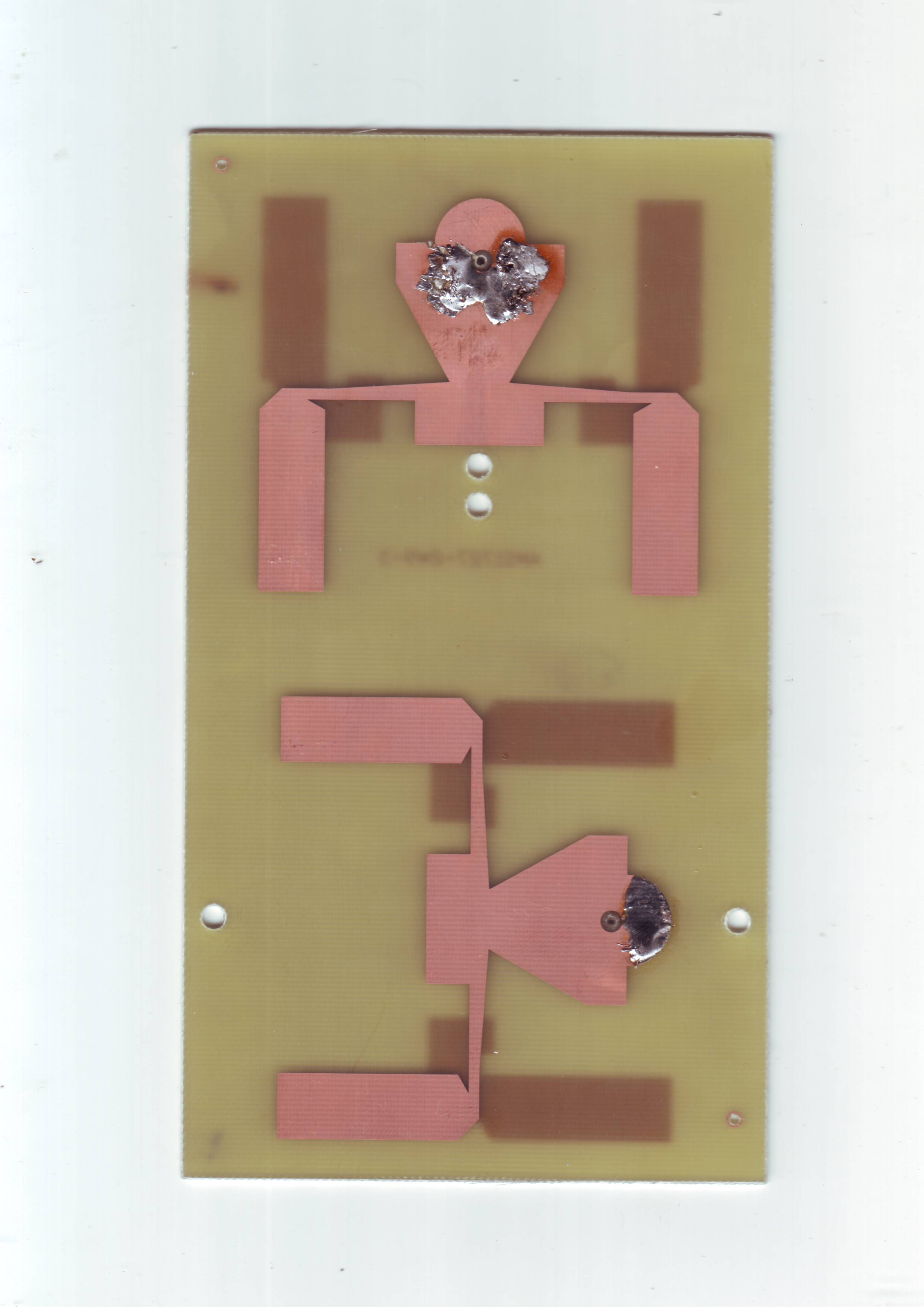

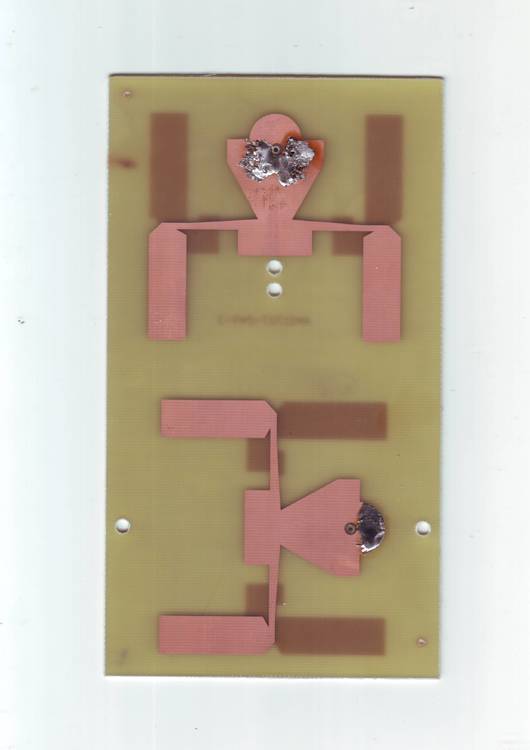

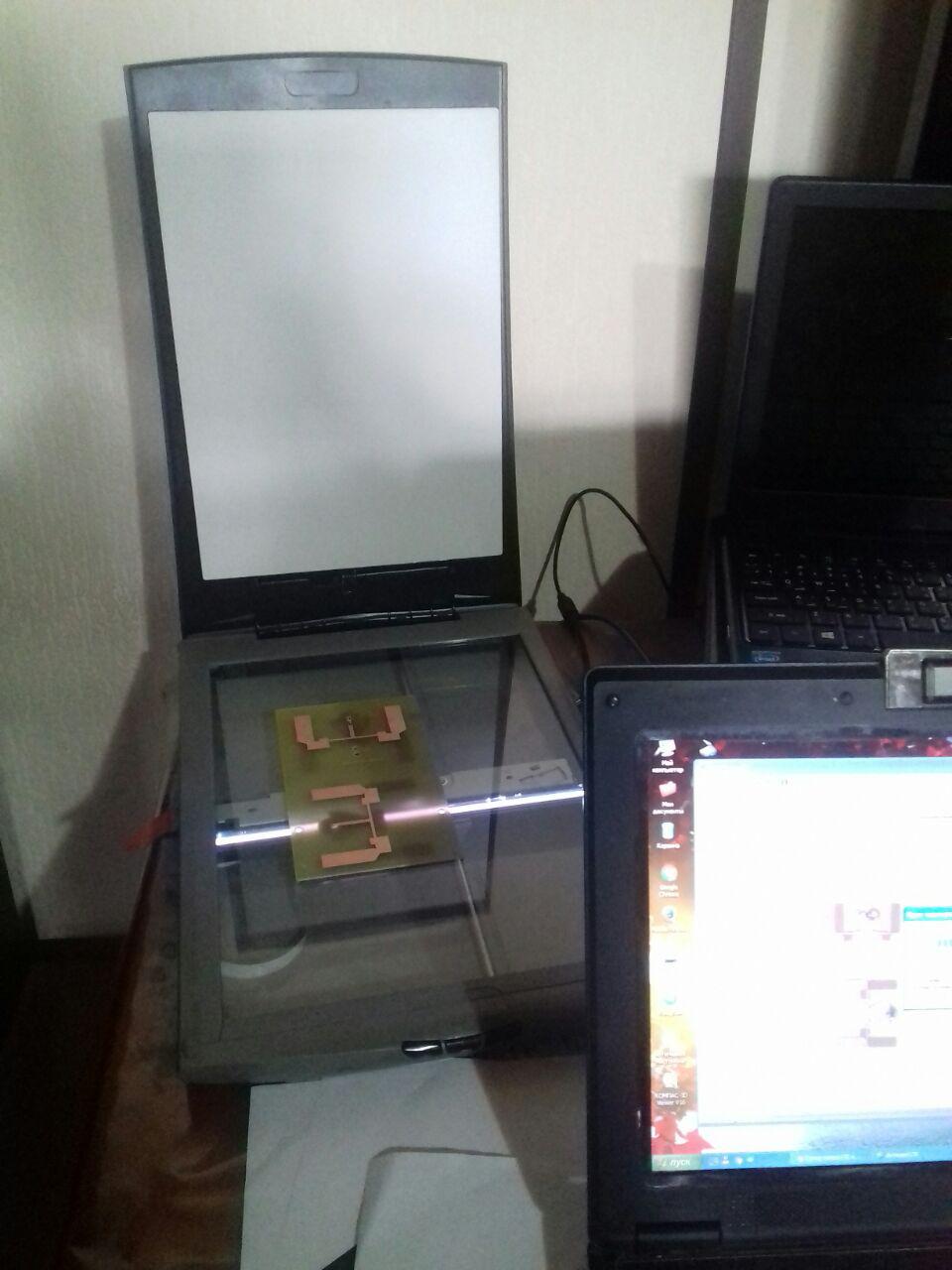

it looks like this. Canon Scanner

[Admin 2545]

ooo, thanks a lot buddy, you did an excellent job ... ??
I think it was enough a picture and a  measure  with caliper,,!!

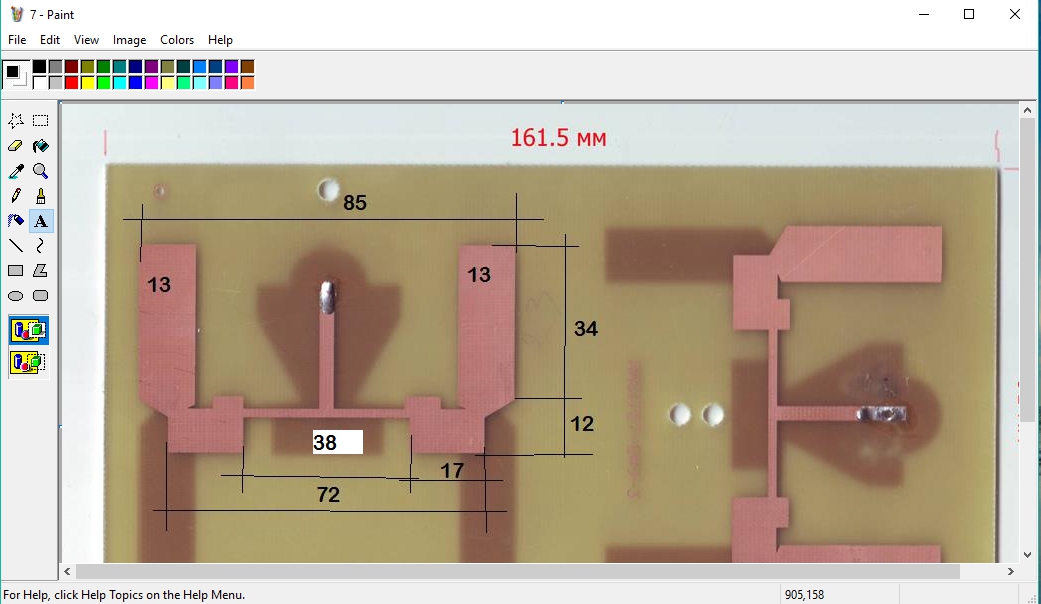

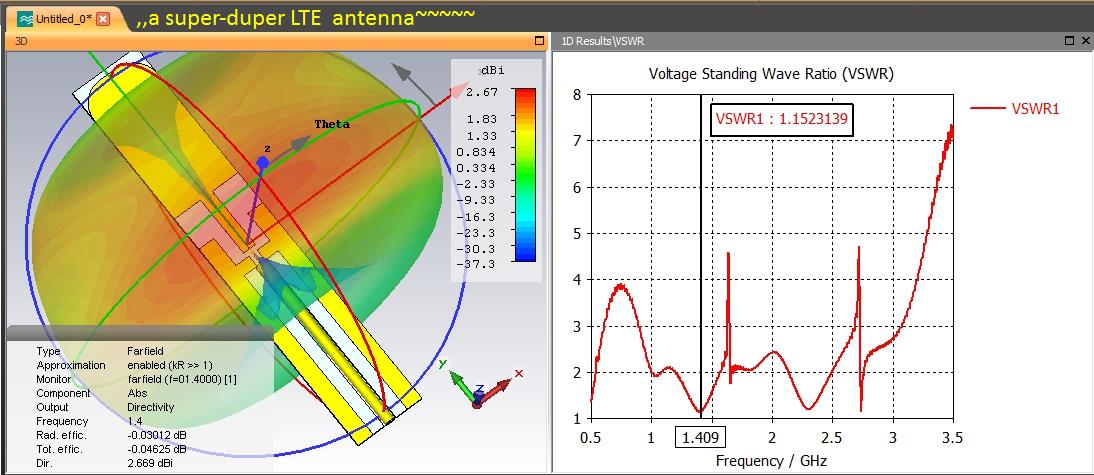

and to use this simple utility from Windows

[chilanzar2 85]

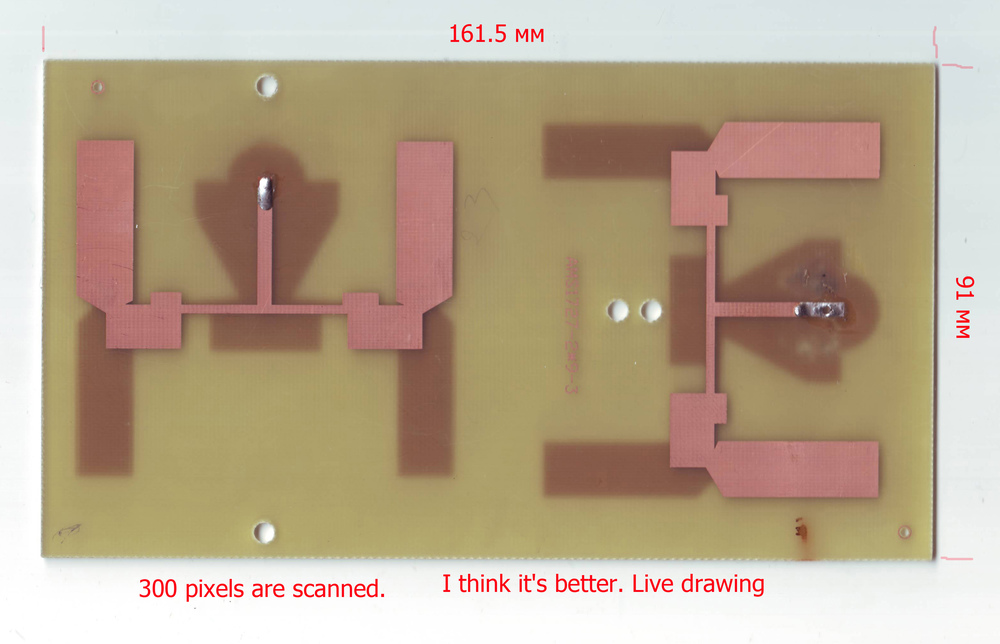

No, not so, dear Admin. The scanner is wrong in its scanning, and incorrectly gives dimensions. You need to spread the image in the editor to the size I indicated. Then everything will be OK.

[Admin 2545]

it was just an example, but if you measure with the caliper, is another aspect

[chilanzar2 85]

[Admin 2545]

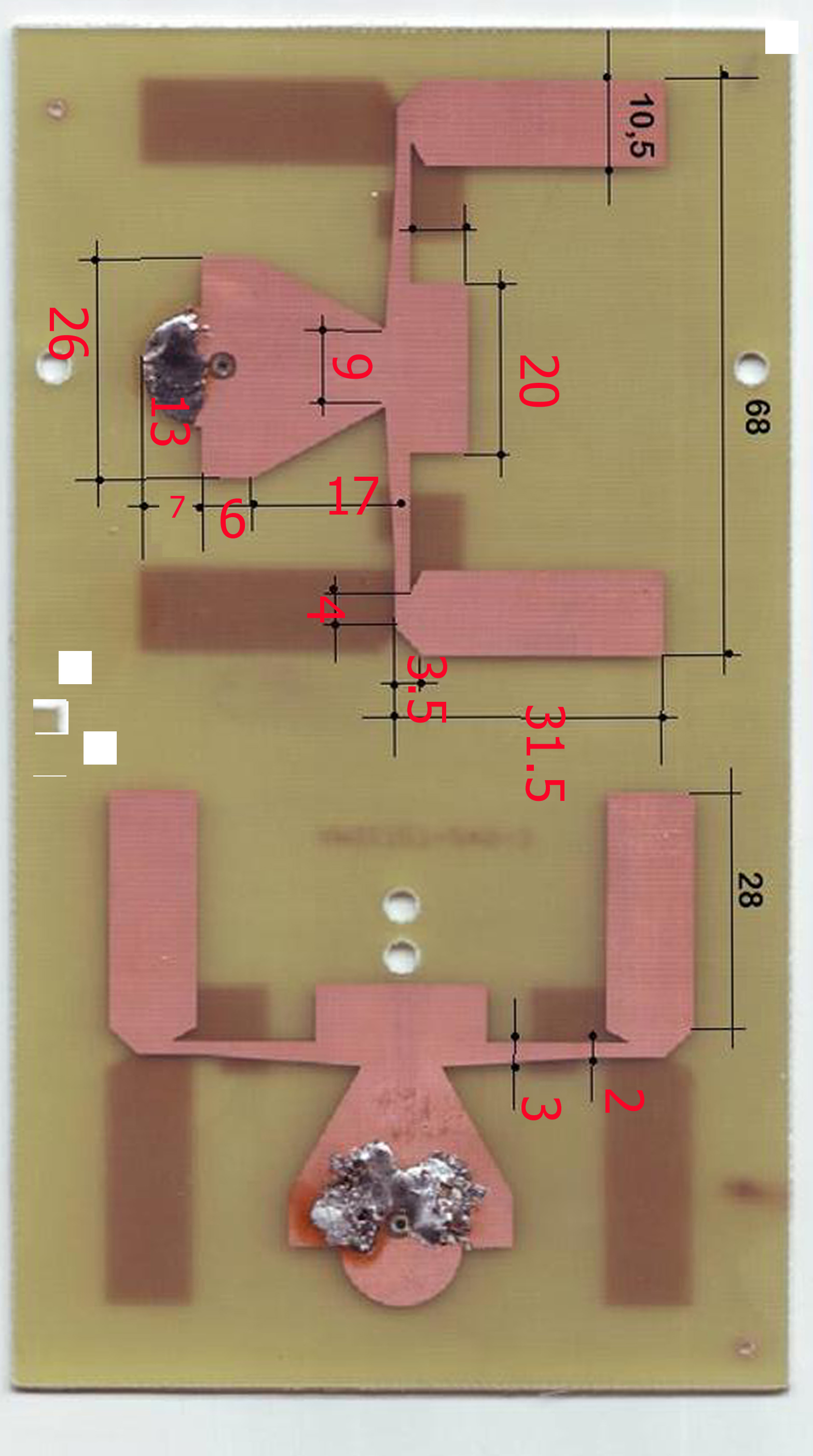

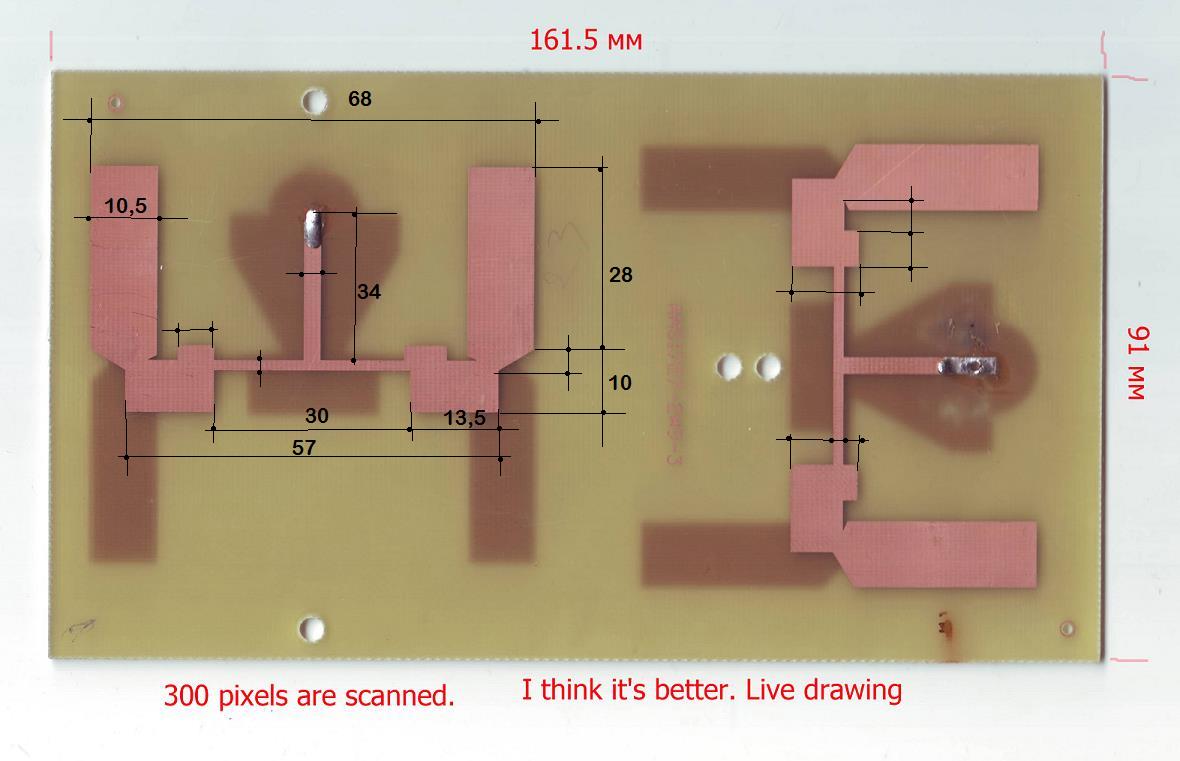

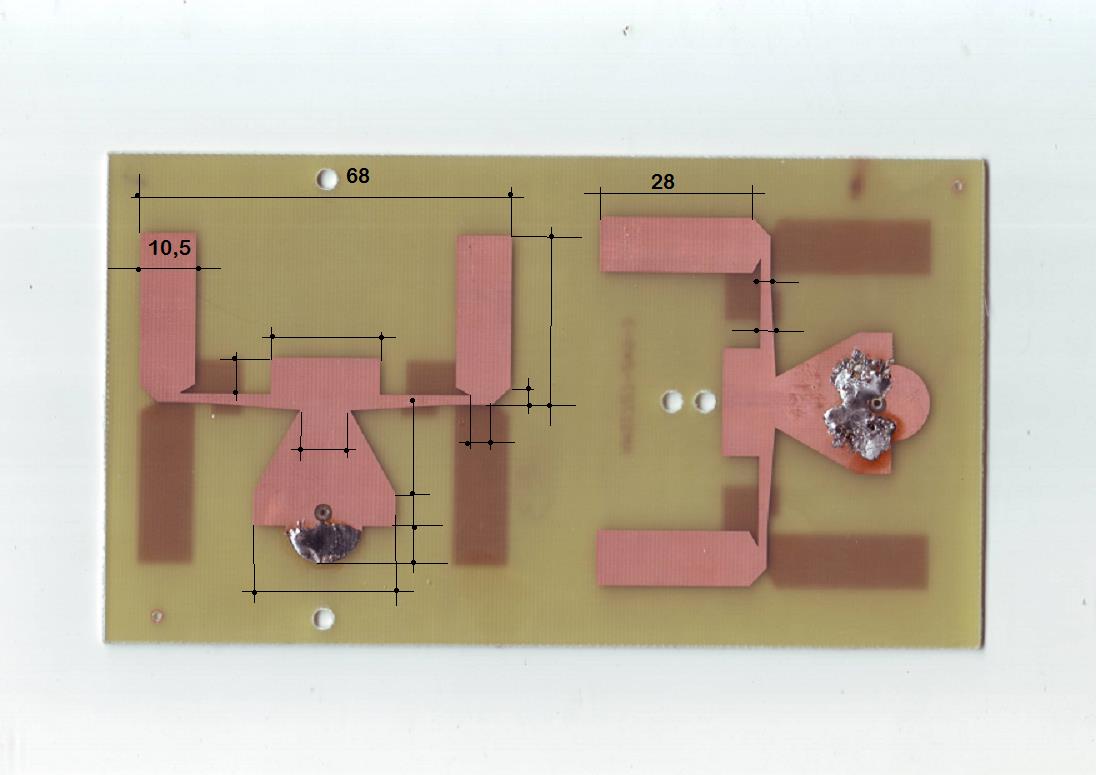

you can attach dimensions here...

[chilanzar2 85]

[chilanzar2 85]

[Admin 2545]

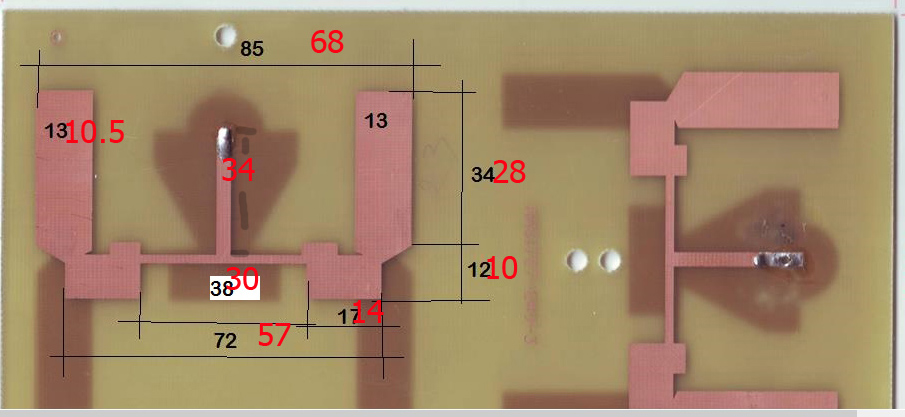

,, is the easiest to work with MS Paint, right?

[chilanzar2 85]

Photoshop is a good program. You should  have stretched the image to 91 / 161mm in this program

[Admin 2545]

Windows does not ship with Photoshop

and ms paint is Stretch and Skew
