BOOSTER INTERNET SIGNAL STREET PRO II

[Admin 2545]

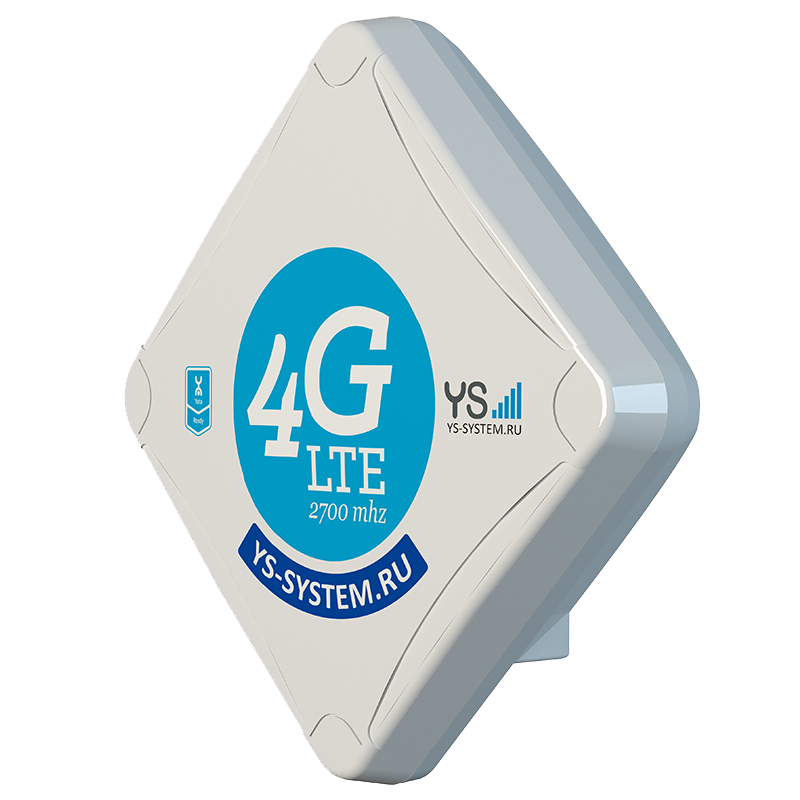

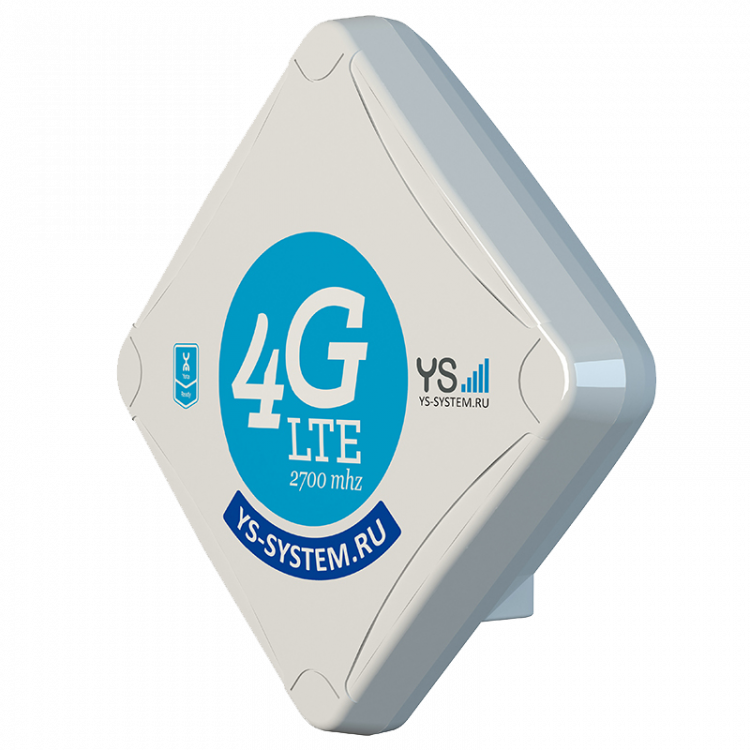

Antenna amplifier Pro Street II significantly expands the coverage area of mobile Internet and creates a stable connection with the base station of the cellular operator. Built-in product powerful antenna receives even the weakest signal, and the MIMO technology further extends the bandwidth of the channel, thereby providing the maximum possible speed of data exchange between the subscriber device and a mobile communications tower. Also due to the fact that all radio traffic is going on inside the machine, the Street II Pro amplifier minimized signal losses, which are inevitable when using conventional panel or directional antennas.
Power supply and data transfer from the amplifier to the router (computer) is by a single cable type twisted pair, the length of which can reach 120 meters, which makes possible the selection of a place for mounting the device are almost limitless.
Street performance sealed enclosure allows for outdoor installation of amplifier and operate it at an ambient temperature of from -30 to +40°C. Protected from moisture SIM slot is located on the housing of the amplifier facilitates easy installation or for quick replacement of the SIM card.
Setup and installation takes just minutes and will not cause difficulties even for inexperienced users. Mobility solutions allow business users when moving to a new place to deploy a full-fledged online channel and provide your office with reliable and high-speed Internet in the shortest possible time.

FEATURES

Frequency range, MHz :1700 — 2700 MHz

Gain :12,5 — 16 dBi

Support communication standards 2G/3G/4G/Lte

Housing material :polycarbonate + ABS

Size (l x W x h) :25 x 25 x 9 cm

Supported speed :100/50 Mbps.

Supported OS :Windows, Mac OS X, Linux

Support MIMO :Yes

Polarization :vertical / horizontal

Antenna type :directed

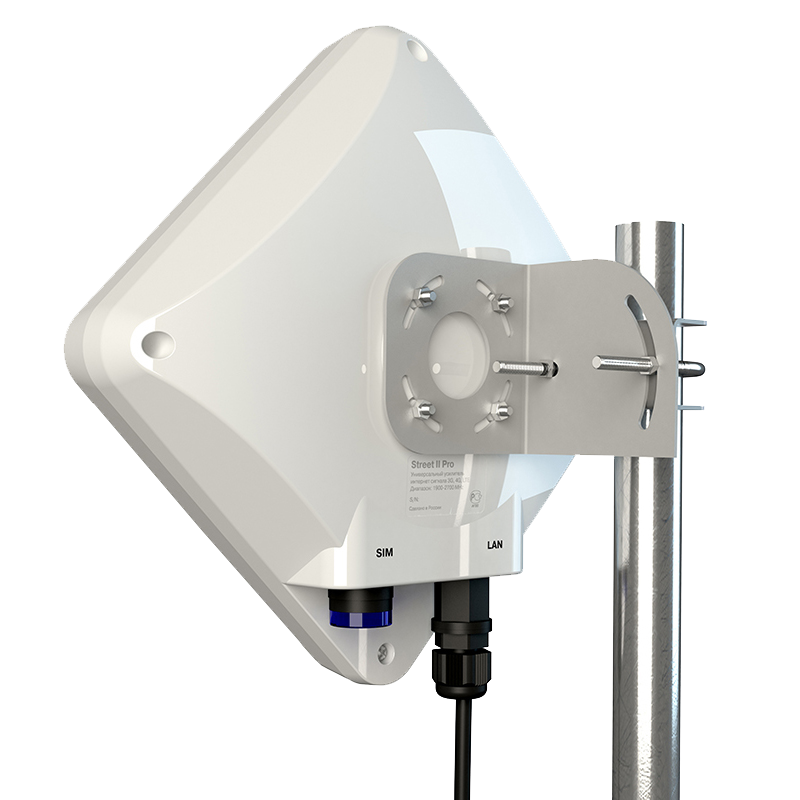

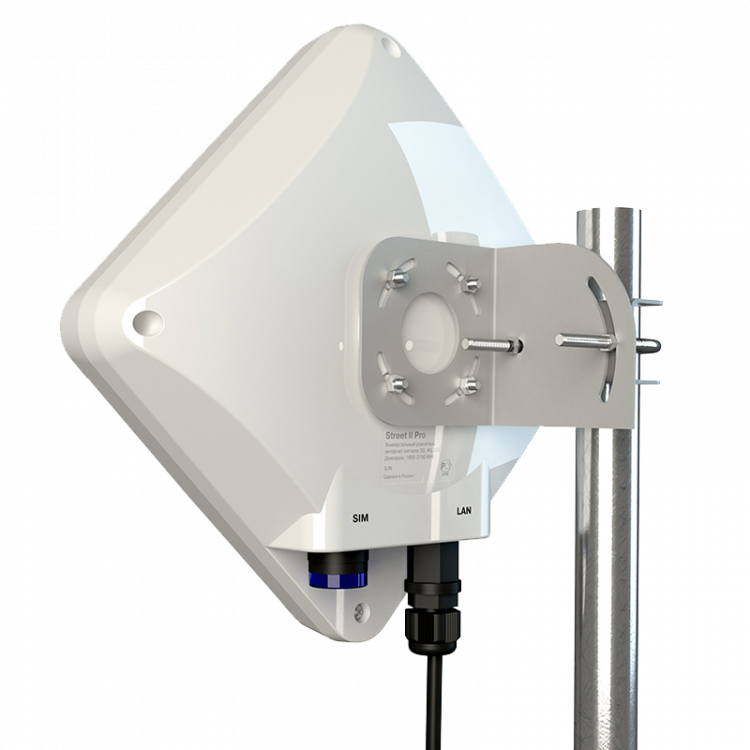

Fastening type :mast diameter 20 — 52mm

Operating temperature range :-30° to +40°C





[Admin 2545]

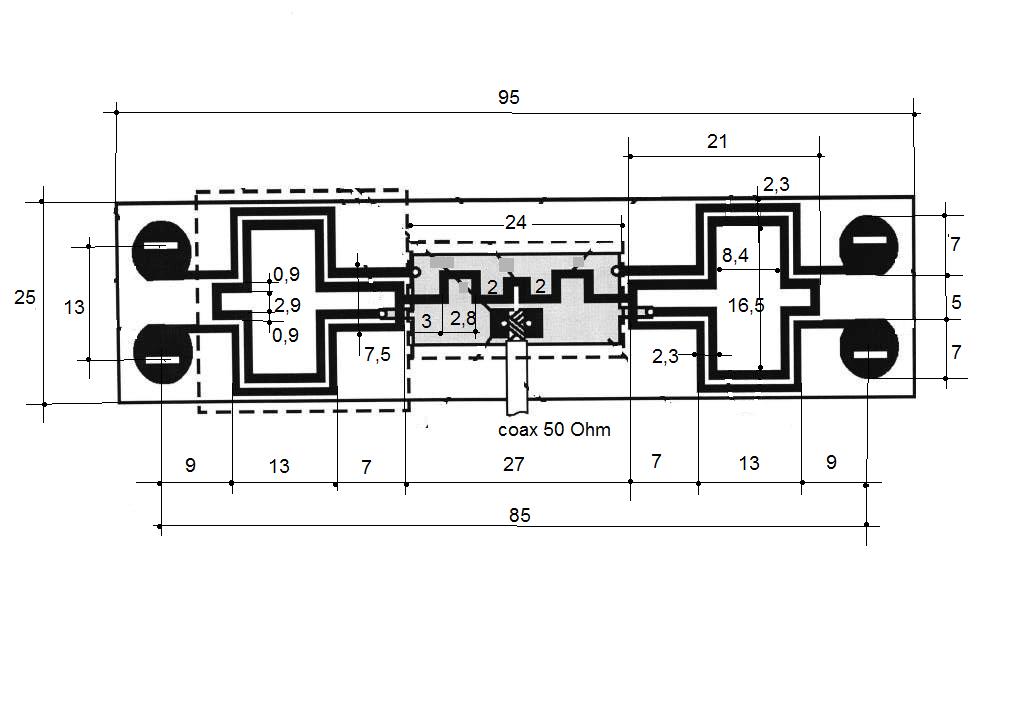

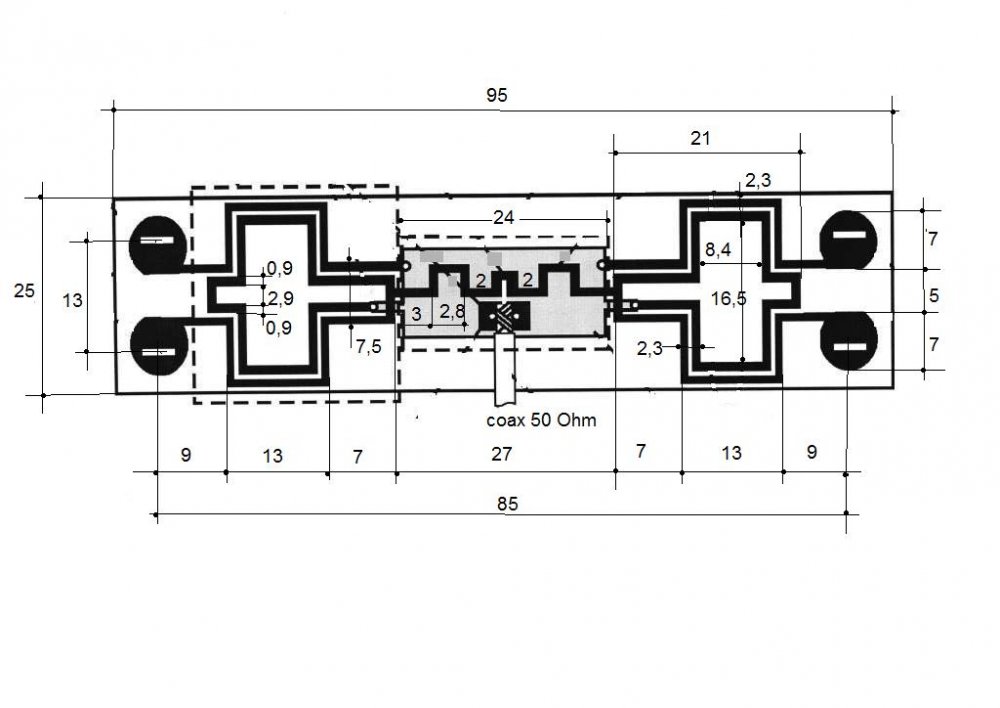

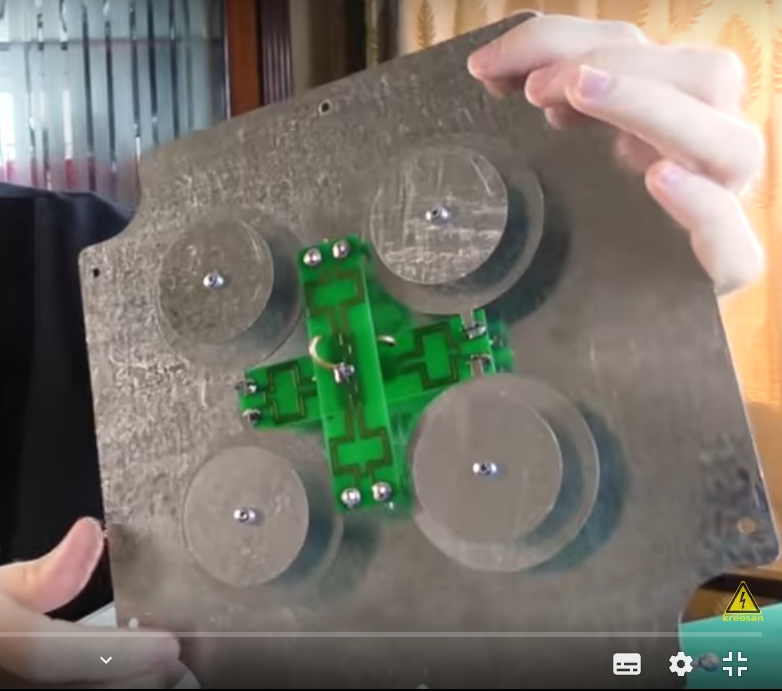

Adaptation,is much more complicated. Lines that are symmetrical but there was more on each printed circuit Board 2 Guanella current balun 4:1

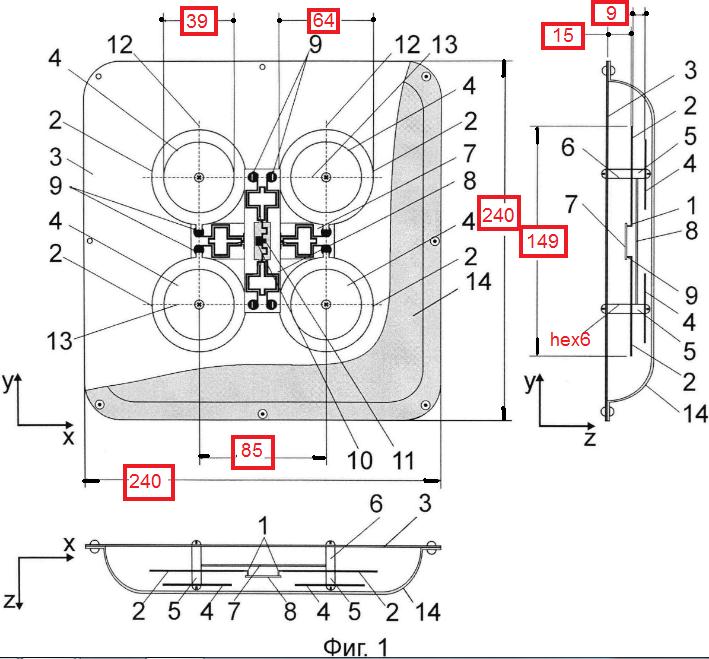

ANTENNA OVERVIEW
