Yagi Size 6

Started by Admin,

Posted

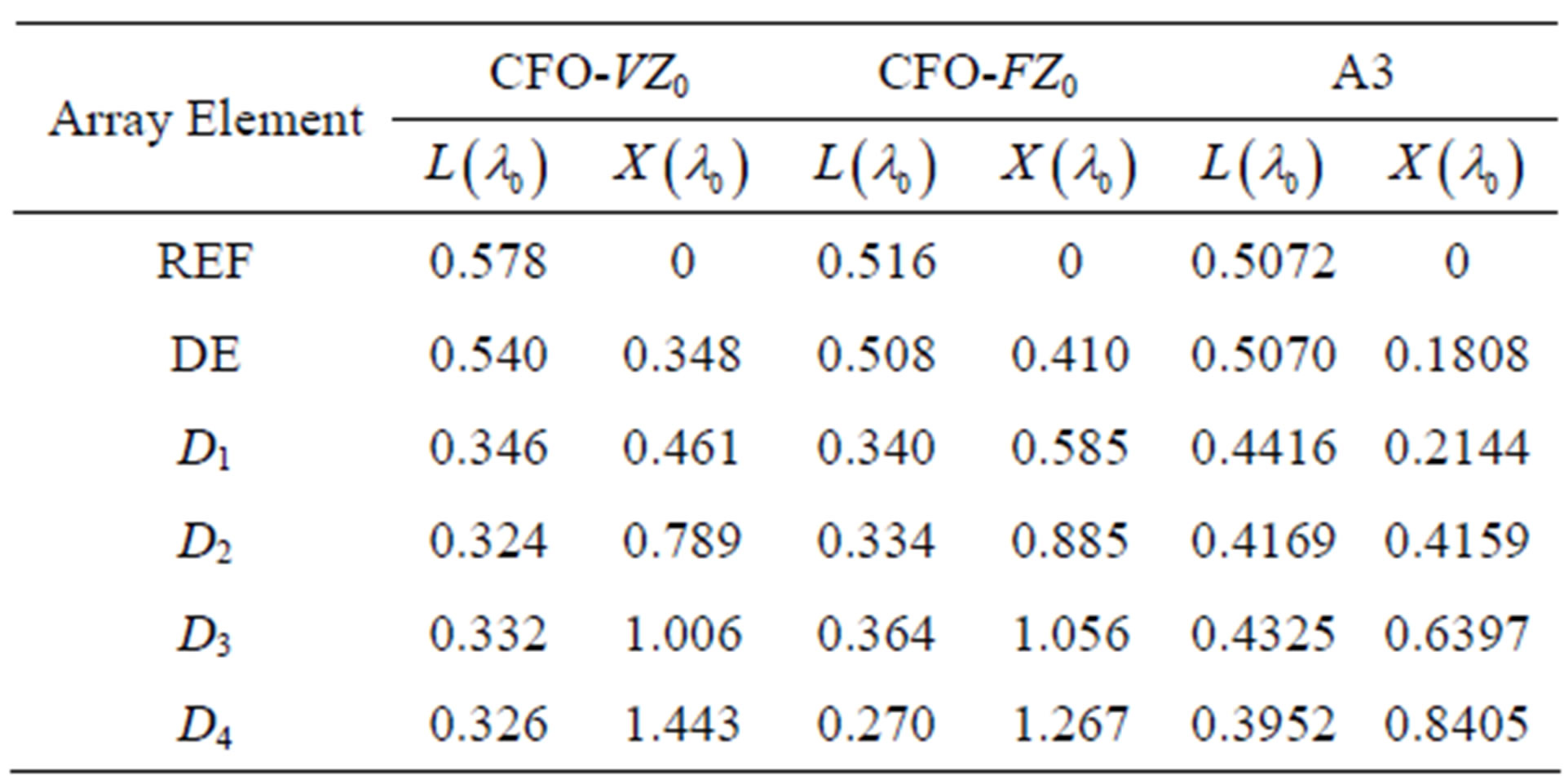

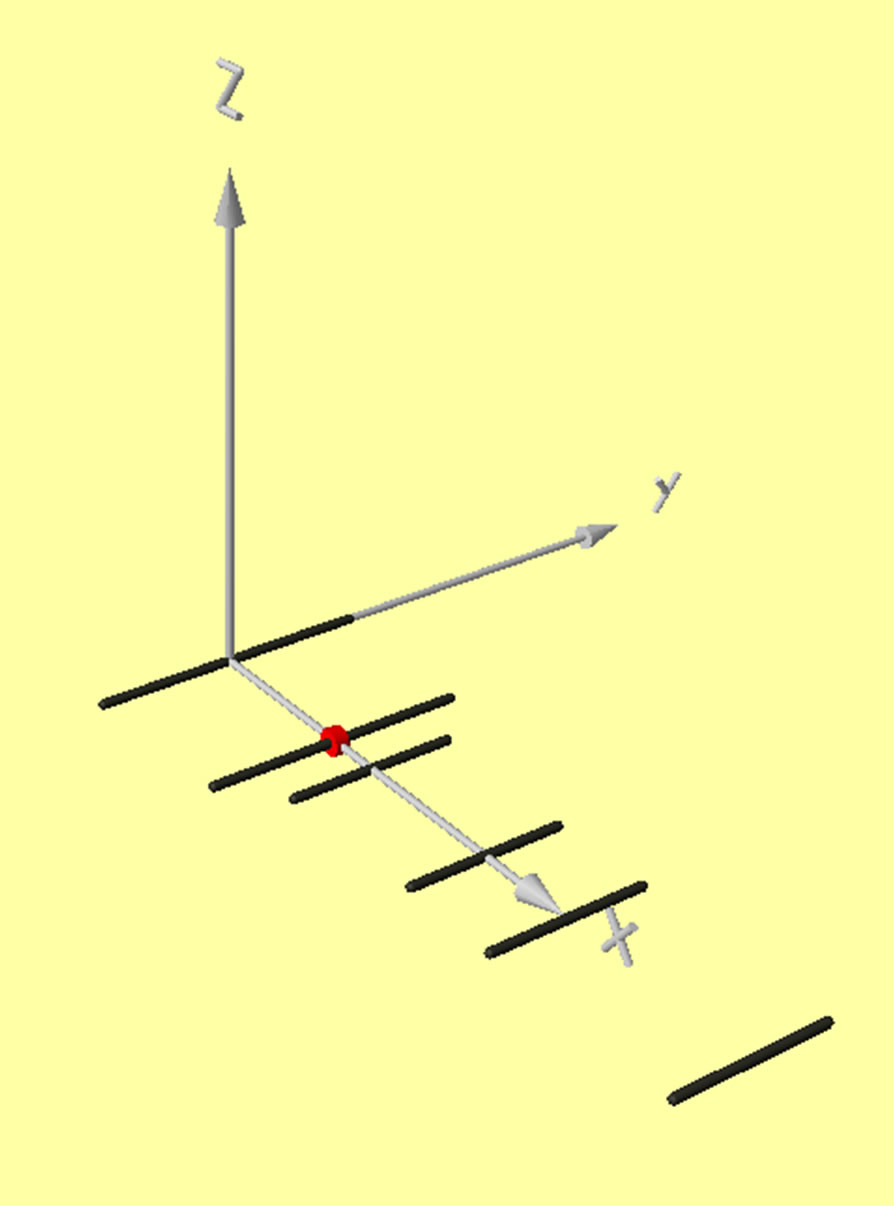

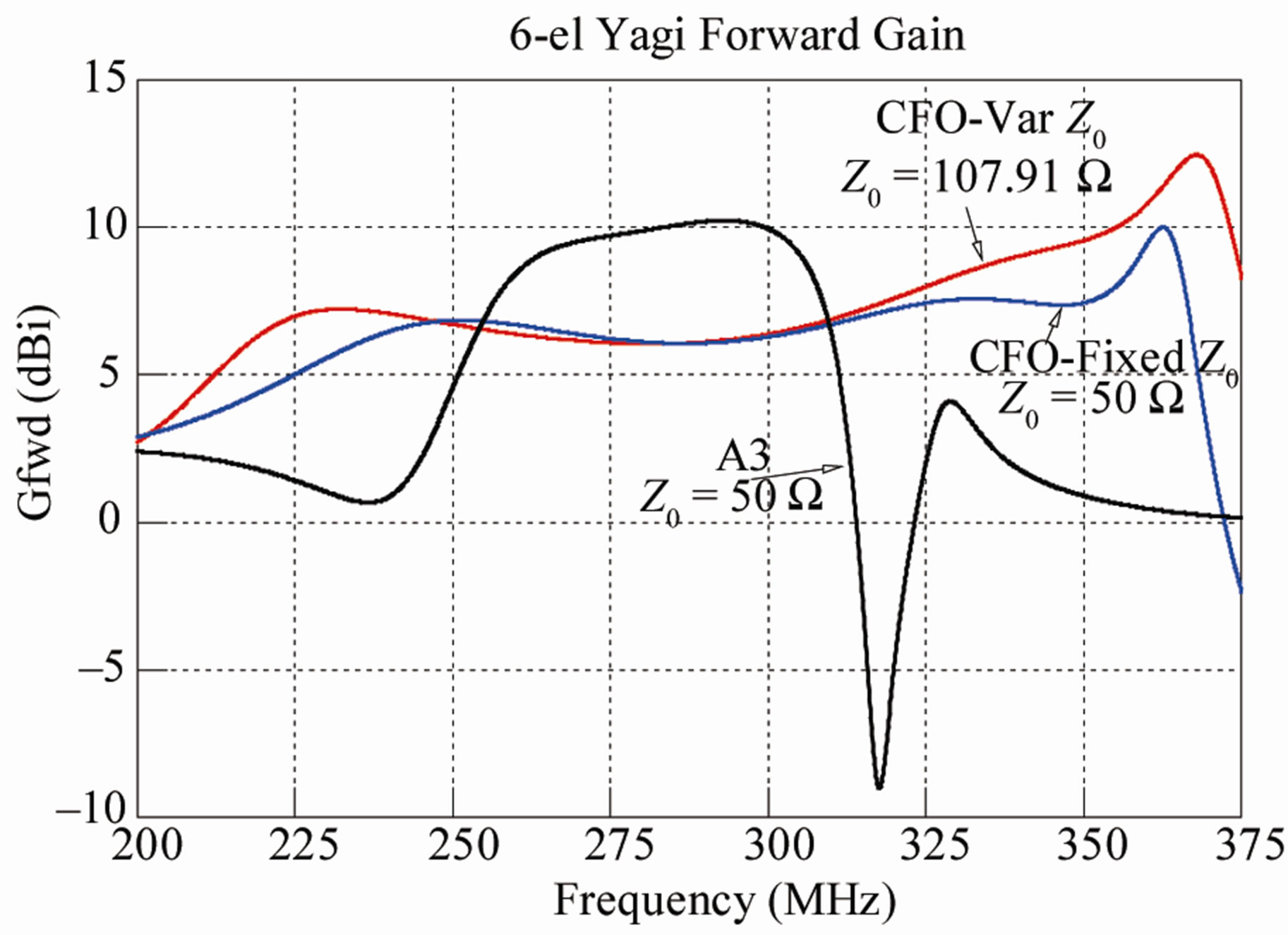

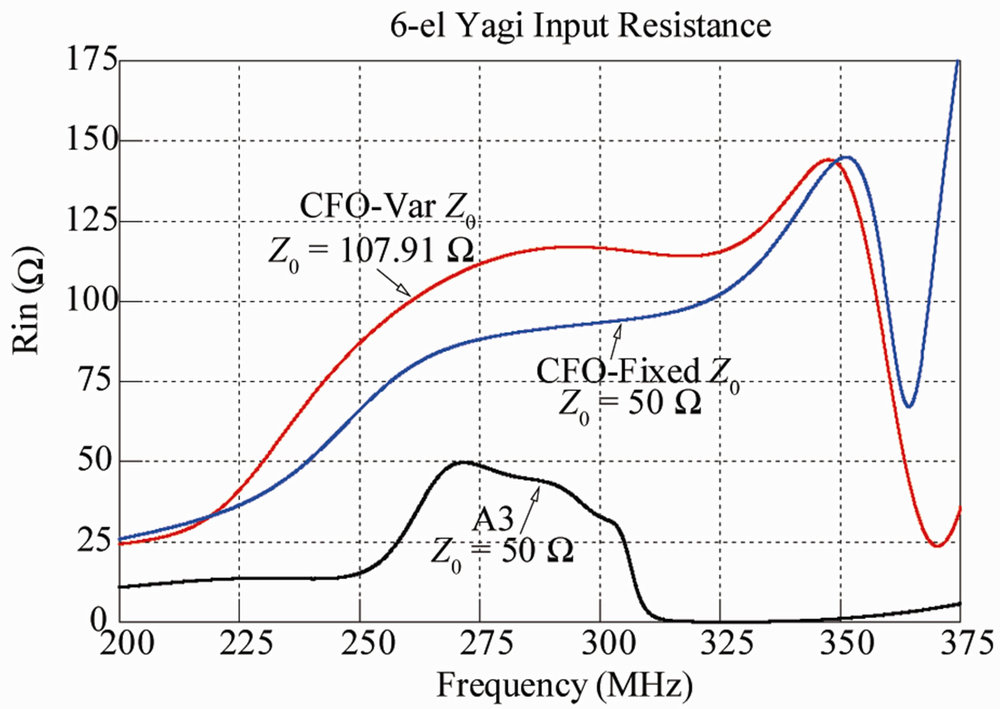

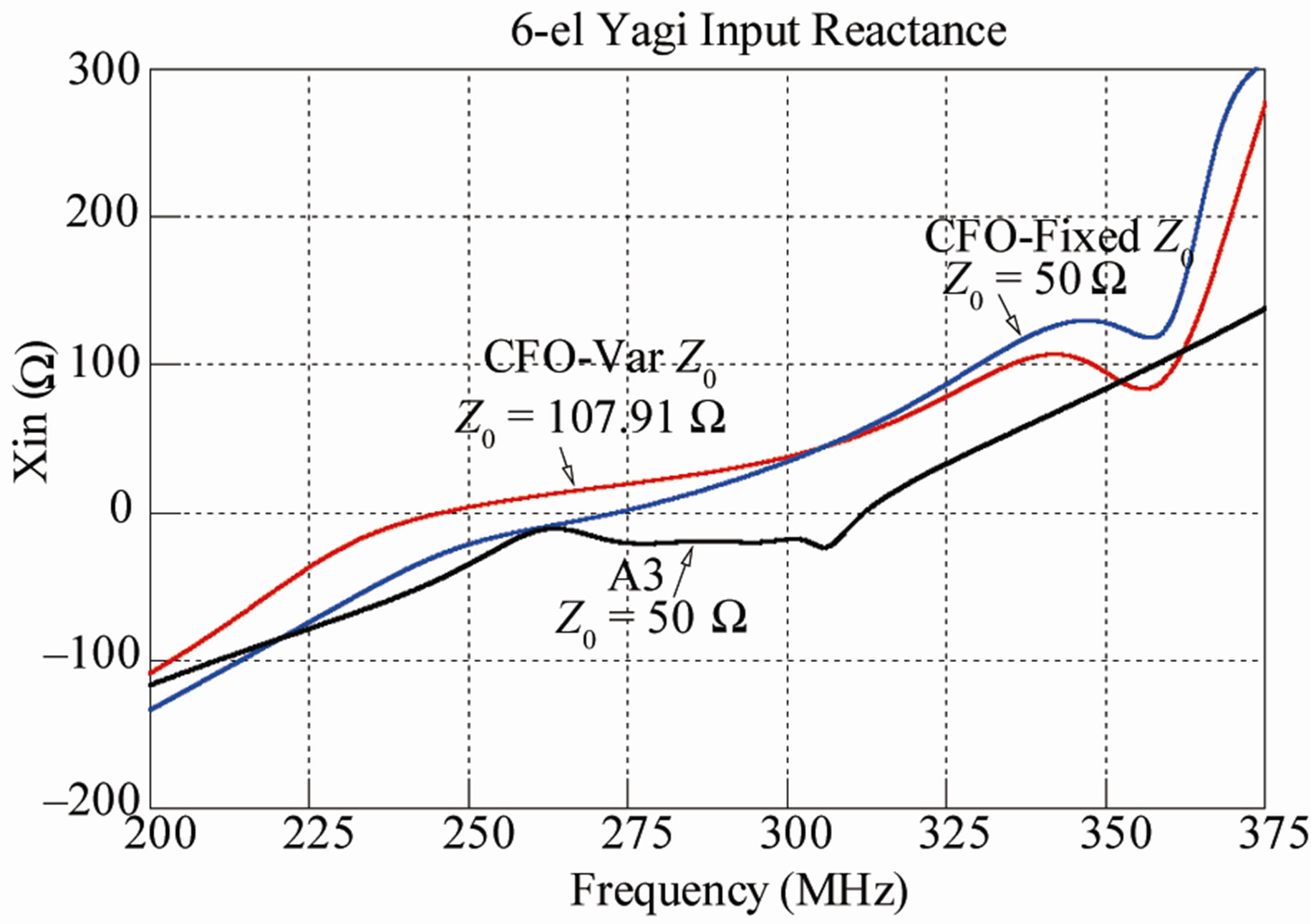

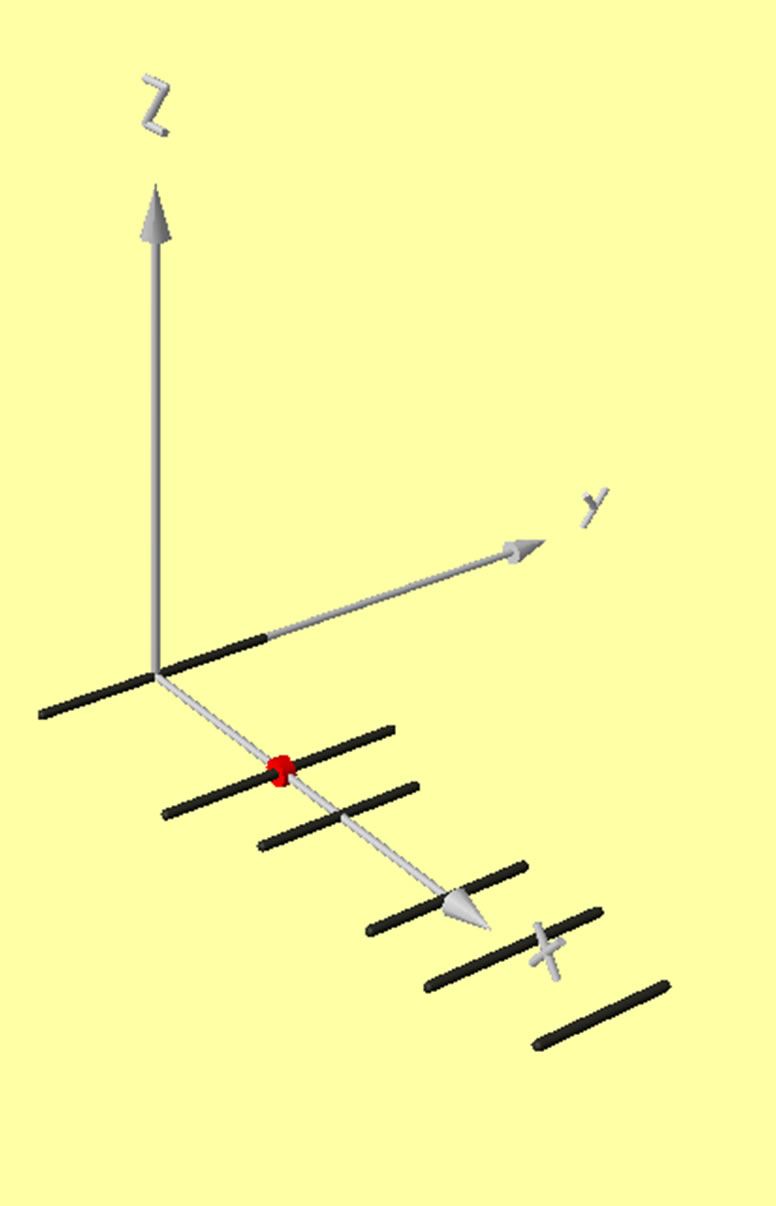

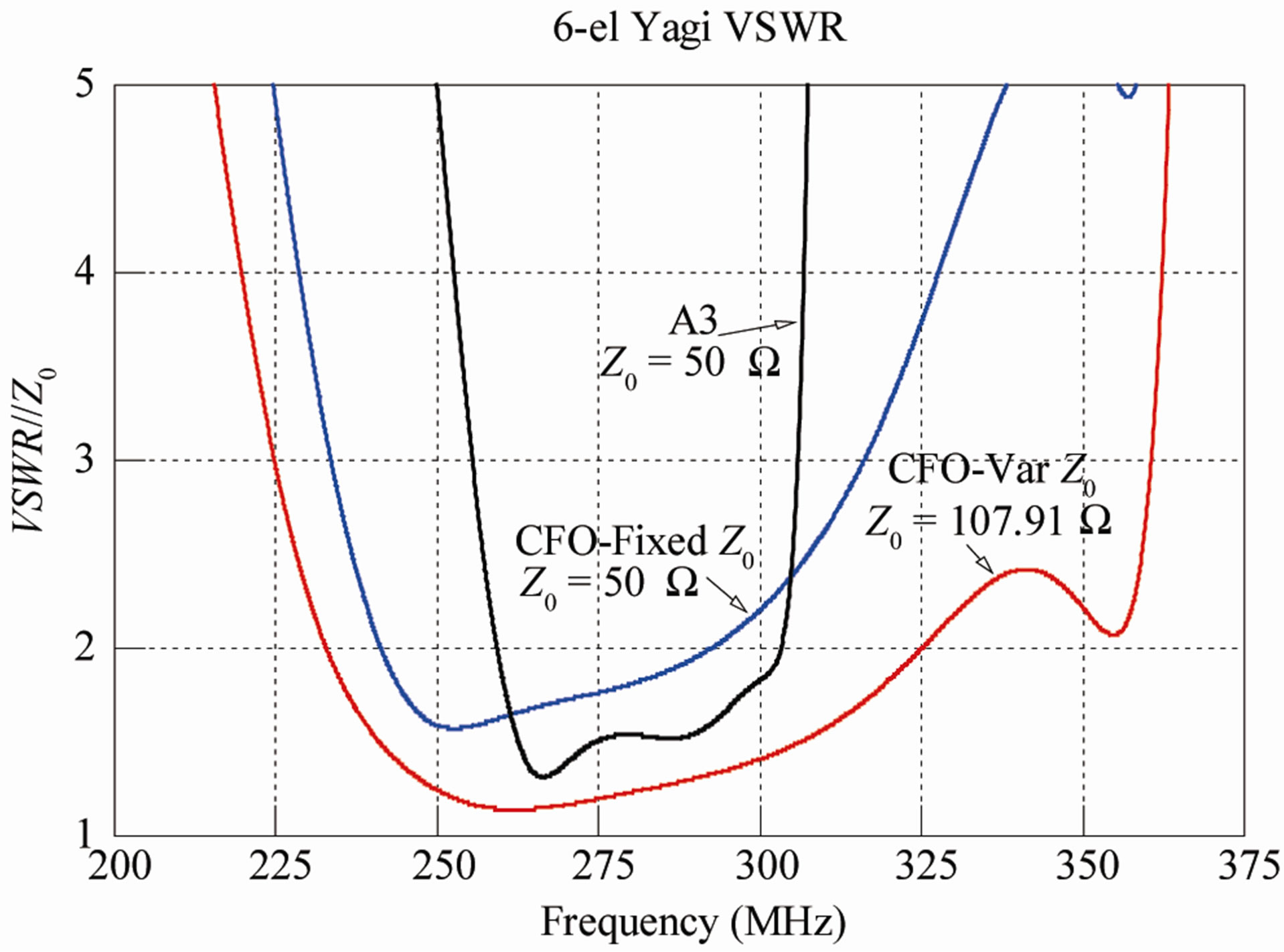

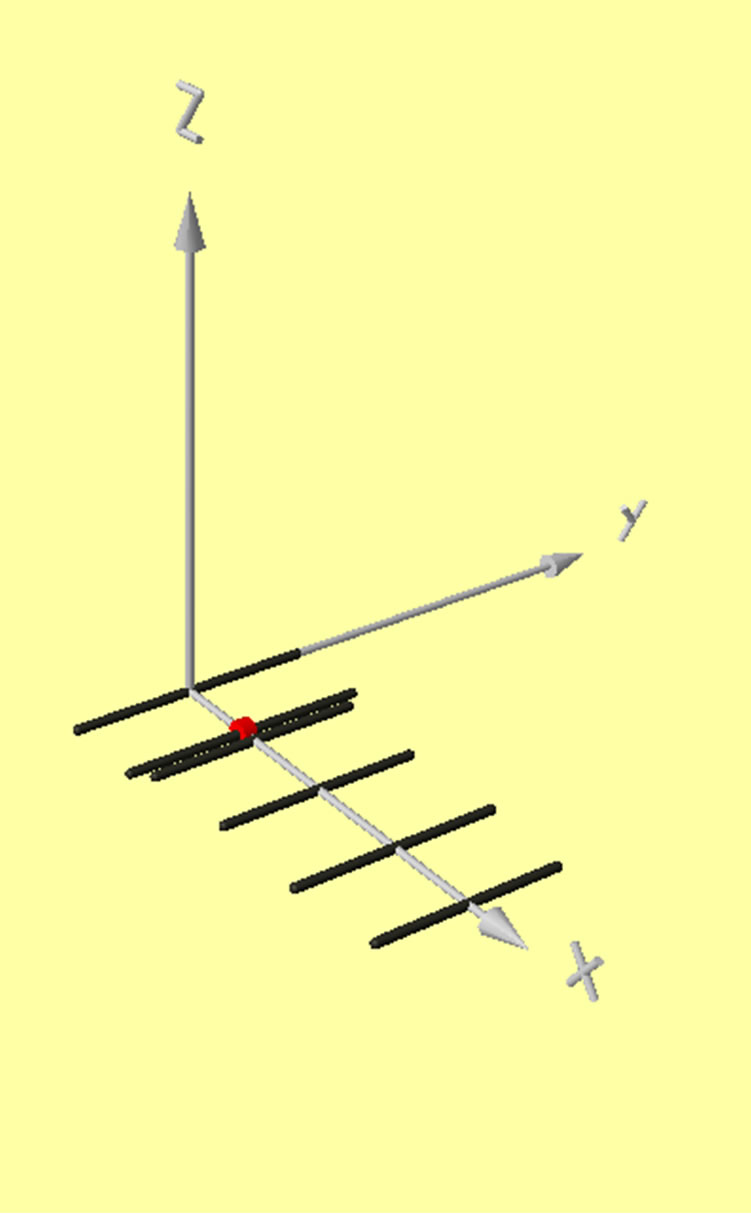

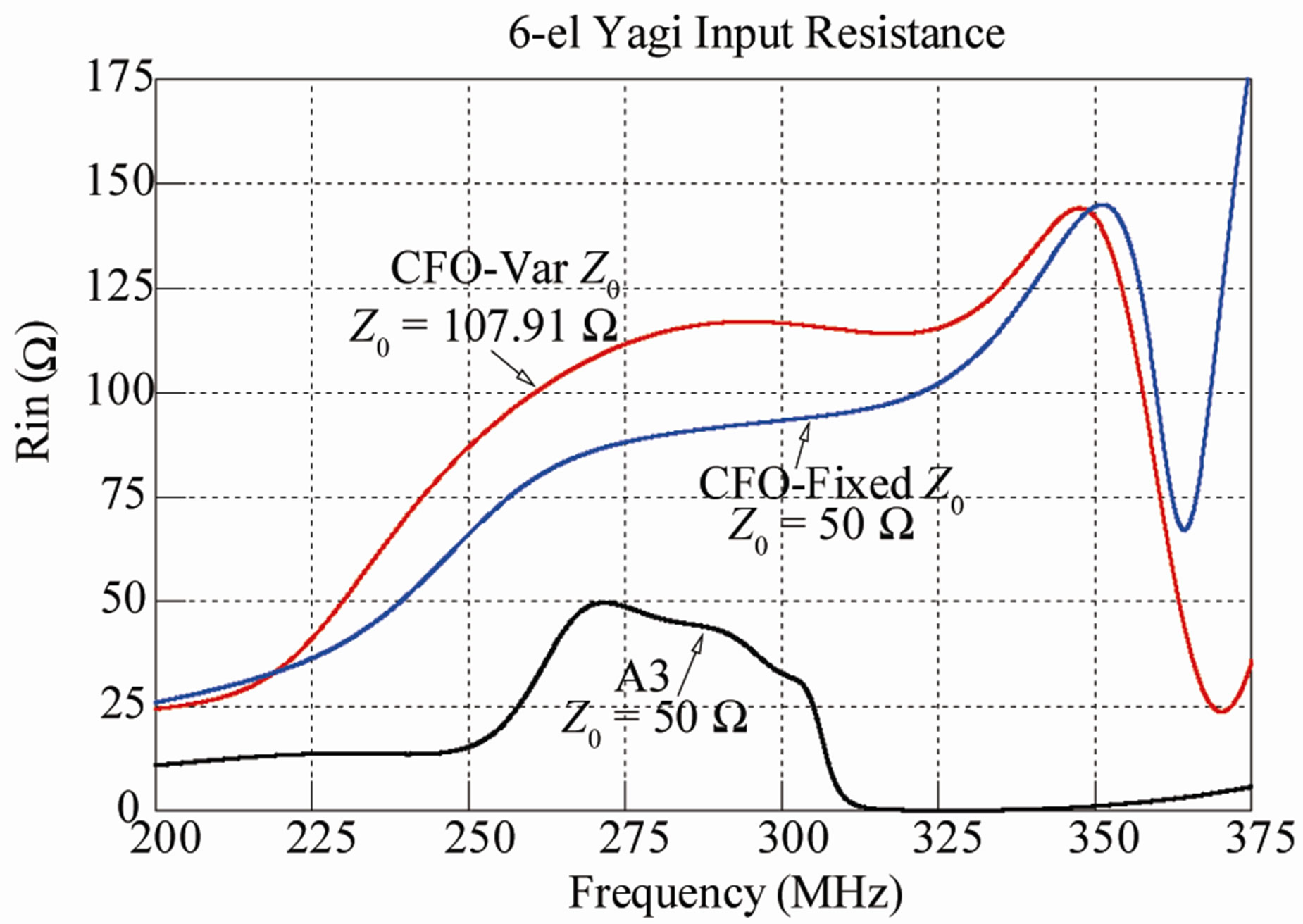

These are the dimensions for a Yagi antenna with 6 elements and linear dipole


CFO-FZo


A3


CFO-VZo








Share this post

Link to post
Share on other sites

Posted

Greetings, Jomi! I have a question. The Yagi antenna is designed for a 25mm boom, if I make it out of a 15mm boom, will the parameters change a lot or do I need to recalculate it?



,,, vova, don't post duplicate images anymore...!!!
