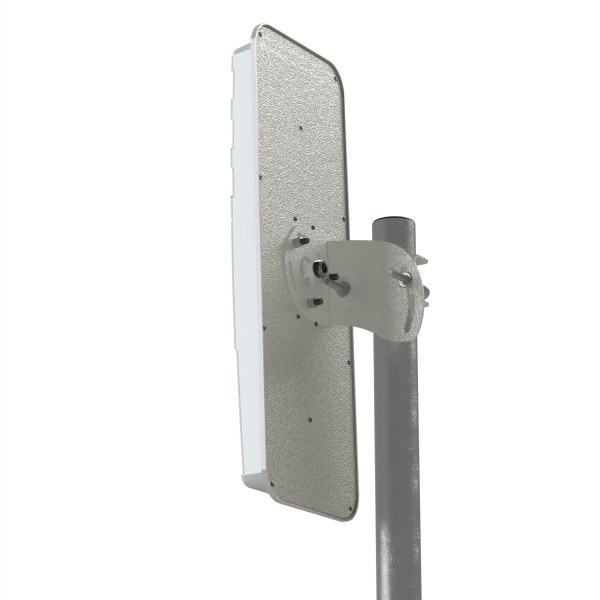

Anteks sector Petra BB PS70

[Admin 2561]

Broadband sector panel antenna with vertical polarization. KU=12.5-14dBi. Width days is 70 degrees. (level -3dB). F=1700-2700 MHz.

Electrical characteristics

Operating frequency range, MHz 1700-2700

The gain in the GSM1800 band, dBi 12.5-13

The gain in the 3G range (1.9 to 2.2 GHz), dBi13-13.5

The gain in range of WIFI (2.4 GHz), dBi 13.6

The gain in the range of 4G (LTE), dBi 13.6-14

Width of DN in the horizontal plane, deg 63-77

Days width, in vertical plane, deg 14-23

The sidelobe level is not more -10dB

Input impedance, Ohm 50

The CWS in the range of GSM1800, nothing more 1.5

The CWS in the range of 3G/4G/WIFI, not more 1.4

Permissible power watts 50

Polarization vertical

Mechanical characteristics

Weight with mount, g 1130

Mount on the vertical pipe with a diameter of 25÷52mm

Overall dimensions without mounting, mm 411 x 152 x 45

Allowable wind speed, m/sec 25

Connector N-female

Material of protective box ABS

Antenna material galvanized steel

Protective coating powder polymer paintsand

Operating temperature range, °C-40.......+70
