Ubiquiti NanoStation M2

[matek_24 4]

Hello folks

I tried to simulate the ubiquiti antenna in CST but it fails. I don't know how to connect a cable etc. Will somebody help me deal with this? Please



antena.stp

antena_kierunki.stp

[Admin 2578]

,,,hi buddy ...!!!

,,, if you did the simulation with CST, why not post the * cst file

[matek_24 4]

Thaks for reply

I've tried, but I didn't do anything. I don't how how to add picks corectly.

antena_ns2.cst

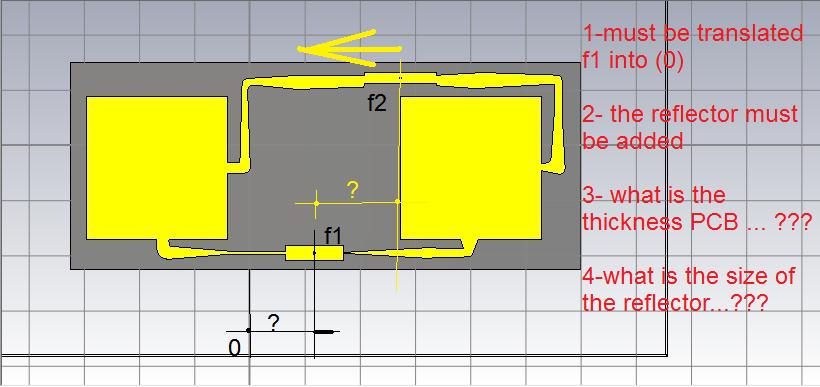

[Admin 2578]

[matek_24 4]

The main problem is I don't know how to do that.

1. What do you mean "translated"? moved, transfered? why?

2. reflector made of what material?

3. pcb thickness is 1.5mm

4. I guess a bit bigger then antena



Do you have any tutorials? I just started with antenas and CST.

[Admin 2578]

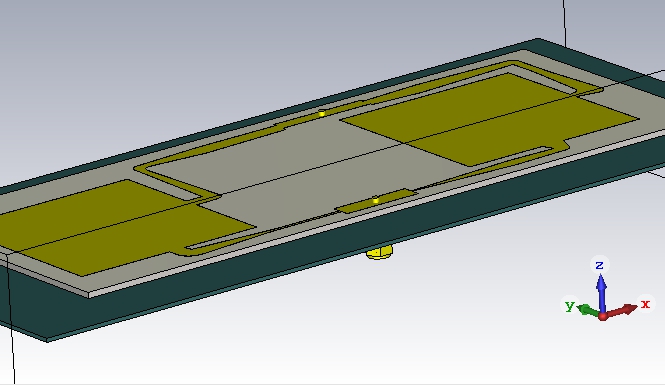

,,,my friend, please follow this post...

Something like that...



[Admin 2578]

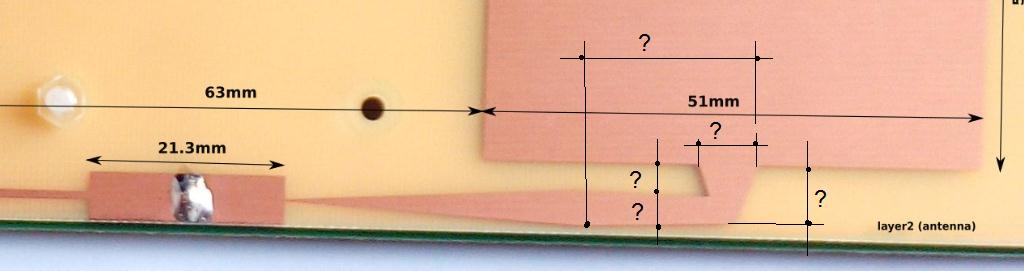

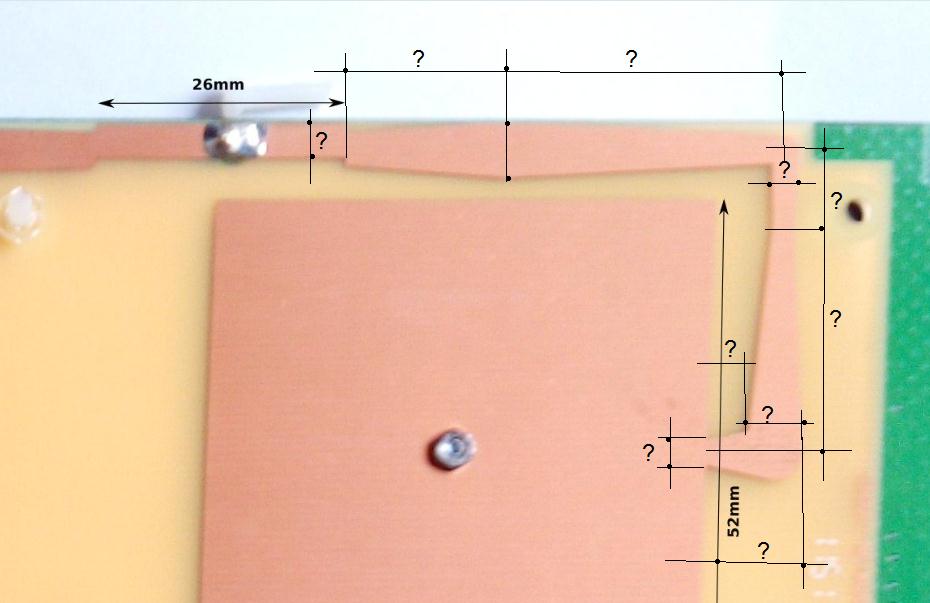

", and yet, what are these dimensions...???

[matek_24 4]

1 hour ago, Admin said:

,,,my friend, please follow this post...

Something like that...



I'm trying to go throght this topic. It's not so easy but I can do it :-)  Your antenna looks exacly how I imagined it











30 minutes ago, Admin said:

", and yet, what are these dimensions...???

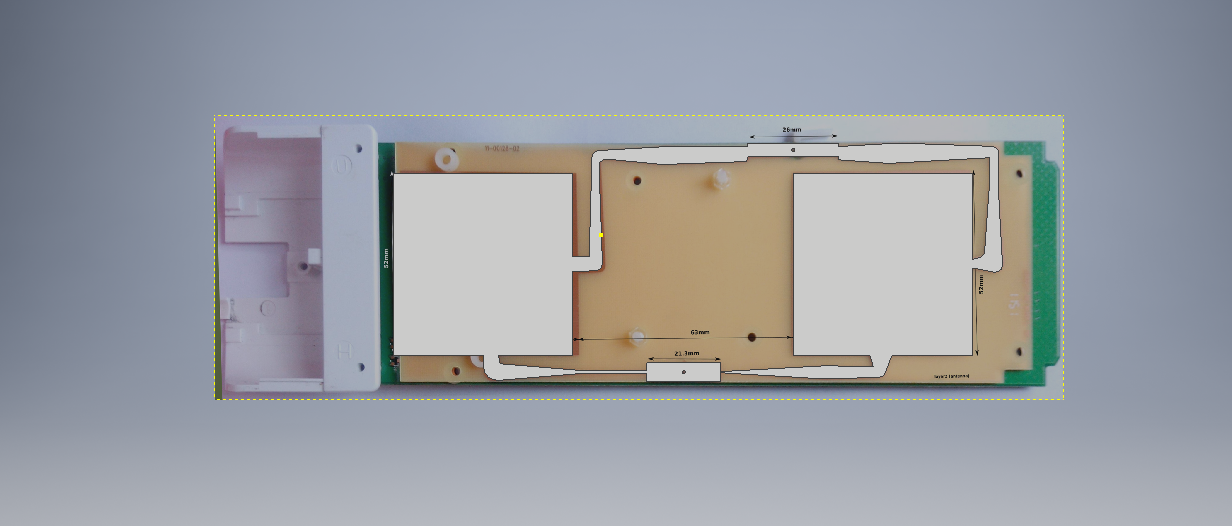

I have no idea of these dimensions, because I've put the picture into Inventor and I copied all of edges except these - sized



[Admin 2578]

Sorry, it's not my antenna, it's yours ... !!

,,and how do you copied the antenna with inventors...??

[matek_24 4]

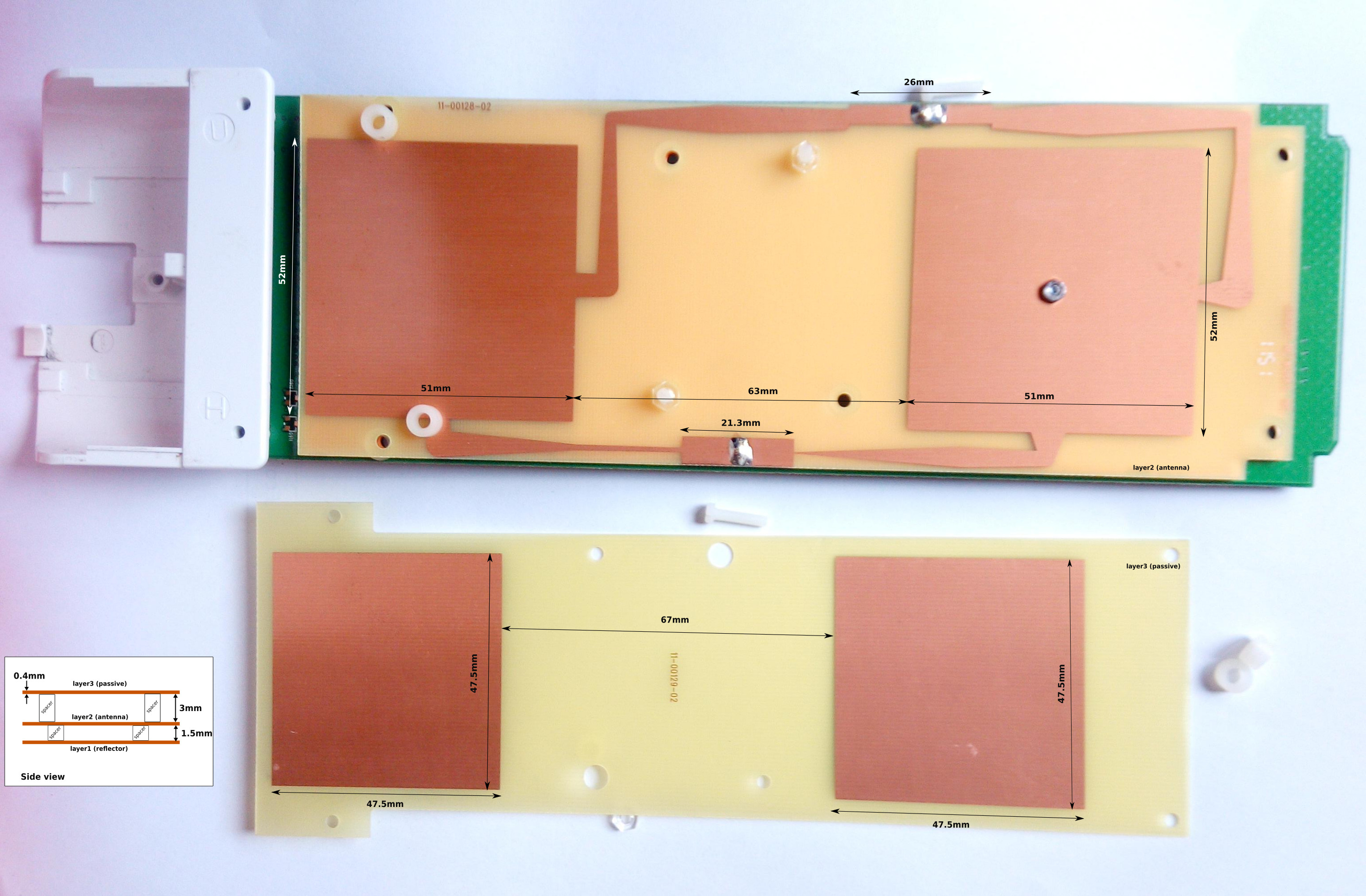

Ok, my antenna - your pictrure...

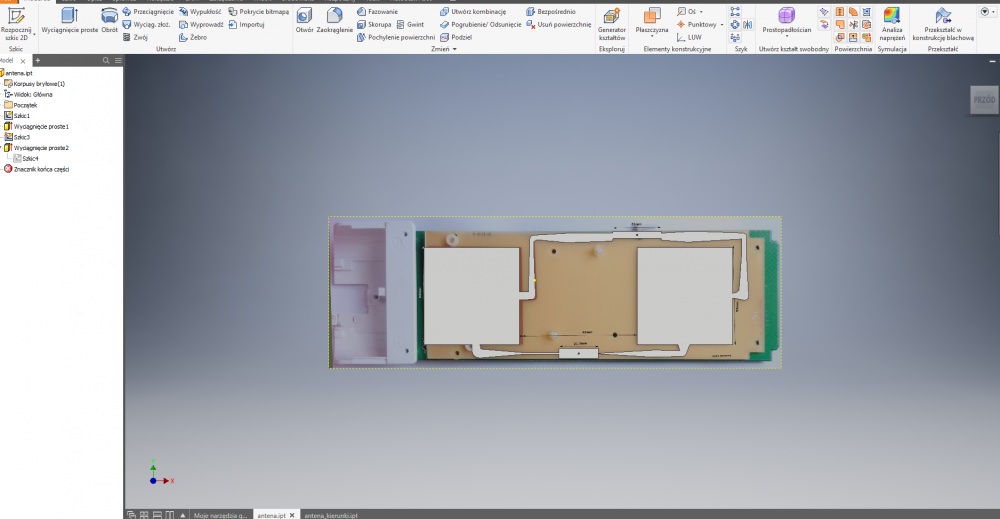

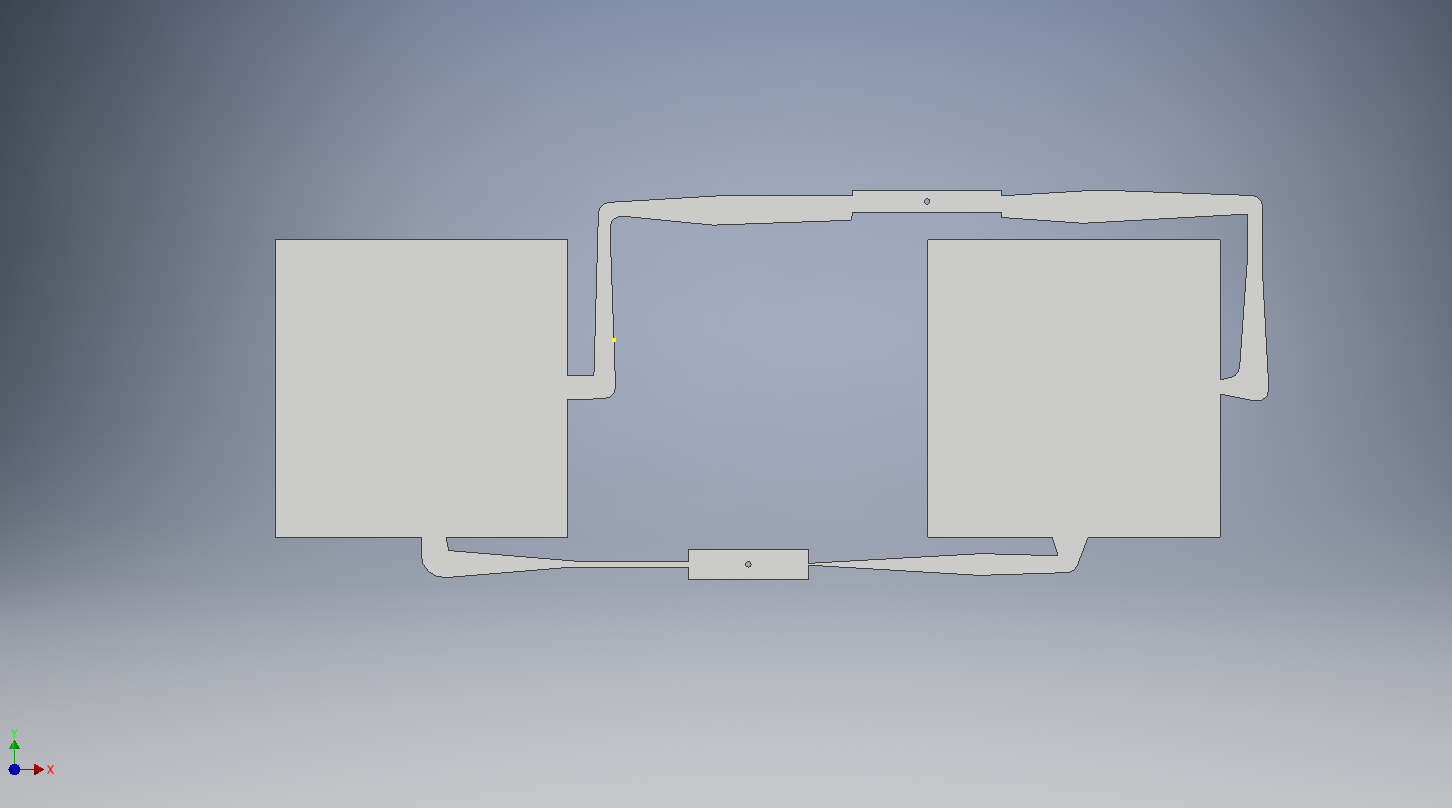

I copied the antenna in Autodesk Inventor.



[Admin 2578]

,,, and do you think that  the dimensions are the real ones?

[matek_24 4]

I'm sure they aren't but I found only these pictures on internet. I needed something to start with.
Could you send me *.cst file what you've made, please?

[Admin 2578]

,,, in fact, my * cst file it"s yours...!!!

[matek_24 4]

1 minute ago, Admin said:

,,, in fact, my * cst file is yours...!!!

So, can you send me a MY .cst file?? ... with yours changes

[Admin 2578]

Of course, but after I finish my simulation...!!

[matek_24 4]

Thanks then

[Admin 2578]

I don't know if it helps too much, but it still has to be tried...

antena_ns2.cst

[Carrasco2001 0]

could you send an HFSS and sat file of that model?

[Admin 2578]

,,,this it"s...!!

ns2.sab

[Carrasco2001 0]

Hi, when I try to import the file to HFSS this error appears:
  Ubiquiti (DrivenModal)
    [error] Acis error: "Fail to restore entity list.. Acis Error 63005 - save file is from a later version of Acis " (6:49:34 PM  Aug 29, 2023)
    [error] Import Native Bodies: Translation of "C:/Users/MyPC/Downloads/ns2.sab" failed. (6:49:34 PM  Aug 29, 2023)



Edited August 29, 2023 by Carrasco2001

[Admin 2578]

,,,try this...

ns2.dxf

[John101 0]

hi guys:
i have a question, can you advise me how to connect an antenna to a coaxial cable?
it's a ubiquiti nanostation2.
Link to the image

http://www.digdice.com/wp-content/uploads/2009/01/nanostation-2-antenna1.jpg

it's an old, electronically non-functional Ubiquiti Nanostation2 antenna, but it has a functional 10dB wifi panel PCB antenna, it's a shame to throw it away.

I would like to connect this antenna to a cable with an RP-SMA connector.
Please advise me where to connect the cable (power supply and shielding).

thank you

Edited November 25 by John101

[Admin 2578]

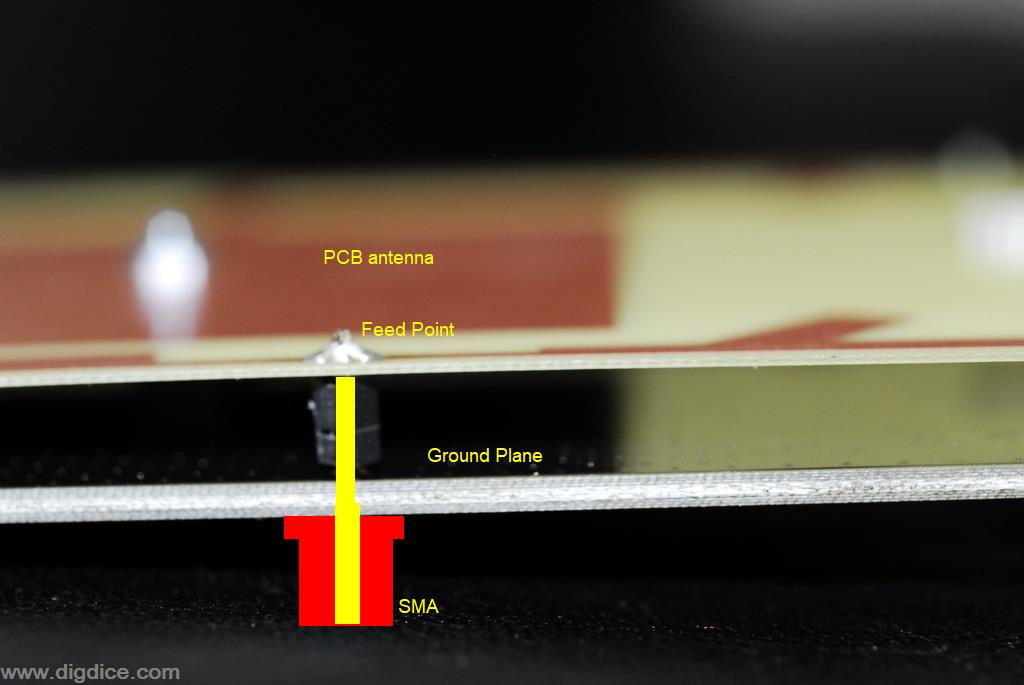

That's how it should be...

[John101 0]

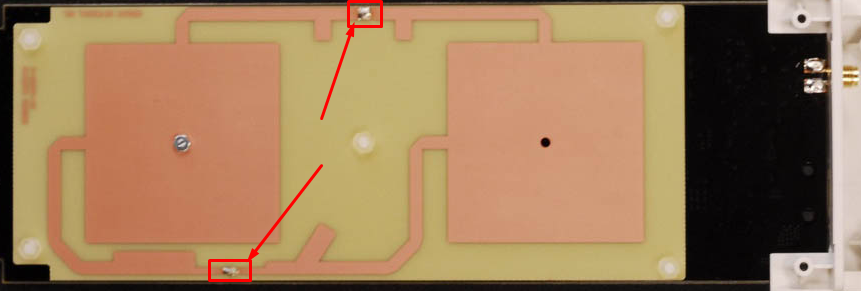

ok so I connected it but what's the difference there are two places I highlighted with a red square

[Admin 2578]

,,,one port is horizontally polarized and the other is vertically polarized...!!!
