Gray Hoverman Antenna

[Admin 2545]

This project is dedicated to Doyt R. Hoverman (b.1913), the man who created and did the early work on the Hoverman antenna at a time when antenna modeling programs did not exist. His work would have been entirely created and improved by field testing, trial and error, and with a great amount of calculation without the benefit of electronic devices. Without his efforts, our work would not have been. Doyt Hoverman passed away in December, 1989 at Van Wert, Ohio, USA.

Technical data

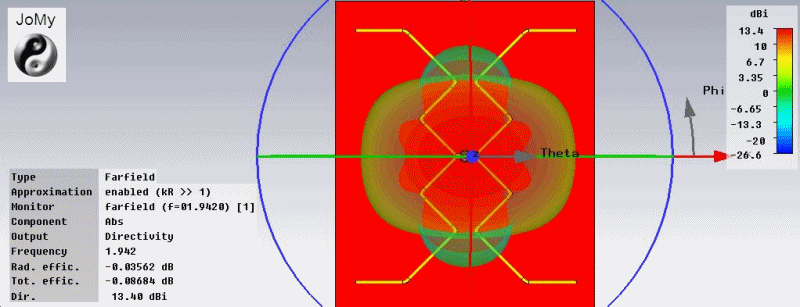

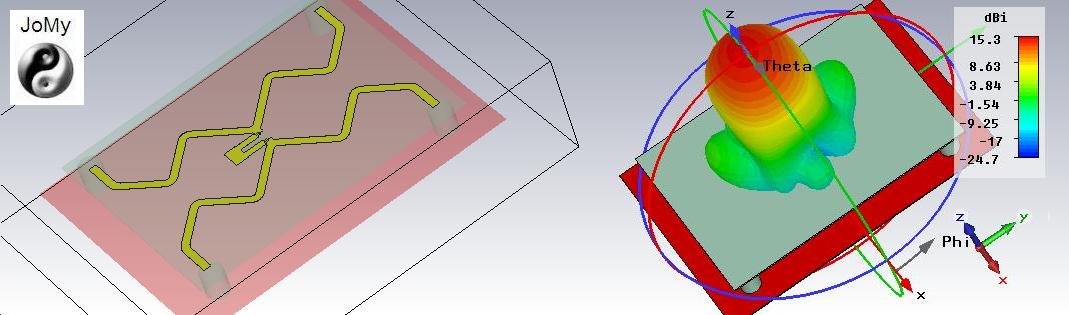

Simulation

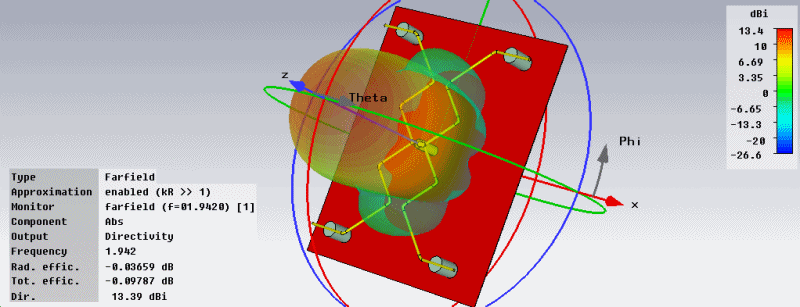

With insulating spacers

[Admin 2545]

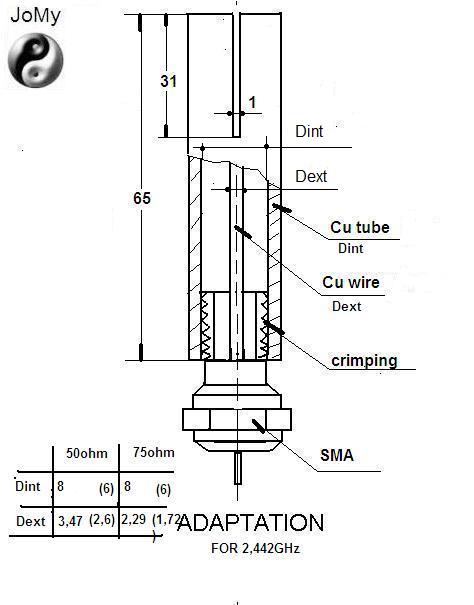

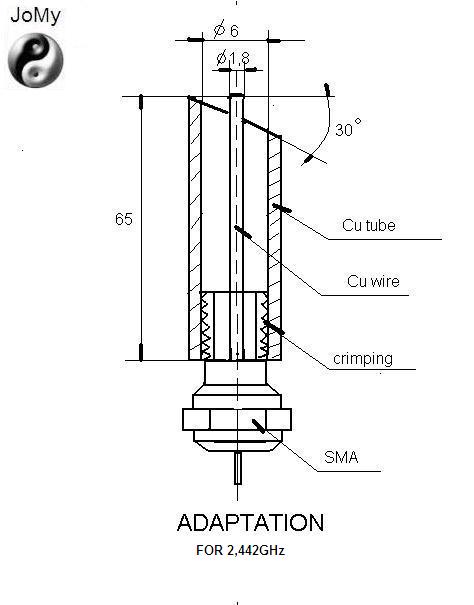

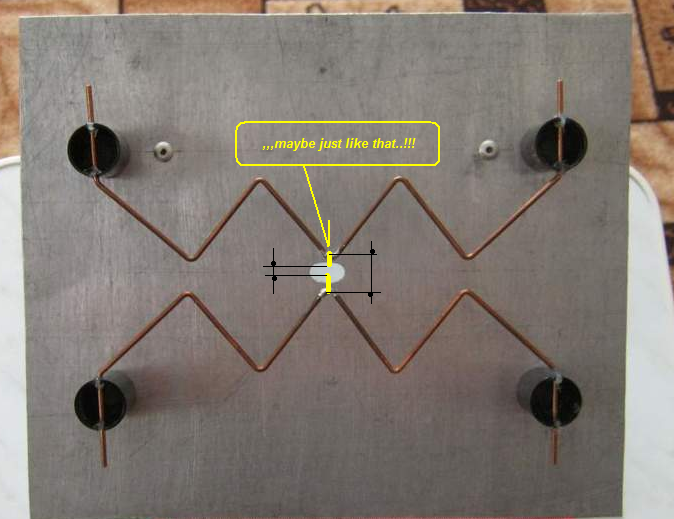

For the impedance adaptation (300 Ohm> 50 Ohm or 75 Ohm) the following variants can be used:

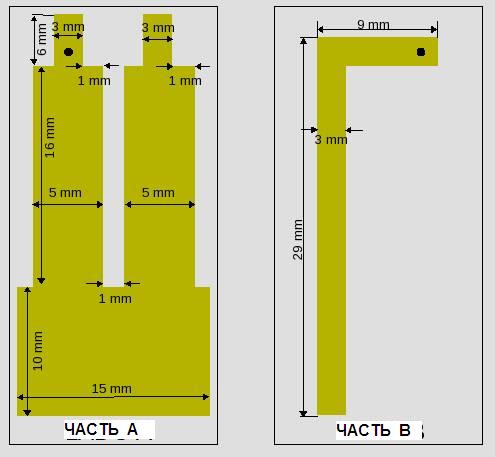

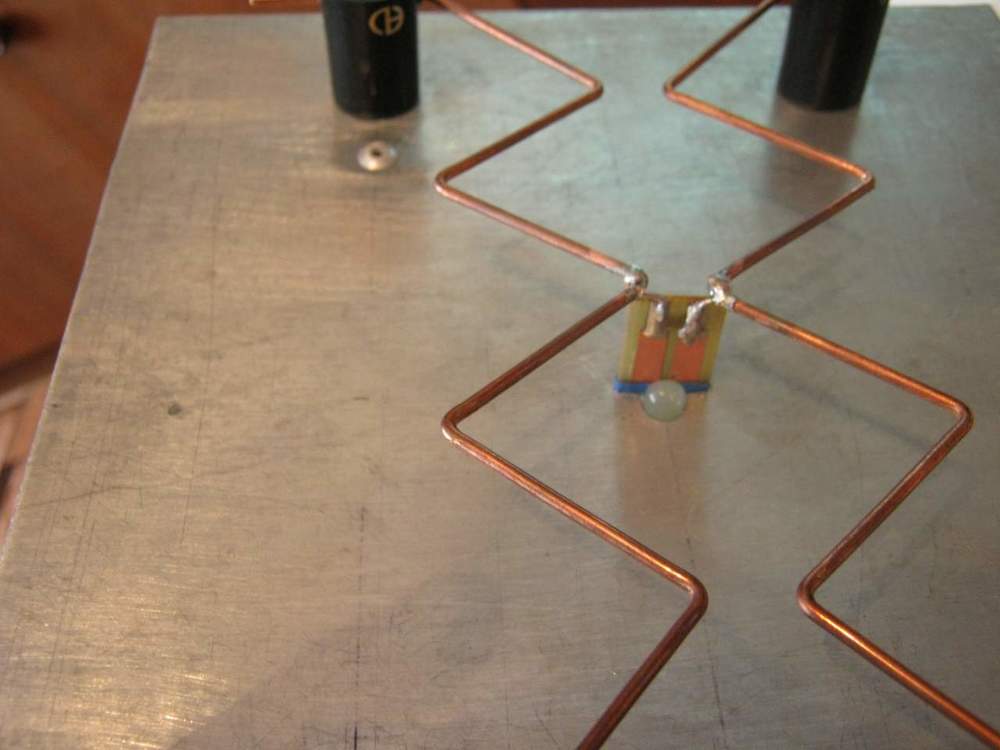

on PCB #1,5mm



[Admin 2545]

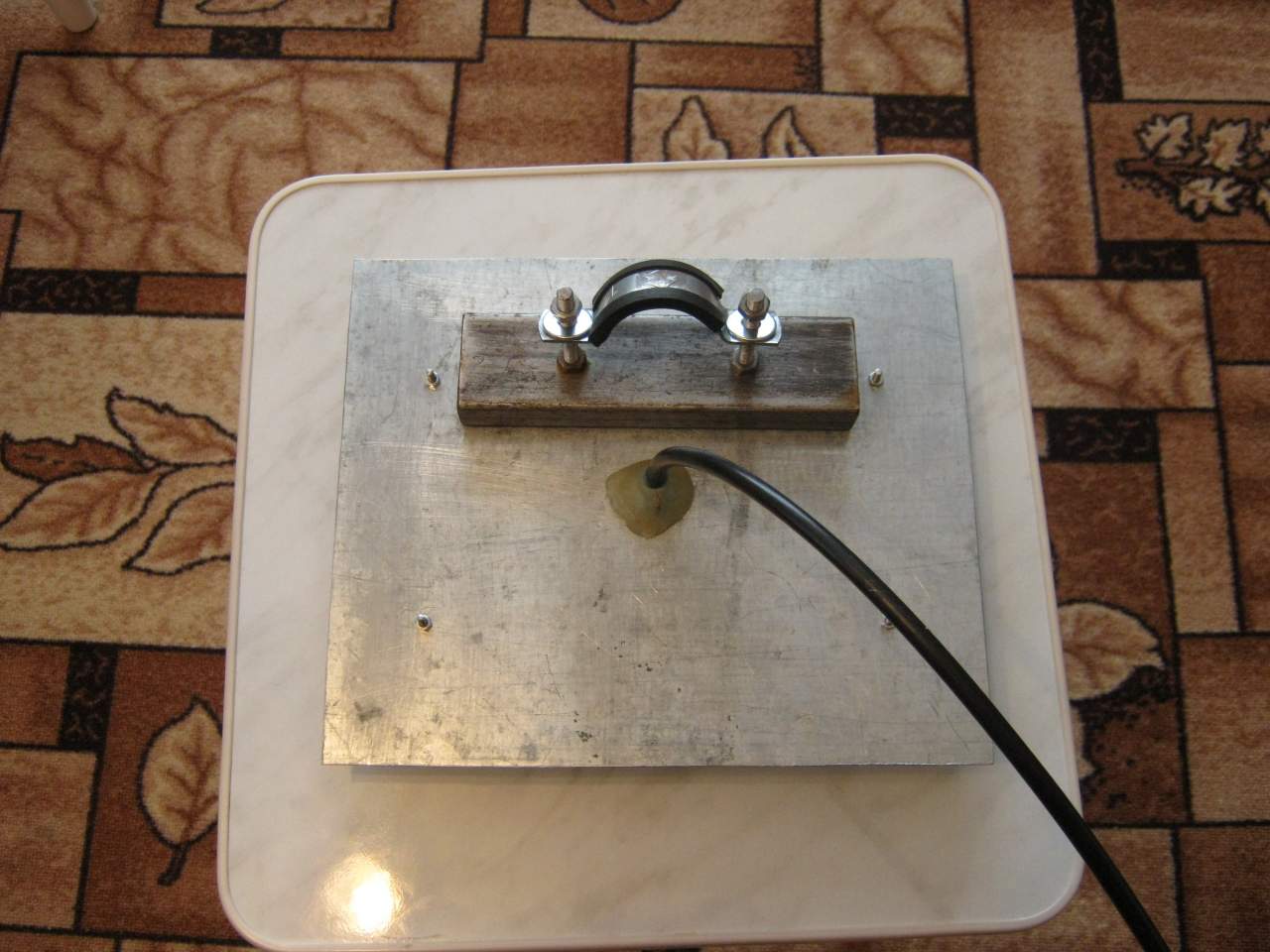

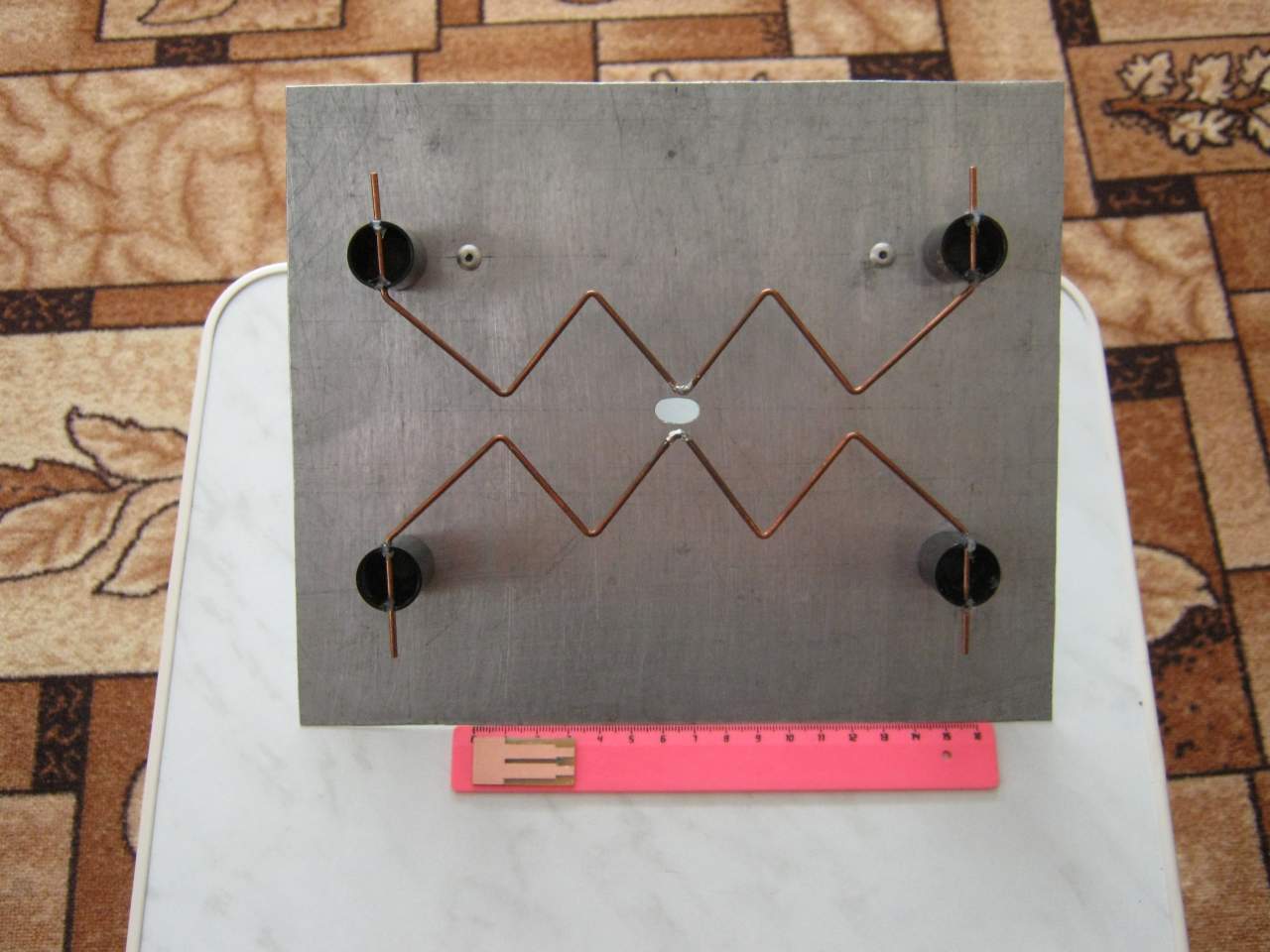

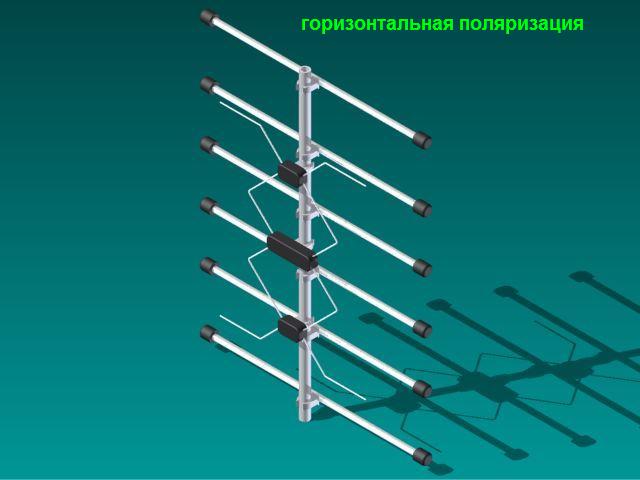

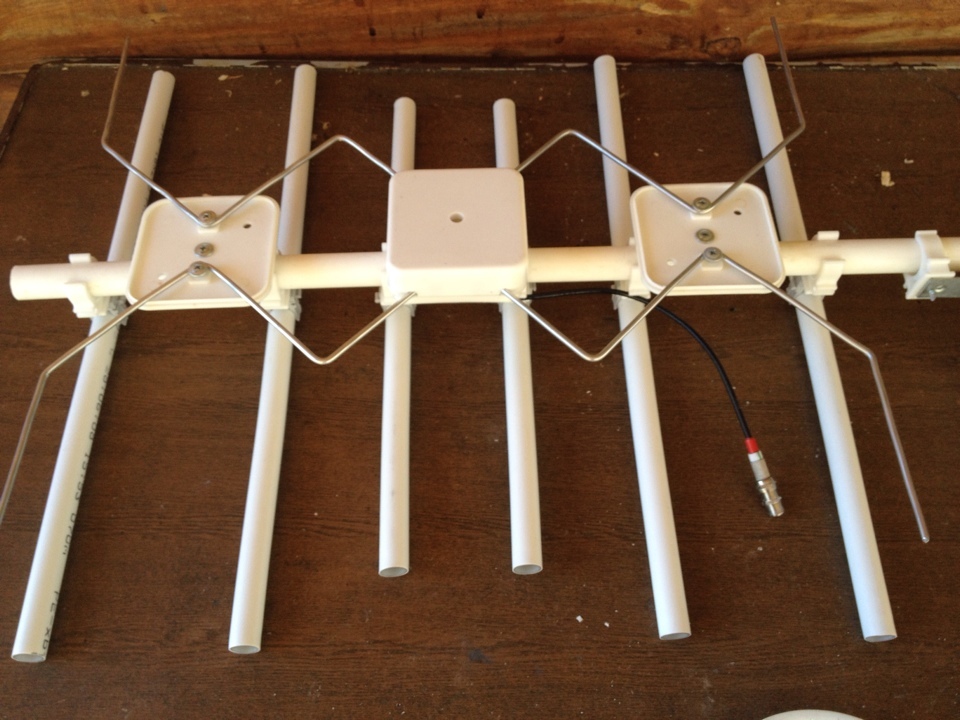

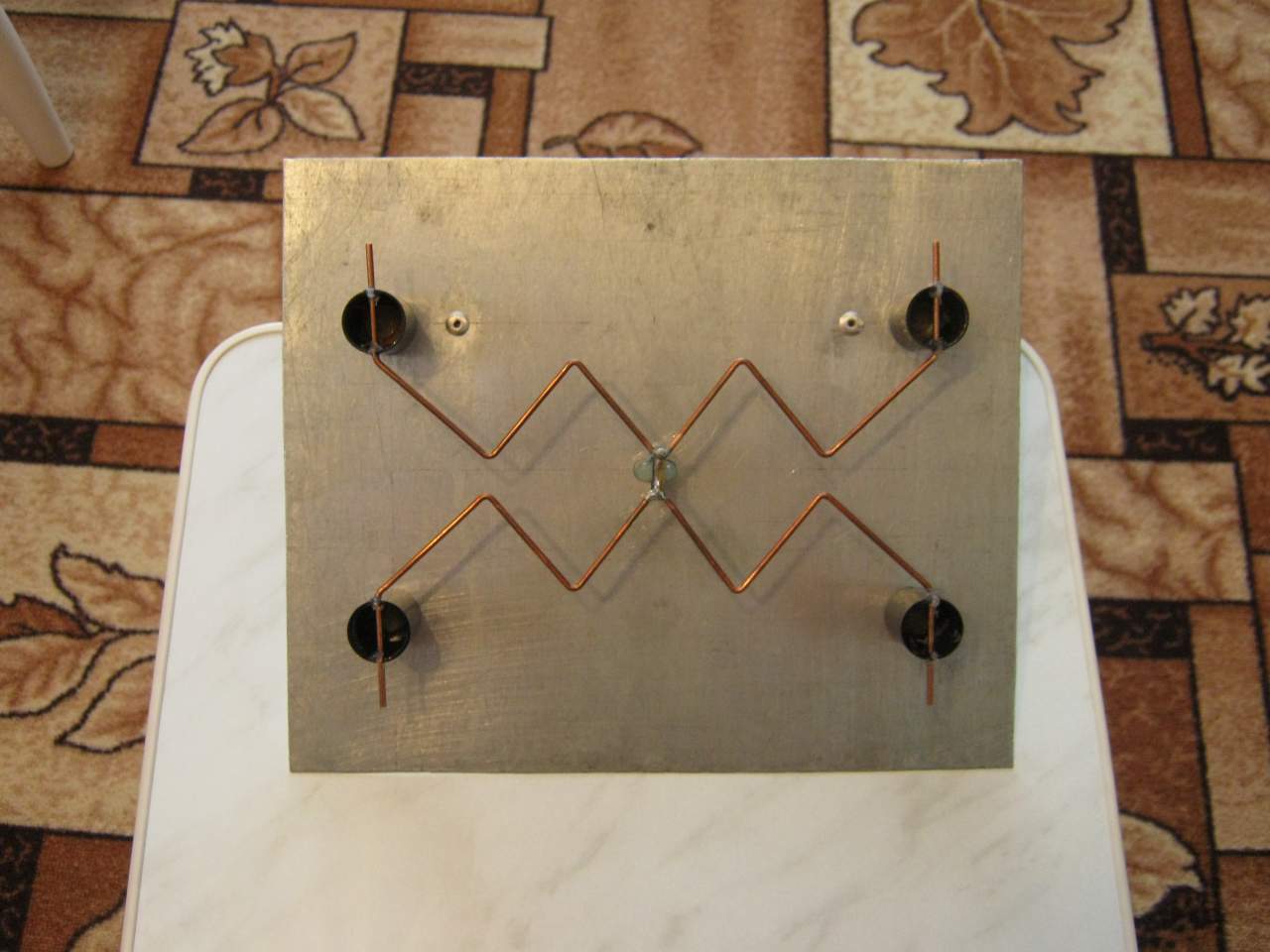

And a practical realization of the antenna...

[Admin 2545]

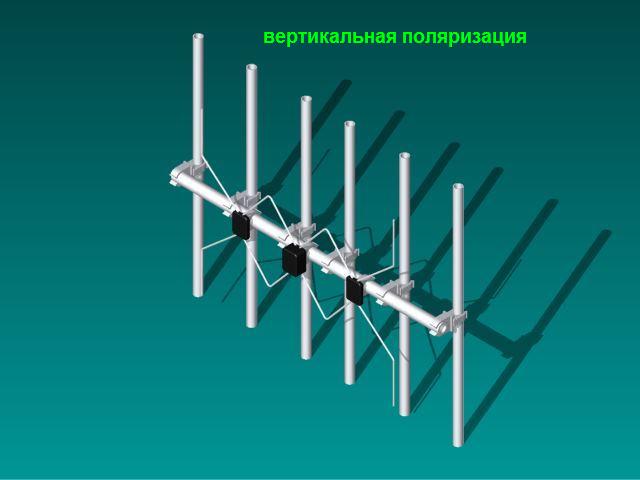

on 3G

[Admin 2545]

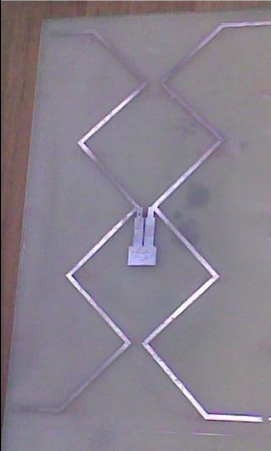

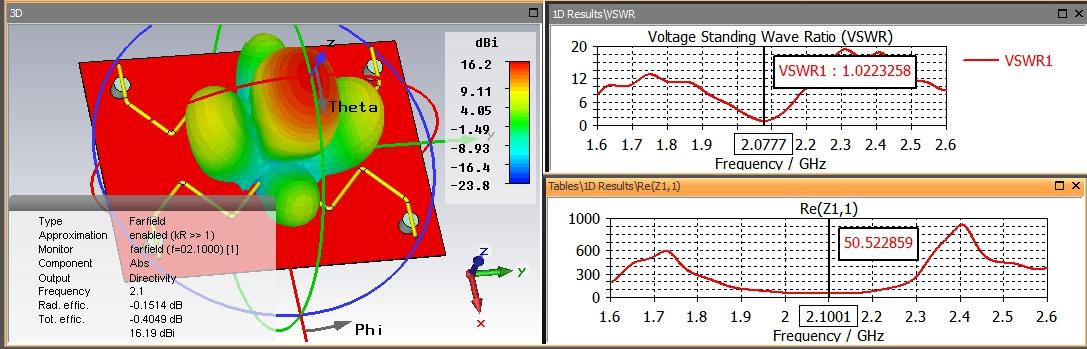

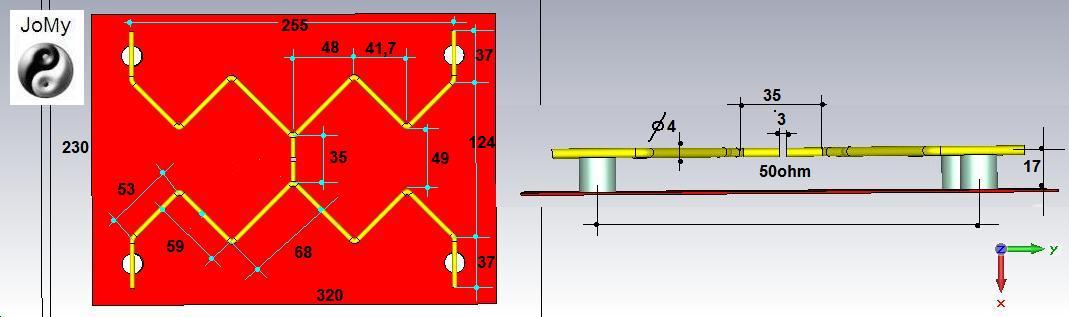

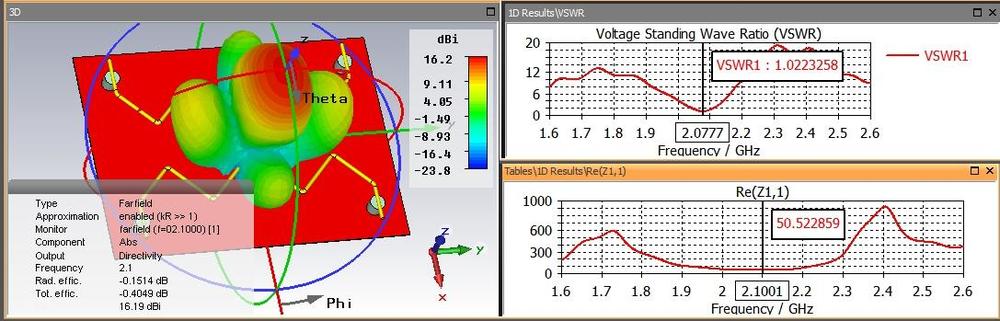

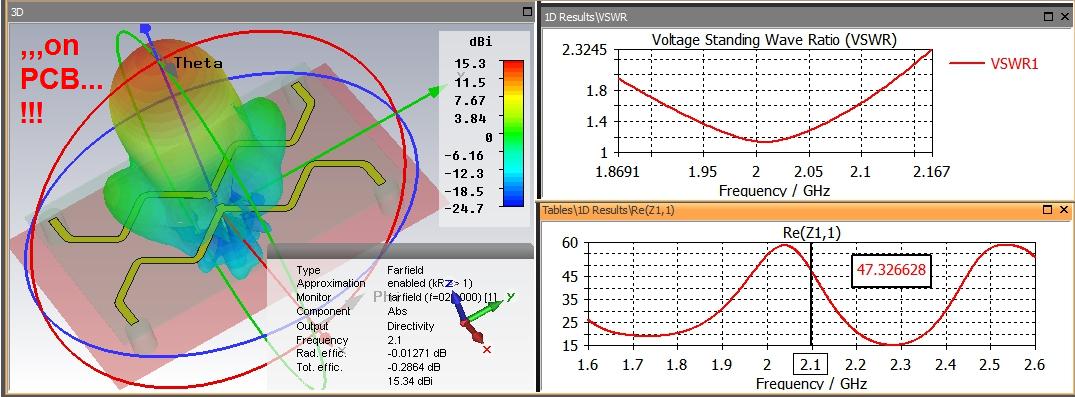

on PCB

[Admin 2545]

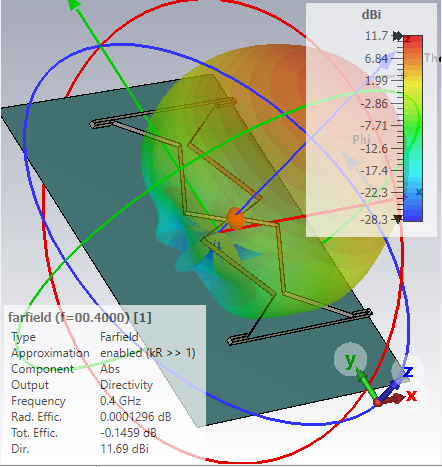

for HDTv



[pragata.my.id 25]

table vswr for 2.4?

[Hamza 43]

great  ! JOMY can you simulate it for 1800 lte  ?   its simple  and gives high gain

[Admin 2545]

36 minutes ago, Hamza said:

great  ! JOMY can you simulate it for 1800 lte  ?   its simple  and gives high gain

,,,okay,I will try...!!!

[Rtyon 1]

On 21/04/2017 at 2:47 PM, Admin said:

Hi can I use gray hoverman antenna without impedance





[Admin 2545]

I don't understand exactly what you mean...!!!

[Rtyon 1]

I mean can I use the Gray hoverman antenna  as wifi antenna without impedance I mean omit the impedance

[Admin 2545]

,,,why don't you read this post carefully,,,?

[Admin 2545]

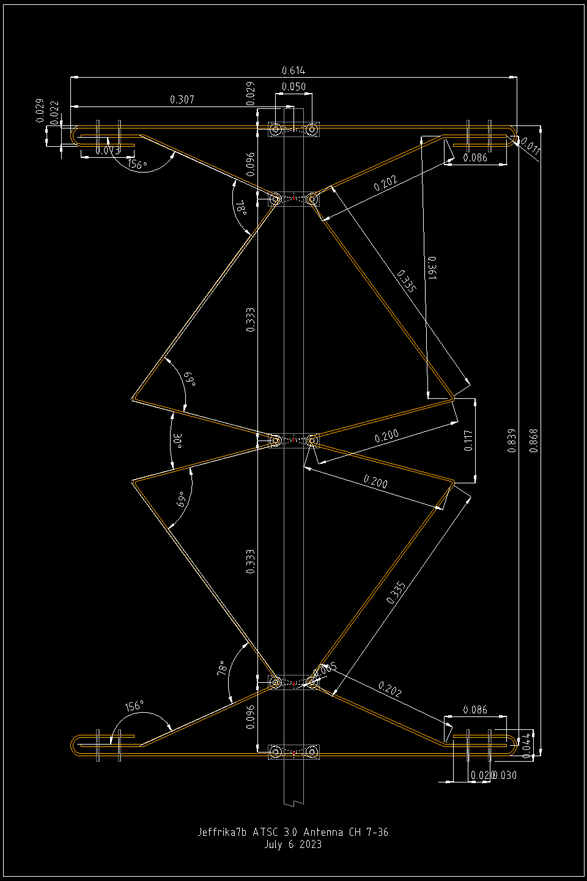

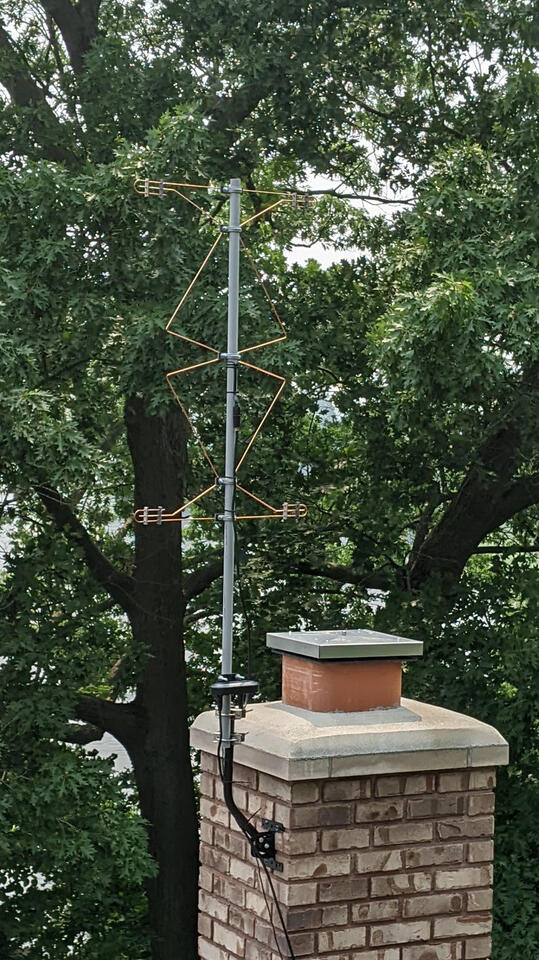

Hello! After reading about Gray-Hoverman style antennas and how to do antenna, I will show you a new design plans, and assembly details available at "The Jeffrika7b Antenna"

The Jeffrika7b is designed for a bi-directional, horizontally polarized reception patern over the two ATSC bands, VHF 7-13 (174-216 MHz) and UHF 14-36 (470-608 MHz), with an impedance of around 300 Ohms.

[clanon 246]

a Mesh wire REFLECTOR would give at least 3 dbi more...and tailor the impedance...down to 75 ohms...MAYBE...

[clanon 246]

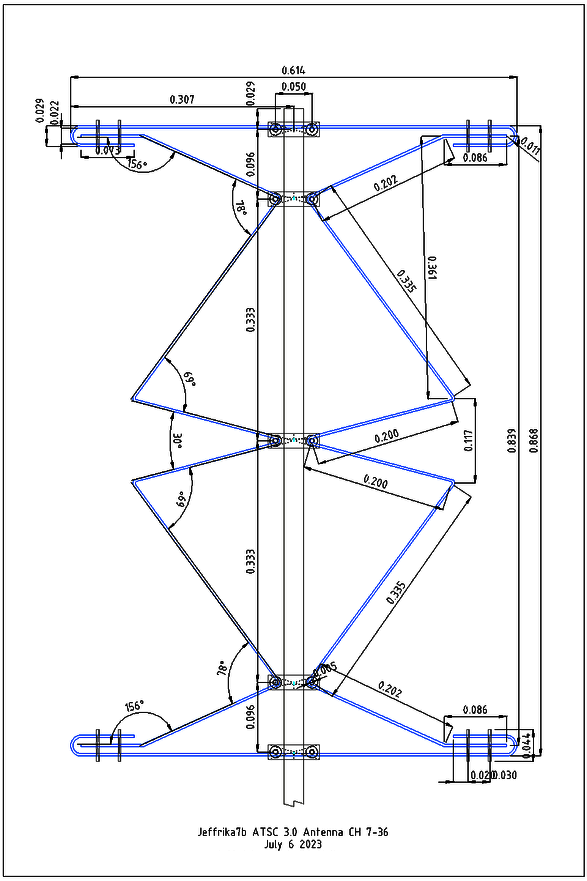

in Meters...?

Edited September 29 by clanon

[clanon 246]

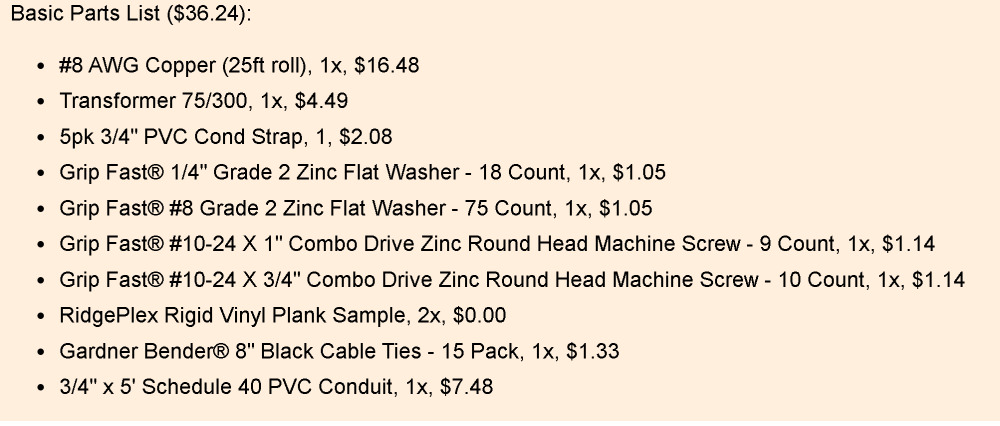

8 AWG = 10 mm2 Copper...

Tube is PVC 3/4

with CLAMPS (shorts)



Edited September 29 by clanon

[Admin 2545]

,,,,yah,it"s no so good...

[clanon 246]

maybe gets better with thick copper wire and SMOOTH rounded Bends...they look to angled ...imho

jeffrika7b.dxf

Edited September 29 by clanon
