Omni 15dbi outdoor

[akoneko47 4]

I'm beginner for antenna

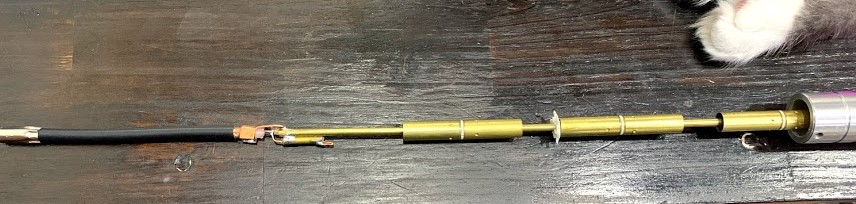

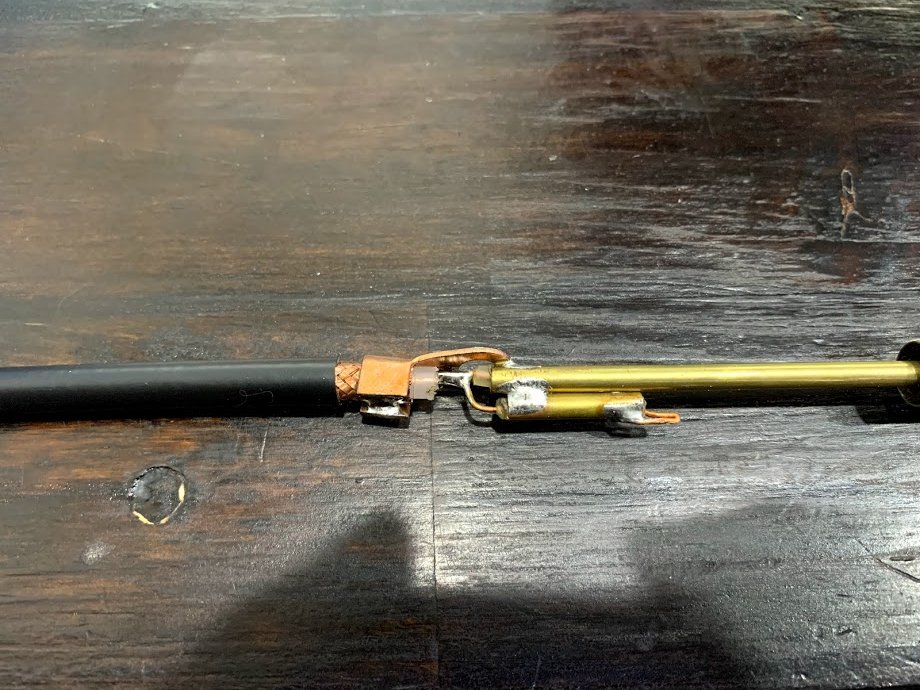

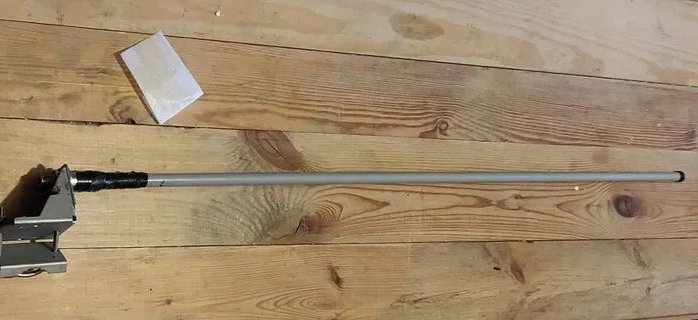

I have ordered Omni 15dbi outdoor and they sent the product is in an incomplete condition. (The center axis of that pole slipped inside )

I try fix tem but i saw "The two poles are linked together"

And I want to know this is the right thing And it works normally ?

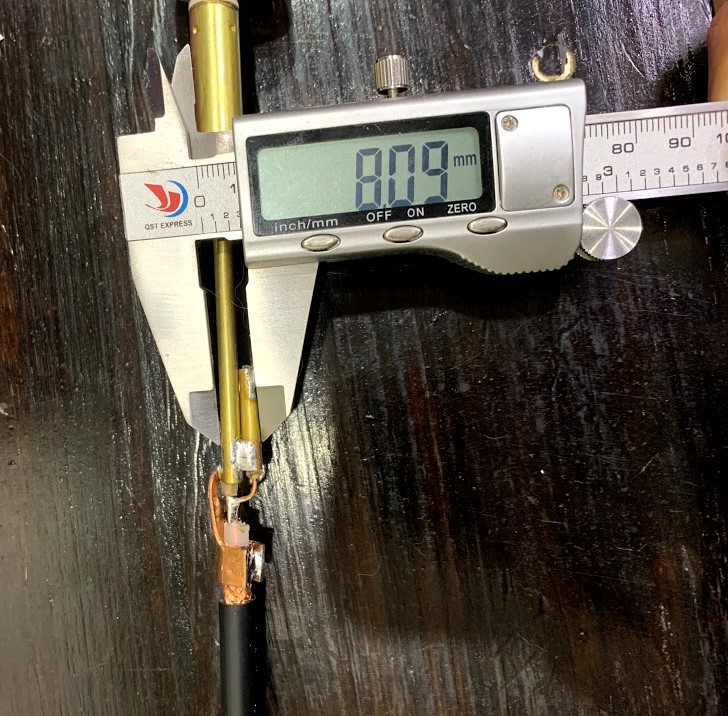

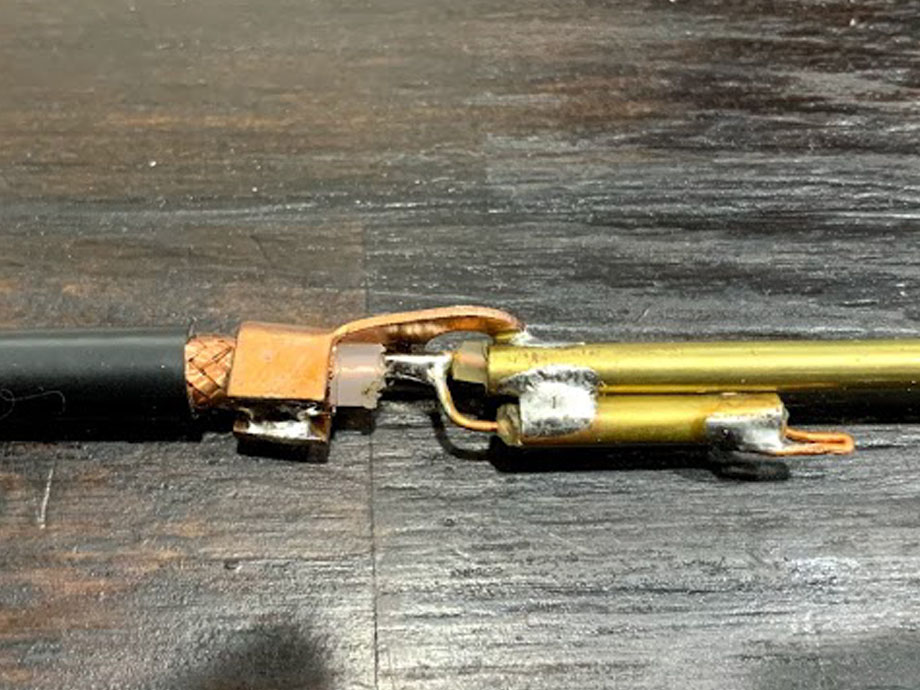

The two poles (line +, line -) are linked together



it works normally ?

Edited December 20, 2019 by akoneko47

[Admin 2545]



,,,you can give the dimensions of this omni antenna...???

,,,for which the frequency works..???

[akoneko47 4]

@Admin

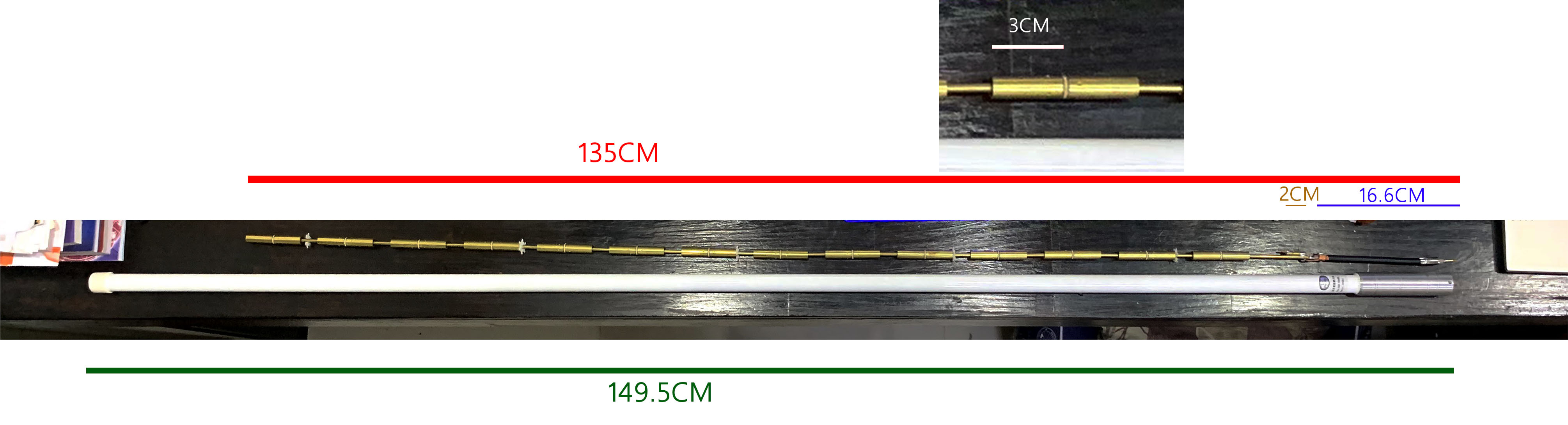

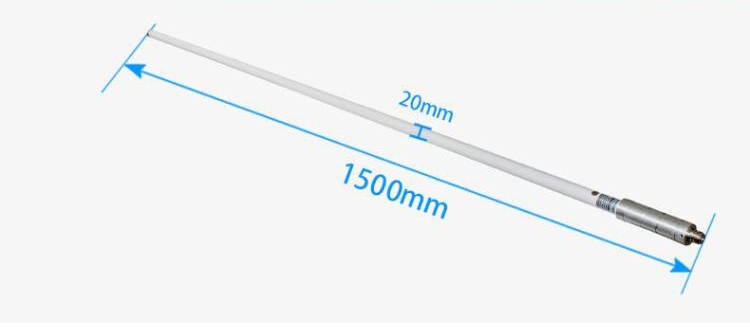

Freq : 2400-2500Mhz

Gain : 15dbi

W x H = 150CM x 2CM

[Admin 2545]

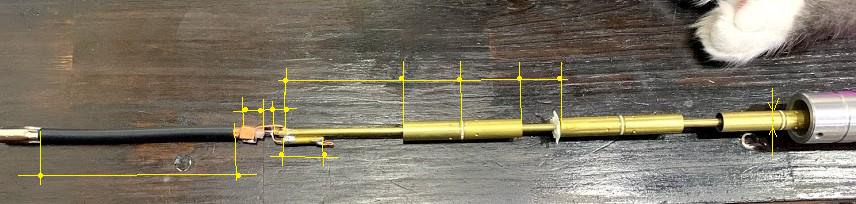

No, I would like all the dimensions for the whole antenna..!!

[akoneko47 4]

@Admin



[Admin 2545]

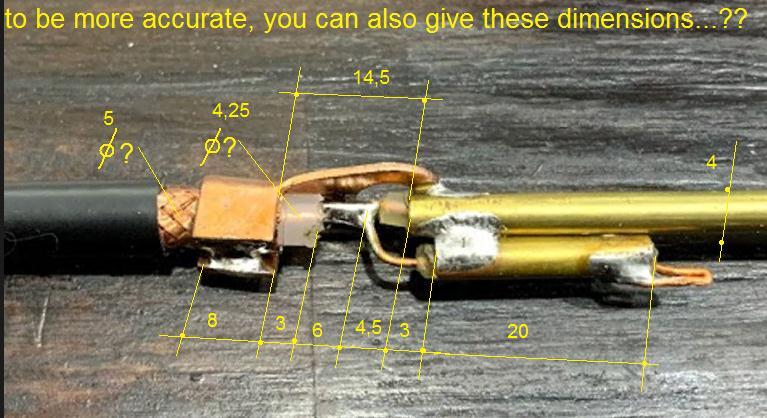

,,, if you can give me these dimensions ... !!!

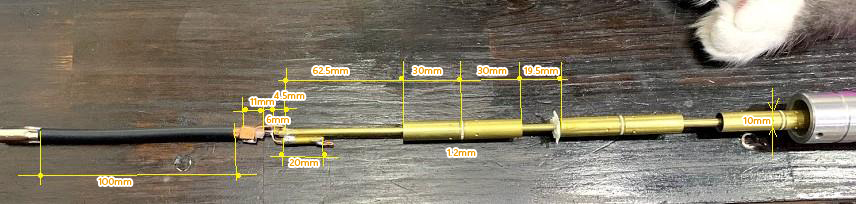

[akoneko47 4]

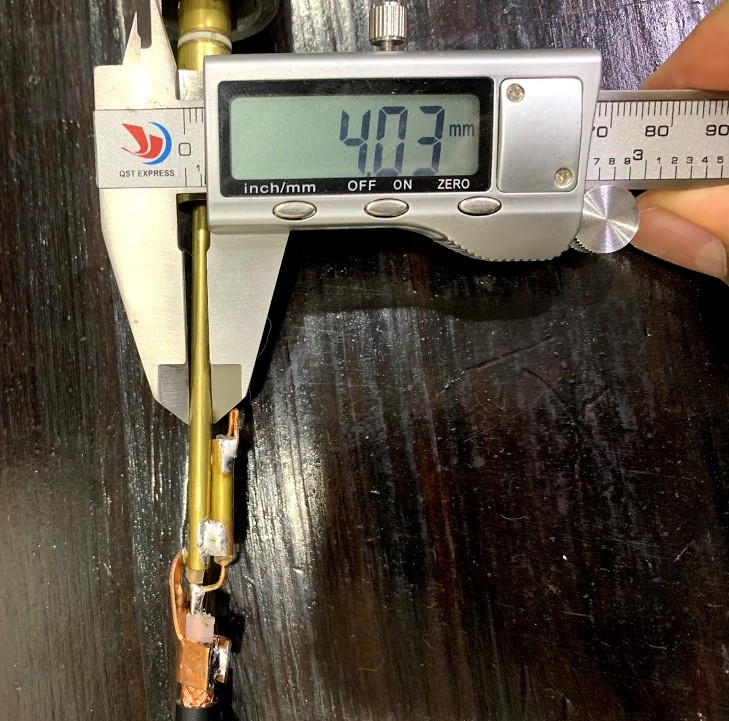

@Admin

Sure, Pls make sure it's okay and  works normally because I have 3 days for return to seller

Thank

[Admin 2545]

[Admin 2545]

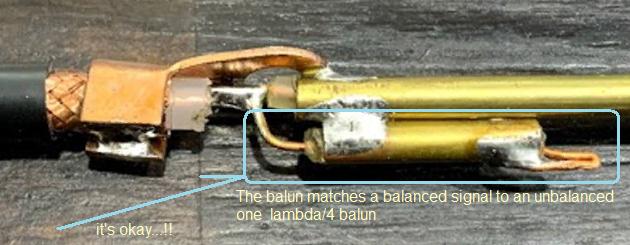

I think the antenna is correctly built but only the connection socket is not OK. Better to return the product...!!!

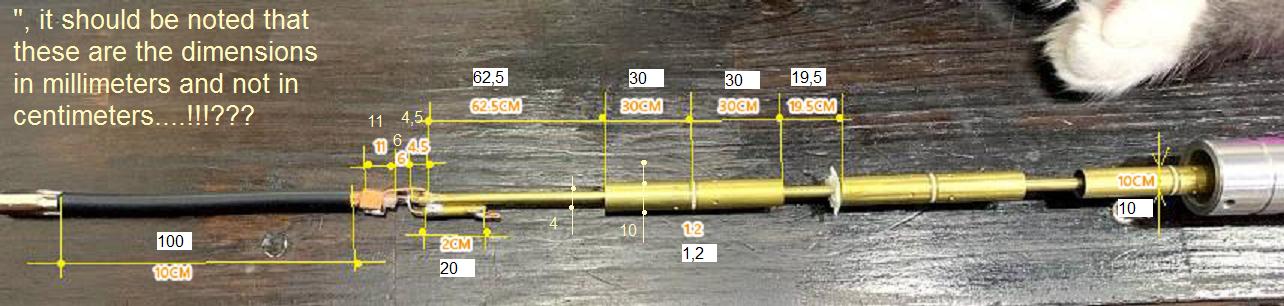

", that's how it should look ...

[akoneko47 4]

Oh! sorry for unit of measure

and If it just has a problem at the socket, I can fix it by myself.

Thank a alot @Admin

After this I will seriously study the antenna.

[Admin 2545]

[akoneko47 4]

@admin So sorry, Seller have recalled the product and i sent it today

[Khubaib 3]

Hi, can i have complete design of this antenna?

[Admin 2545]

10 hours ago, Khubaib said:

Hi, can i have complete design of this antenna?

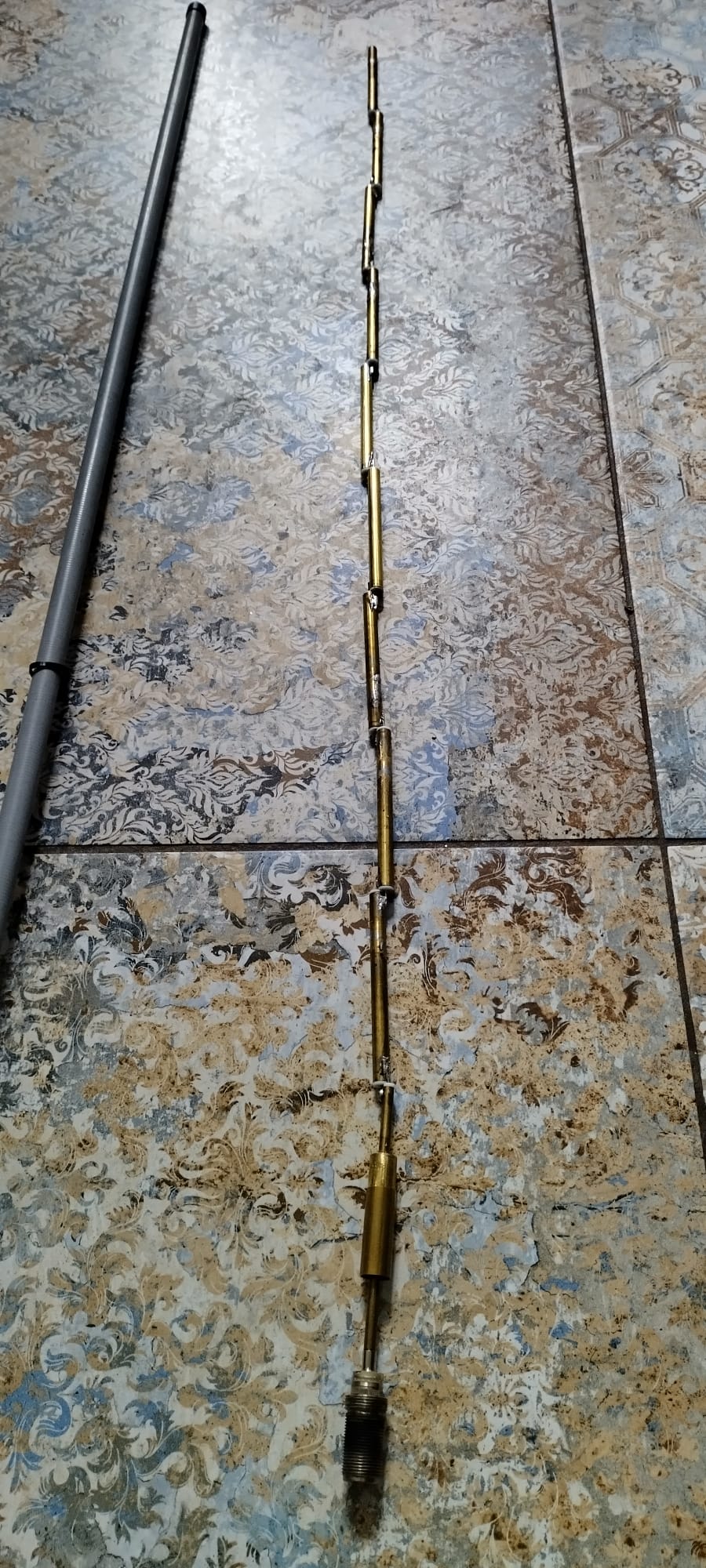

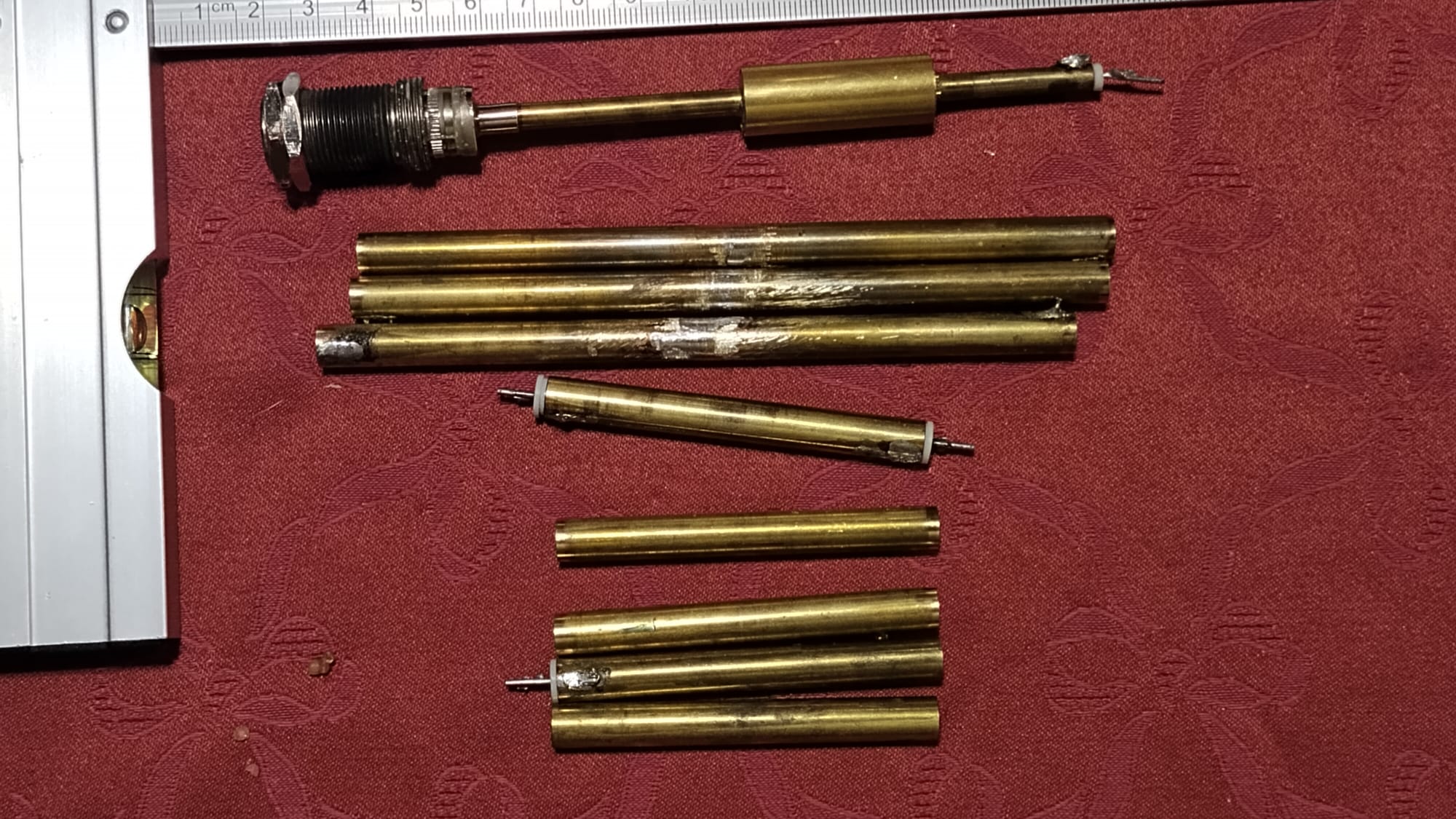

That might be close to reality....

[Khubaib 3]

Hi,

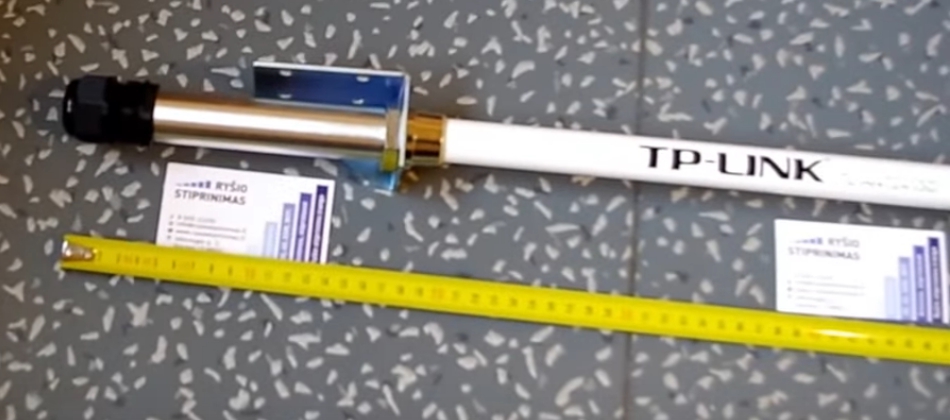

Does someone have design fo tl-ant2415d antenna. I want to build one.

[Admin 2545]

,,, is something like this...



[Jayakumaran S 0]

On 2/19/2021 at 0:31 PM, Admin said:

That might be close to reality....

yes sir, i also need the dwg or design files, iam awaiting for your reply sir.

[Admin 2545]

,,,why dwg file...???

[Jayakumaran S 0]

3 hours ago, Admin said:

,,,why dwg file...???

so that i can get idea for my reqiured 340MHz antenna, tuning to 340MHz and i'll clear the doubt in port assigning.

[Jayakumaran S 0]

On 12/21/2019 at 1:18 PM, Admin said:

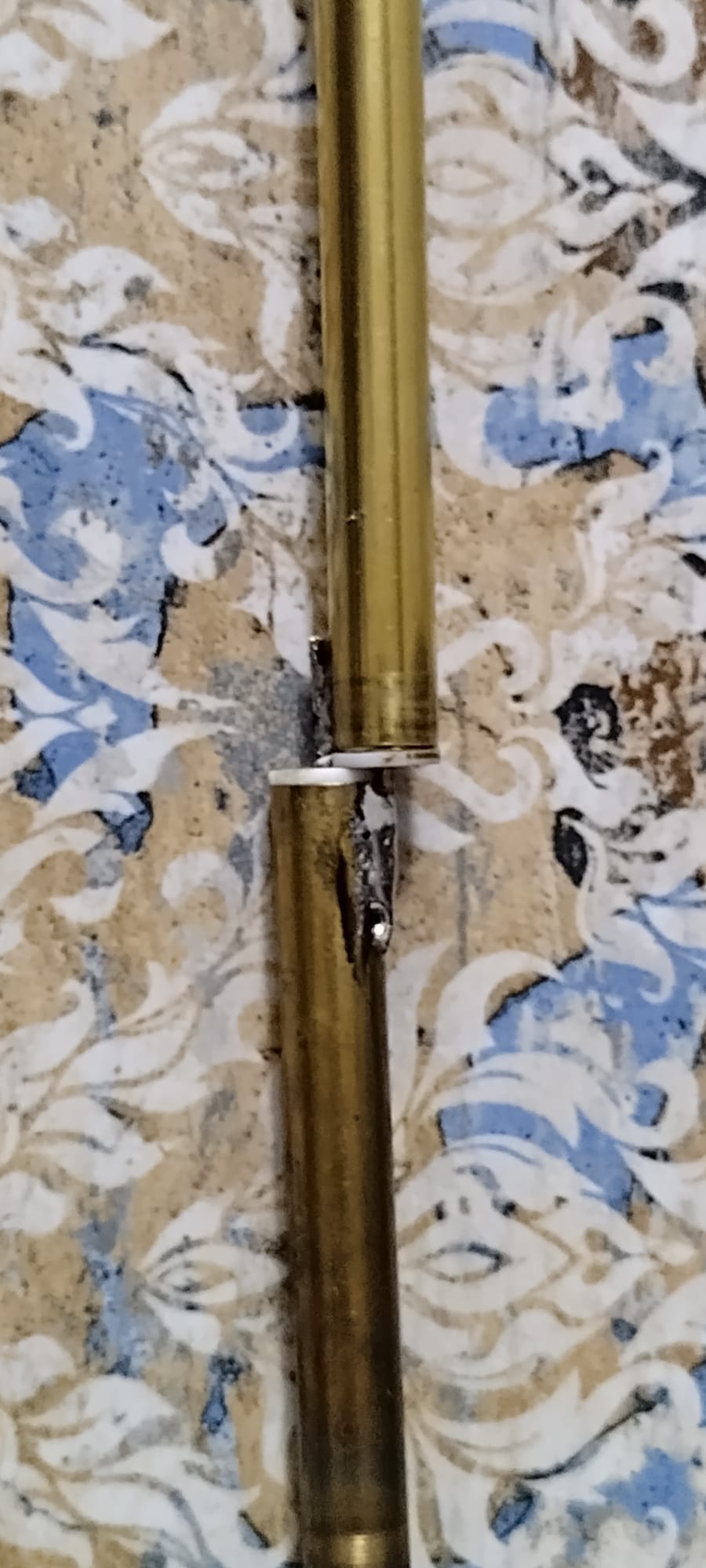

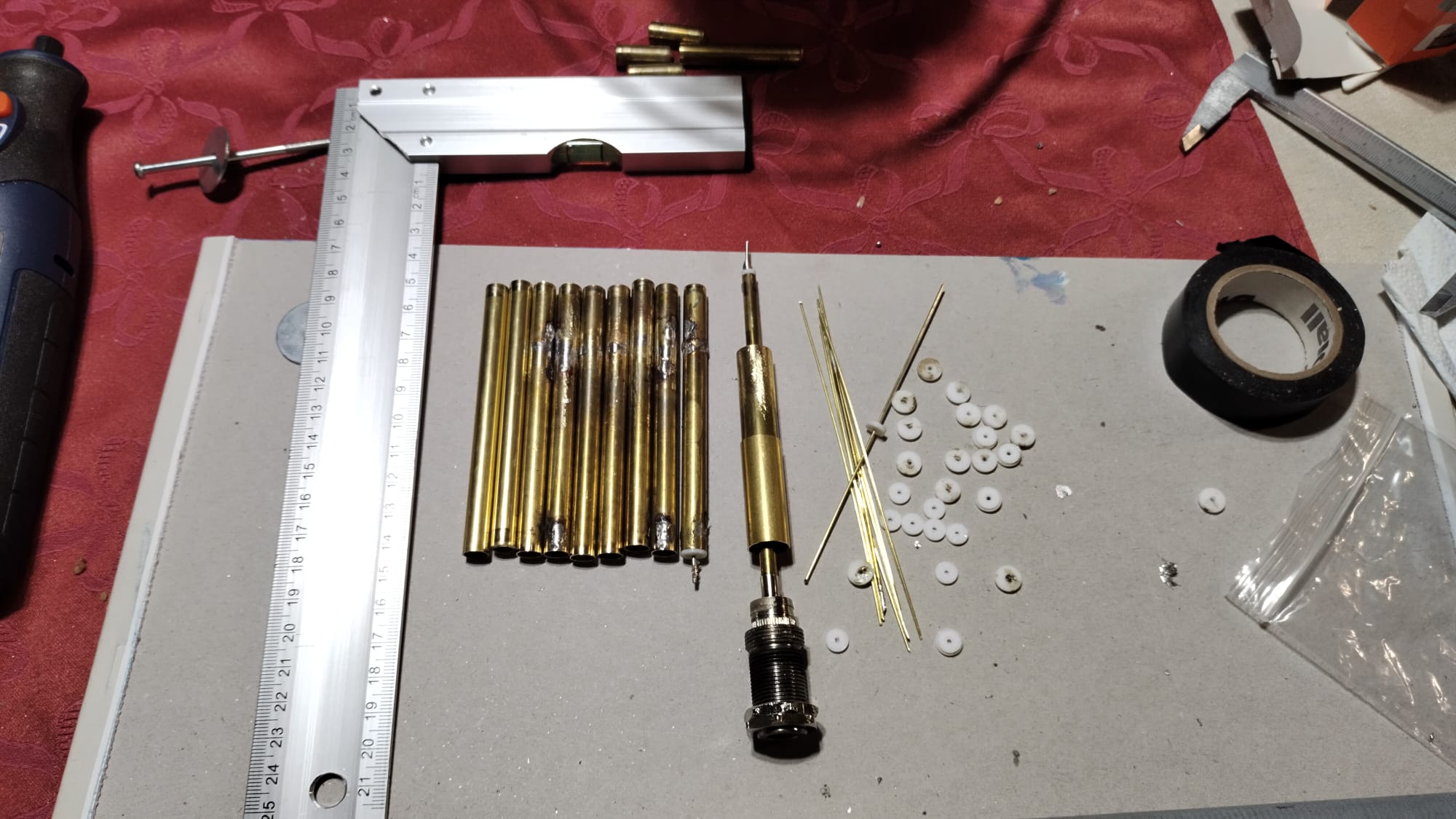

sir what is that white coloured material between the copper tubes? and if that copper tube is hollow how it stand fit by means of that white material?

[Admin 2545]

,,,there are insulating spacers compared to the outer protection tube....!!!

[Jayakumaran S 0]

On 6/3/2024 at 5:47 PM, Admin said:

,,,there are insulating spacers compared to the outer protection tube....!!!

sir iam designing a omni antenna in HFSS, should i include this spacer material or can i give gap(empty space)?, thanks in advance sir.



[Admin 2545]

,,,to make the simulation easier, you can leave air space...!!!

[eco32 27]

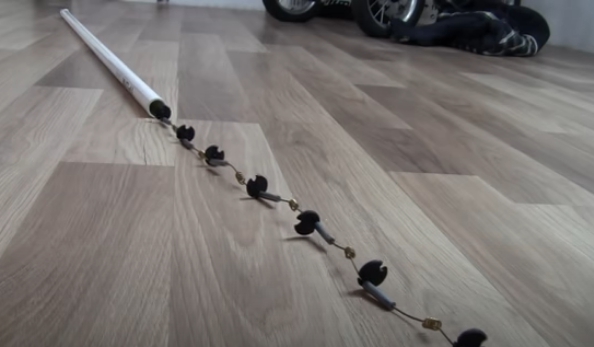

How is it made?



i know coaxial COCO only :

(reasembling 1800MHz antenna to 1296MHz









[clanon 246]

https://web.archive.org/web/20050121044720/http://reseaucitoyen.be:80/index.php?ColineairePourLesNuls
