AGATA-2F 2x2 MIMO

[Admin 2545]

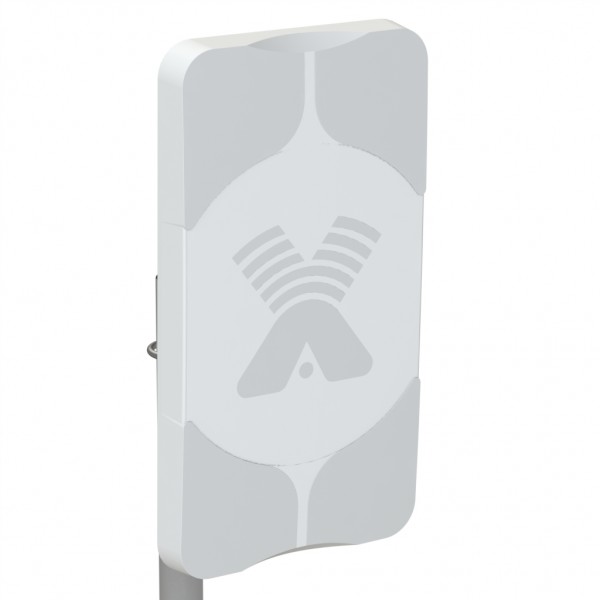

Panel antenna AGATA-2F 2x2 MIMO is intended for use in complete equipment of wireless data transmission systems standards:

2G(EDGE, GPRS frequencies GSM1800)

3G (UMTS 2100)

4G (WIMAX,LTE1800, LTE2600)

WI-FI (IEEE 802.11 b, g, n)

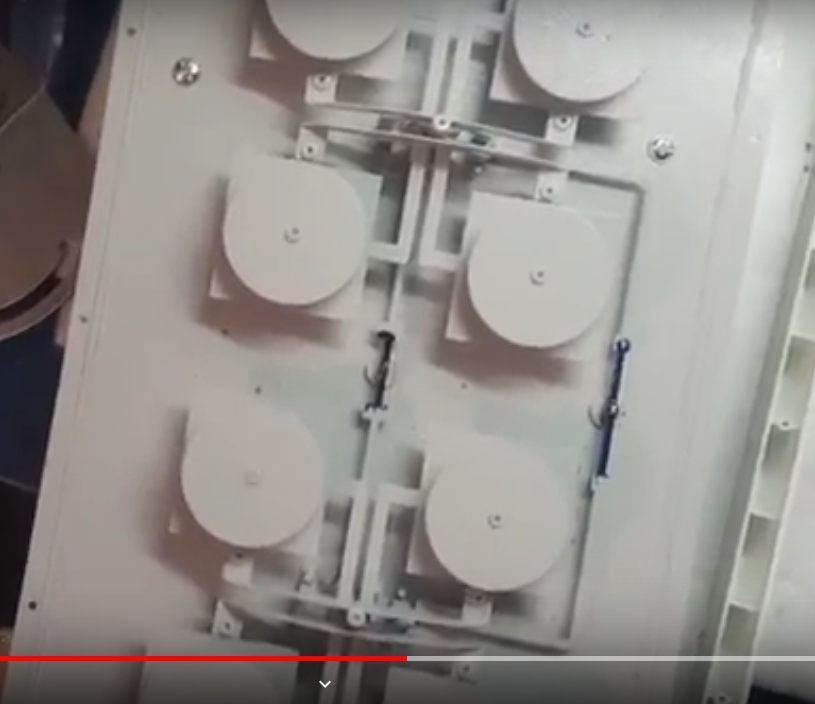

in other systems the range of 1700-2700 MHz. AGATA-2F MIMO 2x2 antenna is highly directional and ideal for use in communication systems "point to point" and "point-multipoint". Antenna is a structure of two spaced in-phase polarization gratings and made more compact compared to popular AGATA F antenna MIMO 2x2. For antenna connection with the router applies cable TV with 75 Ohm.

Operating frequency range, MHz 1700-2700

Gain (1.7 to 2.2 GHz), dBi 15-16

The gain in range of WIFI (2.4 GHz), dBi 17

The gain in the range of 4G (LTE2600), dBi 17-18

Width of DN in the horizontal plane, deg 31-49

Days width, in vertical plane, deg 15-24

The sidelobe level is not more -12 dB

Input impedance, Ohm 75

SWR in the frequency range, not more 1.6

Isolation between ports, dB  > 25

Permissible power watts 10

Polarization -vertical/horizontal

Mechanical characteristics

Mount -mast diameter 20-52mm

Weight 2,1

Overall dimensions without mounting,  0,41х0,24x0. 06m

Allowable wind speed, m/sec 20

Connector 2 x F-female

Material of protective box Polycarbonate + ABS

Antenna material galvanized steel, steel

Protective coating powder polymeric paint
