Sector Antenna 2,442GHz

[Admin 2545]

,,,good, it's very good ...!!!

[bejonet 58]

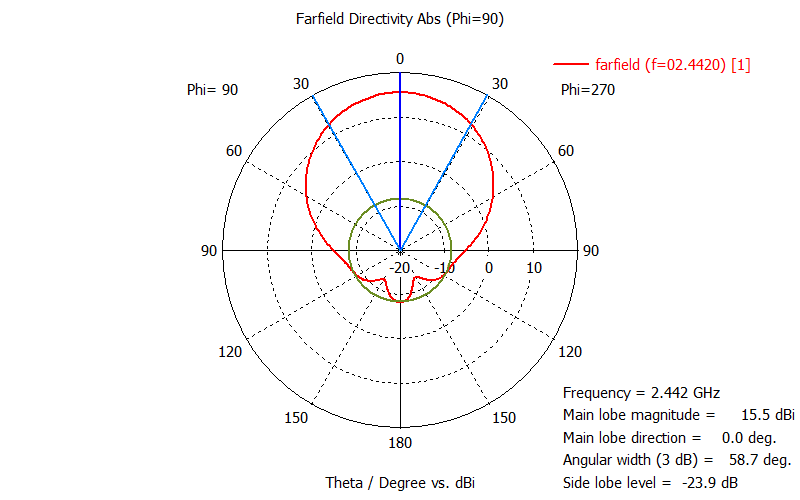

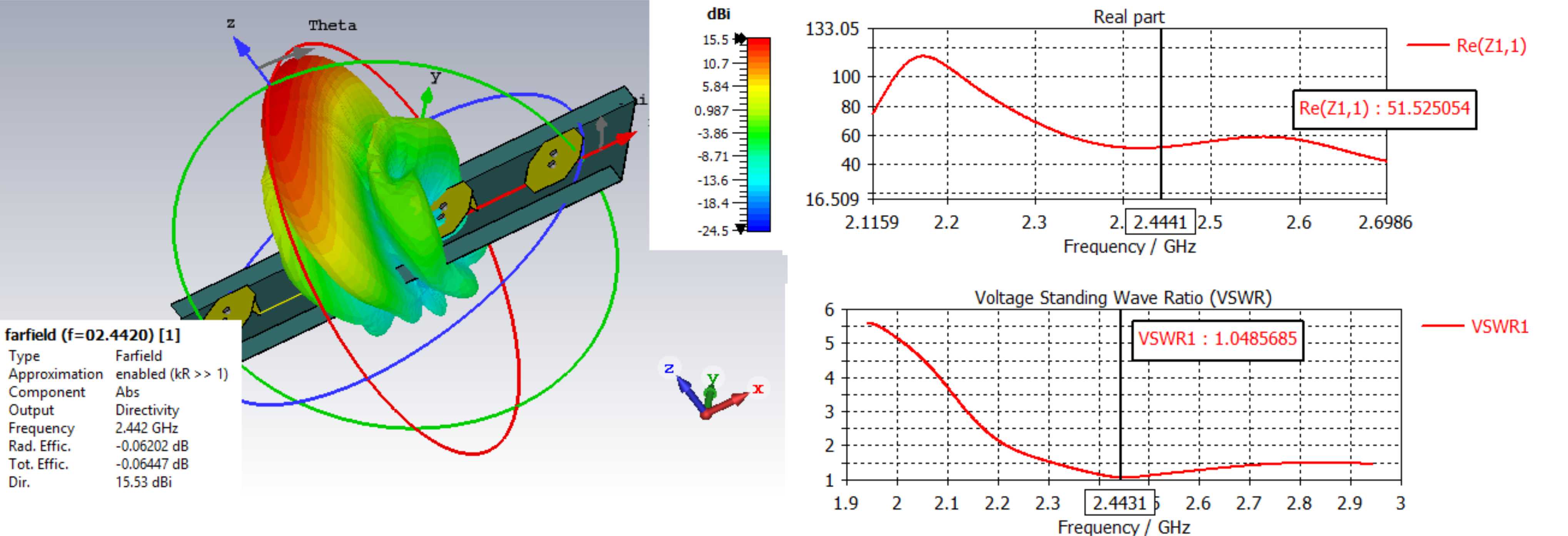

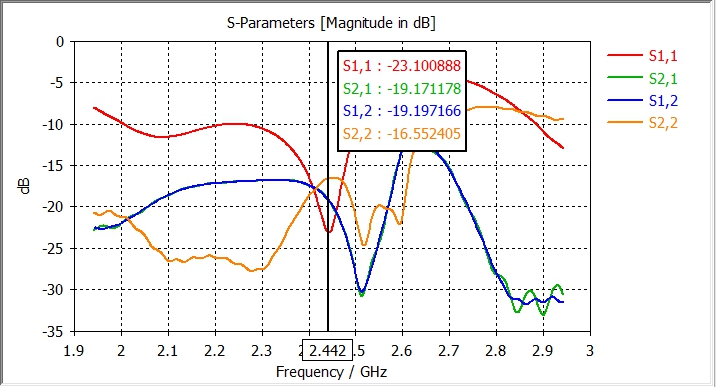

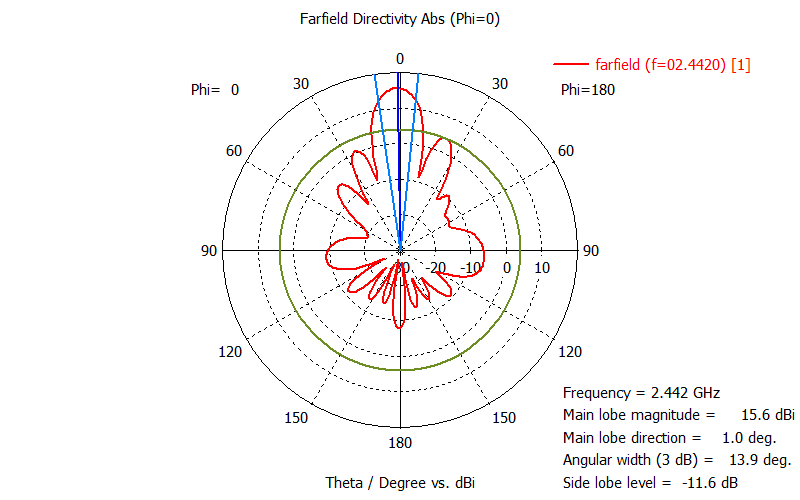

test..... modified with CST Studio

[Admin 2545]

,,,the antenna is powered by the SMA port...???

[bejonet 58]

On 23/04/2017 at 8:35 PM, Admin said:

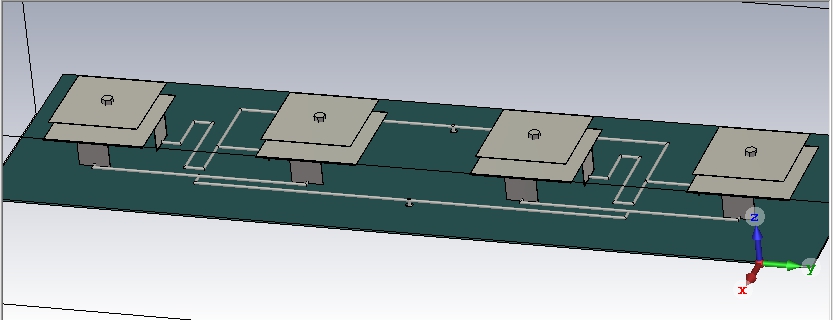

After an idea of Vman...

Sector Antenna 2442mhz.cst



I take it from here ... then change some parameters, just change the size and material and shape of the reflector

[bejonet 58]

[Admin 2545]

,,,it has the wings not inclined...???

[bejonet 58]

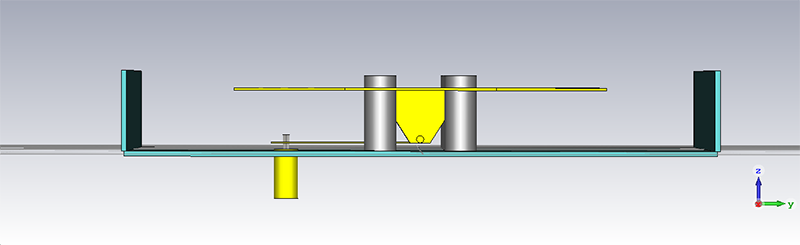

yes, it has 90 degrees of wings, resize a reflector,, 460mm long and 117mm wide, with 16mm wings



[bejonet 58]

[bejonet 58]

hi Admin...

you have detail for this model??

[Admin 2545]

,,,yes...!!!

[Eric 7]

looking forward for the details of this model..

[Eric 7]

any updates about the details?? thank you

[Admin 2545]

1 hour ago, Eric said:

any updates about the details?? thank you

,,,not yet...!!!

,,, but soon .. !!!

[Admin 2545]

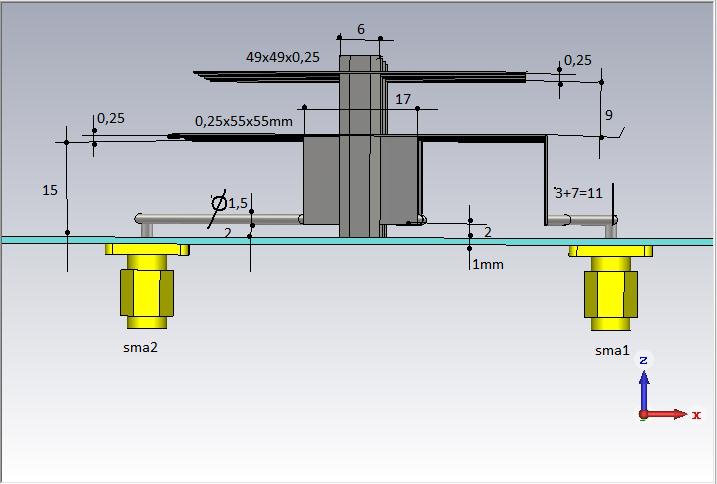

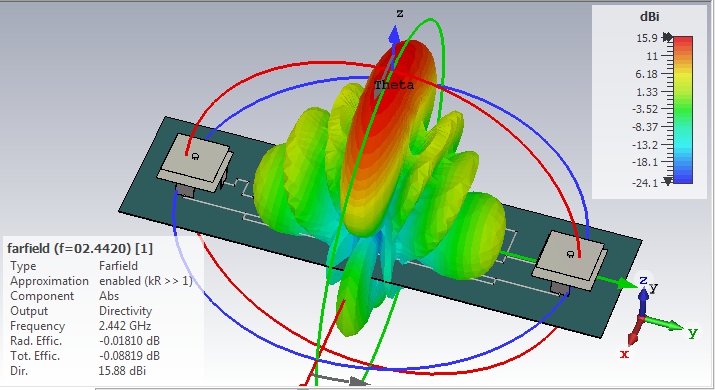

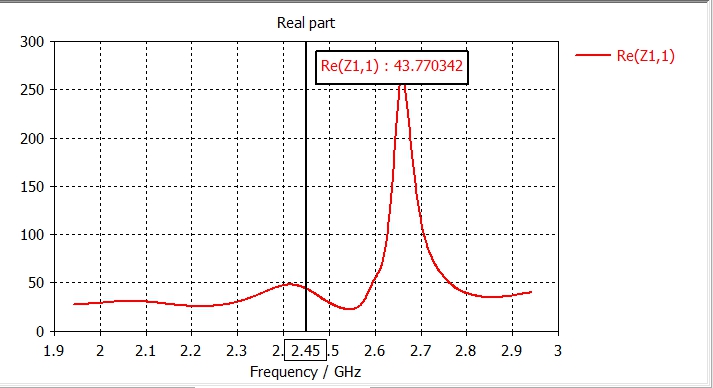

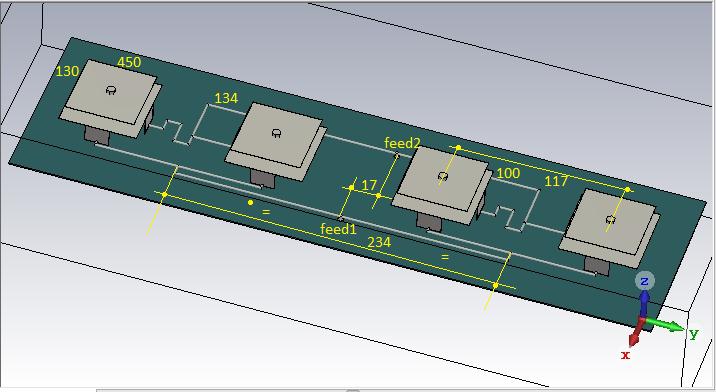

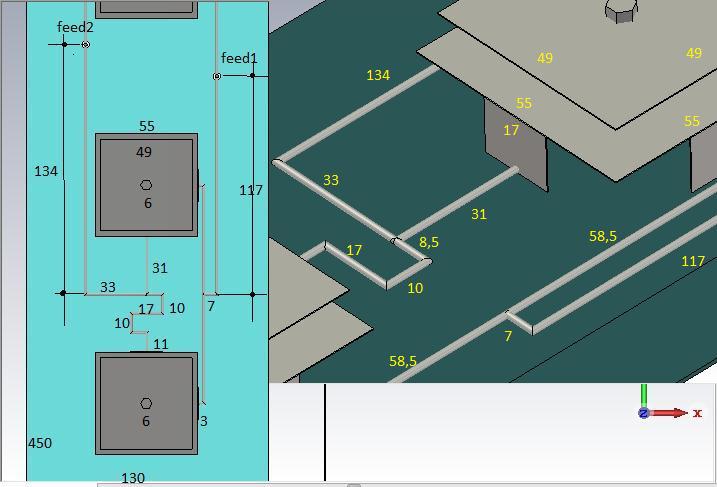

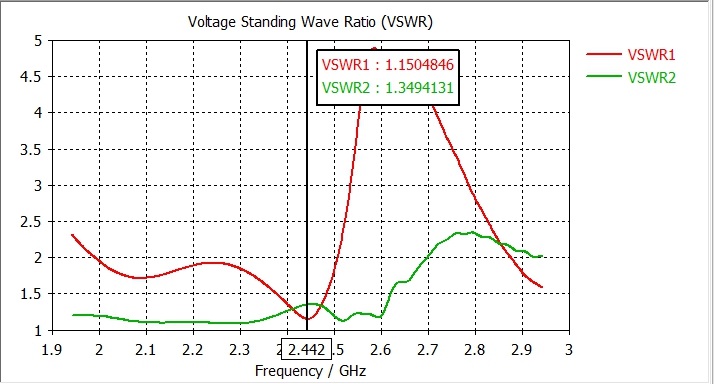

,,, this is the promise made previously....

[Eric 7]

spasibo bol'shoye, admin

[Admin 2545]

On 8/25/2019 at 6:07 PM, Eric said:

spasibo bol'shoye, admin

,,, you mean you say .... thank you very much, admin...??!!

,,, without Russian language, please ... !!!

[Raul 3]

On 8/25/2019 at 11:28 AM, Admin said:

,,, this is the promise made previously....



Admin, i still not understand about + & - connector. Can you draw in sketch format?



[Admin 2545]

10 hours ago, Raul said:

Admin, i still not understand about + & - connector. Can you draw in sketch format?





[Raul 3]

11 hours ago, Admin said:



I mean this design for ground and plus connection and also ballun and reflector



I still not understand to build it. I want to build this one.

[Raul 3]

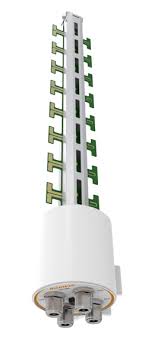

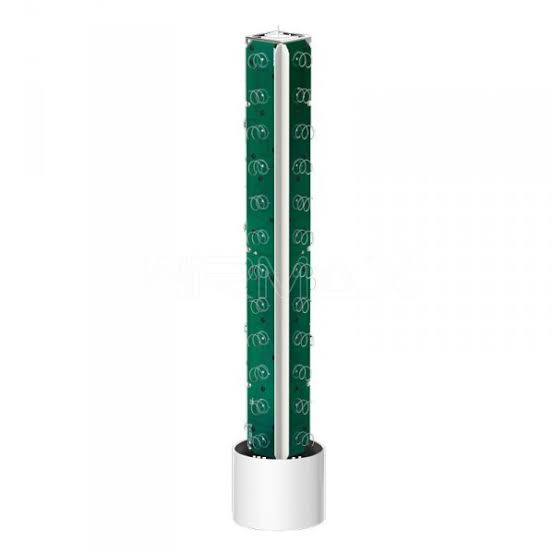

I also like this one from mimosa.

[Raul 3]

I think this design very professional and best design.

[Admin 2545]

,,,but this antenna it"s available for use between 4.9 to 6.4 GHz and does not make the subject of this post...!!!!

[Raul 3]

8 hours ago, Admin said:

,,,but this antenna it"s available for use between 4.9 to 6.4 GHz and does not make the subject of this post...!!!!

Yes. I want to modified this design to 2.4 combined between heix and sector. My mission is to improve gain 2.4 wifi hotspot.

[Raul 3]

I still thinking how 2.4 gain very short. Not like cell signal can reach few km to user.



If with 100mW - 1 watt  power and massif mimo design on 30dbi can 2.4 reach to user on 1 km?

[Admin 2545]

Raul, if you have such an antenna, you can post a few details and dimensions ... ???
