Diary of a solid man-a beginner antennae in excess of high frequencies.

[Admin 2561]

Is the same, only the height(50mm) differs ... !!

The angle is 20.55 grd

That's what it looks like,,,!!!



[chilanzar2 85]

Yes, that's how it is.


[Admin 2561]

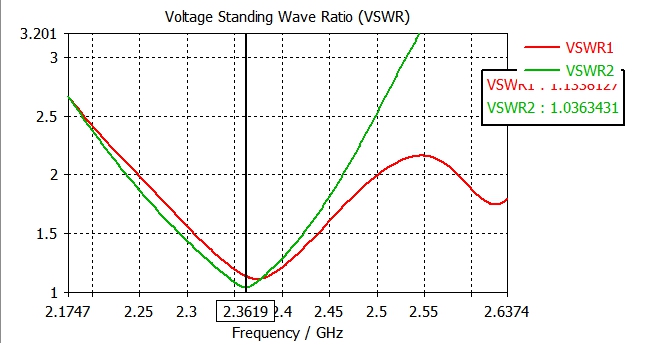

The distance between the reflector and patches must be increased,,,for good impedance

[chilanzar2 85]

Feed connector f-  be done? At 75Ω

[chilanzar2 85]

I do not even know how to do it. I'm used to doing sma, n-type



[chilanzar2 85]

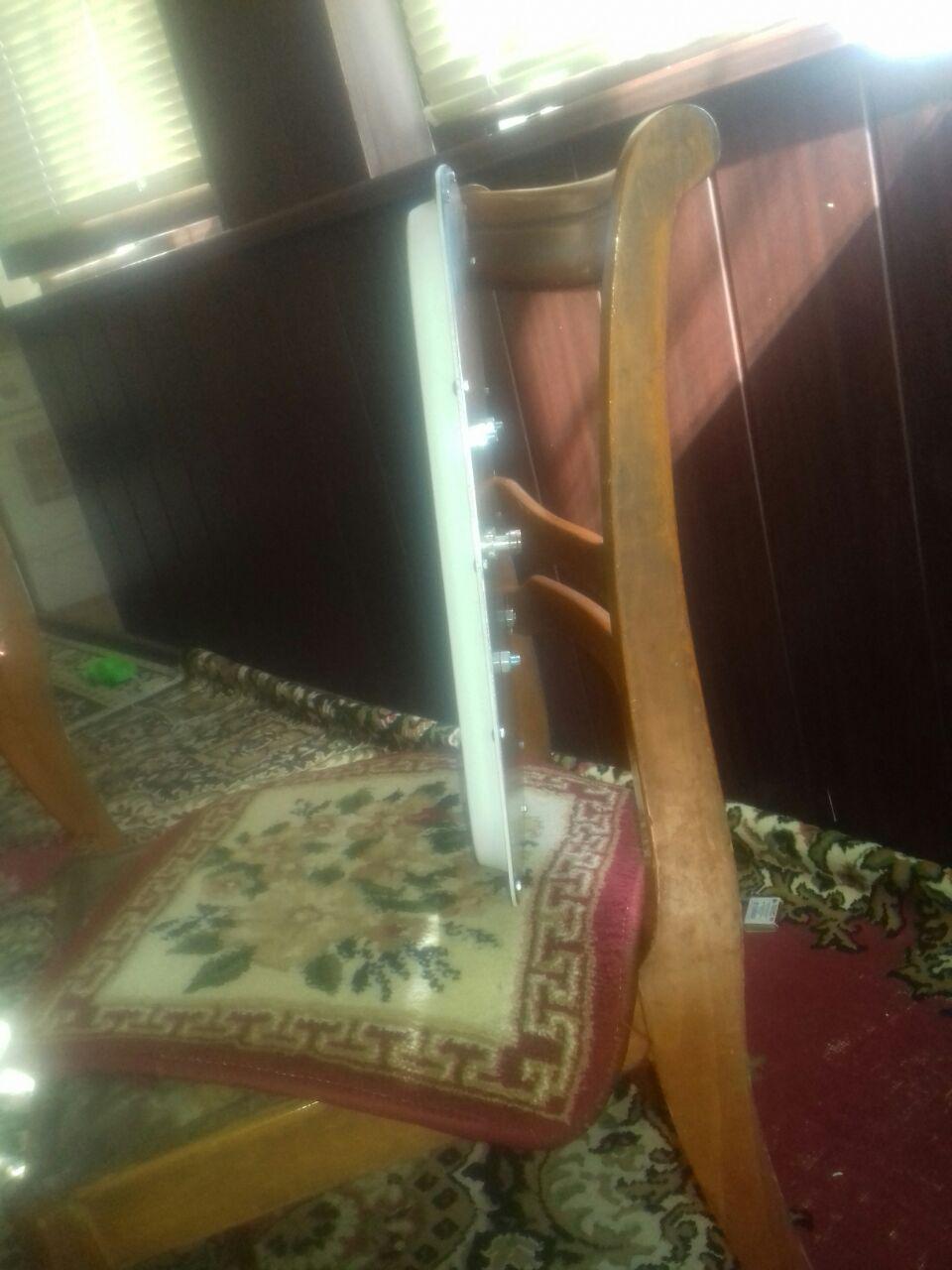

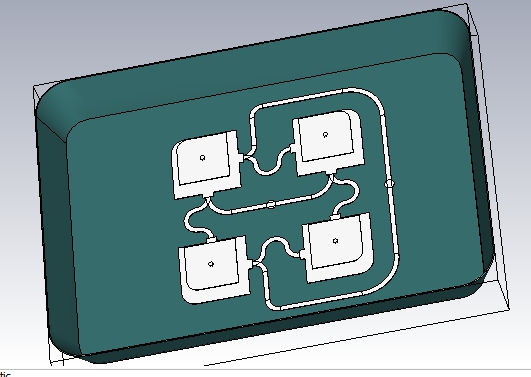

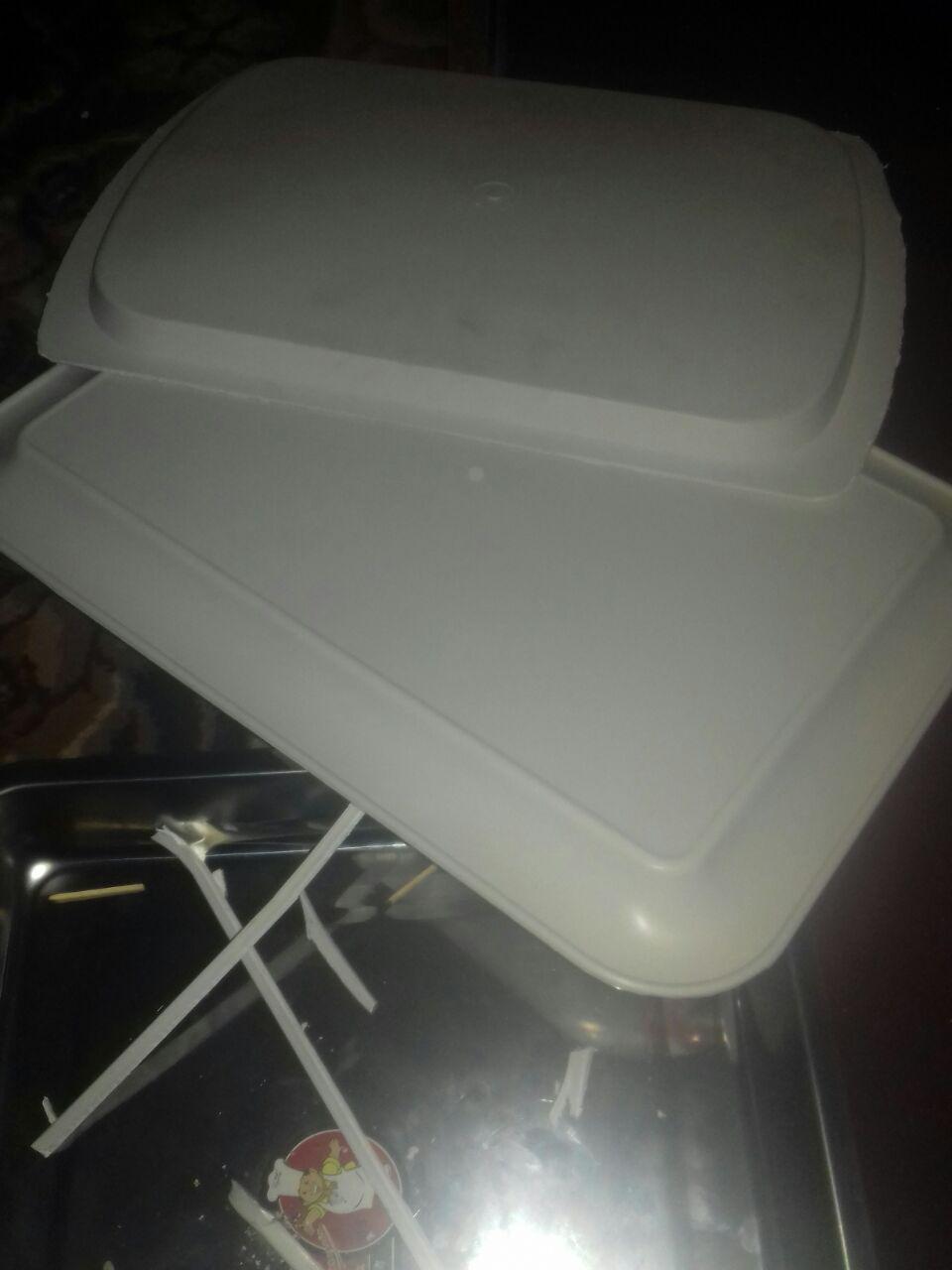

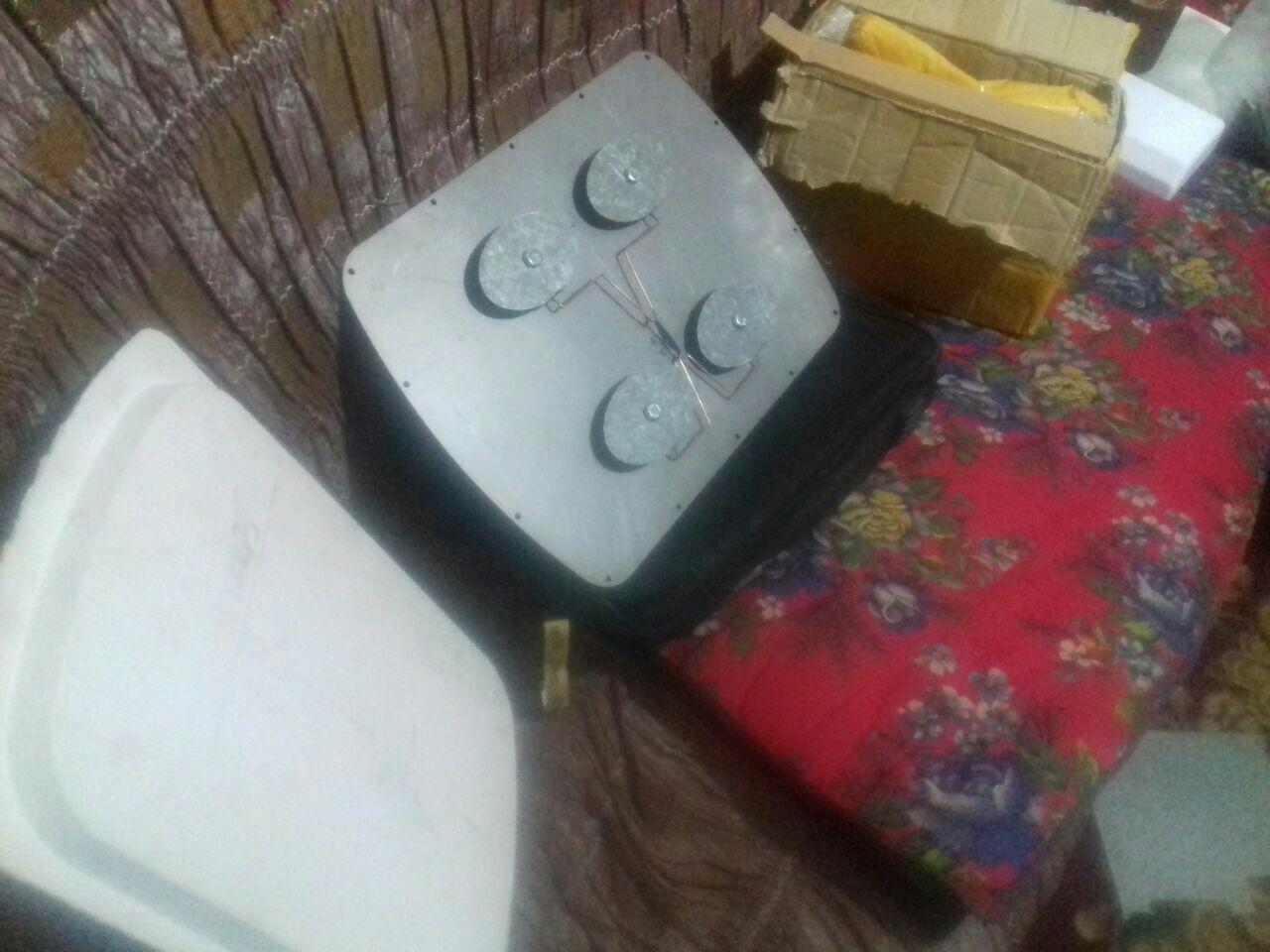

I found it ready yesterday ... in a plastic factory. Of course, the size is large, but this plastic patency is very similar to the antenna casing

[Admin 2561]

Chil, expect to do that

[chilanzar2 85]

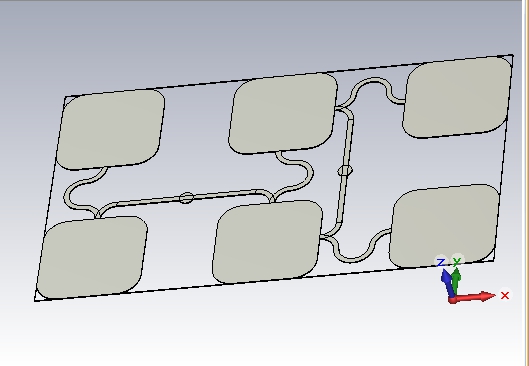

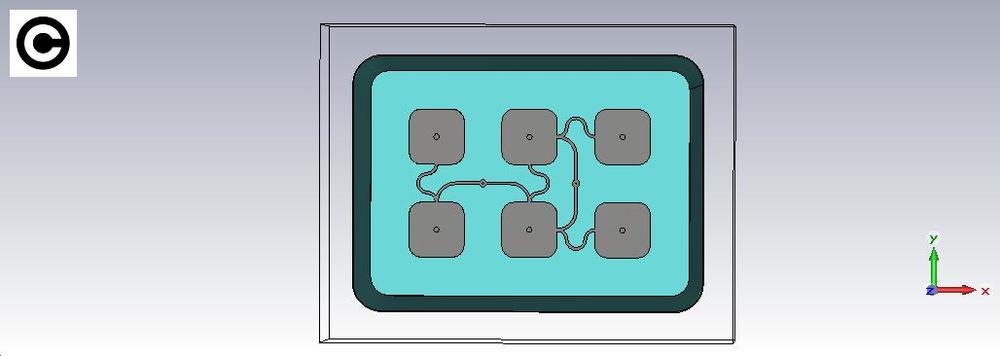

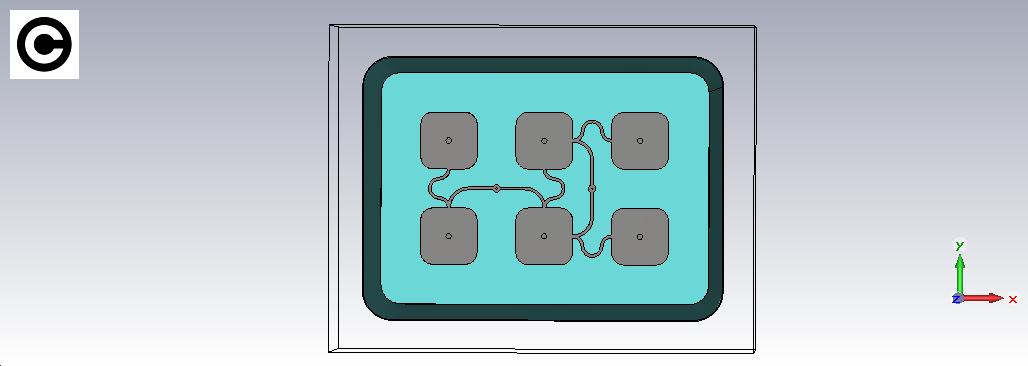

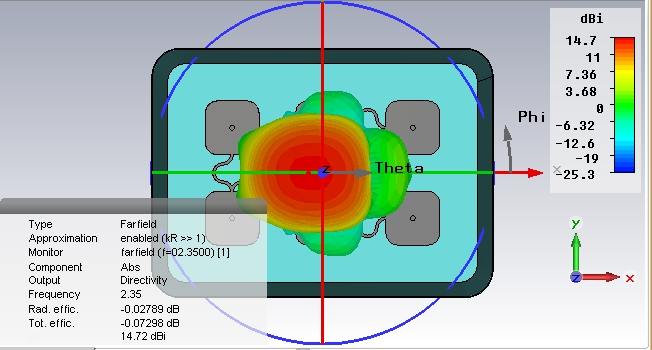

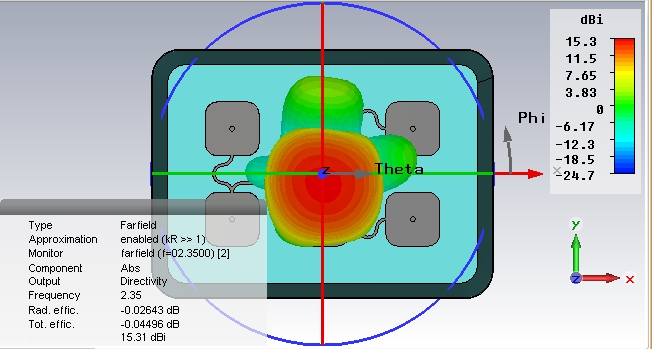

Just this antenna will accommodate this 6-patch

[chilanzar2 85]

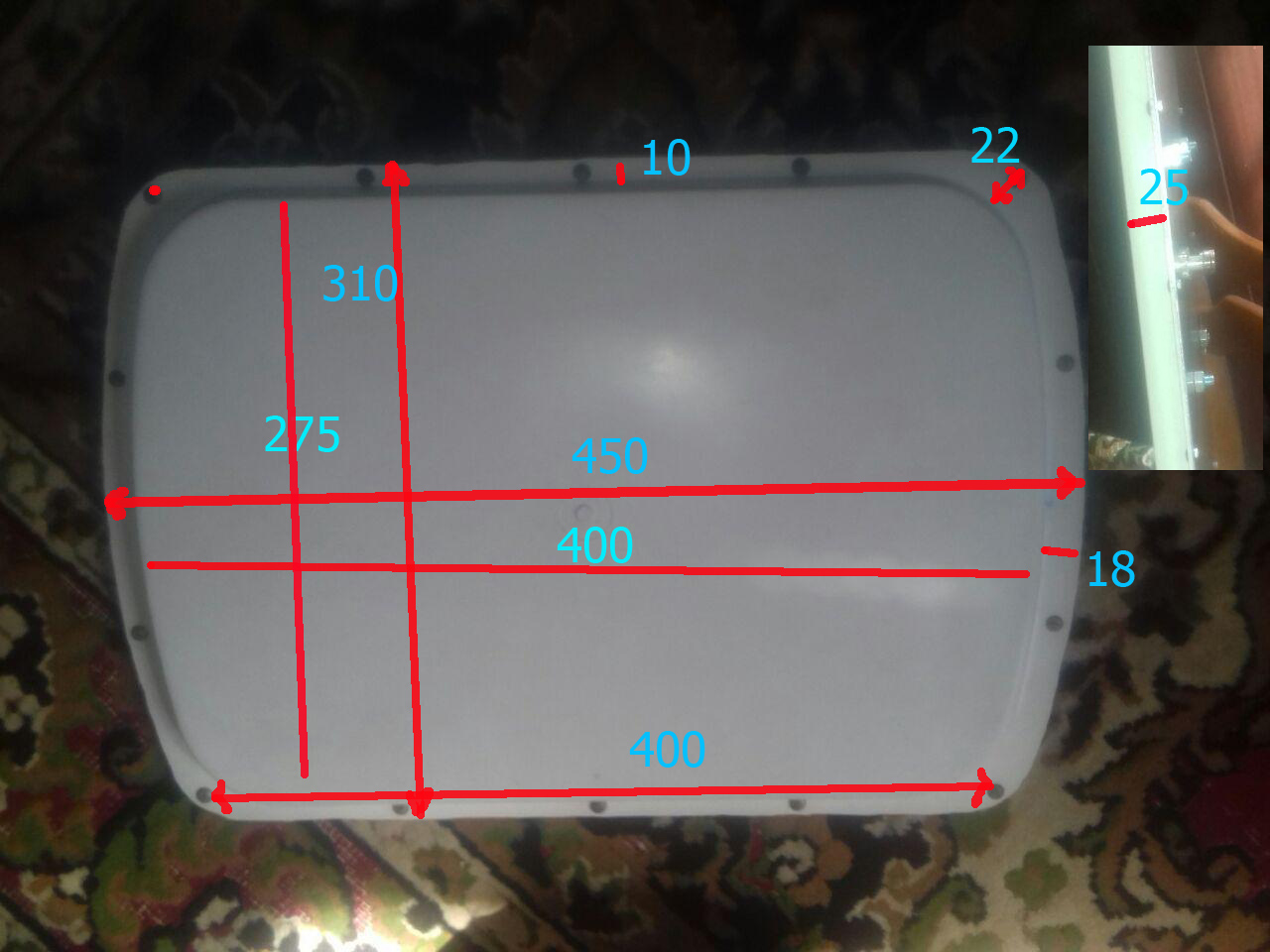

Jomy, from now on I will make all the antennas under this size. Of course, the size is a little big, but, as a factory execution.

[chilanzar2 85]

Is there a possibility in this 6-patch version, an additional, to combine wi-fi 2400?

[Admin 2561]

we'll see...!!!


[Admin 2561]

[chilanzar2 85]

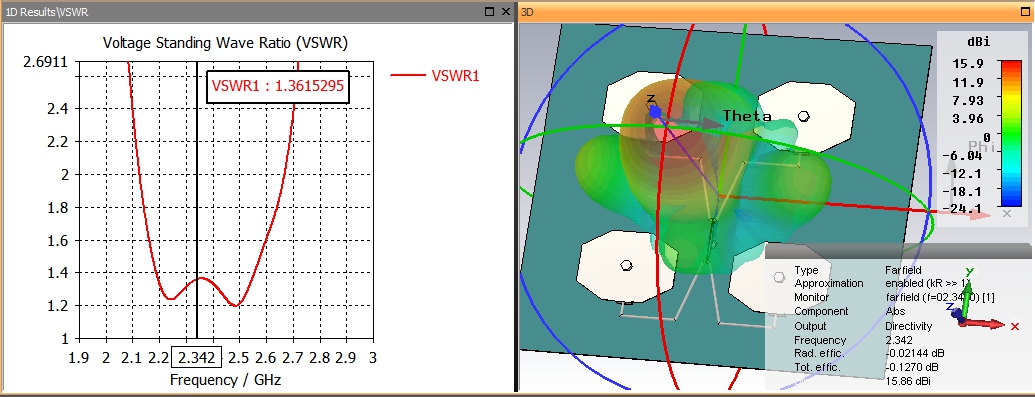

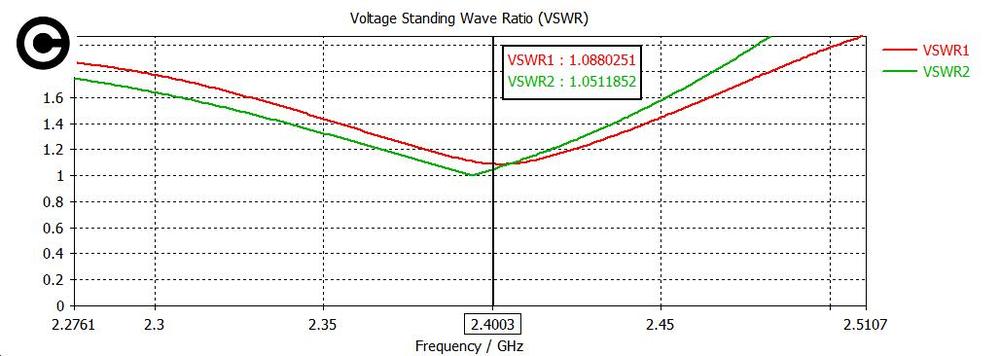

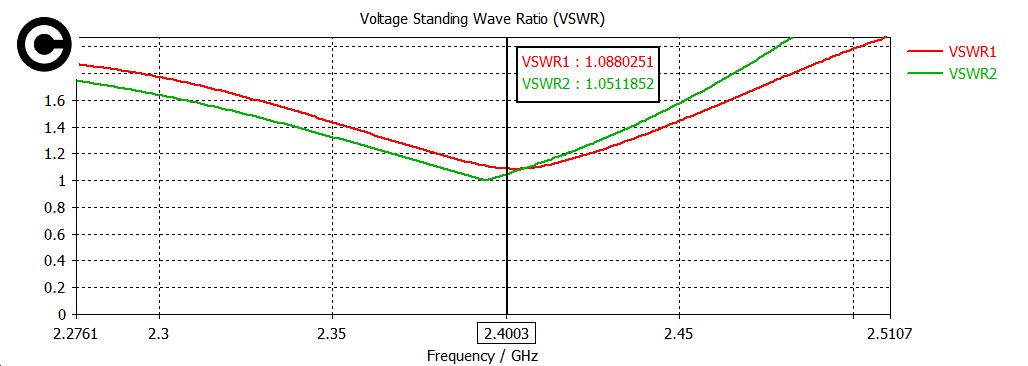

Will it be possible to expand to 2450 - Wi-Fi?
The band is 100MHz

[Admin 2561]

[Admin 2561]

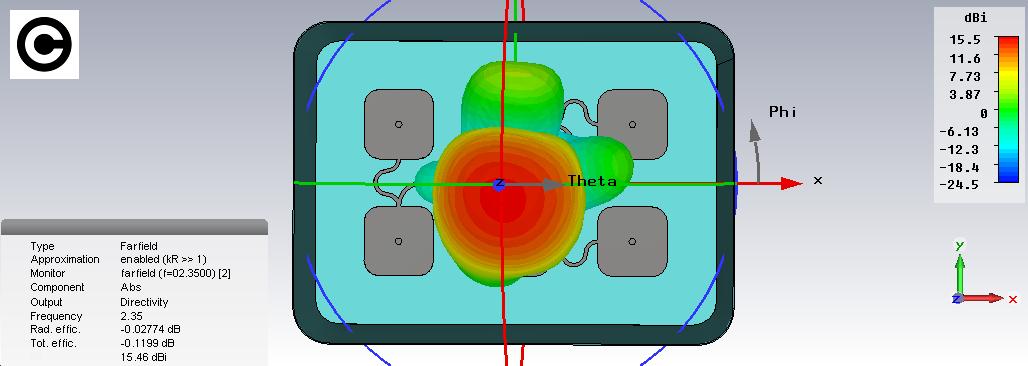

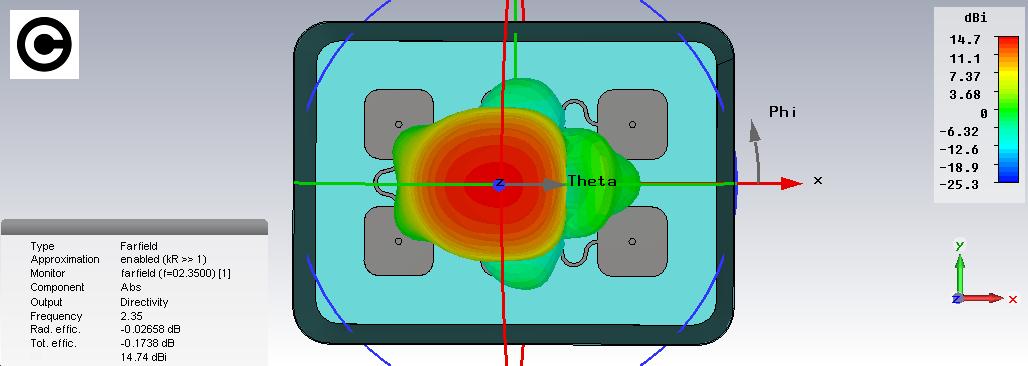

And by changing the feed point

[Admin 2561]

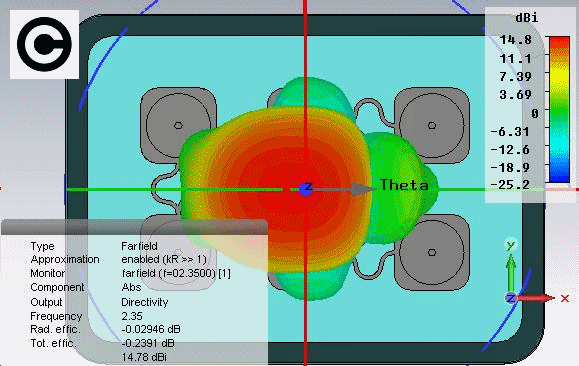

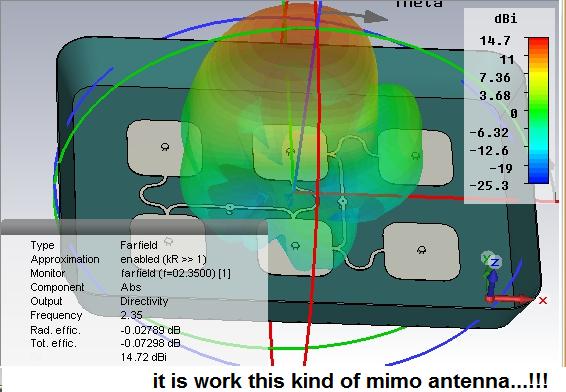

An animation with the antenna to which a director has been added

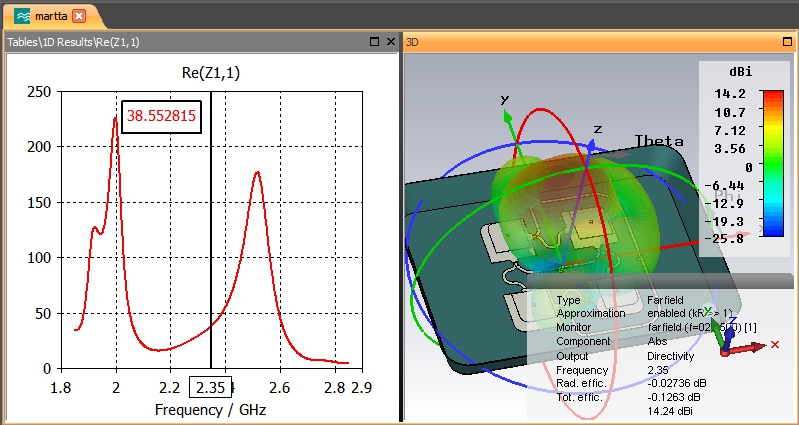

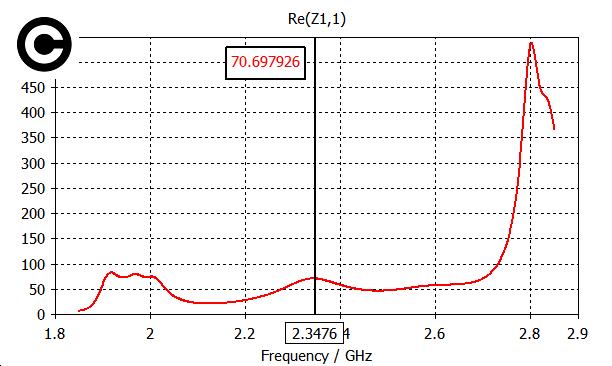

Impedance

[chilanzar2 85]

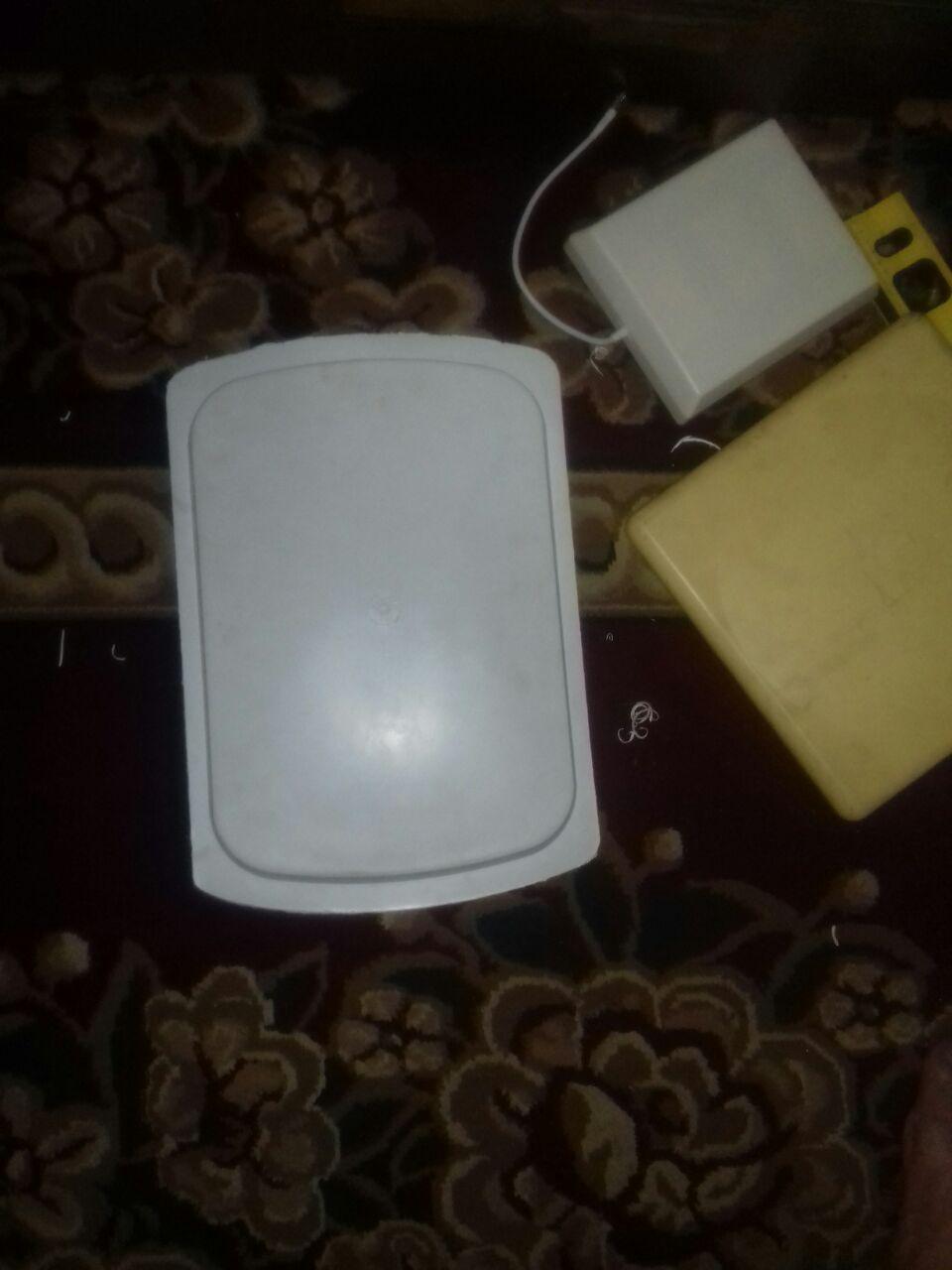

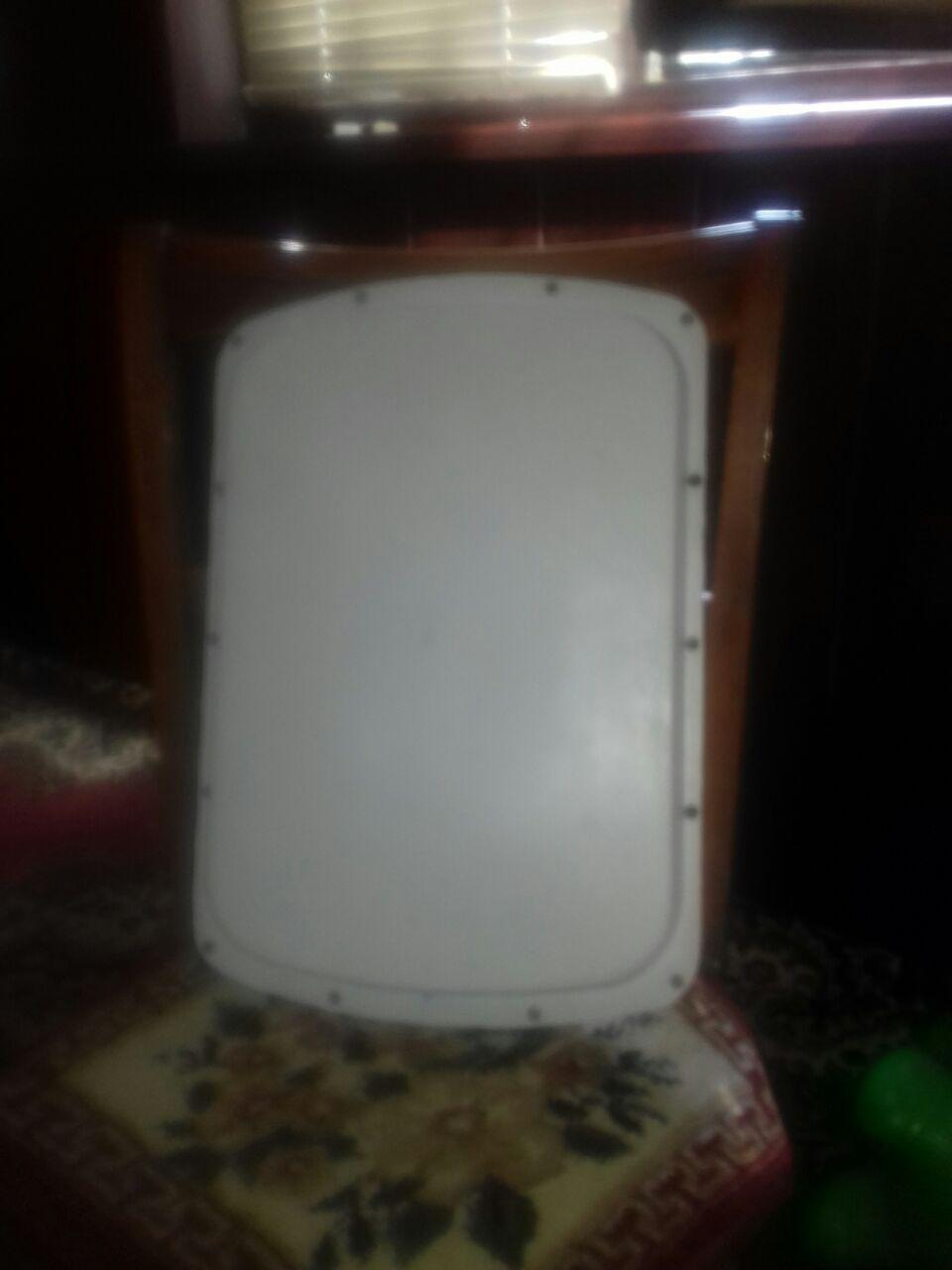

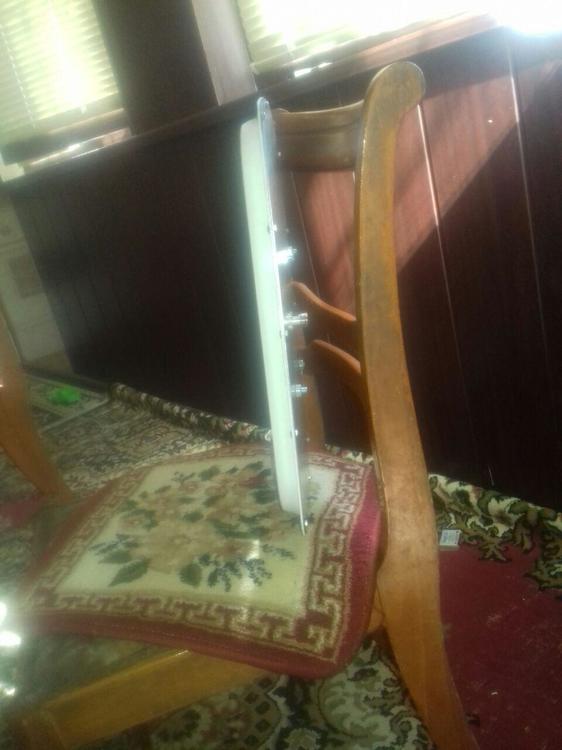

Look what I found - now, our antenna looks like factory - Antex, Bester, Kroks, Gellan. The finest I have found, you will not believe-it costs 60 cents

[chilanzar2 85]

[Admin 2561]

Why did you put this antenna?

[chilanzar2 85]

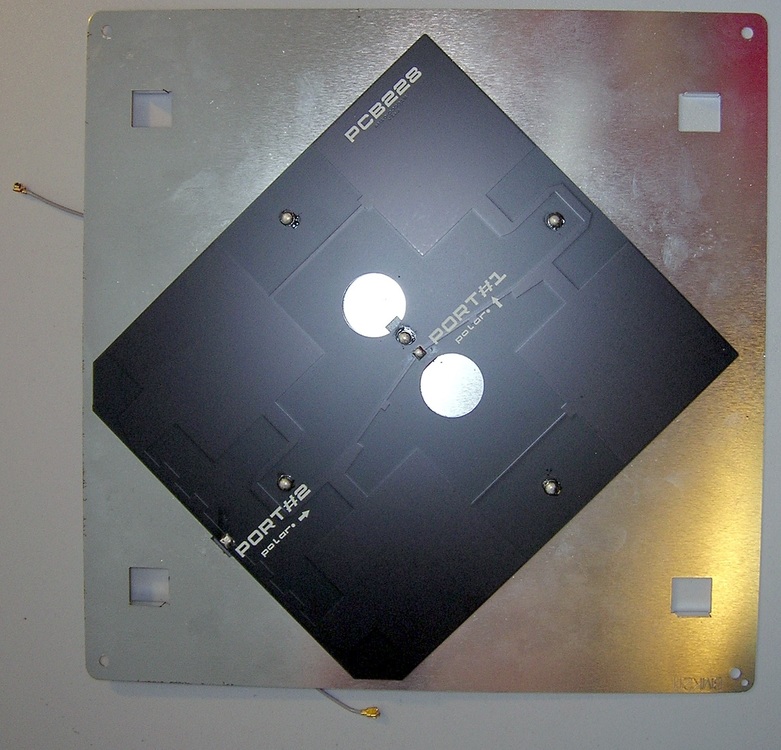

3g. This, too, I try to do. You like this antenna - somewhere you wrote that this good antenna

[Admin 2561]

Erkin,that's for you, if you're still running after butterflies,,,,,!!!

[chilanzar2 85]

Jomy, thank you! But, such an antenna is very difficult to manufacture - a lot of manual work, especially soldering patches and wires - takes a lot of tim

[Admin 2561]

33 minutes ago, chilanzar2 said:

Jomy, thank you! But, such an antenna is very difficult to manufacture - a lot of manual work, especially soldering patches and wires - takes a lot of tim

Well, then why did you make such an antenna with elliptical patches?

[chilanzar2 85]

3d antenna was needed - I made this antenna. There were no other options. I was very worn out with manual work.

And more, it was necessary for me, to try different antennas

[Admin 2561]



To watch...!!!

http://cheklab.ru/archives/3101
