Compact Wideband Slot-Loop Directional Antenna

Started by Admin,

Posted

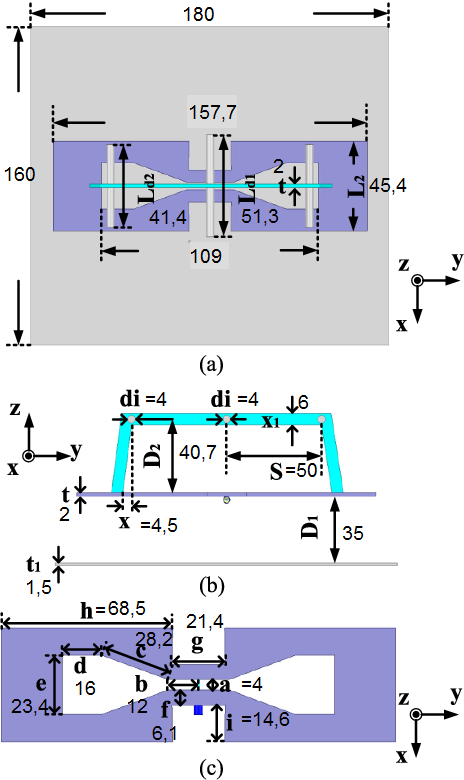

A compact wideband high gain directional antenna is proposed in this paper for wireless communications. The antenna consists of a back plane (reflector), a slot-loop antenna (driven element), and a director of rod. Based on the current distribution, the slot-loop antenna is equivalent to an array of three linear current dipoles. The dipole acts as an element of the director, which provides a high efficient director for slot-loop antenna according to theoretical analysis.,,





Source here...https://www.semanticscholar.org/paper/A-Compact-Wideband-Slot-Loop-Directional-Antenna-Chi-Qi/8b49e8ca70eac53c89963a7838de611bf2600af0?tab=abstract&citingPapersSort=is-influential&citingPapersLimit=10&citingPapersOffset=0&year[0]=&year[1]=&citedPapersSort=is-influential&citedPapersLimit=10&citedPapersOffset=10
