3G Panel Antenna

[Admin 2545]

Work offline and far. The distance to the BS for about 15 km, the signal is UMTS and HSPA, according to the Internet 2100 MHz. Materials include galvanized only 0.5 and 0.7 mm and a bit of copper sheet 0.7 mm bolts and nuts too. At the moment, made and works one antenna triple bi-Quad sometimes at a rate of 200 kbit/sec. in the evening no more than 30 max. 3 HSPA peak. But 3mm wire is no more and all hope for iron and broadband patch.

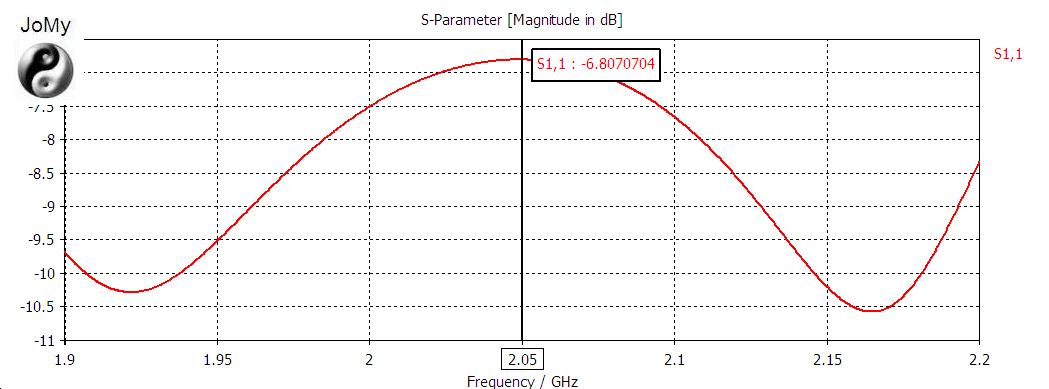

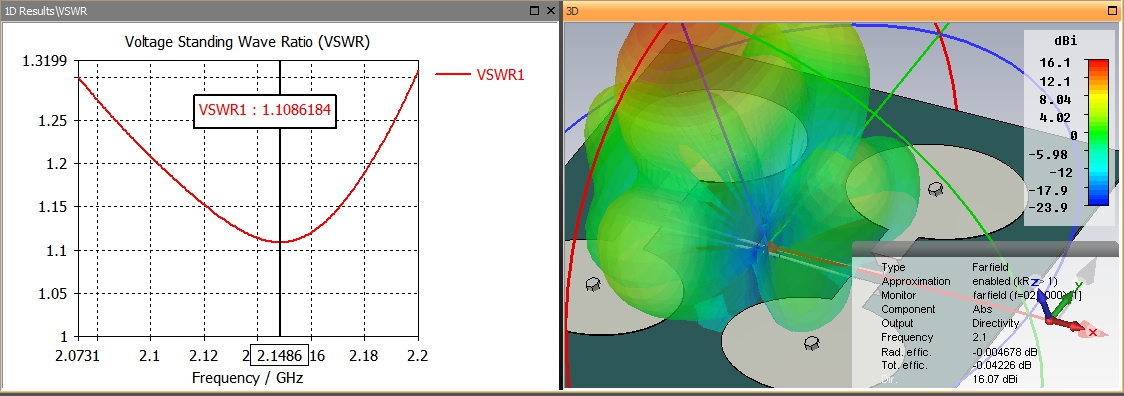

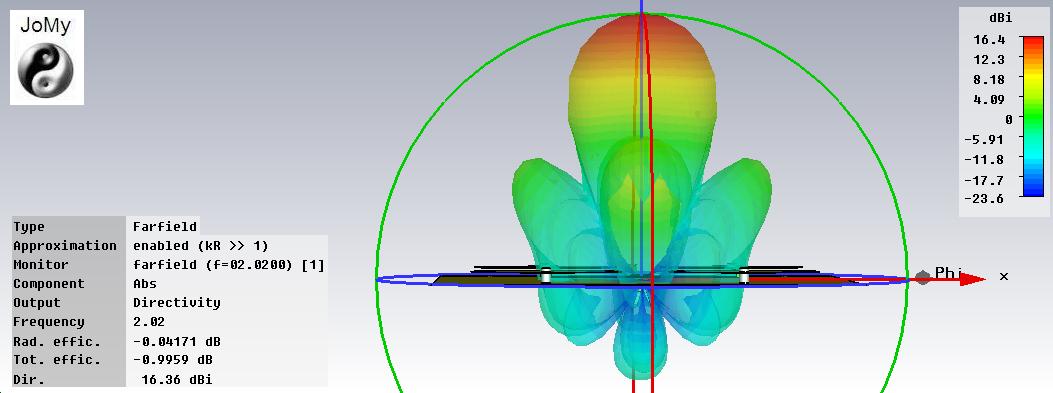

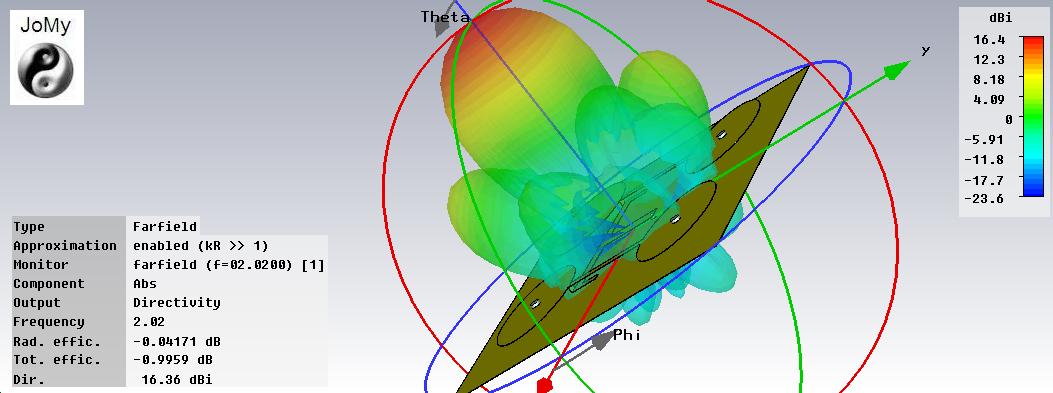

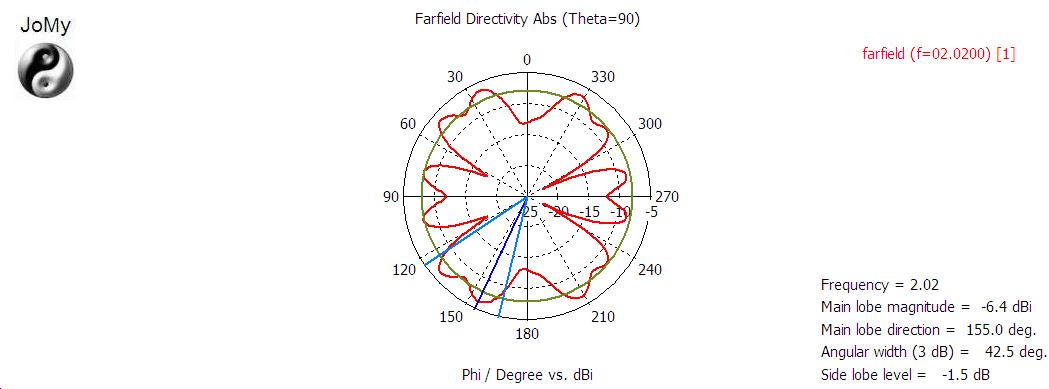

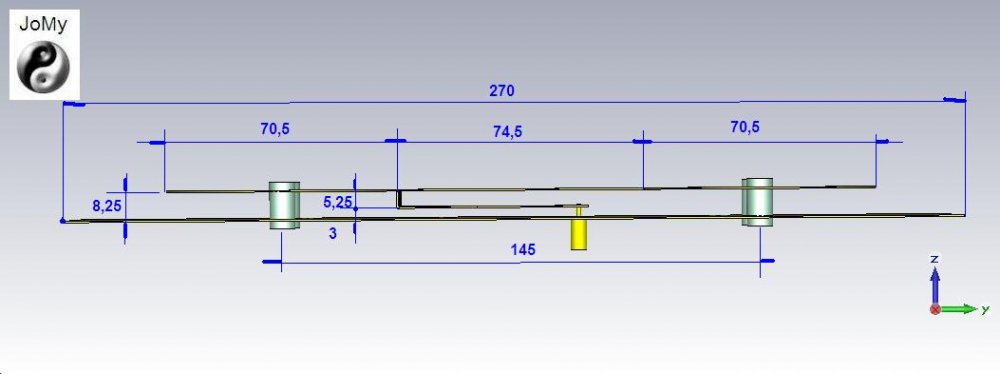

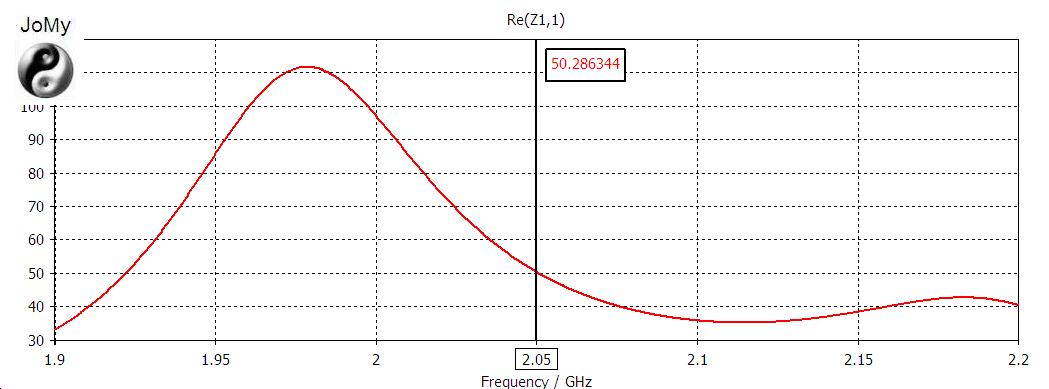

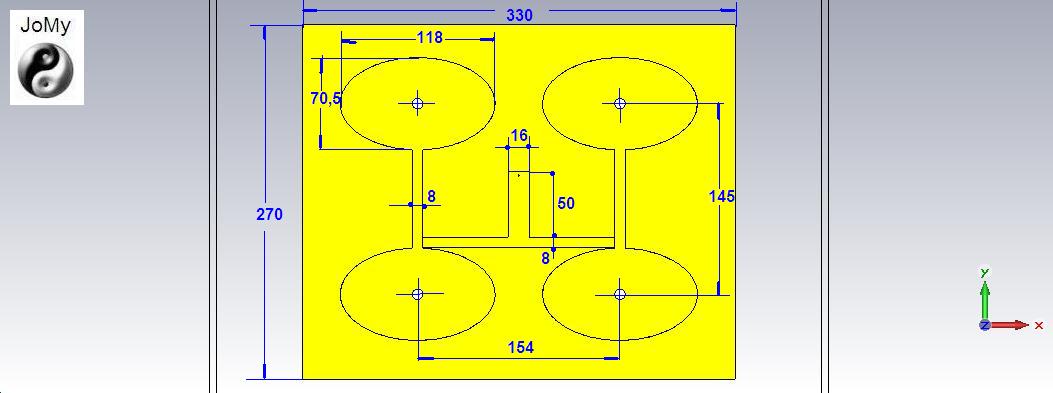

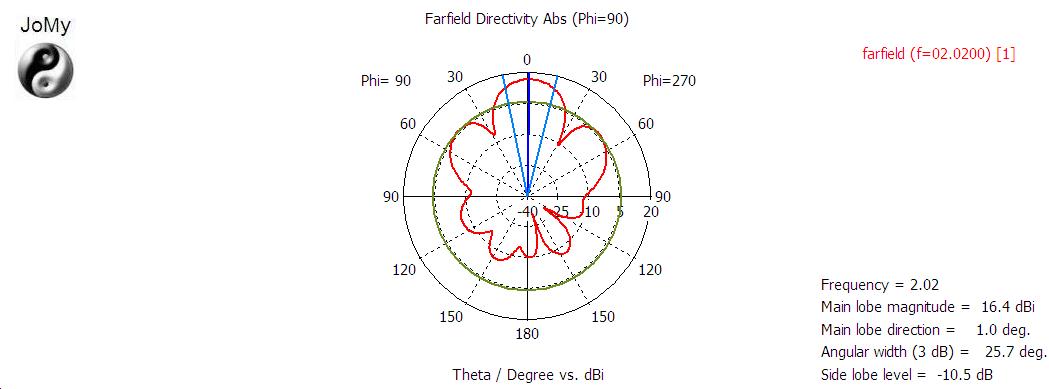

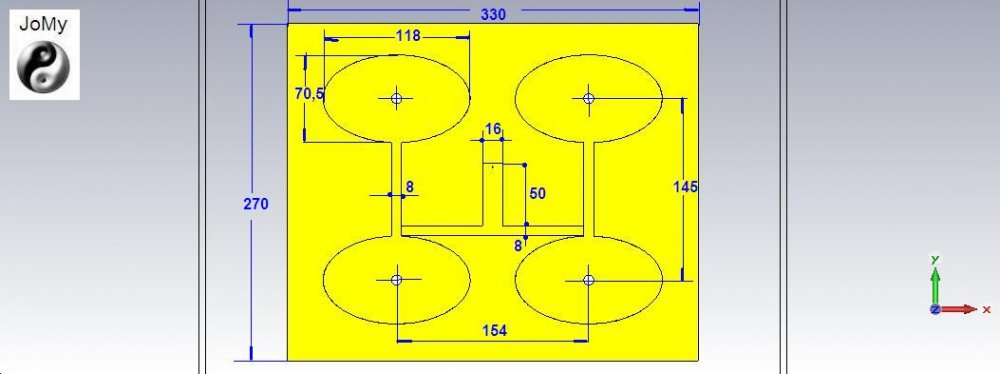

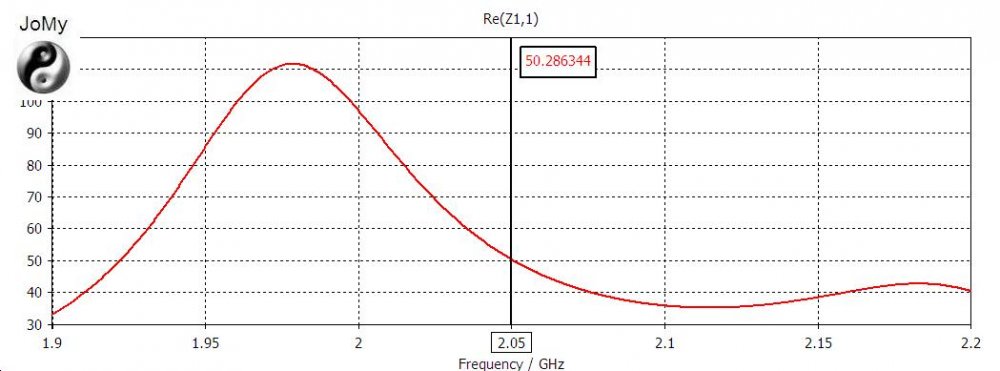

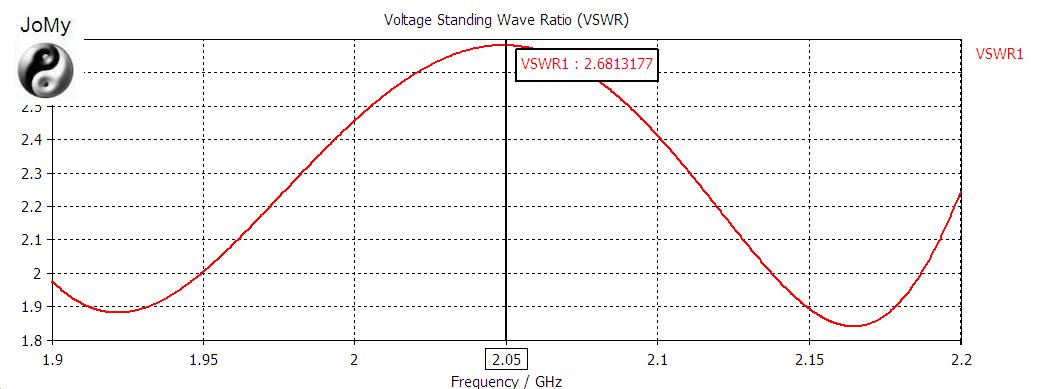

In the attached file (Patch Broadband 3G 1935-2140 MHz) represent a “project”.





[Admin 2545]

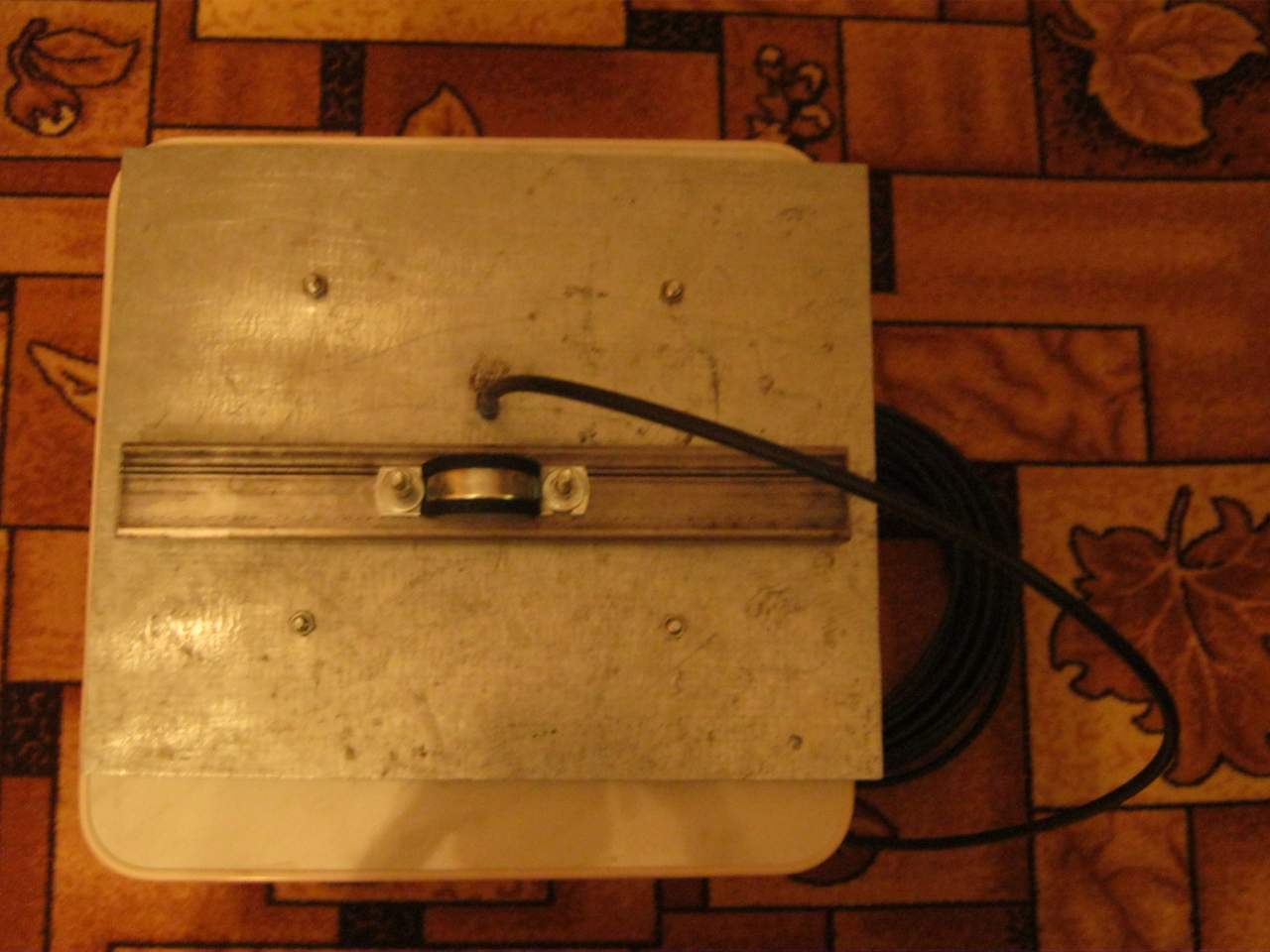

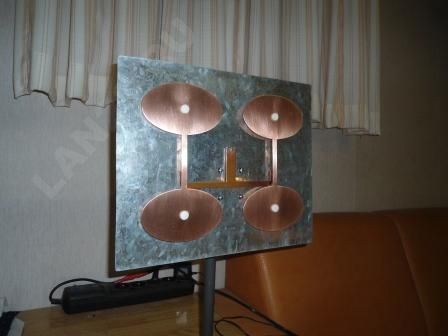

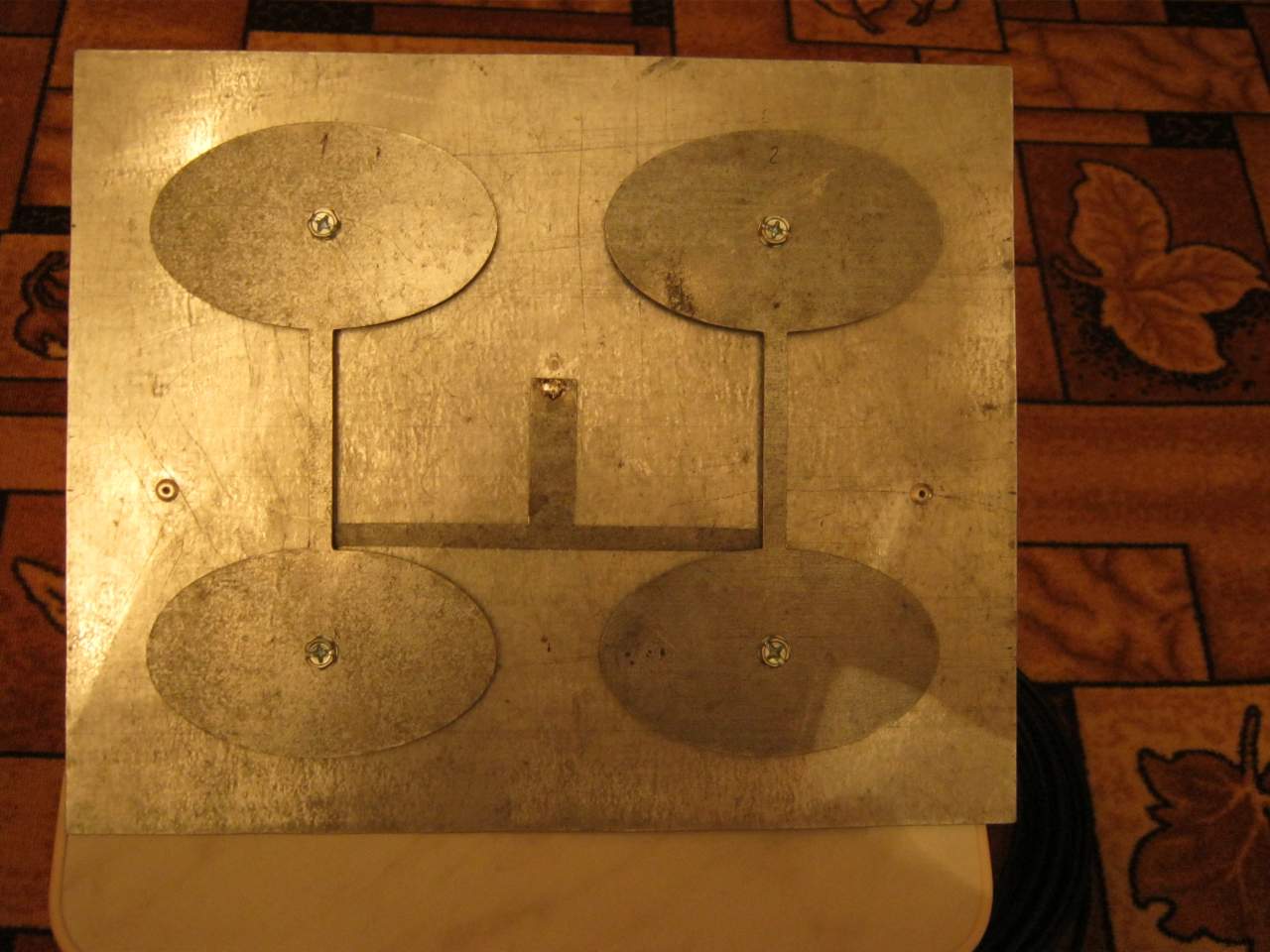

Achievement practice...



[Admin 2545]

,,,on YouTube...



[Admin 2545]

This antenna needs to be improved,,,!!!!

[Valentin 1]

Джоми. элипсы рефлектор и замкнуты должны быть? вроде как диэлектрик должен быть по вашим расчётам?

скоро возьмусь делать. В место втулок можно использовать гайки М5. ?

думаю бортики надо добавить



Jomy. ellipses reflector and closed should be? sort of like a dielectric should be by your calculations?

I'll do it soon. In place of the bushings, you can use M5 nuts. ?

I think the sides must be added

[Admin 2545]

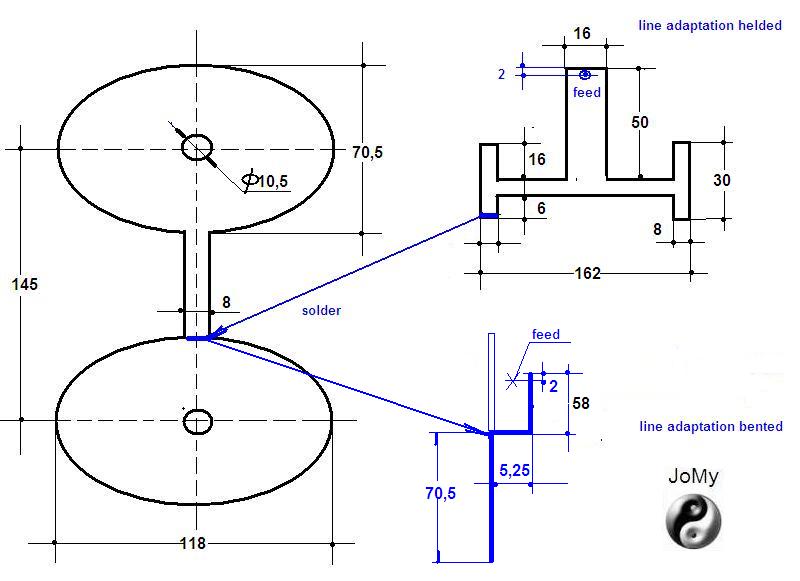

A simpler form for execution ...!!!



[Valentin 1]

Джоми ты меня не понял) )

Антенна хорошая. Я имел виду, что на видео её сделали криво.

я никогда не клеветаю.



Jomi you did not understand me))

The antenna is good. I had in mind that they made it crooked in the video.

I never slander.

[Valentin 1]

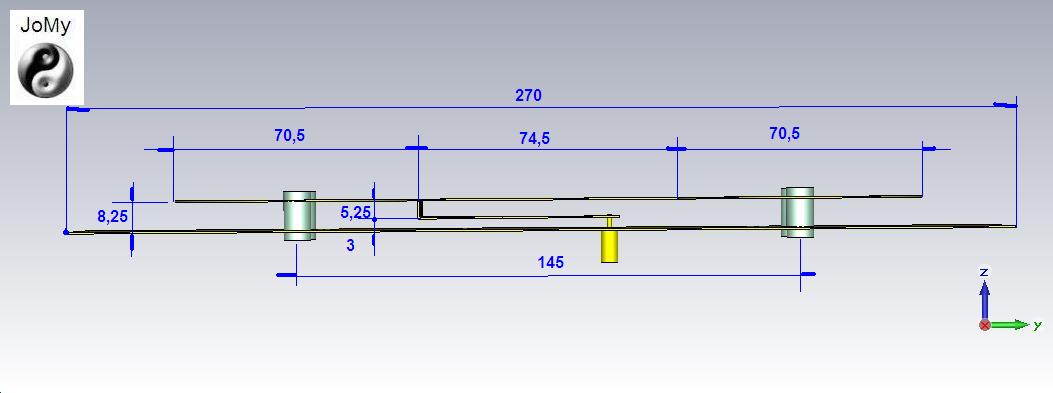

Джоми, бортики 30мм. не испортят диаграмму и усиления антенны?



Jomy, the sides are 30mm. Do not spoil the diagram and antenna gain?

[Admin 2545]

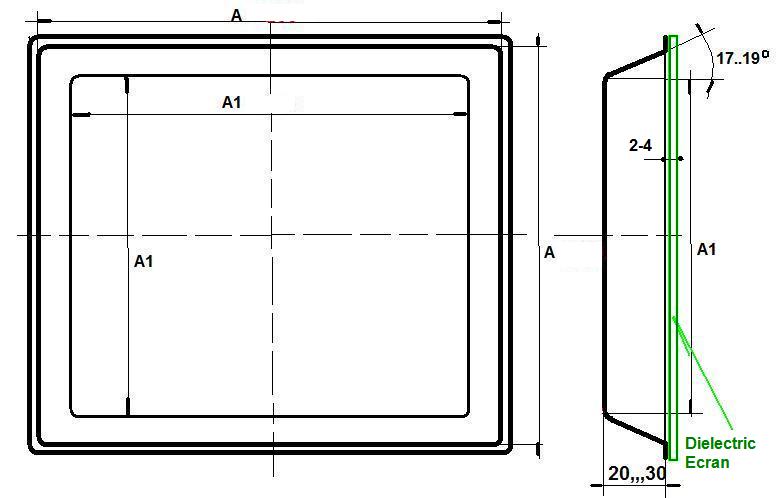

,,,see this..

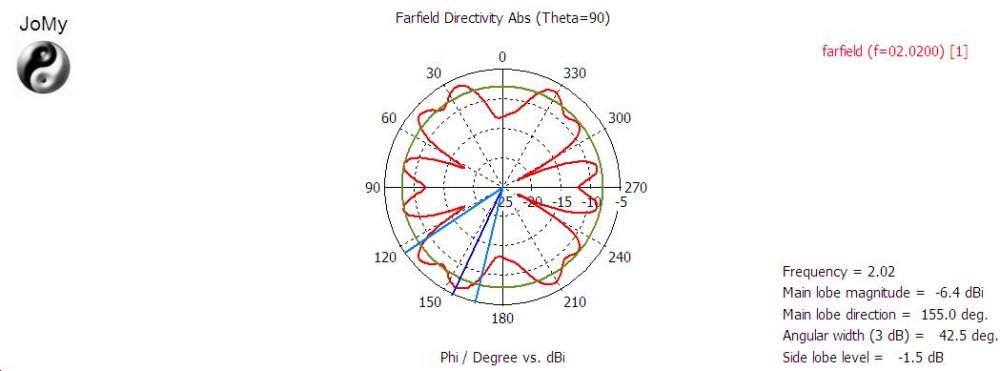

This type of reflector, can get an increase in the antenna gain ,,, !!!

Этот вид отражения может получить увеличение коэффициента усиления антенны,,,!!!



[Valentin 1]

спасибо. попробую

thank. I will try to collect. соберу.
