AGATA 2x2 MIMO - wideband panel antenna 4G/3G/2G (15-17 dBi)

[Igor_Pan 11]

On 18.05.2017 at 0:48 PM, chilanzar2 said:

...They do not register me. When they found out that I was from Uzbekistan, they switched off the phone. They say that foreigners have a lot of fuss

Yes this is true. Unfortunately, bureaucracy and corruption do not allow us to fully work on the external market.

[chilanzar2 85]

Ohhh..!!! Igor Panchenko! I am very surprised. He's one of the great engineers of microwave antennas our time. Engineer of the Russian factory of microwave antennas "Bester".  I like it.

[Radik 6]

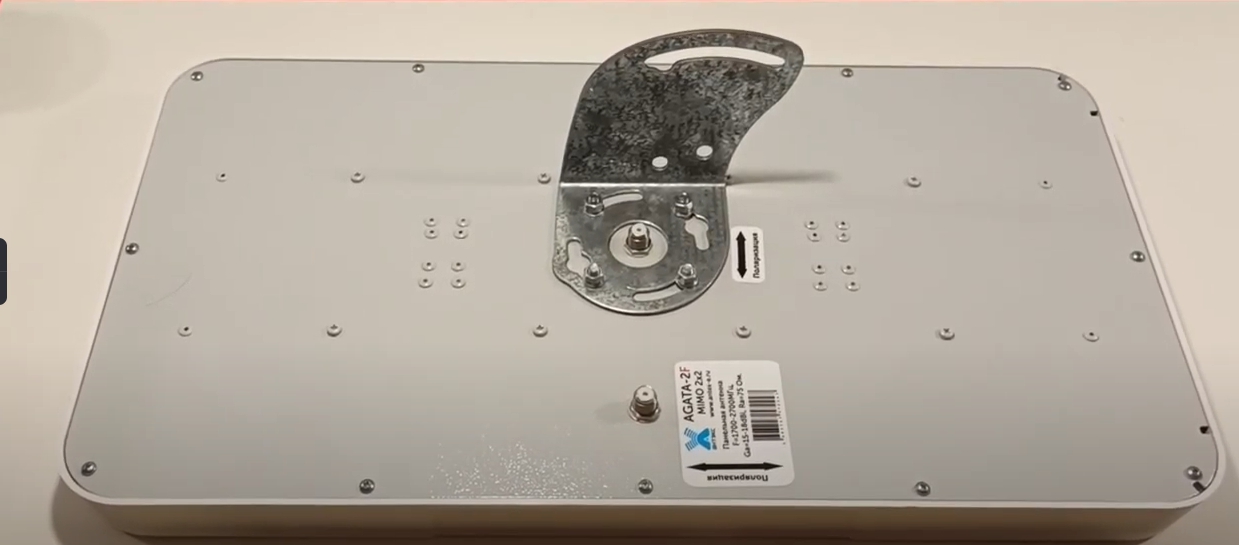

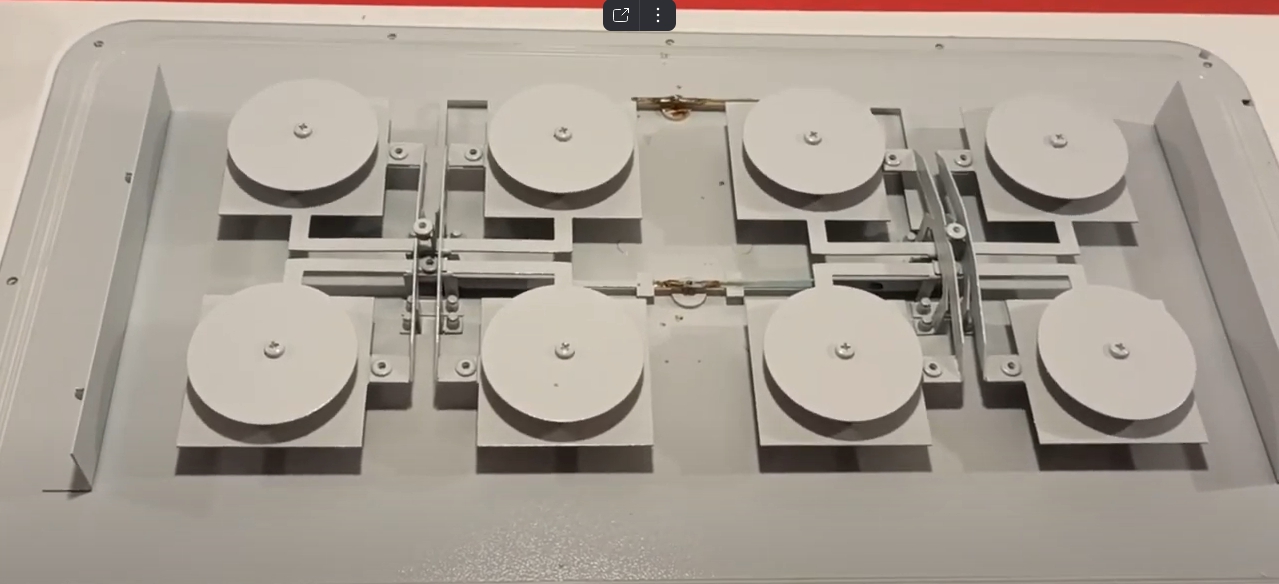

Что это за антенна? You can show the back of the antenna.

[Admin 2545]

I do not have any other details...!!!

[Radik 6]

как называется эта антенна

[Admin 2545]

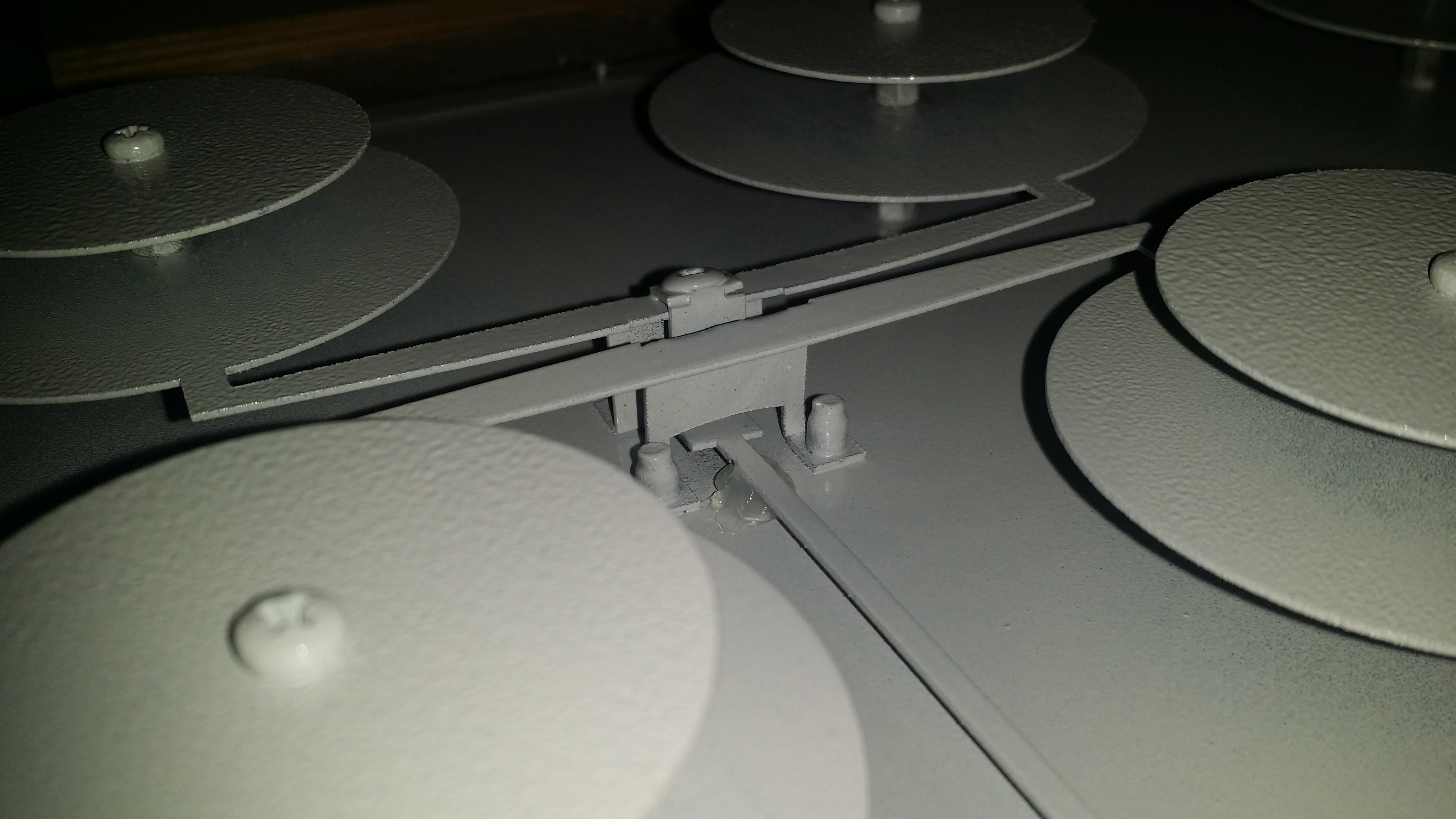

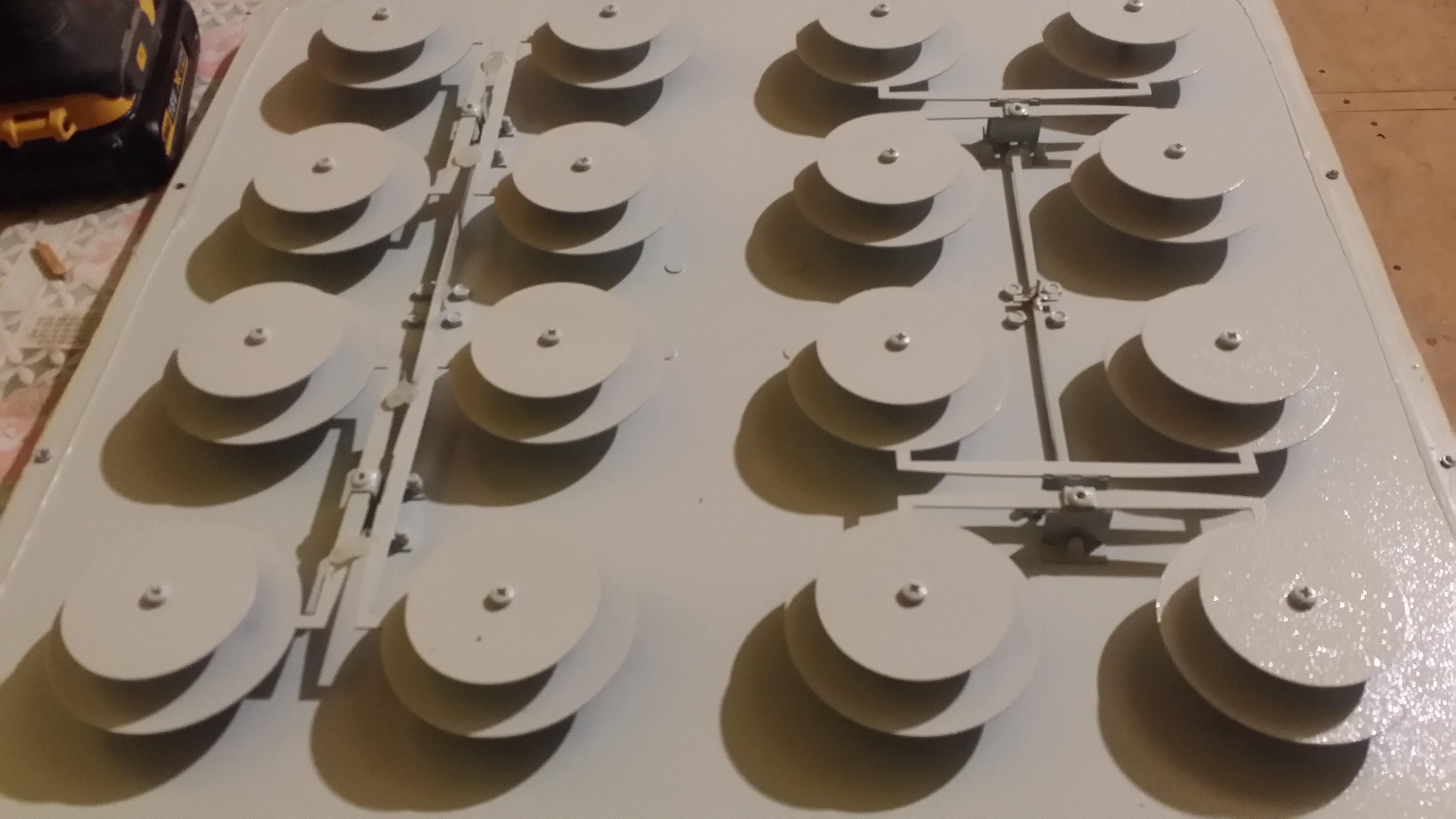

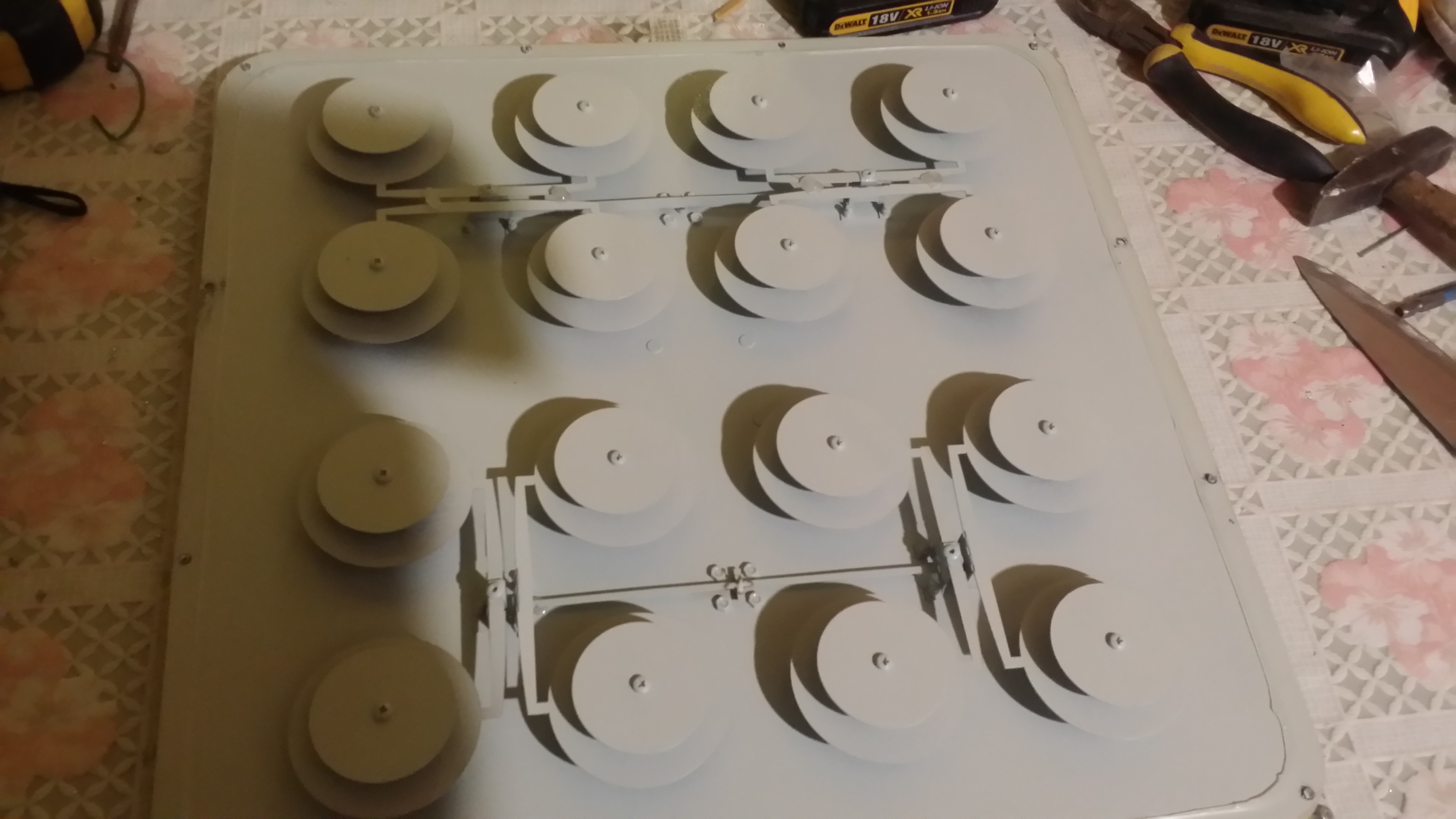

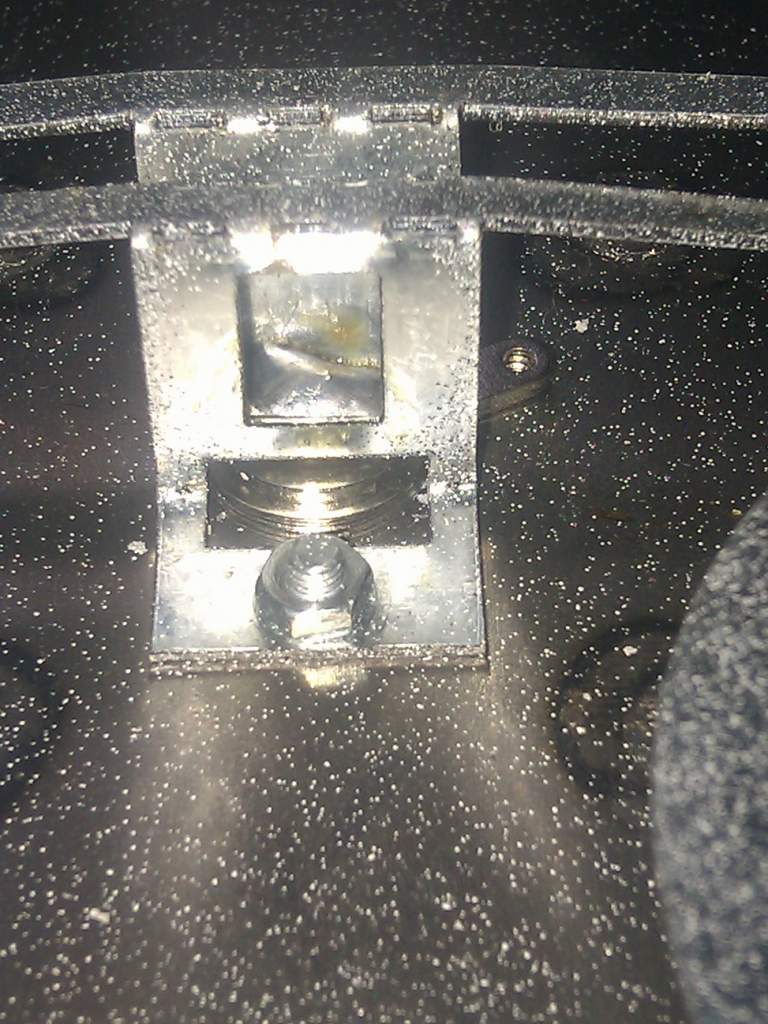

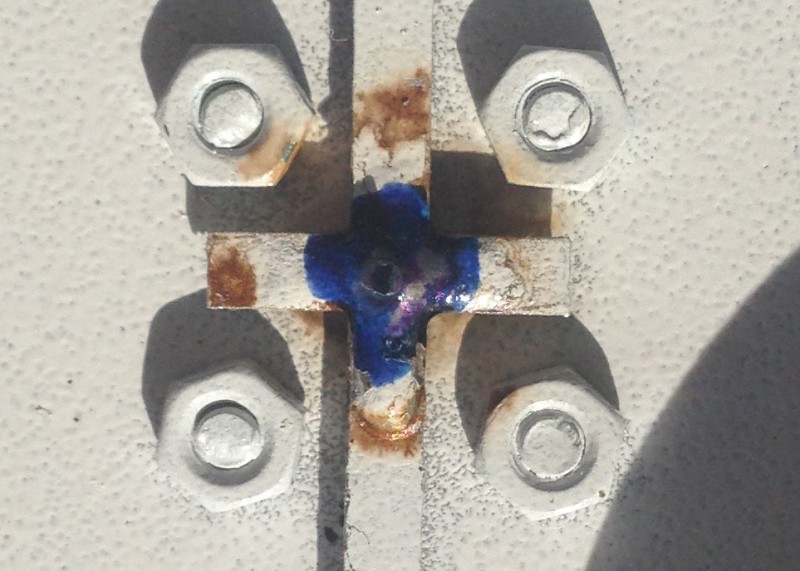

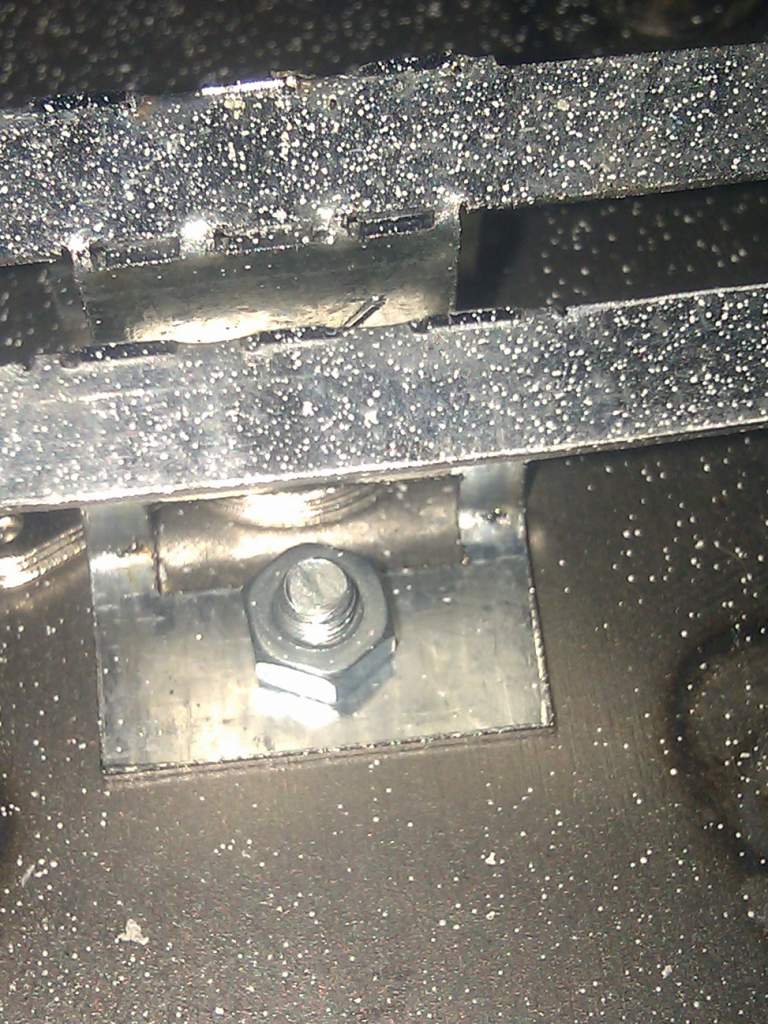

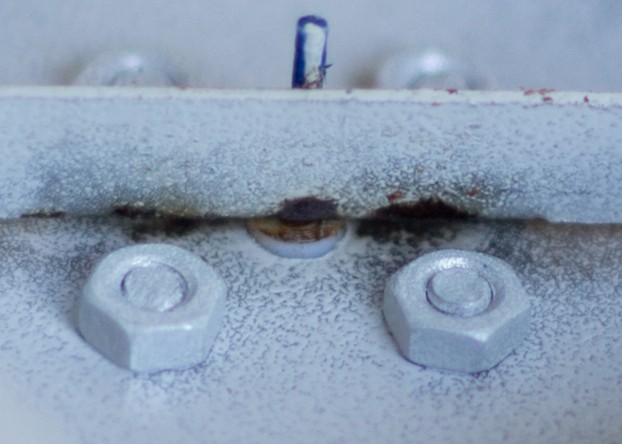

Constructive details of the antenna...



[Admin 2545]

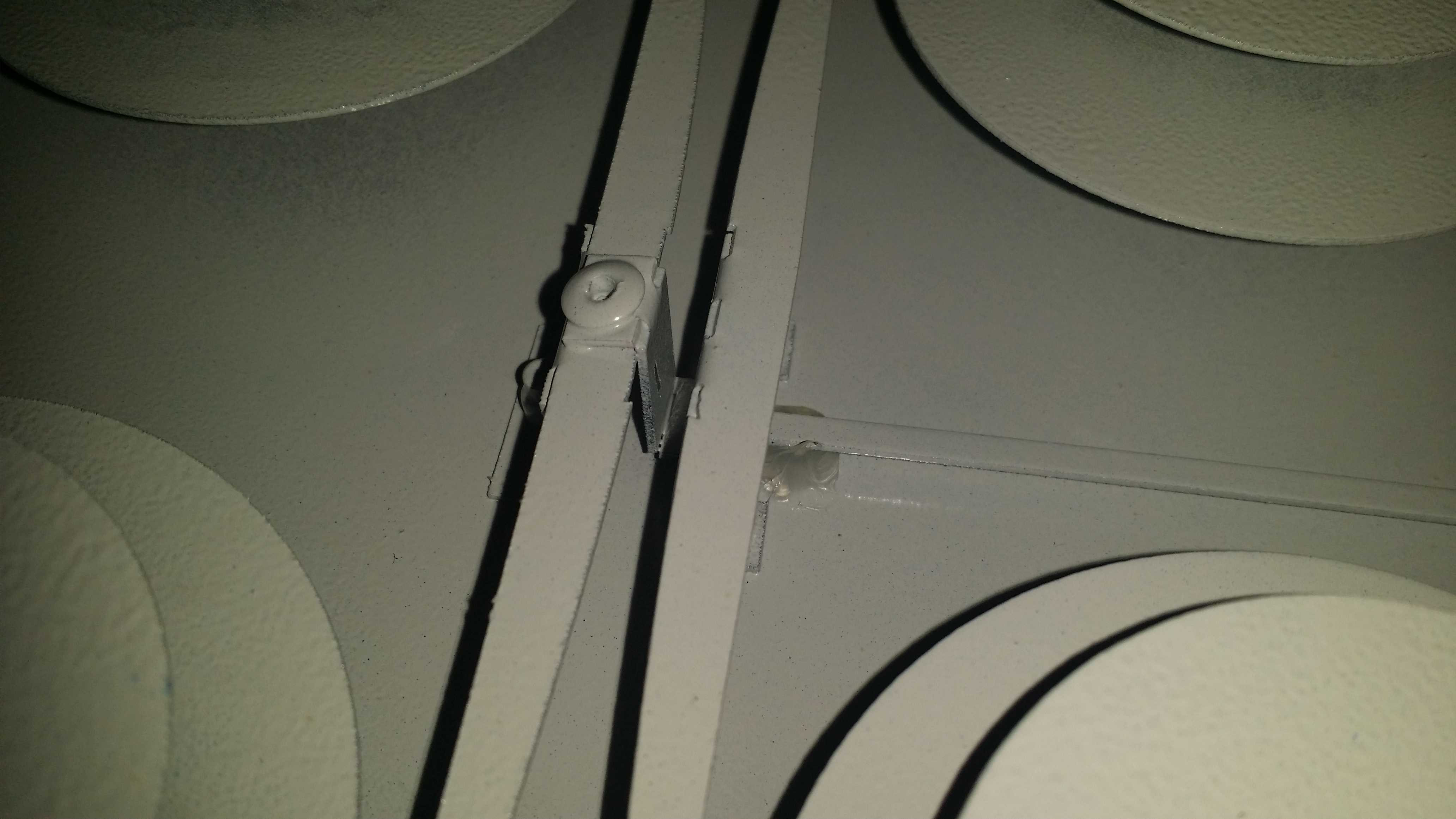

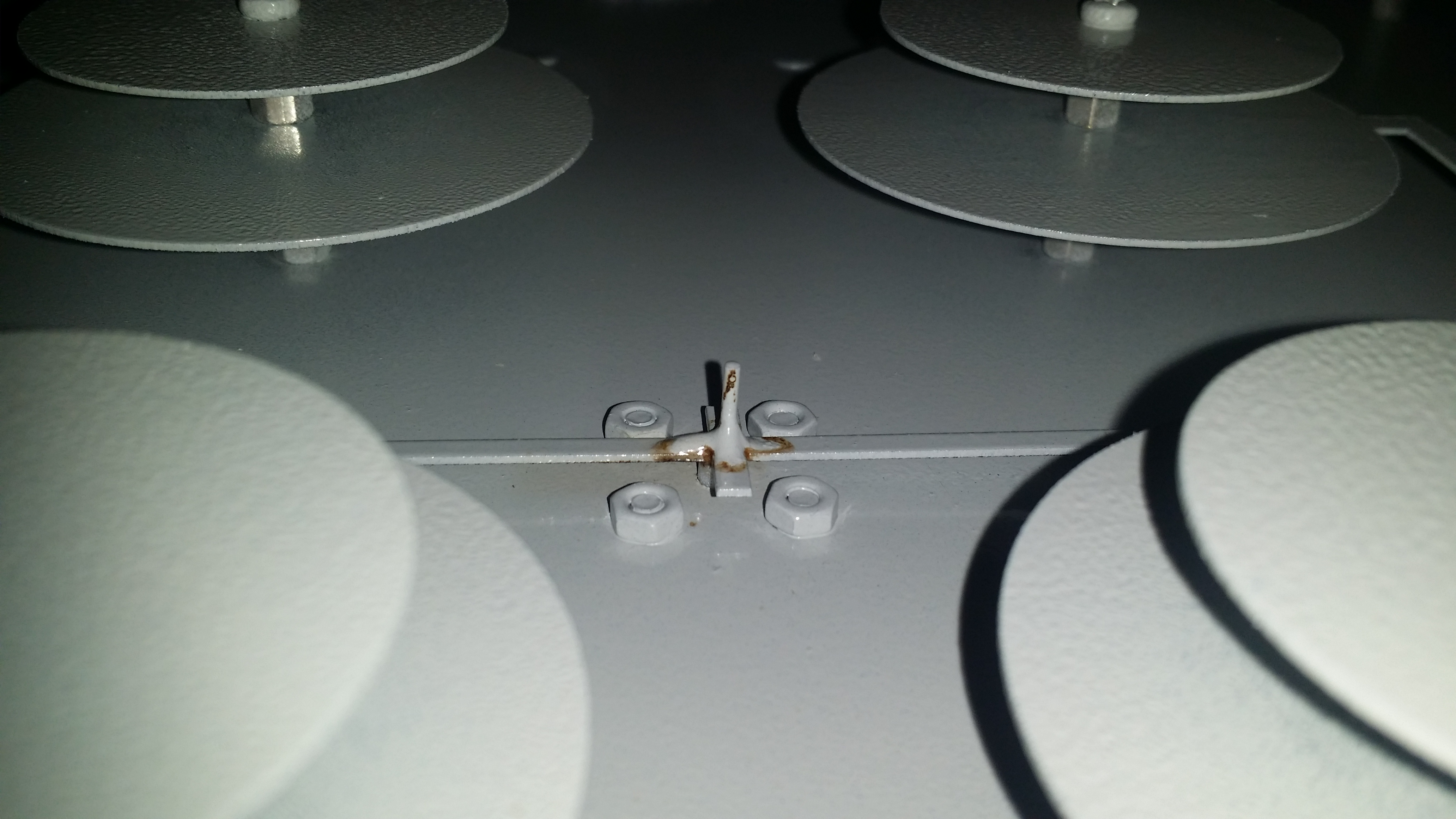

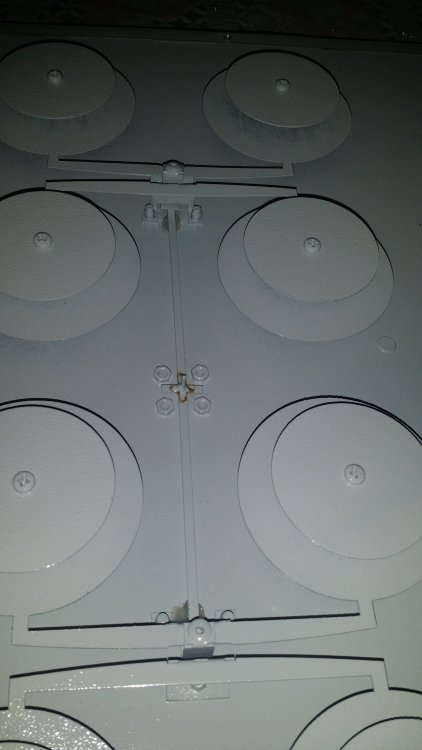

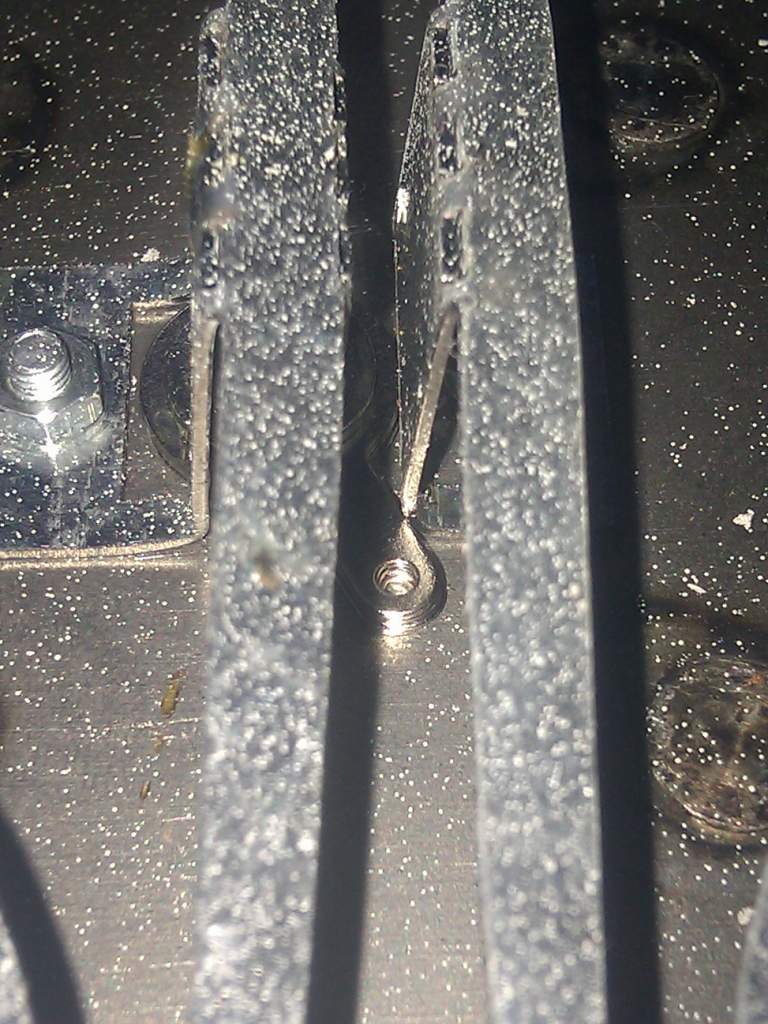

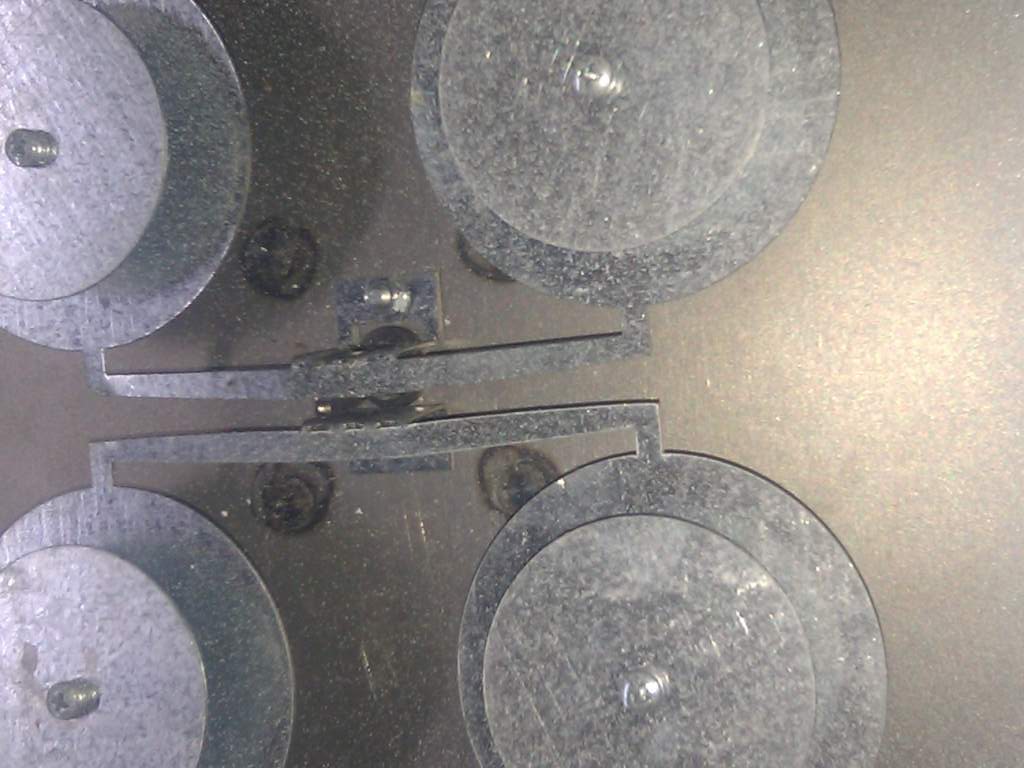

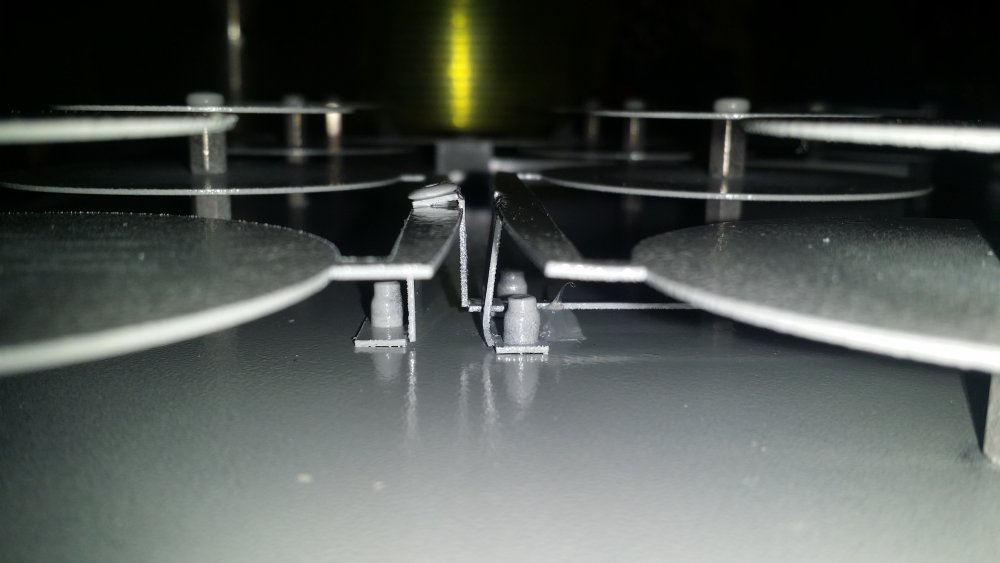

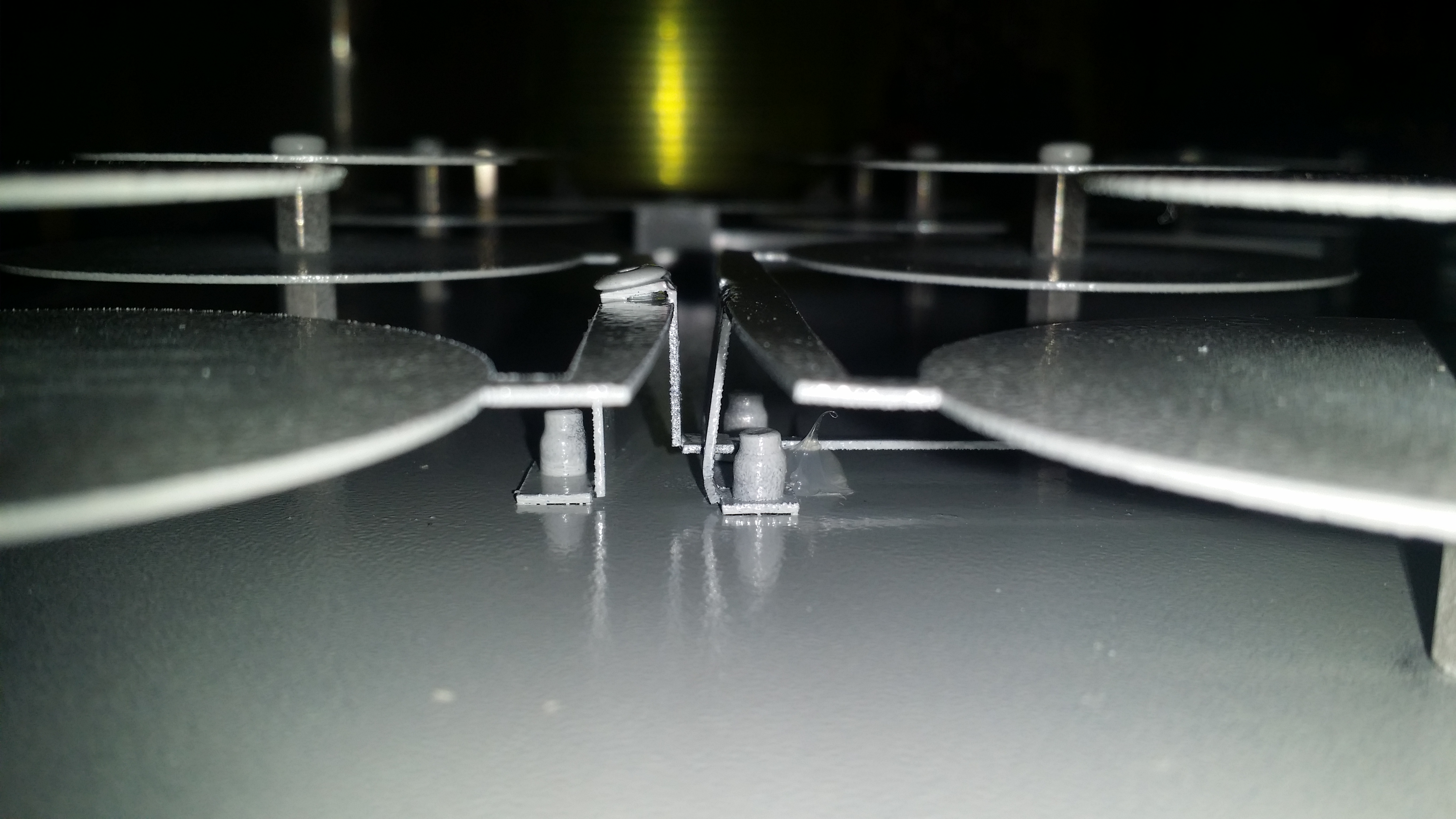

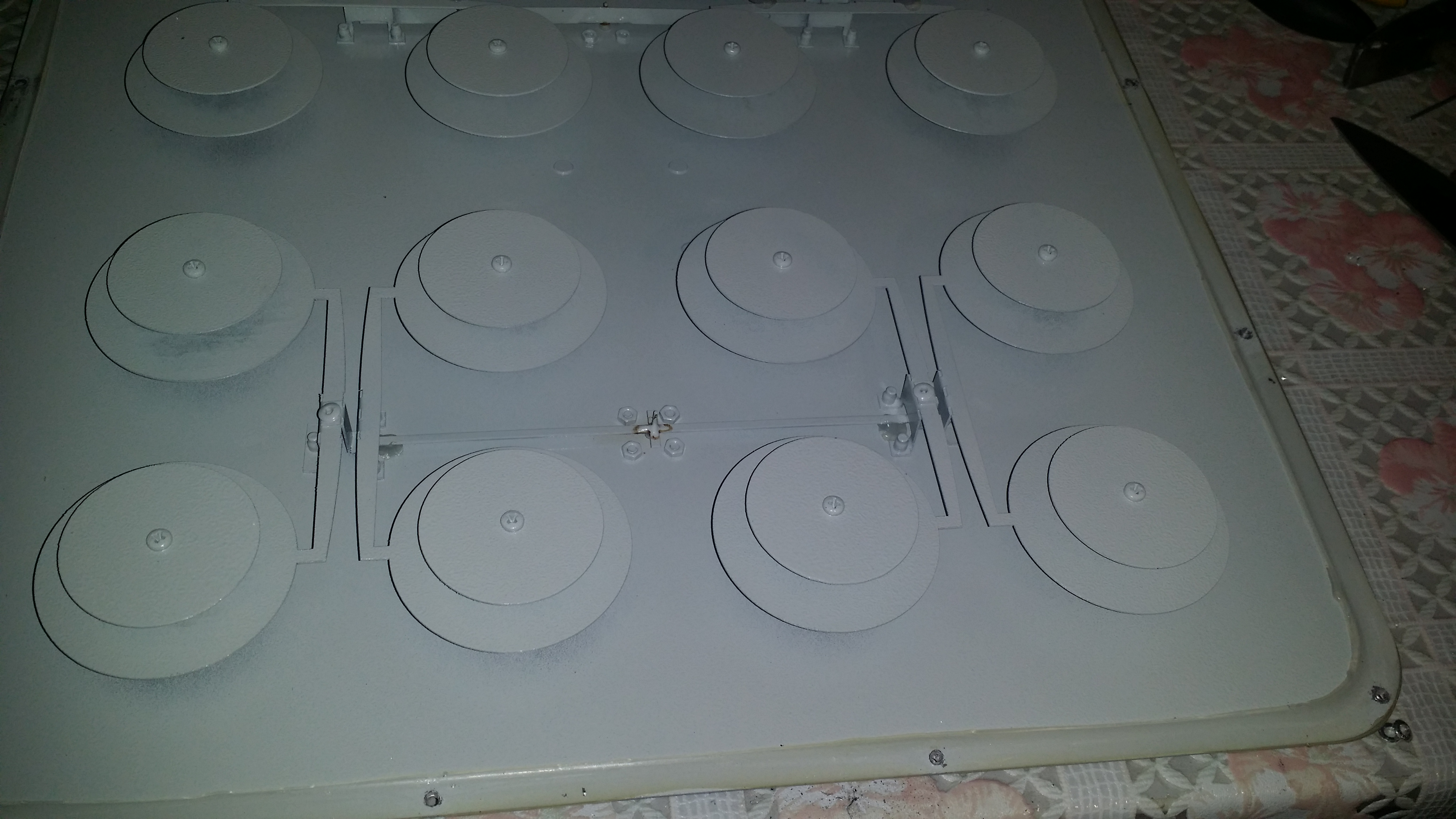

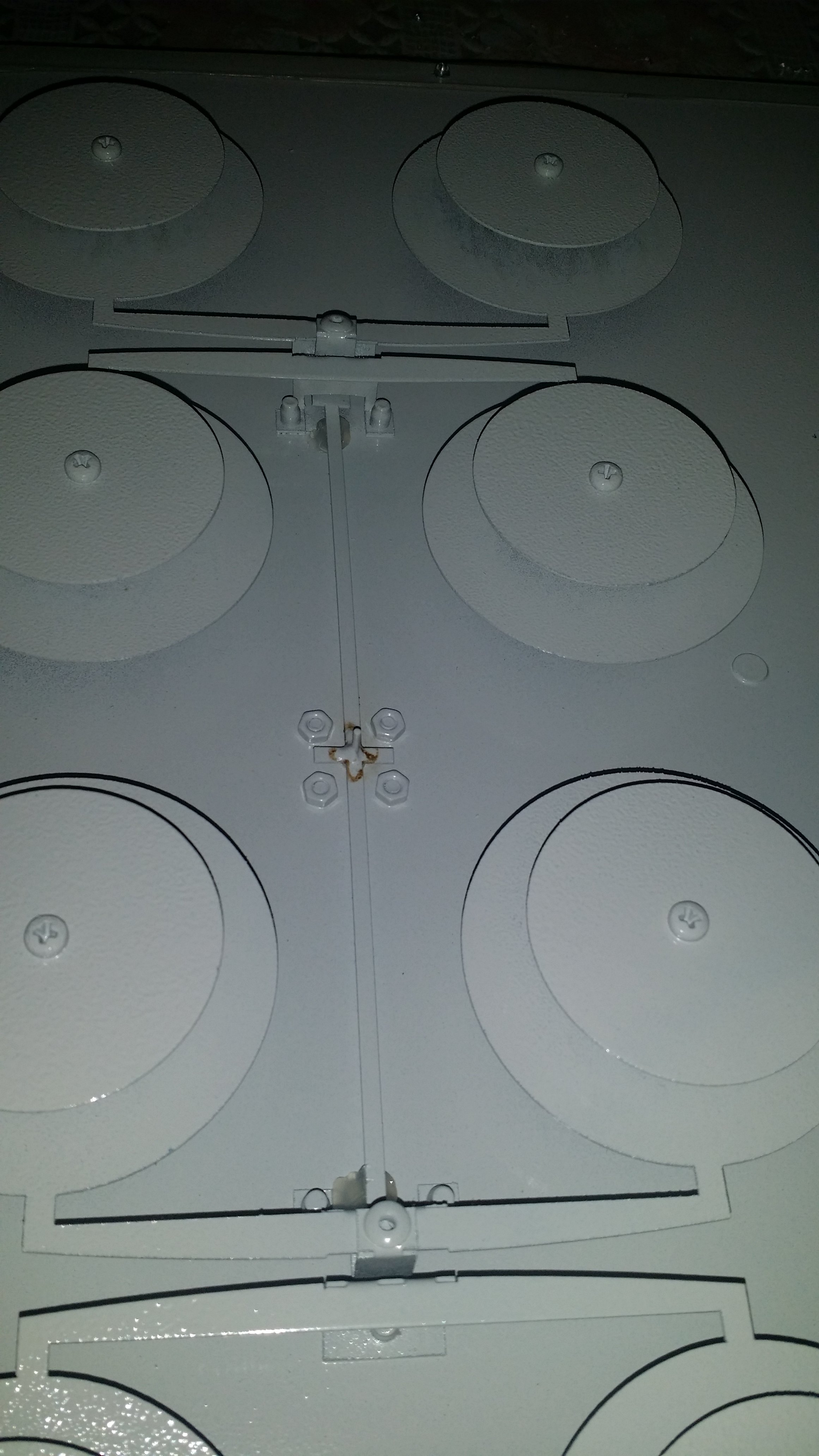

,,, and a few more pictures with details about the impedance adjustment lines of antenna...

[Admin 2545]

AGATA-2F 2X2 MIMO

Operating frequency range, MHz 1700-2700

Gain, dBi 15.0-18.0

Bottom width (-3dB), deg 16-50

Side lobe level not more than, dB -12

Port decoupling at least, dB 25

Forward / backward ratio, dB 26

Input impedance, Ohms 75

SWR in the operating frequency range at the inputs, max. 1.6

Permissible power, W 10

Polarization of received / emitted waves vertical, horizontal

Mechanical characteristics of the antenna

Weight with mounting, g 2115

Overall dimensions without mounting, mm 240x450x50

Connectors 2 x F-female

Antenna Material Galvanized steel

Material of the protective box Polycarbonate

Dust and moisture protection class IP67

Protective coating Polymer coating

Operating temperature range -50℃ to +80℃

[Admin 2545]

Spoiler

[Admin 2545]

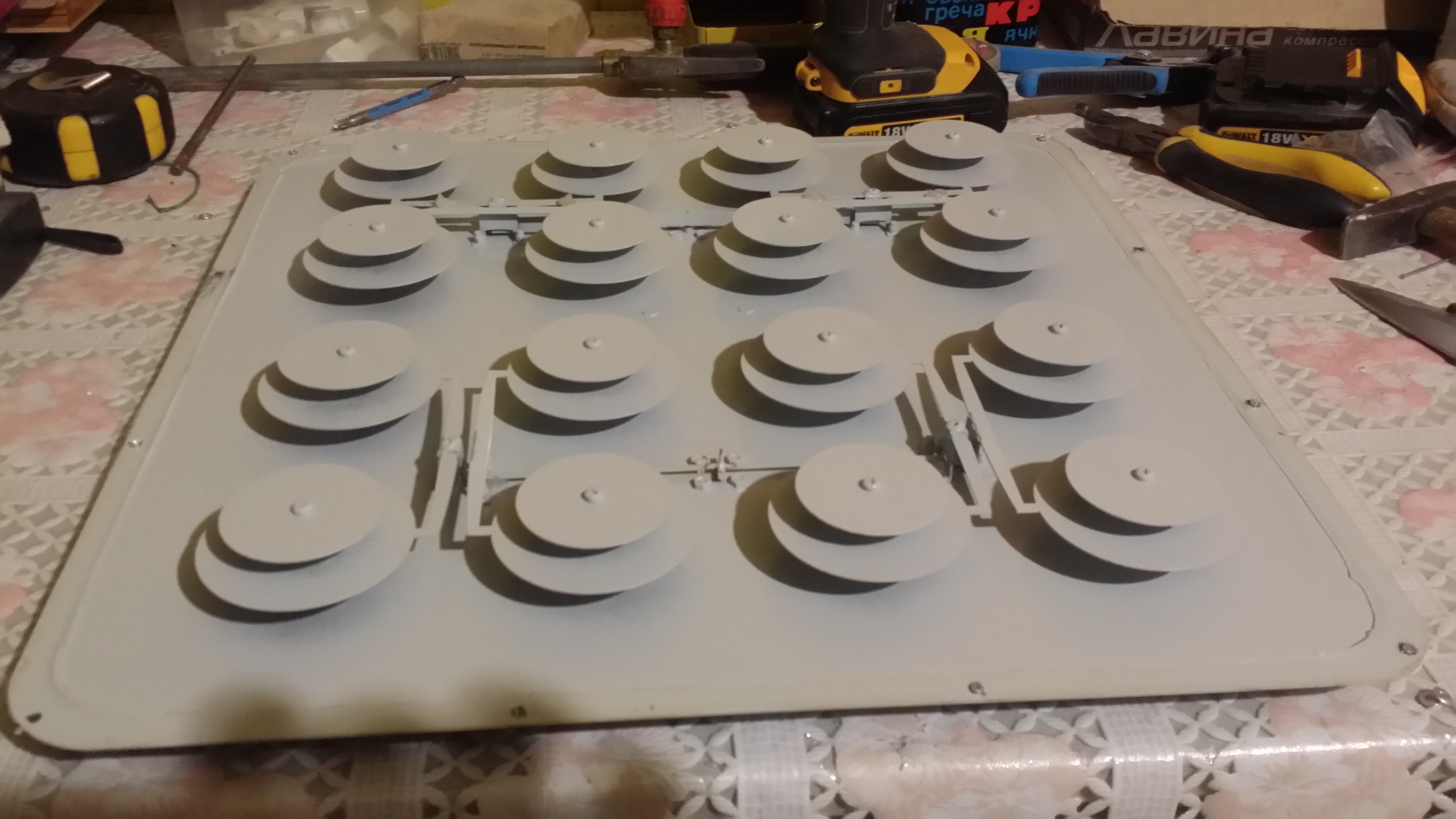

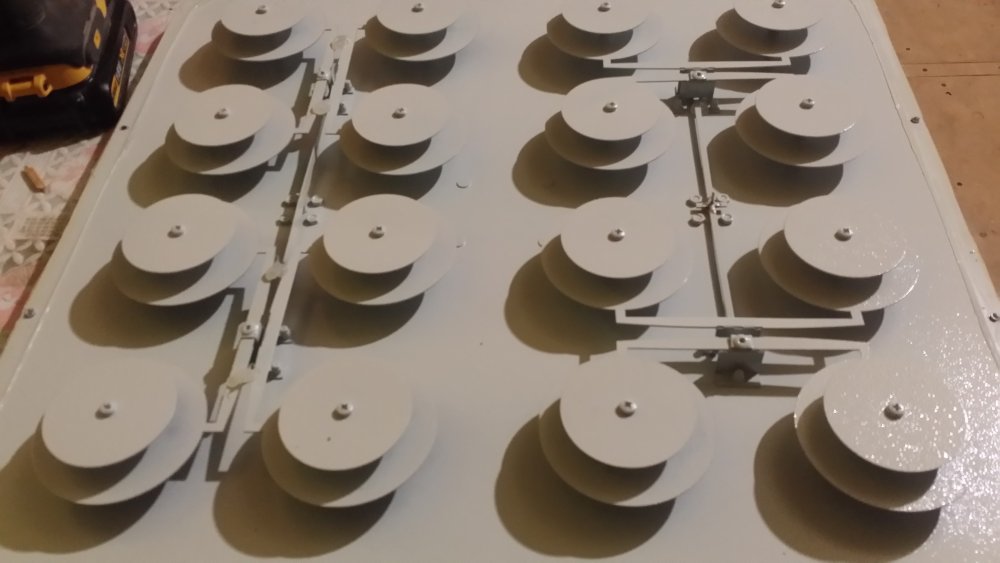

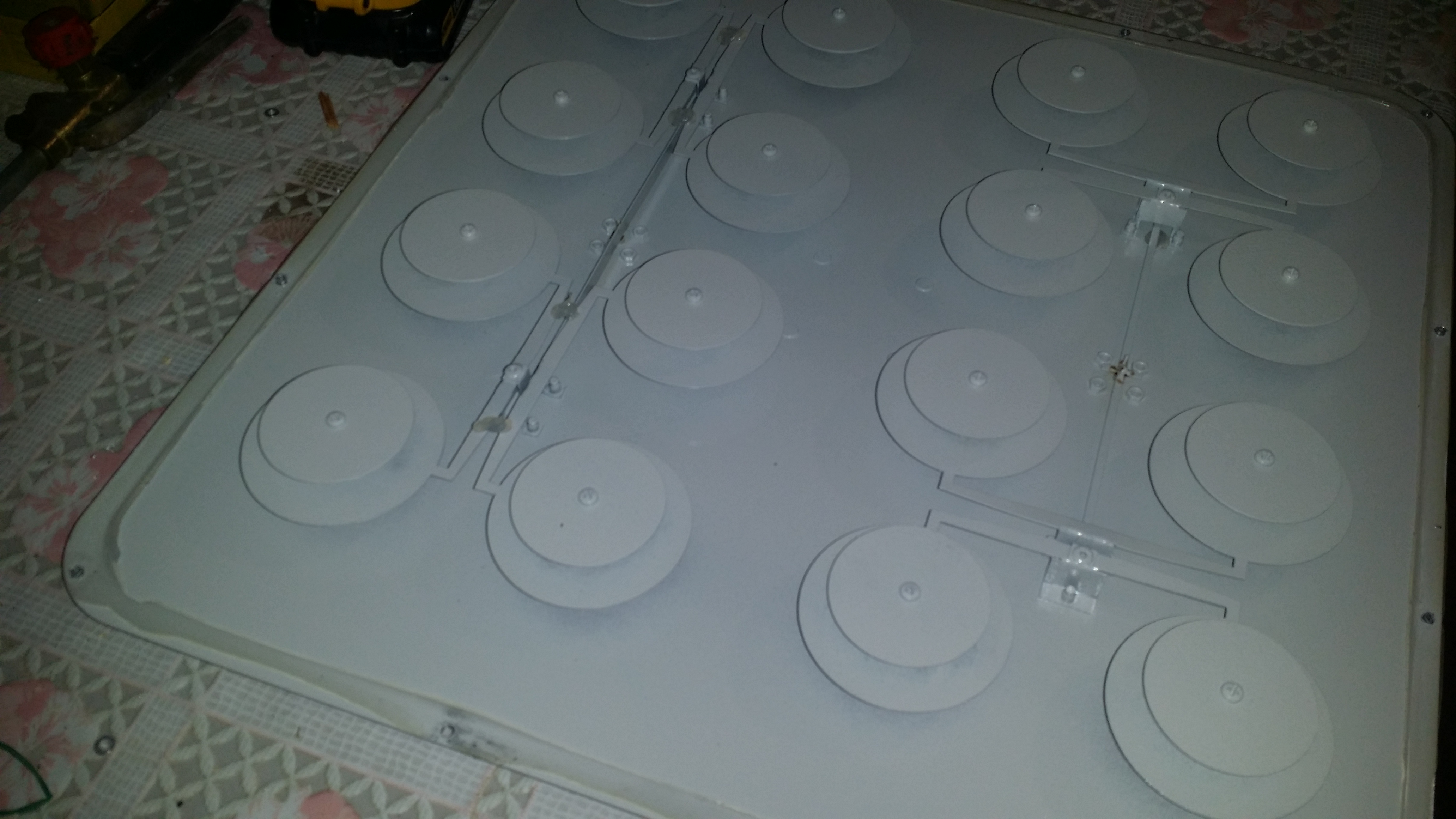

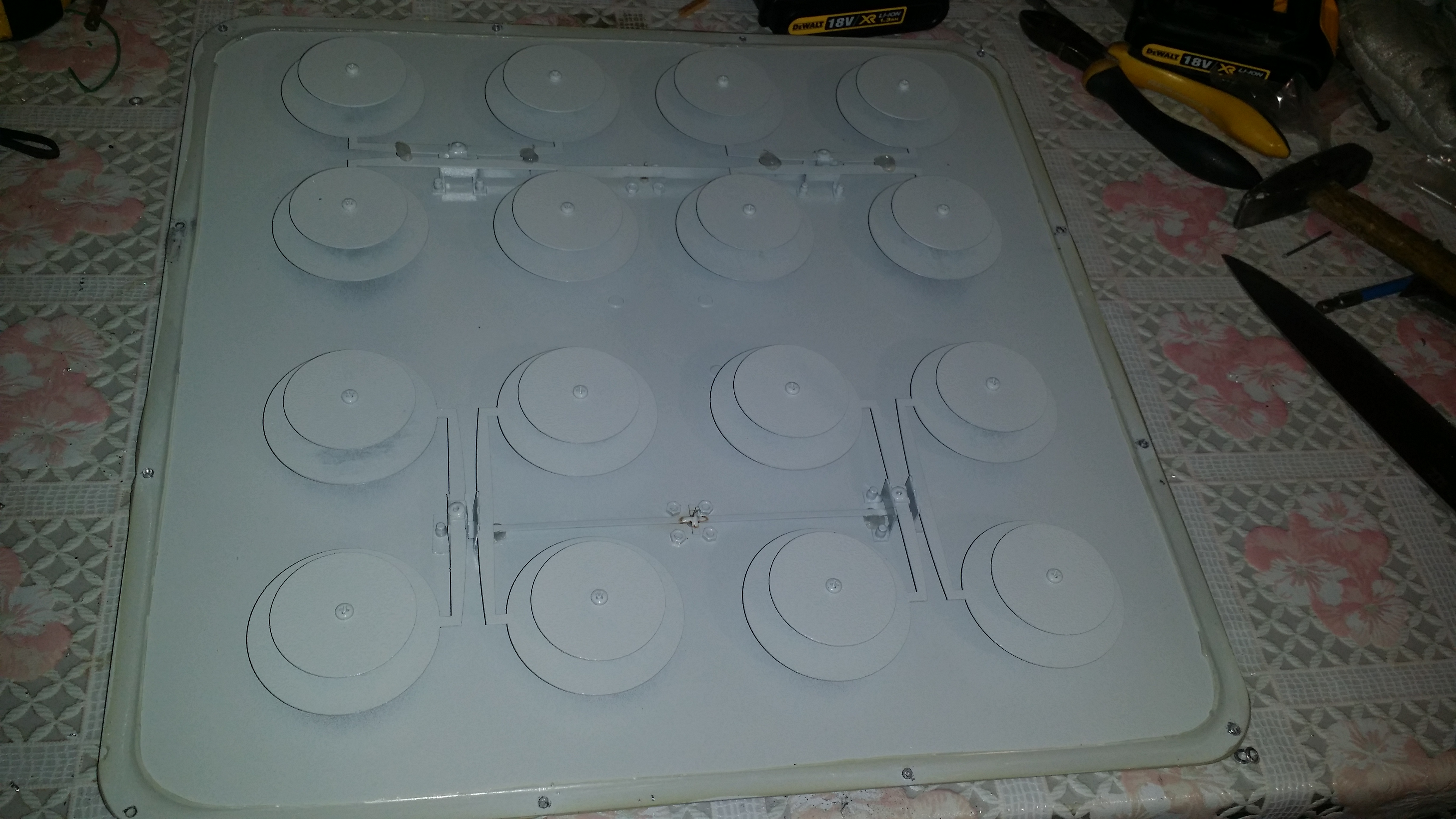

,,,the antenna from the previous post is AGATA-2F 4X4 MIMO from Antex with the following characteristics...

Operating frequency range, MHz 1700÷2700

Gain, dBi 13.5÷17.0

Bottom width (-3dB), deg 16÷52

Side lobe level not more than, dB -11

Forward / backward ratio not less than, dB 18

Port decoupling at least, dB 30

Input impedance, Ohms 75

SWR in the operating frequency range at the inputs, max. 1.7

Permissible power, W 10

Polarization of received / emitted waves Vertical, Horizontal

Mechanical characteristics of the antenna

Weight, g 2830

Overall dimensions, mm 400x400x35

Connectors 4хF-female

Antenna Material Galvanized steel, Steel

Material of the protective box Polycarbonate

Dust and moisture protection class IP67

Protective coating Powdered polymer coating

Operating temperature range -50℃ to +80℃
