Antena Panel TDJ 13 dBi

,,, they say ,,,

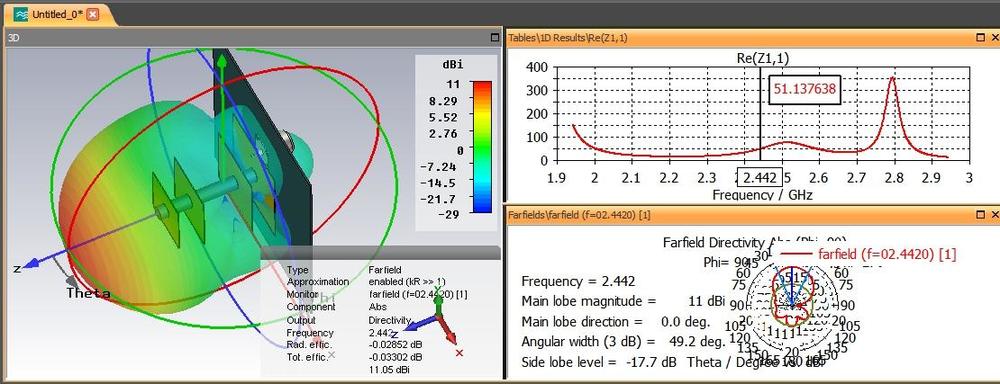

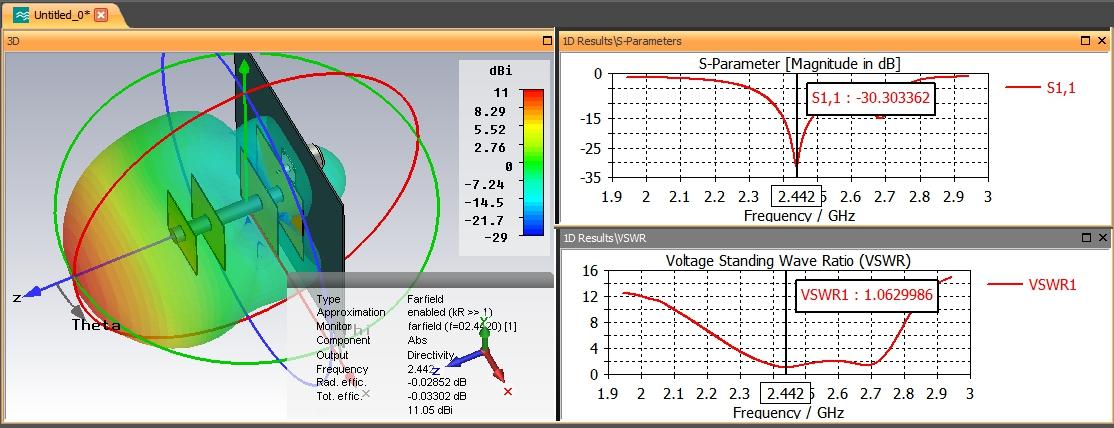

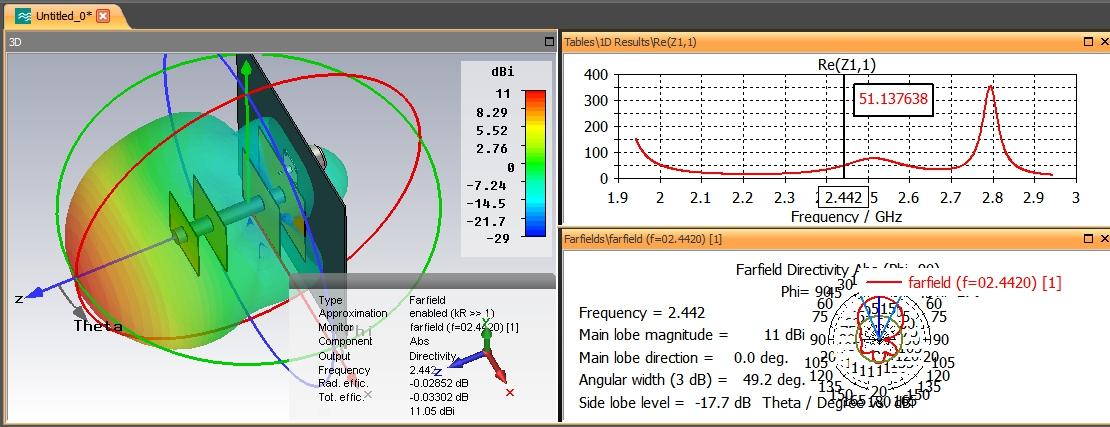

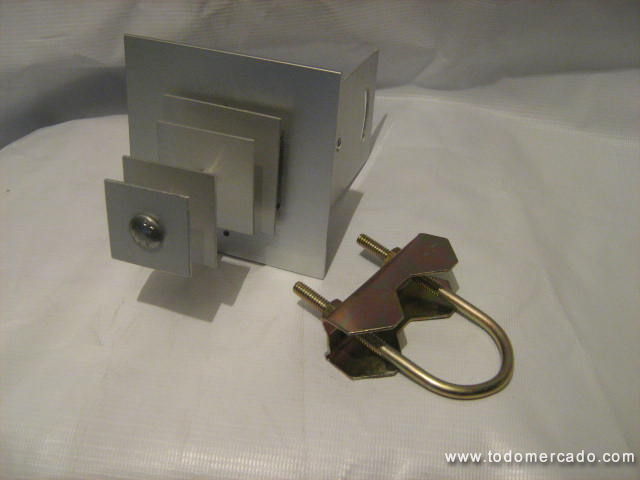

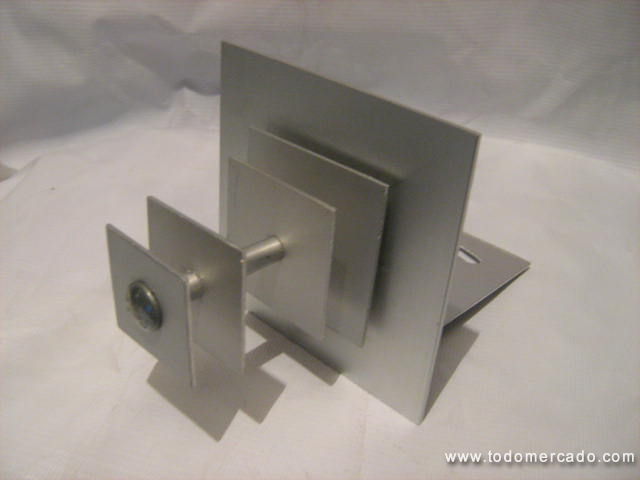

14dbi Directional Antenna, for WiFi networks. It will allow you to extend your coverage range of your 2.4Ghz wireless signal. But with its clamp with mast gag you can install it in a strategic place for your link. Made with the best techniques and materials.









And I say it might be a lie,,,,!!!!!!!!!!!!

Share this post


Link to post
Share on other sites

,,,yes, it"s a lie...





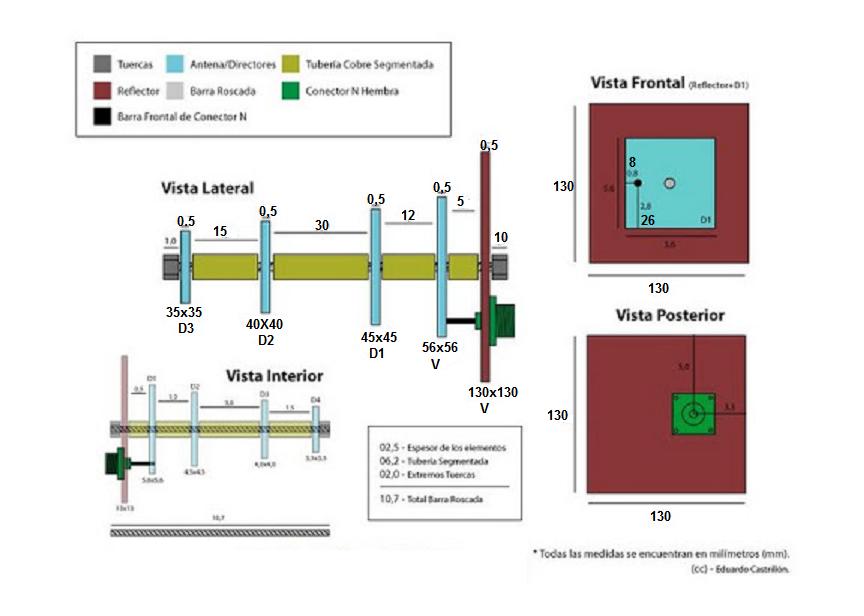

planos TDJ separadores2.jpg

1 person likes this

Share this post


Link to post
Share on other sites

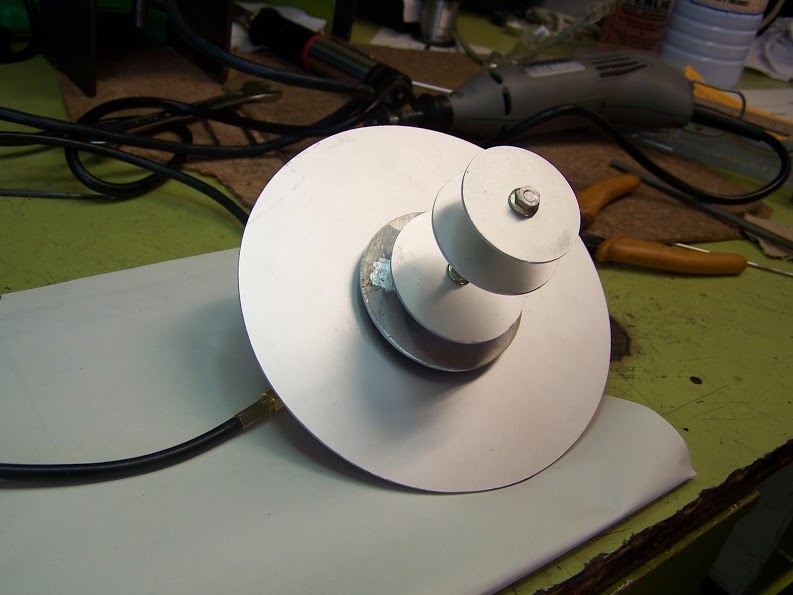

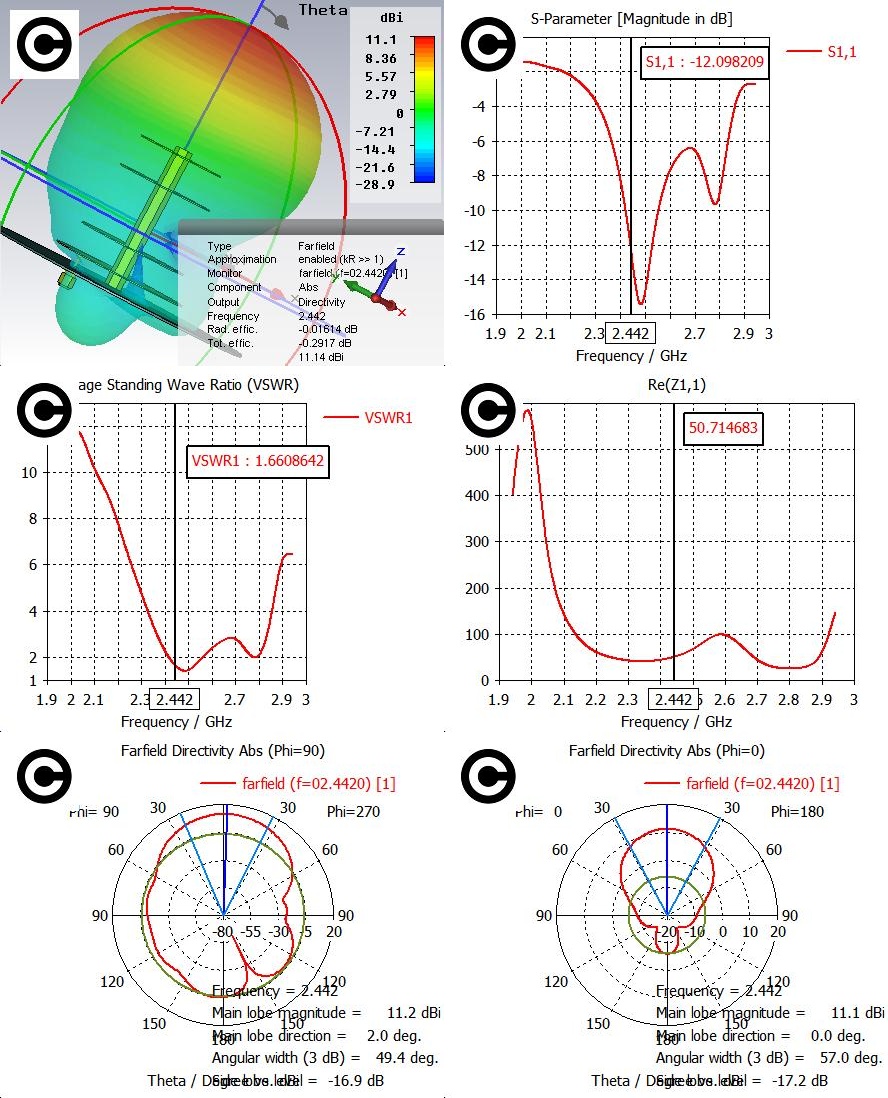

 Passed the antenna to circulate, gaining in efficiency. Areas and distances were maintained.
If you look, the original antenna has a reflector of 100 x 100 mm, and here the realized of 130 x 130 mm.

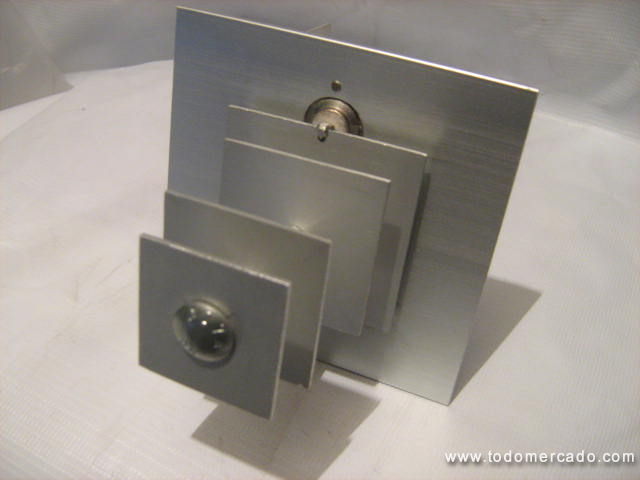

The antenna would look like this:

Reflector r = 73.5 mm (original r = 56.5 mm)
Radiating r = 31.5 mm
D1 r = 25.5 mm
D2 r = 22.5 mm
D3 r = 20 mm

The feed point it"s  located at 23mm from the center.

The separations:

Reflector> 5mm> Irradiant> 12mm> Director 1> 30mm> Director 2> 15mm> Director 3





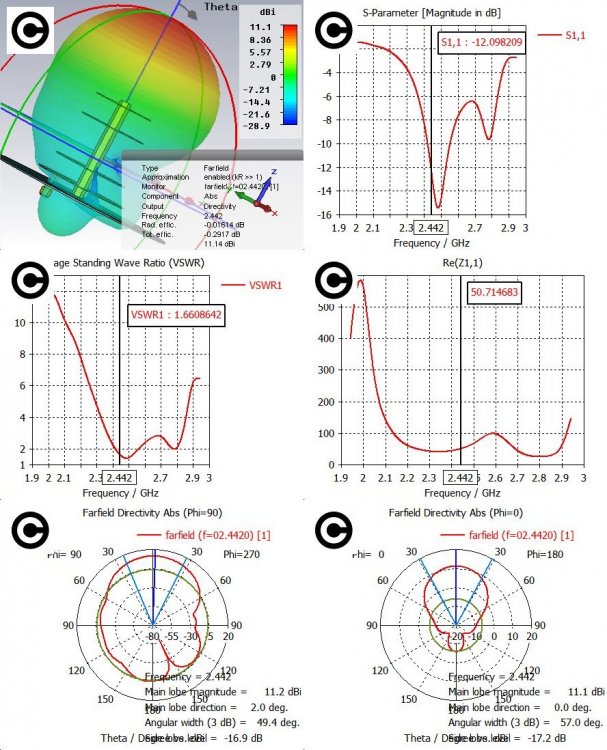

,,,still lie with 13dBi gain...!!!
