Quad antenna

Started by Admin,

Posted

A quad antenna is a type of directional wire radio antenna used on different frequencies . Like a Yagi-Uda antenna ("Yagi"), a quad consists of a driven element and parasitic elements; however in a quad, each of these elements takes the form of a loop of wire, which may be square, round, or some other shape.

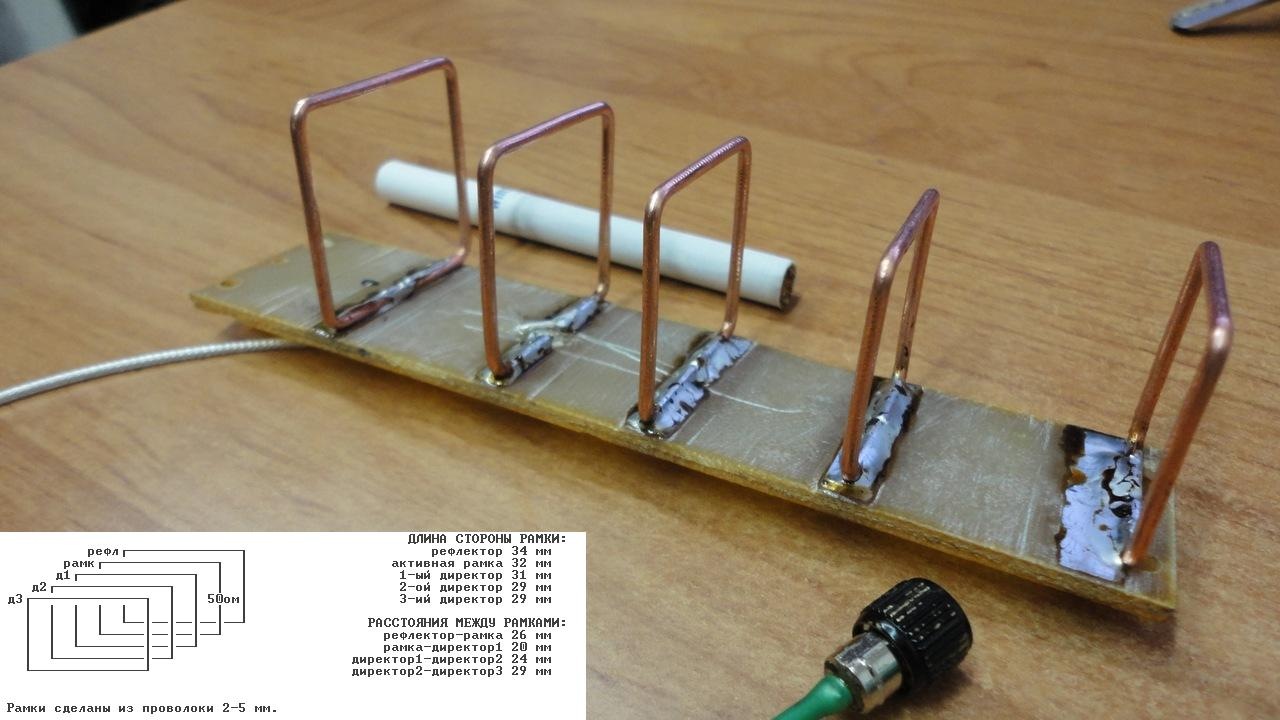

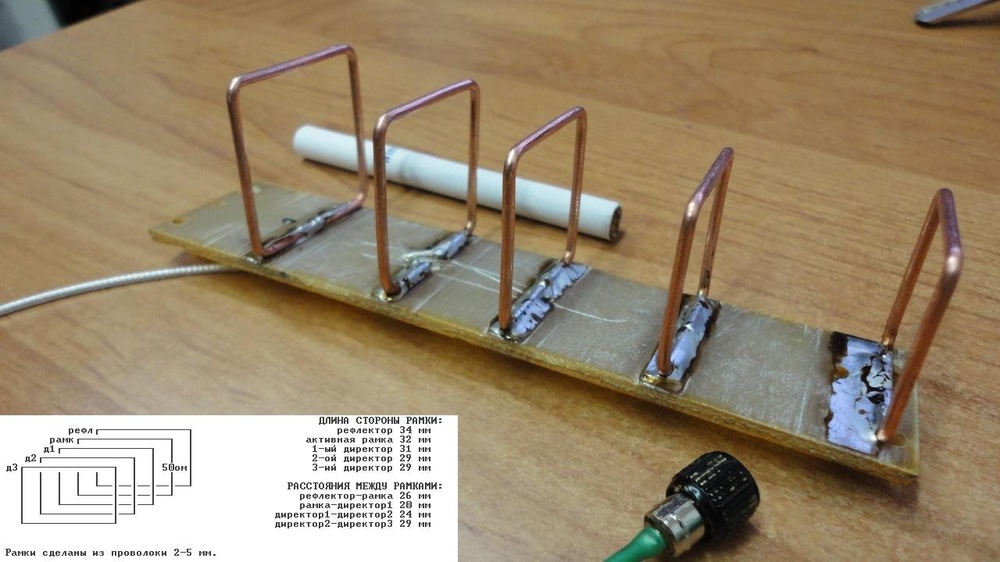

Below is a simplistic construction of such an antenna in the 2,442GHz band

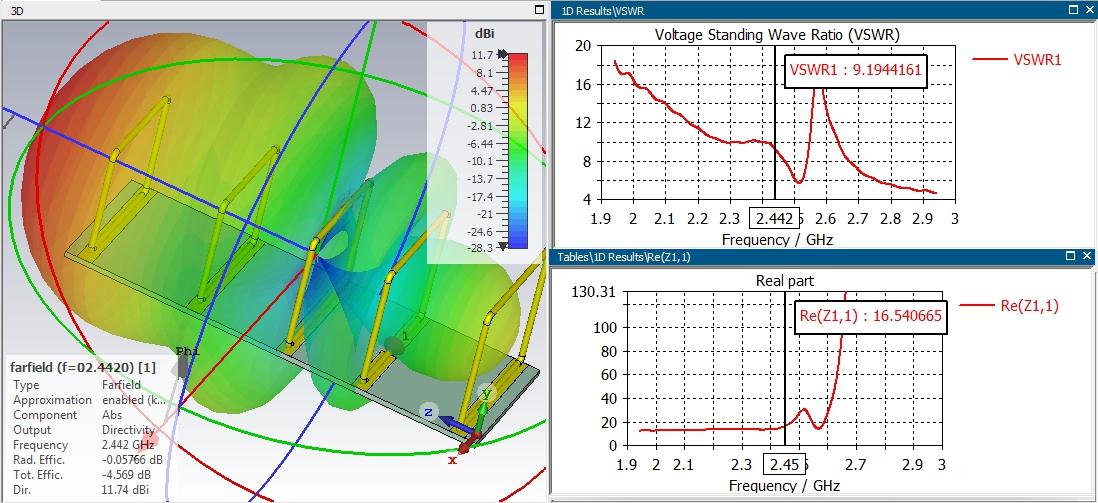

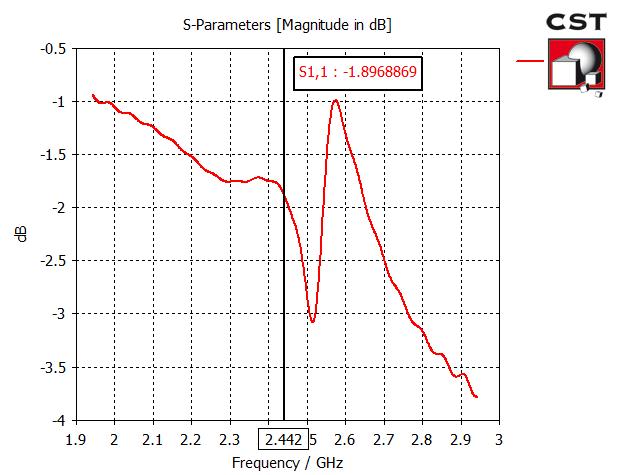

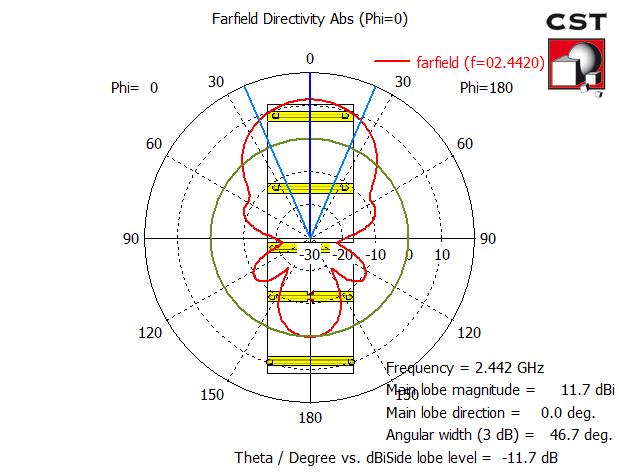

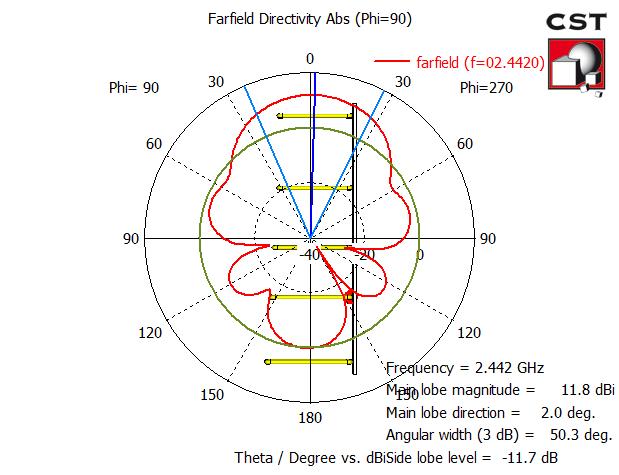

,,and the simulation...








2 people like this

Share this post

Link to post
Share on other sites

Posted

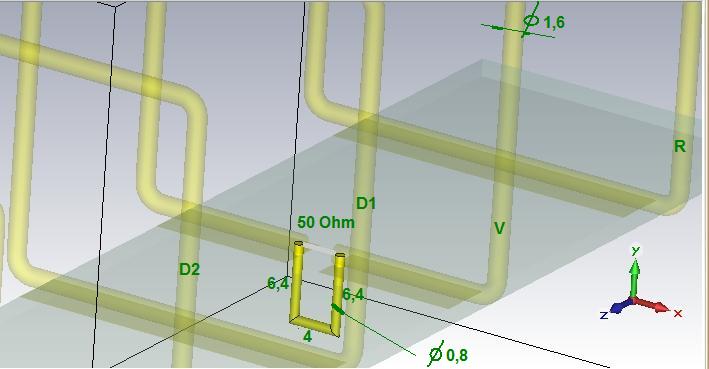

To adjust the antenna with the 50 ohm coaxial cable, use a shunt as in the figure below




1 person likes this

Share this post

Link to post
Share on other sites
