MiMo Patch Antenna on PCB

,,, a few years ago I launched on the web such an MiMo  patch antenna on PCB which through practice proved not to rise to its simulation level...













And that's only because the isolation between ports was not taken into account

Share this post


Link to post
Share on other sites

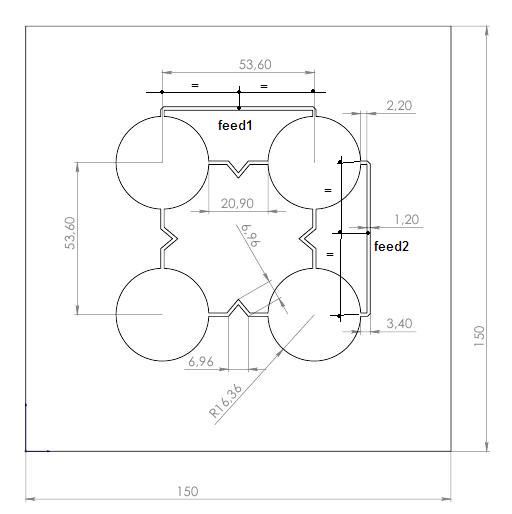

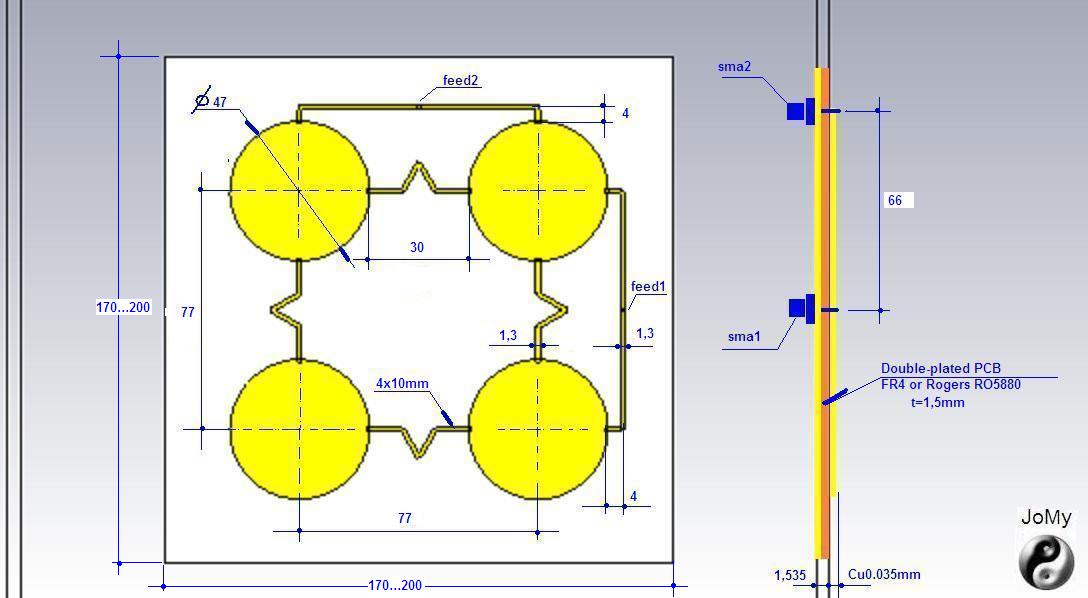

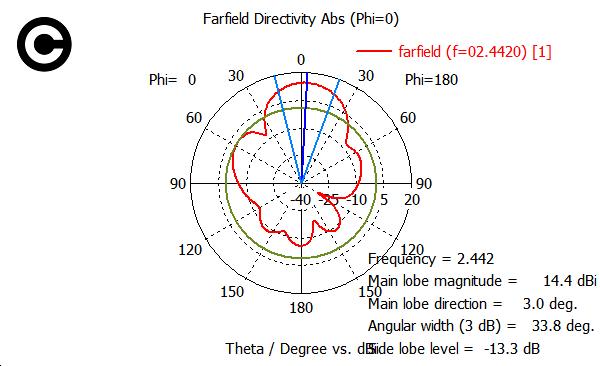

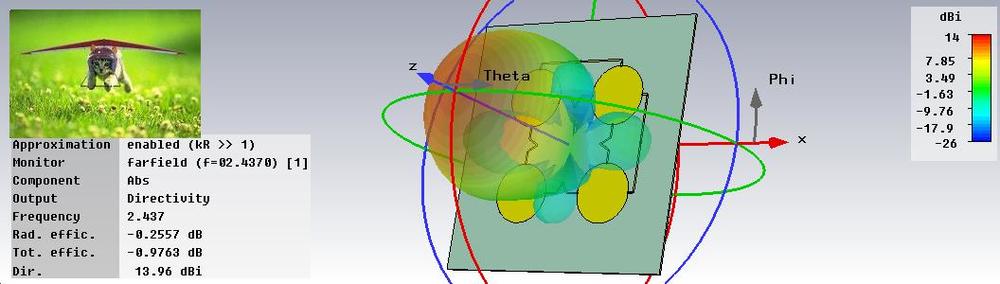

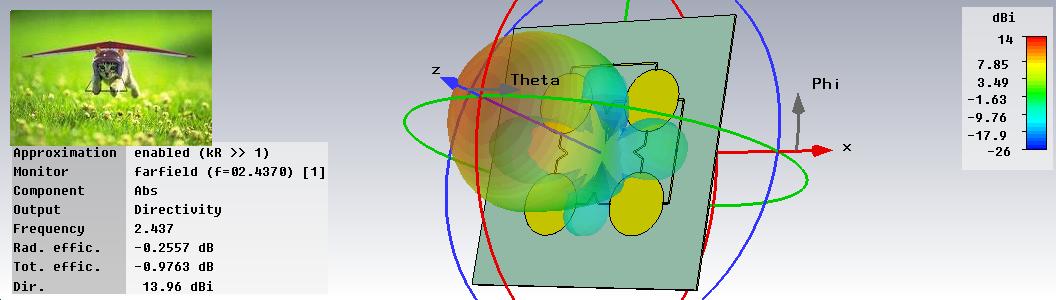

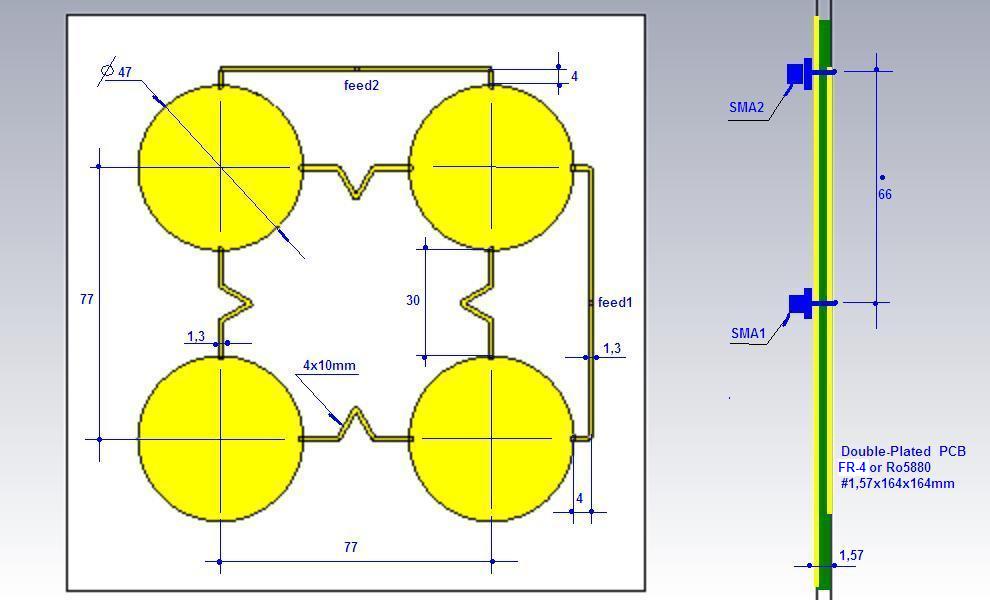

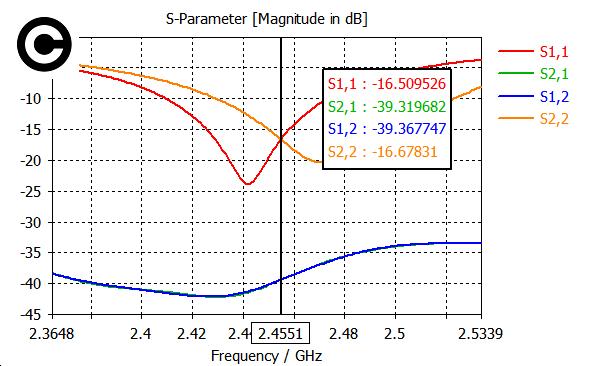

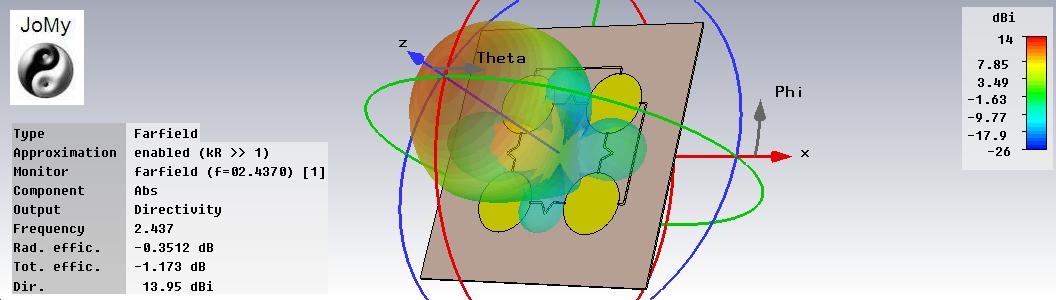

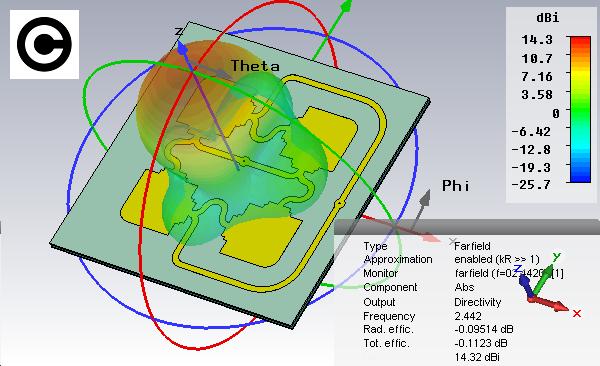

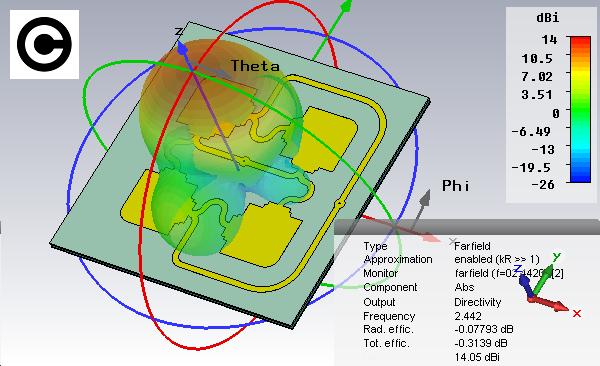

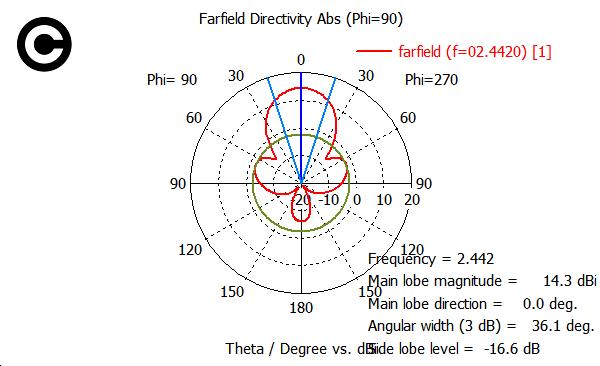

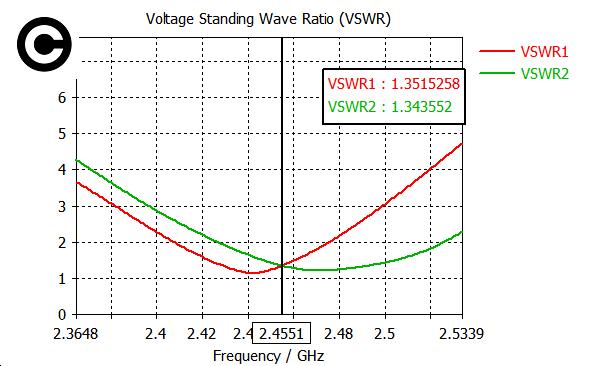

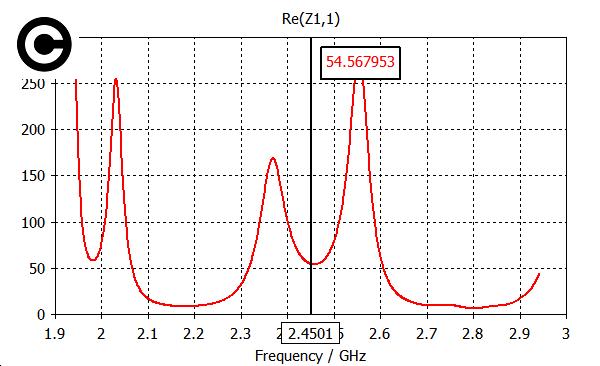

,,, and for that, I decided to modify it MiMo the antenna on PCB, below I present a simulation with this antenna which has a good isolated ports,








Share this post


Link to post
Share on other sites

Hi!
What will be the distance from reflector to patch, when patch manufactured with a laser cut from metal of 0.7 or 1 mm?
like this, and will the geometry change? I want to make antenna.

Best regards!

Share this post


Link to post
Share on other sites
22 hours ago, Tesseract said:

Hi!
What will be the distance from reflector to patch, when patch manufactured with a laser cut from metal of 0.7 or 1 mm?
like this, and will the geometry change? I want to make antenna.

Best regards!

For which frequency do you want this antenna to be...????

Share this post


Link to post
Share on other sites
14 hours ago, Tesseract said:

Channel 11- 2,462 GHz.
Regards!

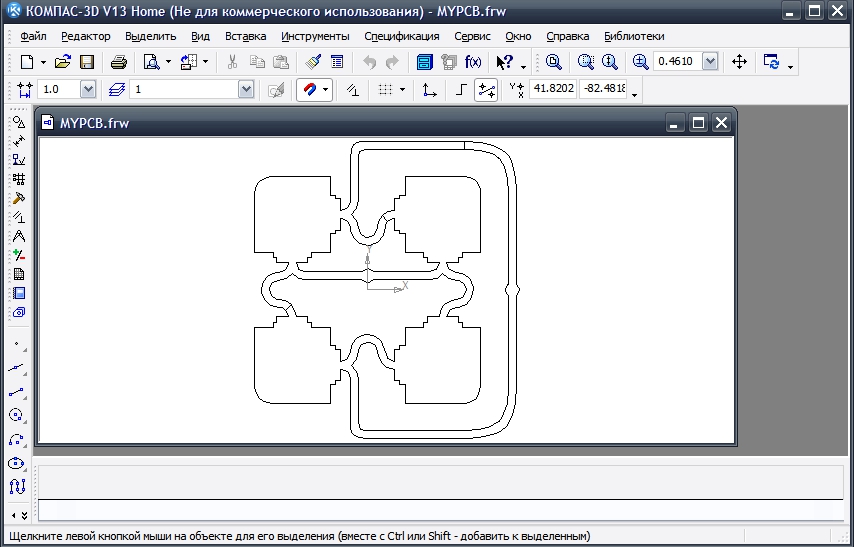

Tesseract, tell me ,you have the KOMPASS program...???

Share this post


Link to post
Share on other sites

Okay, then I can send  to you igs*file,or dfx*file for laser cut...??

Share this post


Link to post
Share on other sites

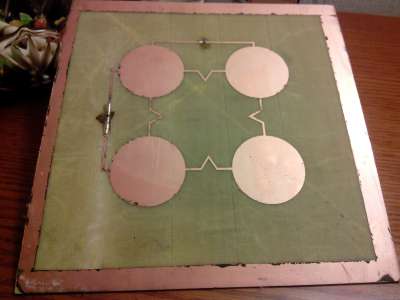

Dear Admin. I absolutely love your antenna's design, i made one, the big one ( error when opening by CorelDraw) and the same to your size. but i still have some question about your design. please enlighten me if you have time.

1. the space between the PCB and reflector, is it necessary have to 2.5mm, like your design, or any number, 5, 7, even 10mm, i had read 10 page in your threat attachment to figure down, but no answer.

2. if we increase the space between PCB and reflector, it make better or worse.

3. like some of your antenna design, i see something like a screw in the center of antenna path, which connect to reflection. but in this PCB antenna, i don't see it. please watch my attachment

4. the PCB antenna,we have to use 1 side PCB or double side PCB. i did 1 side,  because, i watch some video about antenna was made by china. some of it have to double side, some of just one side.

Sr for some stupid question. i just amature, trying to DIY. that my passion.


Good Night Admin!!!


Share this post


Link to post
Share on other sites

,,,hi buddy...!!!

,,, first of all I tell you that it is not absolutely necessary to present my images in copy

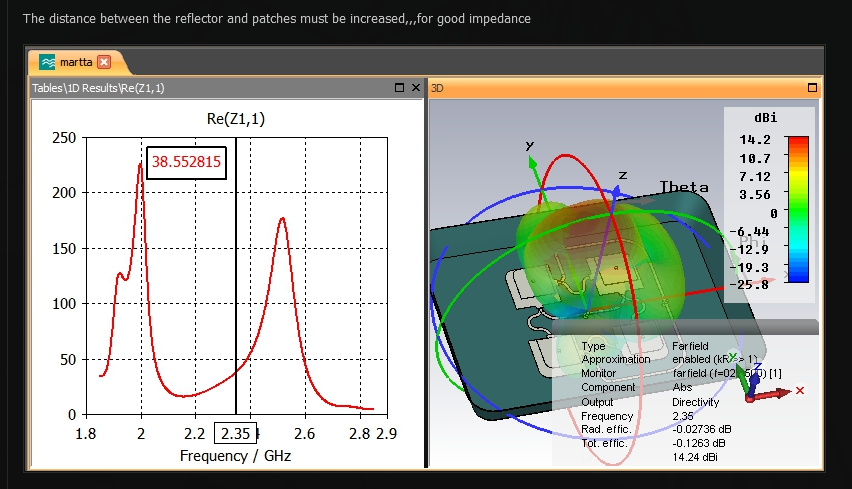

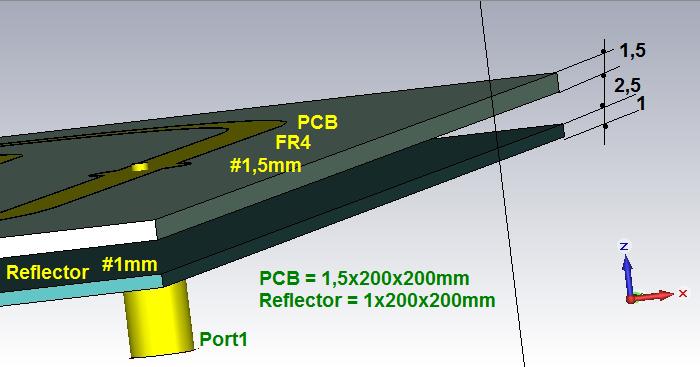

,,, the distance between the reflector and the PCB is chosen to stabilize the impedance of the antenna
,,, the connection of the vibrator to the reflector by screw, influences the impedance of the antenna but it is also possible to remove the electricity
,,, it can also be double-plated PCB, but it must be of good quality

1 person likes this

Share this post


Link to post
Share on other sites

Admin.

Thanks you. I will make by one side, Bc the PCB in my country not good enough.

I' try to make distance between PCB and Reflector close as your design.

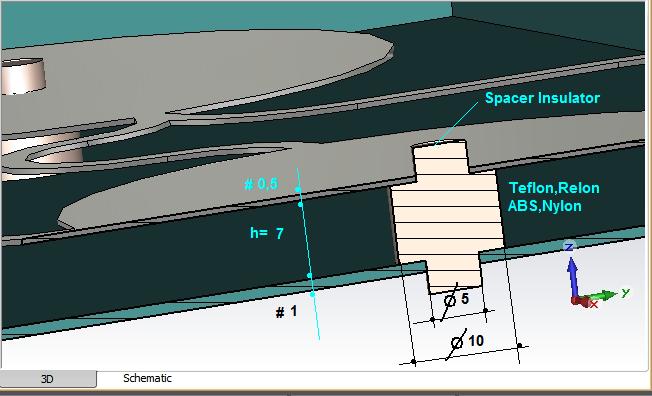

I watch your discussion , and saw the H=7, can i apply to PCB board, In this threat ???


Share this post


Link to post
Share on other sites

,,, no, 7mm is too much ,,, maybe 4.5mm compared to the copper layer ...!!!
,,, but tell me what PCB you want to use and I will try to help you...!!!

Share this post


Link to post
Share on other sites

Good morning Admin!!!

The PCB is FR4 1.6MM. the best quality in my country with 18um/side

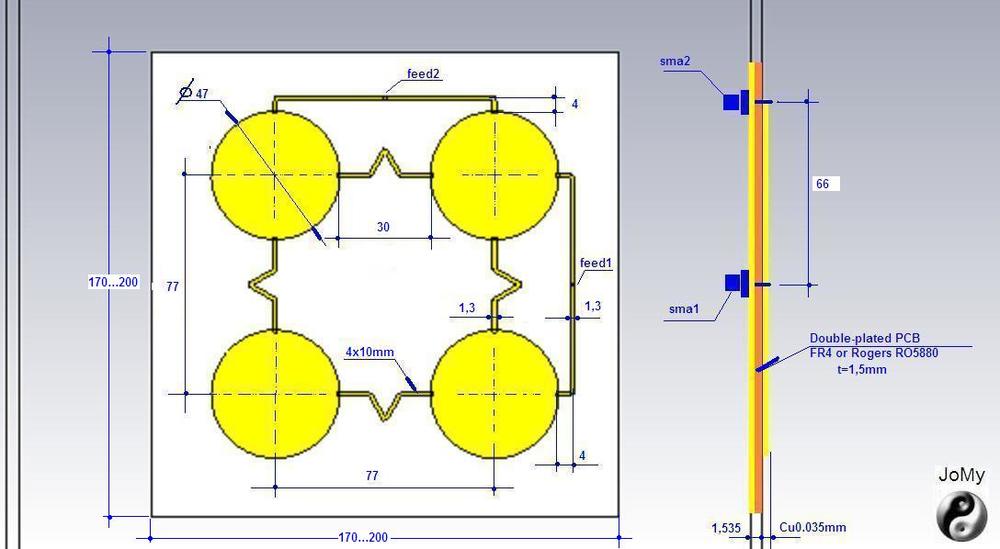

actually may i add more path on your antenna design. with 4 circle or 4 square. like the yellow antenna i attached. it have more 4 circle on top. it will increase frequency range???



Share this post


Link to post
Share on other sites

Good morning Eric...!!!

,,, you are interested in the yellow model...???

Share this post


Link to post
Share on other sites
13 minutes ago, Admin said:

Good morning Eric...!!!

,,, you are interested in the yellow model...???

Yes, Sir.

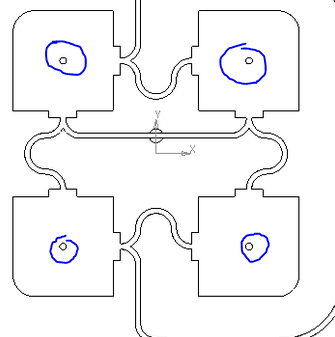

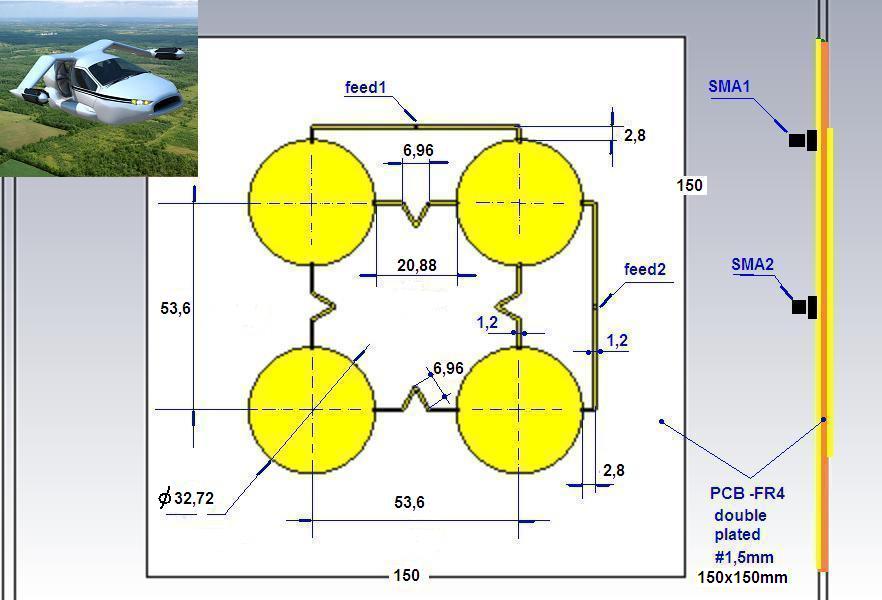

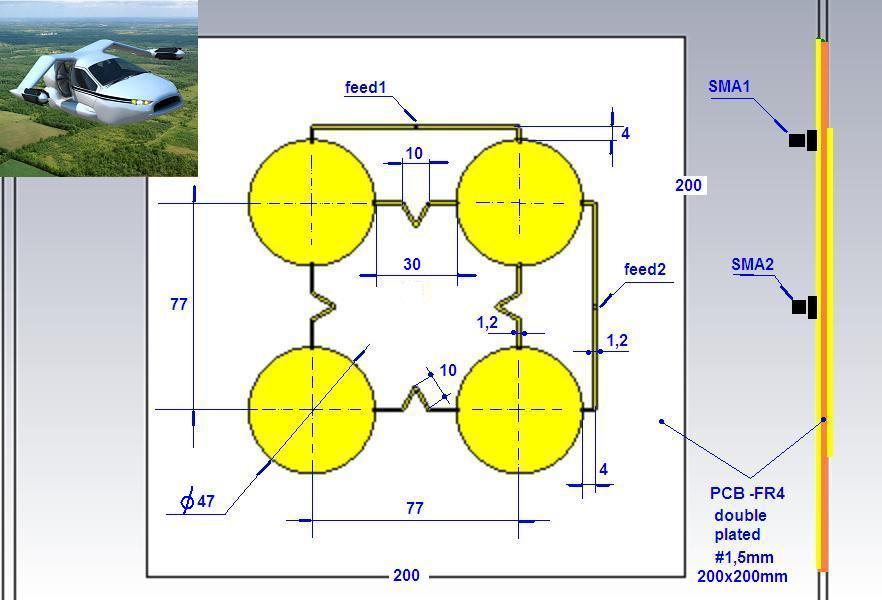

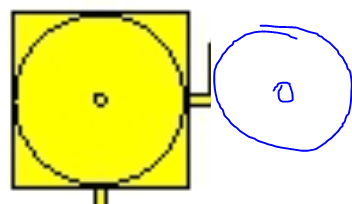

I'm interesting with the circle, can i ad 4 circle to the middle of path. like this picture

can you give me a PDF file of yellow model. and the number of square and circle patch



Share this post


Link to post
Share on other sites

Okay Eric, but you want your vibrator in the air or on the PCB...???

1 person likes this

Share this post


Link to post
Share on other sites
24 minutes ago, Admin said:

Okay Eric, but you want your vibrator in the air or on the PCB...???

PCB Sir, Thanks you Sir.

Share this post


Link to post
Share on other sites



On 4/26/2020 at 10:34 AM, Eric_Truong said:

Печатная плата Сэр, Спасибо, сэр.

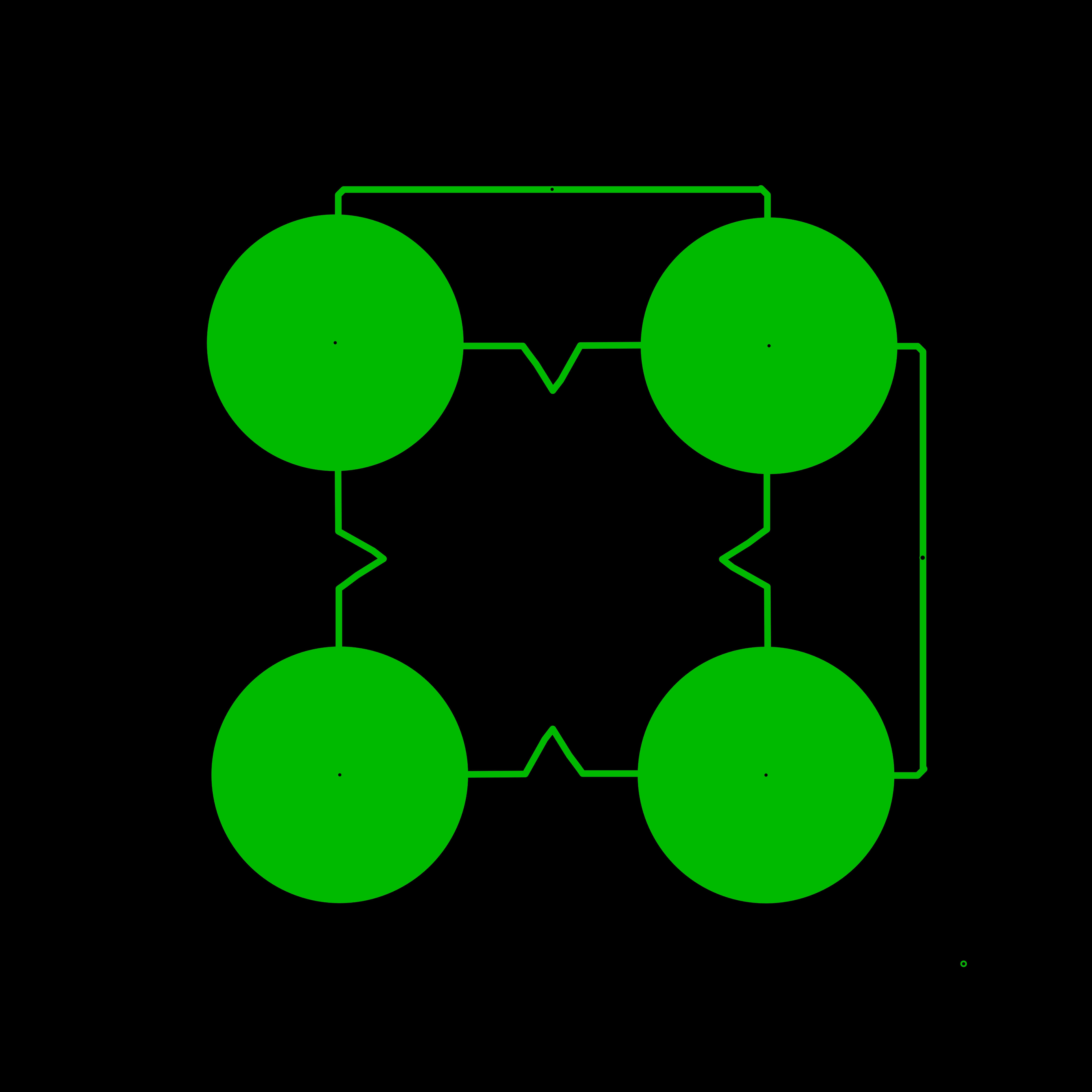

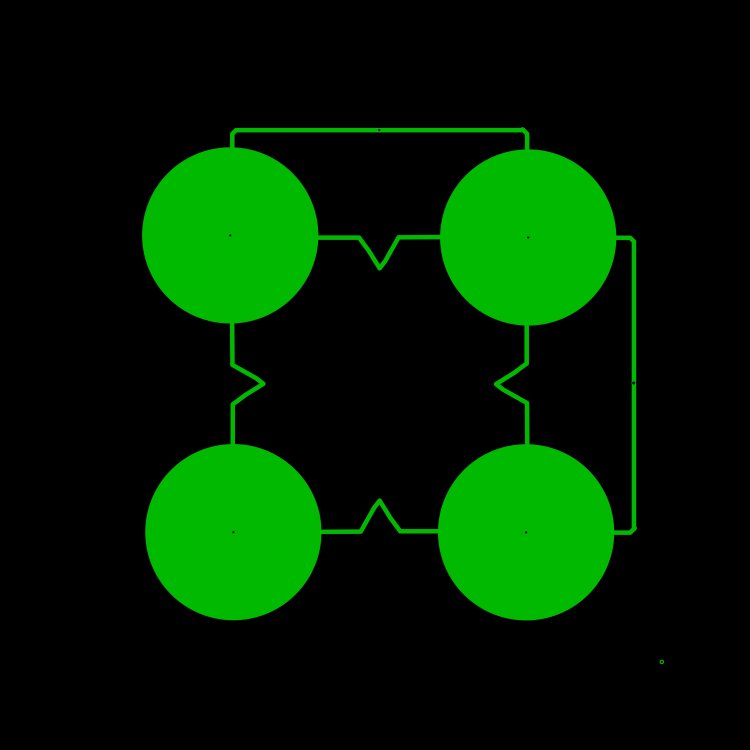

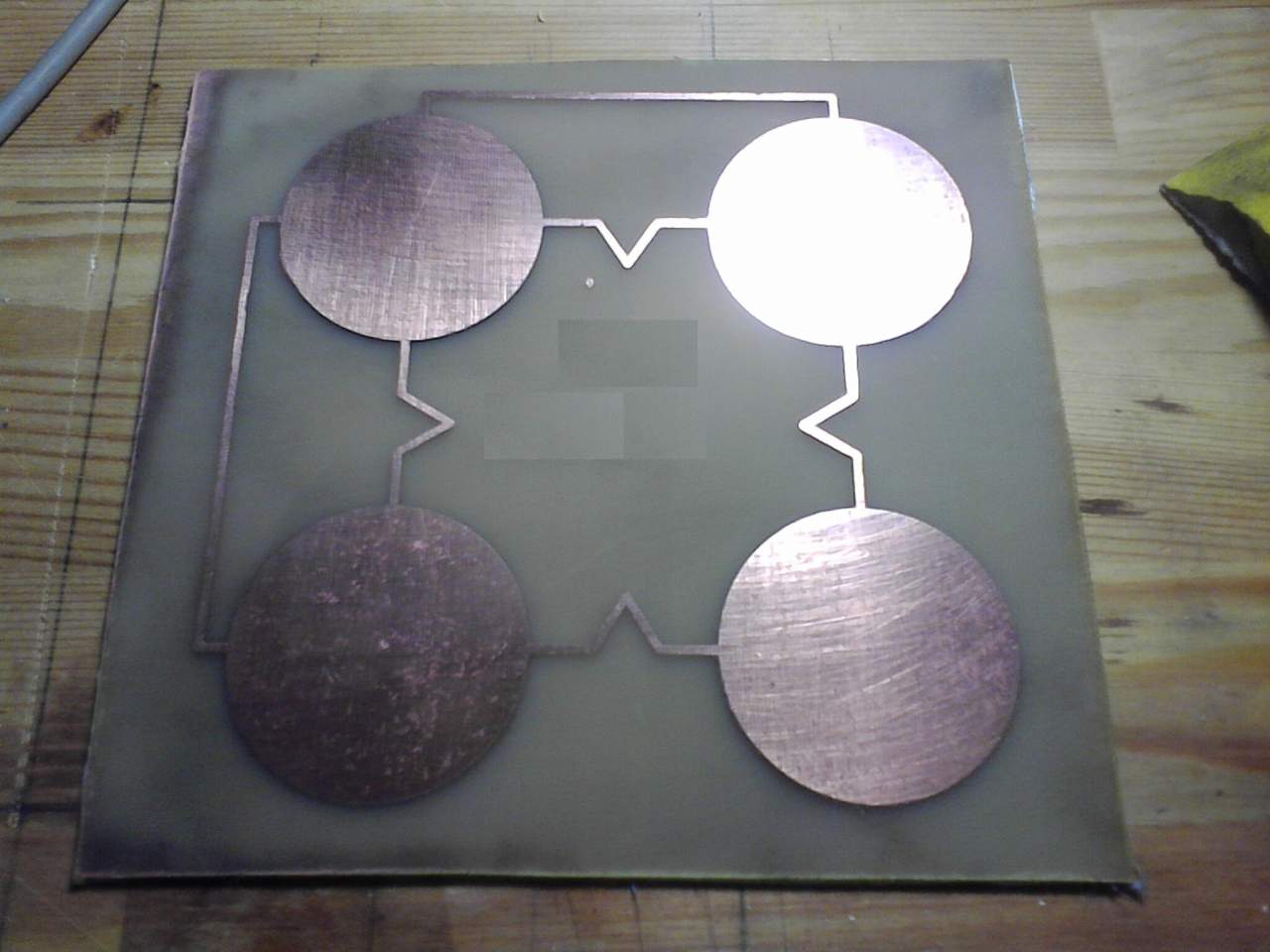

Вот сделал пичатку


03.lay6

Share this post


Link to post
Share on other sites
