Antennas for Drones

191 posts in this topic
4 minutes ago, Admin said:

,,,okay, I will try to do a simulation of this antenna...!!!

...the input impedance is 50 Ohm...???

Yes ,50 Ohm.


1 person likes this

Share this post


Link to post
Share on other sites

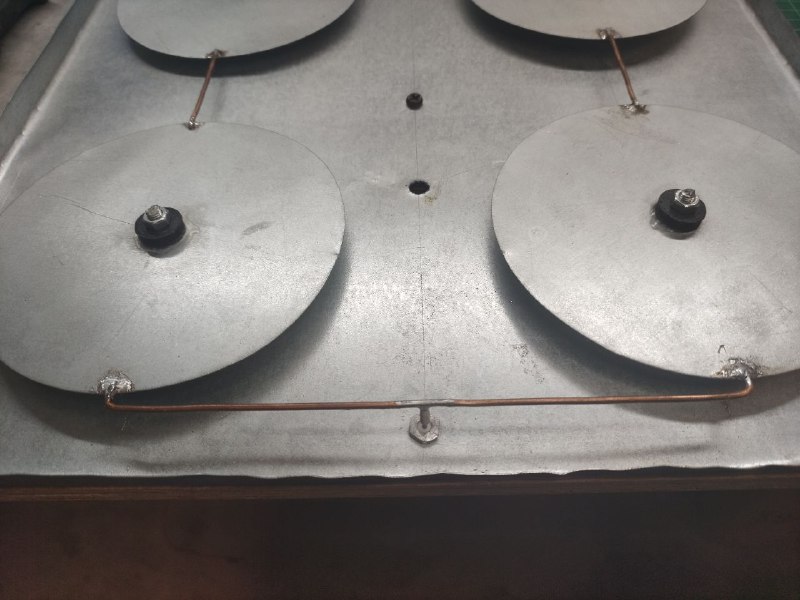

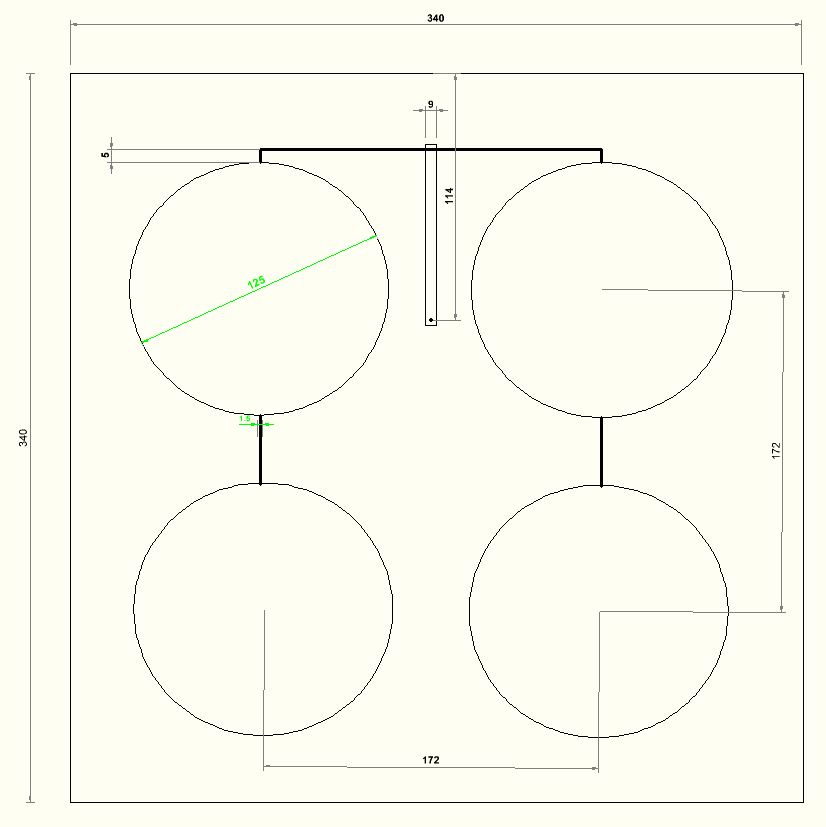

read about such antennas. Made a connection point as in the photo. It seems better but I still want better





Share this post


Link to post
Share on other sites

Aksonx2, please excuse me, I have small problems with the simulation program and I'm going to be a little late with it...!!!

Share this post


Link to post
Share on other sites
On 13.05.2024 at 3:16 PM, Admin said:

Aksonx2, please excuse me, I have small problems with the simulation program and I'm going to be a little late with it...!!!

Don't worry. It's ok. I'm also waiting for windless weather to test this antenna option in field flights. Science requires sacrifice!!!

Share this post


Link to post
Share on other sites

Aksonx2,

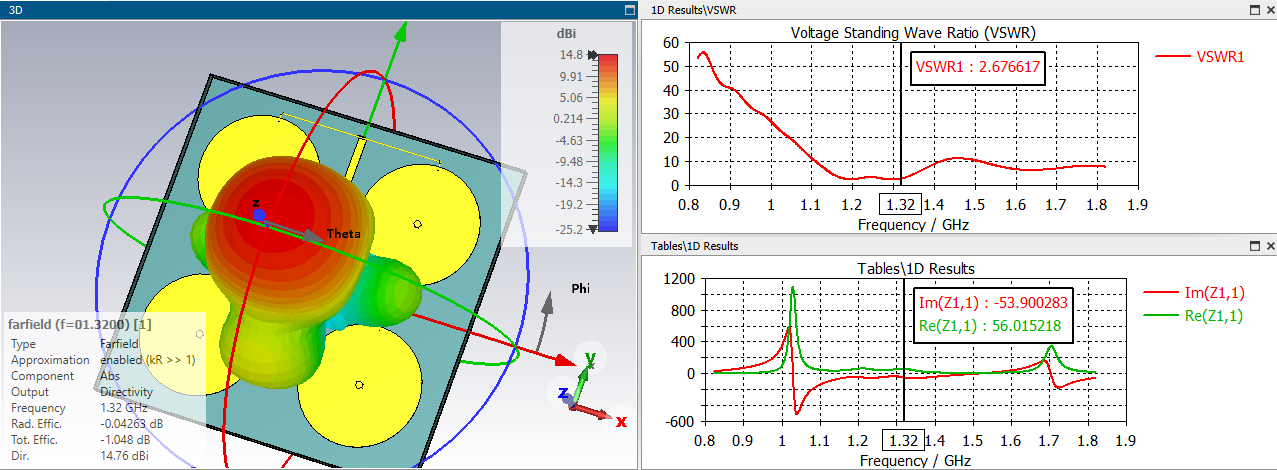

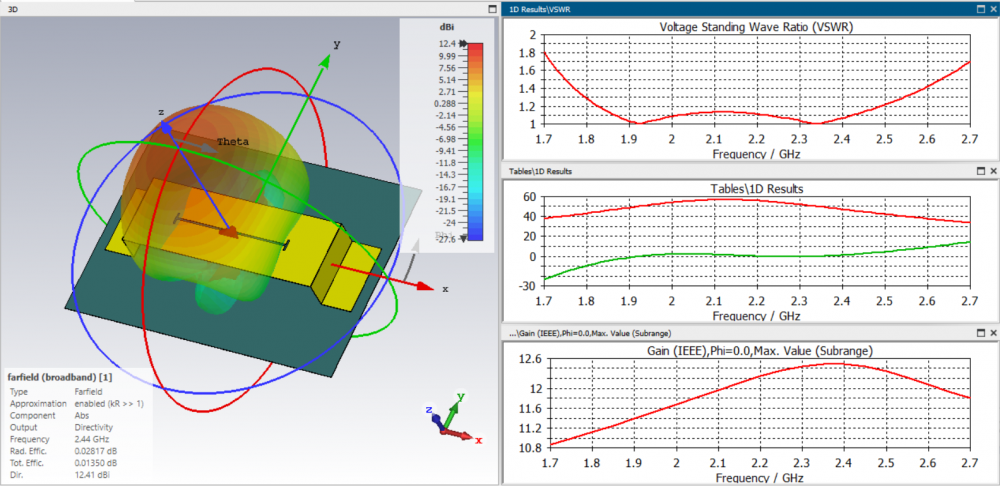

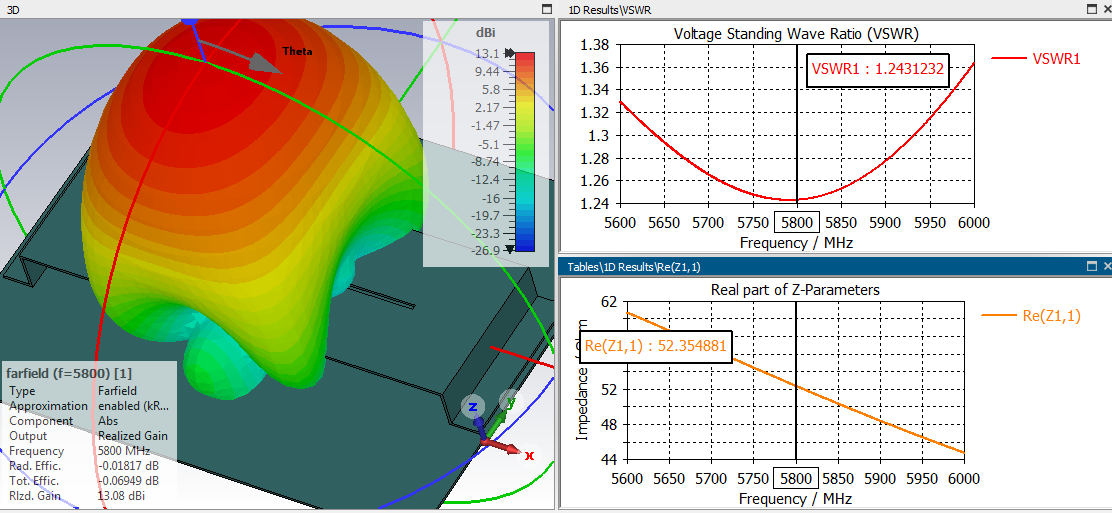

,,,I finally managed to do the simulation for you, but it seems that the antenna is not quite successful..!!!


Share this post


Link to post
Share on other sites
1 hour ago, Admin said:

Aksonx2,

,,,I finally managed to do the simulation for you, but it seems that the antenna is not quite successful..!!!


Thank you so much for your time. It also seemed to me that this antenna connection option is a little incorrect.

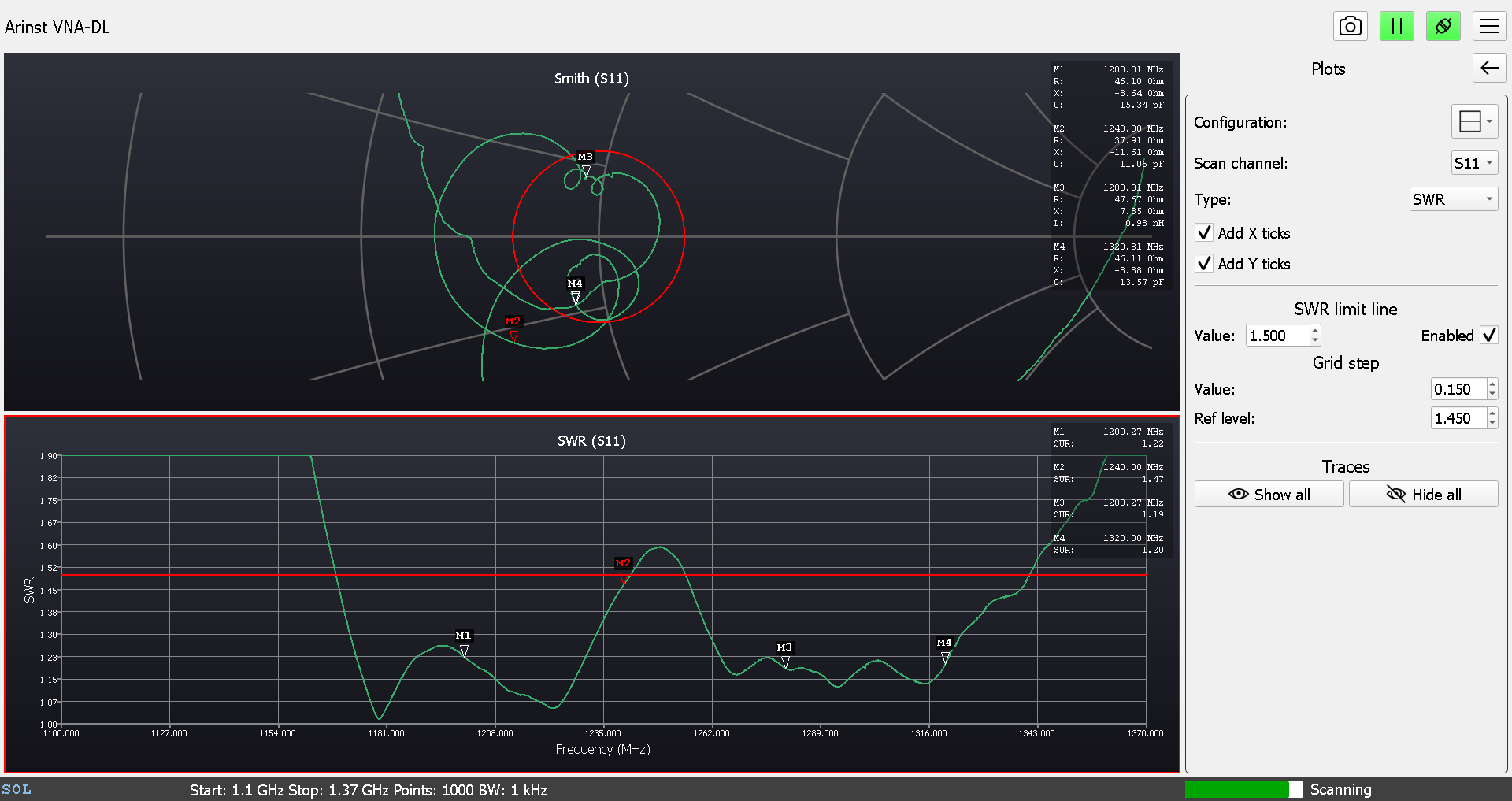

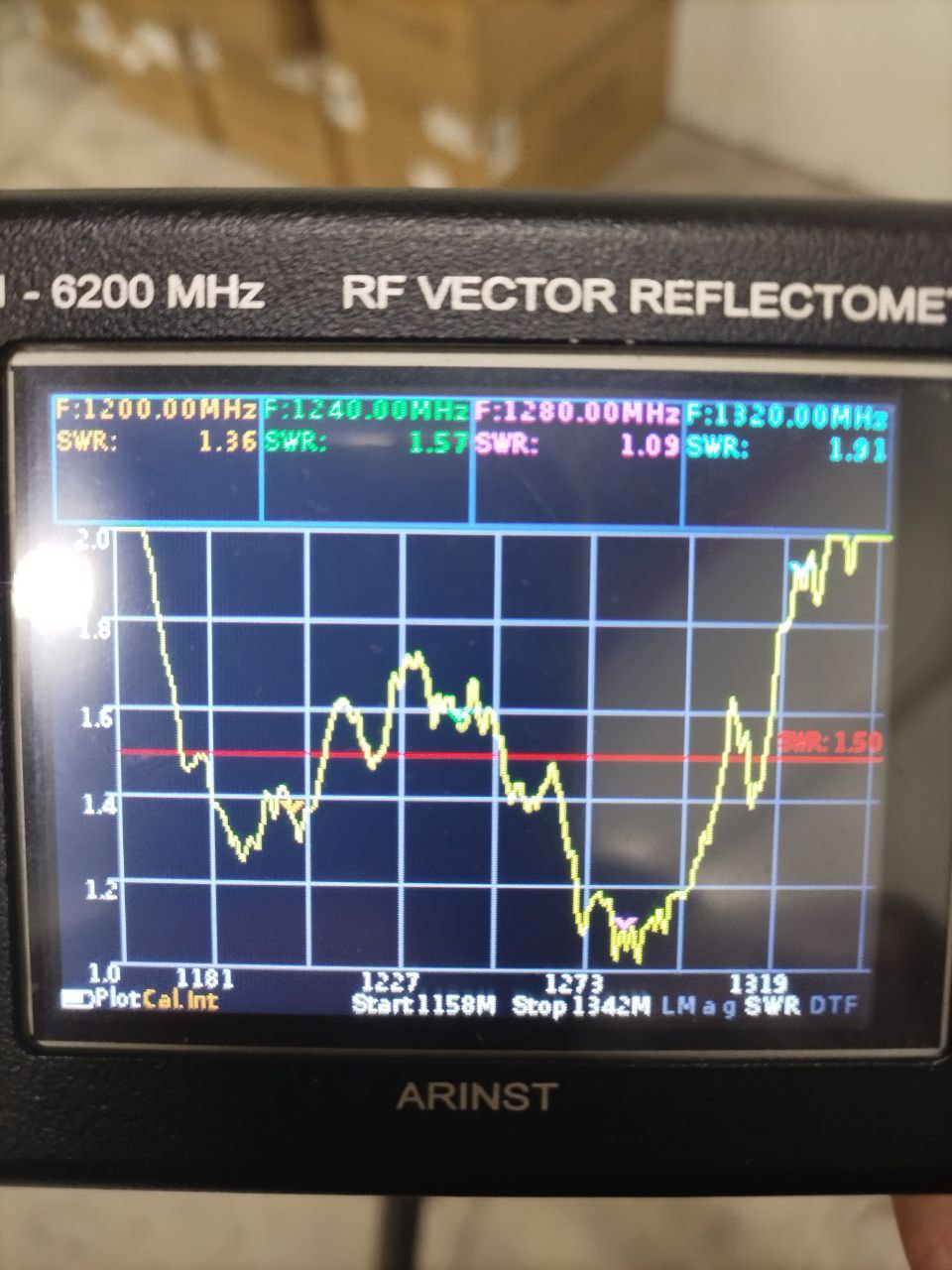

I changed the location of the cable connection in the middle of the connection line, above I posted a photo. The results were as follows on the analyzer. The results above are incorrect since they were in a small room and industrial interference was detected on the air

1 person likes this

Share this post


Link to post
Share on other sites

,,,my friend, for which frequency do you want the antenna to work...???

Share this post


Link to post
Share on other sites

I apologize for the arrogance:) do not share the project file? In order not to waste your time, I will play with the size of the antennas myself.



Share this post


Link to post
Share on other sites

okay, maybe later, I have a little work now...!!1

Share this post


Link to post
Share on other sites
48 minutes ago, Aksonx2 said:

I apologize for the arrogance:) do not share the project file? In order not to waste your time, I will play with the size of the antennas myself.





54 minutes ago, Admin said:

,,,my friend, for which frequency do you want the antenna to work...???

I fly this antenna now at 1320 MHz. I suggest you stay that way. Cut less:))))

Share this post


Link to post
Share on other sites

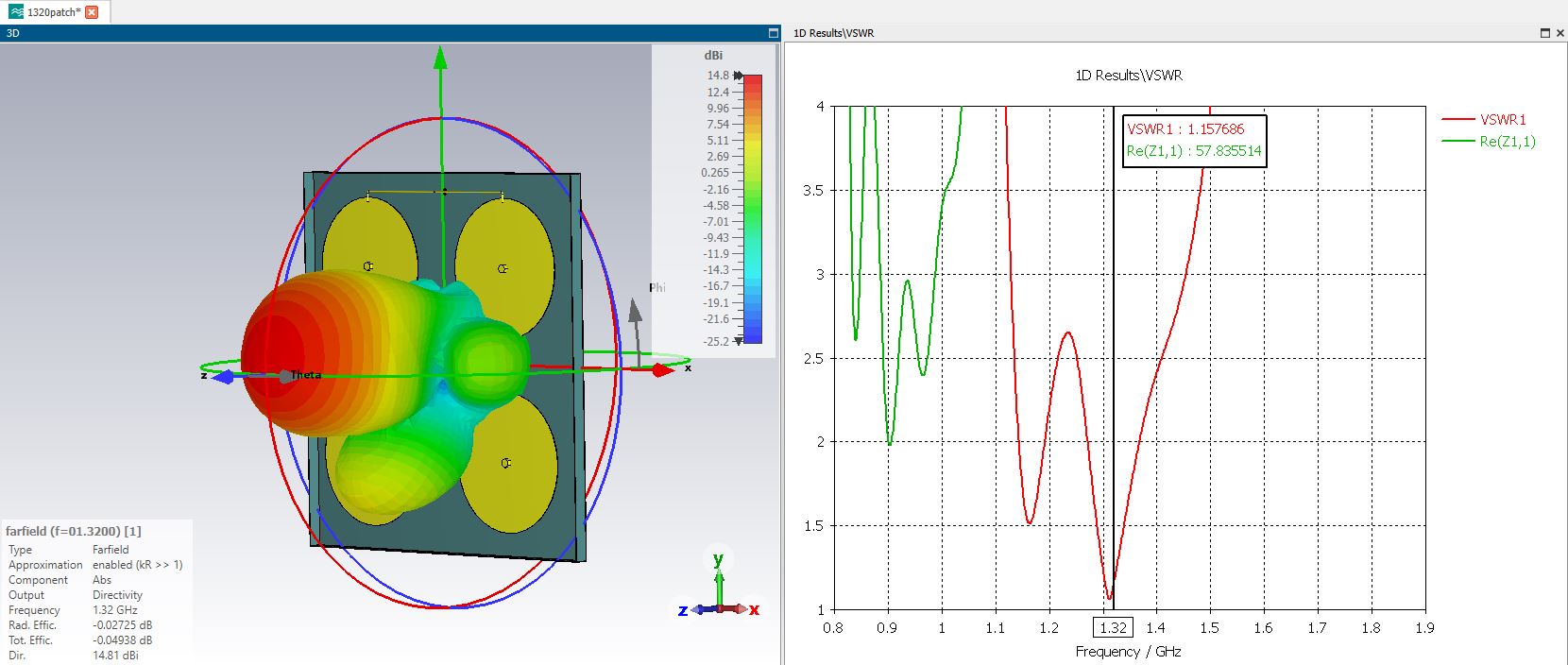

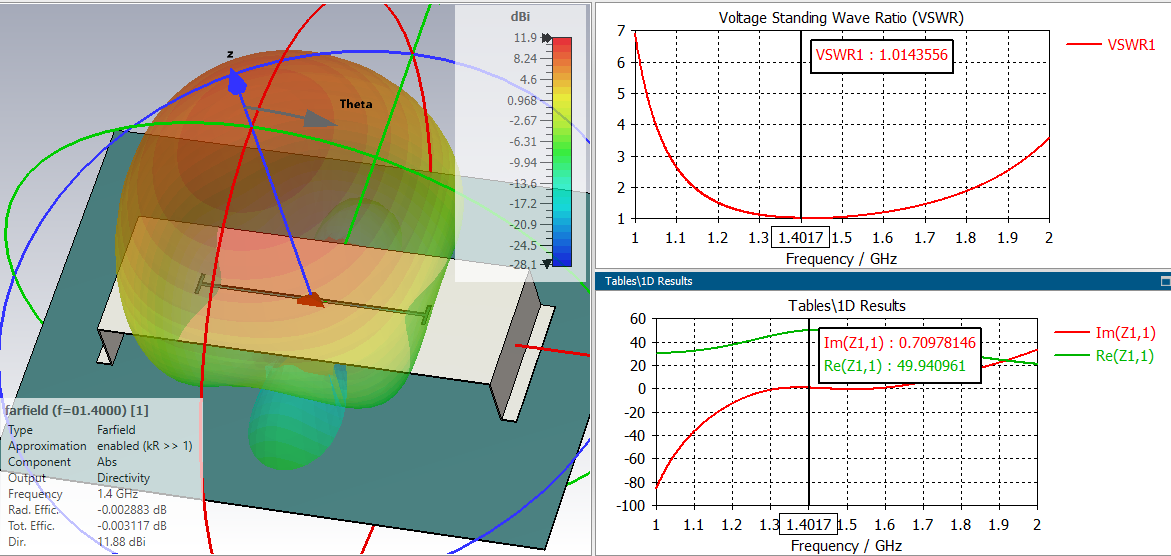

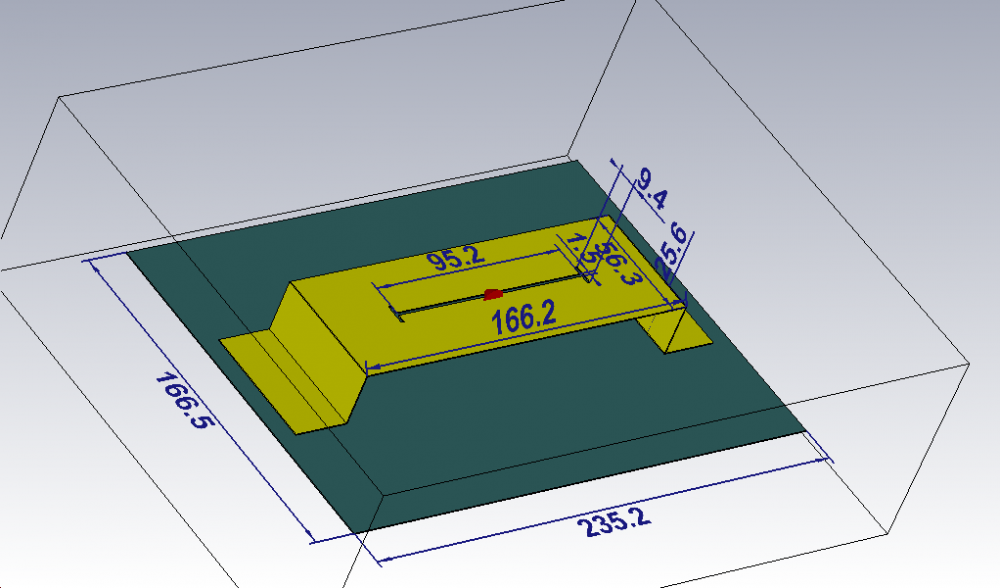

changed the connection location and replaced the wire with strips in the connection.

If you have free time, can you check me out? I'm still in CST. According to your articles on the forum. A little later I will put optimization




1320patch.cst

1 person likes this

Share this post


Link to post
Share on other sites

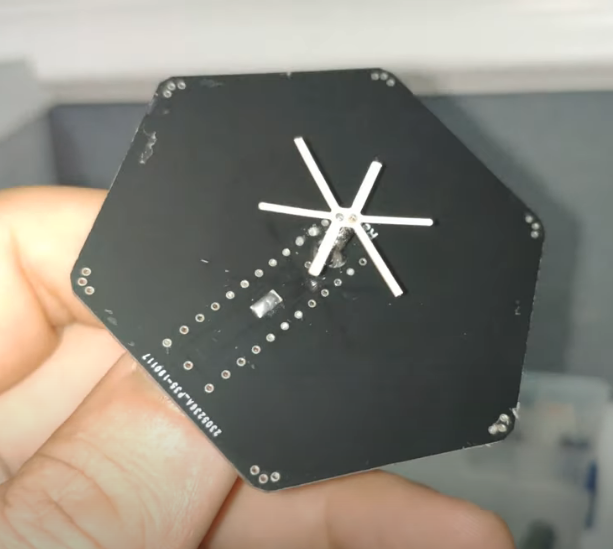

,,,did you really buy this antenna from the store...???


Share this post


Link to post
Share on other sites

IIRC the WIRES UNDER the discs (closer to reflector) gave less reactivity ...improving VSWR...

1 person likes this

Share this post


Link to post
Share on other sites

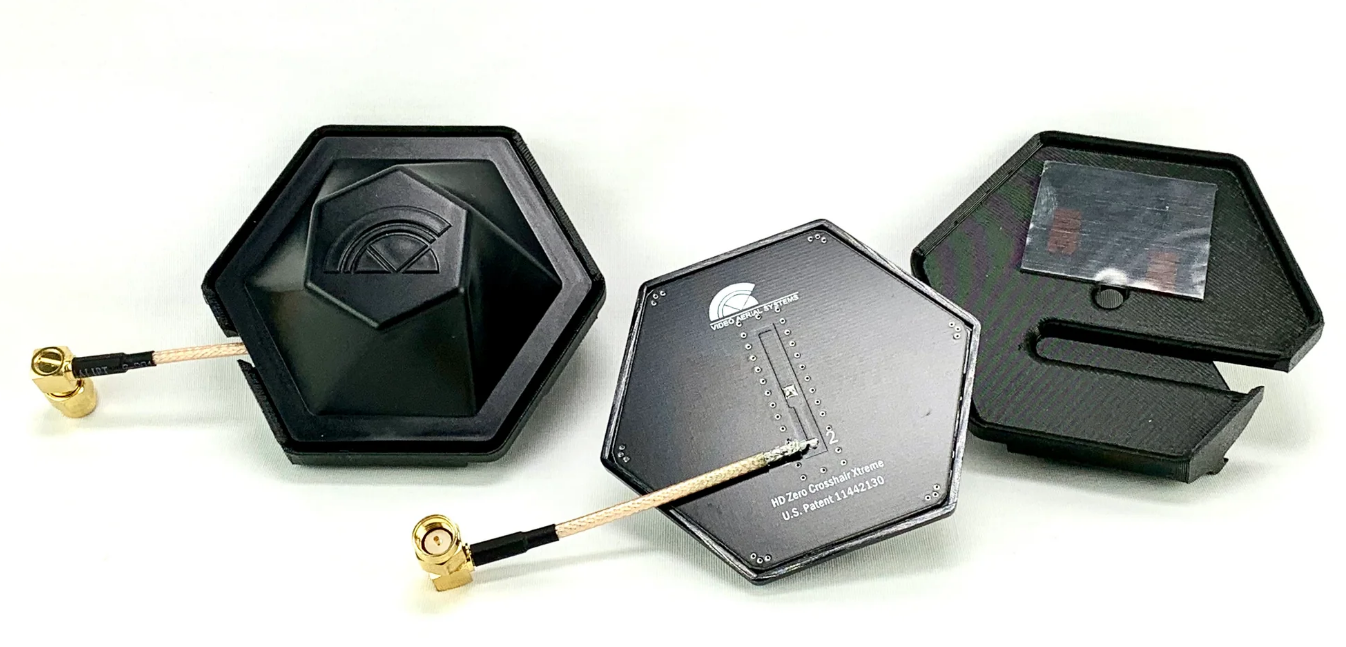

Crosshair®Xtreme Pair for HDZero Goggles
