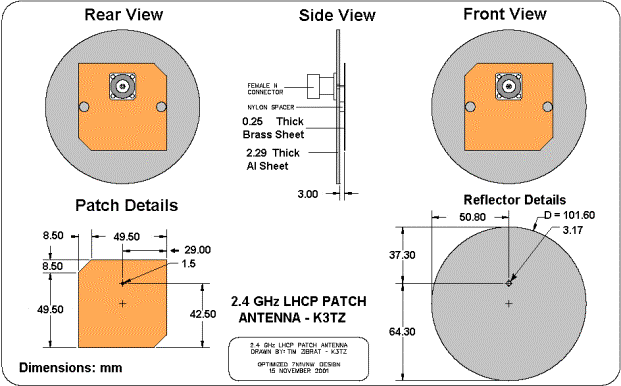

the K3TZ AntennaOptimized Design

[Admin 2545]

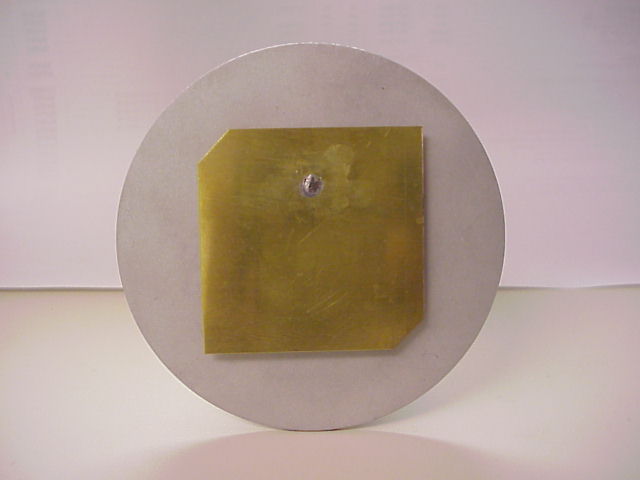

Ultimately, when the K3TZ design was tested, the ease of construction and consistency of results demonstrated the worth of this antenna.



That is why when I actually found a design, I decided to learn as much as I could about it. I found some patch antenna that will allow you to design and simulate a patch antenna and entered this design.

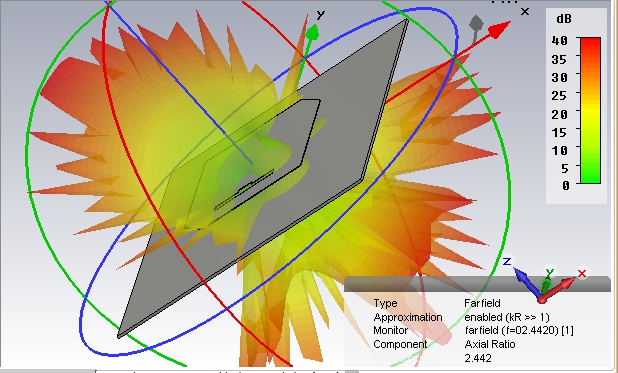

the Axial Ratio,,,

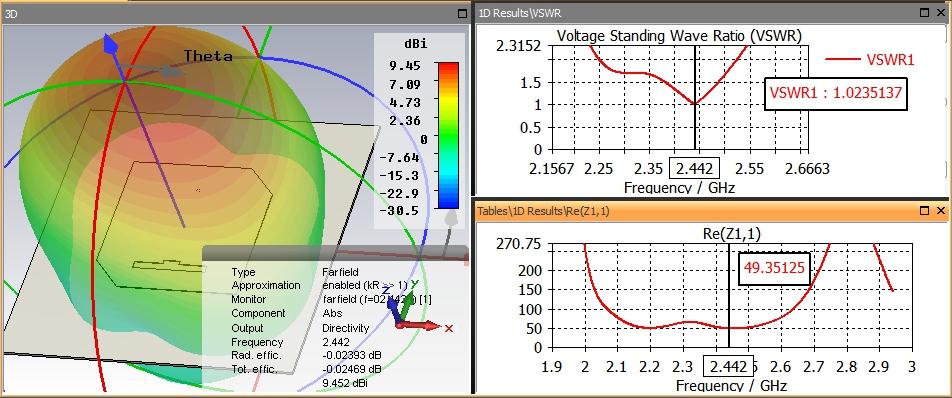

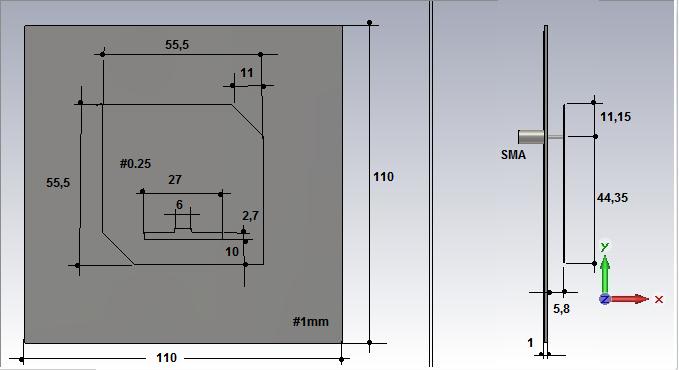

By applying a cut in the patch, increase the bandwidth width and uniformize the impedance

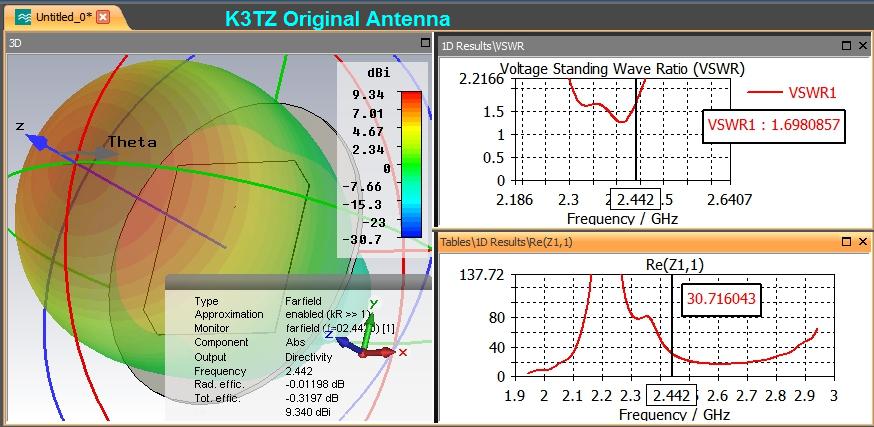

This is the simulation on the original antenna

[pragata.my.id 25]

You are a very smart person, sir.

[pragata.my.id 25]

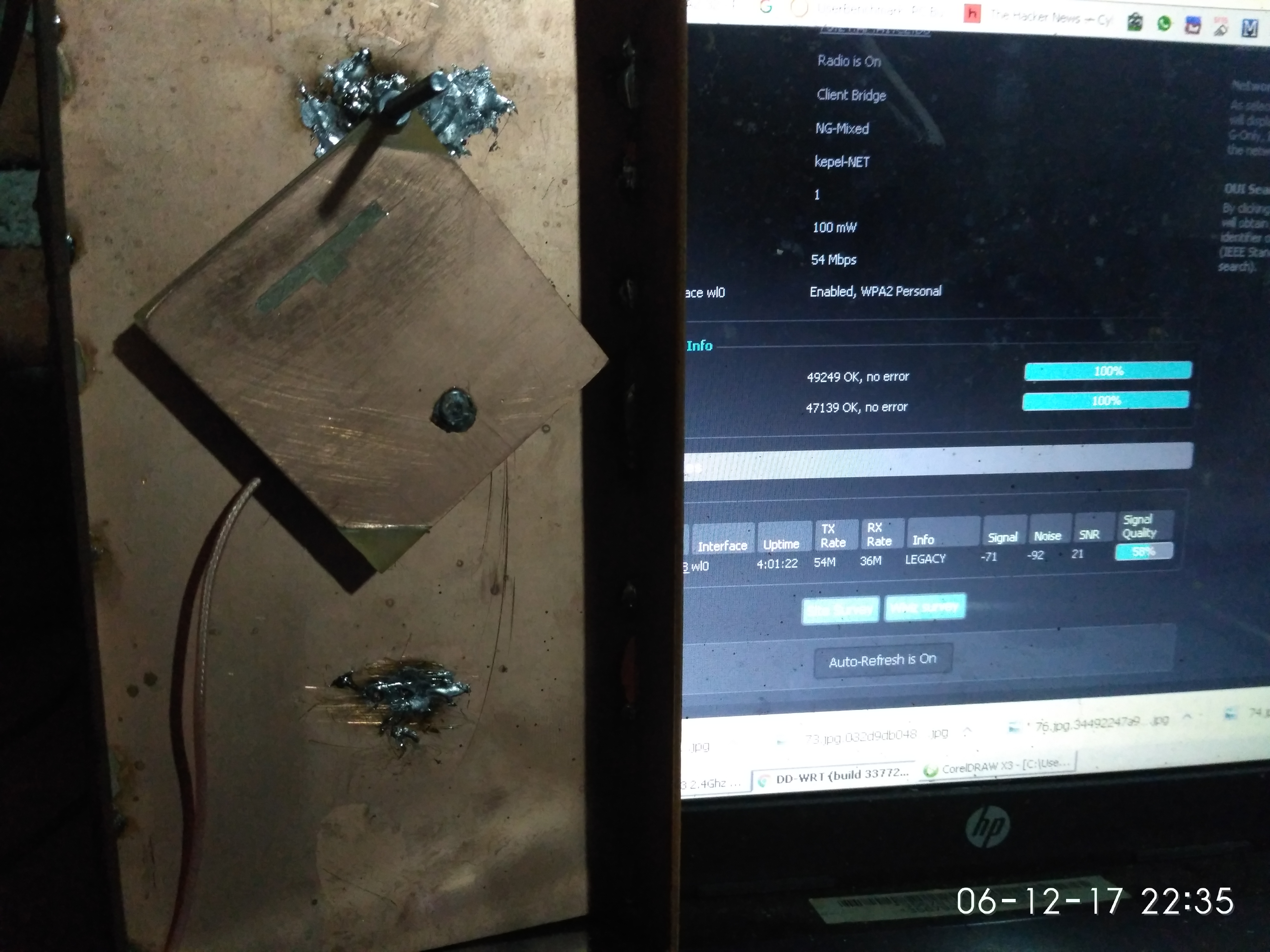

not bad, ...  I see there is a 10% increase for signal quality.. thank.

[Admin 2545]

Yes, but on PCB needs other dimensions ... !!!

[pragata.my.id 25]

can tell me the details of the construction? for pcb.

[Admin 2545]

what type of PCB, thickness .. ??

[pragata.my.id 25]

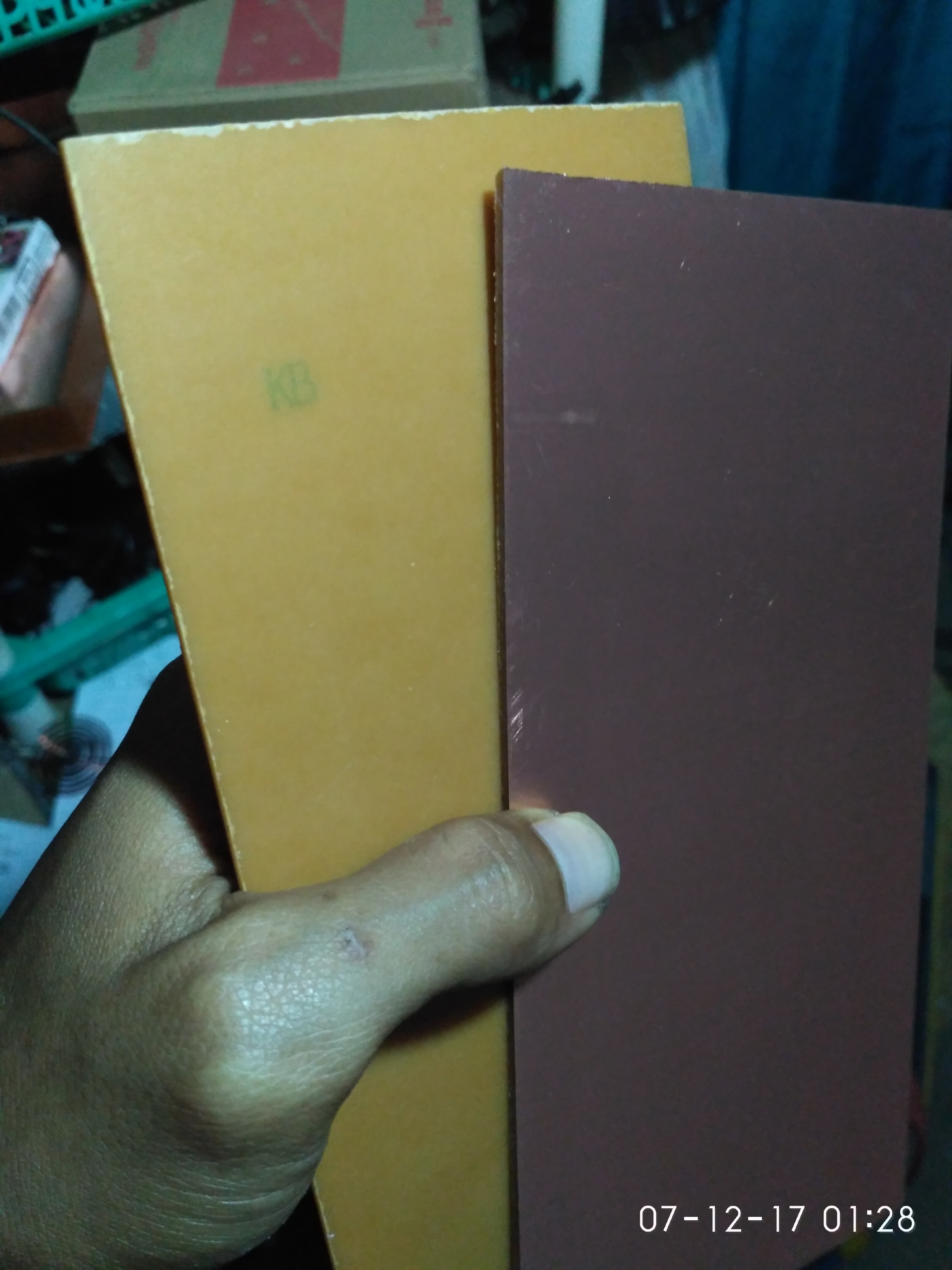

saya tidak mengerti apa jenis PCB ini ..  which is definitely not fiber.

Edited December 6, 2017 by pragata.my.id

[Admin 2545]

FR4 #1,5mm...??

[pragata.my.id 25]

execelent...

yes... 1,5mm

[Admin 2545]

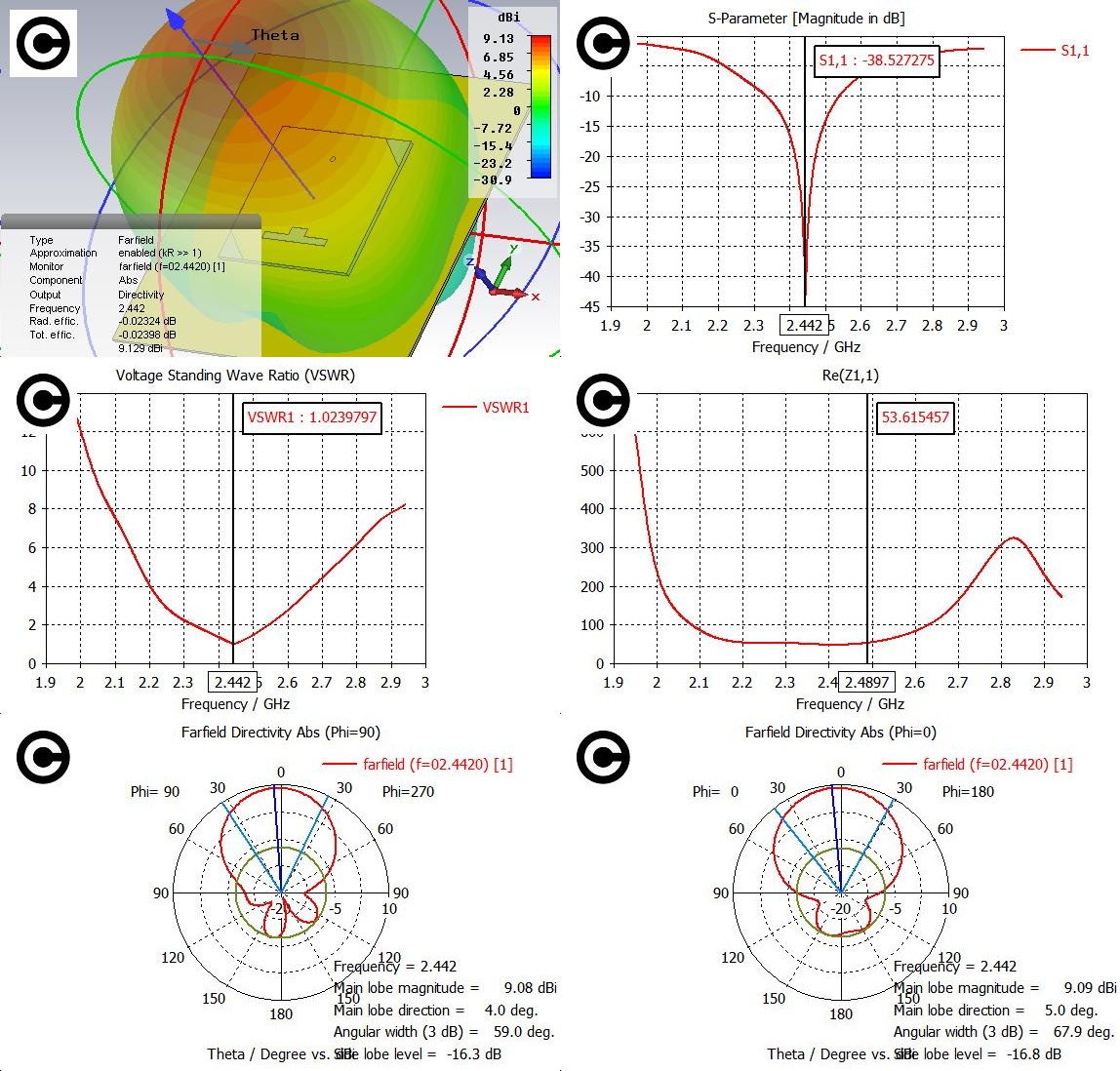

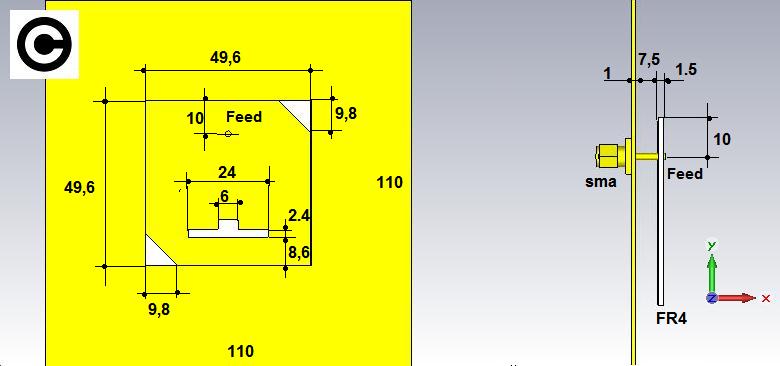

,,,for pragata.my.id K3TZ on PCB...

[alhaba.production 7]

On 21/2/2018 at 1:03 AM, Admin said:

,,,for pragata.my.id K3TZ on PCB...

Can i use thick galvanized steel ac reflector, thickness about 0.3 mm? , and any changes for 100mm x 100mm reflector?. Thanks a lot.

Edited August 10, 2022 by alhaba.production
Need some question to be aswered.

[Admin 2545]

,,no, for this you need other dimensions...!!!

,,see the first post...!!!
