Desiging a Conformal antenna in HFSS

[sandeepv 10]

Hi friends, conformal antennas gaining a lot of attention from the researchers across the world nowadays.  i will explain you the necessary steps required to design a conform antenna in hfss.



Step1: First create a 2D rectangular sheet in HFSS with ranom dimensions

step2. Create a cylinder with radius 30mm





step3: Now select the two objects  and perform the following commands-> right click->EDIT->surface->wrap shet. then assign thickness to the sheet







[Admin 2579]







Sandee, you can put the HFSS simulations,,,???

[George 0]

how to remove the cylinder

[George 0]

Hi,

Can you plz explain in detail designing conformal antenna.How the cylinder was made substarte.



Thanks in advance

[Admin 2579]

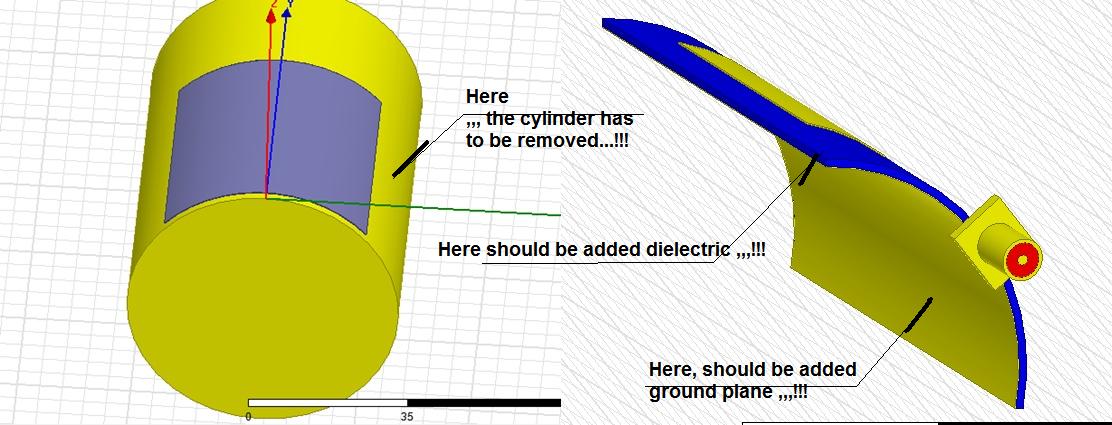

,,,delete it...!!!

[George 0]

Then how the patch is made on top?For me the wrap operation to wrap patch on substrate  goes wrong. Can you plz tell how to make it r8

[Admin 2579]

,,it acts successively for both the patch and the dielectric substrate,assign thickness to the sheet..then extrude for GP(for ground plane -copper)
