700mm the one i'm working on...i'll tell you if it works

all 8 mm tubes and double flat strip 15x2mm folded dipole and balun included (just put the cable tv in the antenna STRAIGHT)

Edited November 25, 2021 by clanon

[Harry36 140]

On 11/26/2021 at 1:01 AM, clanon said:



Antex patent ;-)



[Admin 2545]

SetupYagiCalculator.exe

[vova.gumerov 23]

Hello Jomi! I have yagi calculators. But this is a narrow strip. I did it on the middle frequency - not very good!

[vova.gumerov 23]

Нужно освоить прогр. Мнаму!

You need to master the program. MMANA!

[Admin 2545]

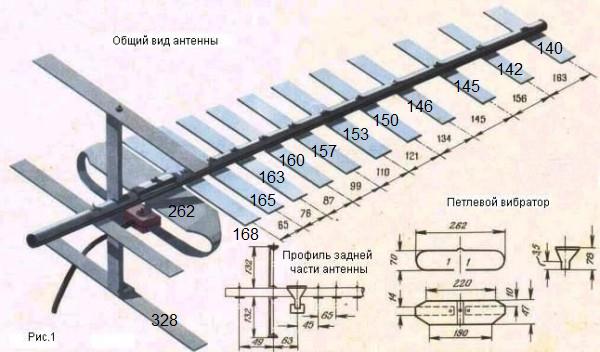

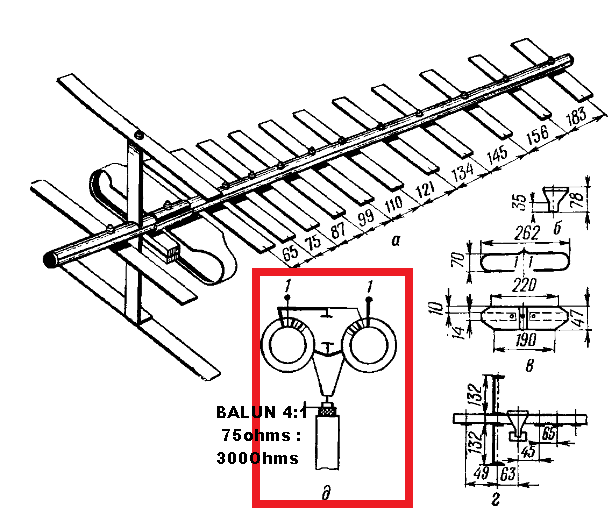

Or the same ATVKD-15/21-39 (TV antenna “wave channel”, decimeter range, 15-element, channels 21-39):

[clanon 246]

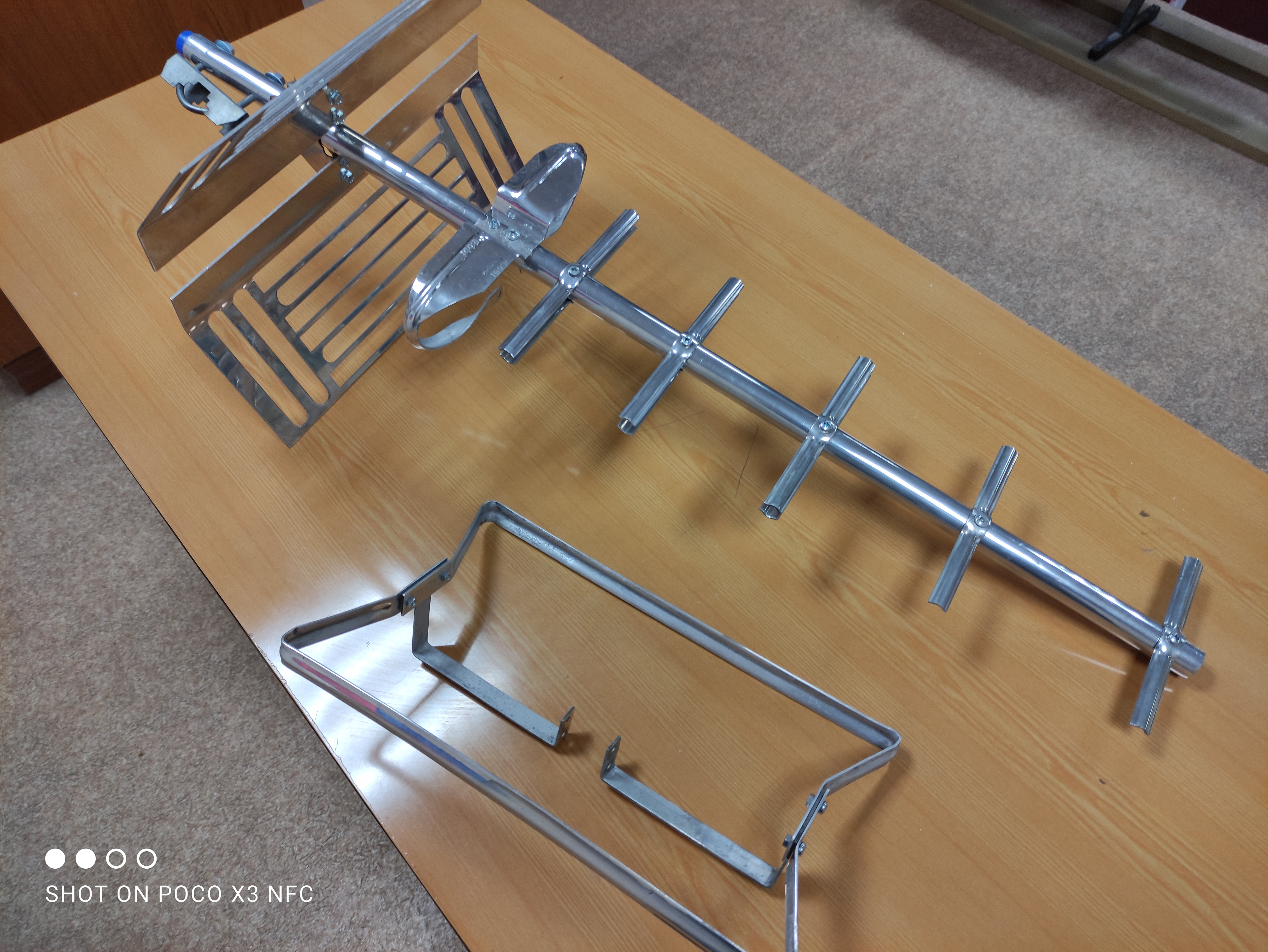

[vova.gumerov 23]

Thanks! Jomi. I will do it!

[vova.gumerov 23]

[Admin 2545]

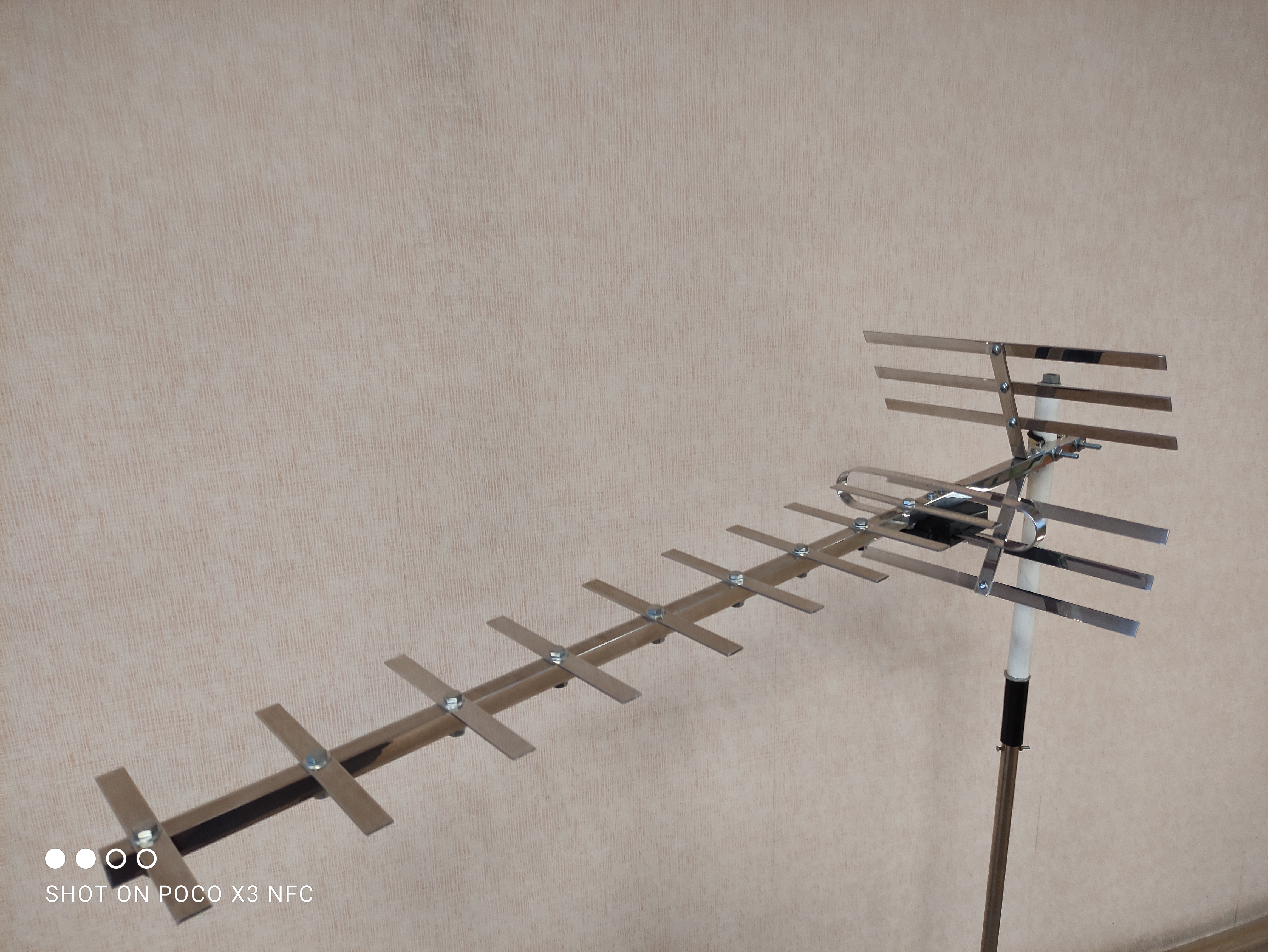

Vova, do you have any dimensions to this ... ???

[vova.gumerov 23]

470-800 MHz

[vova.gumerov 23]



470-800 MHz



[Admin 2545]

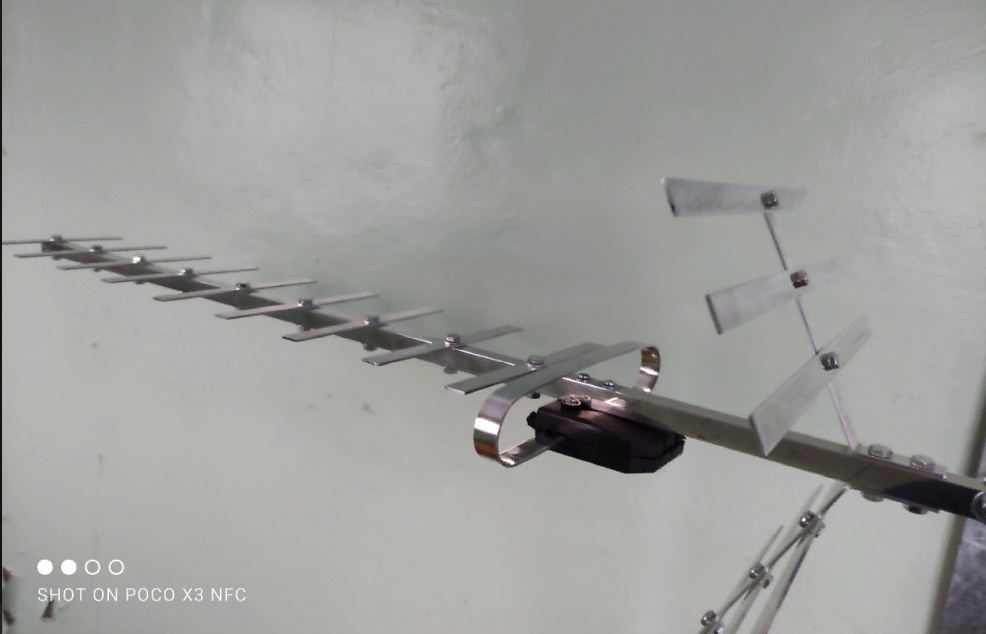

It looks like this antenna is pretty good...

[clanon 246]

Jomy try making it a LFA , doing an HORIZONTAL folded dipole , you can make it 50 ohms by that change and dimensions , the rest stays the same (director reflectors)

[vova.gumerov 23]

54 minutes ago, Admin said:

Похоже, эта антенна довольно хороша...

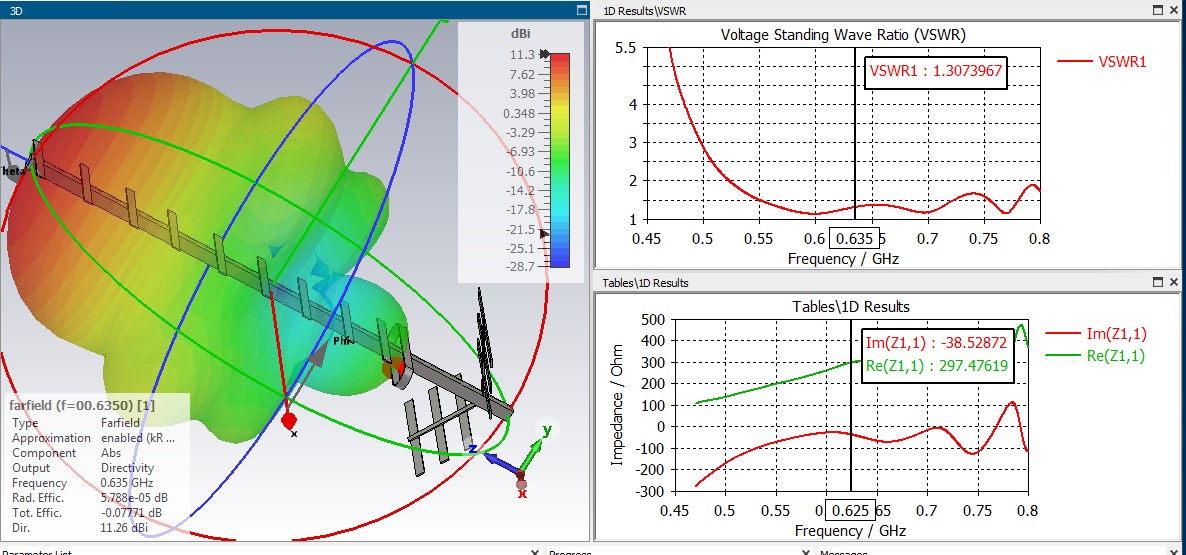

Джоми, здравствуй! Благодарю за оптимизацию! Графики действительно хороши!!!!!

[vova.gumerov 23]

27 minutes ago, vova.gumerov said:

Джоми, здравствуй! Благодарю за оптимизацию! Графики действительно хороши!!!!!

Congratulations to all forum participants on Catholic Christmas

[Harry36 140]

On 23.12.2021 at 4:22 PM, vova.gumerov said:

470-800 MHz

7 hours ago, vova.gumerov said:



470-800 MHz



520-850.

the size needs to be increased for 470-790.

[vova.gumerov 23]

On 25.12.2021 at 02:47, Harry36 said:

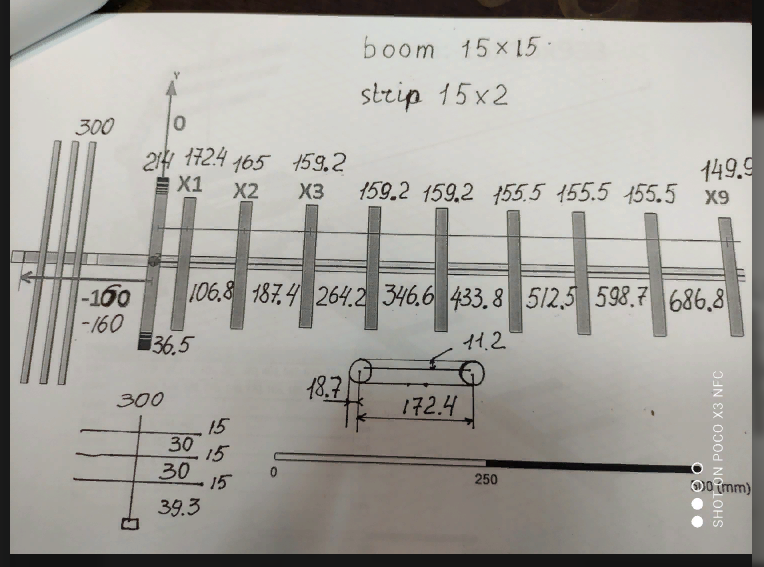

Clanon, can you extract the MMAN file? I need detailed dimensions for construction!

[vova.gumerov 23]

Jomi, friend, Happy New Year. Health, good luck !!!!!!!

[Admin 2545]

Vova,Happy New Year to You,with Health , Happiness and a Better New Year 2022...!!!

[clanon 246]

Jomy if you pass the cst i could try make it an 75 ohms LFA dipole...

[clanon 246]

On 27/12/2021 at 5:23 AM, vova.gumerov said:

Clanon, can you extract the MMAN file? I need detailed dimensions for construction!

from where...?
