MiMo 4G Panel Antenna

[chilanzar2 85]

It works perfectly. I accidentally realized this nuance.This means that pathaway antenna 2300TDD also it was possible to do so. I didn't know

[Admin 2545]

[Admin 2545]

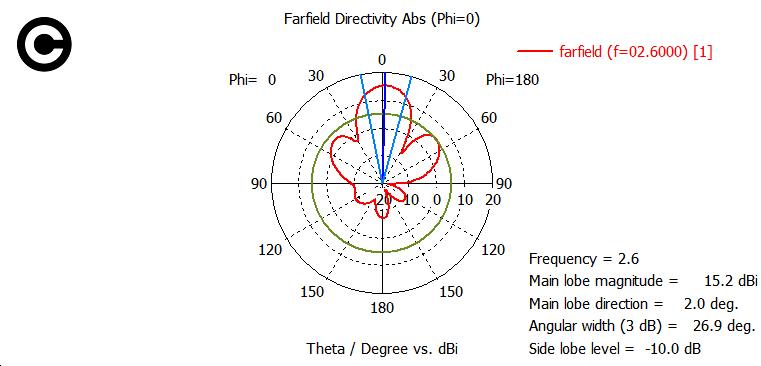

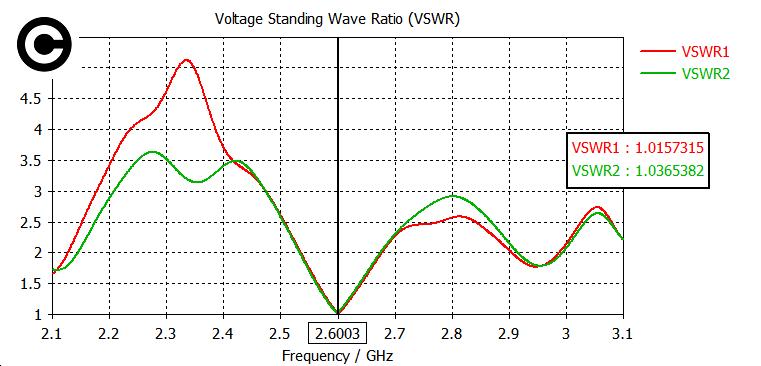

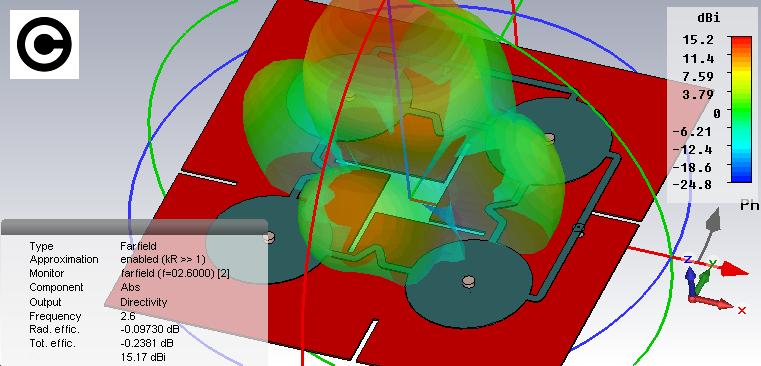

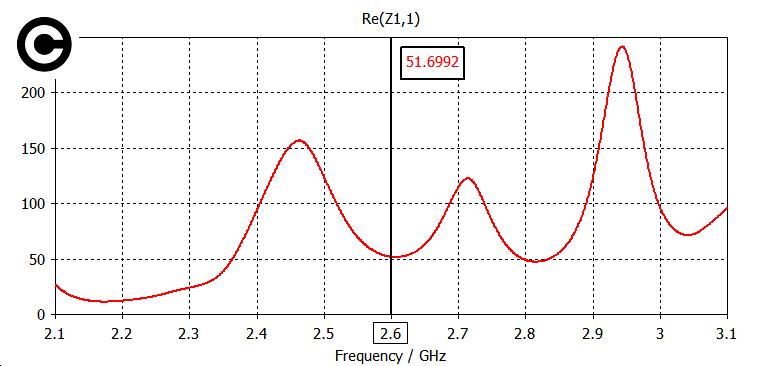

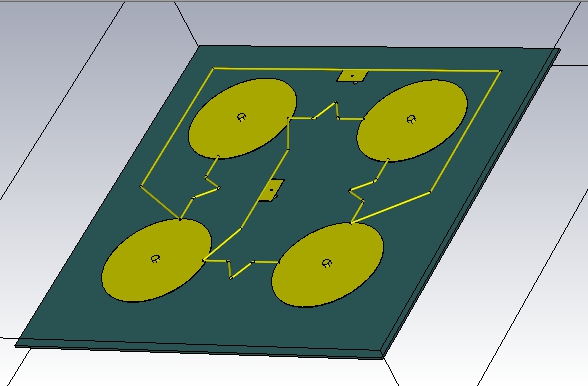

"And these are the latest results

[starik0 9]

Интересный вариант!

[Admin 2545]

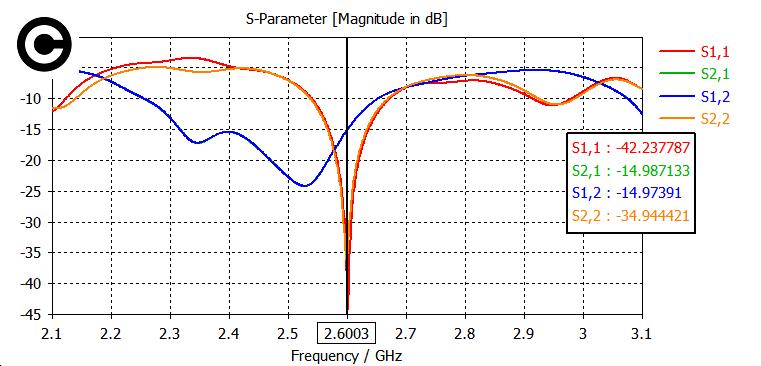

"not too, it needs s12: s21 <-26dB

[Admin 2545]

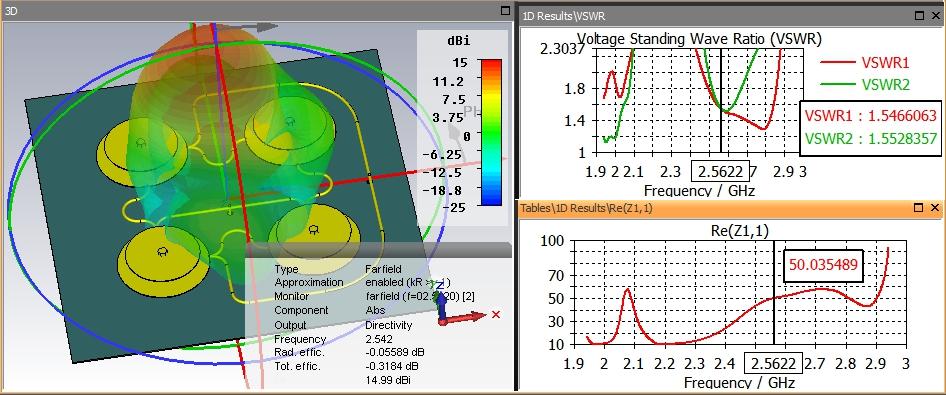

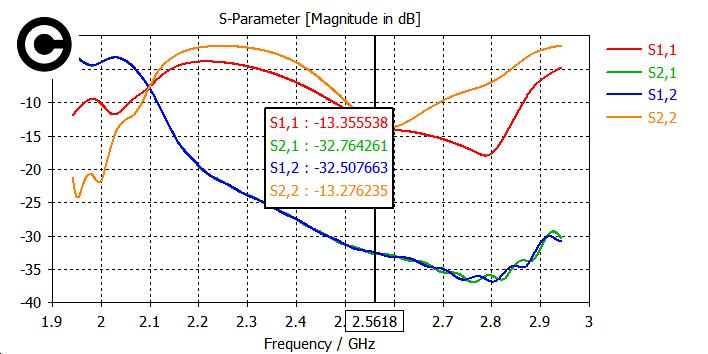

Through this configuration, I managed to get s12, s21 << 26dB...



[Vitaliy 6]

Живу в Карелии в деревне модем huawey b315-22  стоит у окна, встроенная антенна направлен прямой видимости смотрит прямо башню YOTA, сигнал  постоянно пропадает ДО 1 ПАЛОК,хочу сделать патч антенну 1800 МГц не могу найти чертежи.

,,, I live in Karelia in the village of a huawey b315-22 modem standing by the window, the built-in antenna is directed straight line of sight looking directly at the YOTA tower, the signal constantly disappears TO 1 STICK, I want to make a patch antenna 1800 MHz I can not find the drawings.

[Admin 2545]

,,, welcome Vitaliy ... !!
,,, I will try to help you ... !!!!

,,, so, do you like ... ???



[Vitaliy 6]

can drawings?

[Vitaliy 6]

I have 0.8 mm galvanized iron

[Admin 2545]

,,,it"s good  0.8 mm galvanized iron...!!!

 You have to wait a little, because I now work on this antenna..!!!

[Admin 2545]

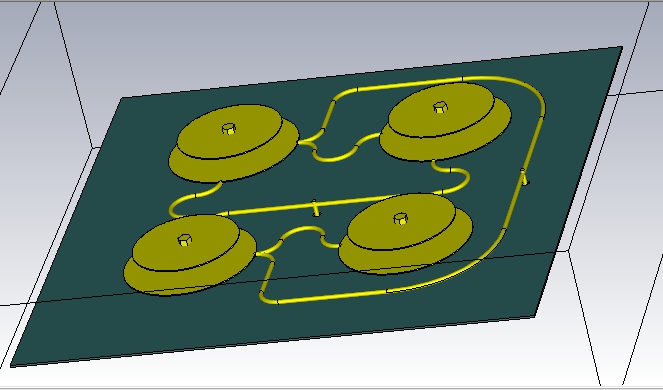

,,, or maybe you want this...!!!



[Vitaliy 6]

Мне все равно мне лучше чертежи показали и я сделаю лишь бы рабочая антенна хорошим усилением,потому что базовая станция очень близко около 300 метров ,внешняя антенна модем b315-22 плохо принимает 1 деление.

,,, I don’t care, the drawings showed me better and I would only make the working antenna a good gain, because the base station is very close to 300 meters, the external antenna of the b315-22 modem does not accept 1 division well.

[Admin 2545]

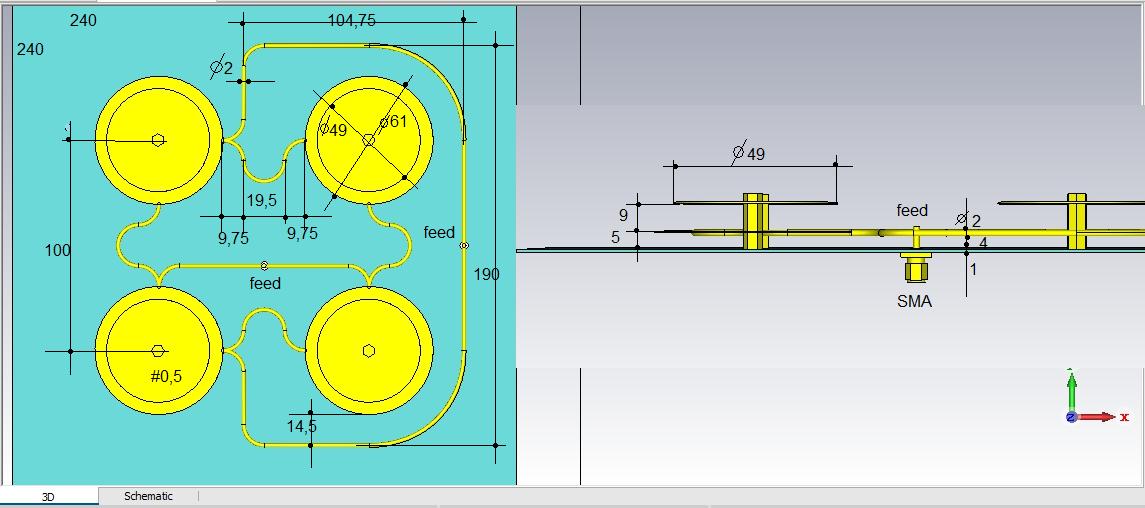

okay, tomorrow you will have the simulation results ... !!!

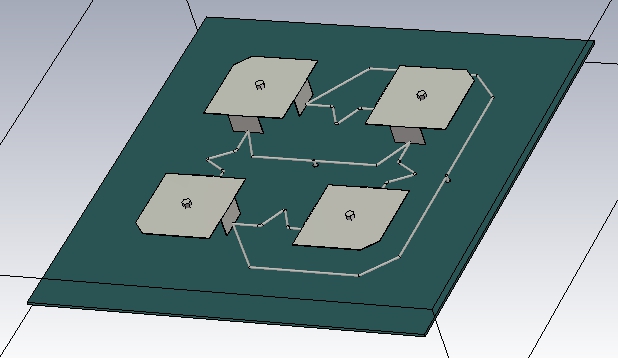

But why don't you try and this simple antenna....???



[Vitaliy 6]

Можно простую антенну я сделаю,я уже мучаюсь плохого интернета:(

Can I make a simple antenna, I'm already tormented by poor Internet

[Vitaliy 6]

Добрый вечер!хочу такую сделать мимо которые вчера выложил картинку  20.00 часов,простую сделать нет возможности без пенопластирола,ездил в город Петрозаводске радиотовары нет разьема sma продаже думаю сделать из 75 ом разьема от тв и кабель тоже буду пользоваться 75 ом от спутниковой тарелки



,,, Good evening! I want to do this by which I posted a picture yesterday at 20.00 hours, I can’t do a simple thing without polystyrene foam, I went to the city of Petrozavodsk radio products there is no sma connector I think I’ll make a 75 ohm plug from the TV and I will use a 75 ohm cable from the satellite dishes

[Admin 2545]

Polystyrene foam can be found on all roads, even in garbage...!!

If you do not want polyurethane foam spacers you can put two spacer screws but you need other dimensions
,,,for SMA 75 Ohm, you need another distance between vibrator and reflector, but this is not important, you must to try ... !!!

[Vitaliy 6]

Хочу такую прошу начерти другое 75 ом,у нас в деревне не валяется пенапластироль

,,, I want this please draw another 75 ohm, in our village there is no foam plastic

[Admin 2545]

,,,OKAY...!!!!

,,, BUT NOW I WORK ON THIS ... !!!

[Vitaliy 6]

Хорошо:) bи не терпением жду:)

,,, Good I look forward to

[clanon 246]

Хочу такую прошу начерти другое 75 ом,у нас в деревне не валяется пенапластироль

",,, I want this please draw another 75 ohm, in our village there is no foam plastic"

75ohms cable on a 50ohms card would give 1.5 VSWR...NOT GOOD!

Edited November 2, 2019 by clanon

[Vitaliy 6]

75 ом сравнение 50 ом

75 ohm comparison of 50 ohms





[Admin 2545]

Vitaliy, please use the English language...!!!

[Vitaliy 6]

Good!!!

[Admin 2545]

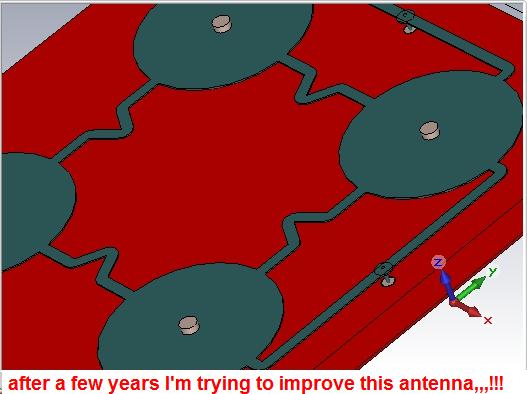

Vitaliy,you must  to see this too...!!!
