Bow Tie Antennas

Bow-Tie antennas aren't really Log Periodic antennas; however, the bow tie (or butterfly) antenna makes a good starting point to begin talking about Log-Periodic antennas. So we will first discuss properties of wideband antennas, and then discuss the infinite bow-tie antenna, and then measurements and properties of the real bow-tie antenna.









Share this post


Link to post
Share on other sites

Dear Admin....,

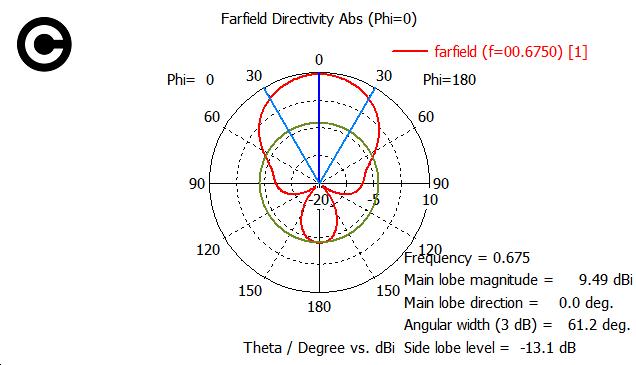

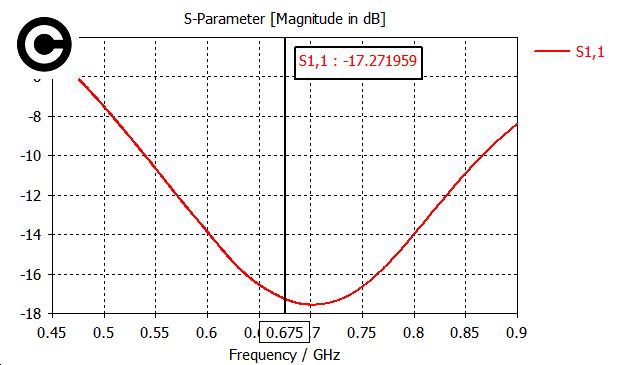

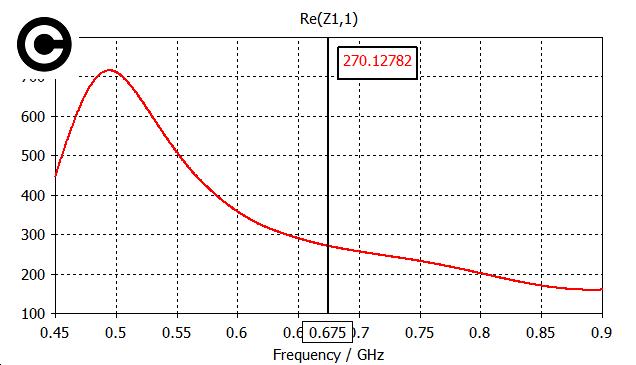

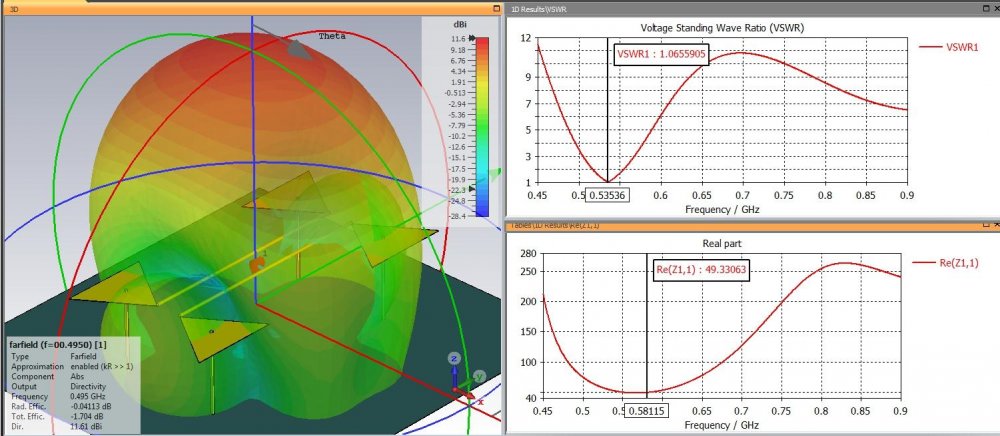

Can u help me simulate this Bowtie antenna...many thanks in advance


Share this post


Link to post
Share on other sites

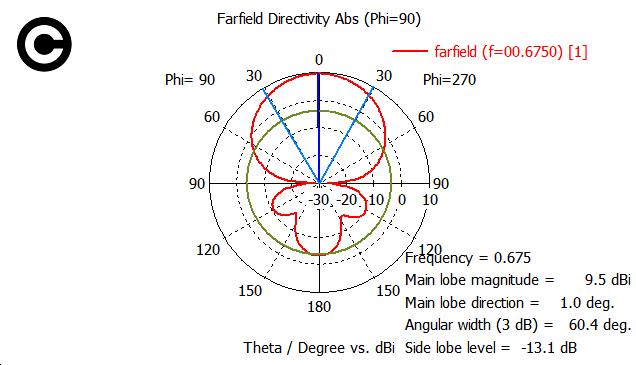

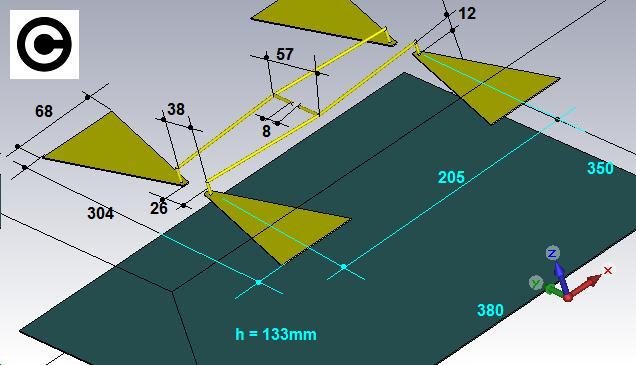

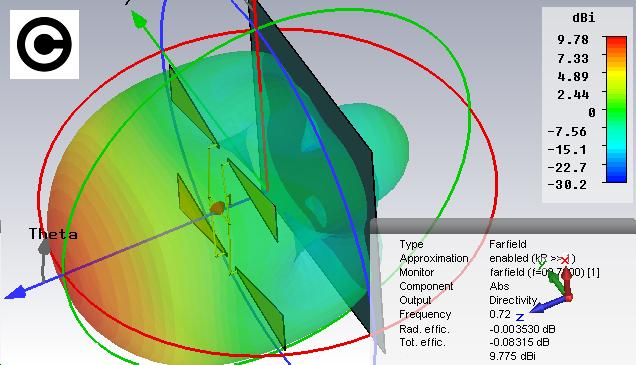

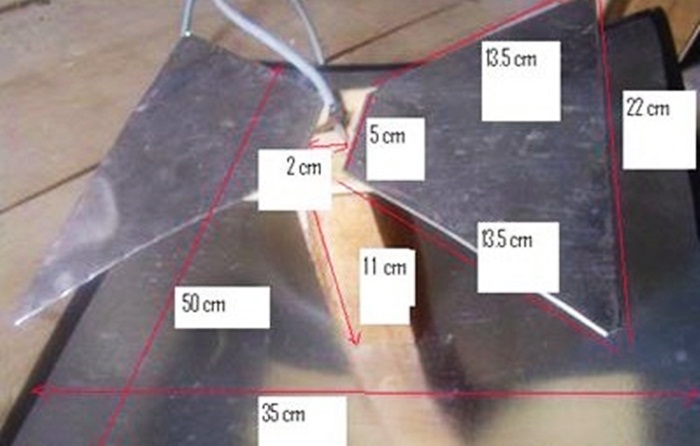

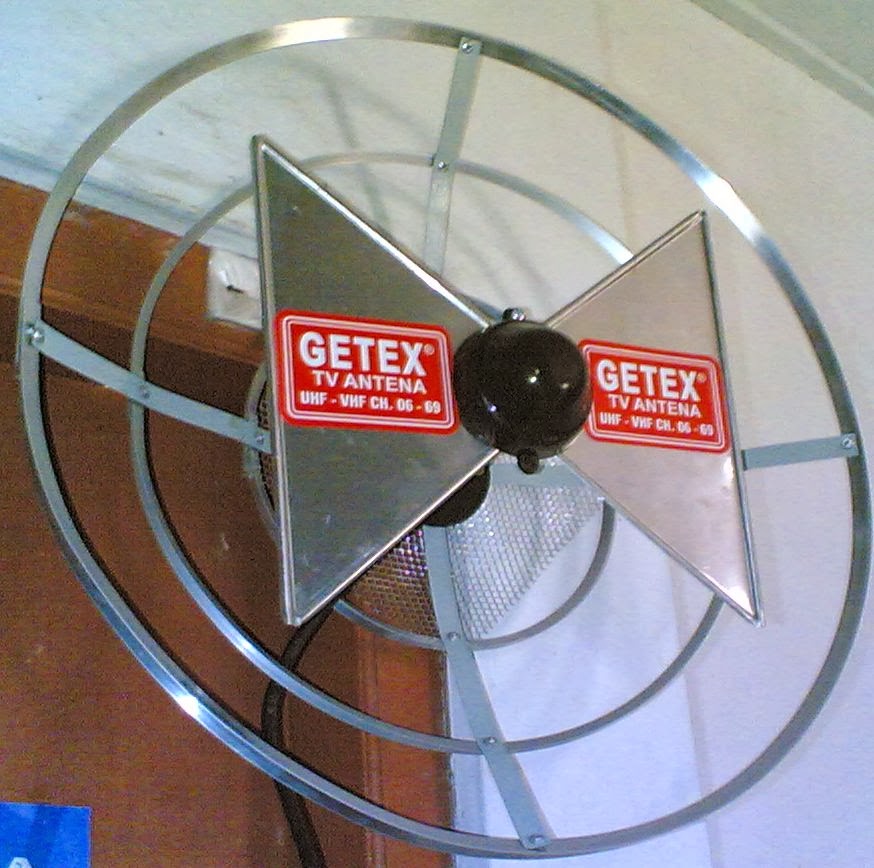

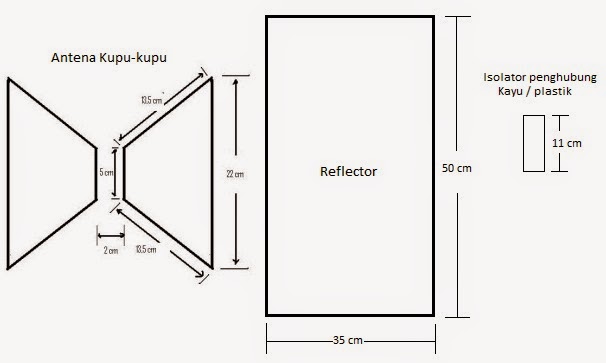

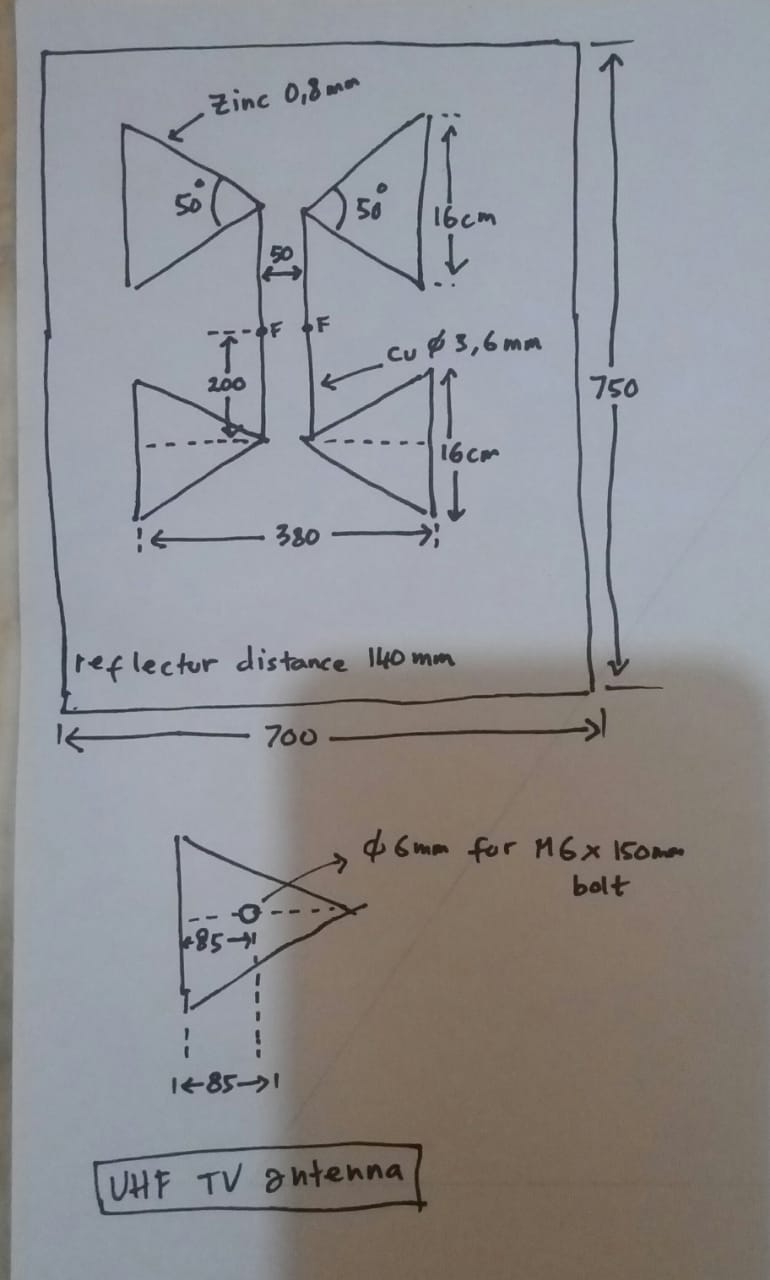

", that's your antenna ... !!!




1 person likes this

Share this post


Link to post
Share on other sites
4 hours ago, Admin said:

", that's your antenna ... !!!

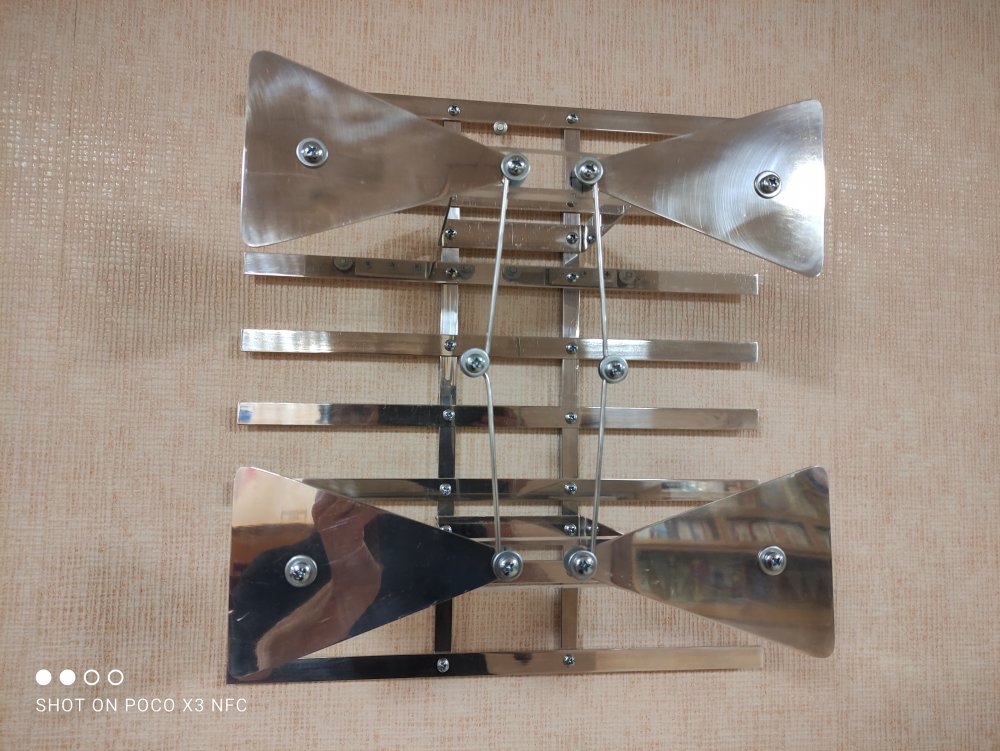

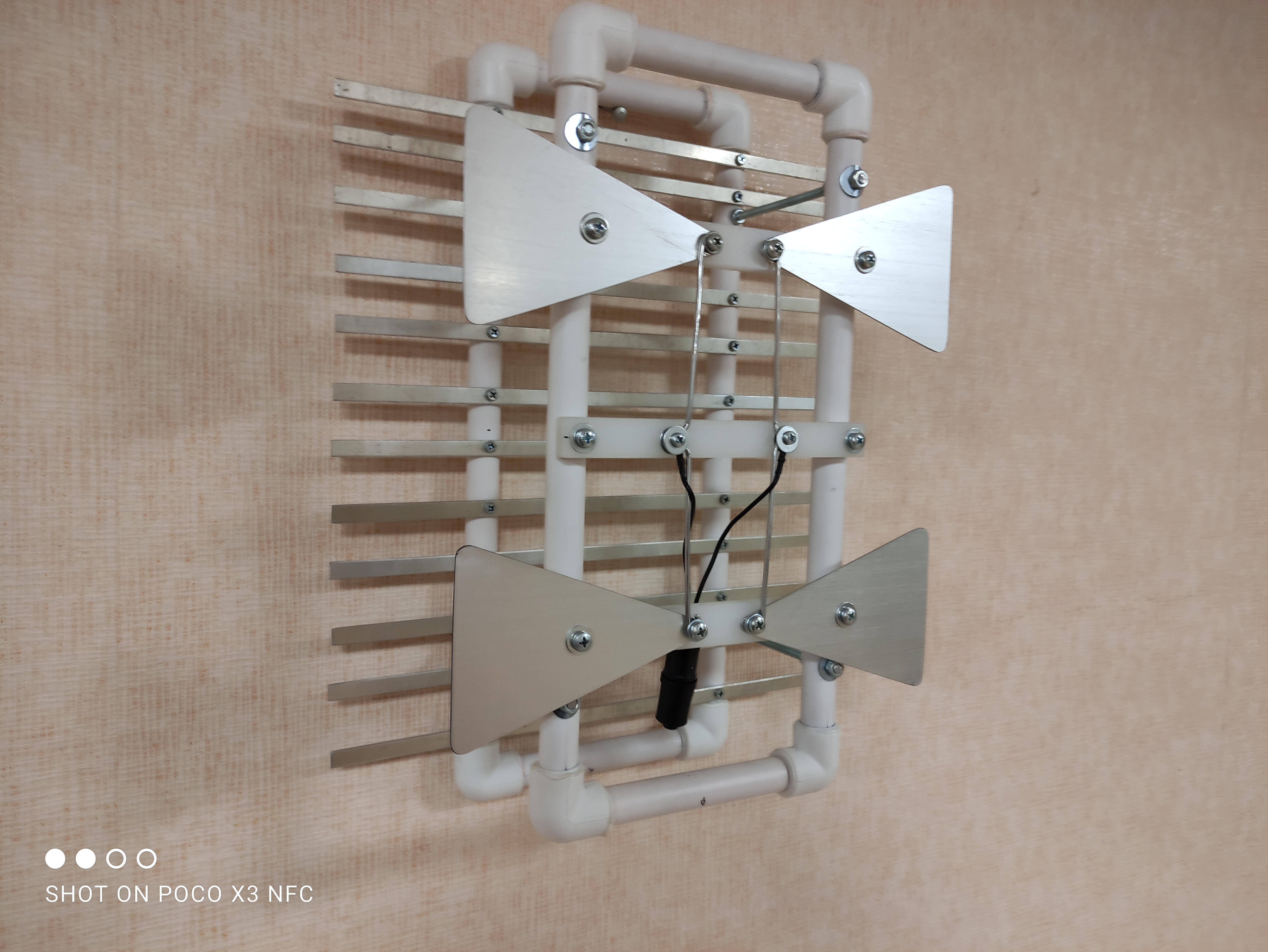

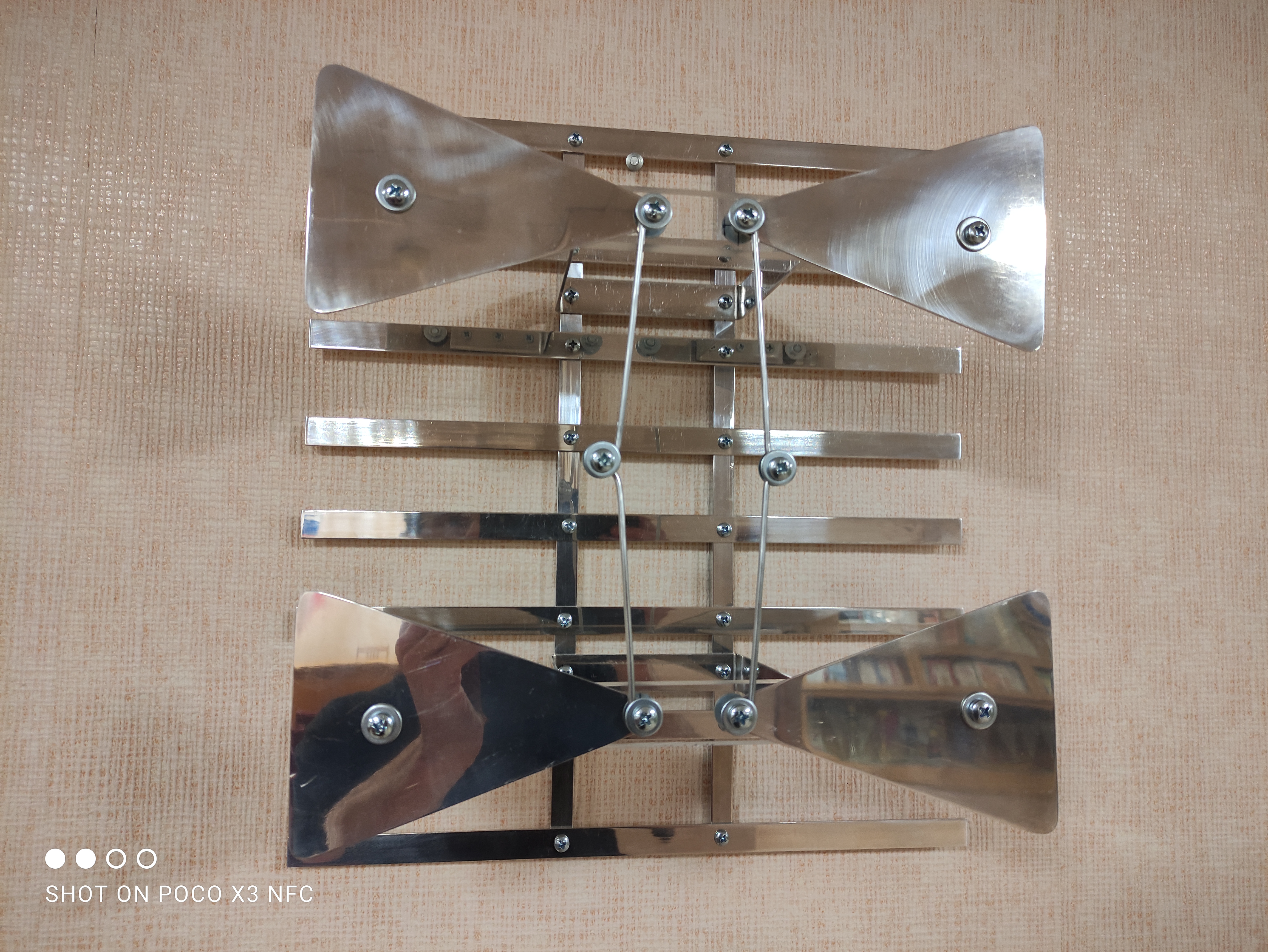

WOW ....its A lot better than my old build....many thanks Admin.....

Share this post


Link to post
Share on other sites

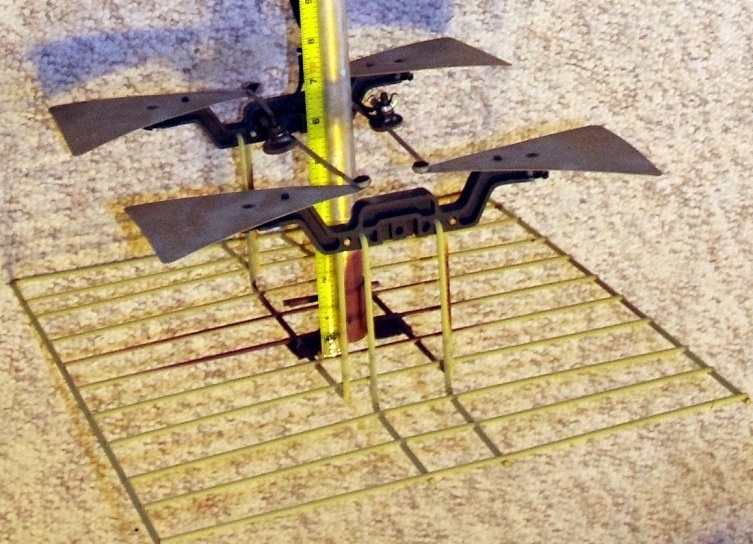

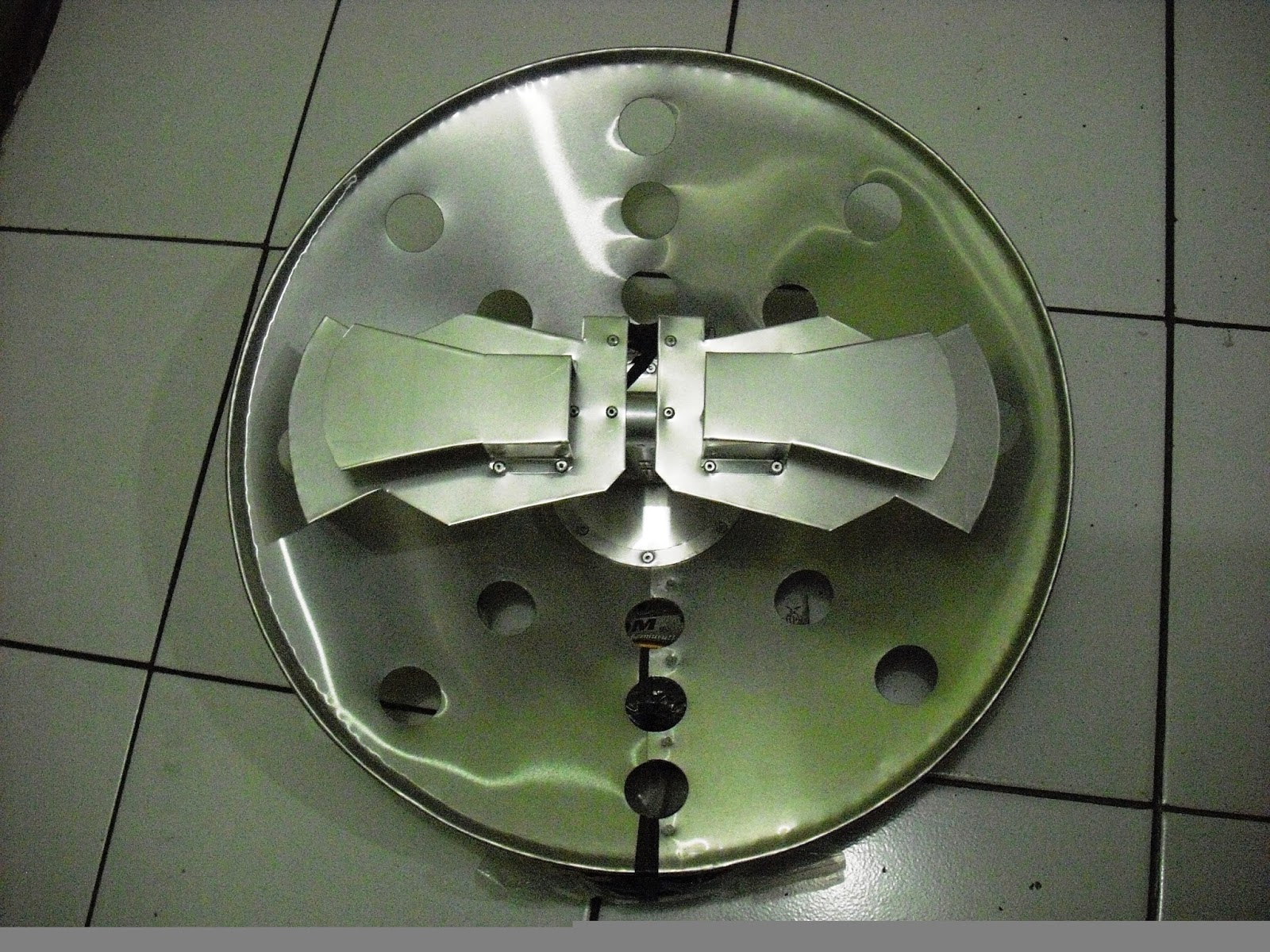

,,, yes, but I think the reflector is a kind of satellite dish...!!!

Share this post


Link to post
Share on other sites

A bow tie or butterfly antenna is a specific kind of Ultra High Frequency (UHF) fan antenna array. Despite their apparent similarities, bow tie antennas are not LP aerials.  Read more Details here
