Windalo antenna

[Hamza 43]

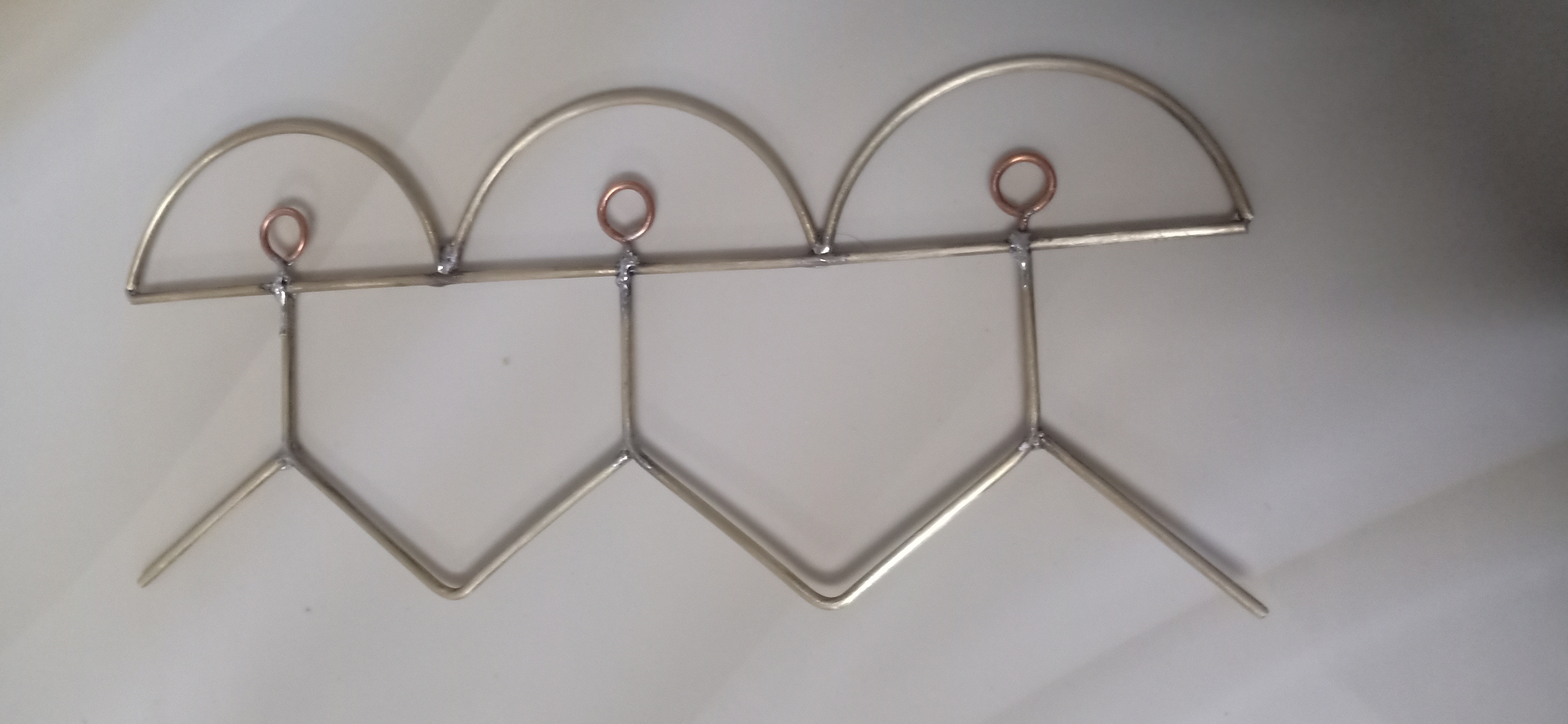

Windalo antenna  need  evaluation again  and simulation   it  better than double biquad  antenna .and some advice to make it ...



[clanon 246]

https://www.dropbox.com/s/wj47zaotgvpyzg6/MONTAJE DE LAS ANTENAS BELGRANO WINDALO.pdf?dl=0

[Hamza 43]

thank you clanon   i need simulation





[aurel 22]

what kind of trick is that?

[Admin 2545]

,,, it's a bullshit ,,,!!!

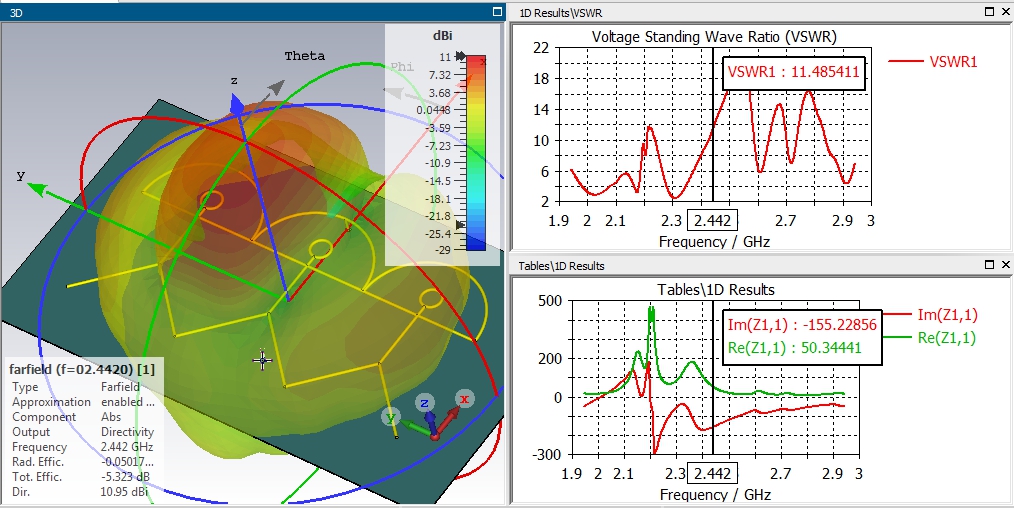

 I simulated something like that many years ago...!!!


[aurel 22]

I suspect Jomy that this must be a fake...

better than double biquad....ha ha

[Admin 2545]

AUREL, you're right buddy....!!!

I will post a simulation of this fake antenna a little later ... !!!

[Hamza 43]

I cannot wait jomy

[Admin 2545]

1 hour ago, Hamza said:

I cannot wait jomy

,,, and why are you telling me this ... ??

,,, because this antenna is a fake ... ???

[Hamza 43]

Thanks jomy

!  Mandarache made comparison in video and  he got higher signal than double biquade!???

[heinkel 0]

On 31/5/2020 at 11:21 AM, Admin said:

,,, and why are you telling me this ... ??

,,, because this antenna is a fake ... ???

Wrong simulation.

[heinkel 0]

On 31/5/2020 at 8:23 PM, Hamza said:

Thanks jomy

!  Mandarache made comparison in video and  he got higher signal than double biquade!???

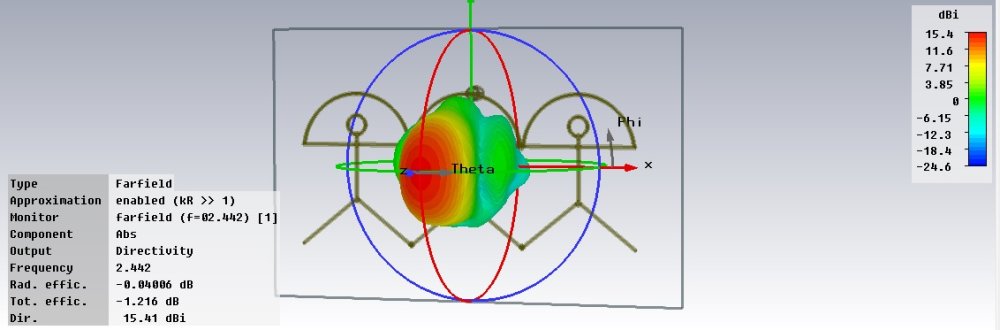

Your simulation 15.4 not 11db

[Admin 2545]

,,,if you are from Spain you must also be a patriot...????!!!!
,,,fake is fake...!!!!

[heinkel 0]

What is a fake?



[Admin 2545]

[heinkel 0]

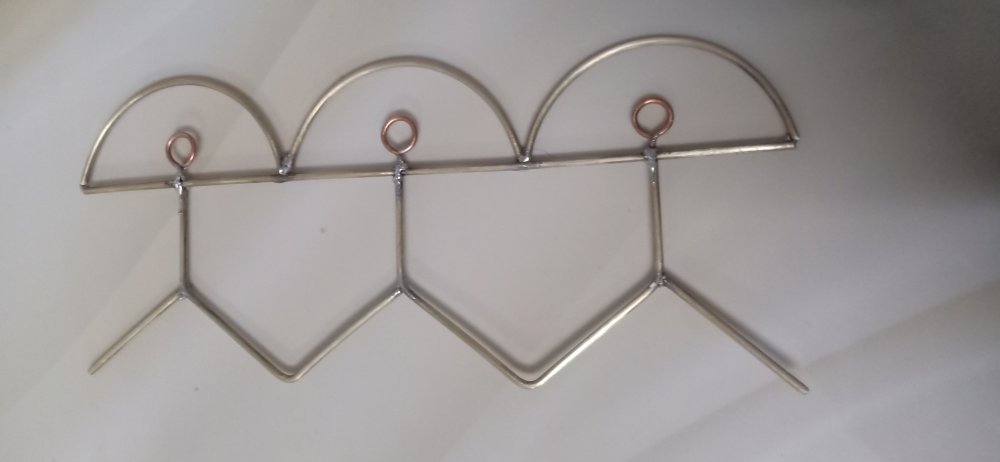

Yes , you are right it is very difficult to try a simulation without the exact measurements. The antenna works very well if it is done as the creator indicates but he did not give the measurements for an exact simulation. I actually built it and it works very well despite that strange design.To simulate it you can use a little trick that is to scale it a little higher and lower and see if it is close to the specifications that gives you an idea of the benefits.

[Admin 2545]

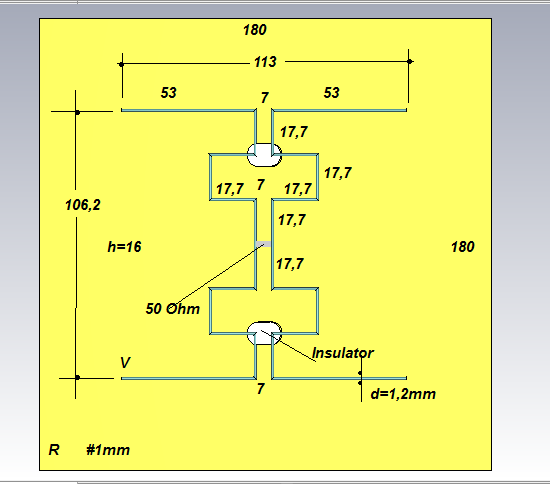

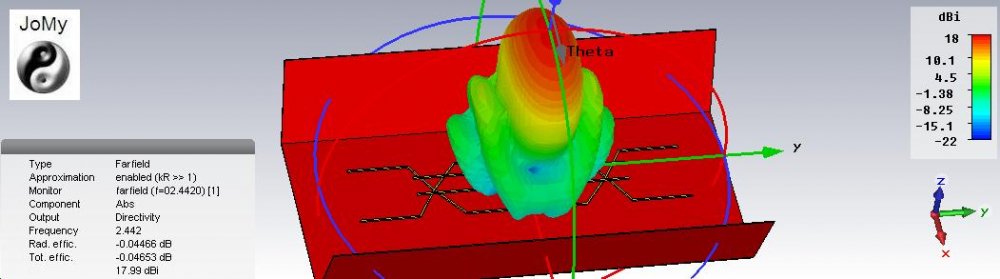

,,, simple and good antenna...

[heinkel 0]

Really but is not a Windalo. Please can you remove the lobe ?



Edited February 11, 2023 by heinkel

[Admin 2545]

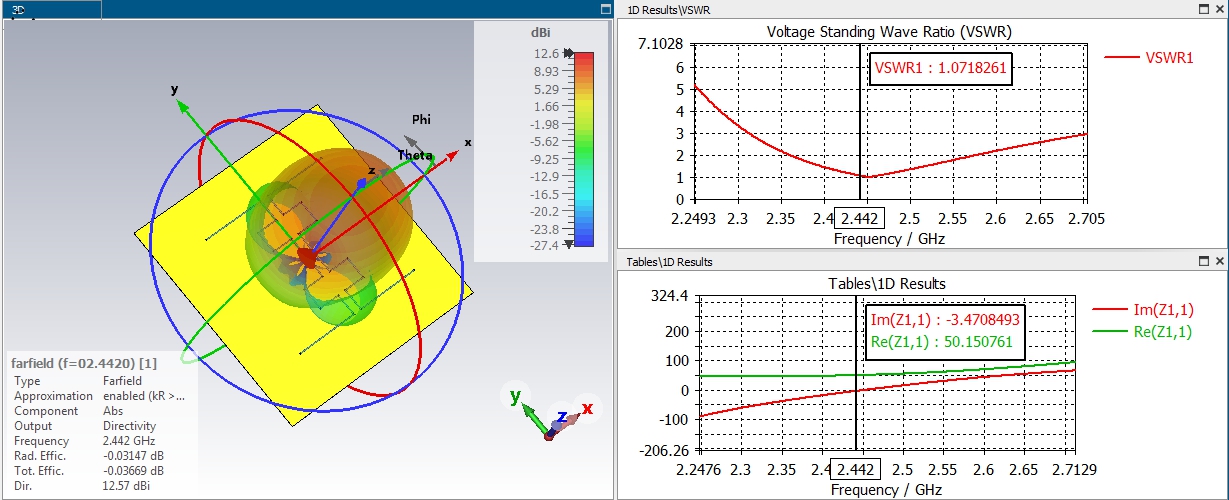

,,, it can't be better than that...!!!

[heinkel 0]

Awesome  Super ¡¡¡¡¡¡¡ Thank you. ¡¡¡¡¡¡¡



[Admin 2545]

Mul_ono Channel antenna...
