Antenna with dual linear polarizations ? any thoughts ...

[antenna_kid 13]

Hi to all
I'm looking for design of antenna that has:

- wide beam width
- receives horizontal and vertical polarization
- has one port
- gain isn't so important - 5-9dbi will be enough.
- can be made from FR4 (1mm) - I have small CNC so for me it's easiest way.

I know that I can use here antenna with circular polarization - but when will combine linear with circular i will loose 2.6dbi.

I've been looking for such designs but didn't found.

Cheers
Antenna_Kid


[Admin 2545]

Something like that ...???



[antenna_kid 13]

yup, it's dual polarized. But it's quite big and has dual port. Looking for something more compact.
Broad band isn't important for me. More important is wide beam.


[Admin 2545]

What frequency do you want?

[antenna_kid 13]

2.4 and 5.8 but dual polarized mainly for 2.4. Radio (rc control) has one port. That's I'm looking for such design.

[antenna_kid 13]

I did little research but didn't find something interesting, maybe this one design:


https://www.intechopen.com/books/trends-in-telecommunications-technologies/dual-linearly-polarized-microstrip-array-antenna

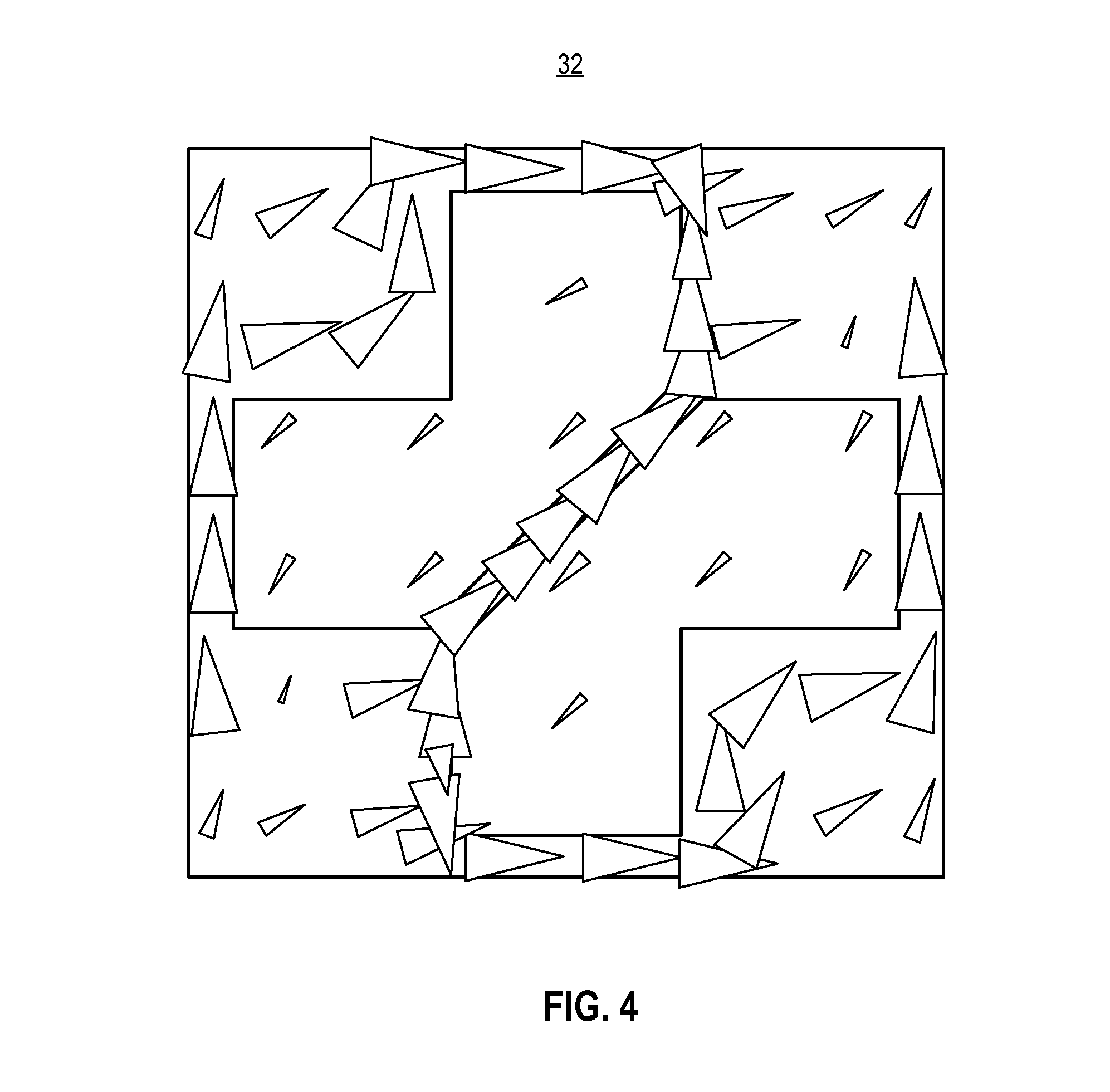

This also looks interesting:

https://www.google.ch/patents/US7508346

Edited October 2, 2017 by antenna_kid

[Admin 2545]

The dual polarized microstrip antenna was design to generate signals with  +45 and -45 polarized but with a loss in directivity gain of about 3dBi

This antenna is more interesting with symmetrical excitation at a resonant frequency

[antenna_kid 13]

14 minutes ago, Admin said:

The dual polarized microstrip antenna was design to generate signals with  +45 and -45 polarized but with a loss in directivity gain of about 3dBi



So, we will get almost the same when using CP antenna with similar gain... ?

[Admin 2545]

Something like that!
