WIFI ANTENNA "BAS-2307 WIFI DUAL BAND"

Outdoor dual-band directional WiFi antenna works in conjunction with WiFi routers that have removable standard antennas (RP-SMA connector).

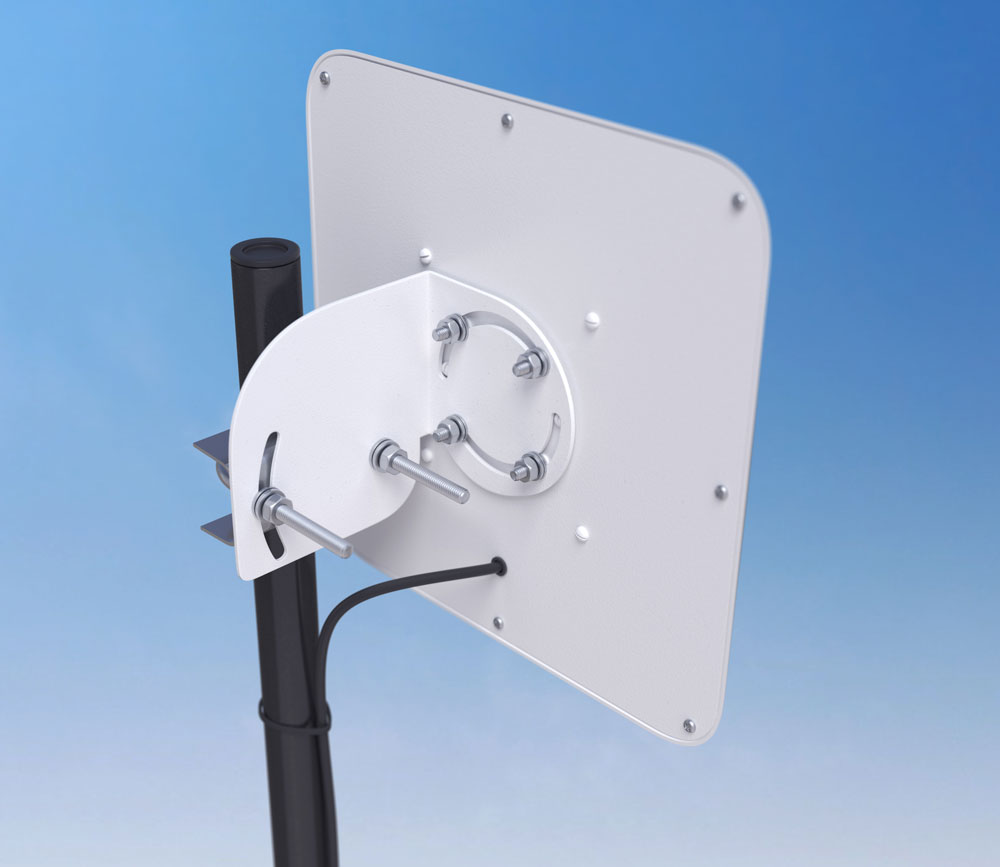

The antenna housing is made of radio-transparent plastic, which protects from UV radiation and most adverse weather conditions, increasing the service life. The antenna can be mounted on a mast or bracket with a diameter of up to 50 mm. High self-amplification allows you to cover with a confident WiFi signal, for example, the yard of a country house or dacha, expanding the scope of the home WiFi network for mobile and stationary devices, wireless video surveillance cameras, etc.

To connect to a WiFi router, the antenna is equipped with an RP-SMA connector.

SPECIFICATIONS


The location of the antenna:Outer
Supported communication standards:WIFI 2.4 GHz and 5GHz (standards IEEE802. 11a / ac/b/g/n)
Operating frequencies, MHz:2400..2500, 5100..6200
Gain factor, max., dBi:15/12
The standing wave ratio on voltage not more than:2
Wave resistance, Ohms:50
Maximum input power, W:40
Cable length, m:5
Connector type:RP-SMA
Built-in Wi-Fi adapter:no
Overall dimensions (without mounting unit), mm:240x240x85
Weight, not more than, kg:1
