Panel Antenna 15dBi

Started by Admin,

30 posts in this topic

Posted

On 11/24/2018 at 11:54 PM, Admin said:

yes, the diameter of the copper wire , influences the impedance of the antenna...!!!

yes, i was changed cu wire from 1,5mm to 1mm, it is working good... thank you!!

Share this post

Link to post
Share on other sites

Posted

I will try to do it...!!!

1 person likes this

Share this post

Link to post
Share on other sites

Posted

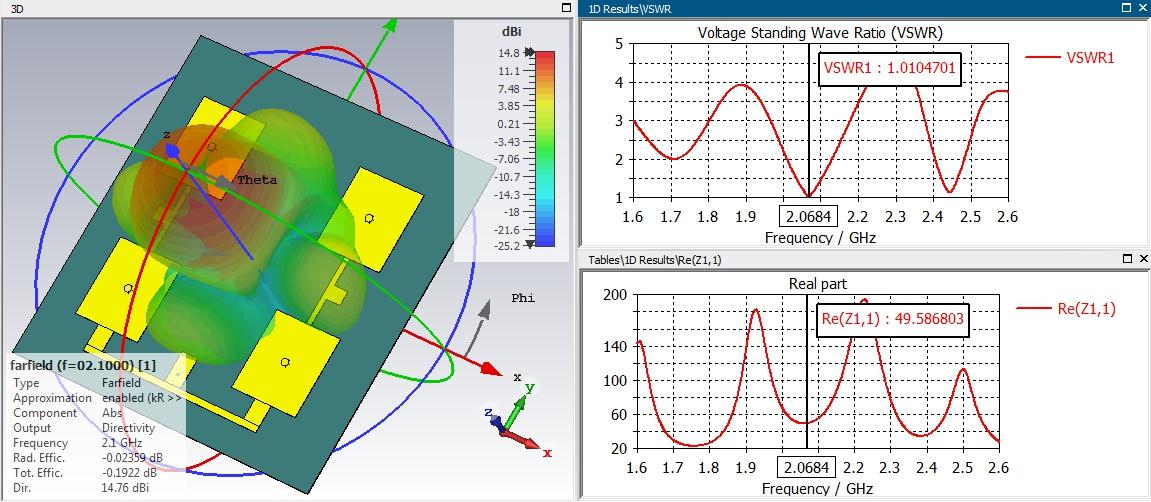

UMTS-FDD frequency bands and channel bandwidths(3G)

1920 – 1980 MHz---Uplink

2110 – 2170 MHz---Downlink

Fm=2045 MHz

,,,that's it...!!!





,,,it seems that this antenna does not ensure the bandwidth frequency required...!!!!

,,,it is the narrow band...!!!





1 person likes this

Share this post

Link to post
Share on other sites
