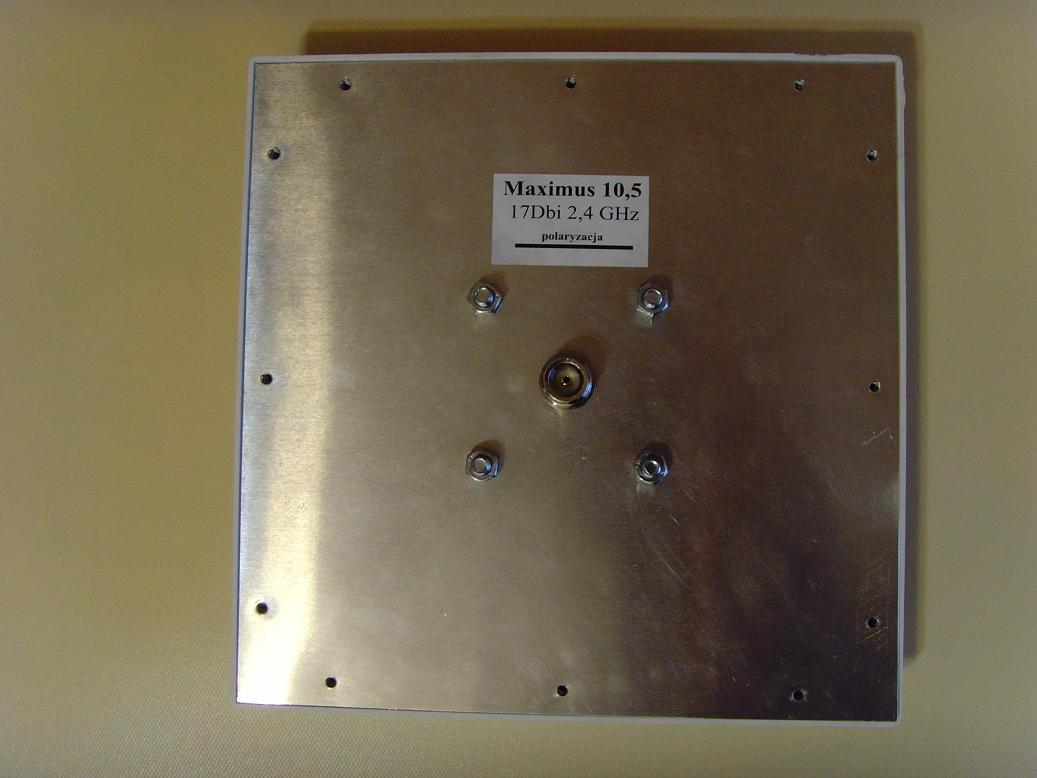

Maximus 17dBi 2.4 Ghz panel antenna

[Admin 2545]

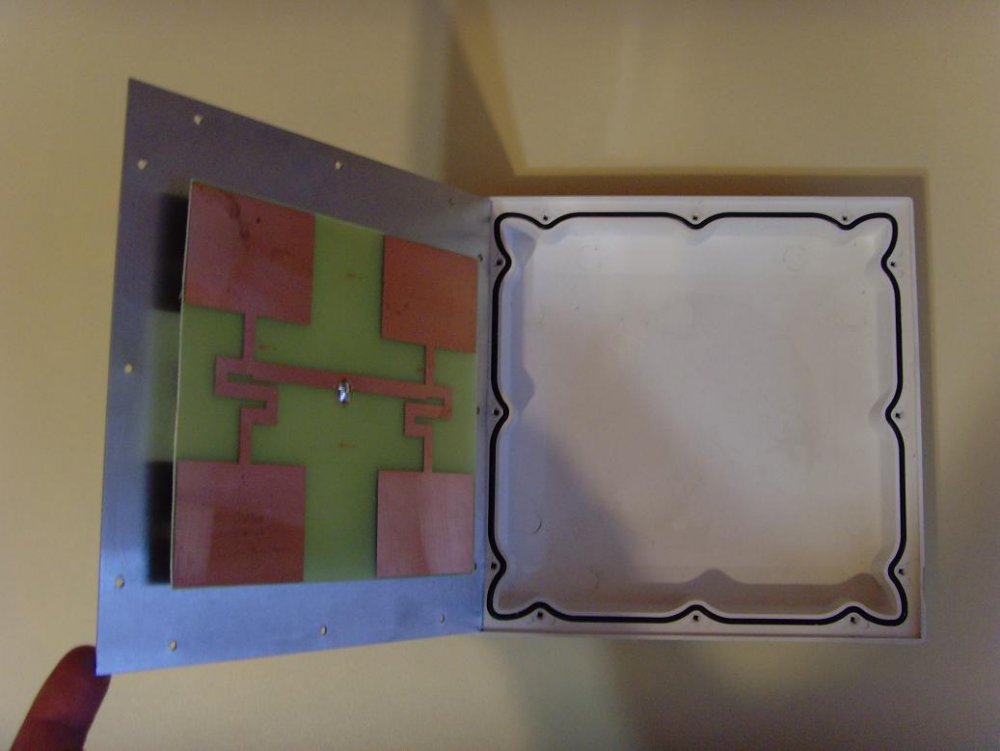

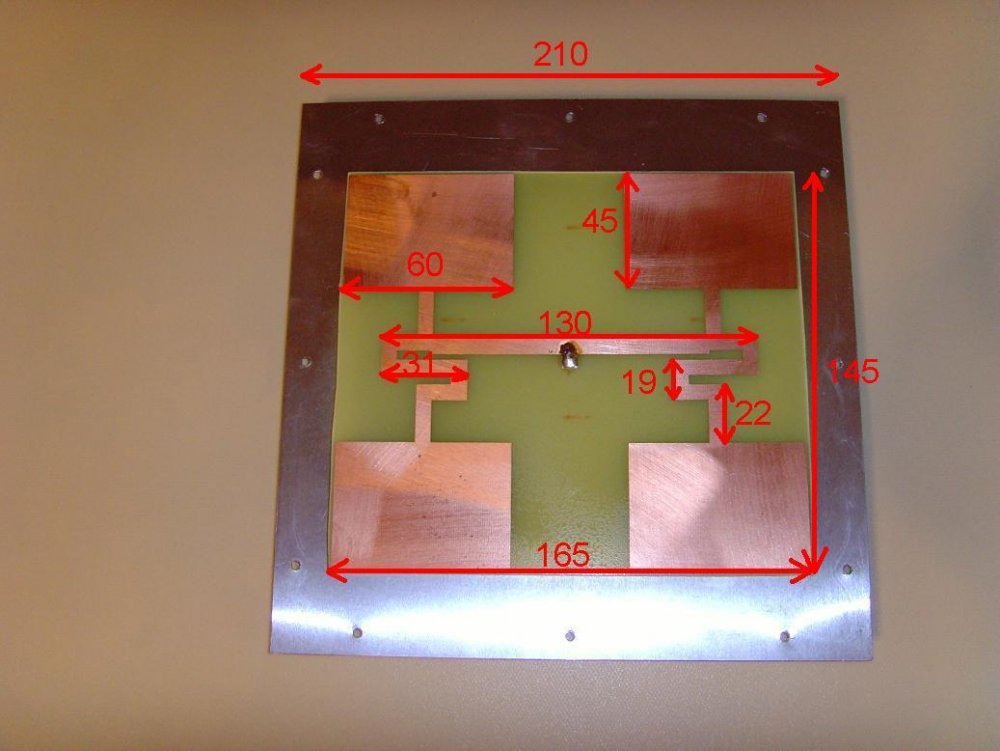

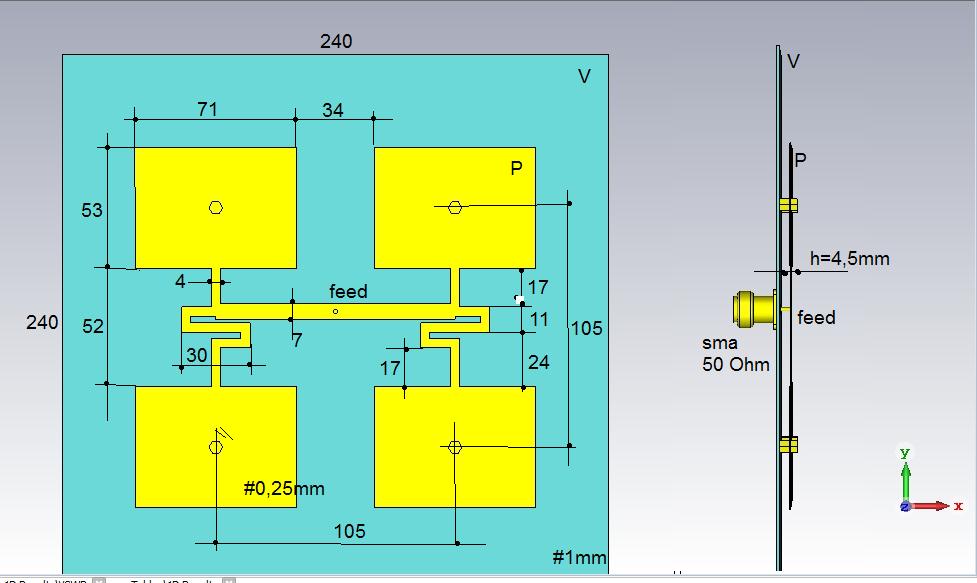

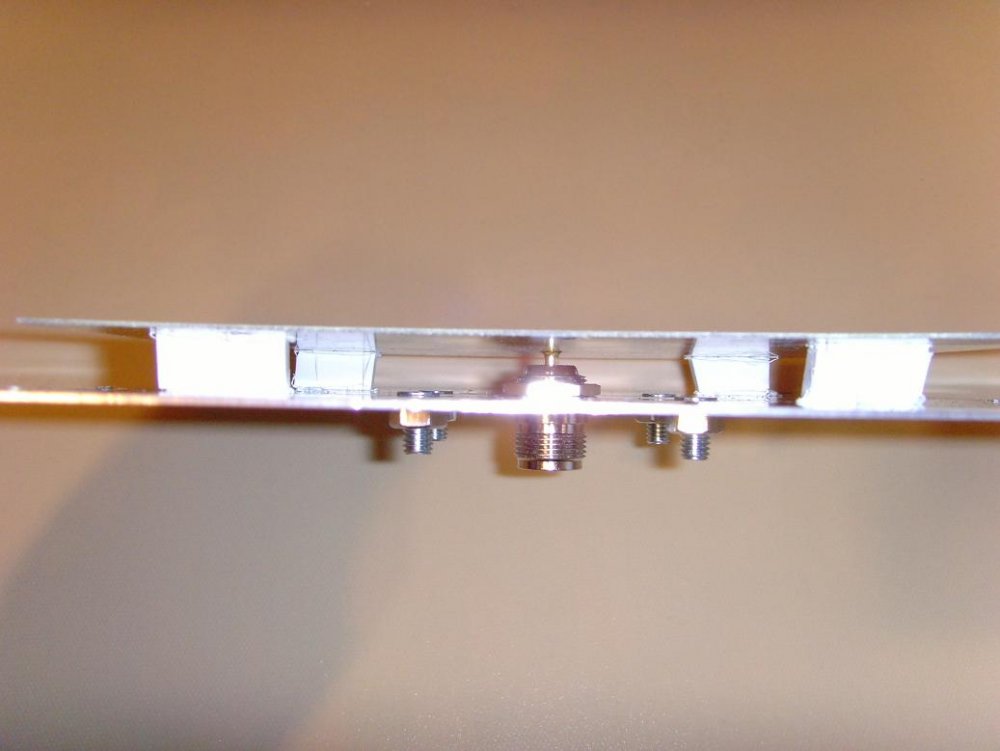

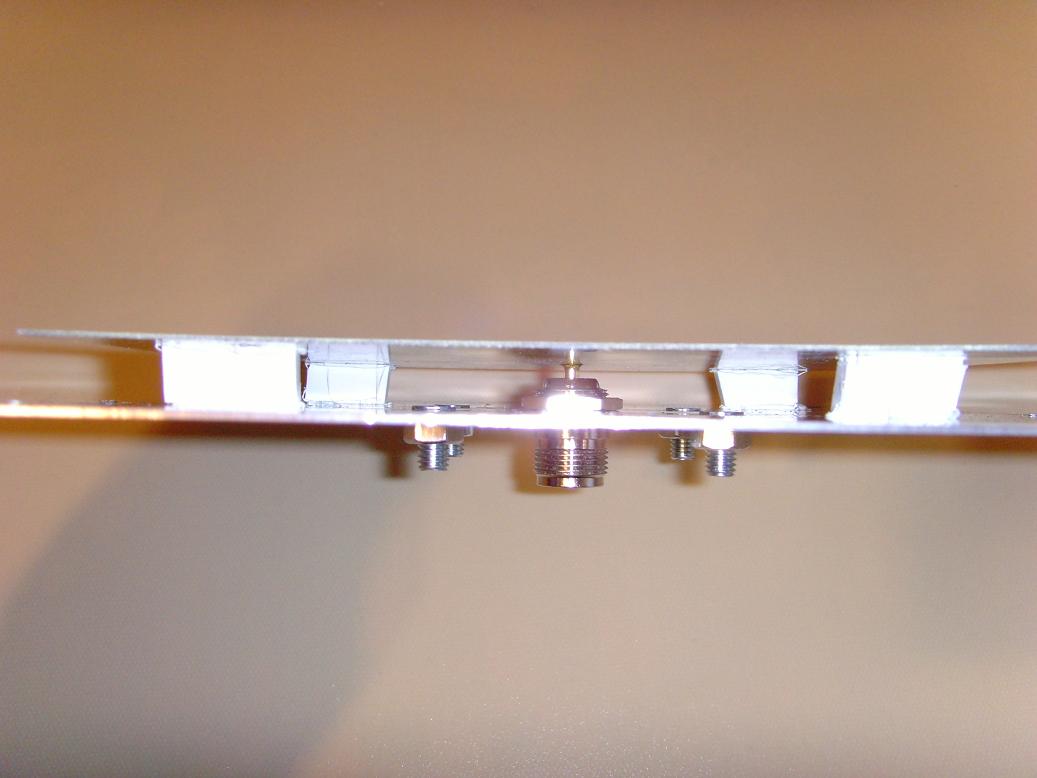

As it turned out, this is an ordinary getinax (who else calls textolite), on which the same Board is etched as a vibrator, and as a reflector and the back cover - a stainless plate. Getinax thickness is 1 mm, the distance between the vibrator and the reflector is 10 mm. Dimensions are attached (sorry for the quality, quickly made in paint-e). Very easy to repeat, anti-crisis solution . The gain factor was compared with the same 17dBi grid, which was slightly lower than the stated value  . Most likely, they are made in Ukraine, although Poland is listed as the manufacturer. If anyone has heard anything about their production , we will share our knowledge .

[clanon 246]

...17dbi...? more like 14 in my book...

(PS:Jomy , what Material is it FR4...?)

[Admin 2545]

,,,no,I think it"s fiberglass textolite,maybe...!!!

[hasan843 0]

friend.can this antenna use the radio tl-wa901nd or not?

[Admin 2545]

3 hours ago, hasan843 said:

friend.can this antenna use the radio tl-wa901nd or not?

TP-Link Network TL-WA901ND 300Mbps Wireless N Access it"s only for 2,4 GHz

[hasan843 0]

what if modify it with the radio using TL WA901ND can it or not? because I willmake neighbor wifi receiver clain 100mtr away.is there a suitable antenna?what`s the solution ?thank you

[Admin 2545]

,,, and yet, I do not understand what you want to do...???

[Antonius 17]

What if it was made using a thin sheet of aluminum?

[Admin 2545]

1 hour ago, Antonius said:

What if it was made using a thin sheet of aluminum?

,,, other dimensions are needed ... !!!

[Antonius 17]

please can you give me the dimensions?

[Admin 2545]

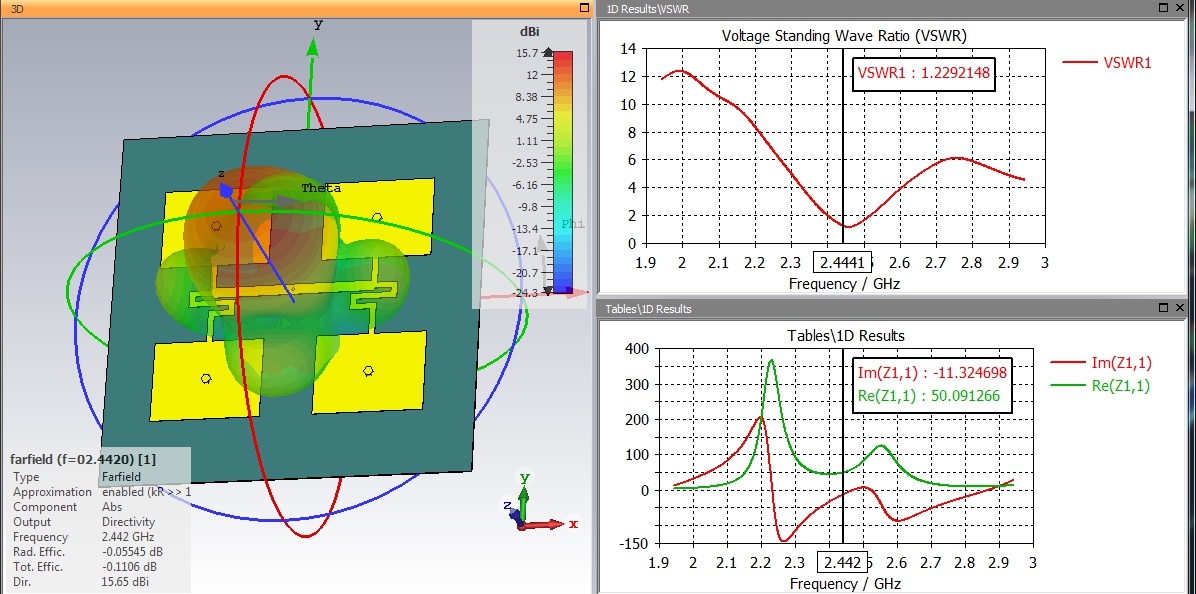

Antonius,,, this is what you asked me for .... ??? !!!



[Hamza 43]

Nice job JOMY as usual!



[Antonius 17]

Very cool. Thank you so much master Jomy.
