clanon

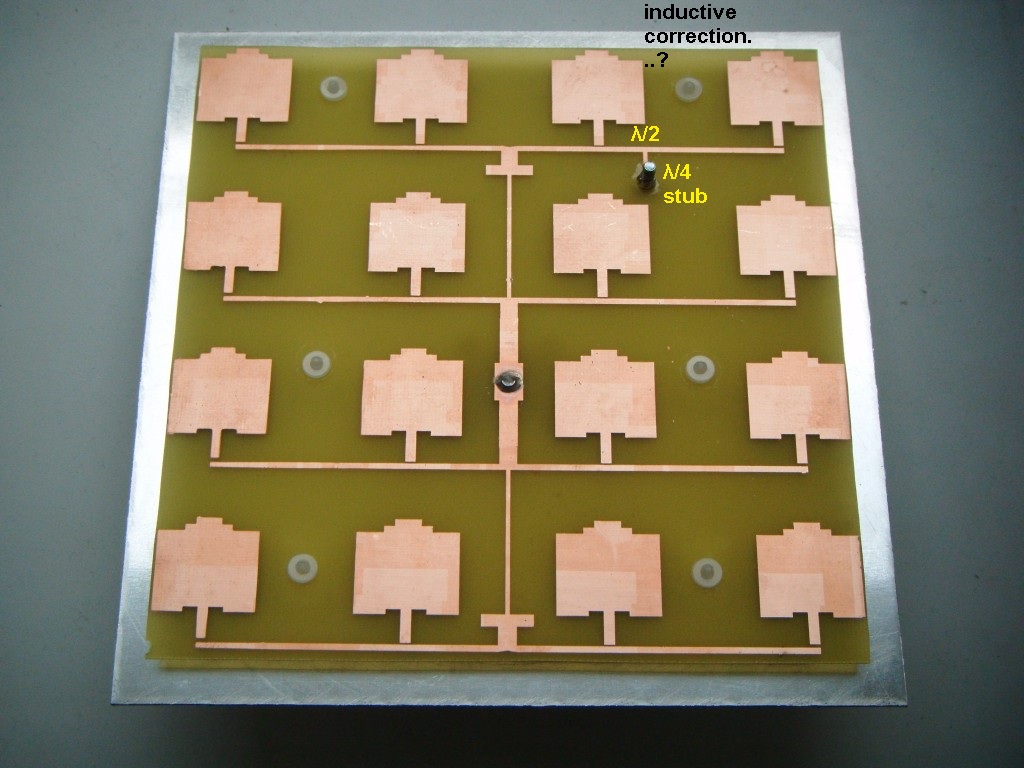

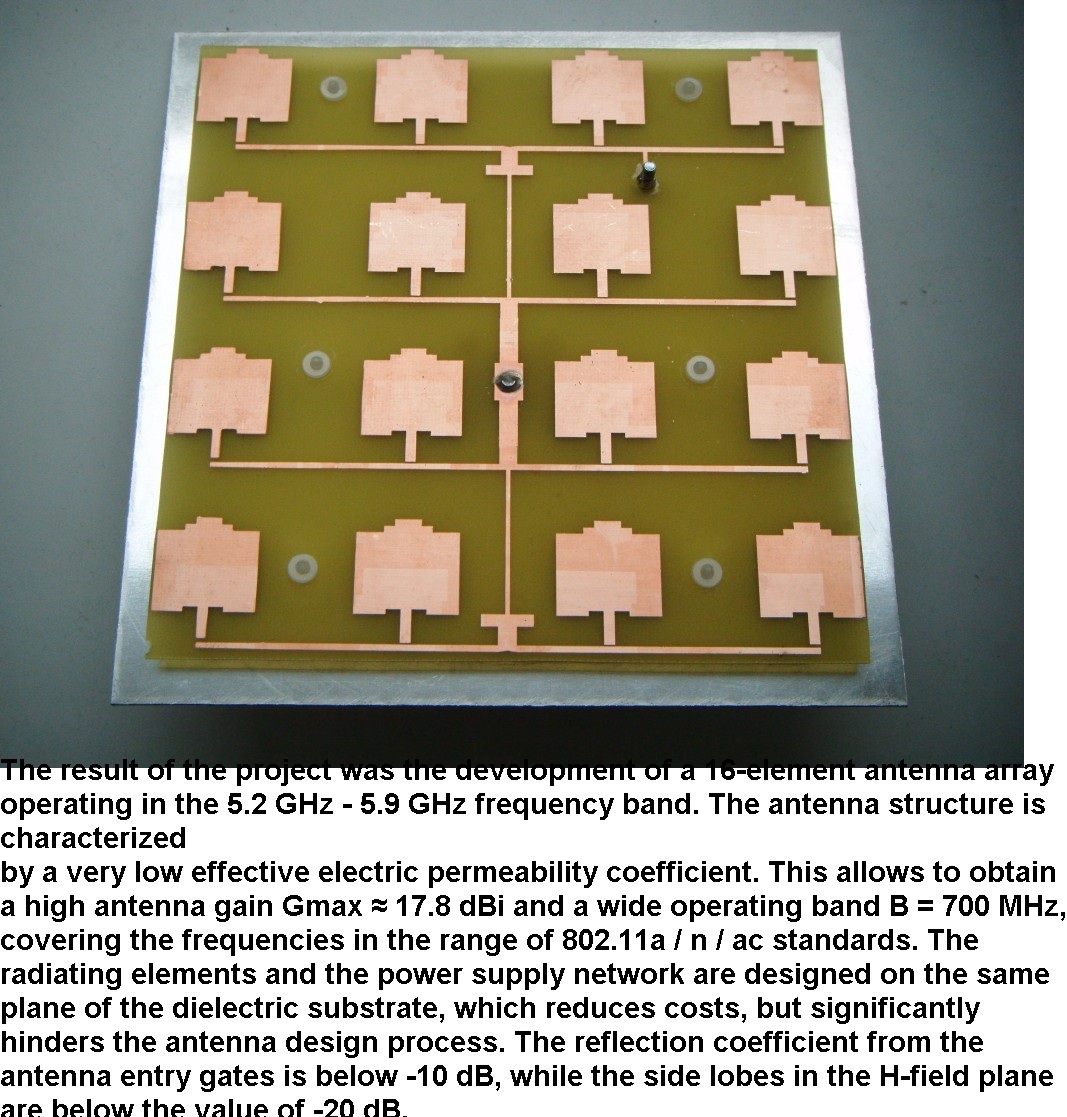

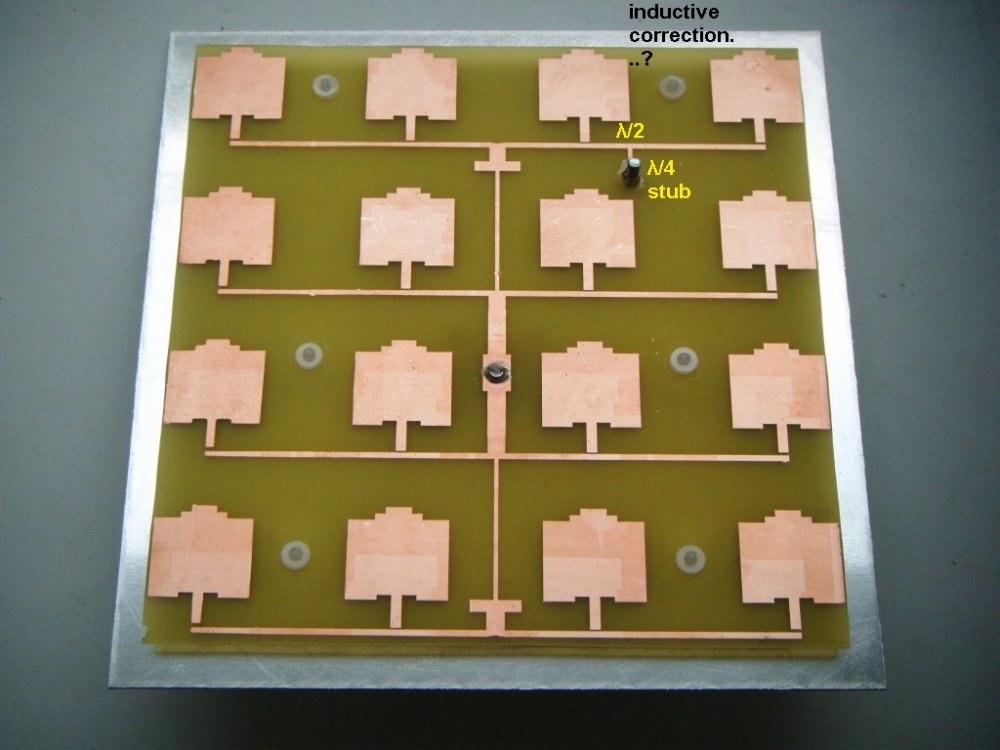

4 by 4 FR4

Originally designed for 5.8 (with HIGH LOSSES and low gain)

Inverse engineered to 2,4 ghz wjith High GAIN and Better Efficiency s on FR4



wifi-1024x768 (2).jpg

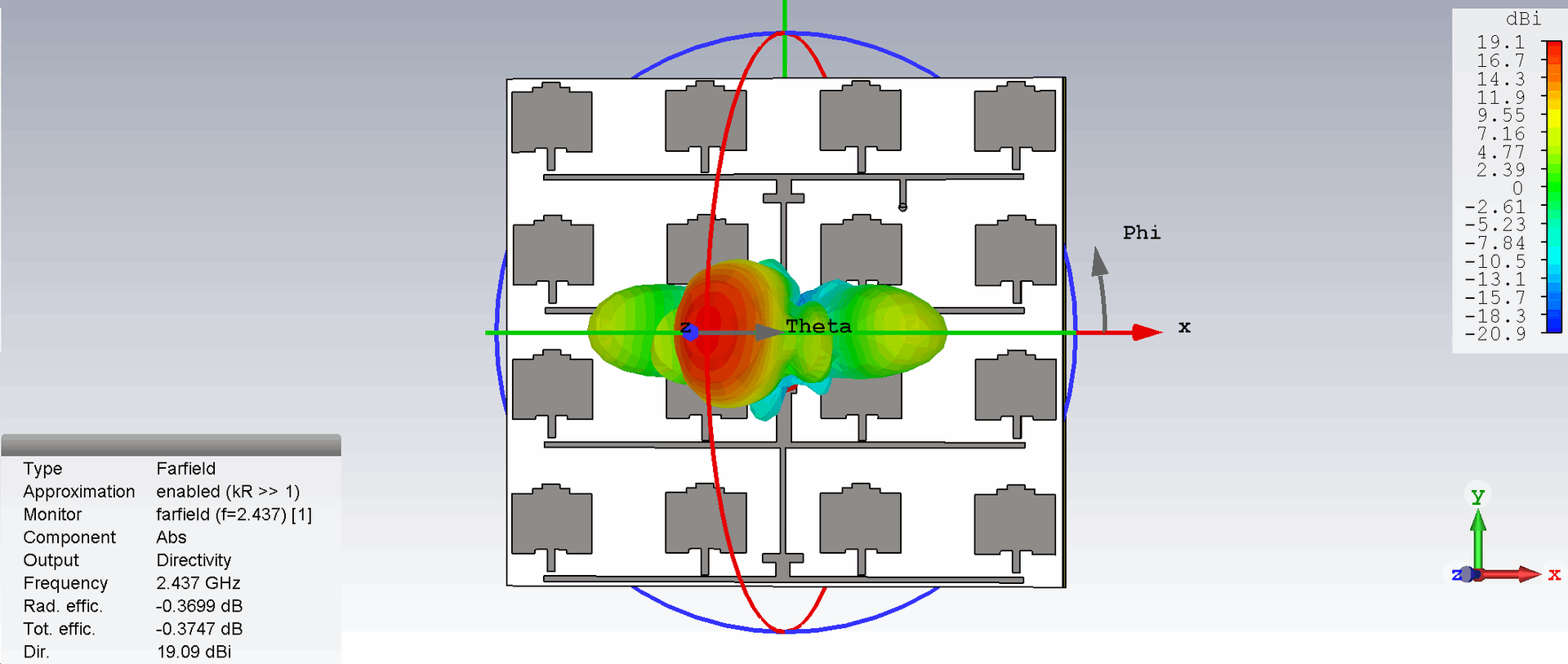

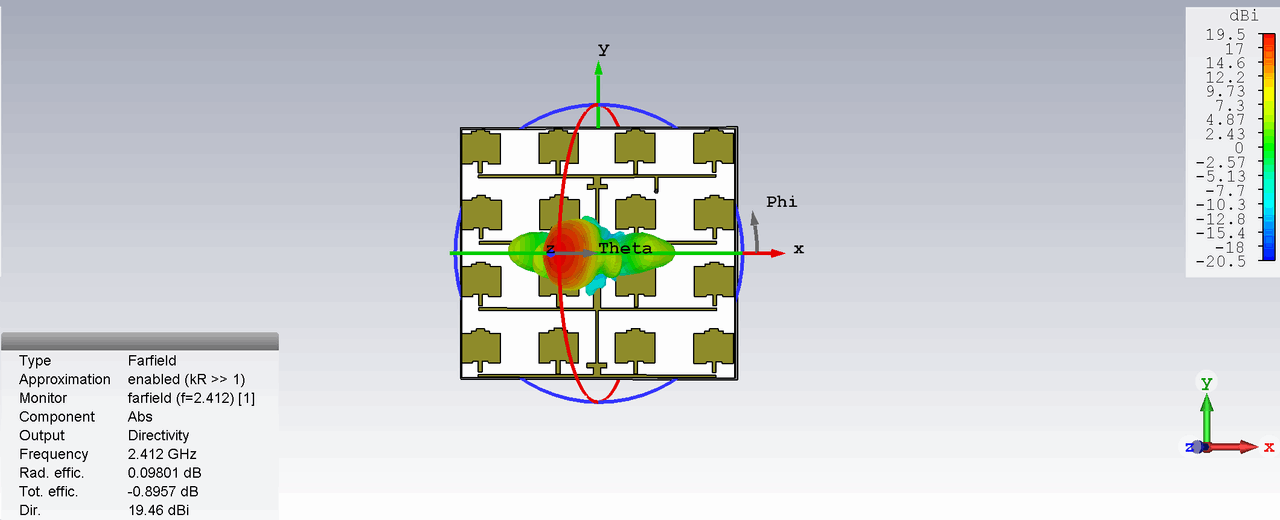

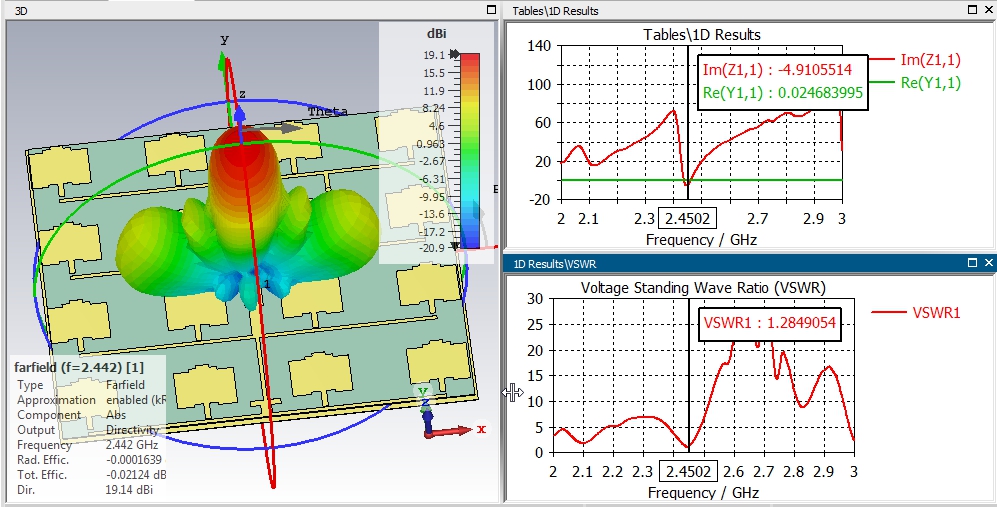

...modelling right now...almost there...Close to 20dbi

Edited by clanon

Share this post


Link to post
Share on other sites

,,, okay, success at work...!!!!

1 person likes this

Share this post


Link to post
Share on other sites

Forget to say SLOT FEED PATCHES

1mm Fr4

5 mm to reflector

Pinned quarter stub to gnd (reflector)...?

PS: NEEDs some fine tunning...yet... Gain could be smaller and VSWR wider under 2:1...






Edited by clanon

Share this post


Link to post
Share on other sites

Clanon, you can give some dimensions to this antenna...???

1 person likes this

Share this post


Link to post
Share on other sites
1 hour ago, clanon said:

do you want the .CST...? (easier to do )

,,okay...!!!

Share this post


Link to post
Share on other sites

I KNEW IT! ;) ...i was expecting you could fiddle with the distances ...there...(working on a 18dbi  24 dipoles right now)



Share this post


Link to post
Share on other sites

,,, such a thing is not correct .. !!!


1 person likes this

Share this post


Link to post
Share on other sites

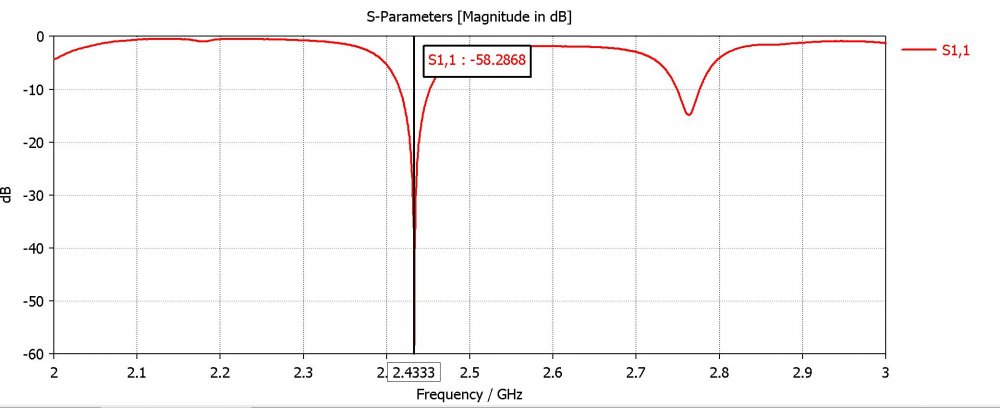

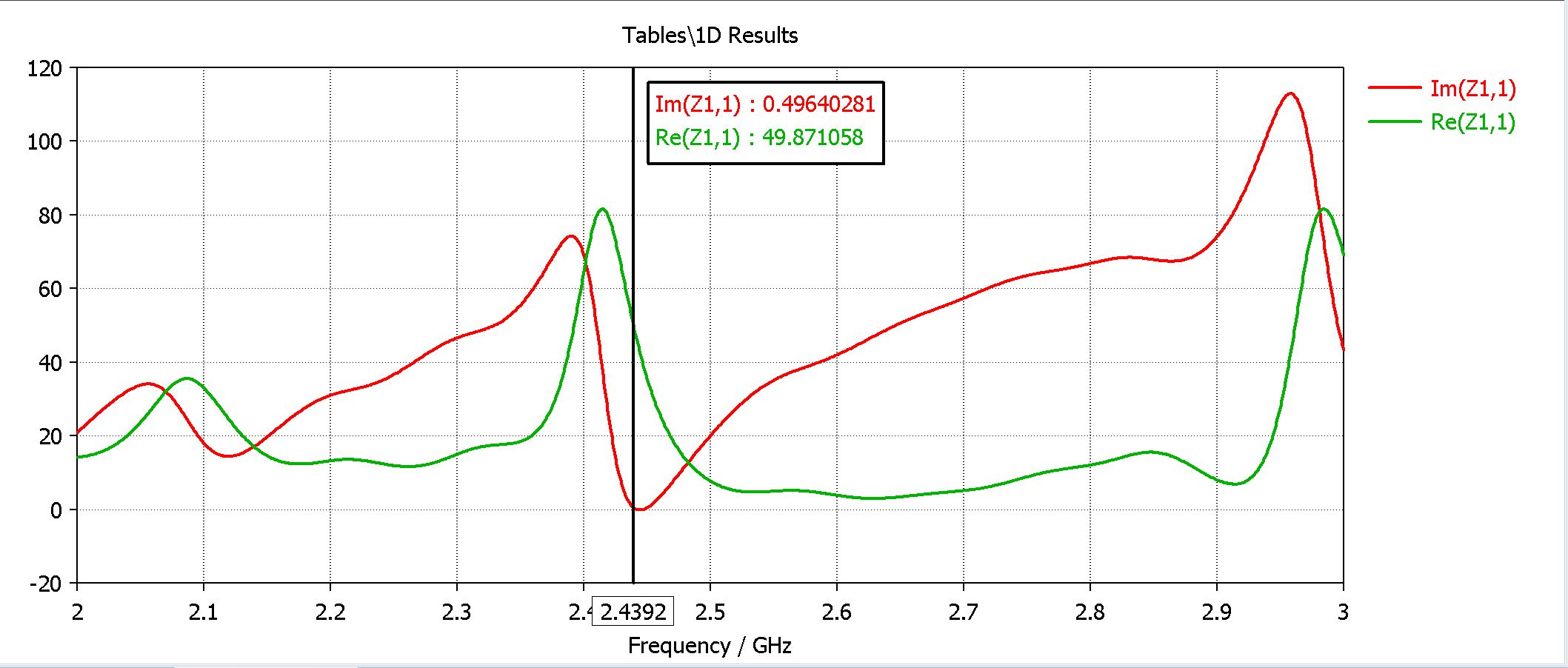

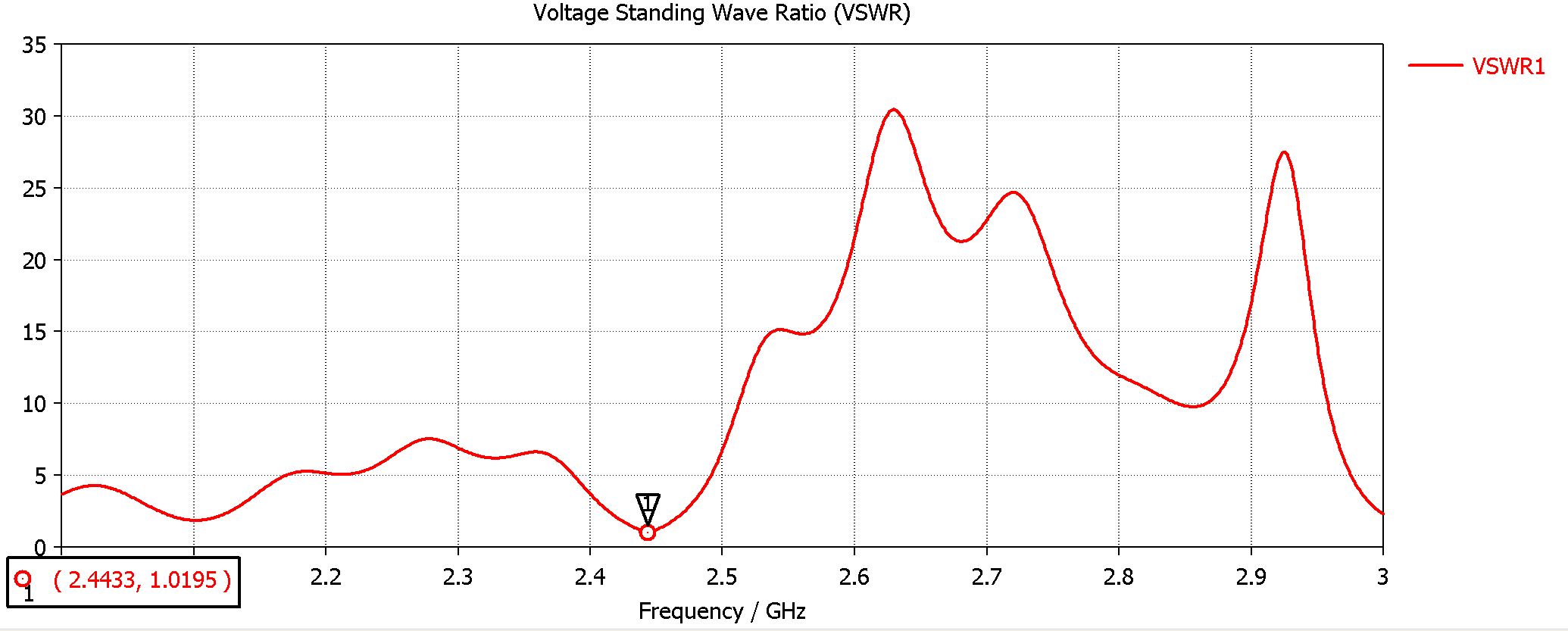

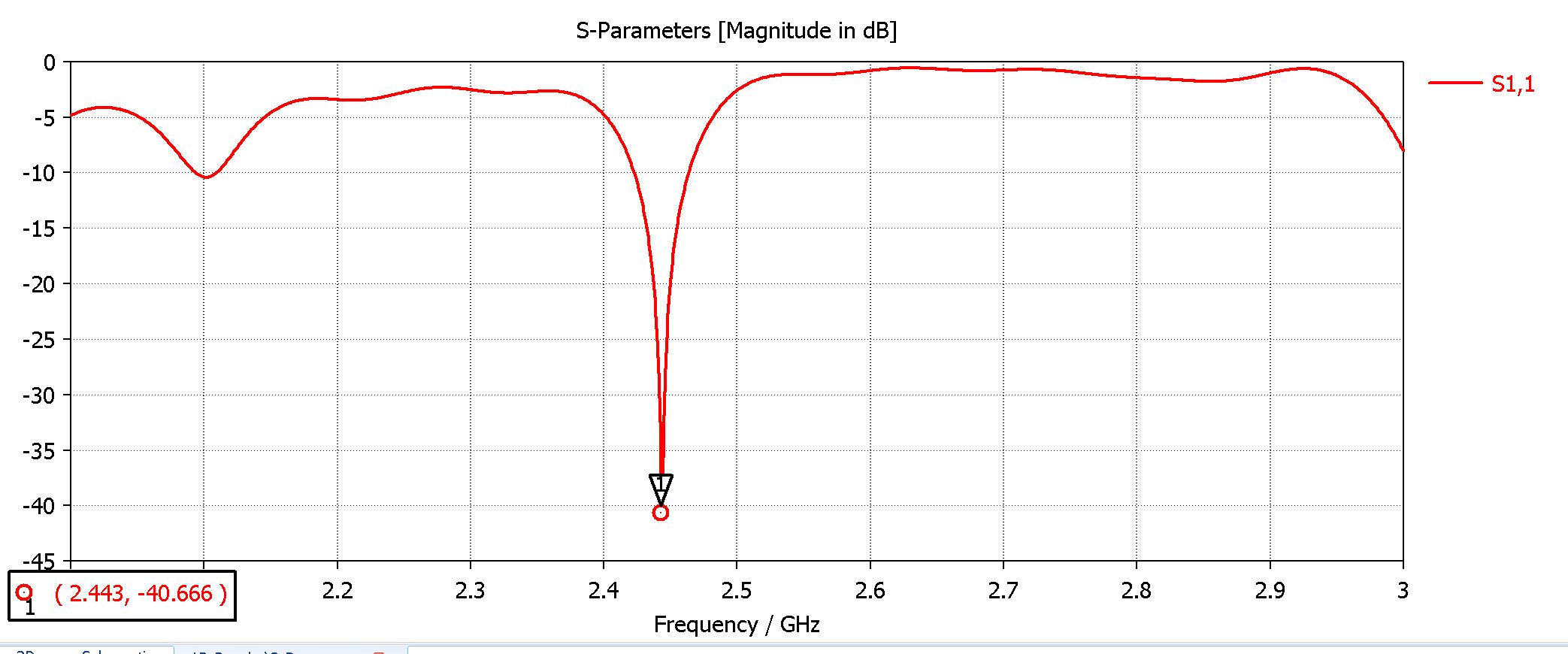

VSWR still a little high...2:1 in 802.11 band...

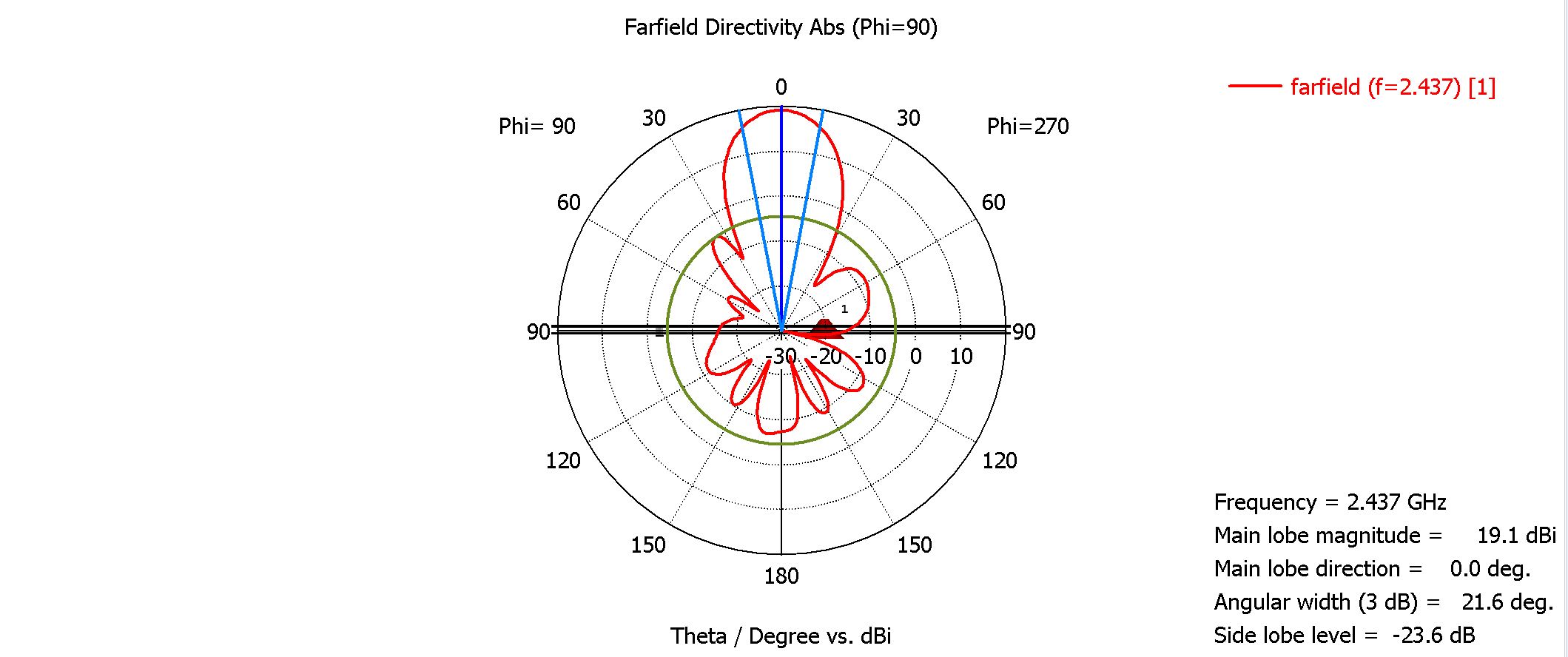

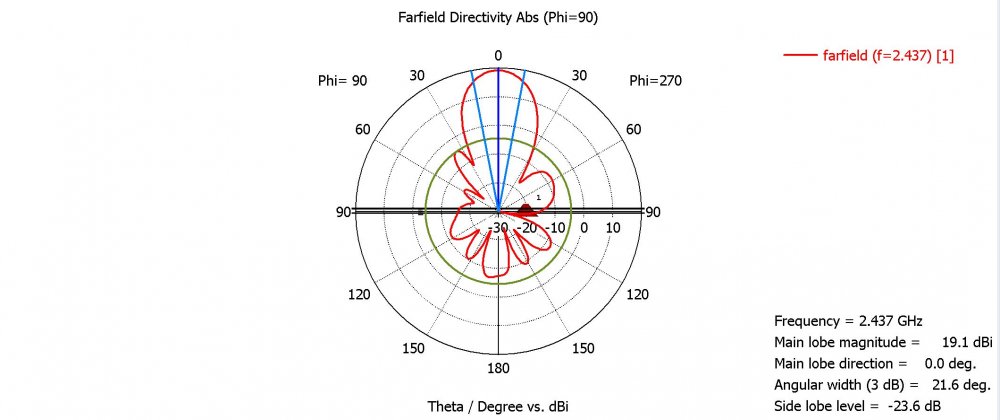

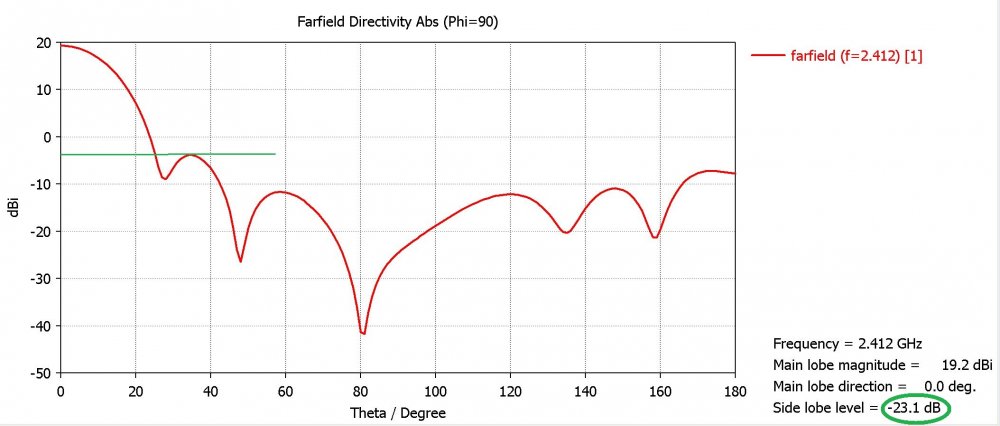

19 plus dbi , some horizontal sidelobes...

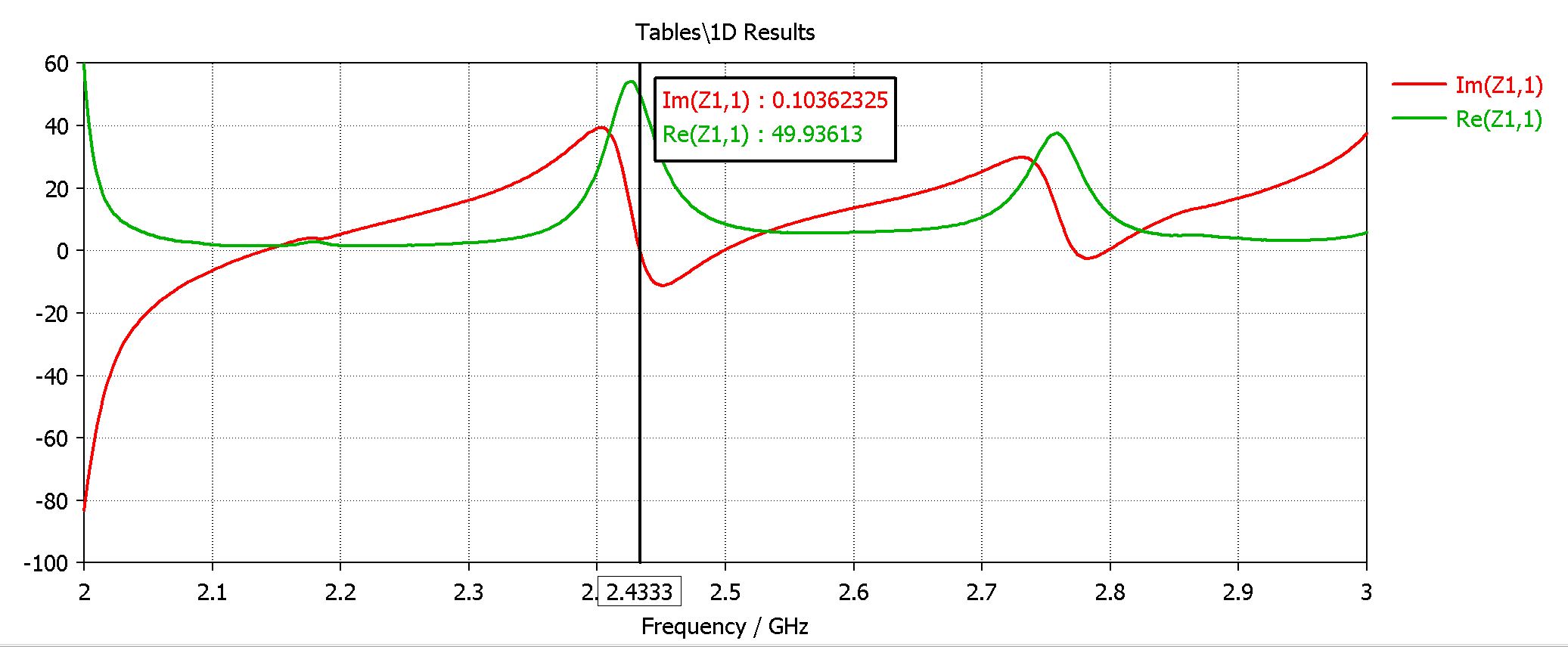

reactivity close to zero...


Share this post


Link to post
Share on other sites

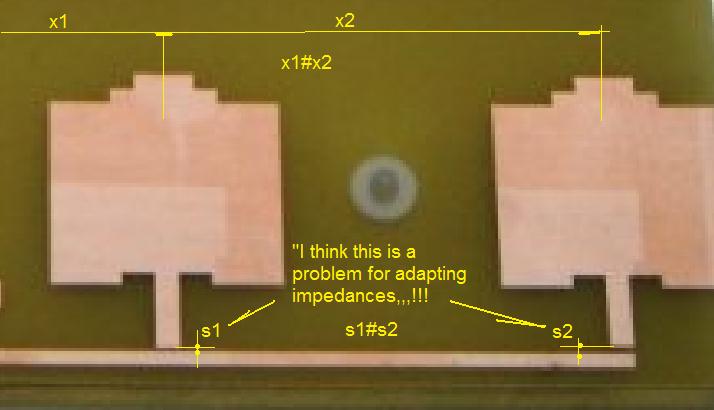

,,, to get rid of the lateral sidelobes, you need to reduce the distance x2...!!!

1 person likes this

Share this post


Link to post
Share on other sites

Sidelobes and narrow band...!!!

1 person likes this

Share this post


Link to post
Share on other sites

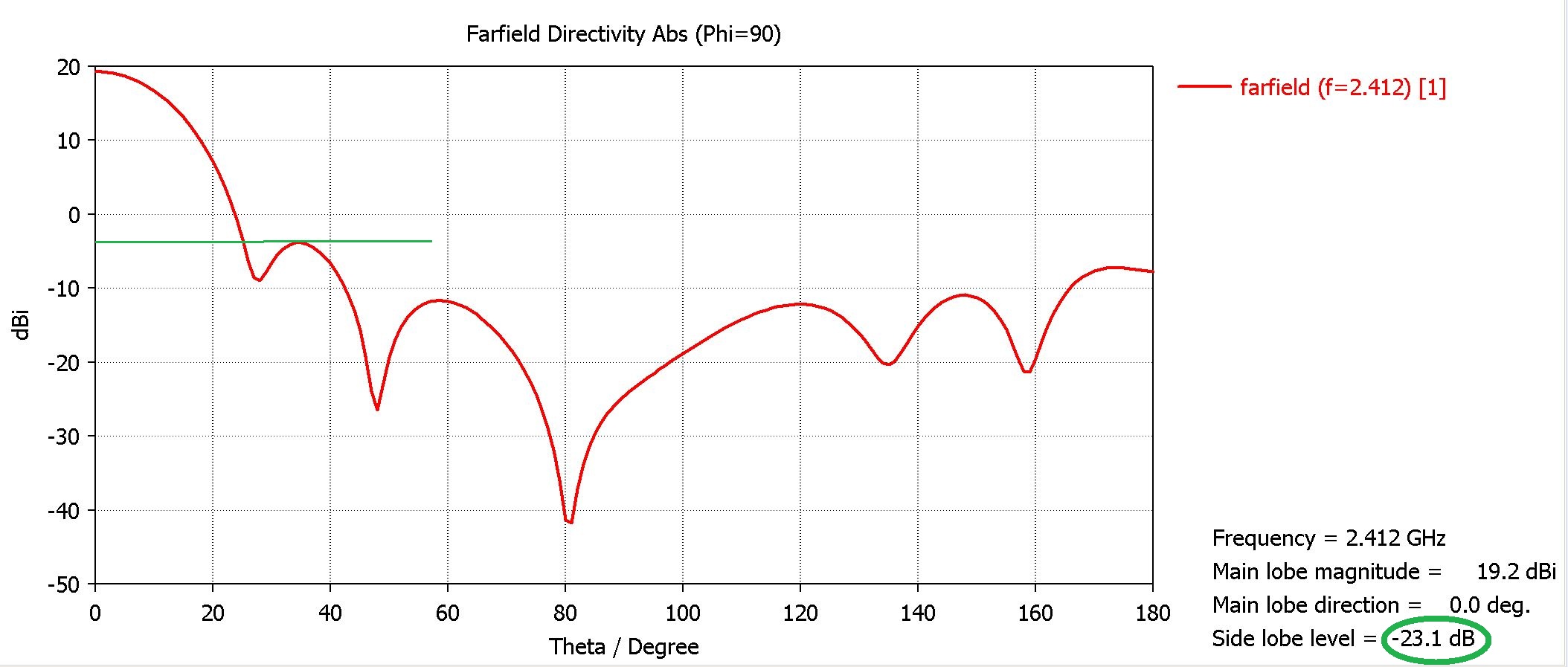

Well...they are UNDER -20db...so...not that bad...

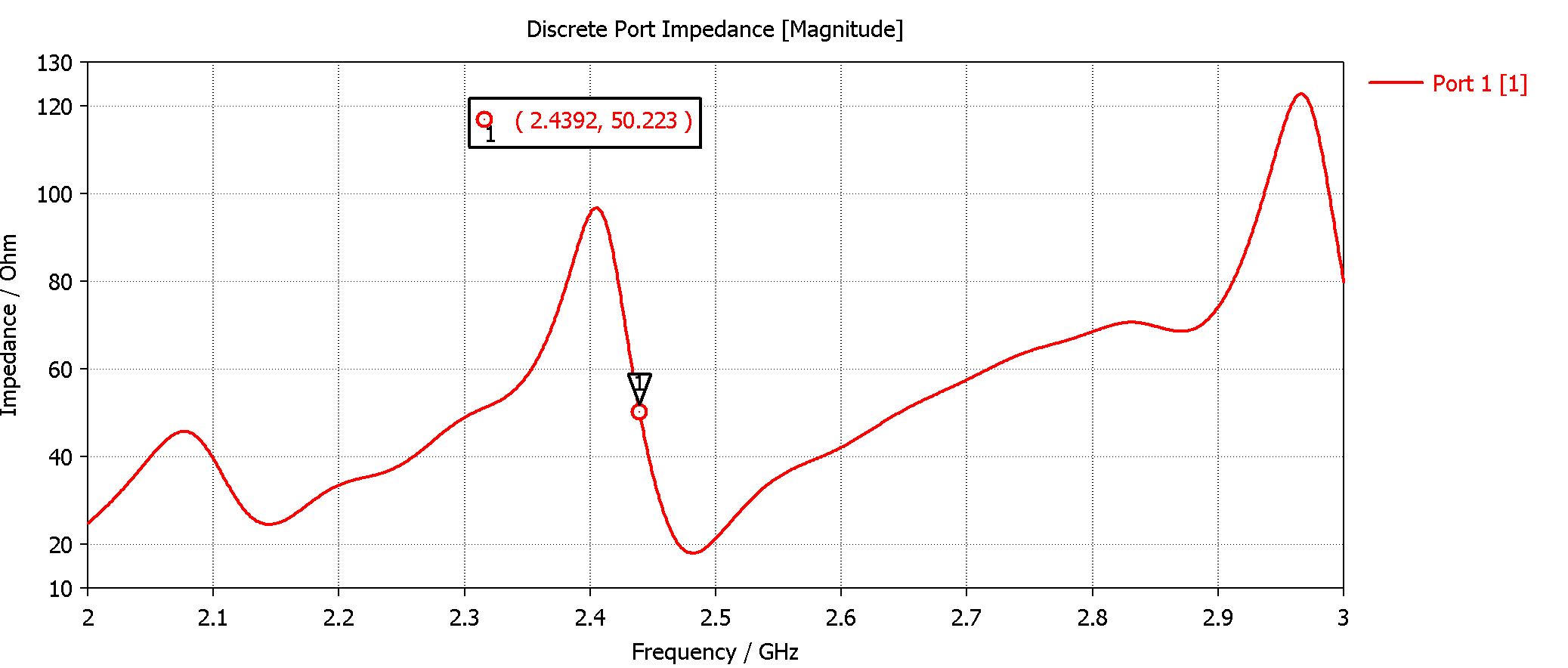

Z for wideband a different story

I'll fiddle with x1 and x2...




Edited by clanon

Share this post


Link to post
Share on other sites

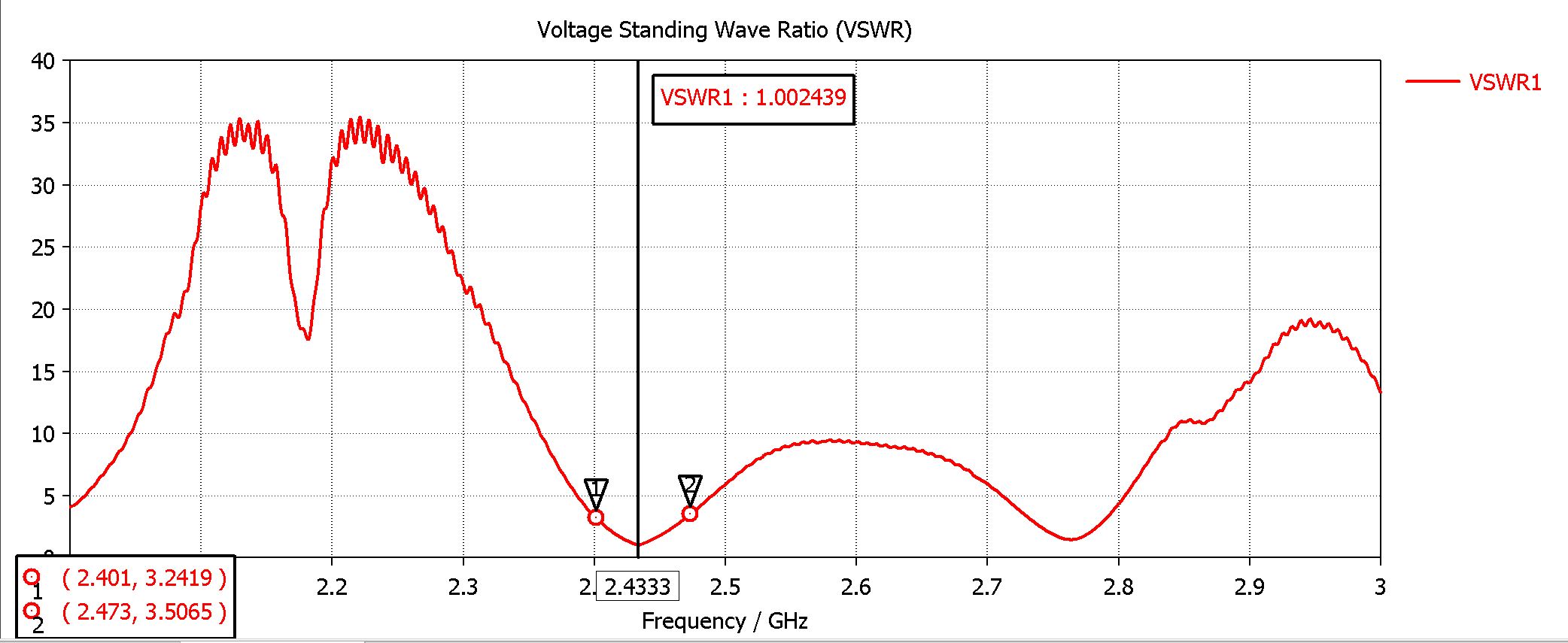

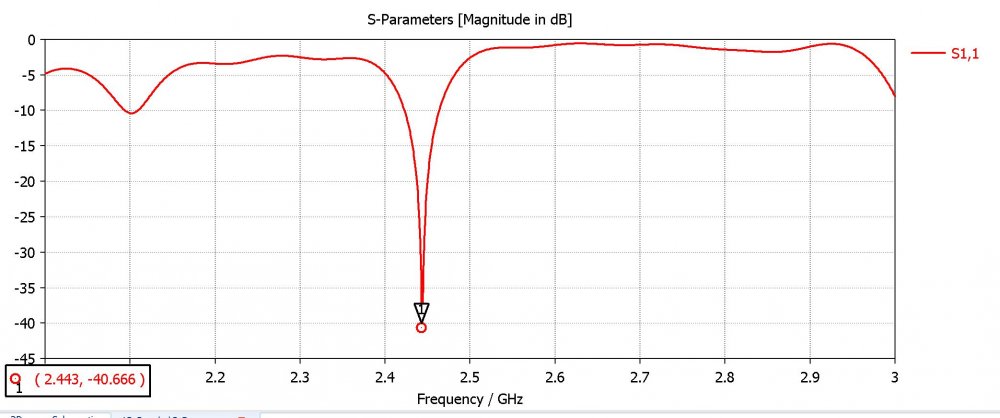

JOMY...! HOW do i LOWER the VSWR...

antenna is GREAT but too INDUCTIVE REACTIVE...



too NARROW BAND...

distance to reflector change NO GOOD

distance to feed network NO GOOD








Share this post


Link to post
Share on other sites
