Antenna panel

[Ghost 0]

please tell me how to make an antenna like this, and its size too

Spoiler

https://images.app.goo.gl/9RYrJxEGDzCwMhtGA

Spoiler

https://images.app.goo.gl/hFnAS9HLMnsLXV5DA

Please tell me admin

[Admin 2545]

,, you only want  on PCB...???

[Ghost 0]

yes, I have looked for the size but nobody shared it

[clanon 246]

Same shit...on metal (more efficient , less losses, BETTER)

Edited September 8, 2020 by clanon

[Ghost 0]

thanks but it's too complicated for me, I want to use an antenna for outdoor, maybe there is an easier model. the distance
+ - 500 m.

[clanon 246]

does it have to be MIMO...?

hardware...on the Receiver side...?

500mts , anything over 10 dbi (directional) would do...

Edited September 9, 2020 by clanon

[Ghost 0]

i will use tenda n301 for the Receiver . are this antenna will work , this antenna I have found the size

after being calculated on google maps the distance is only 200m

[clanon 246]

Two identical  antennas , separated ...would ALWAYS be better than one with small ISOLATION between ports...

Polarization (Lineal , Horizontal or Vertical ; Circular LH or RH) should be the SAME in Receiver and Emitter



[clanon 246]

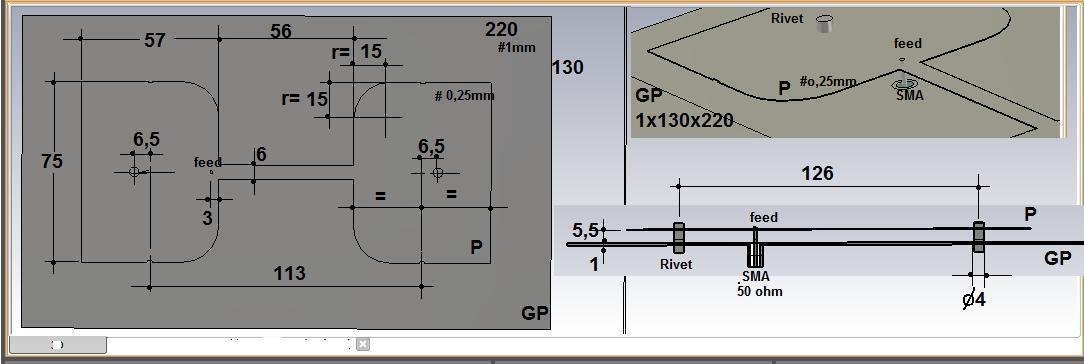

Easy and GOOD!

[clanon 246]

https://www.lan23.ru/wifi/DPatch14/Double-Patch-14dBi.html

[Ghost 0]

Ok thank you
