clanon

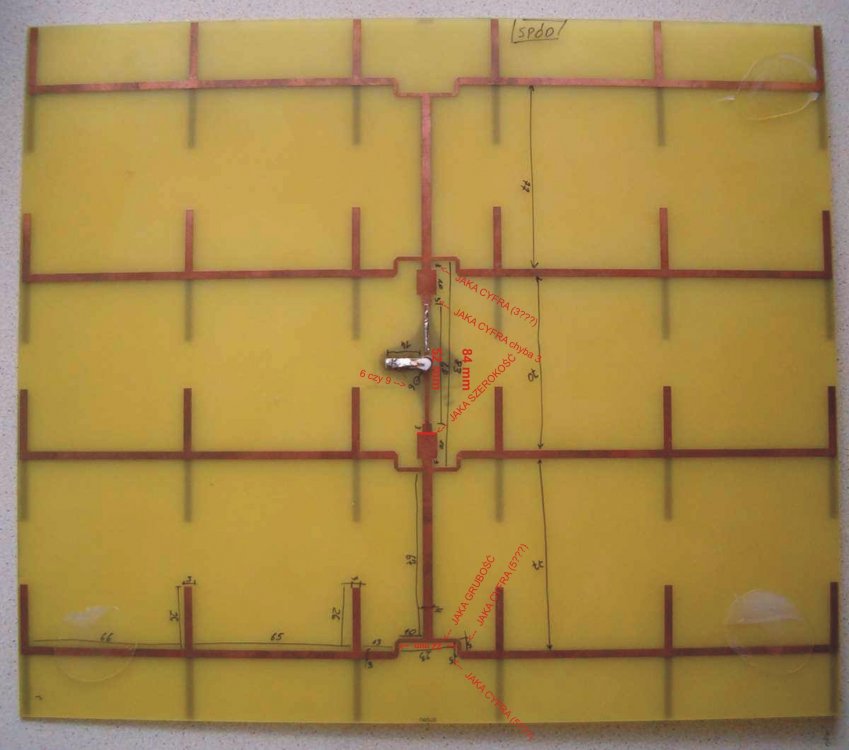

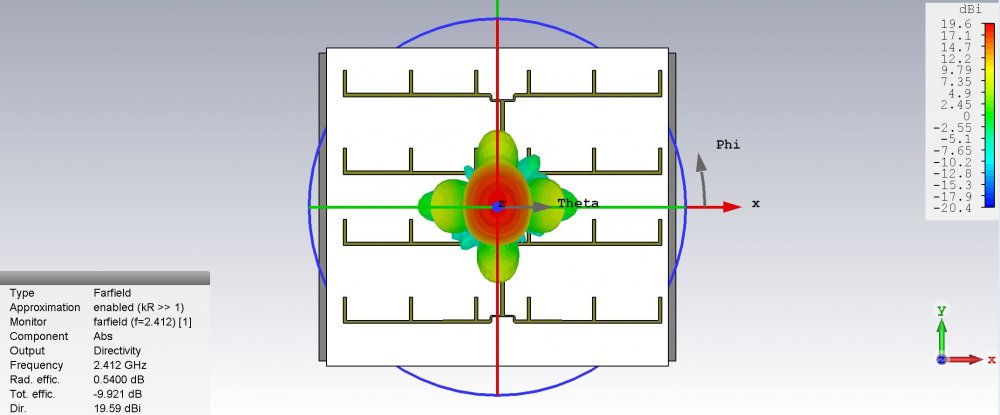

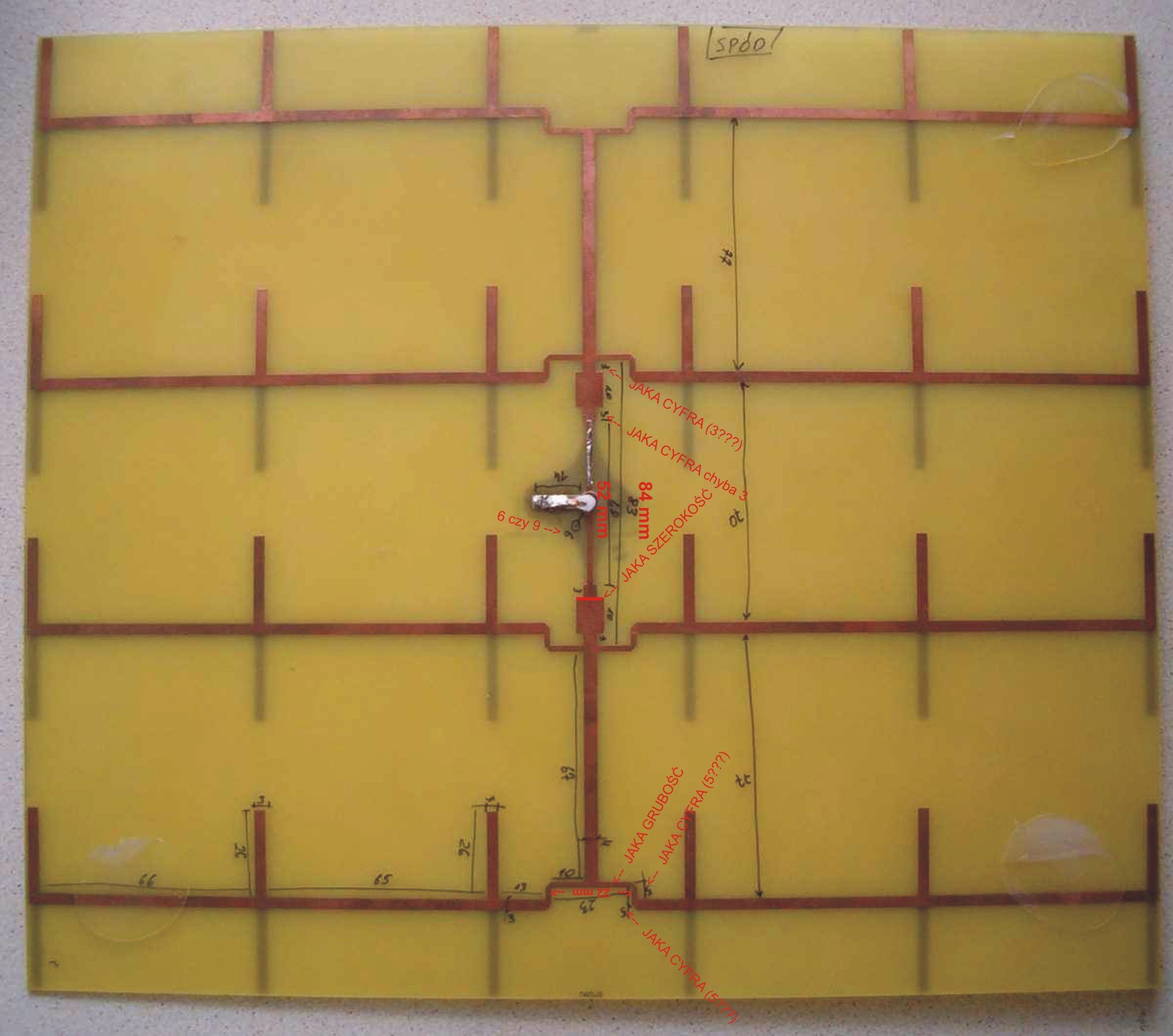

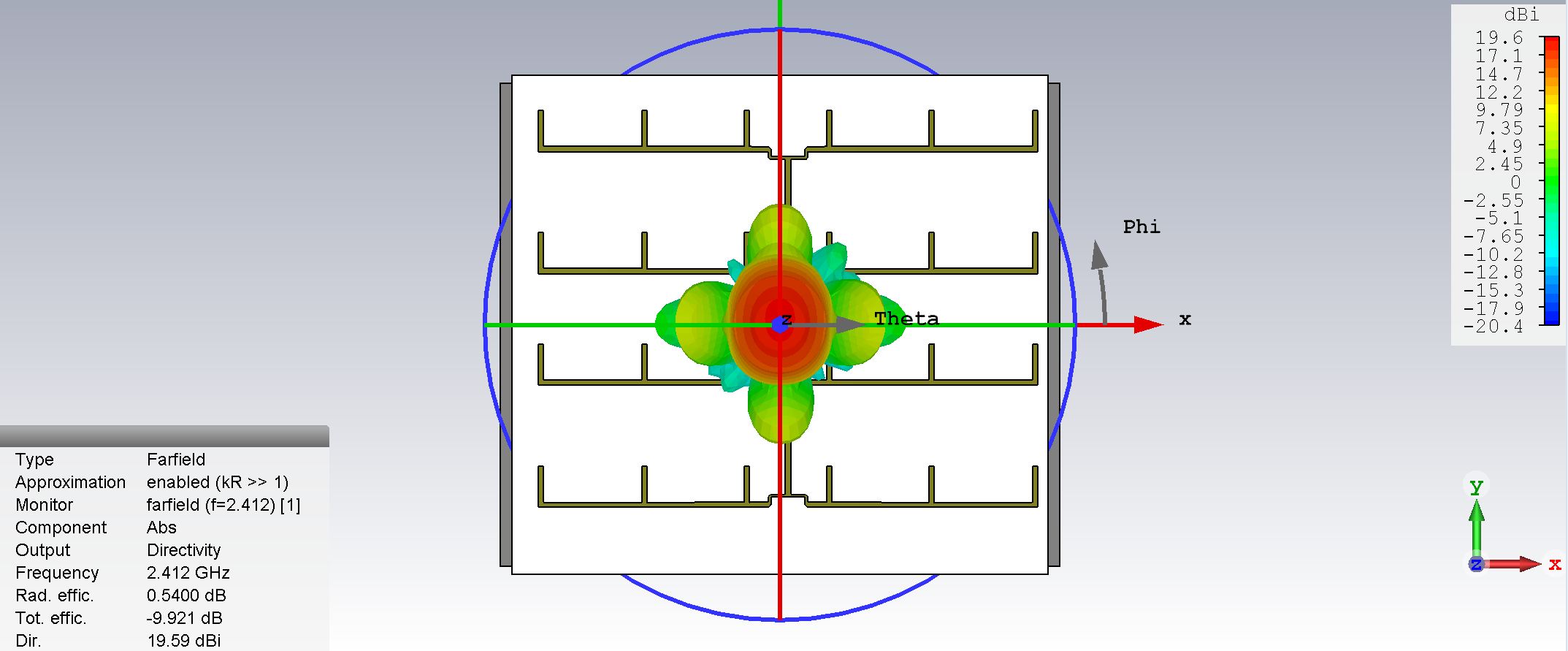

18dbi PCB dipole array

Jomy , NEED HELP this SUCKER doesn't take energy ,

Z is wrong (Too LOW)

S11 (too LOW) almost 0

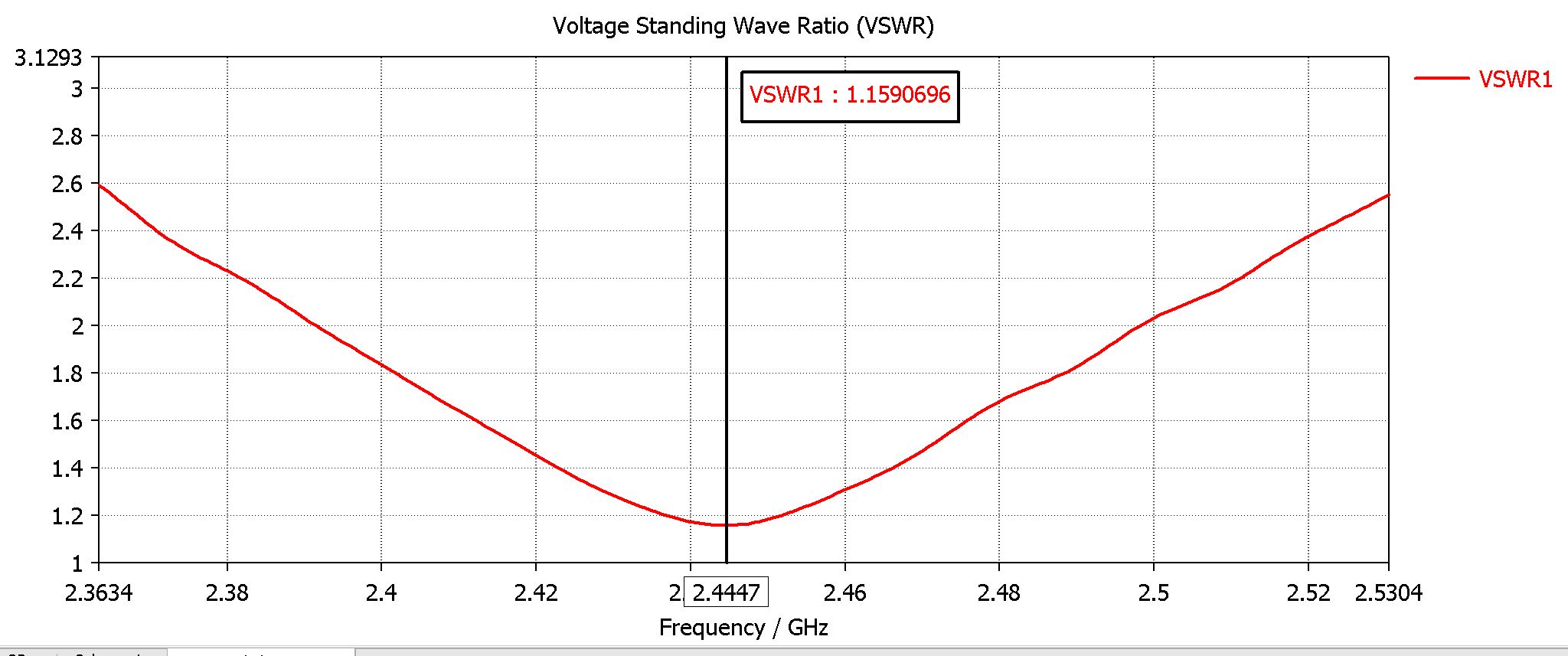

Vswr HIGH as HELL

(PS: tried everything can't make it "dance")




Share this post


Link to post
Share on other sites

,,, what is the distance between the vibrators and the reflector and impedance ... ??

Share this post


Link to post
Share on other sites

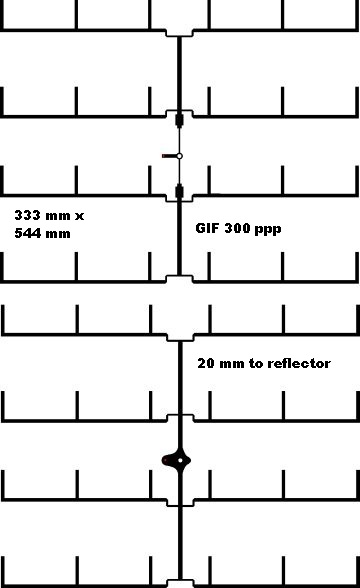

(Its supposed to be 2cm)

i tried from 5mm or less to 25 mm and more...NOTHING S11 never gets under 7 , 8...or LESS

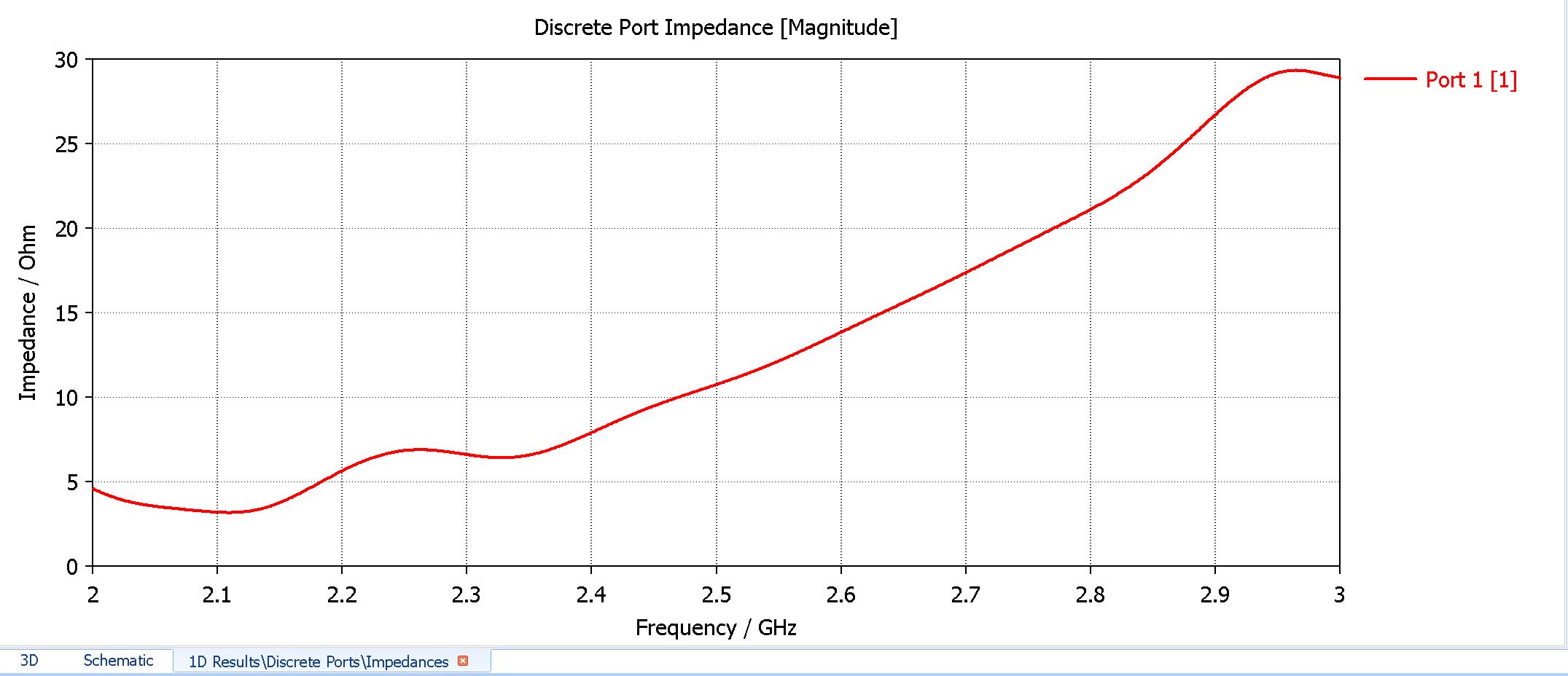

Z goes up to 20 ohms MAX...(never passes 15 , 20 ohms)

tried 1mm and 0.5 FR4 , Rexolite and Roger...(Nothing)

 What i DIDN't try was a DIFFERENT PORT...(only discrete)




Edited by clanon
