[ask] biconical antenna

[bejonet 58]

Hi,

can somebody help me

design and measurement for 2,4ghz



thanks

[Admin 2545]

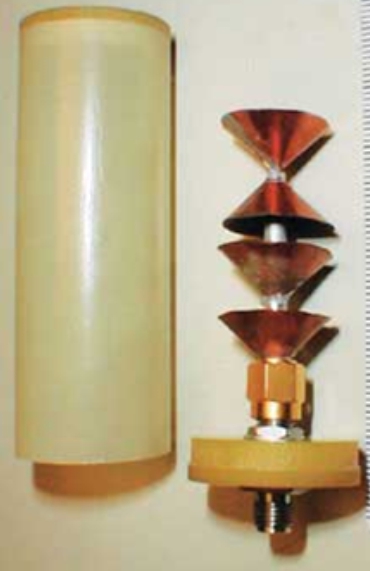

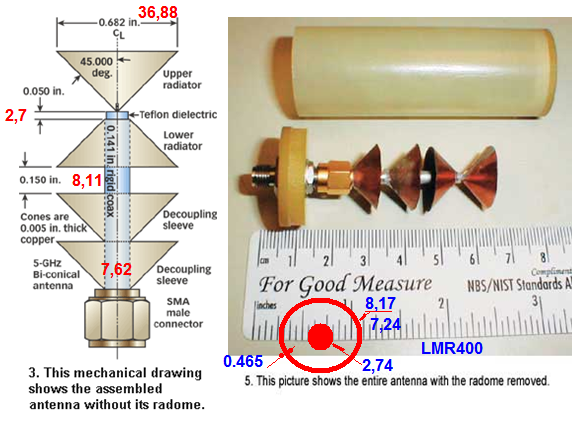

Yes ,this practical biconical dipole antenna can be used as a reference for testing across the 4.8-to-5.8-GHz band

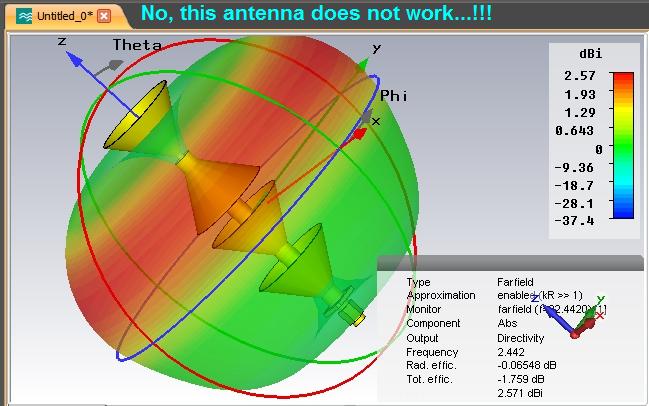

I will try to make a simulation for 2.4 GHz

FOR YOU,,,!!!

[Admin 2545]

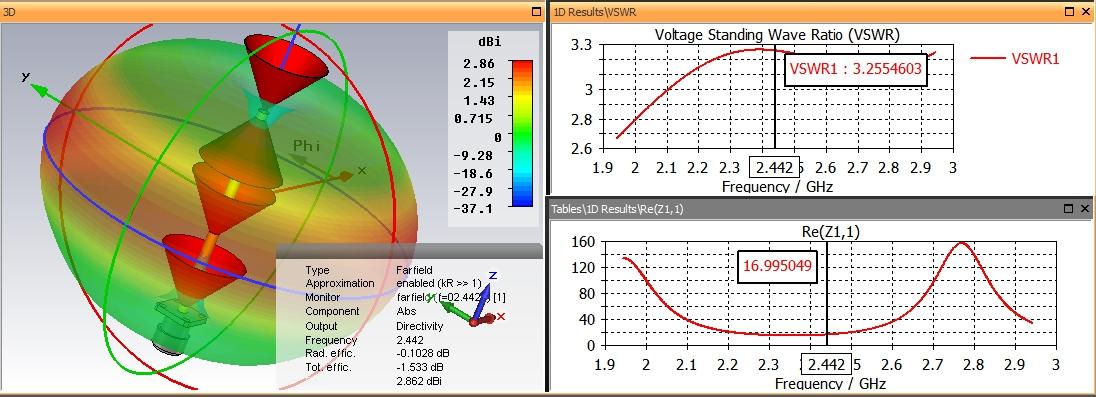

"Yes, it seems that it is necessary to adapt the impedance of the connector with the coaxial cable at 50 Ohm



[Admin 2545]

This is approaching to the truth...





[bejonet 58]

that antenna have gain < 3dBi?

[Admin 2545]

2 hours ago, bejonet said:

that antenna have gain < 3dBi?

,,,so it seems...!!!
,,,in any case I do not think it can be 9 dBi

,,,what do you say??


[Admin 2545]

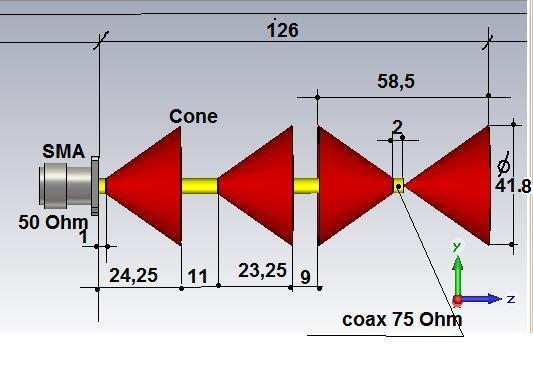

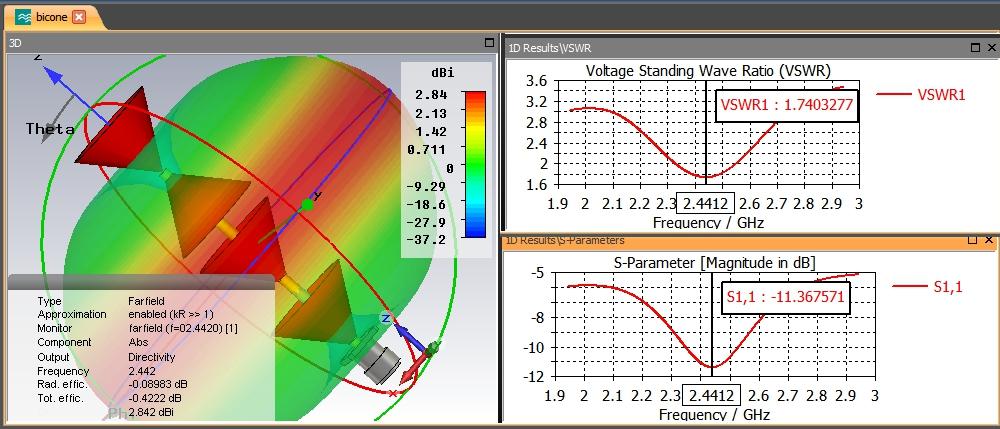

I will try this variant too.

[bejonet 58]

2 hours ago, Admin said:

,,,so it seems...!!!
,,,in any case I do not think it can be 9 dBi

,,,what do you say??


this have gain > 3dBi



i think add more cones can increased gain ,

am just looking for omndirectional that simple to build and have high gain.

sorry my bad english

[Admin 2545]

,,,this it"s cone antenna not biconical,,,,!!!

[Admin 2545]

[bejonet 58]

1 hour ago, Admin said:

thanks for the result, i really appreciate your work

[Admin 2545]

That might be more successful,,,

[bejonet 58]

10 hours ago, Admin said:

That might be more successful,,,

waiting for review this antenna
