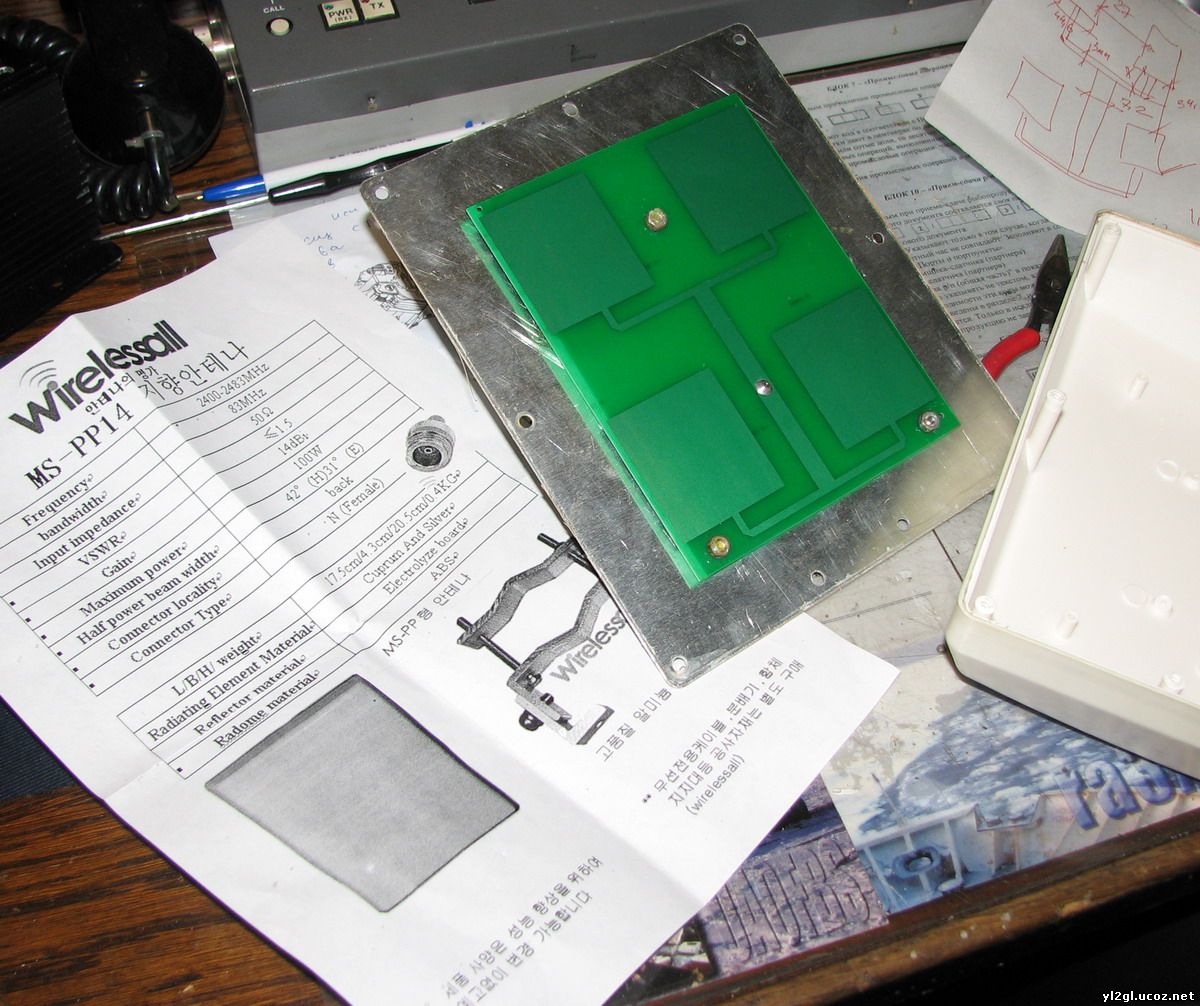

Wirelessall Antenna MS-PP14 2,4GHz

Started by Admin,

Posted

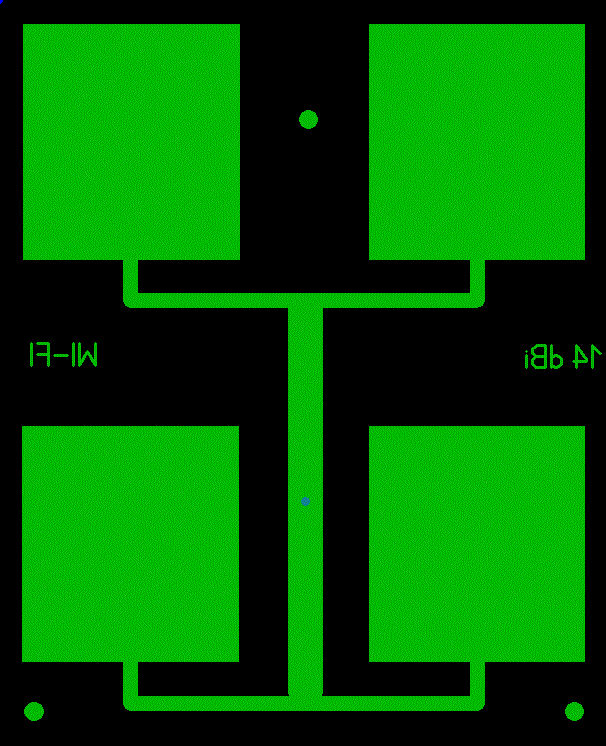

Increase the signal strength and performance of your wireless router or WLAN PCI card with this high gain 13dBi antenna - 2.4GHz high gain networking antenna - Frequency range: 2,4-2,483 GHz









1 person likes this

Share this post

Link to post
Share on other sites

Posted

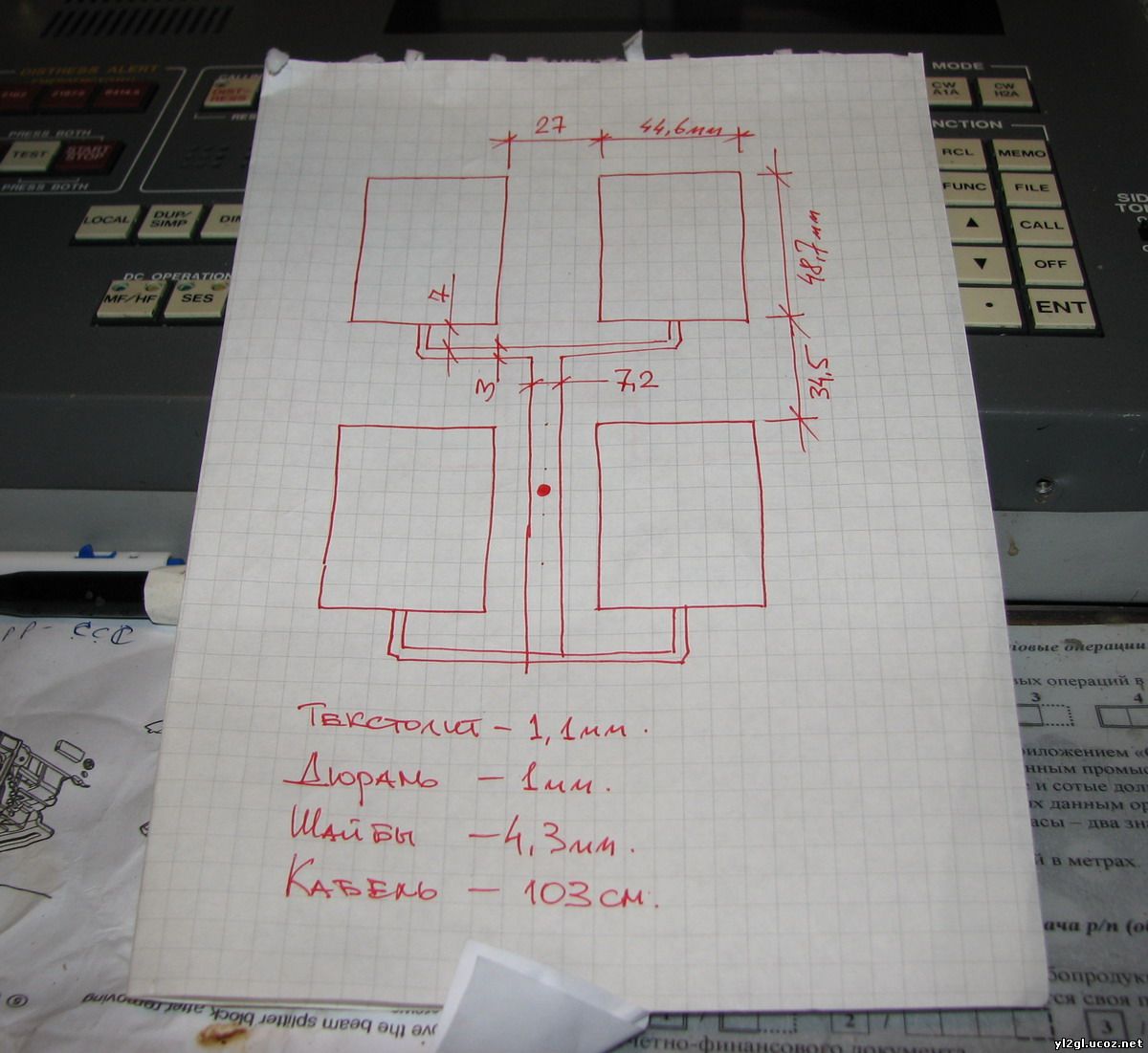

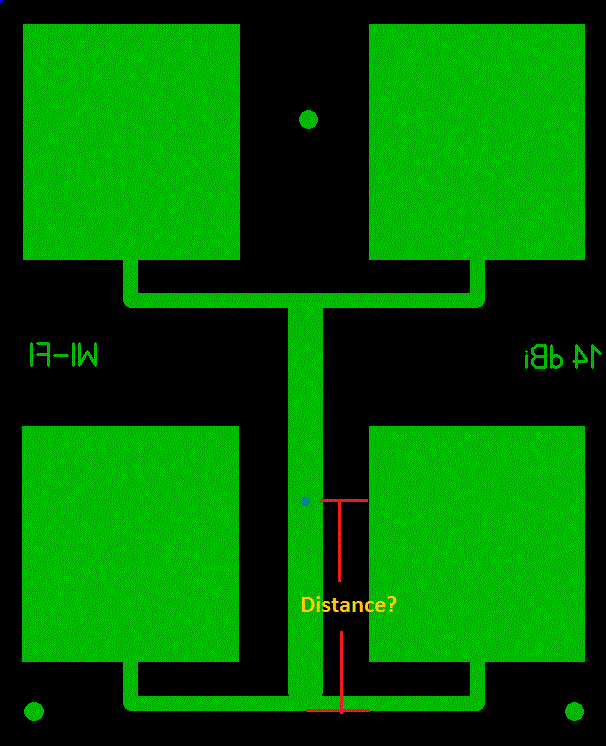

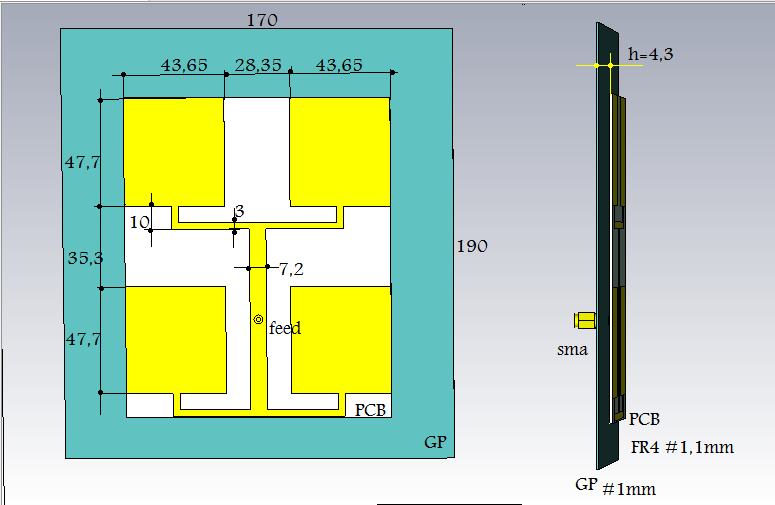

,,,41,6mm...!!!

(48,7+34,5)/2 = 41,6mm-1,5mm=40,1

Share this post

Link to post
Share on other sites

Posted

On 10/20/2017 at 1:07 PM, Admin said:

Increase the signal strength and performance of your wireless router or WLAN PCI card with this high gain 13dBi antenna - 2.4GHz high gain networking antenna - Frequency range: 2,4-2,483 GHz

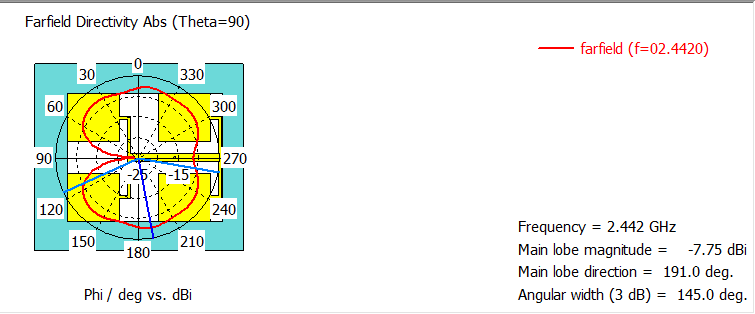

How many degrees is it in angle?

Share this post

Link to post
Share on other sites

Posted

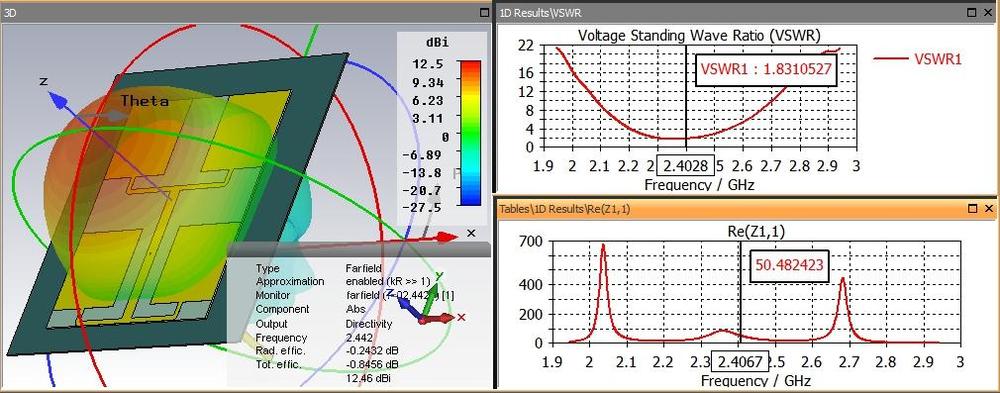

Arif4050,,, this simulation is older and I no longer have the file ... !!!

Share this post

Link to post
Share on other sites

Posted

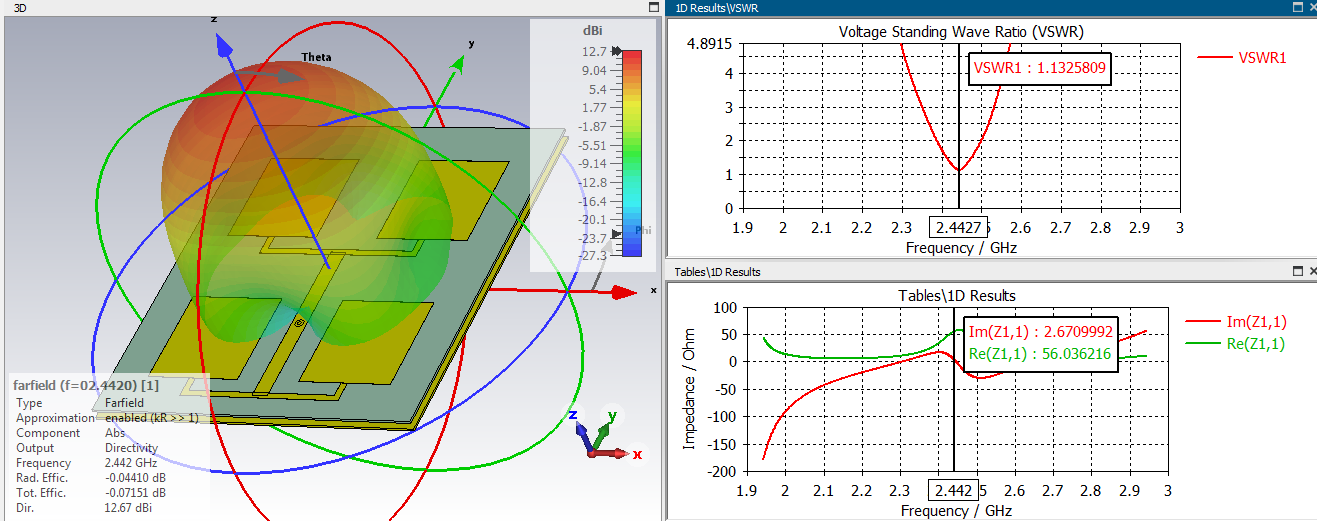

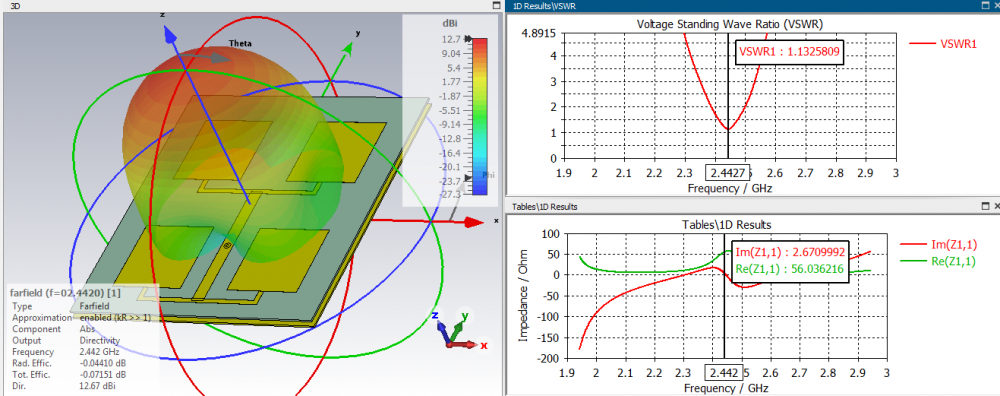

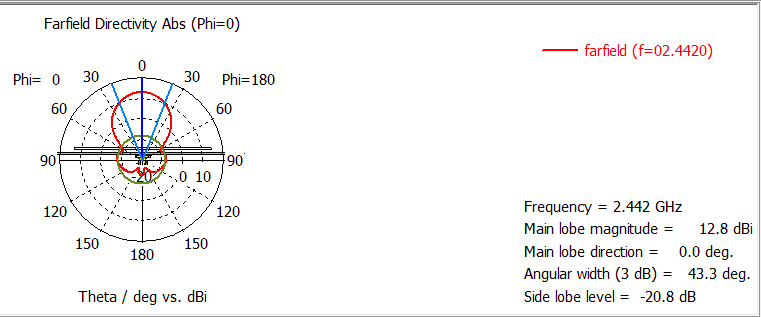

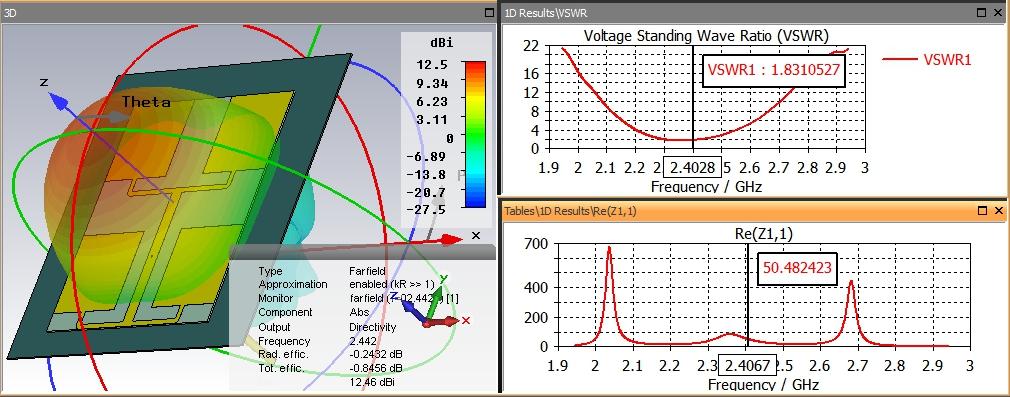

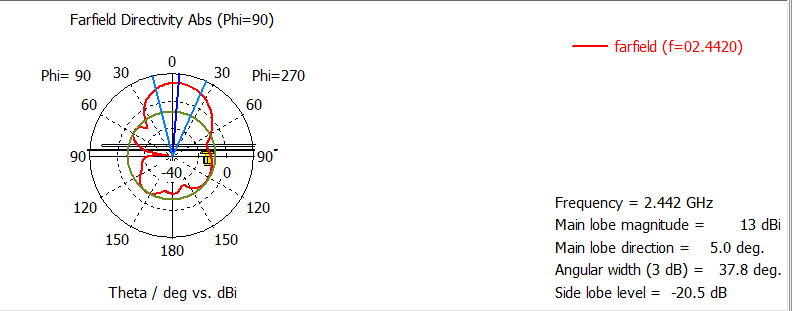

,,, this antenna is not very good, after resizing I got this...






3 people like this

Share this post

Link to post
Share on other sites
