simple antenna LTE MIMO 1800 MHz (for satellite dish)

[roman55524 0]

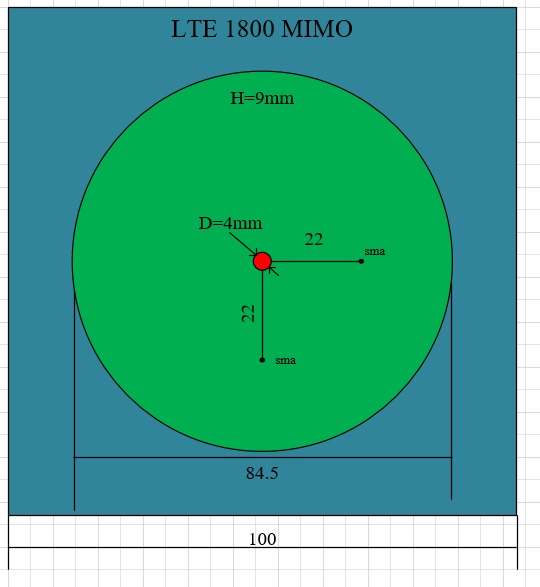

I suggest testing the design of this antenna. Jomy, I ask you to simulate the antenna.

Impedance-50 Om

Gain-9 dBi

[Admin 2546]

,,,okay buddy,,,!!!

,,,just one moment,,,!!!

[roman55524 0]

error in reflector size ( 130mm

[Admin 2546]

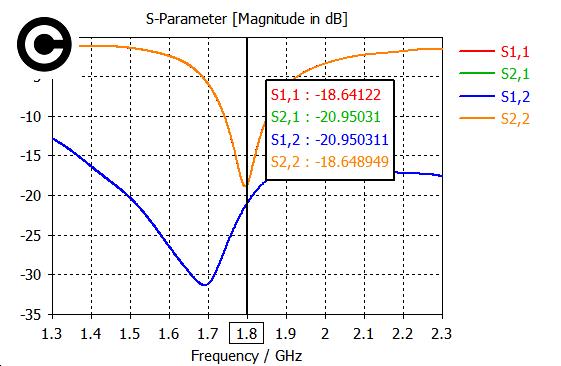

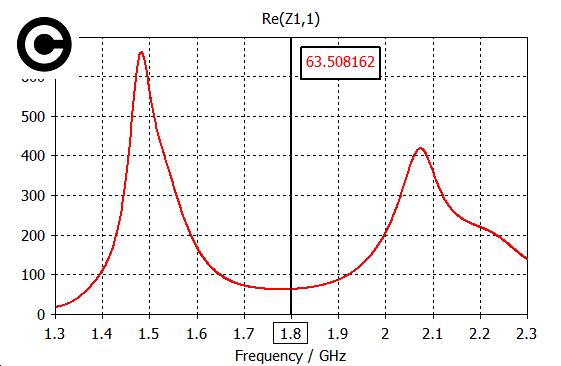

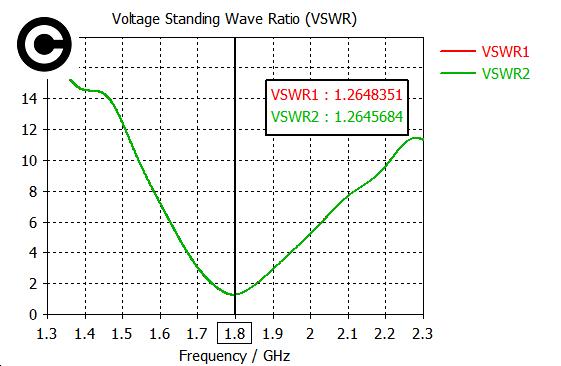

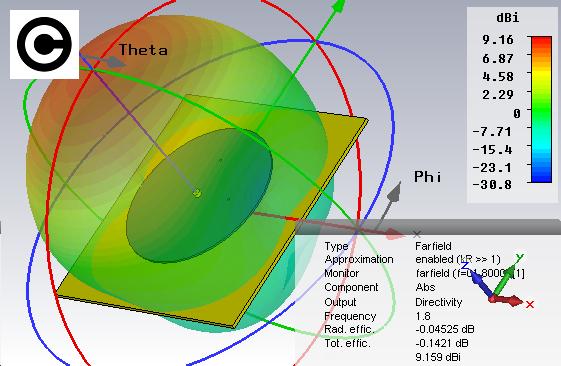

And here's the results...

[Admin 2546]

6 minutes ago, roman55524 said:

error in reflector size ( 130mm

,,,EEEEE>>>

[roman55524 0]

What can you say about the amplification on the edges of the LTE 1800 range in Russia? I have an assumption that this antenna has a bad outcome between ports.

[Admin 2546]

With this type of MiMo antenna there is no isolation between ports..!!!

[roman55524 0]

Than it is bad? Isolation between ports is available only for systems consisting of two antennas, each of which operates in a separate polarization

[Admin 2546]

... it is not necessarily so...!!!

[Admin 2546]

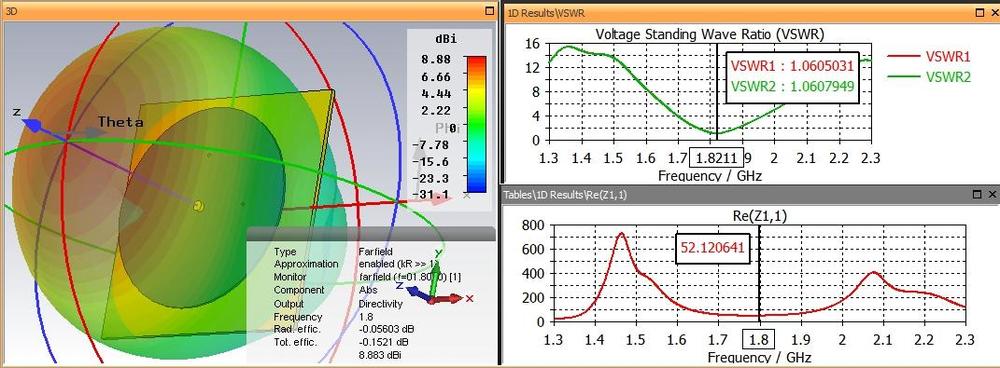

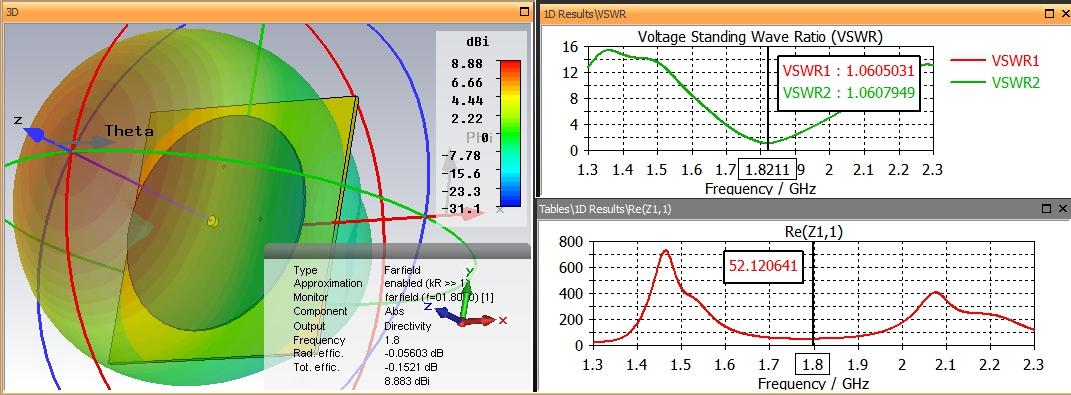

,,,with the reflector  size ( 130mm)

[roman55524 0]

layout for carving

mimo1800.vsdx

[Admin 2546]

9 minutes ago, roman55524 said:

layout for carving

mimo1800.vsdx

I can not open vsdx.file, it does to put a different file...!!!

[roman55524 0]

I downloaded my file and opened it. Visio 2016

[roman55524 0]

I attach the file in the old format. Layout for carving

mimo1800.vsd

[Admin 2546]

I did not install MS Visio..!!!

,,but what do you want to look at with this  file...?

[roman55524 0]

21 hours ago, Admin said:

I did not install MS Visio..!!!

,,but what do you want to look at with this  file...?

print on the printer, paste on sheet iron and cut
