AX-2600 OFFSET 75 MIMO 2x2 офсетный облучатель 4G

[lrg 30]

17 hours ago, Admin said:

,,,well Irg, but for which frequency do you want...!!!

In this topic of course same on 2600 MHz . and it would be very smart for two frequencies of 2600 and 1800 MHz.under the 75 Ohm cable

[Admin 2545]

Here are the dimensions posted by user  Chilanzar2, for the 1.8GHz frequency...

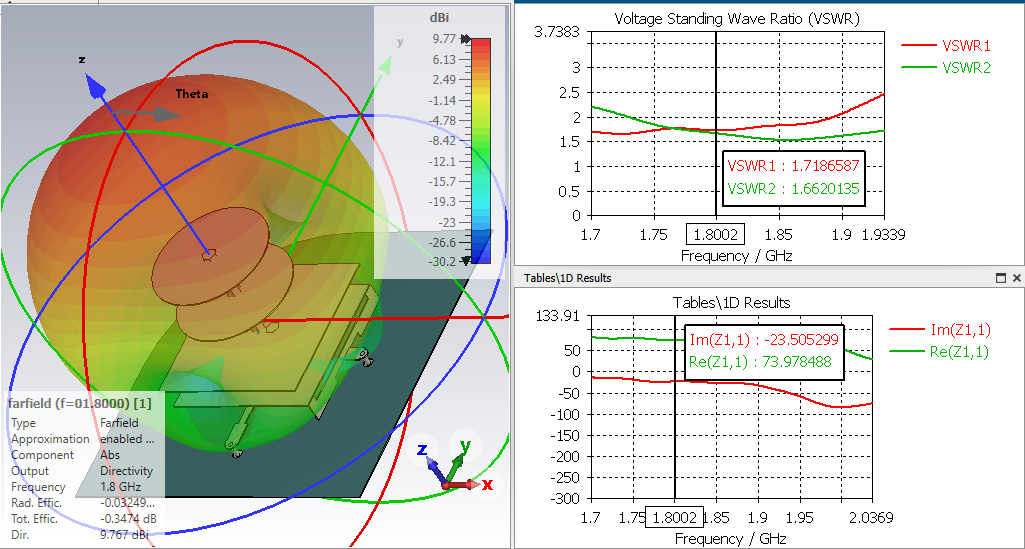

and the simulation of this antenna...

[lrg 30]

Thank you so much. it's an important frequency for me.I have already started manufacturing          : -) .in General, it would be interesting to know the size of the irradiator at 2.6 MHz

[Admin 2545]

"Irg, I will soon adapt the antenna for this frequency....!!!!

[lrg 30]

On 19.06.2018 at 2:26 PM, Admin said:

,,,well Irg, but for which frequency do you want...!!!

Sorry I hurried and did not even ask about the thickness of the metal patches in this irradiator

[lrg 30]

37 minutes ago, lrg said:

Sorry I hurried and did not even ask about the thickness of the metal patches in this irradiator

What is the thickness of the metal used in this feed?

[Admin 2545]

On 7/25/2018 at 10:05 AM, lrg said:

What is the thickness of the metal used in this feed?

I think Chilanzar could inform you best...!!!

" it might be 0.5mm...!!!

[lrg 30]

1 hour ago, Admin said:

I think Chilanzar could inform you best...!!!

" it might be 0.5mm...!!!

Chilanzar? Where can I find it?

[Admin 2545]

,,, here, on this forum ... !!!

"chilanzar2"

[chilanzar2 85]

тольщина патчей - 0.7мм.

Но, мне не нравится этот облучатель. Я ищу 1700-2200 MIMO



the thickness of the patches is 0.7mm.
But, I do not like this irradiator. I am looking for 1700-2200 MIMO

[lrg 30]

On 7/28/2018 at 6:12 AM, chilanzar2 said:

тольщина патчей - 0.7мм.

Но, мне не нравится этот облучатель. Я ищу 1700-2200 MIMO

Подскажите толщину стоек. Я нашлол от приборов.чтобы меньше их переделывать. Нет поблизости токаря.



Tell me the thickness of the racks. I found it from devices. To reduce them less. There is no nearby turner.

Tell me the thickness of the racks. I have these.they probably will be able to come up with some small alterations.there's no lathe in the vicinity.:-)

[chilanzar2 85]

on the irradiator Antex is used 6mm. I use 4.7 mm. other I have no...I buy on aliexpress

[lrg 30]

38 minutes ago, chilanzar2 said:

on the irradiator Antex is used 6mm. I use 4.7 mm. other I have no...I buy on aliexpress

It is clear you used computer racks on which the motherboard is installed.

[chilanzar2 85]

нужного размера очень тяжело найти в компьютерах - поэтому лучше искать и покупать на алиэкспресс

the right size is very hard to find in computers - so it's better to look and buy on aliexpress
  Like this

[Admin 2545]

,,,good, another constructive form of this antenna, with built-in modem...

[chilanzar2 85]

[Admin 2545]

Chil, I think it's all M3 screw, but with a step more than 0.5mm (0.6 ... 0.7mmm))

[chilanzar2 85]

this is the American standard. we don't have these nuts. No in Europe.

[Kledi 0]

On 14/11/2017 at 1:29 AM, lrg said:

Dimensions are not clear here, reflector to the first patch 4mm.. reflector to the 2nd patch 6mm.. so from the 1st patch to the 2nd patch only 2 mm? it's seems more

[Admin 2545]

,,, Kledi,this is not the place of this antenna, move it...!!!

 I will delete this post...!!!

[Kledi 0]

7 minutes ago, Admin said:

,,, Kledi,this is not the place of this antenna, move it...!!!

 I will delete this post...!!!

7 minutes ago, Admin said:

,,, Kledi,this is not the place of this antenna, move it...!!!

 I will delete this post...!!!

On 14/11/2017 at 1:29 AM, lrg said:







Yes admin this is the offset antenna dimension, watch the first page..

[Admin 2545]

,,, oh, yes, you're right, excuse me ... !!

,,,these are the dimensions...!!!



 I think I will recalculate this antenna for optimization.

[Kledi 0]

Thank you! I have only 1mm galvanized steel, Will It work? I cant find 0.5mm here in my town

[Admin 2545]

,,,yes, you can use 1mm thick...!!!

,,, try to delete the double images above...!!!

[Kledi 0]

Can we have a mimo 1800-2600 feed offset antenna  please ?
