5,8 ghz mimo patch panel

[jinho 2]

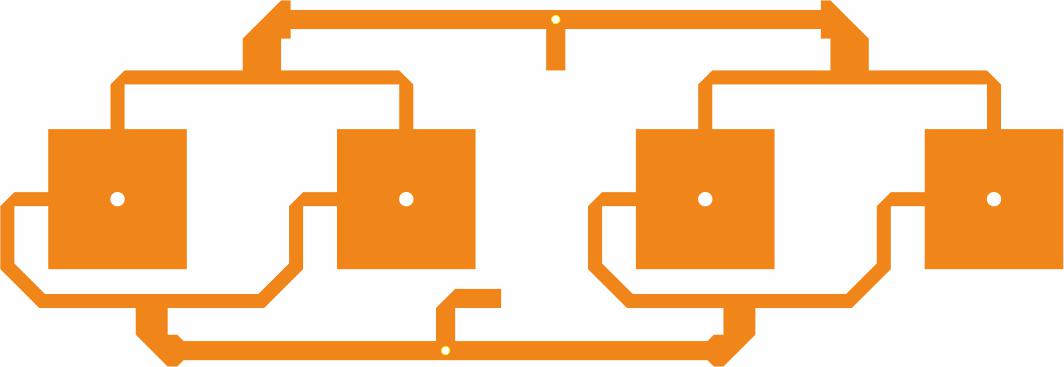

while casually making 5.8ghz mimo nsm5 design using corel draw, size already precision, who knows something can improve again



nanostation m5 paulanet.cdr

Edited November 19, 2017 by jinho

[jinho 2]

[Admin 2545]

I do not understand what you mean by that ...!!!

[acri 24]

On 11/19/2017 at 6:47 PM, jinho said:

while casually making 5.8ghz mimo nsm5 design using corel draw, size already precision, who knows something can improve again



nanostation m5 paulanet.cdr

not nsm5 but NS5

[Admin 2545]

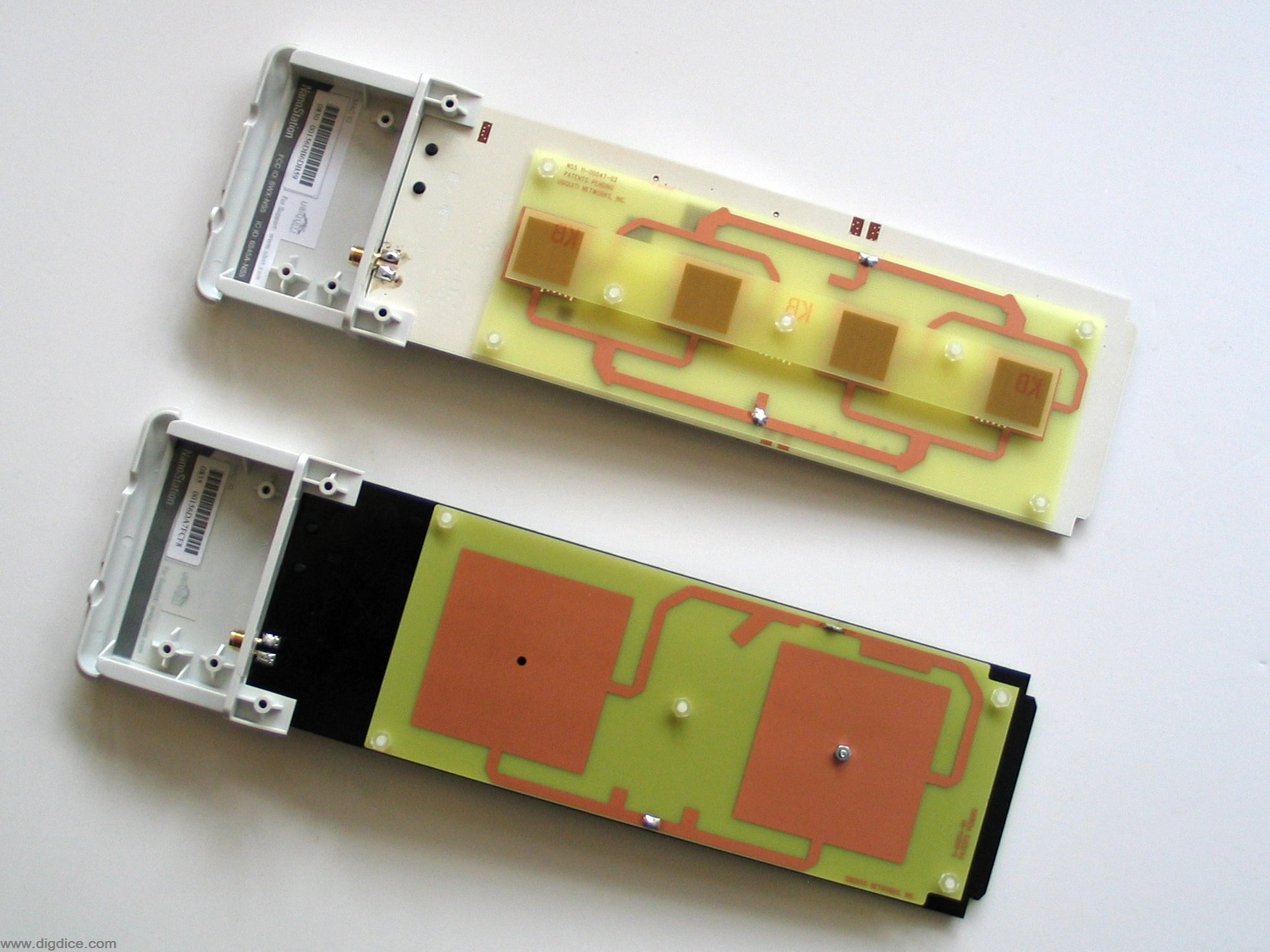

ns2 and ns5-antennas...

[DC13th 19]

I copy it from NS5 and resize

Dimensions is 31 x 90 mm

my question is .... can i use it for frequency 5Ghz

[Admin 2545]

,,,from where 31x90mm?

[DC13th 19]

2 minutes ago, Admin said:

,,,from where 31x90mm?

all of it

image size 31x90mm

[Admin 2545]

,,,may be 165x55mm...!!!

[DC13th 19]

2 minutes ago, Admin said:

,,,may be 165x55mm...!!!

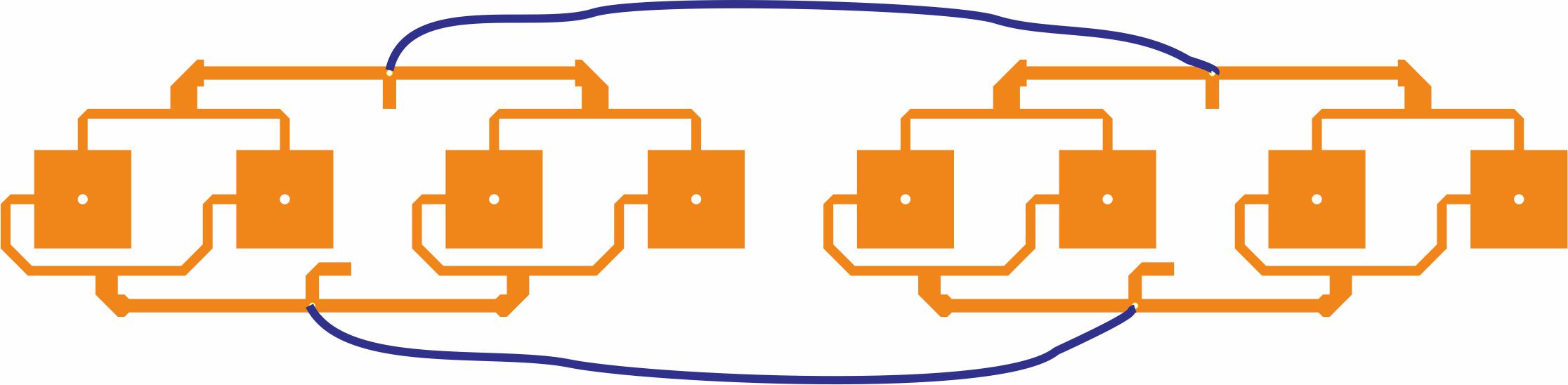

my idea is make 8 copy of it

put jumper blue one

4 copy in one side and 4 in back side

i put inside pvc and become antenna  directional mimo 5Ghz

[DC13th 19]

so it can't be if dimension is 31x90mm

[Admin 2545]

wrong...!!

[DC13th 19]

On 26/10/2018 at 0:35 AM, Admin said:

wrong...!!

??? in what wrong

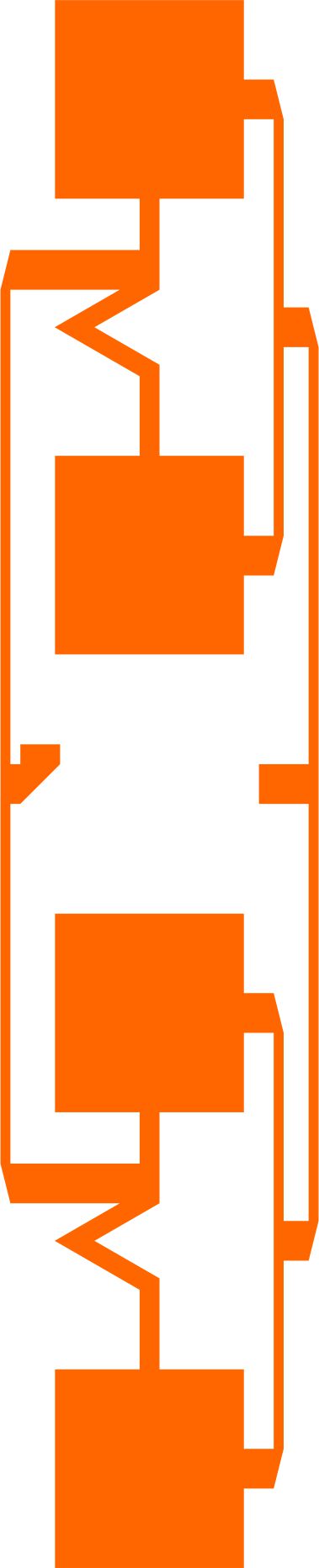

if i use this design

Mimo Edit 5Ghz.dxf

[Admin 2545]

,,,isn"t 31x90mm..!!

[DC13th 19]

6 minutes ago, Admin said:

,,,isn"t 31x90mm..!!

how about the new design, it possible???

[Admin 2545]

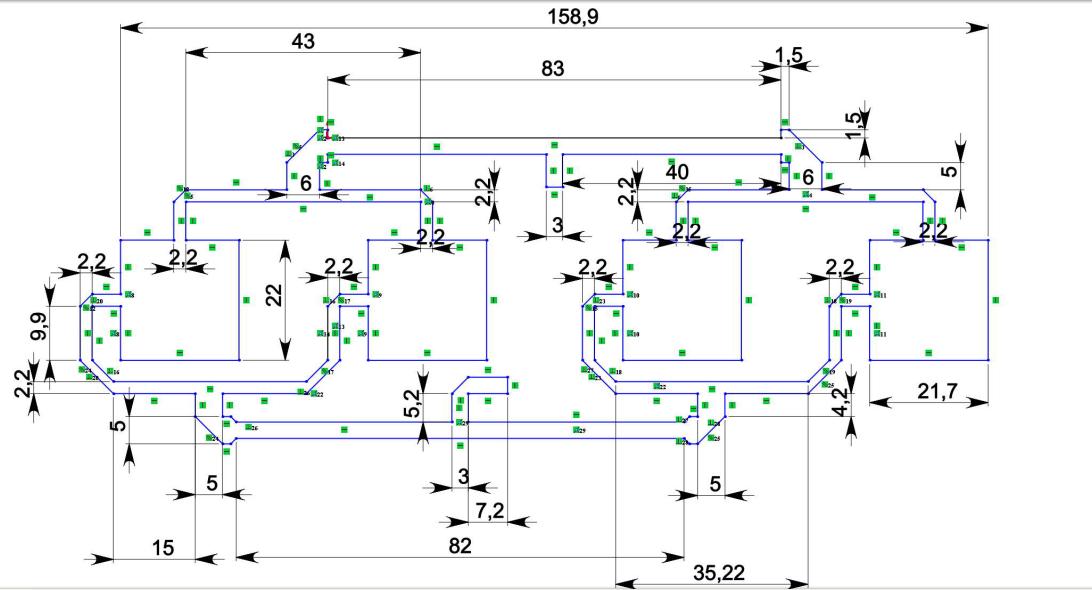

"maybe, I do not know, give me the sizes...!!

[DC13th 19]

5 hours ago, Admin said:

"maybe, I do not know, give me the sizes...!!

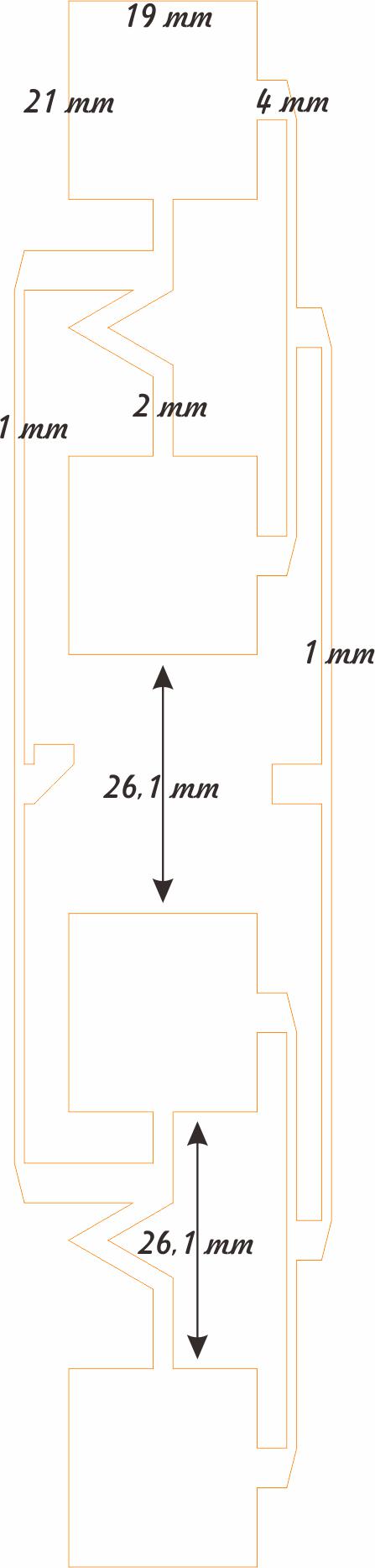

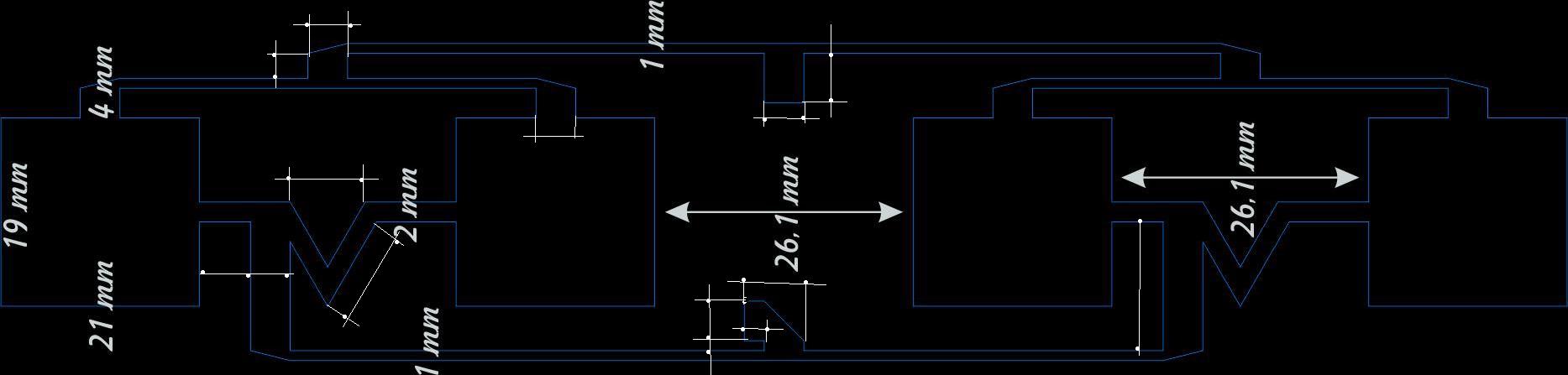

square is 19X21mm i take size from nsm5



[DC13th 19]

[Admin 2545]

,,, incomplete drawing, missing dimensions....!!!!

[DC13th 19]

3 minutes ago, Admin said:

,,, incomplete drawing, missing dimensions....!!!!

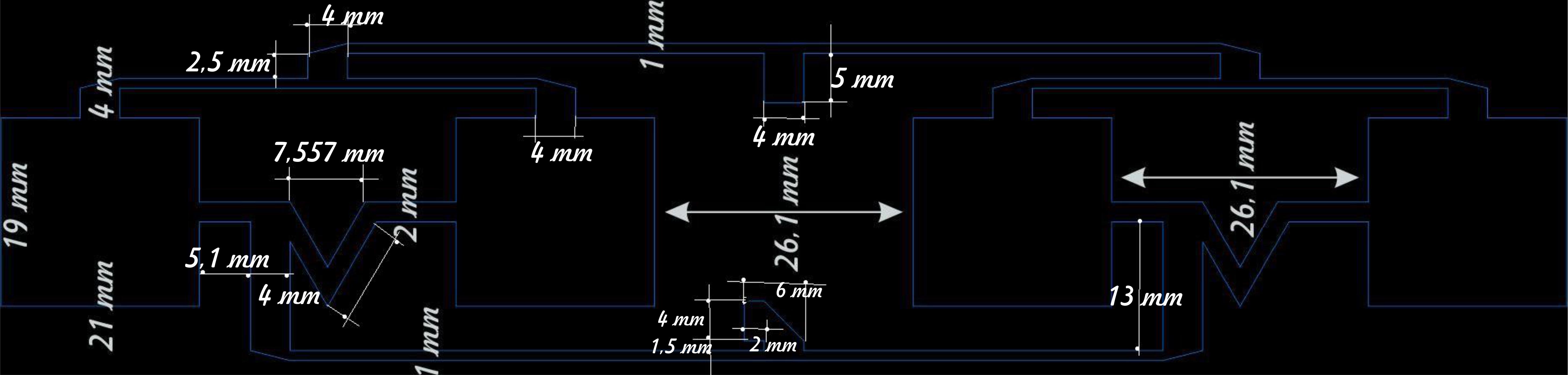

Dimension is 32mm x 157,892 mm

[Admin 2545]

[DC13th 19]

11 minutes ago, Admin said:

Like this and corner is 9,85 mm

Edited October 27, 2018 by DC13th

[Admin 2545]

[DC13th 19]

1 minute ago, Admin said:

9,85 mm

[Admin 2545]

,,, that's not good antenna ...!!!
