Antenna 440MHz out the window

Started by Admin,

Posted

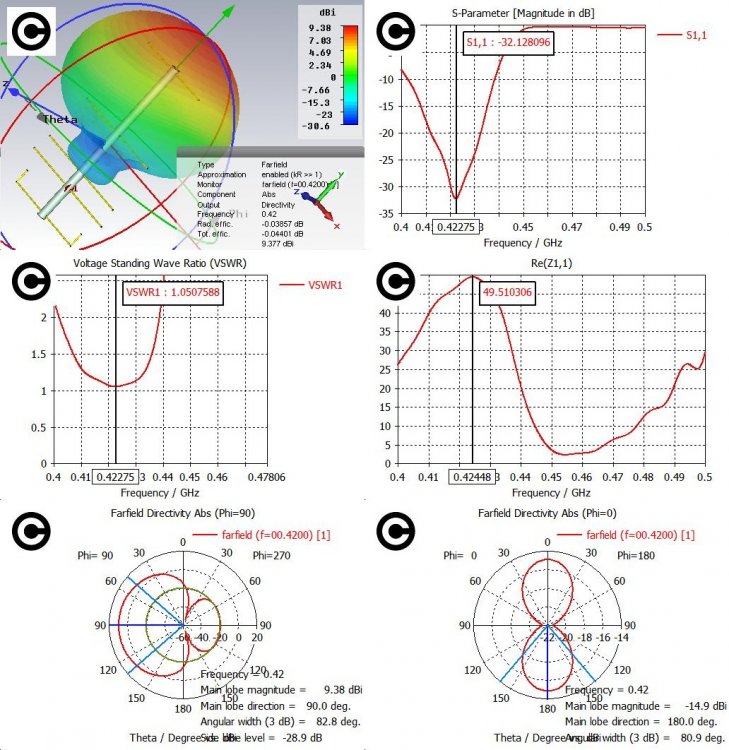

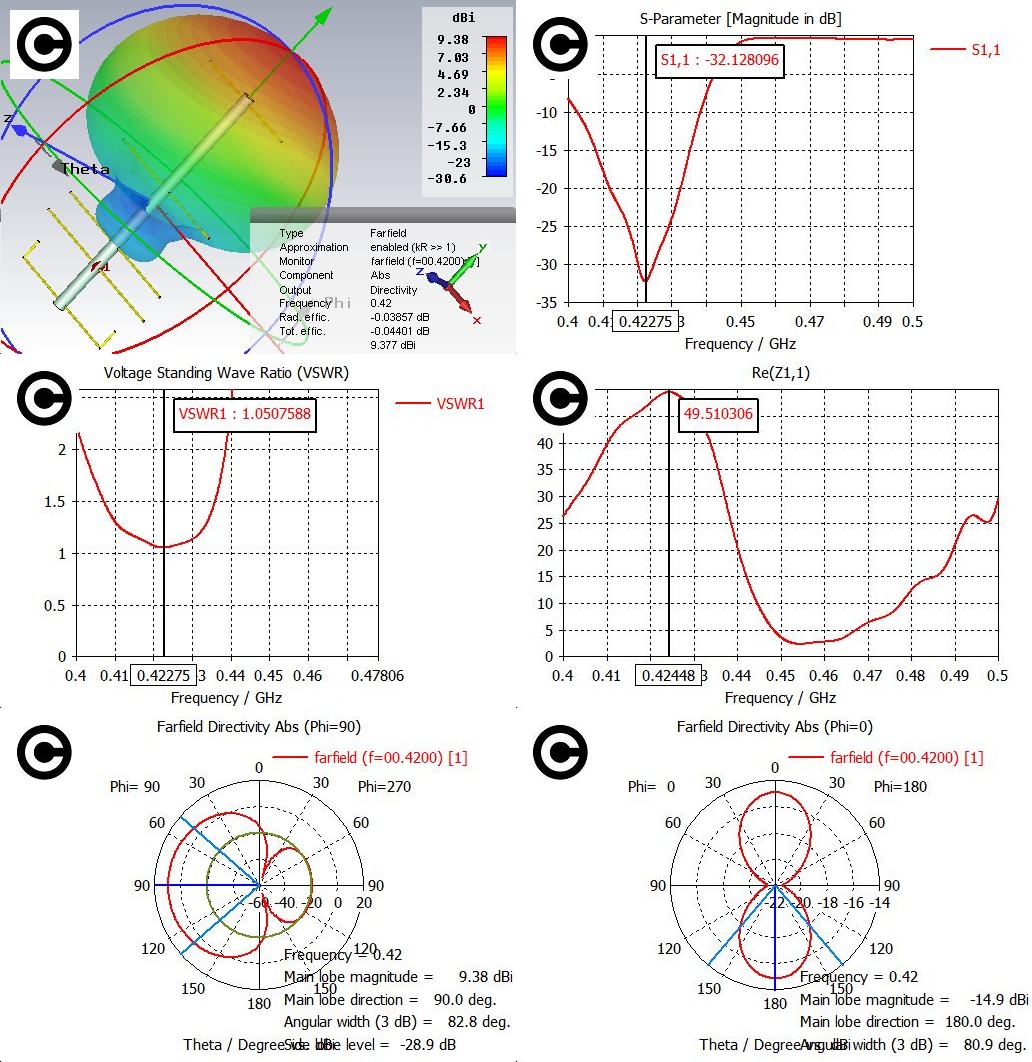

 Is also an interesting antenna... now it must to make another slightly less in material cost and in my opinion more technologically advanced broadband (400...450MHz)

In  beam - Plast. pipe Ø25mm . elements- the same copper wire 4.6 mm ....





Share this post

Link to post
Share on other sites

Posted

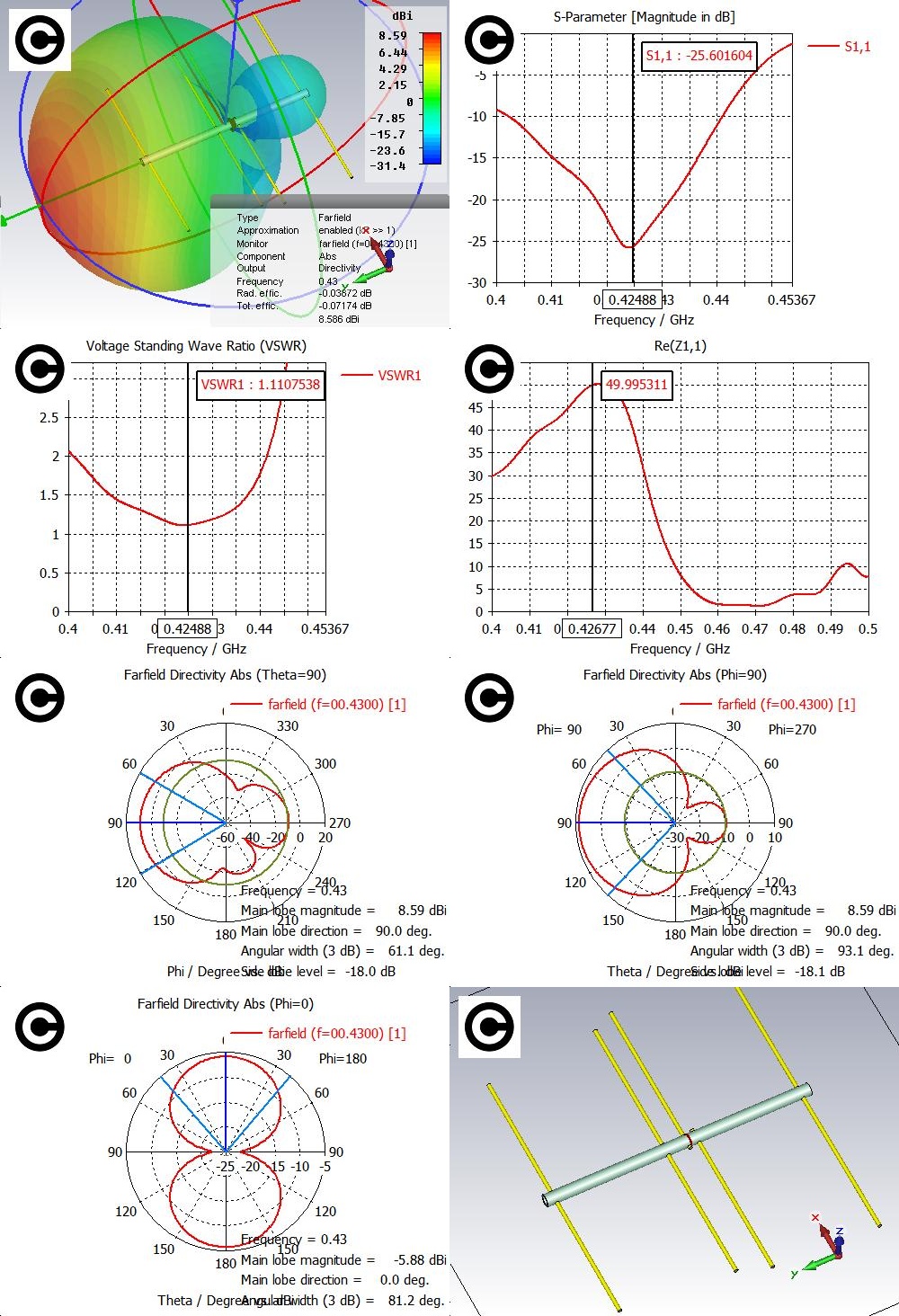

,,,simpler....

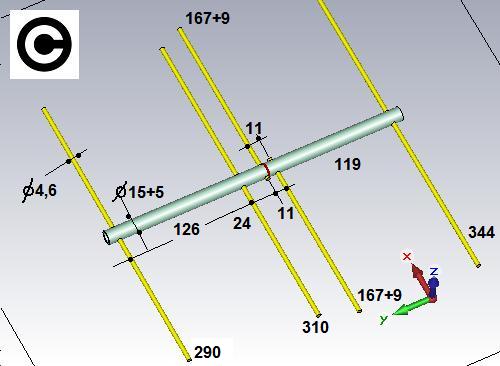

Detail...



1 person likes this

Share this post

Link to post
Share on other sites

Posted

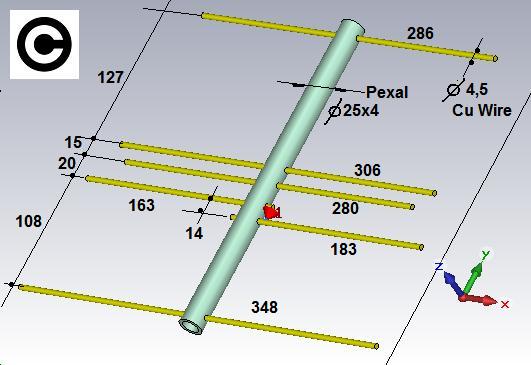

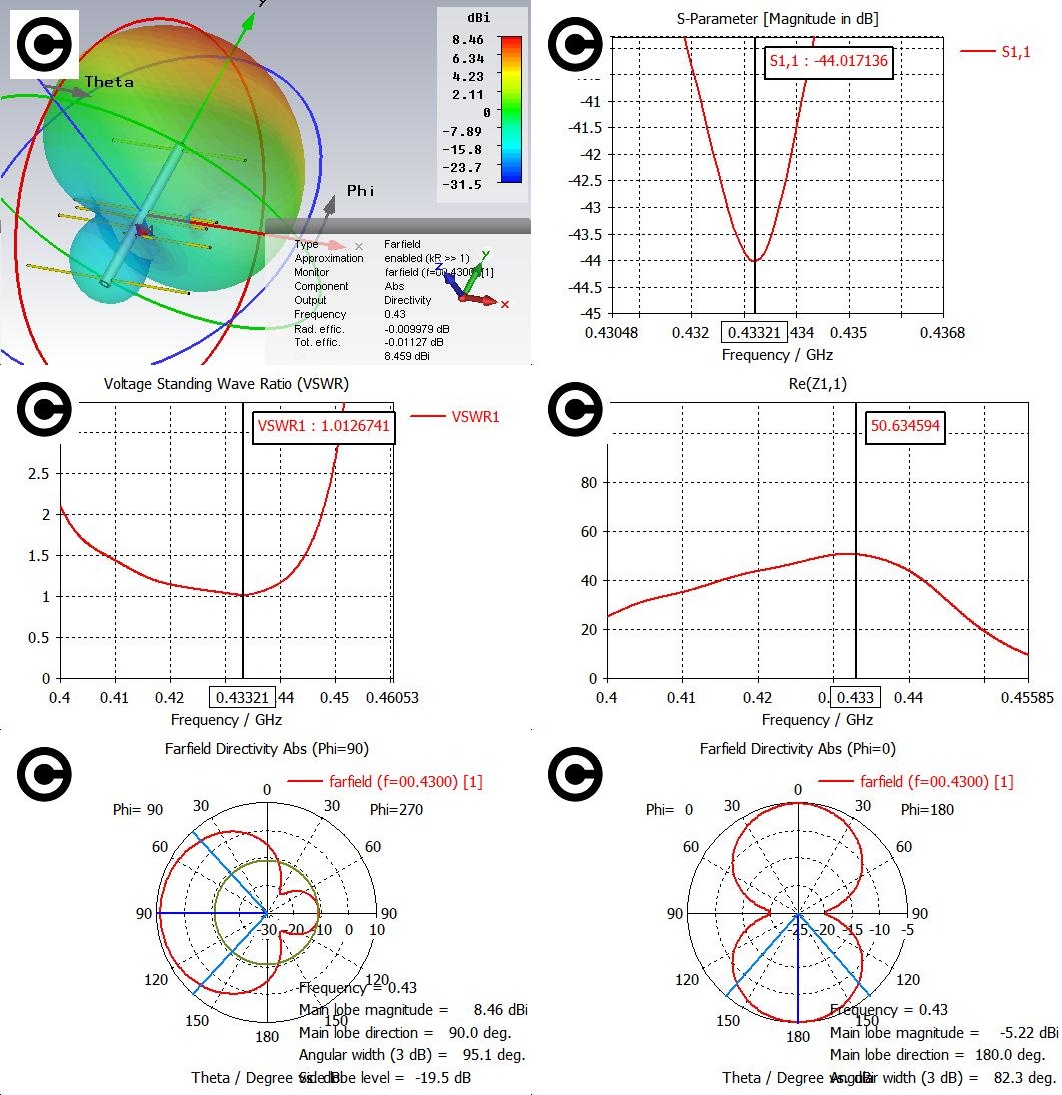

For example 5 elementno Yagi half a meter in length.
The same band, the gain will be higher forward, and the suppression ago.
