Tybrid of two antennas.

[bigmdm 5]

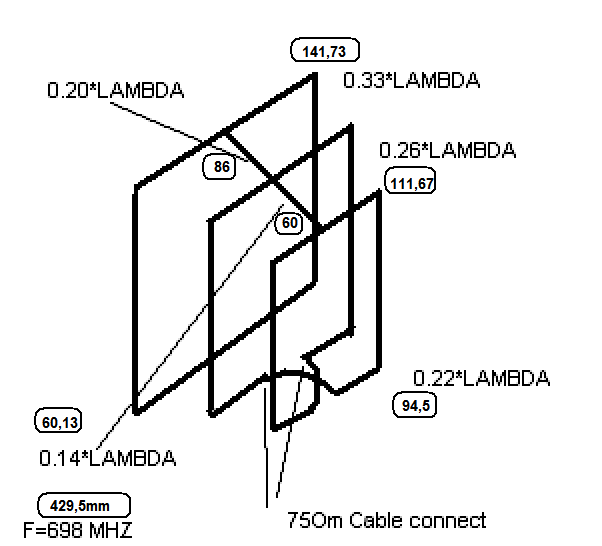

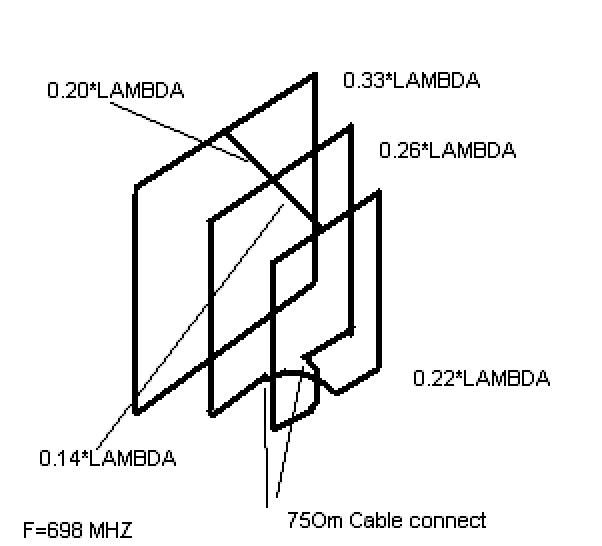

I want to create a hybrid of the Turkina antenna and a 3-square antenna. Can you model it?

I want to use two squares as vibrators, but they connect to the cable with a phase of 180 degrees.

Is it possible to calculate the gain and the diagram of this antenna ?

[Admin 2561]

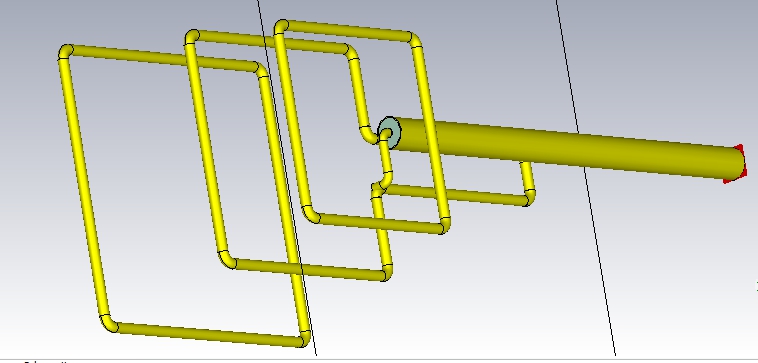

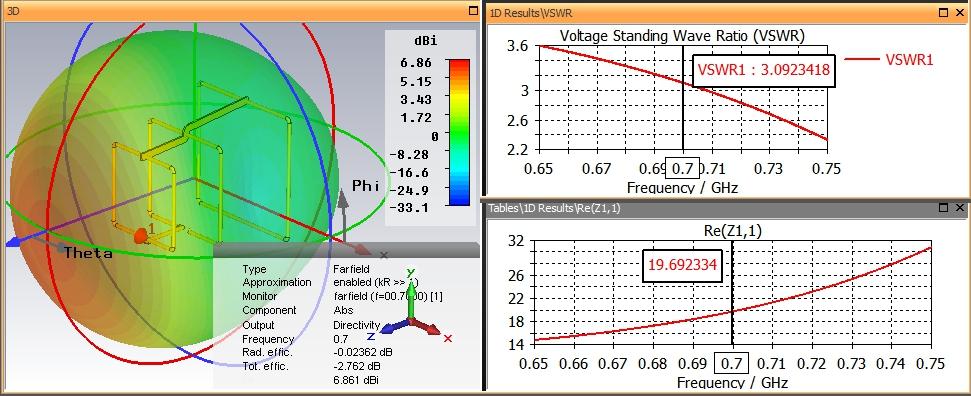

It looks like that this type of antenna does not really work too good...

", with these dimensions ...

[bigmdm 5]

Thank you! This is a very good work!

[bigmdm 5]

An ordinary triple-square antenna gives tremendous results on the wi-fi band. I see about a 80 networks in an apartment building opposite (300m).



[Admin 2561]

Beautiful work, how did you adapt to 50 ohm...??!!!

[bigmdm 5]

I connect antenna from 50 ohm cable (10 cm) to a Android tablet. I no adapt this antenna to 50 ohm cable.



[Admin 2561]

[bigmdm 5]

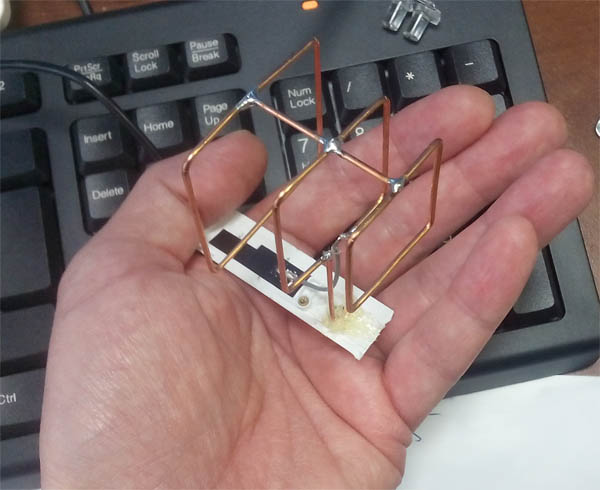

This is a experiment. I was build the passive retranslator for smartphone. It is a factory internal tablet wi-fi antenna. Experiment was not effective.

[Admin 2561]

This quadrate antenna is for 2,442 GHz...??

[bigmdm 5]

I calculate for 2443 Mhz. (calculator)



Edited December 5, 2017 by bigmdm

[Admin 2561]

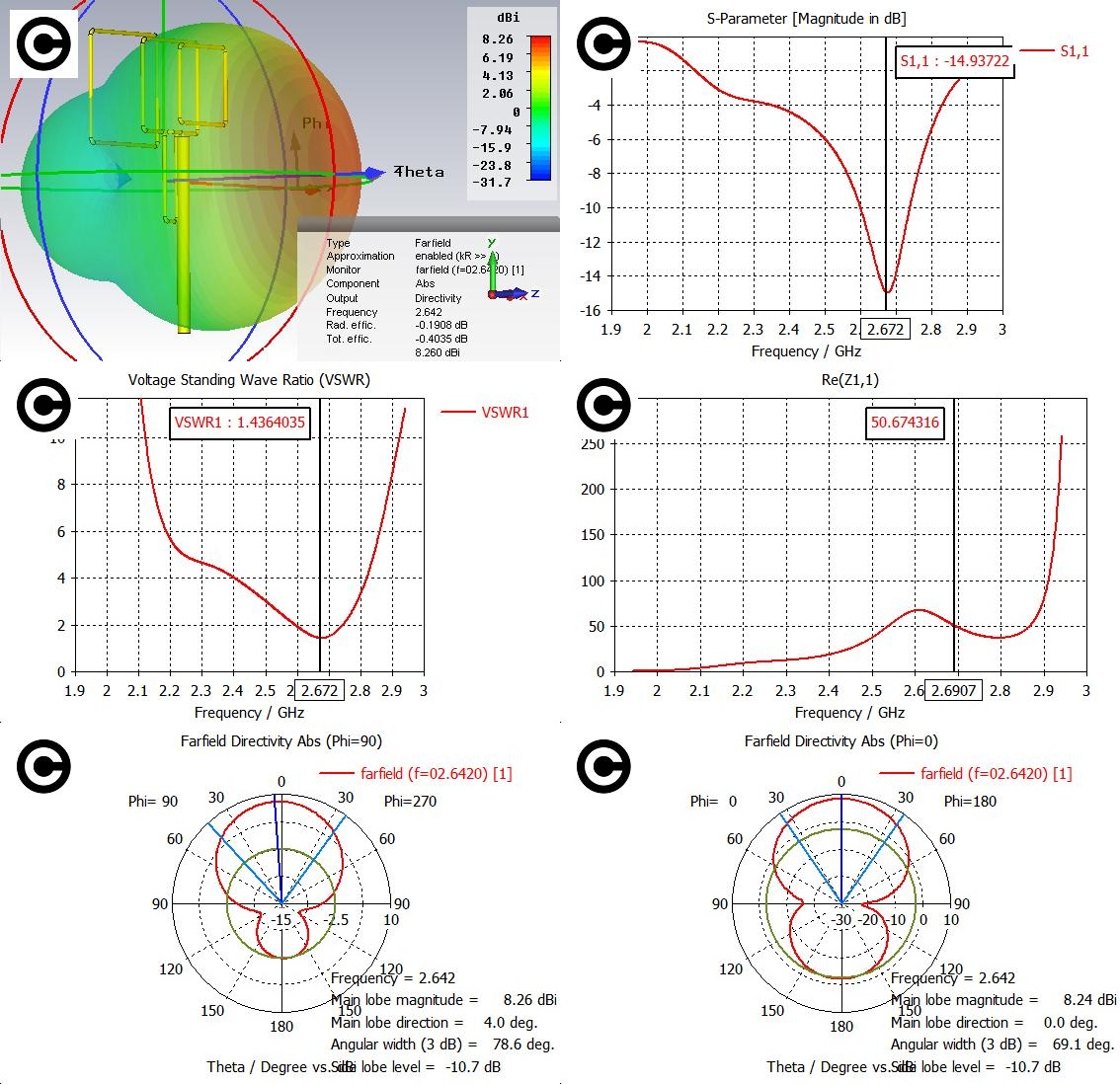

I'll try to do a simulation on 2442MHZ of this ...

[Admin 2561]

...these calculations do not correspond to reality....!!!!

[bigmdm 5]

Ok. Please cutting the balancing loop and calculating again.



[Admin 2561]

12 minutes ago, bigmdm said:

Ok. Please cutting the balancing loop and calculating again.



okay,but this is reality....

[bigmdm 5]

When I assembled this antenna the first time, I did not do the balancing loop. Those who collect this antenna for 3G band also do not recommend place the balancing loop.

[Admin 2561]

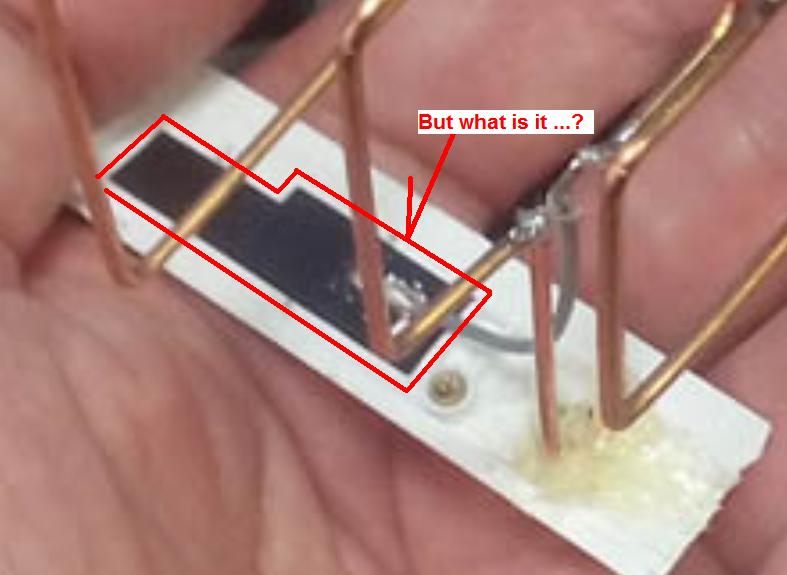

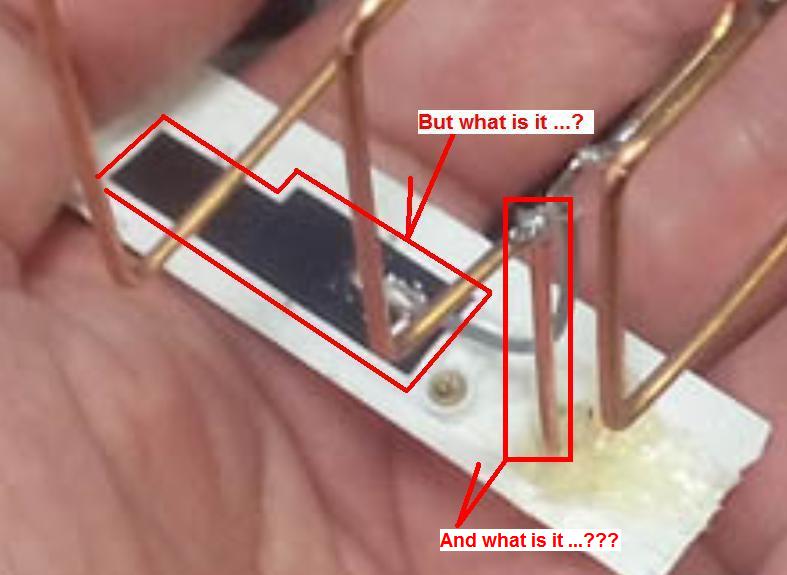

And what is it ...?



[bigmdm 5]

This is the balancing loop and silicone hermetic.

[Admin 2561]

Does the dipole make contact with the ground?

[bigmdm 5]

No. This is a plastic plate.

[Admin 2561]

,,,and the ground, where it is...???
