Scheme, Sectoral MIMO Circular

[pragata.my.id 25]

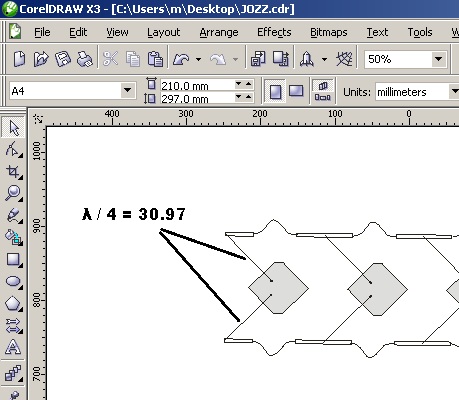

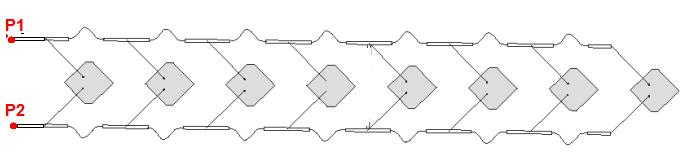

is there anybody want to help me make a CST simulation for this antenna scheme that i made this.

[Admin 2561]

More details, please....!!!

[pragata.my.id 25]

select one, thank you for your response.

[pragata.my.id 25]

sorry, for the distribution link i have not counted it .. i just want to know how big the signal streng and radiation by this antenna scheme.

[Admin 2561]

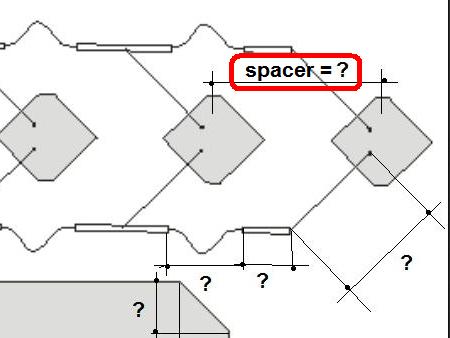

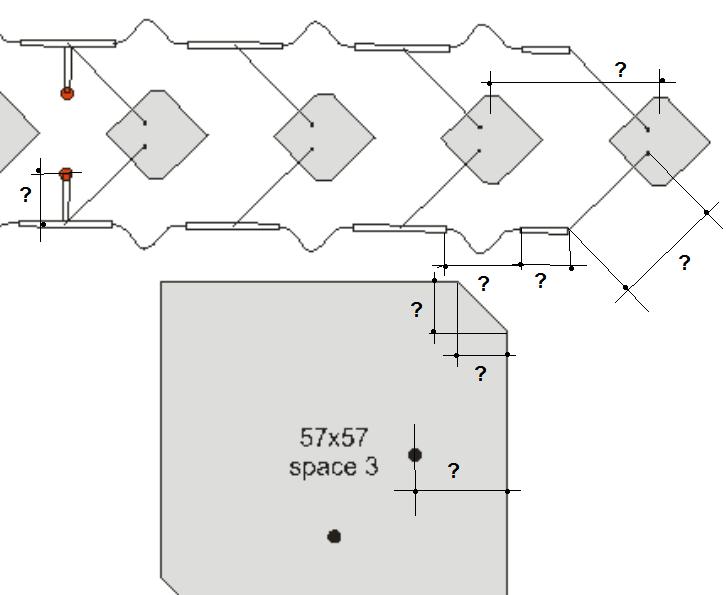

Thank you, but tell me what it"s the distance between the patches...??!!!

,,,and the length of the impedance adjustment lines?

[pragata.my.id 25]

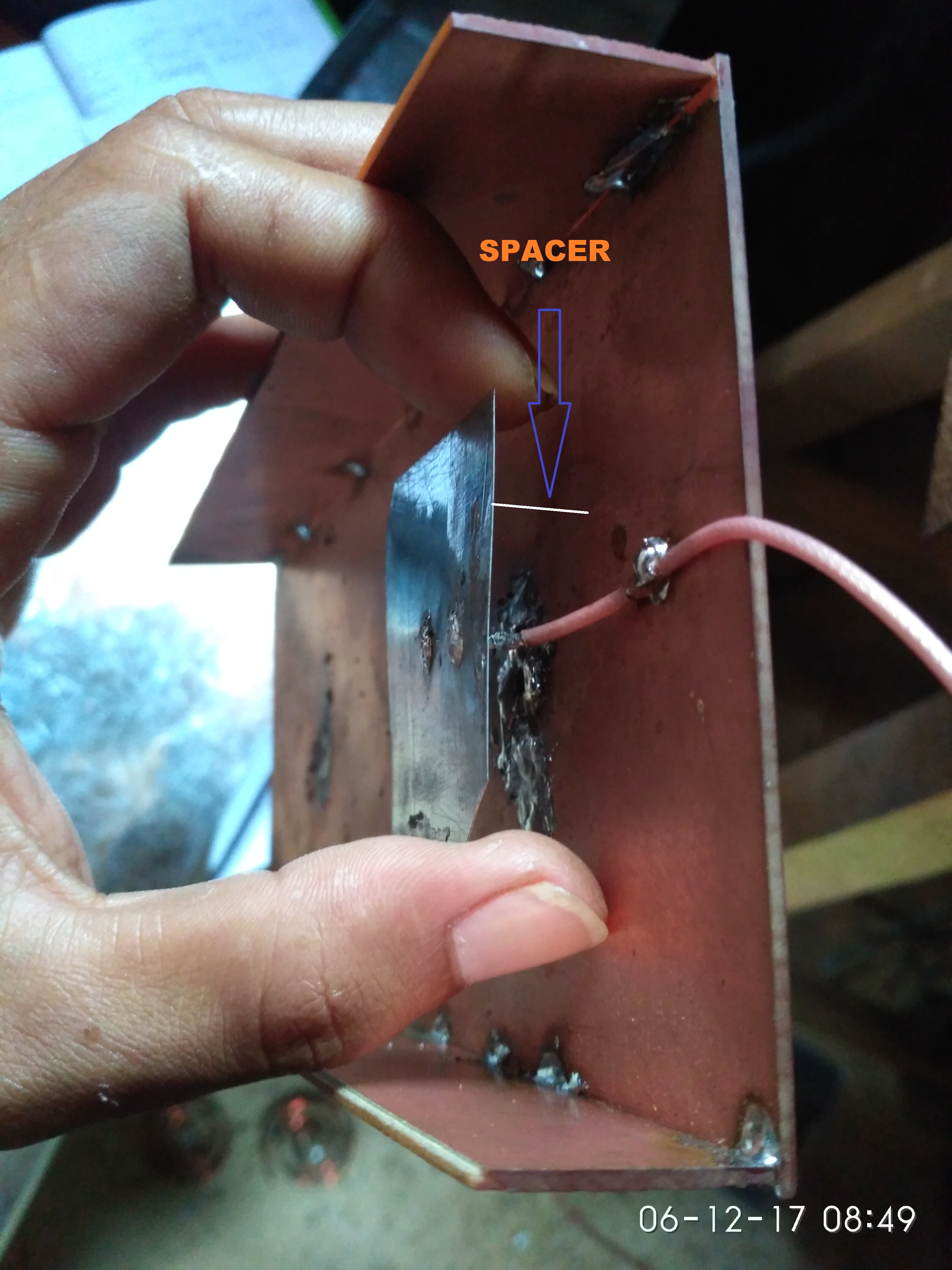

I mean spacer = the distance between the patches.
the length of the impedance 50ohm, i hope to focus on frequency 2.422 Mhz.

[pragata.my.id 25]

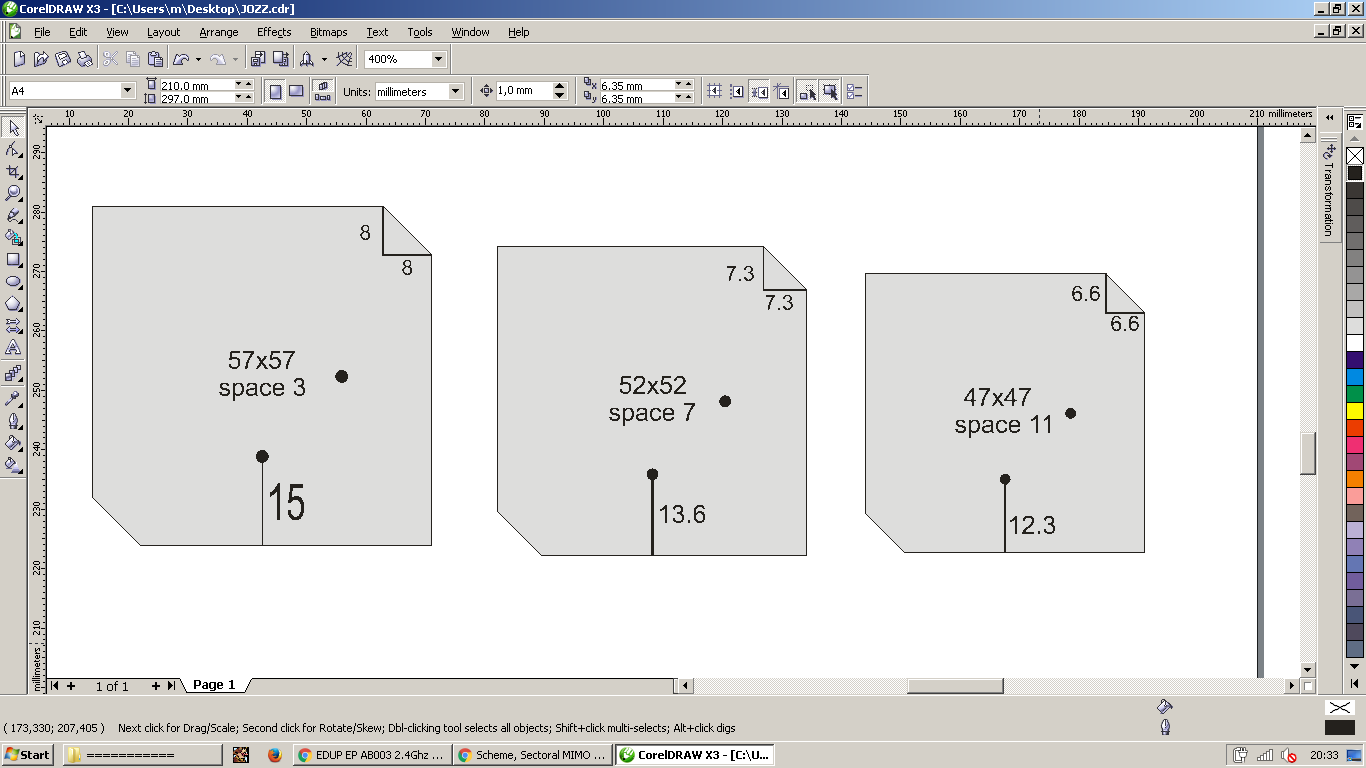

When the distance between the patches is far away, the dimensions will be smaller, this is usually used for close proximity to wider radiation.

[Admin 2561]

...this one....

[pragata.my.id 25]

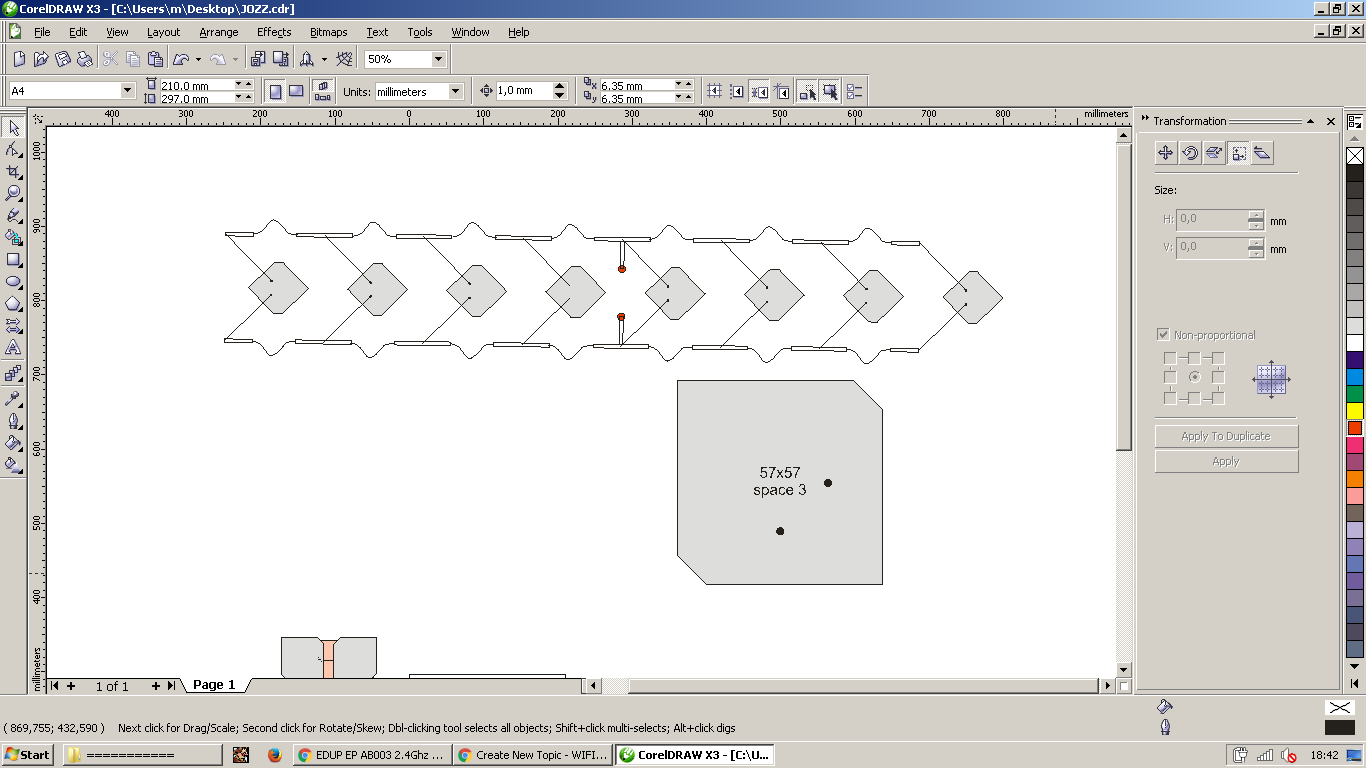

can you make the right size so that the gain is large, the point is I want to layout antenna like this, shaped length and width about 100mm, so I can put in pvc pipe.

my low-powered laptop can not install antenna modeling software like CST, magus ,.

[pragata.my.id 25]

[pragata.my.id 25]

[pragata.my.id 25]

for detail explanation

US20130321214.pdf

[Admin 2561]

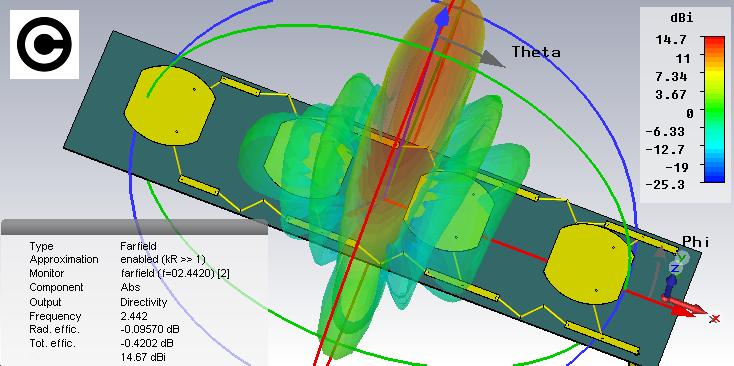

Yes, it looks like this antenna is good ... !!!

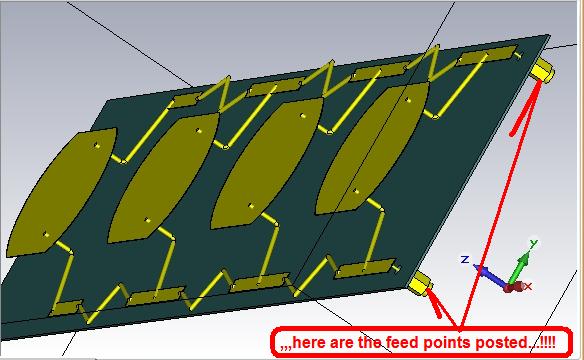

MiMo Circular Polarization

[pragata.my.id 25]

especially if added divider, 2-4 layers. steady!

[Admin 2561]

,,,meaning that..?


[pragata.my.id 25]

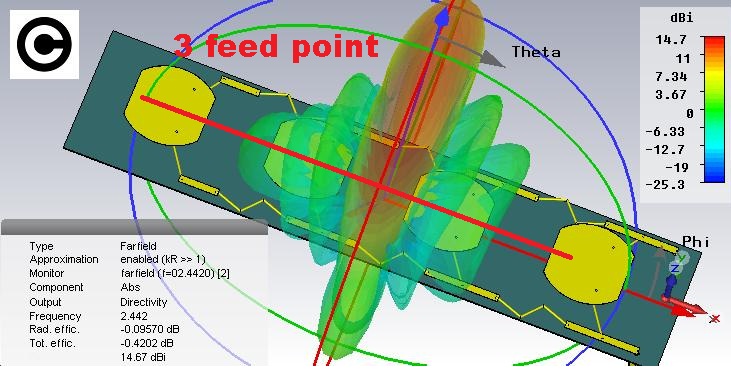

3 X 3 MiMo which is very simple

[Admin 2561]

why not 4x4..???

[pragata.my.id 25]

In my opinion, if 4x4 feed point to 4 is too close to the other.

[Admin 2561]



[pragata.my.id 25]

without bolts what might be sturdy?

[Admin 2561]

there is no big difference..!!!

[pragata.my.id 25]

it looks like this design is good impedance.

[Admin 2561]

No, it's still working on the impedance.

Your drawing on CAD is on PCB...??

[pragata.my.id 25]

I took the imagination from the brain to corel draw. still do not understand about the good impedance that how.
