Tenda F3

Started by pragata.my.id,

Posted

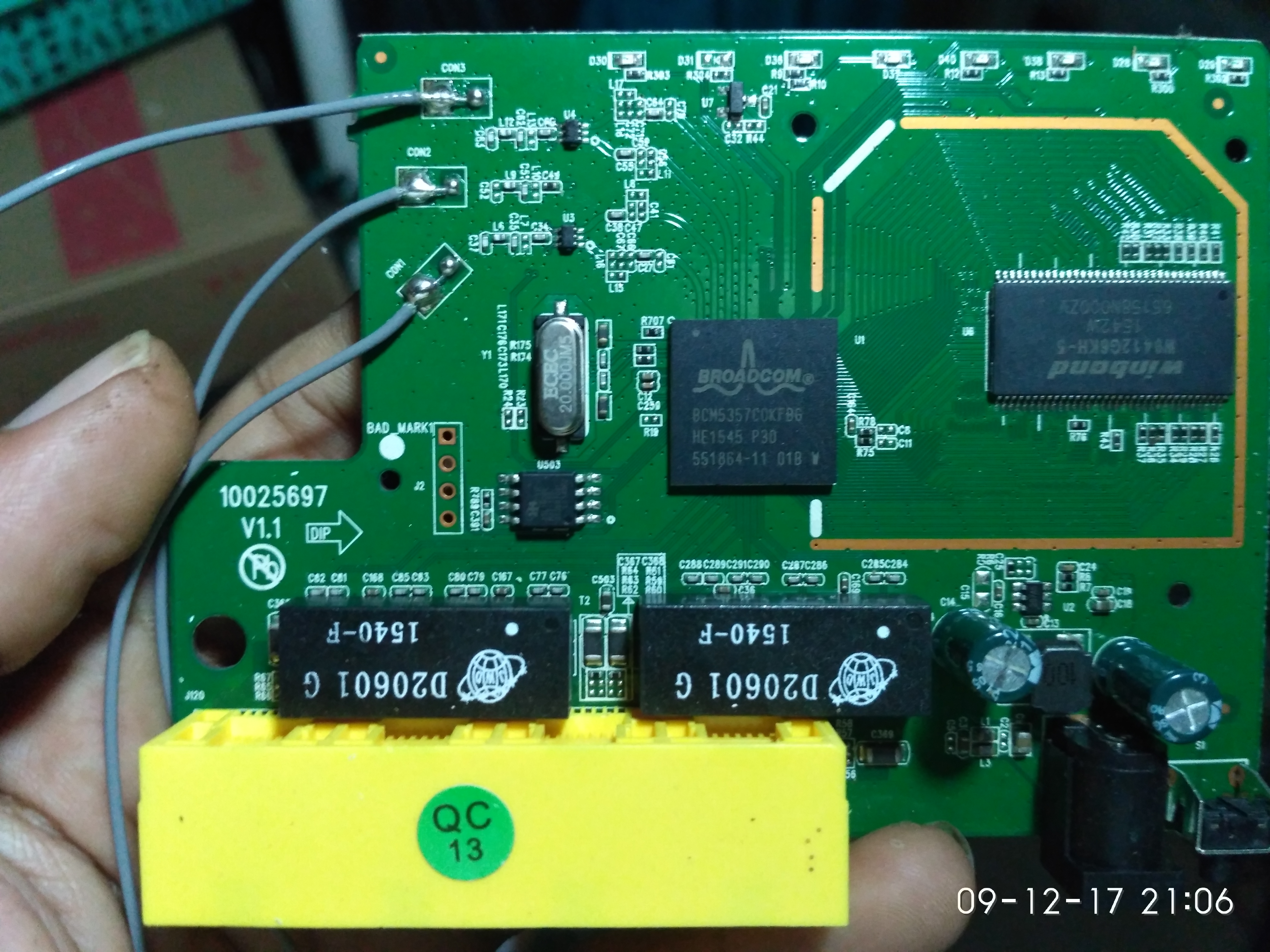

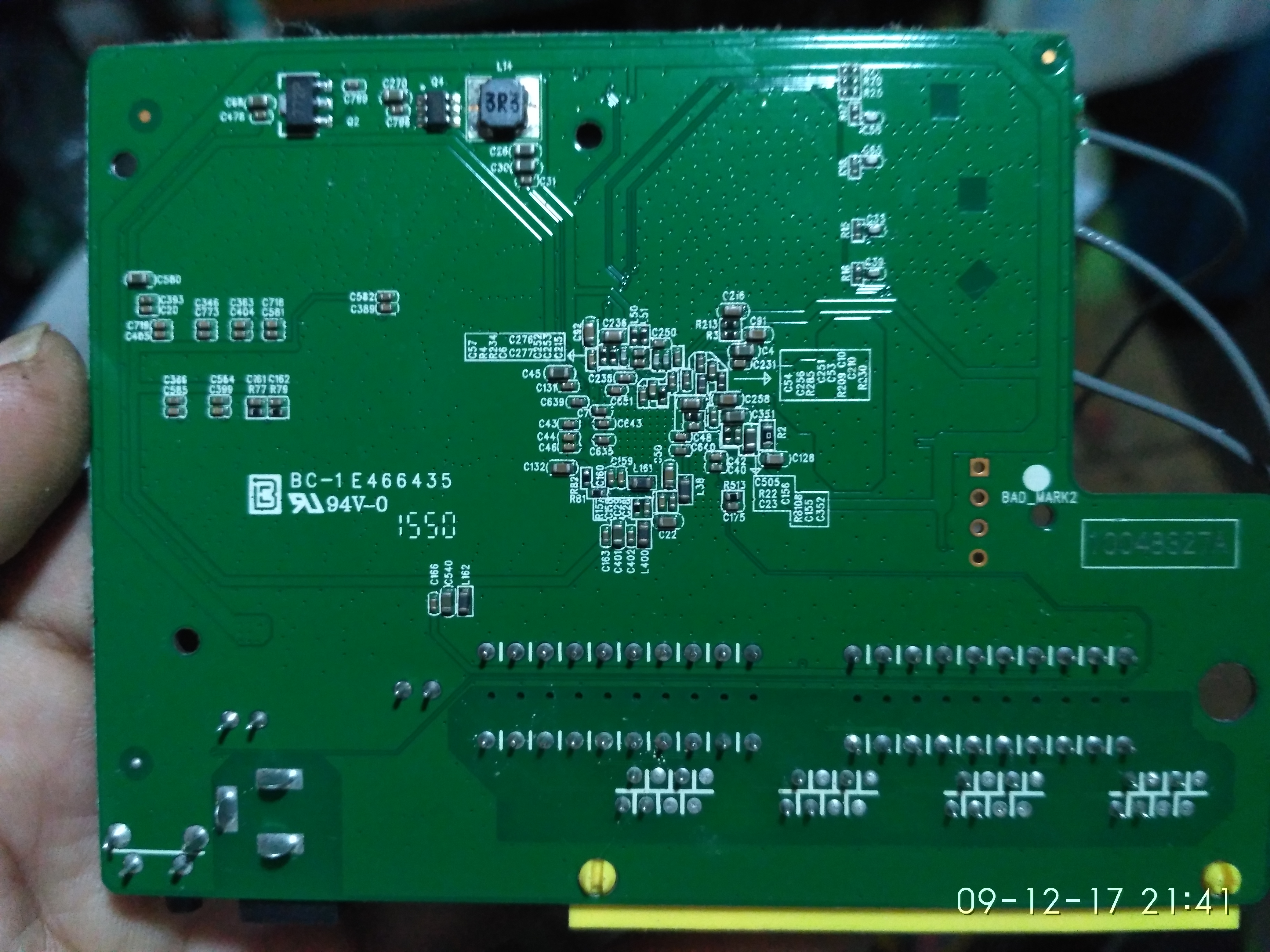

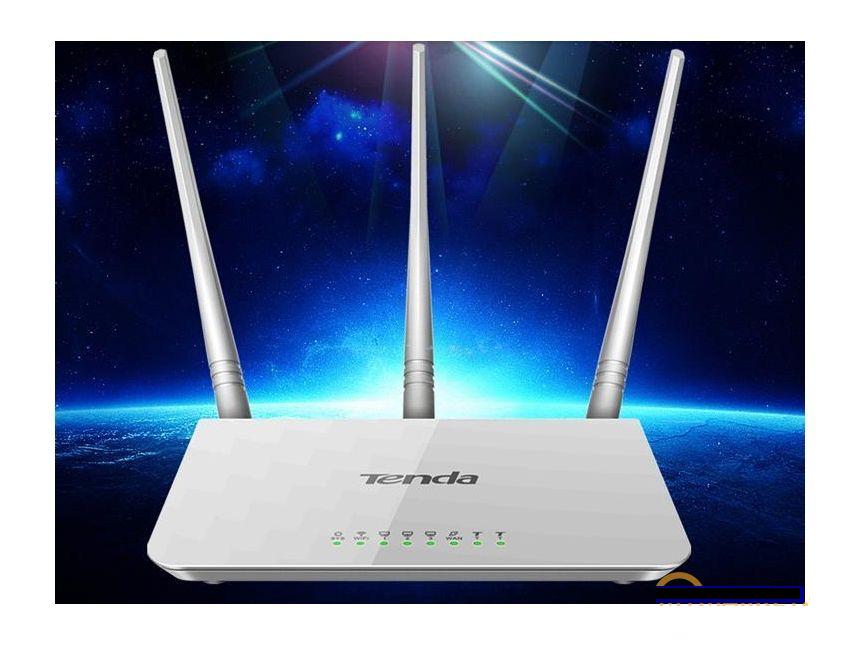

The router is WI-FI TENDA F3 (300Mbit / s). Type: Wireless Router. Standard 802.11 b / g / n.
Interface connection (LAN port) 3x 10/100 Ethernet. Input (WAN-port) 1x 10/100 Ethernet.

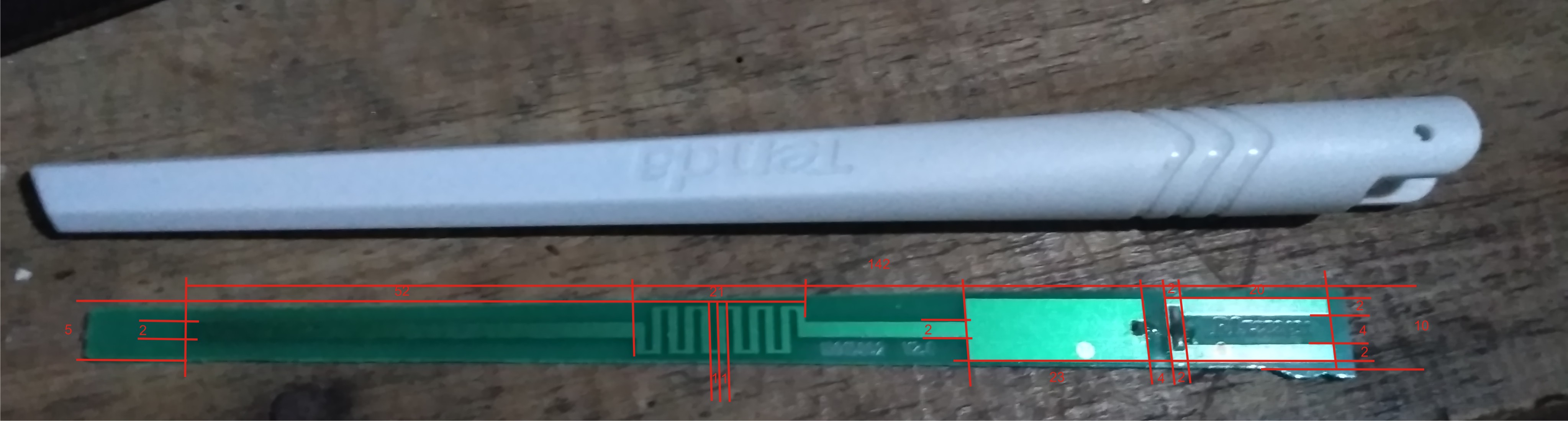

Connection via USB (external storage / printer / 3G-modem): no. Antenna: 3x5dBi.
The number of antennas is 3-non-removable (Frequency 2.4Ghz). Coverage of wireless network up to 200 m².







1 person likes this

Share this post

Link to post
Share on other sites

Posted

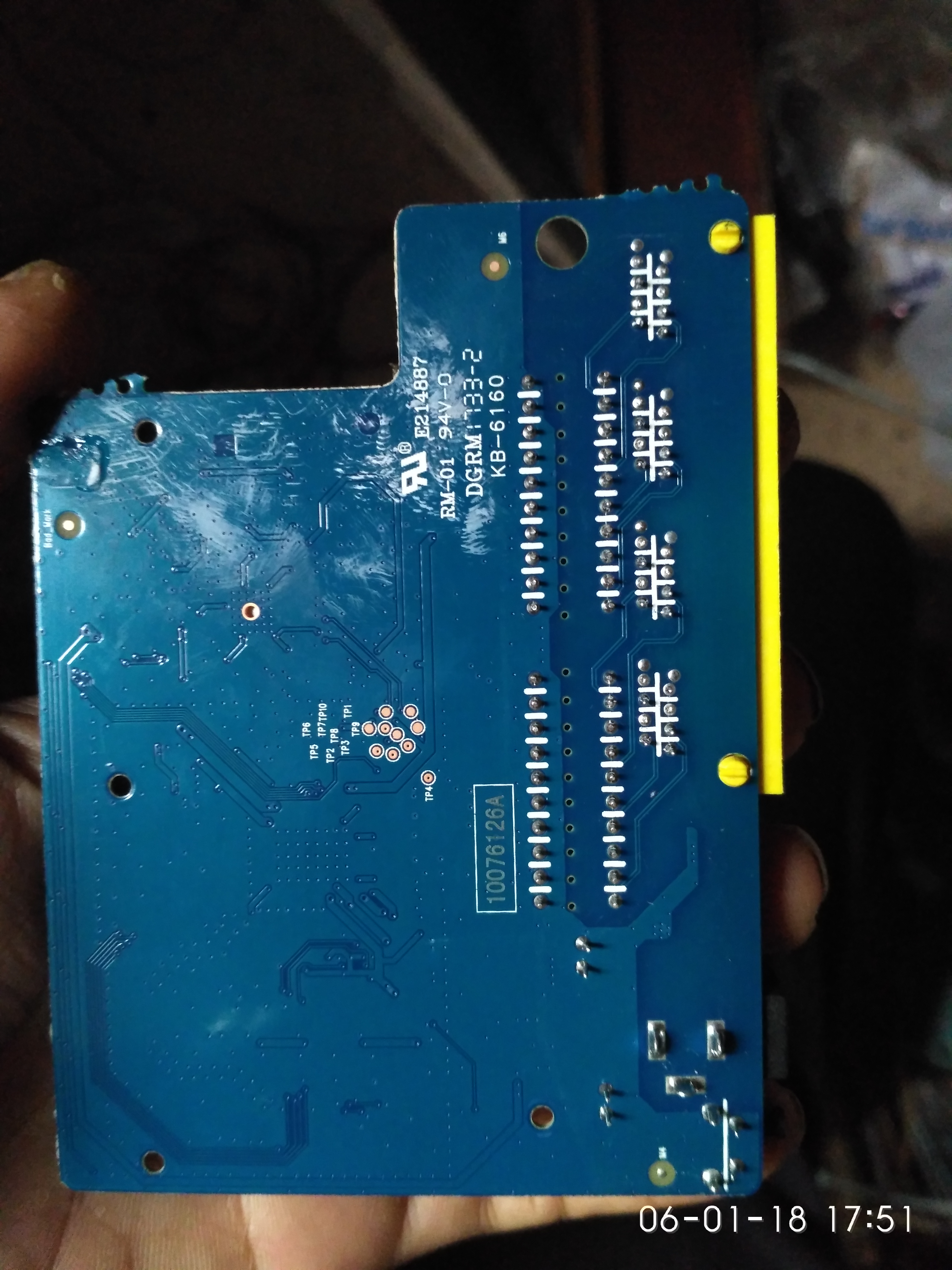

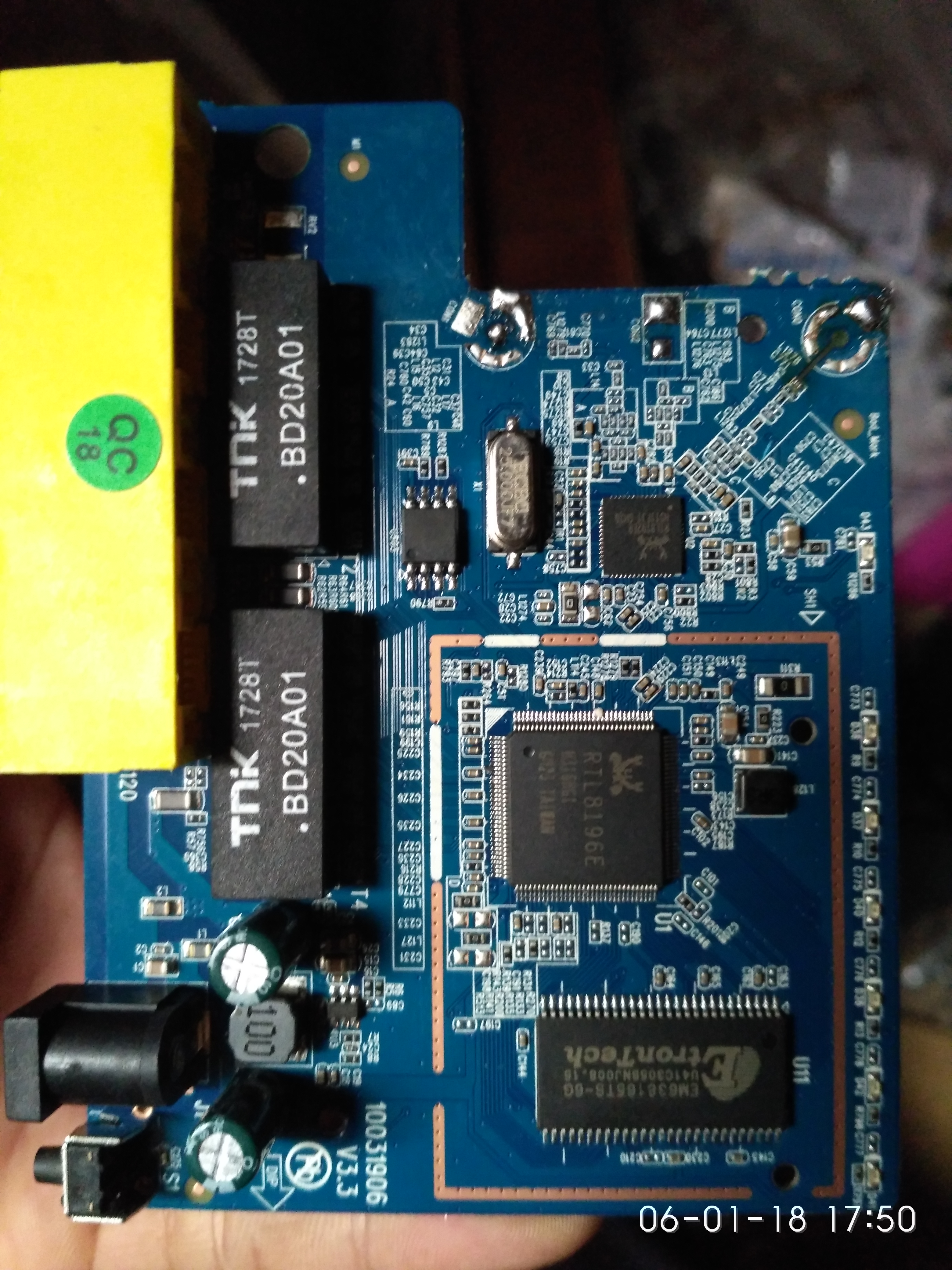

Tenda F3-16 Board v3.3


CPU1: Realtek RTL8196E
FLA1: 1 MiB (KH KH25L8006EM2I-12G)
RAM1: 8 MiB (ESMT M12L64164A-5T)
WI1 chip1: Realtek RTL8192ER
WI1 802dot11 protocols: bgn
WI1 MIMO config: 2x2:2
WI1 antenna connector: none
ETH chip1: Realtek RTL8196E
Switch: Realtek RTL8196E
LAN speed: 10/100
LAN ports: 3
WAN speed: 10/100
WAN ports: 1

Default IP address: 192.168.0.1
Default login user: blank
Default login password: admin

Power: 9 VDC, 0.6 A
