PCB Patch Ellipse

Started by Admin,

Posted

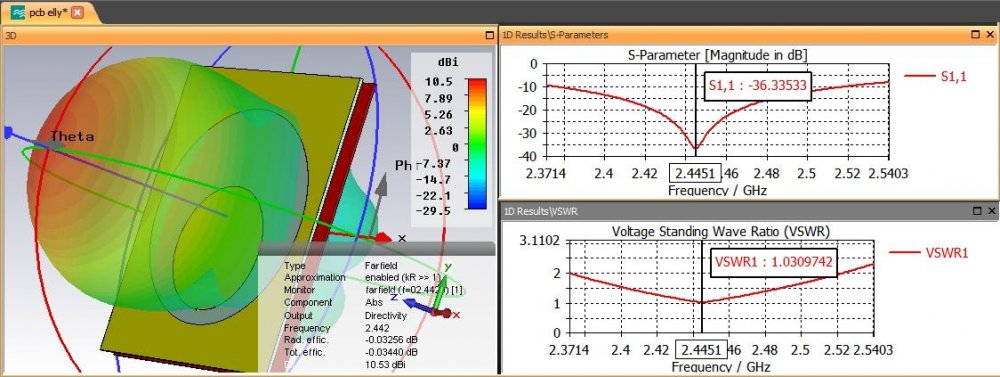

After I attached an SMA connector to this antenna ...




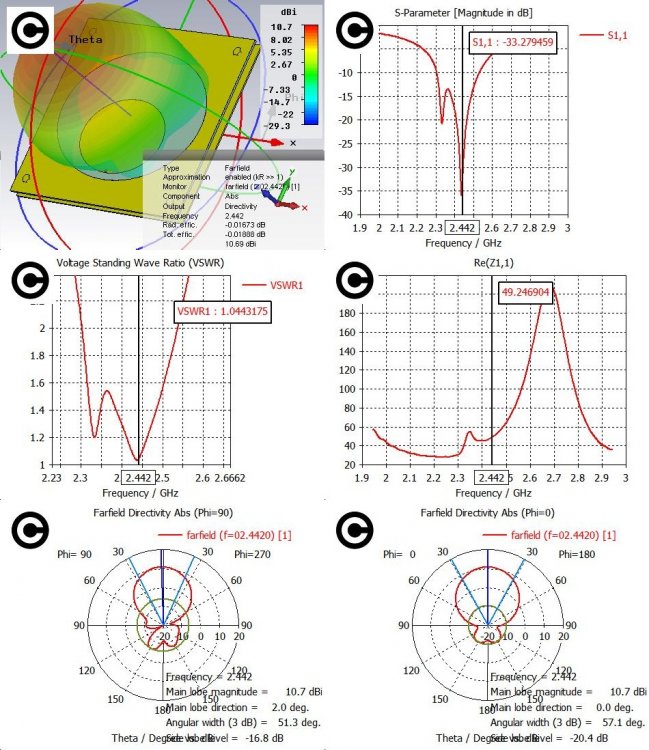

and after some dimensional changes, this resulted...

elly pcb_01-tile.jpg





elly pcb_01.gif

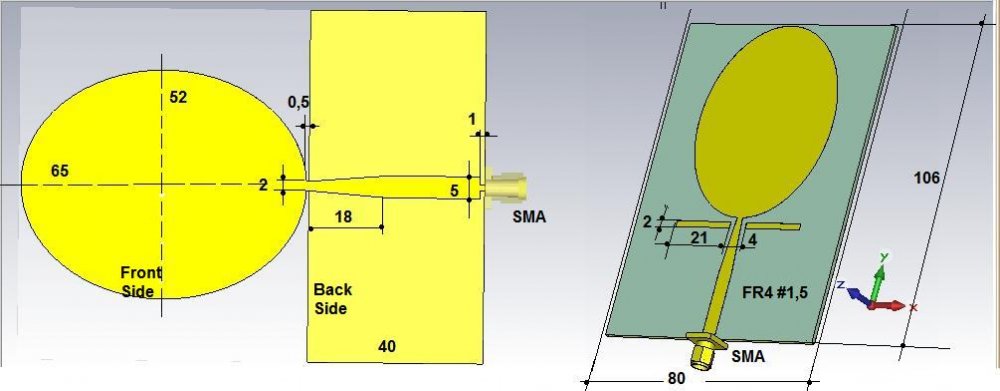

and these are the dimensions...






2 people like this

Share this post

Link to post
Share on other sites

Posted

This elliptical patch antenna is often built of printed circuit board material and the substrate makes up the patch antenna’s dielectric

In general, however, the figure that the electric field traces is an ellipse, and the field is said to be ... – Large size at low frequency. – Antenna performance and tuning affected by the PCB design.

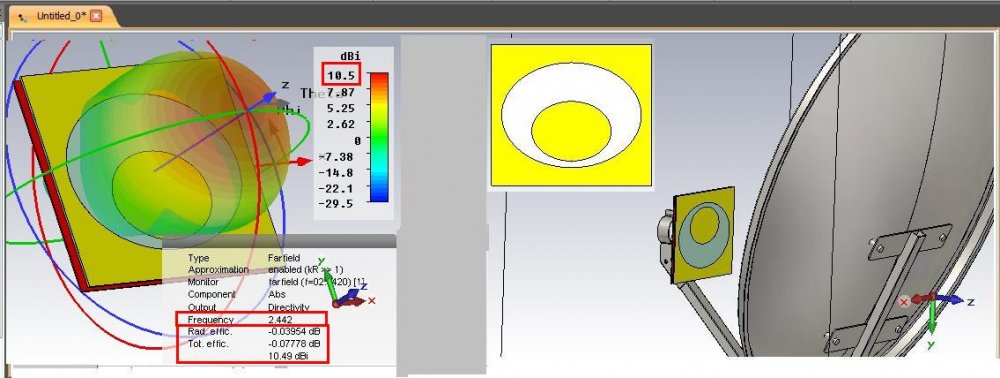

,,, and by adding a reflector...
