I realize, MikroTik SXT RB LTE 3-7 ( I'm using right now ) not support USSD features  but have a nice gain antenna (9 dBi)... in other side, I have 3g/4g modem ( USSD support and have rp-sma ports ) but less signal gain.. so I want to make an external dish lte antenna for my 3g/4g modem.. anyone can give me some advise? thanks in advance

** Dish Antenna 1800MHz only, because in my country, LTE ( 4G ) just using 900MHz and 1800MHz frequency

** Dish model because its my favorite design

[lrg 30]

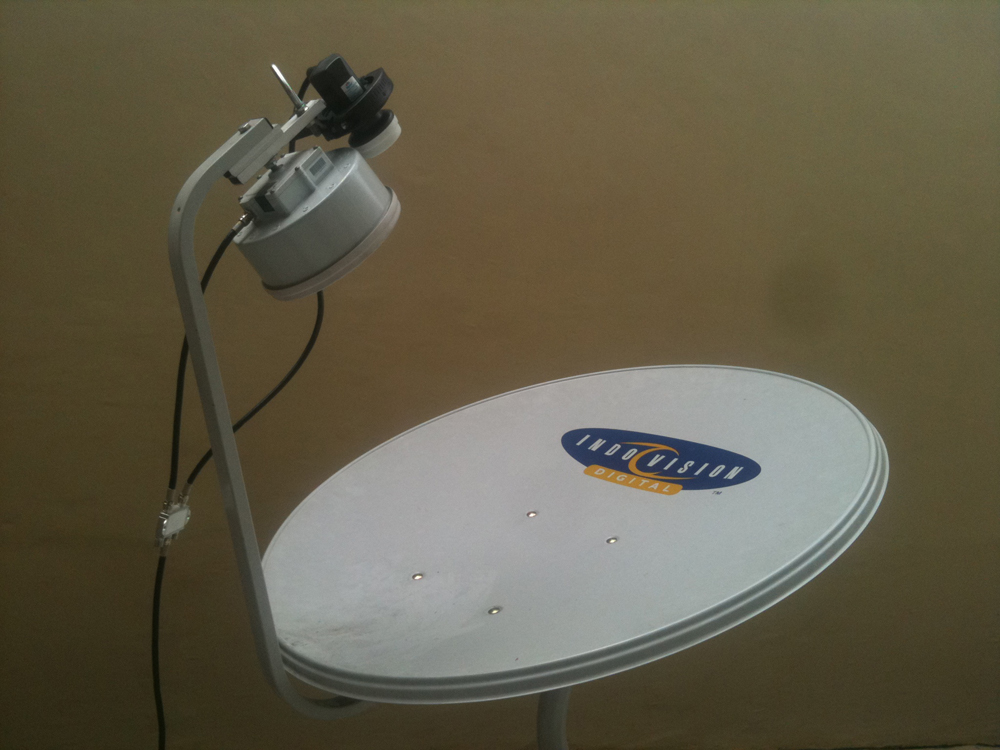

this is a feed for offset parabolic antenna

[Admin 2533]

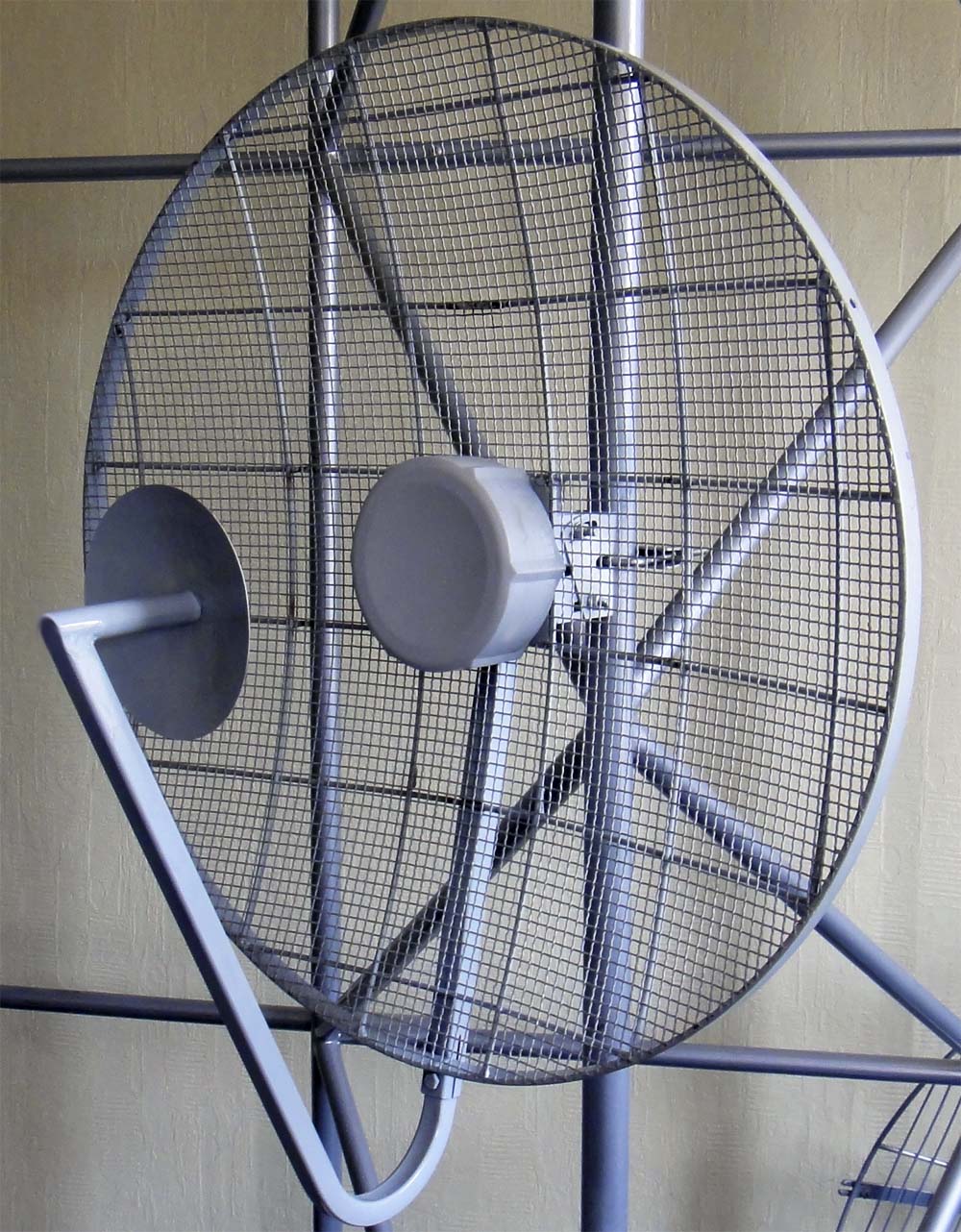

Made something like this, but the features are not very impressive,...



The reflective hyperbole should be adjustable and its diameter must be d = 0,1317 * D ...!!!!

[MikroTik 1]

thanks, i appreciate it...!!! but, i if use reflector from my old tv provider, and replace the LNB to SXT LTE, is it worth ? because my satellite TV is designed for 10GHz frequency ( Q Band ), but we knew LTE using 1800MHz, is any problem in there? can you give me some maths equation for designing offset dish atenna ( for 1800 MHz )... thx in andvance

[Admin 2533]

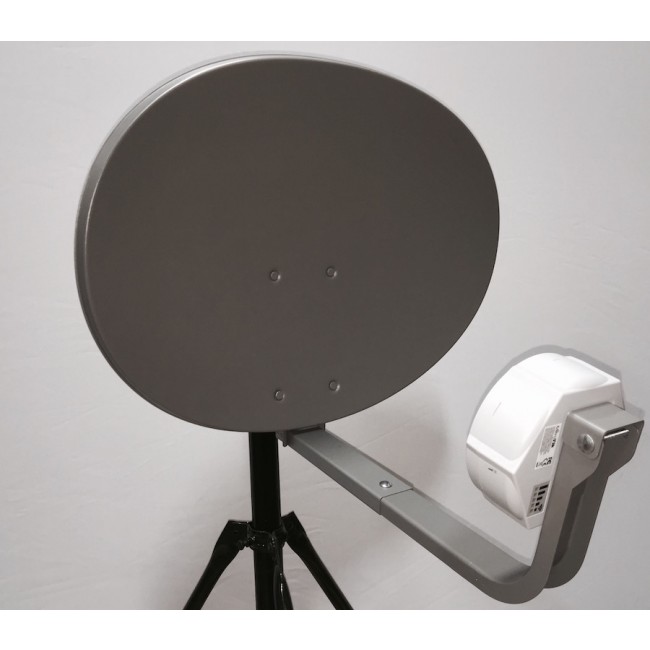

,,,, wrong, MikroTik SXT RB LTE 3-7 antenna is not in the offset disk focus

[MikroTik 1]

why??? I've seen MikroTik 2.4GHz/5GHz is used satellite reflector too? or 1800MHz is special frequency ?

[Admin 2533]

,,,study the parabolic(offset) antenna calculation...!!!!

[MikroTik 1]

what is the most reason of "no", is about Tx Power or something else? may i have the journals/pdf? maybe i can get start to learn about the calculation

[MikroTik 1]

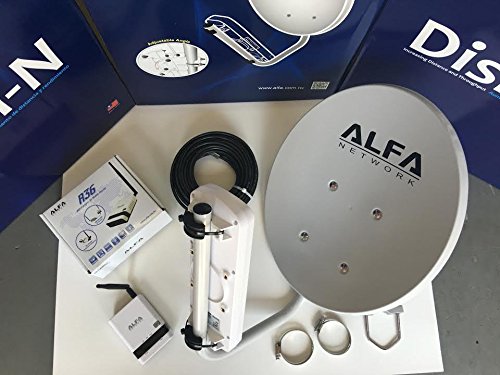

Alfa Network is selling relfector offset dish for 2.4GHz ( i have 1, alfa reflector just designed for Alfa radio & UBNT radio, not for SXT, but if replace it to SXT i have more signal gain too), but if i use 5ghz radio ( like ubnt,cambium,sxt, i have less signal gain, I've been replaced to SXT LTE, and less signal gain too) so, is about reflector design? and what is relation about frequency and its design? or maybe offset dish reflector is worthless??? please give me some hints in this offset dish field... thankyou

[Admin 2533]

,,,the gain which can be obtained with a parabolic reflector is proportional to the square of the frequency. If this mirror to 2400 MHz can give such as 21 dBi,for 800 MHz,the gain 9 times (9.5 dB) lower than, i.e. about 11.5 dBi

,,,the strengthening of the parabola is G=e * 4 * pi * S / lambda^2,
where S is the area of the aperture in m2, lambda is the wavelength in meters, e is the coefficient of the use(e- efficiency aperture reaches 55-65%)

,,,for e=77%  => F/D=0,75   where  F=focus of parabola : D=diameter of parabola

[pragata.my.id 25]

and essentially not all reflector materials can be used at all frequencies. that is right?

[Admin 2533]

I'm not so sure of that...!!

[MikroTik 1]

Thanks for the explanation.....maybe I can compare between theory and the real practice...

[Vinni Puh 4]

Чем ниже частота, тем ниже коэффициент усиления смещение параболы

The lower the frequency, the lower the gain the parabola offset

[Vinni Puh 4]

если вопрос ЛТЕ на 1800 МГц,then with small losses it is necessary .

Best option as I do .

[Vinni Puh 4]

I'm waiting for components for the system lte1800, which in Russia to publicly show 8 months is not planned....

Here, in 2-3 weeks I will show (link will be for this forum only) .

It will be interesting to hear the opinion admin

[Admin 2533]

You are welcome here,buddy ...!!!

[Vinni Puh 4]

On 3/3/2018 at 9:21 PM, Admin said:

Приветствую тебя дружище ...!!!

Привет .
Я планирую на вас на форуме, чтобы показать свою идею
, основанную на антенну от "бестер" .

Электронная часть полностью, я покажу
только здесь. Video on YouTube will be neutered



Hey .
I plan on you on the forum to show my idea
based on the bester antenna.

The electronic part is complete, I will show
Only here. Video on YouTube will be neutered



[Admin 2533]

"okay, all the way ahead...!!!

[Vinni Puh 4]

On 3/3/2018 at 9:36 PM, Admin said:

"ладно, все впереди...!!!

Вам понравится
, он будет на новинку от "бестер"
и новизна меня..



You'll like it
, it will be a novelty from "Bester"
and the novelty of me ..

[Vinni Puh 4]

In Russia, I do not plan to show the full video ...

Competitors are watching ,I'm not going to facilitate their tasks....

[Admin 2533]

Thank you for your trust in this forum...!!!
