Circular polarized antenna

Hi everyone

as all of us know the advantages of electromagnetic simulation is to safe time and effort

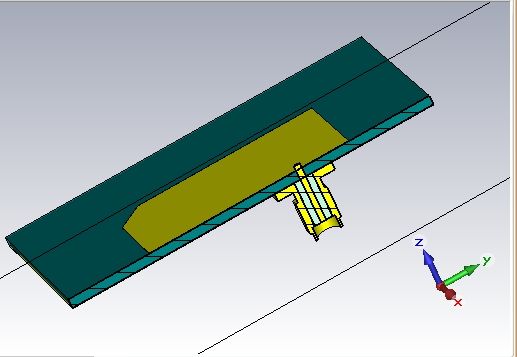

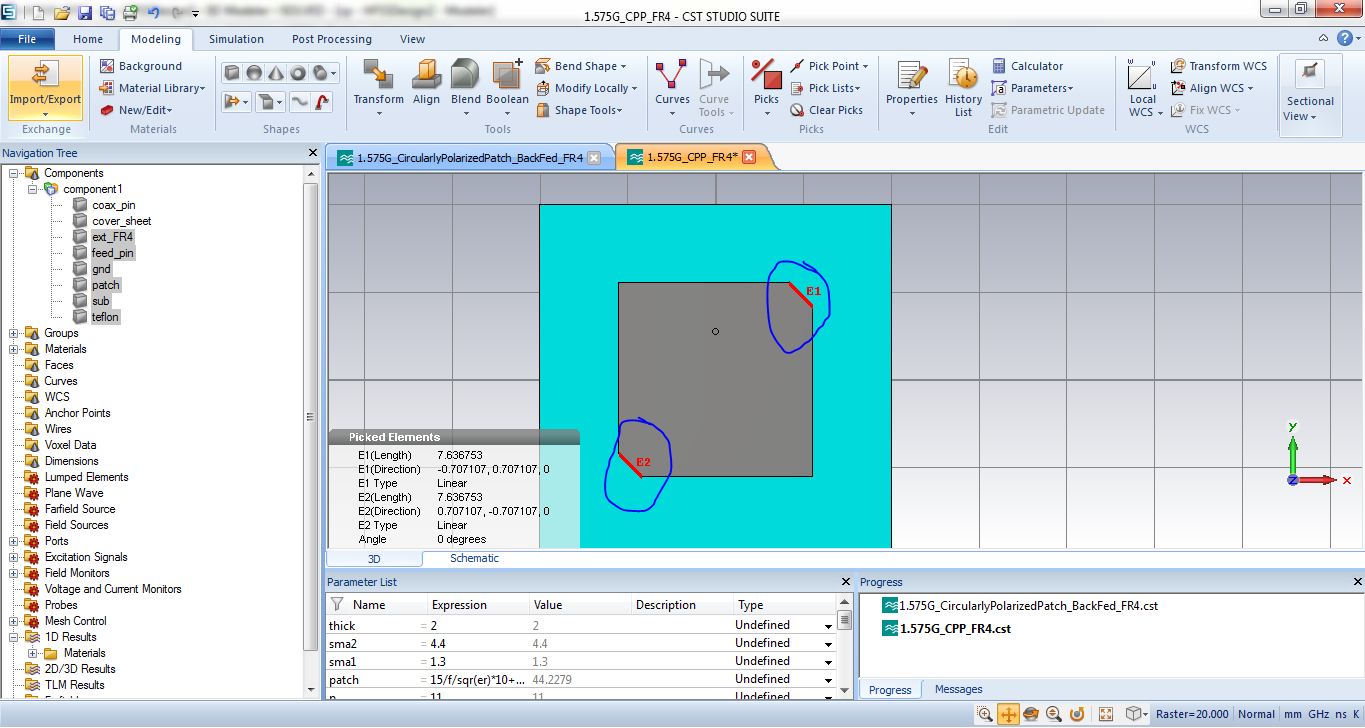

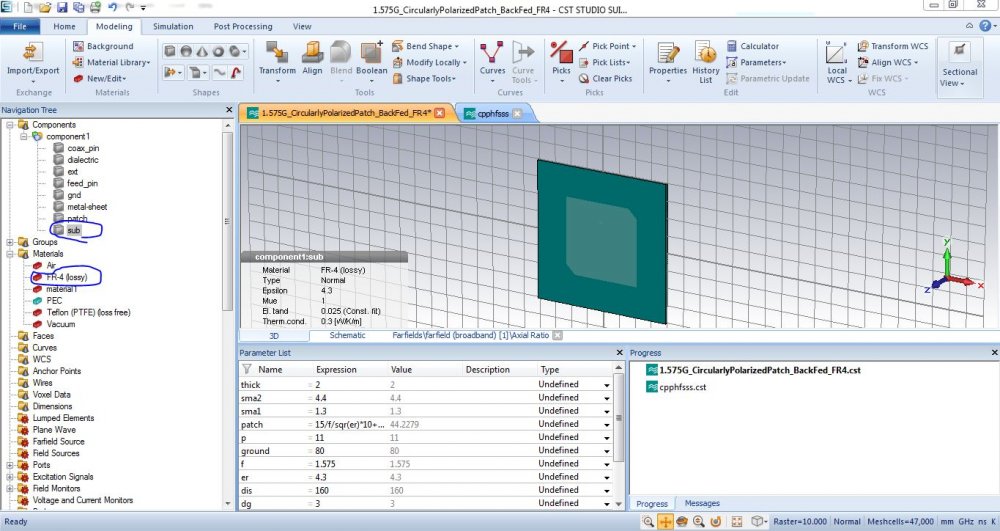

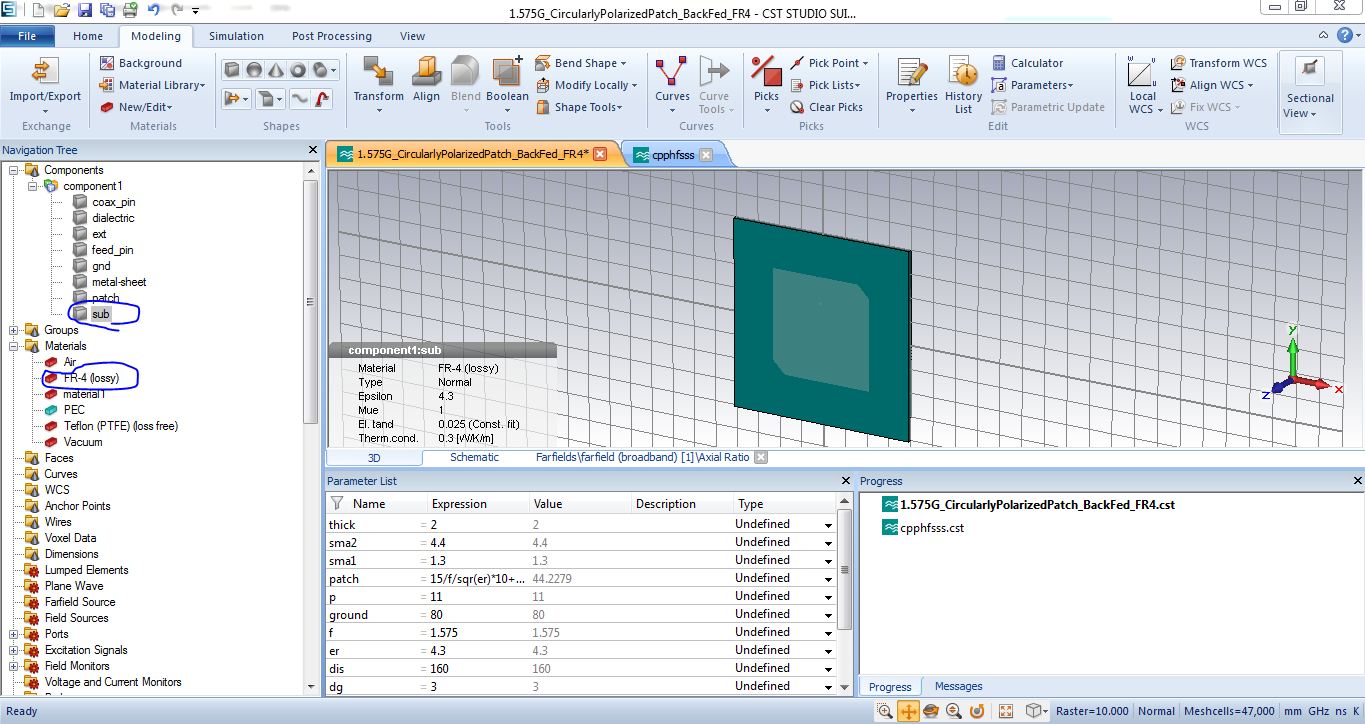

this antenna is CP antenna with truncated edges

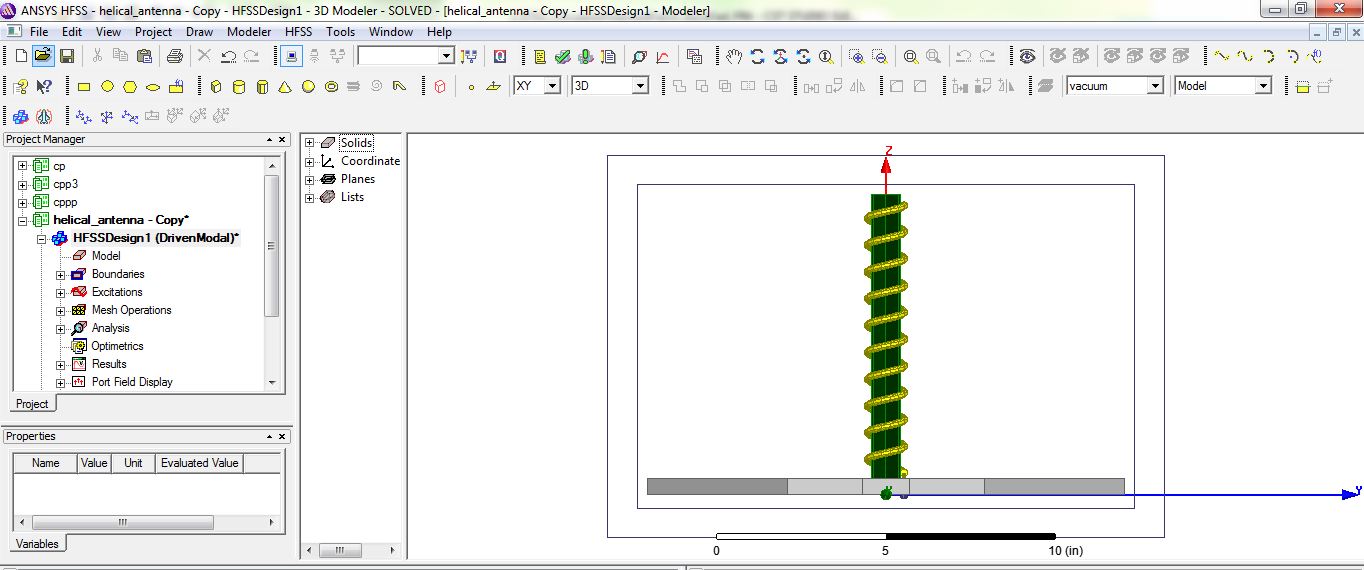

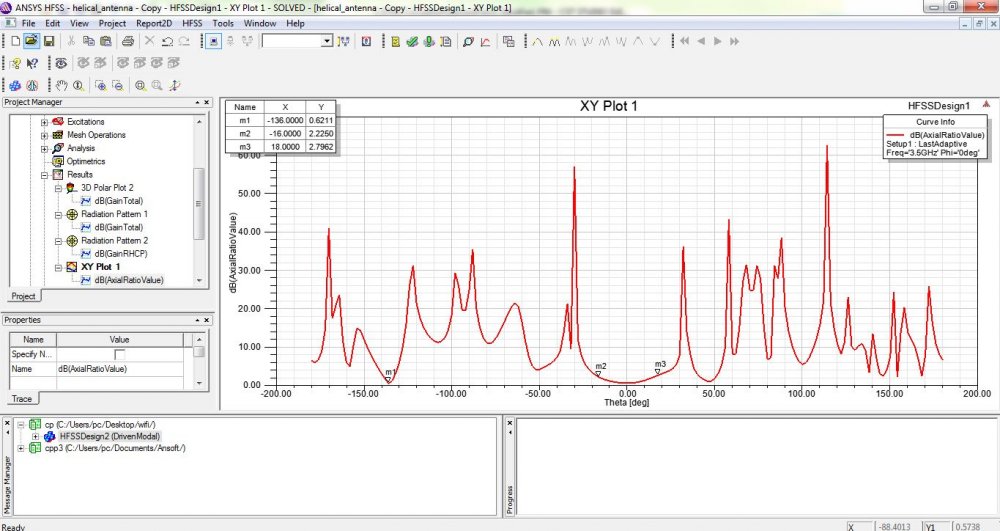

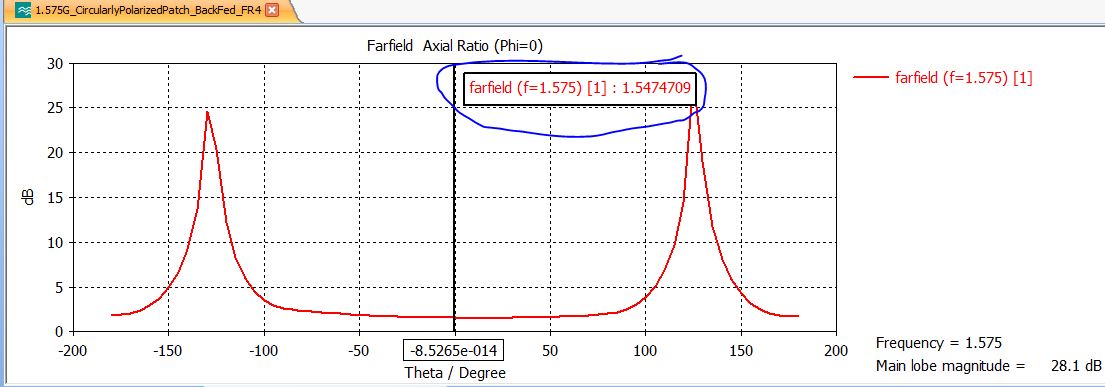

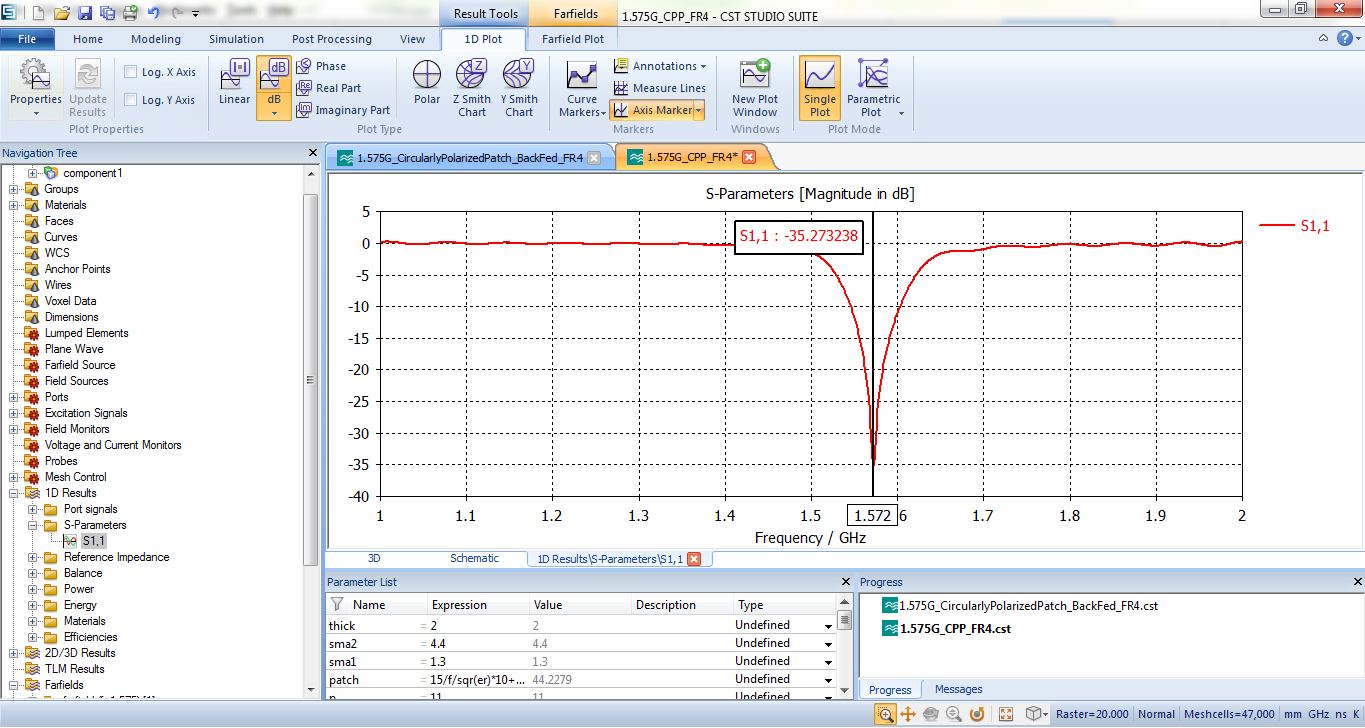

in HFSS software i cannot get the desired Axial ratio while in cst i get the desired axial ration for single frequency monitor while for broadband it is not achieved

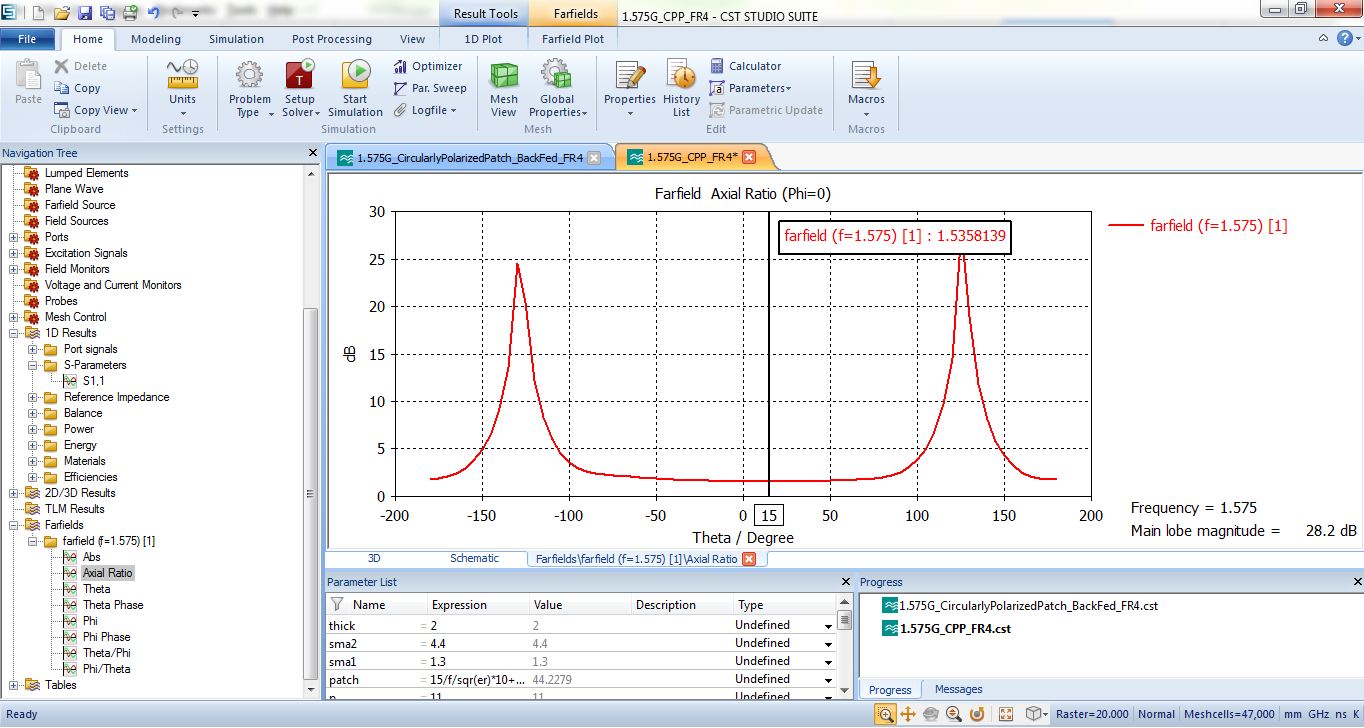

how to plot the axial ration VS frequency in CST

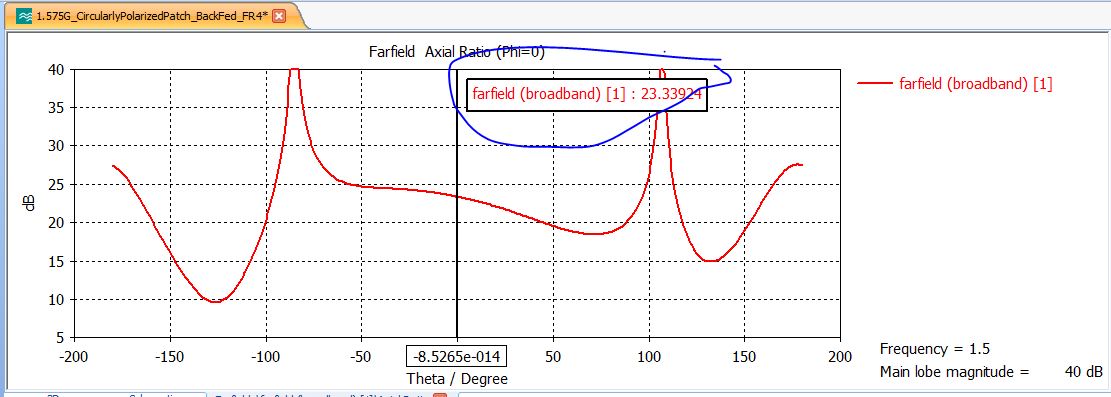

how to know the accurate results winch could be agreed with the measurements, for example in cst axial ratio which one i should trust single frequency monitor or  broad band monitor



thanks all

cp.hfss

1.575G_CircularlyPolarizedPatch_BackFed_FR4.cst

cpp.stp

cpp.igs

hfsscp.iges

hfsscp.step



Share this post


Link to post
Share on other sites

,,, welcome to this forum, buddy ...!!!!

,,,for...

"how to plot the axial ration VS frequency in CST...?"

see this...



Share this post


Link to post
Share on other sites

"I think with your project there are some problems....



Share this post


Link to post
Share on other sites

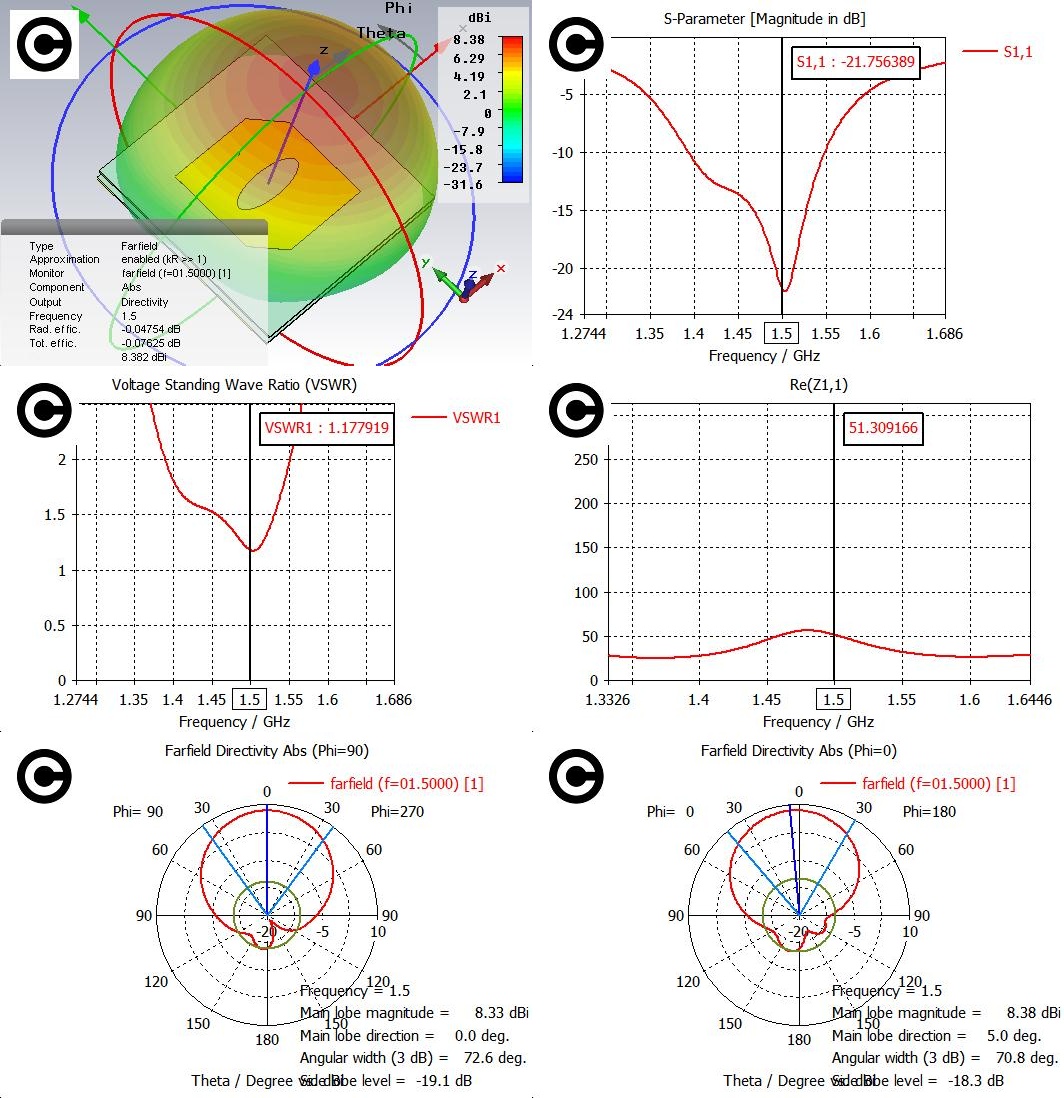

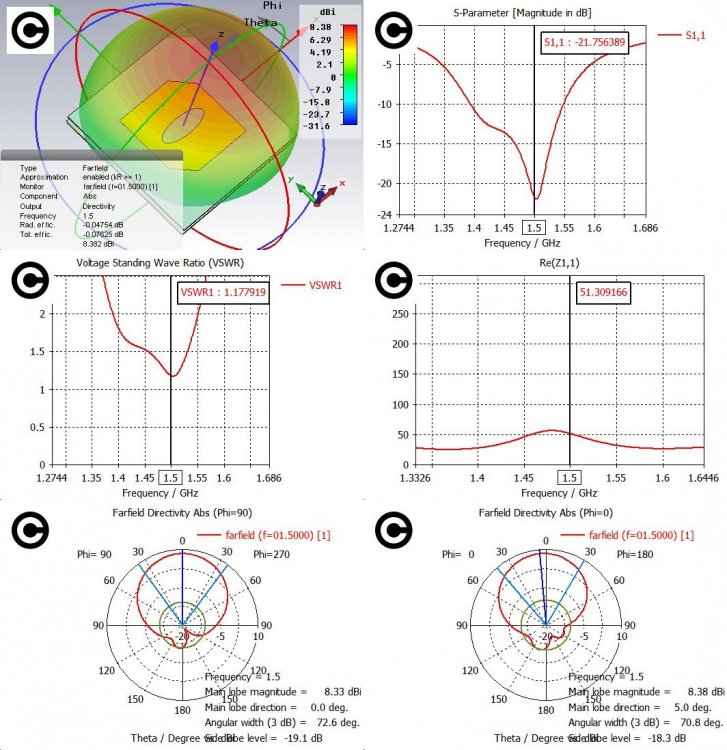

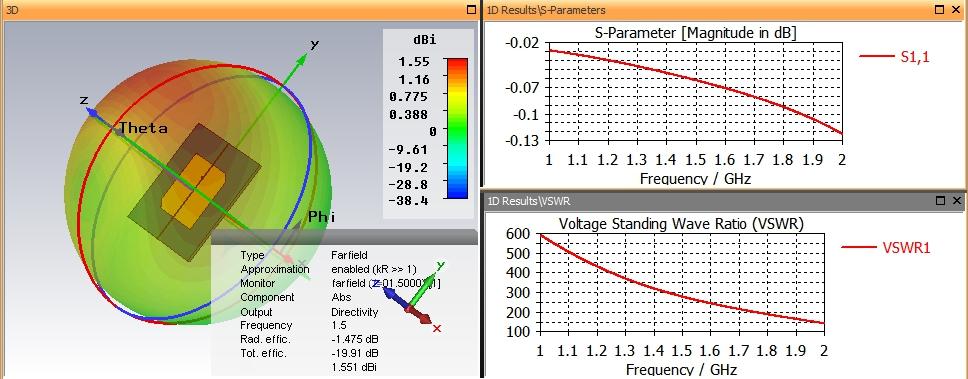

and what is the impedance of the antenna output?

and VSWR..?

Share this post


Link to post
Share on other sites
