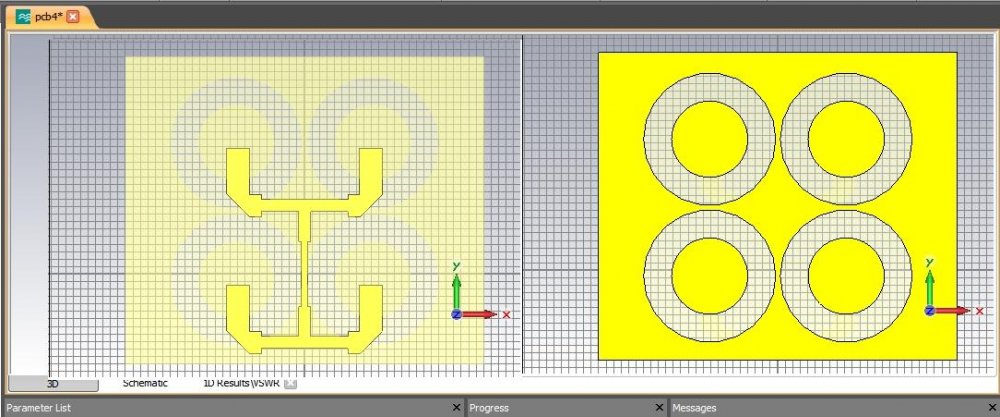

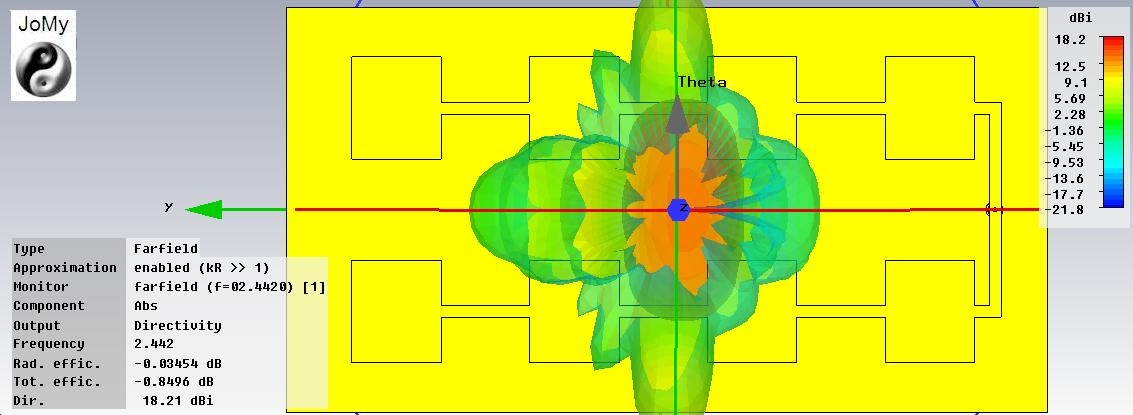

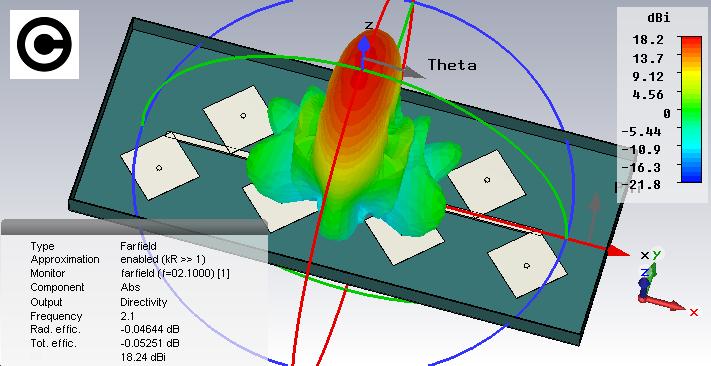

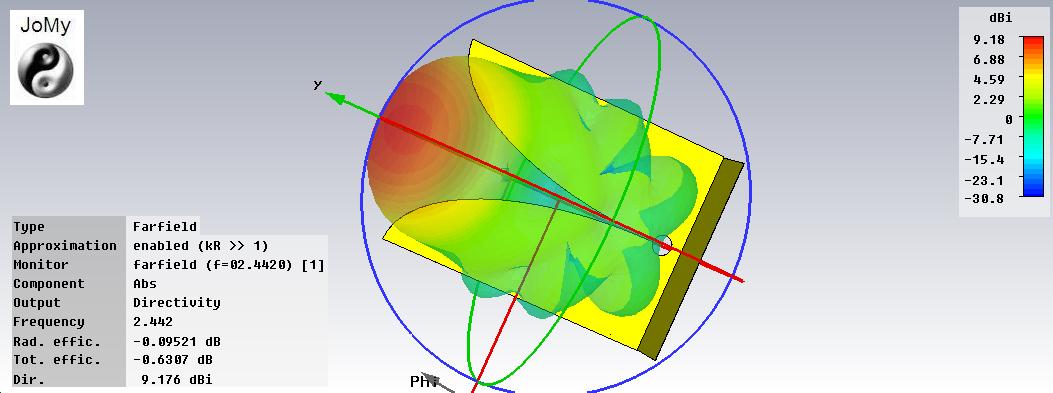

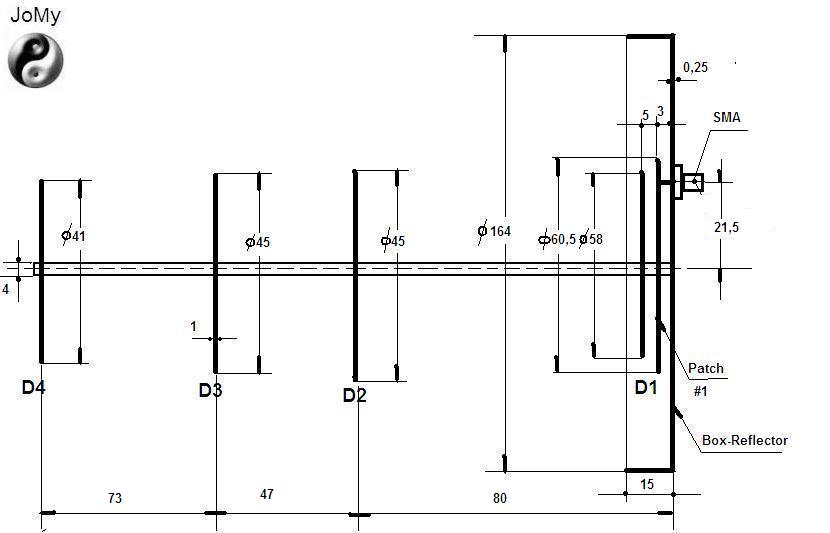

This is my oldest yagi-patch antenna project

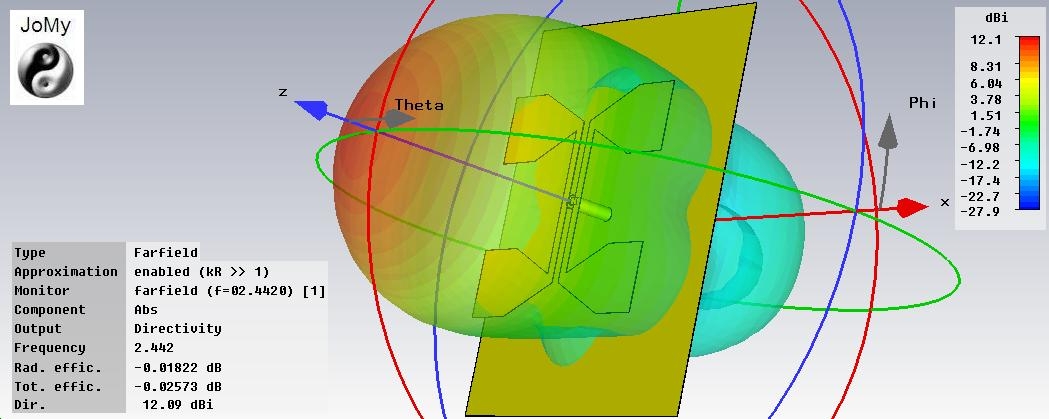

which I will try to optimize on the 2.442GHz frequency

[Admin 2545]

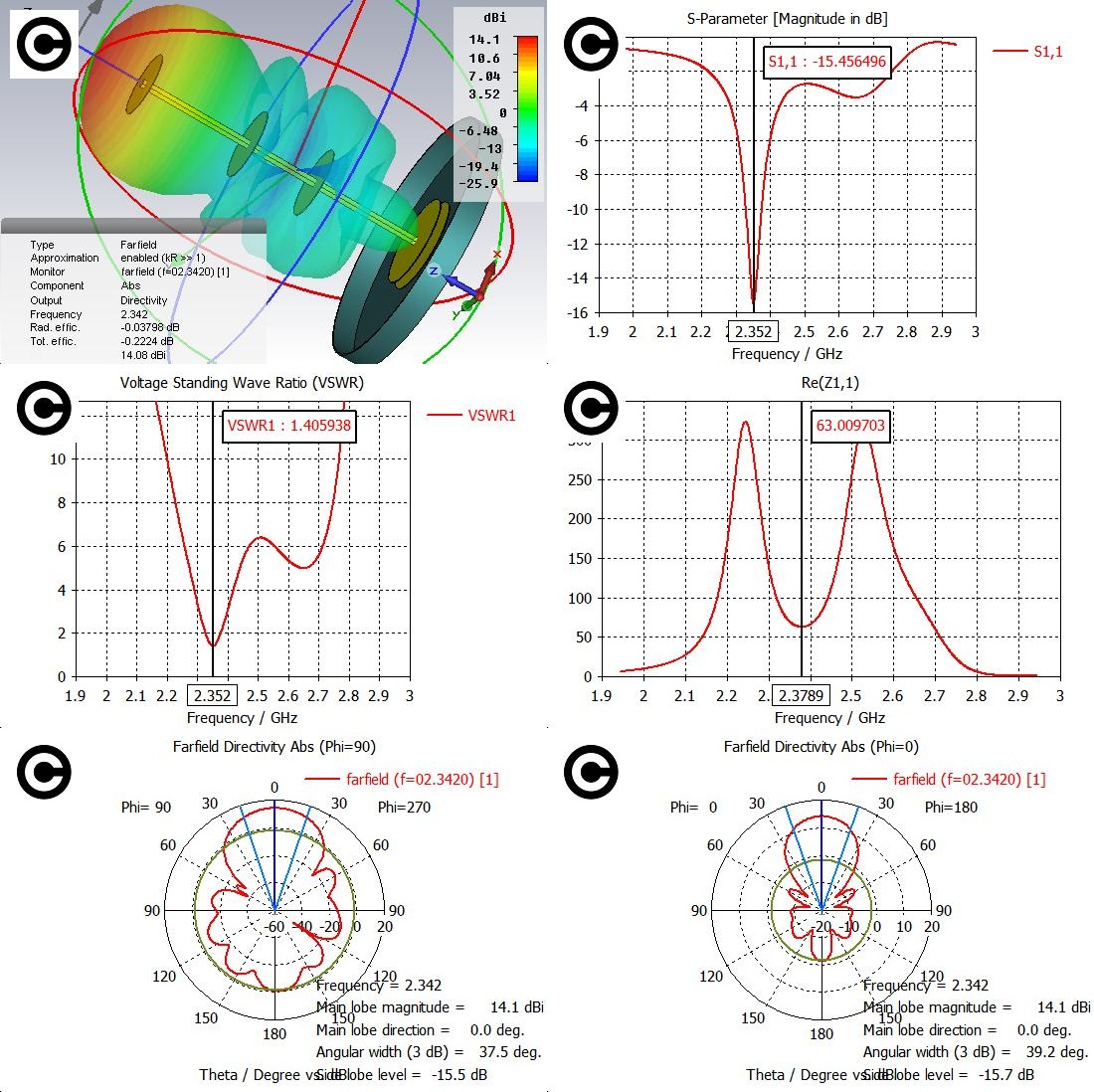

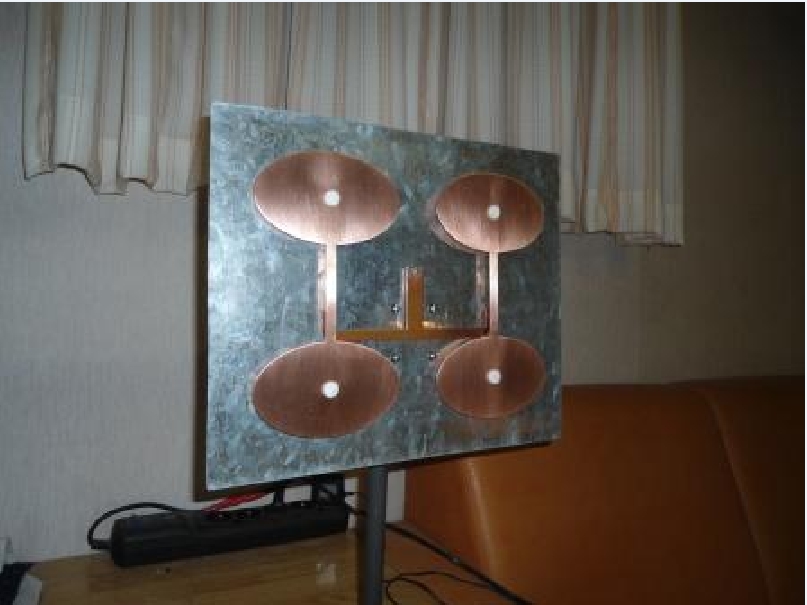

 This is my older simulation with a 3G patch-elliptic antenna....http://www.lan23.ru/forum/showthread.php?t=9279&p=91732&viewfull=1#post91732





,,,for which I think that for this antenna can be done optimization ... ???



[sa3500 21]

I continue to collect them. I like them very much.

[HakimAzhar 0]

how to apply the design to cst. do you have the step to design this?

[Admin 2545]

,,,, this antenna is long ago and I do not have the file yet, but it can be restored with improvements....!!!

[Admin 2545]

,,,why the antenna more exposed another old antenna ... ???

,,,from...http://www.lan23.ru/forum/showthread.php?t=9002

[Admin 2545]

,,,and another....http://www.lan23.ru/forum/showthread.php?t=9261



[clanon 246]

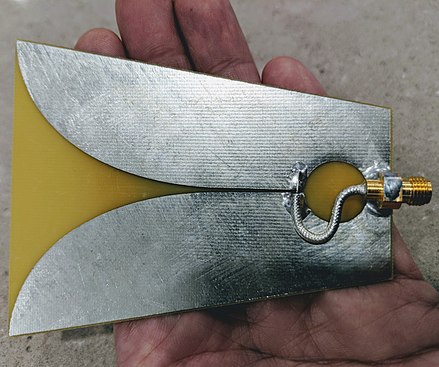

Any VIVALDI ARRAYs out there...(Interested in the FEEDING technique and Z adaptacions...)



[Admin 2545]

,,,so you like it ...???



[clanon 246]

the Ultra Wide Band thing seeems a little too much for me...(just need Gain , stability in packets and and 50mhz or so)... PD:So far the AMOS ARRAY is the best i have...the FA20...a BIG disappointment )





[Admin 2545]

another antenna 4 years ago ... ???

[clanon 246]

4 hours ago, Admin said:

another antenna 4 years ago ... ???

Jomy , what you think of this:



[Admin 2545]

This is for geostationary satellites ... ???

[clanon 246]

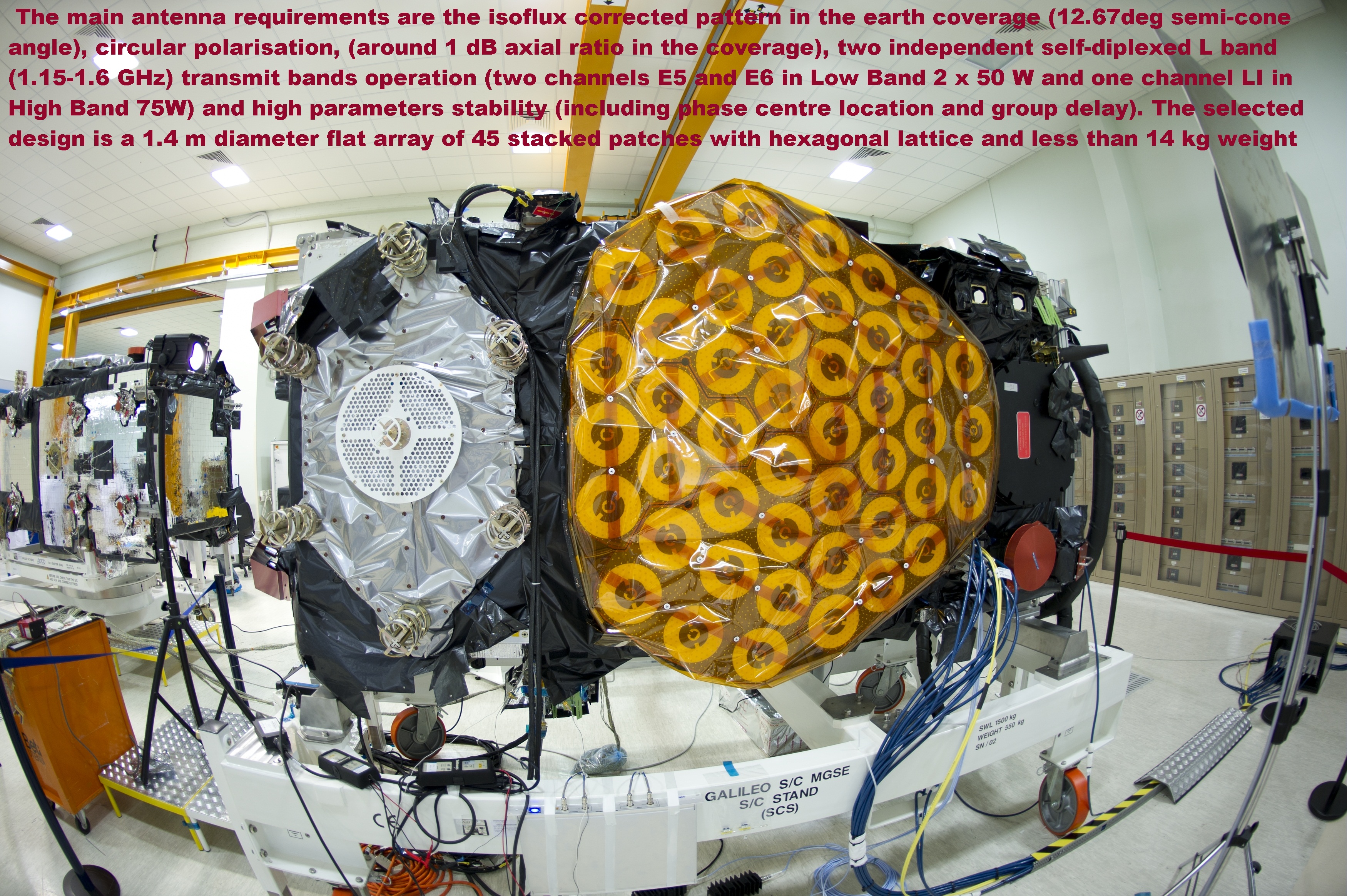

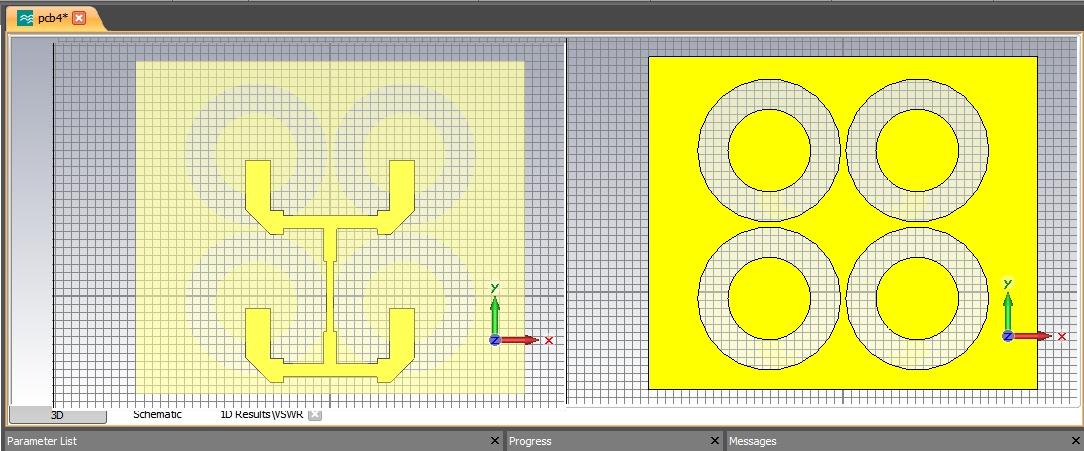

YEP , circular patches for 1.15 to 1.6 ghz...(but a weird shape of circular...)



[Admin 2545]

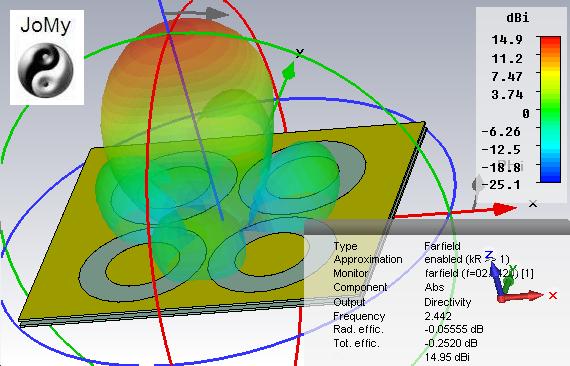

,,,my old from here...https://forum.antichat.ru/threads/80775/page-35





I might do an optimization ...!!!

[Edel2020 20]

Yes... that's what I'm looking for, a lot of gain and easy to do, do you have the measurements of that antenna for 1800 and optimized is it better than this one?

[Edel2020 20]

Although I don't have its measurements either, I'm looking for powerful and easy-to-make antennas only for 1800 MHz

[Admin 2545]

Edel2020,search on this forum and you will find everything you are interested in...!!!

[Edel2020 20]

Ok sorry if I'm clumsy searching, but this forum is huge and I've been searching for hours, I see that you offered to optimize this model and if I wanted to, I haven't seen other models this simple and powerful, yes I have seen others but with very complex balance lines Sorry again if I got into a very old topic, can you help me?

[Admin 2545]

,,,here...



[Edel2020 20]

thanks
