Panel antenna with elliptical patch

[Admin 2561]

This type of antenna was developed by the "sgser" user...http://www.lan23.ru/forum/showthread.php?t=9279&page=49

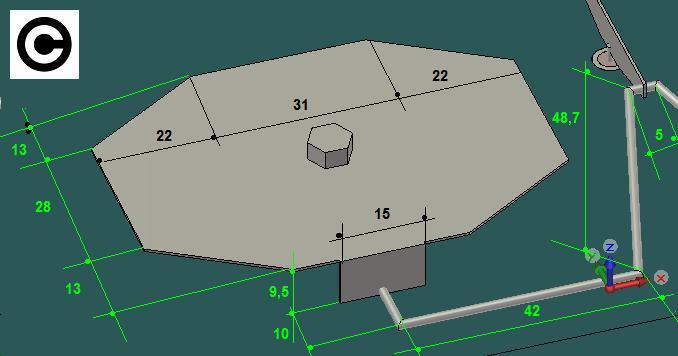

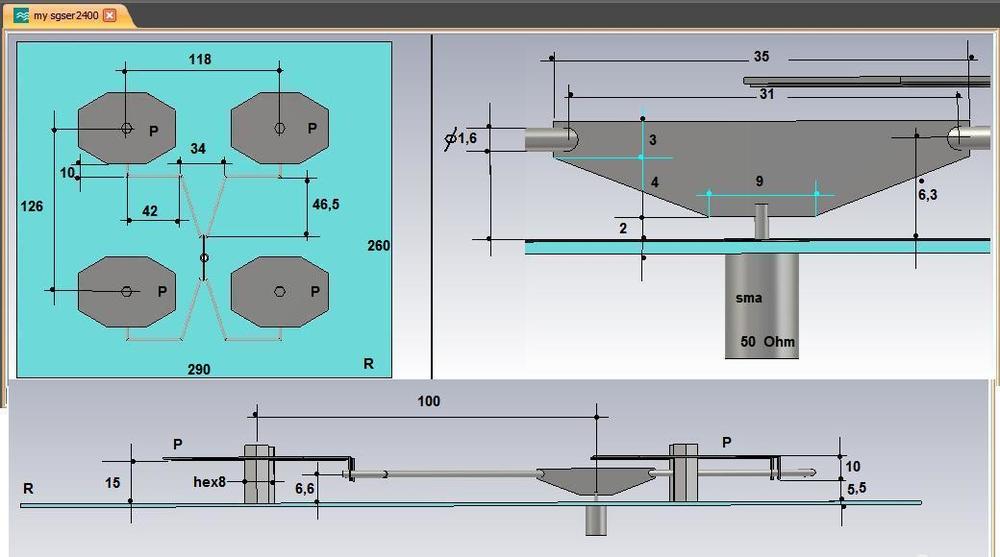

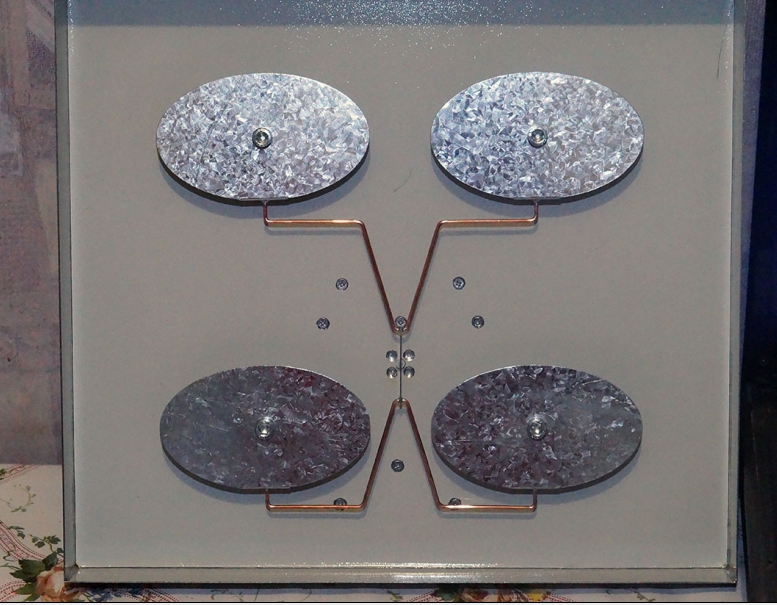

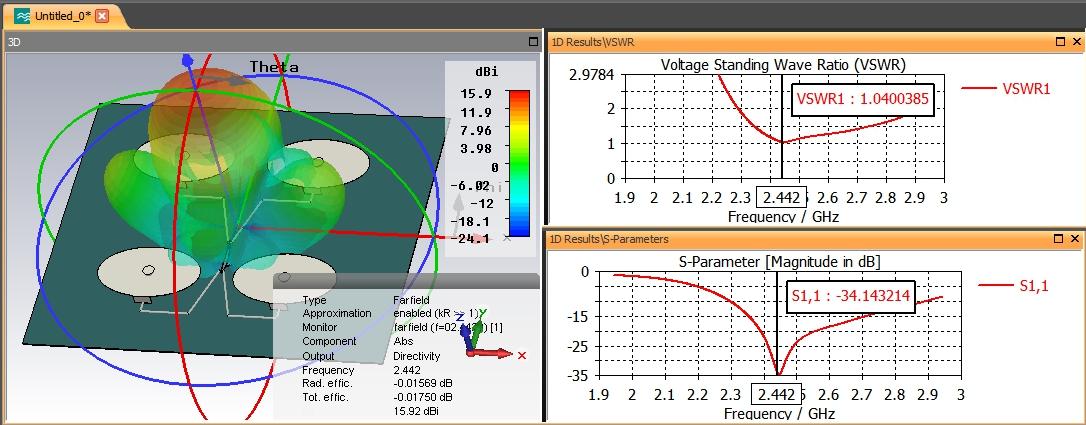

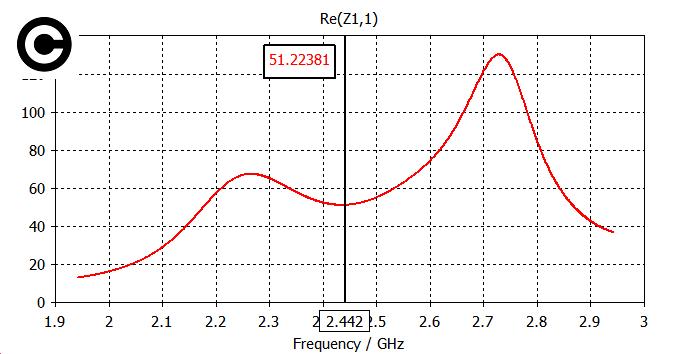

The panel shows the elliptical vibratory elements which are fed by copper wire lines through a metal plate polyhedra...

[Admin 2561]

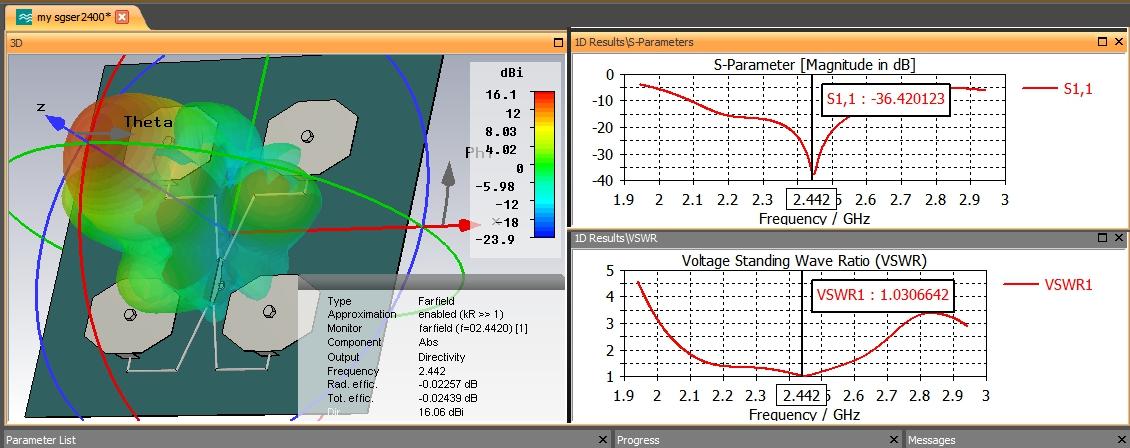

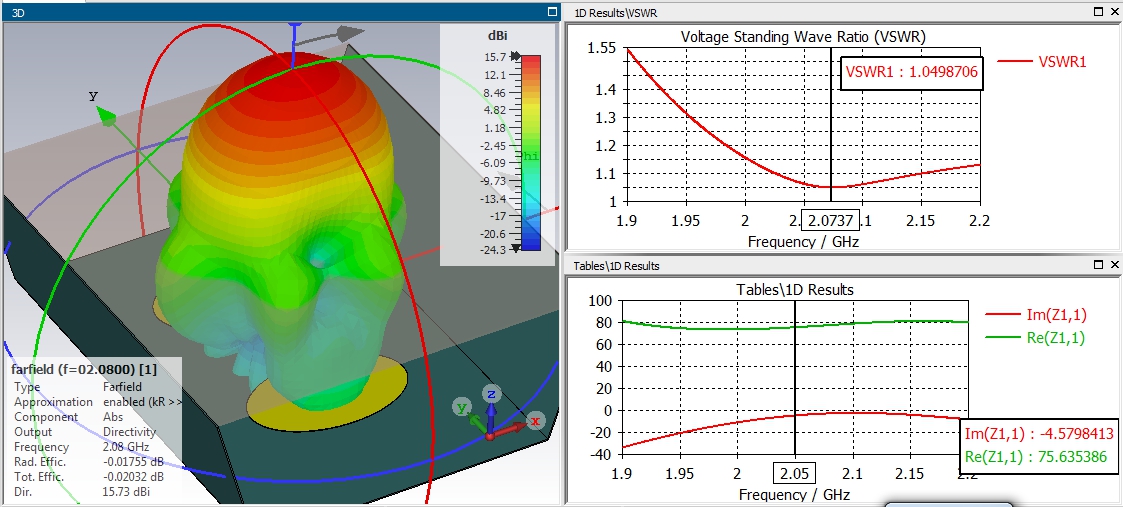

 Great achievement by sgser-user ...on 3G(1850-2200MHz)





[Admin 2561]

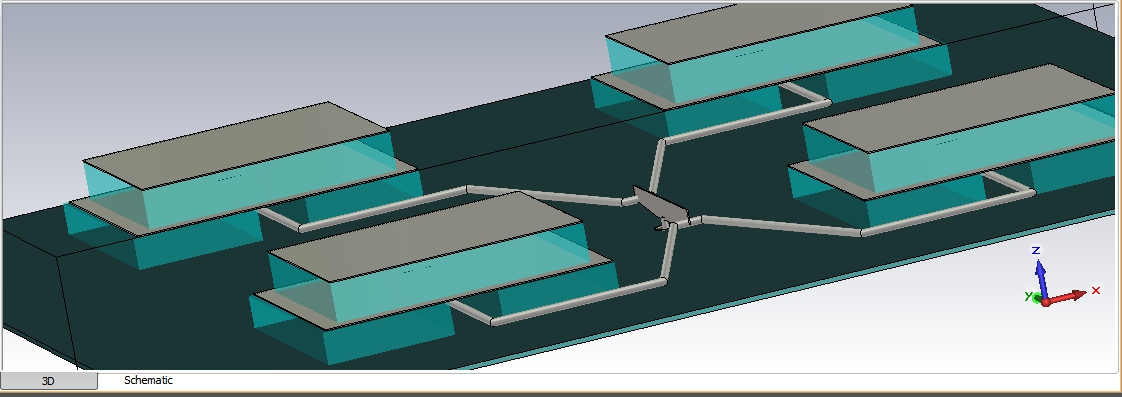

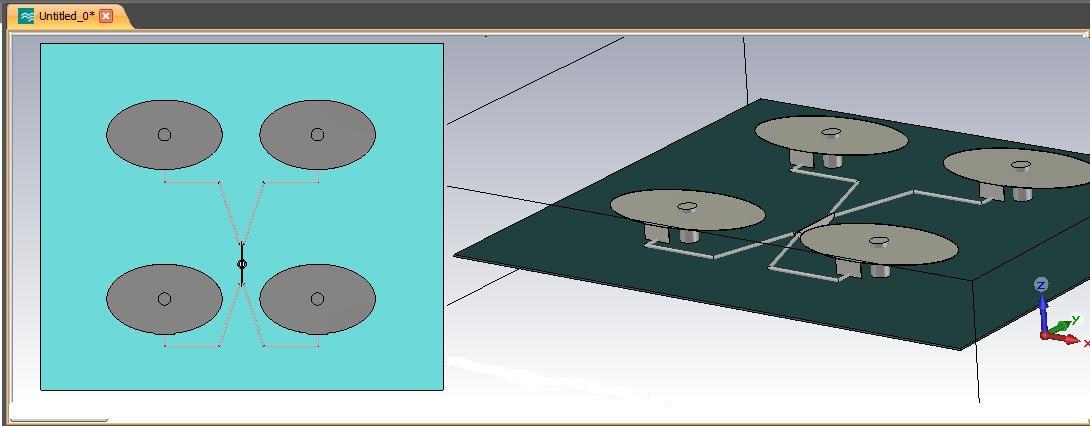

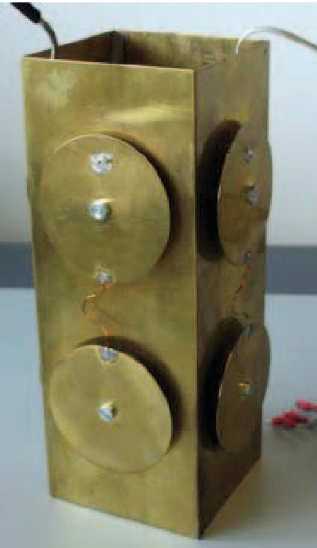

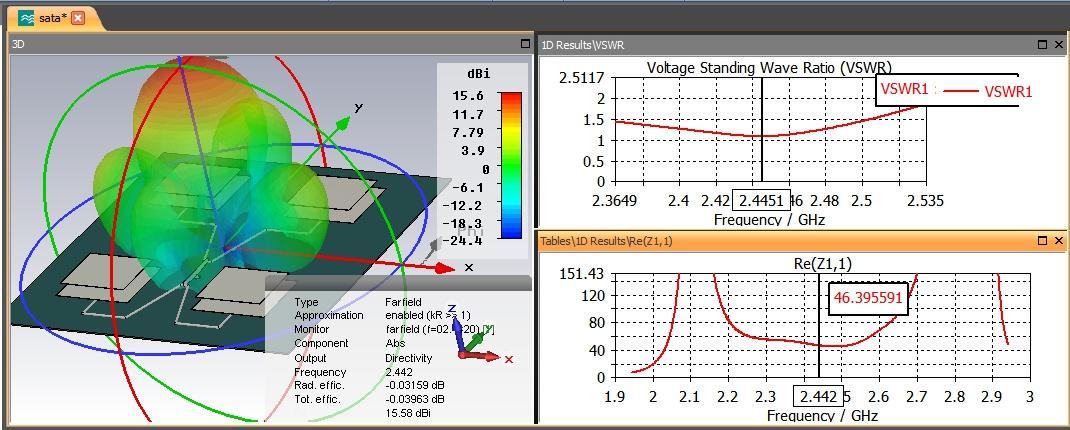

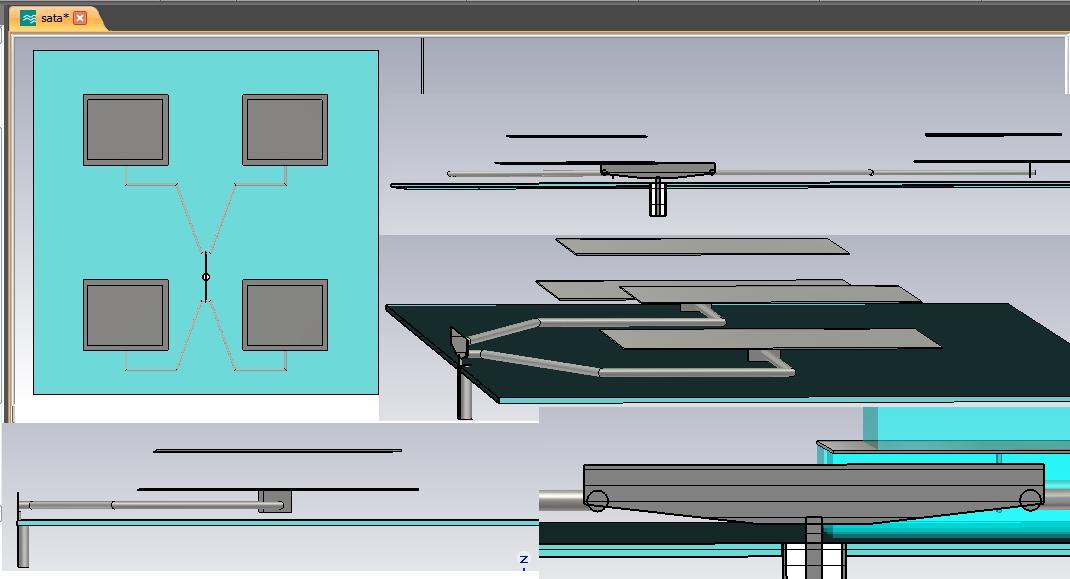

A variant with polyhedral patches









[Admin 2561]

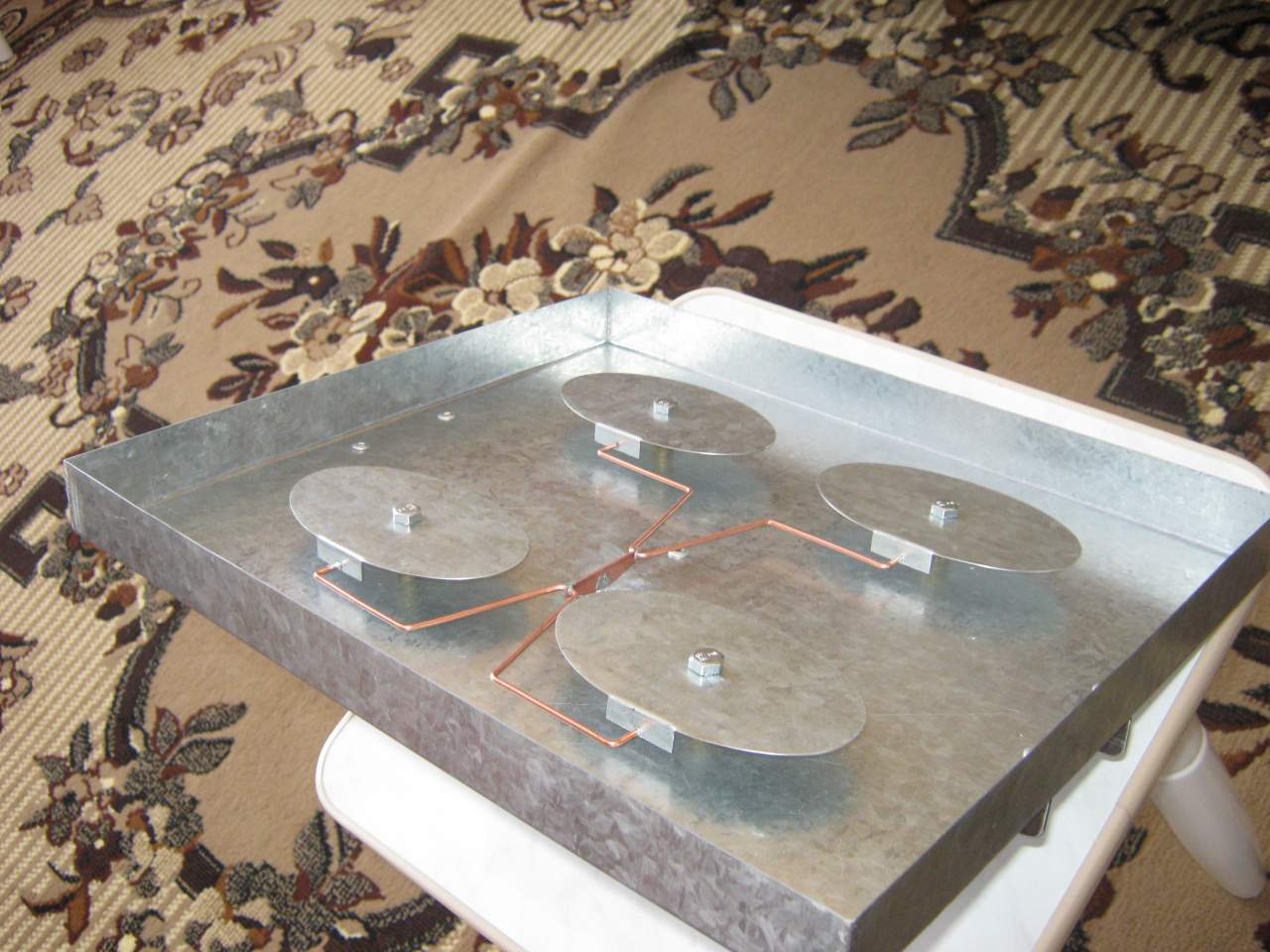

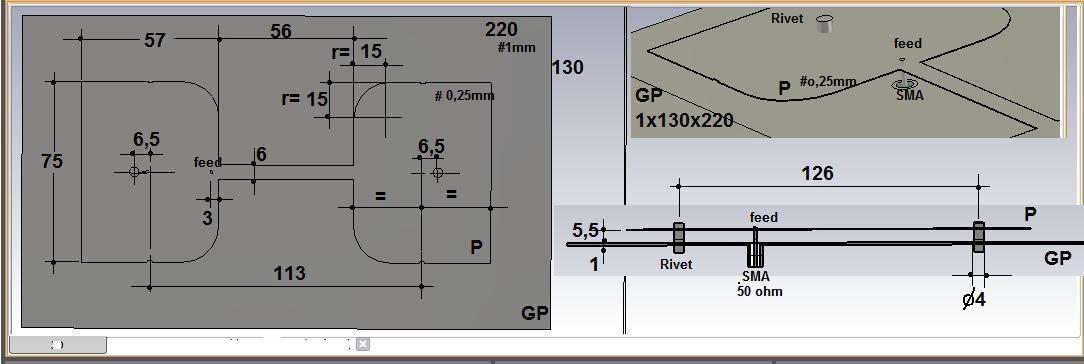

And a simple patches variant

The patches are positioned by means of spacers of polystyrene foam



[vars-cat 12]



Where can I install four M6 bolts for mounting the antenna so that the bolt caps do not affect its operation? As here.

[Admin 2561]

,,, to the center, where else ...  !!! ???

[vars-cat 12]

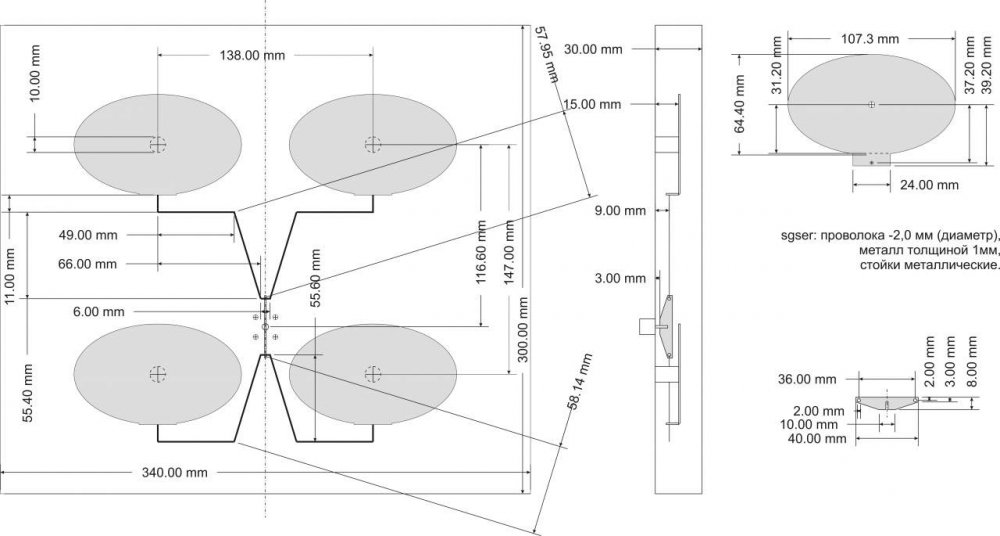

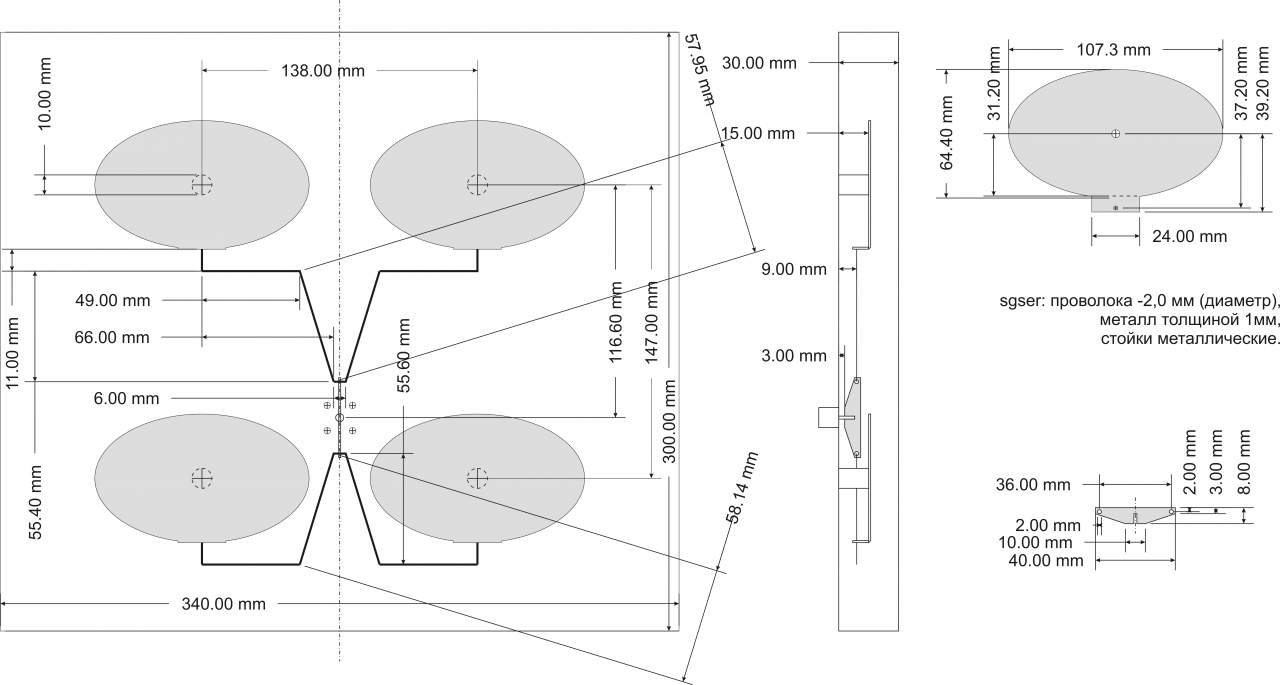

I thought the bolt caps near the wire might have a negative effect. Now I need to get a drawing of the fastener somewhere.



Edited January 1, 2020 by vars-cat

[Admin 2561]

,,,does not matter...!!!

[vars-cat 12]

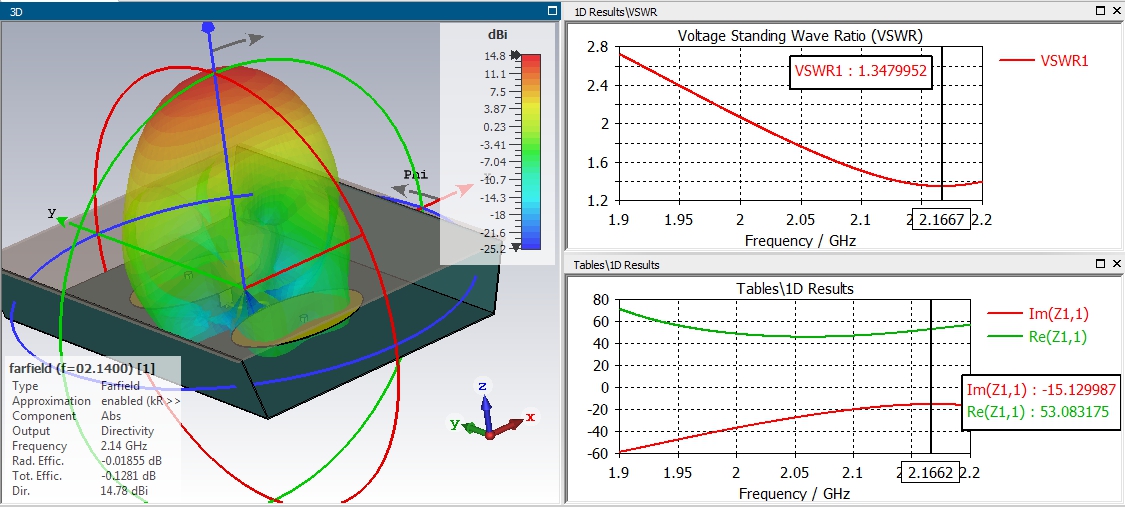

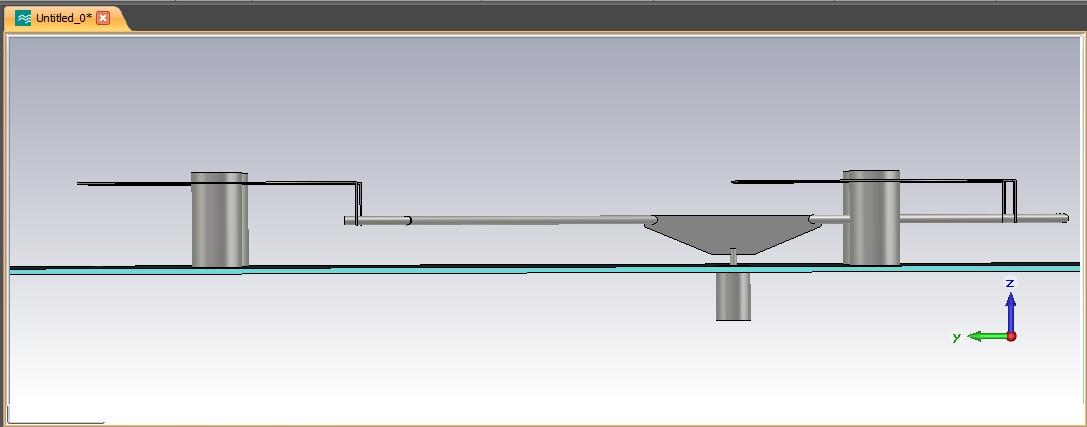

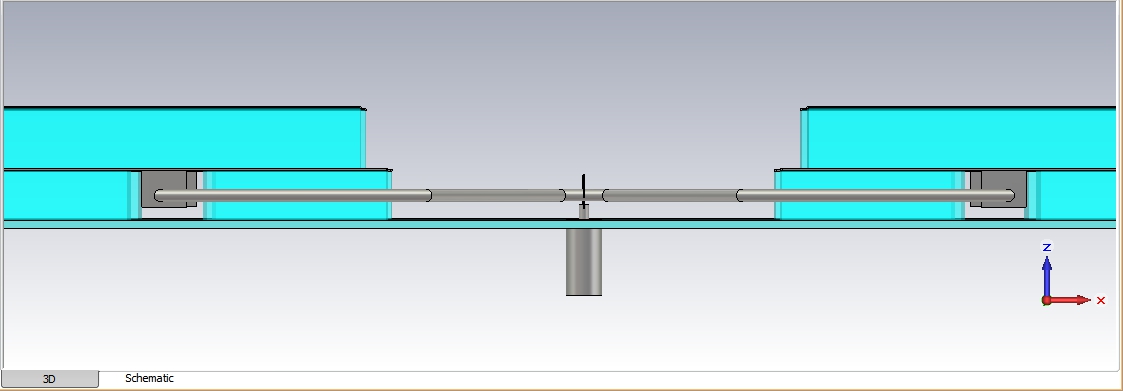

Jomy, can you simulate this antenna with vertical sides and a 2 mm thick polyethylene cover?

https://ypylypenko.livejournal.com/77745.html

[Admin 2561]

,,,okay,I'll try...!!!

,,, this antenna is after an older presentation of mine on some sites...

[Admin 2561]

This boy is wrong...



,,, and how it affects the dielectric screen...

[yurik82 9]

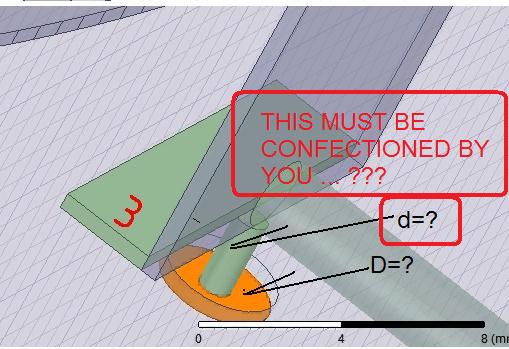

jX curve is heaviliy dependent on port design - diameter and length of feed pin wire + size of lip-capacitor  at port

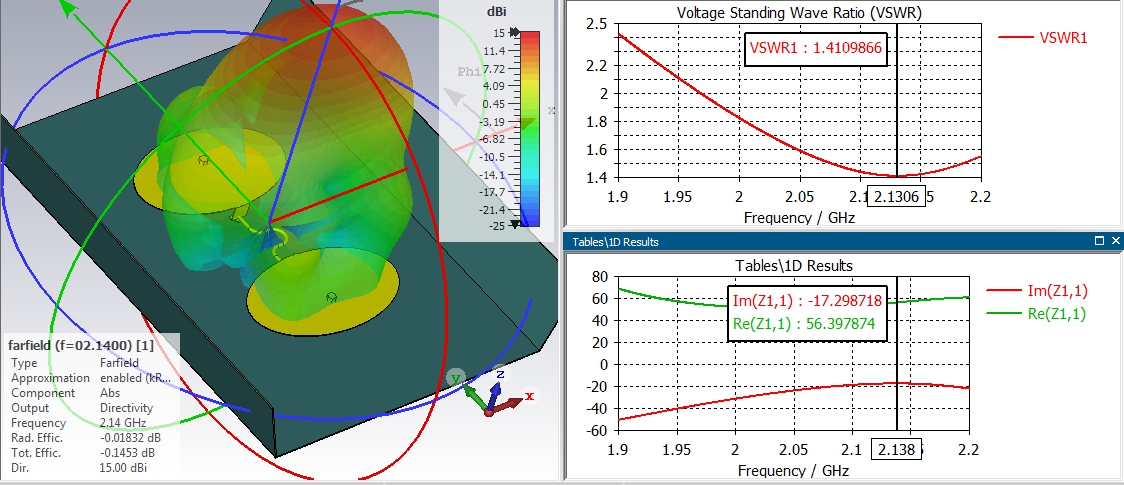

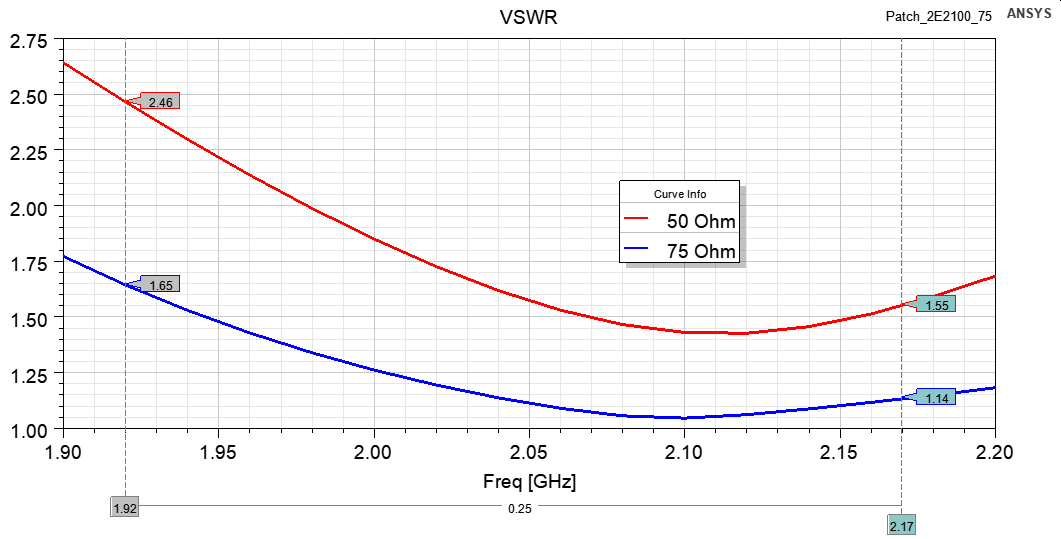

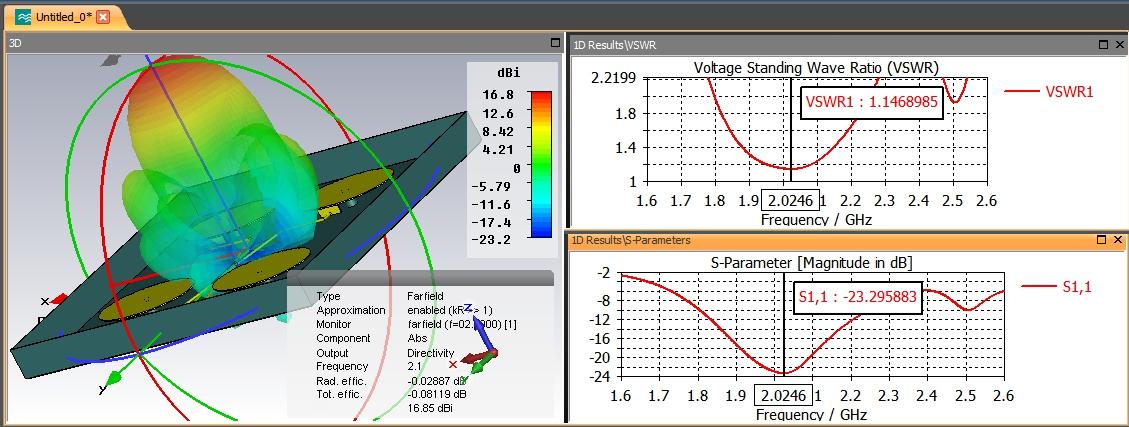

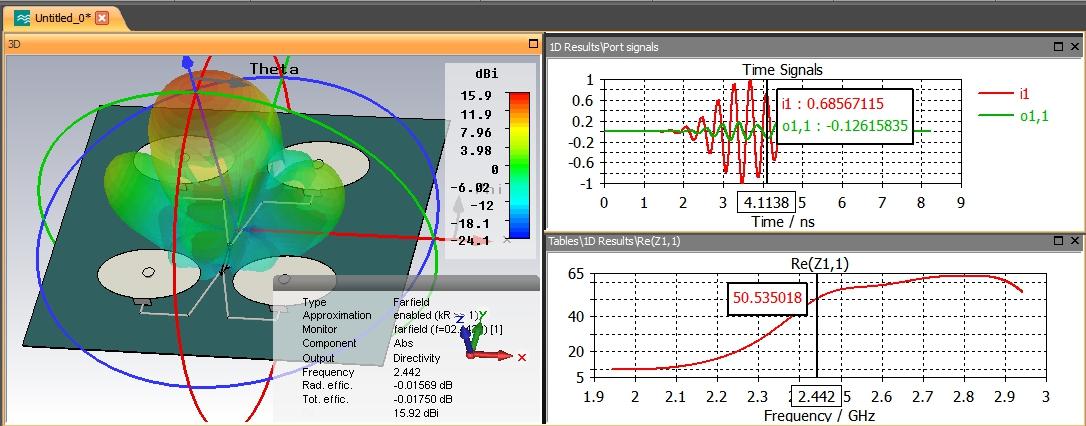

Jomy has SWR=1.41 @ 2.13 GHz, my model has SWR50=1.44 @ 2.13 GHz

Edited April 17, 2020 by yurik82

[Admin 2561]

[yurik82 9]

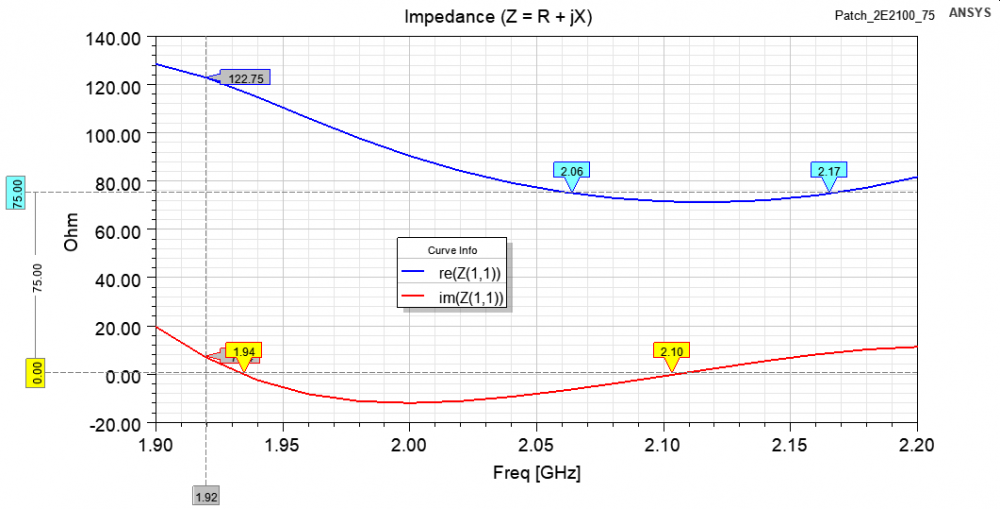

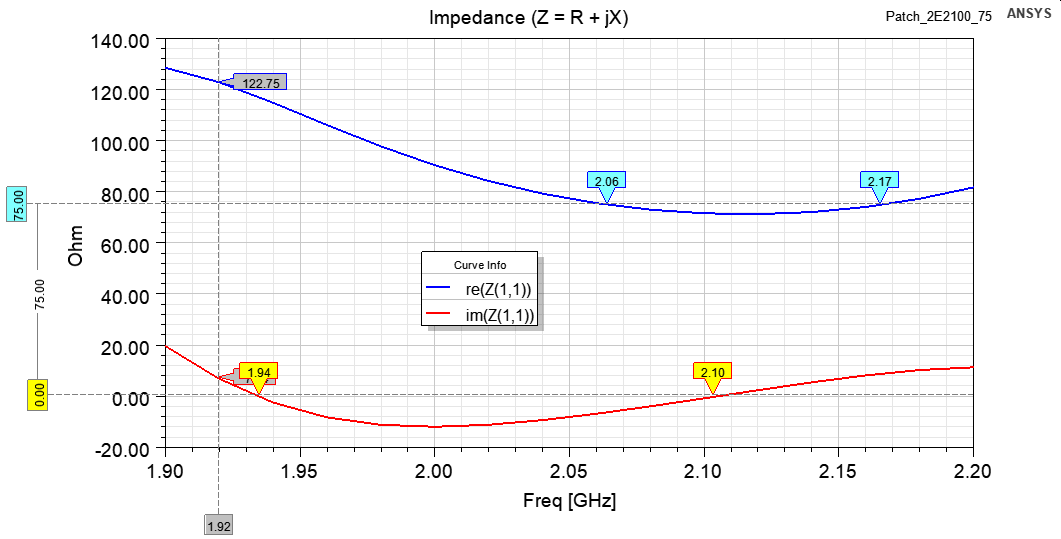

if you are going to dramatically change feed port design - you need to optimize port capacitance. -j 20 ... -j 60 is too much capacitance (remove or decrease improvised capacitor)

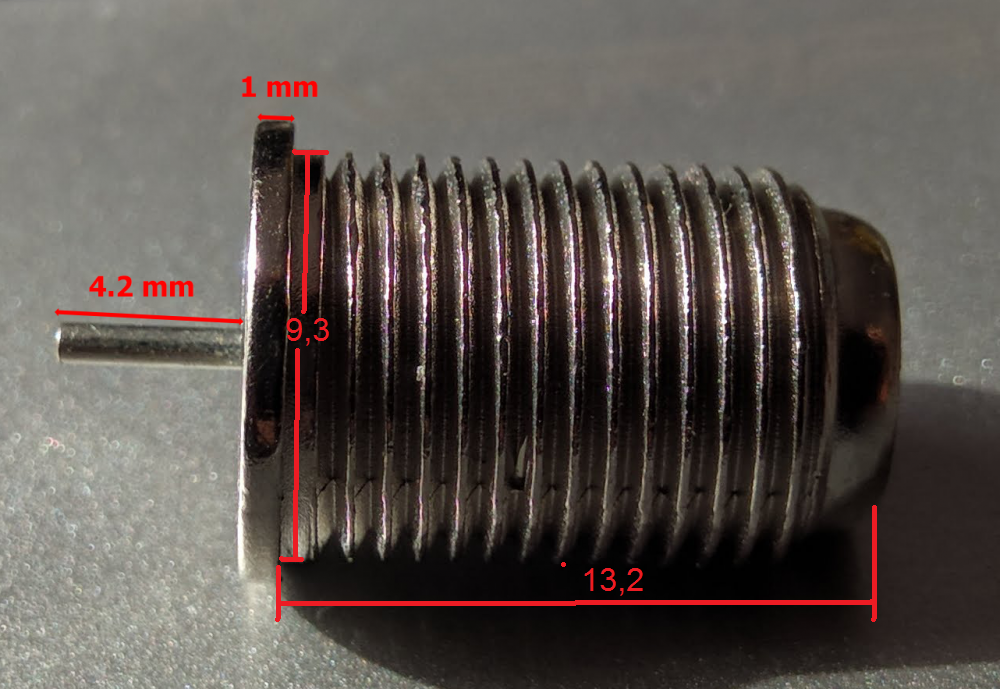

Request for this antenna was direct TV cable mount (via F-screw soldered to reflector)

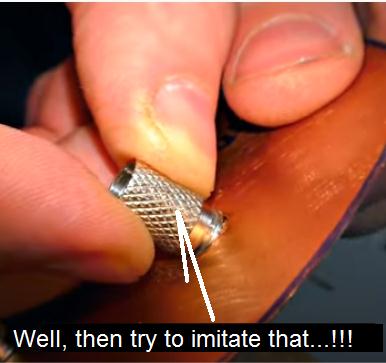

P.S. do 75 Ohm SMA exist?

Edited April 18, 2020 by yurik82

[Admin 2561]

,,,FAKE...!!!



[yurik82 9]

https://youtu.be/nCIDvrs5UzI?t=105



[Admin 2561]

[vars-cat 12]

On 4/17/2020 at 5:48 PM, Admin said:

,,,okay,I'll try...!!!

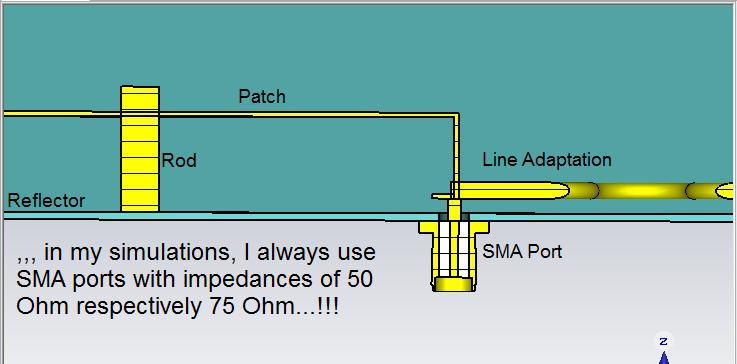

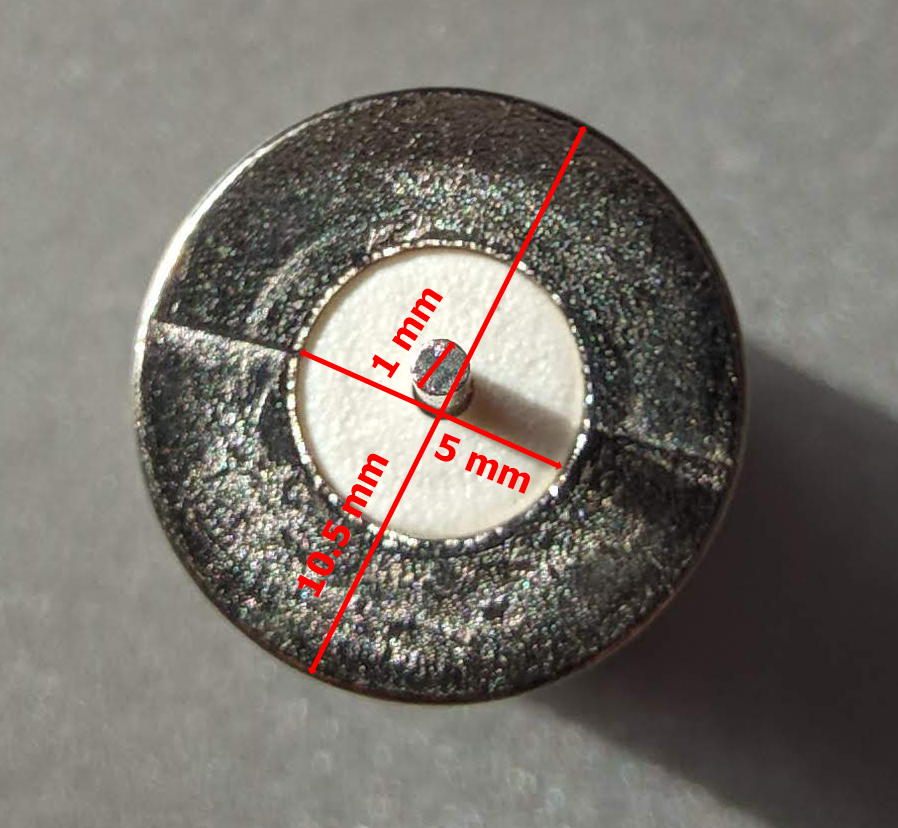

...Try using the 75 Ohm F-connector,,,



[Admin 2561]

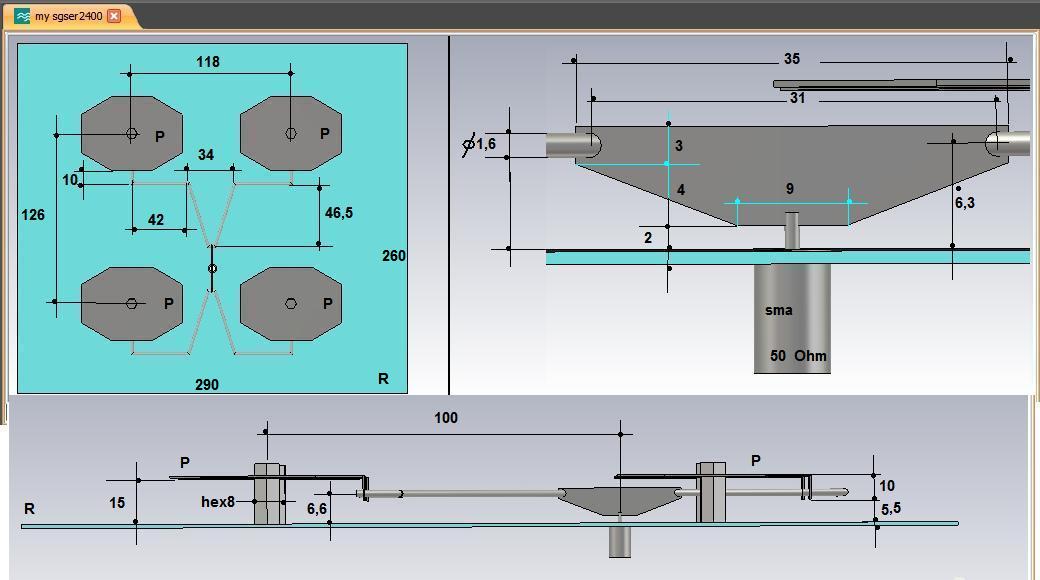

 I managed to determine the optimal dimensions for this antenna with dielectric cover plate, but I will not post them....!!!!

,, and I will try to optimize this mine antenna for broadband ....!!!

[vars-cat 12]

On 20.04.2020 at 0:35 PM, Admin said:

 I managed to determine the optimal dimensions for this antenna with dielectric cover plate, but I will not post them....!!!!

,,,..!!Judging by the screenshot, you just increased the sides,,,...!!

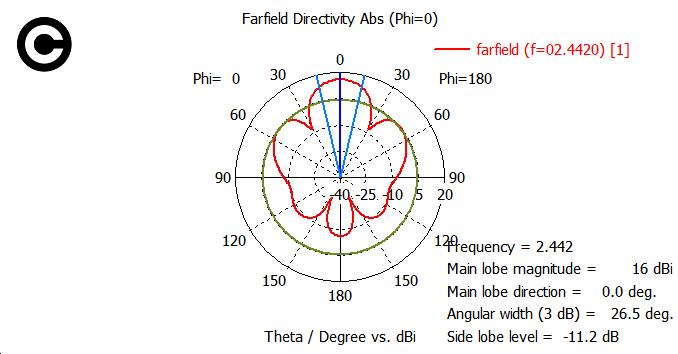

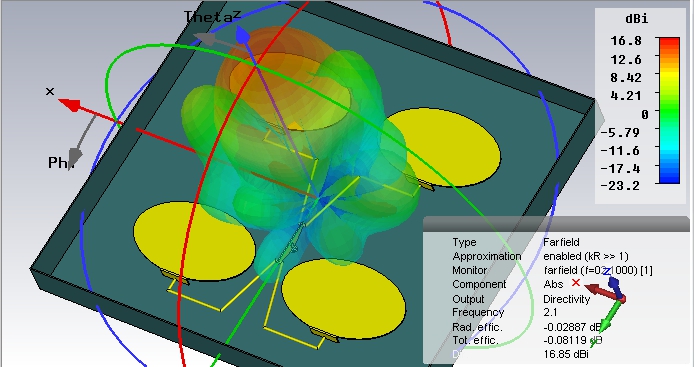

I wonder what will happen if you connect two pairs of ellipses in the reflector with such sides? 17+ dBi?

[WillLoova 0]

Would you please tell me how to post a question. I can get to this screeen on a new post but no further. I dont see any button that says post. What am I missing?
Thanks you

[Admin 2561]

I do not understand your question ... !!
,,,maybe so..."Drag files here to attach, or choose files..."
